TOPLED P3.91 P7.81 transparent led fixed led display full color smd advertising indoor outdoor panel screen easy installation
- Category: >>>
- Supplier: Shenzhen Topled Optotech Co. Ltd.
Share on (1601230768458):
Product Overview
Description
Products Description
LItem | P3.9-7.8 |
Pixel Pitch | 3.9mm-7.8mm |
Pixel Density | 32,768px/m2 |
LED composition | SMD2020 |
Cabineyt size(WxH) | 1000*500mm |
Cabinet Material | Aluminum |
Weight(pc) | 7kg/12kg |
Transparency | 75% |
Brightness | 800-1500nits |
Brightness adjustment | It can be upgrade to 3000CD brightnbess with different cost. |
Refresh Rate | 1920Hz |

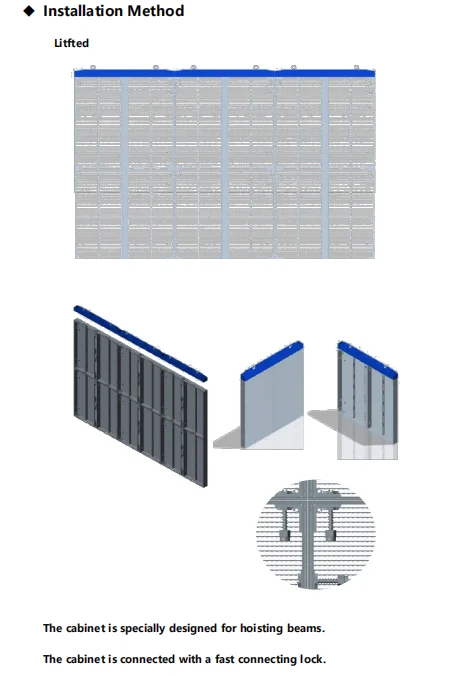

Instalaltion | Hanging/ Stacking/ Fixed |
Maintenance | Rear/Front maintenance |
Trade Term | FOB shenzhen |
Warranty | 2 years warranty: lifespan technical support; pre-sale/after-sale service |
Recommend Products
LED transparent screen series | ||||||||||
Type | Top-PH3.91 | Top-PH5 | Top-PH6.25 | Top-PH7.82 | Top-PH7.82 | |||||
Pixel Pitch(mm) | 3.91mm-7.82mm | 3.91mm-5mm | 6.25mm-6.25mm | 7.82mm-7.82mm | 7.82mm-15.64mm | |||||
Physical Density (dot/sqm) | 32,768 | 51,200 | 25,600 | 16,384 | 8,192 | |||||
Module Size | 500mm×1000mm 1000mm×1000mm | 500mm×1000mm 1000mm×1000mm | 500mm×1000mm 1000mm×1000mm | 500mm×1000mm 1000mm×1000mm | 500mm×1000mm 1000mm×1000mm | |||||
Pixel Constitation | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | |||||
Optimum Viewing Distance | 5～100m | 5～100m | 8～100m | 8～100m | 10～100m | |||||
Permeability | 70% | 65% | 70% | 75% | 75% | |||||
Weight | 15KG/㎡ | 15KG/㎡ | 15KG/㎡ | 15KG/㎡ | 14KG/㎡ | |||||
Visible Angle | 120°～120° | 120°～120° | 120°～120° | 120°～120° | 120°～120° | |||||
Thickness | 8cm | 8cm | 8cm | 8cm | 8cm | |||||
Brightness | ≥3600nits | ≥3600nits | ≥3600nits | ≥3600nits | ≥3600nits | |||||
Average Power | 200w/㎡ | 200w/㎡ | 200w/㎡ | 200w/㎡ | 200w/㎡ | |||||
Refresh Rate | ≥3840Hz | ≥3840Hz | ≥3840Hz | ≥3840Hz | ≥3840Hz | |||||
Working Life | 100,000H | 100,000H | 100,000H | 100,000H | 100,000H | |||||
Installation | Hoisting/folding | Hoisting/folding | Hoisting/folding | Hoisting/folding | Hoisting/folding | |||||
Protection Level | IP45 | IP45 | IP45 | IP45 | IP45 | |||||
Products Description
Product Introduction

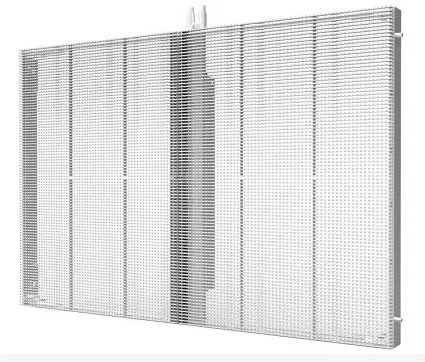

P3.91-7.8mm full color high transparent LED display screen, is a new generation of LED display products, which can ensure the color richness of the dynamic screen and display details but not affect the beauty and the
lighting of the installation position. The cabinet size is designed as 1000X1000mm which can be spliced into any shape in any direction and size. At the same time, the design of standard size makes the image uncompressed, clear and true and show perfect visual effect.
lighting of the installation position. The cabinet size is designed as 1000X1000mm which can be spliced into any shape in any direction and size. At the same time, the design of standard size makes the image uncompressed, clear and true and show perfect visual effect.
Details Images
FAQ
1. What specifications and sizes of display screens do you offer?
We can provide display screens in different specifications and sizes to meet customers' needs, and we can also customize them according to their requirements.
2. What are the features and advantages of your display screens?
Our display screens have the advantages of high resolution, high brightness, high contrast, and low power consumption, as
well as multiple application scenarios and industry applications.
3. Do your display screens comply with international certification standards?
Yes, our display screens comply with various international certification standards, such as CE certification, RoHS
certification, FCC certification, and so on.
4. Do you support custom design and customization requests for your display screens?
Yes, we can provide custom design and customization production according to customers' needs to meet their special
requirements and demands.
5. What environmental conditions can your display screens withstand?
Our display screens can withstand various environmental conditions, such as high temperature, low temperature, humidity,
dryness, and so on, and also have the characteristics of waterproof, dustproof, shockproof, and so on.
6. What after-sales services and technical support do you offer for your display screens?
We provide comprehensive after-sales services and technical support to help customers solve various problems and
difficulties, and also provide training and guidance.
7. What are the prices and delivery times for your display screens?
Our prices and delivery times are determined by factors such as product type, specification, and quantity, and can be
negotiated and discussed based on customers' specific needs.
We can provide display screens in different specifications and sizes to meet customers' needs, and we can also customize them according to their requirements.
2. What are the features and advantages of your display screens?
Our display screens have the advantages of high resolution, high brightness, high contrast, and low power consumption, as
well as multiple application scenarios and industry applications.
3. Do your display screens comply with international certification standards?
Yes, our display screens comply with various international certification standards, such as CE certification, RoHS
certification, FCC certification, and so on.
4. Do you support custom design and customization requests for your display screens?
Yes, we can provide custom design and customization production according to customers' needs to meet their special
requirements and demands.
5. What environmental conditions can your display screens withstand?
Our display screens can withstand various environmental conditions, such as high temperature, low temperature, humidity,
dryness, and so on, and also have the characteristics of waterproof, dustproof, shockproof, and so on.
6. What after-sales services and technical support do you offer for your display screens?
We provide comprehensive after-sales services and technical support to help customers solve various problems and
difficulties, and also provide training and guidance.
7. What are the prices and delivery times for your display screens?
Our prices and delivery times are determined by factors such as product type, specification, and quantity, and can be
negotiated and discussed based on customers' specific needs.
