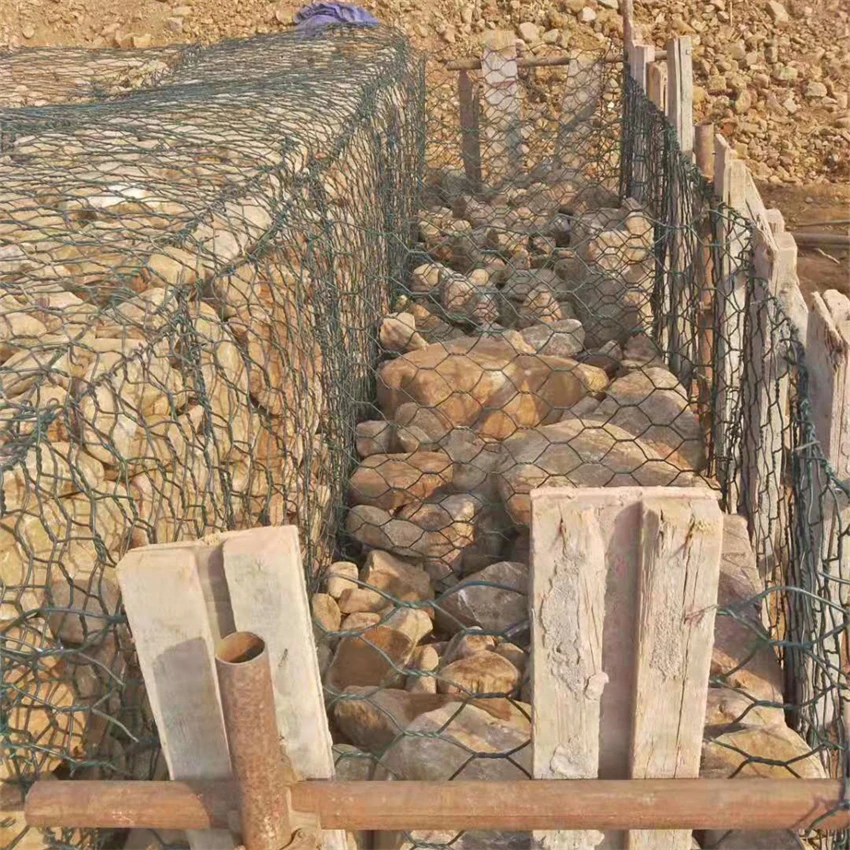

High Quality Manufacturer Hot Dipped Galvanized Stone Cage Gabion Box Rock
- Category: >>>
- Supplier: Anping County Lujie Wire Mesh Manufacturing Co. Ltd.
Share on (1601230999996):
Product Overview
Description
Specification
Material | ||||||||
Wire Diameter | 3 mm-6 mm | |||||||
Aperture | 50*50 mm, 50*100 mm etc | |||||||
Gabion Box Size | 100*30*30 cm, 100*50*30 cm, 100*100*50 cm, 100*100*100 cm etc. | |||||||
Finish | Hot Dipped Galvanized; Heavy Zinc Coating;Galfan Coating;PVC Coated. | |||||||
Normal Box Size(cm) | Diaphragms | Capacity (m3) | Mesh Size(mm) | |||||
100x30x30 | None | 0.09 | 50×50 or 100×50 | |||||
100x50x30 | None | 0.15 | ||||||
100x100x50 | None | 0.5 | ||||||
100x100x100 | None | 1 | ||||||
150x100x50 | 1 | 0.75 | ||||||
150x100x100 | 1 | 1.5 | ||||||
200x100x50 | 1 | 1 | ||||||
200x100x100 | 1 | 2 | ||||||
Other sizes can be customized. | ||||||||

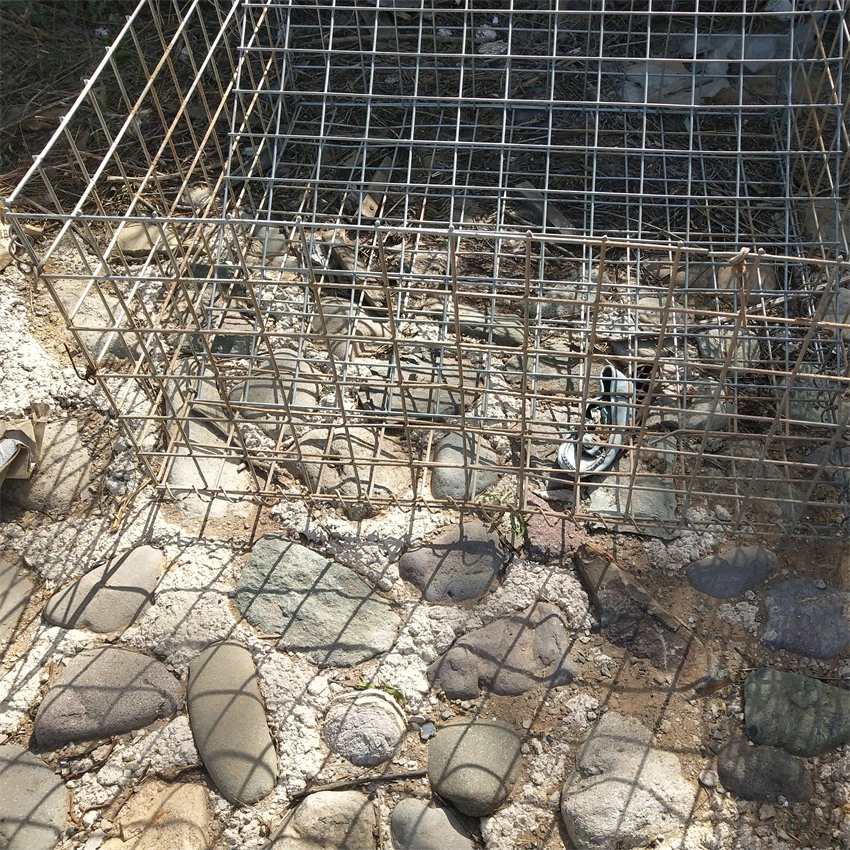

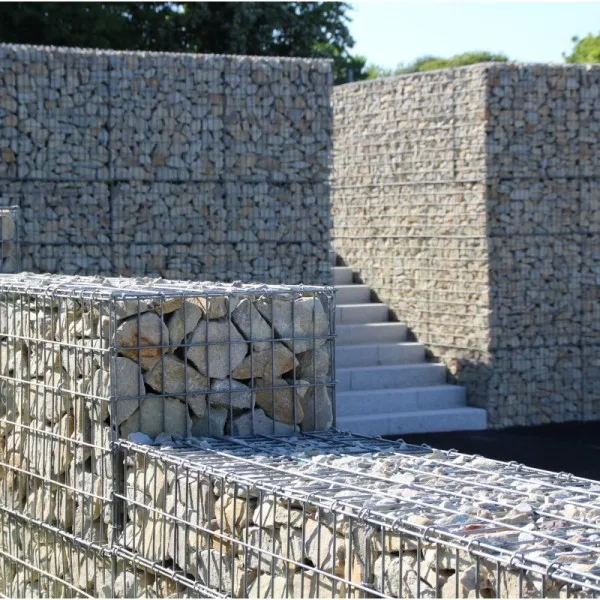

welded gabion
Products Description
welded gabion
Gabions are purpose designed and manufactured specialist stone filled wire mesh baskets or cages for use in the construction of retaining walls and slope stabilisation. Weld Mesh Gabions are offered as an alternative to our range of Woven Mesh Gabion baskets. As specialists with over 15 years of design, supply and installation experience, we offer a comprehensive range for sale in Hebei China. Purchasing from us means you get the benefit of good advice as well as the type and specification of gabion basket which best suits your requirements and budget.

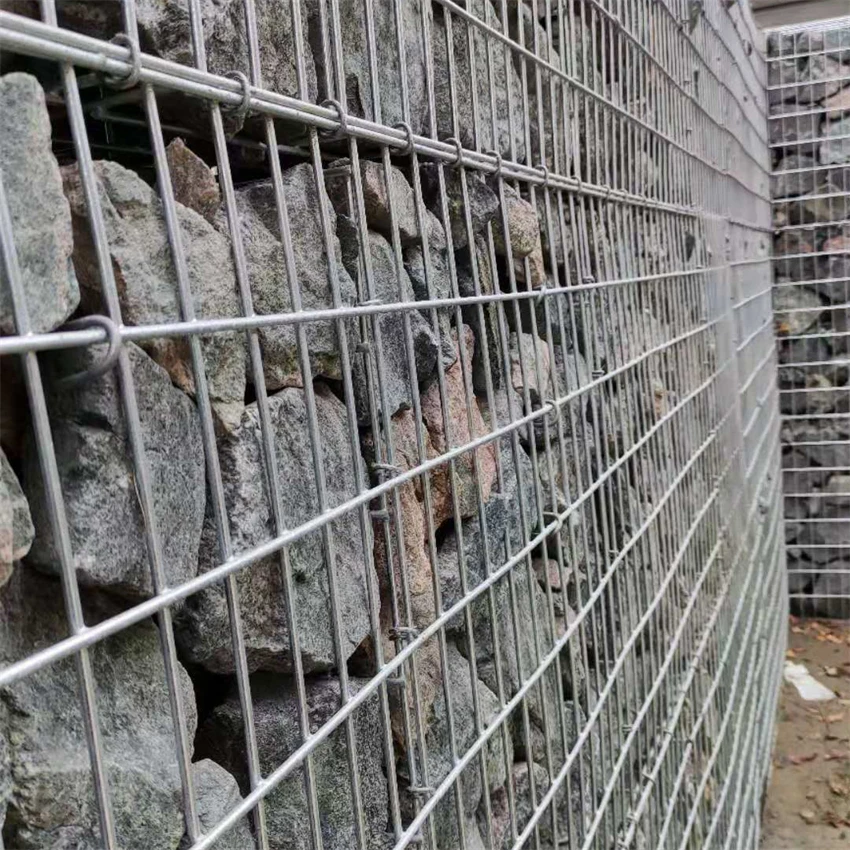

Welded Mesh Gabions are constructed using square electro welded weld mesh panels of high tensile steel. They are increasing in popularity due to their comparative ease and speed of installation. They are an economical environmental solution for structural retaining walls and coastal defences. They are particularly suited for use in retaining walls due to their permeability and flexibility. The permeability enables groundwater to flow through freely when most other retaining wall types will retain ground water causing hydrostatic pressure to build up behind the wall. Hydrostatic pressure buildup may result in the wall failing and collapsing. The flexibility allows gabions to deform a little without damage when in comparison rigid retaining walls such as concrete walls would have cracked and crumbled.
When compared to Woven Mesh gabions, Weld Mesh Gabions are substantially easier, quicker and thus cheaper to fill and install. The ease and speed of installation more than compensates for the nominal additional purchase cost. Hence, it is the more economical overall solution, once the installation cost is taken into consideration. When designed like for like, they provide the most economical solution for small to medium height soil retaining applications.

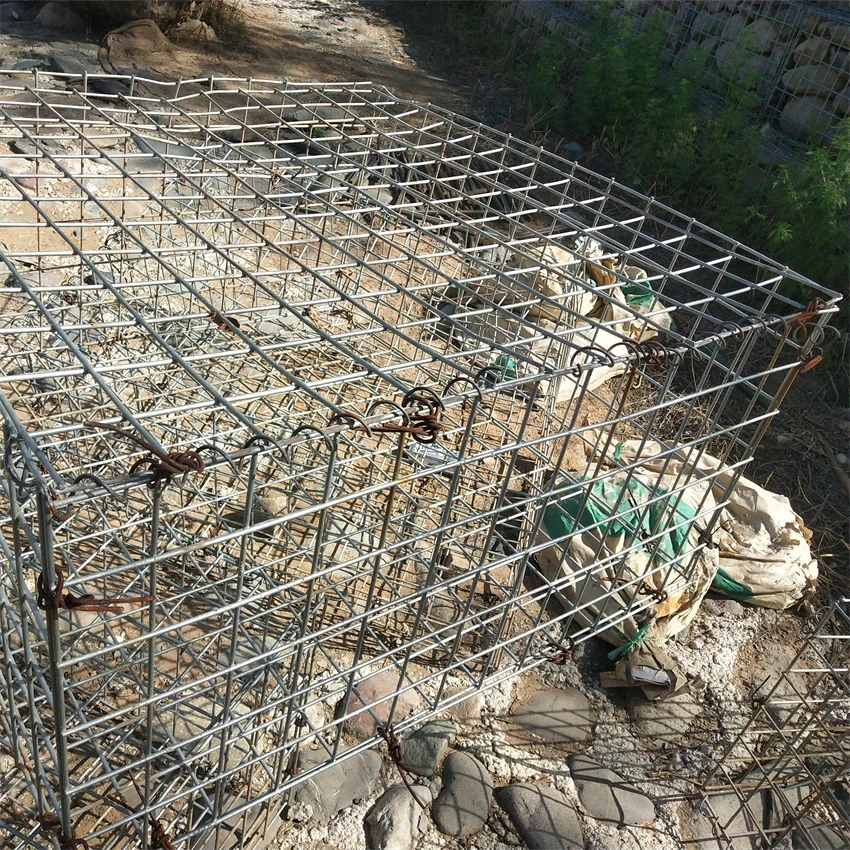

Weld Mesh Gabions are typically supplied partially assembled to suit customer requirements and flat packed for delivery. Once on site, they are opened up, stood up and then laced together in-situ with lacing wire to form the required retaining wall configuration. Where appropriate, they may also be clipped using CL50 clips or helicalled using Helical binders. More information on this is available by downloading our Installation Guide which can be downloaded using the link at the bottom of this page.
Welded Mesh Gabions are constructed using square electro welded weld mesh panels of high tensile steel. They are increasing in popularity due to their comparative ease and speed of installation. They are an economical environmental solution for structural retaining walls and coastal defences. They are particularly suited for use in retaining walls due to their permeability and flexibility. The permeability enables groundwater to flow through freely when most other retaining wall types will retain ground water causing hydrostatic pressure to build up behind the wall. Hydrostatic pressure buildup may result in the wall failing and collapsing. The flexibility allows gabions to deform a little without damage when in comparison rigid retaining walls such as concrete walls would have cracked and crumbled.
When compared to Woven Mesh gabions, Weld Mesh Gabions are substantially easier, quicker and thus cheaper to fill and install. The ease and speed of installation more than compensates for the nominal additional purchase cost. Hence, it is the more economical overall solution, once the installation cost is taken into consideration. When designed like for like, they provide the most economical solution for small to medium height soil retaining applications.
Weld Mesh Gabions are typically supplied partially assembled to suit customer requirements and flat packed for delivery. Once on site, they are opened up, stood up and then laced together in-situ with lacing wire to form the required retaining wall configuration. Where appropriate, they may also be clipped using CL50 clips or helicalled using Helical binders. More information on this is available by downloading our Installation Guide which can be downloaded using the link at the bottom of this page.

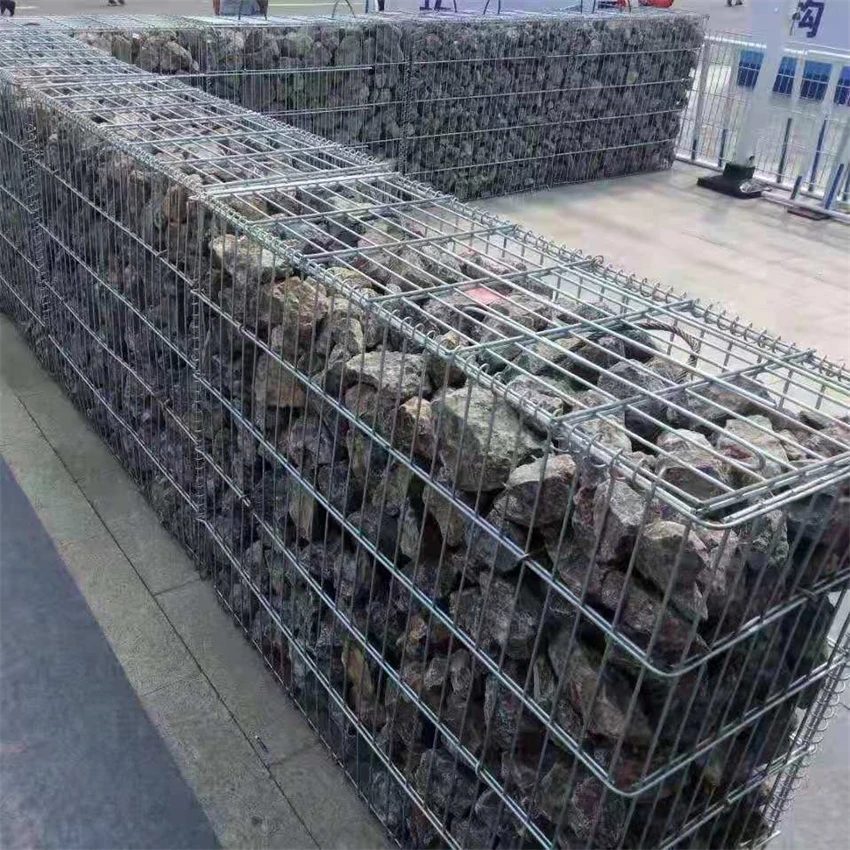

Details Images

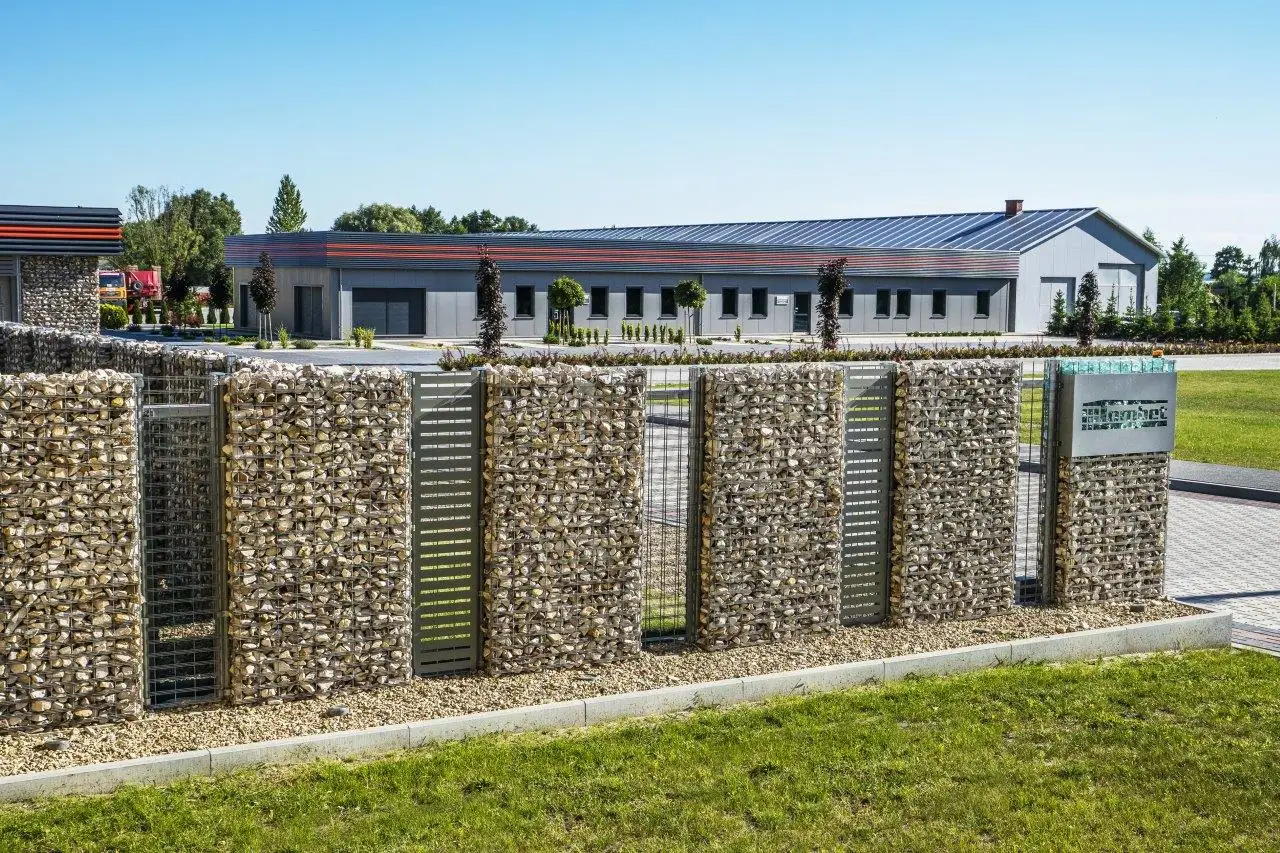

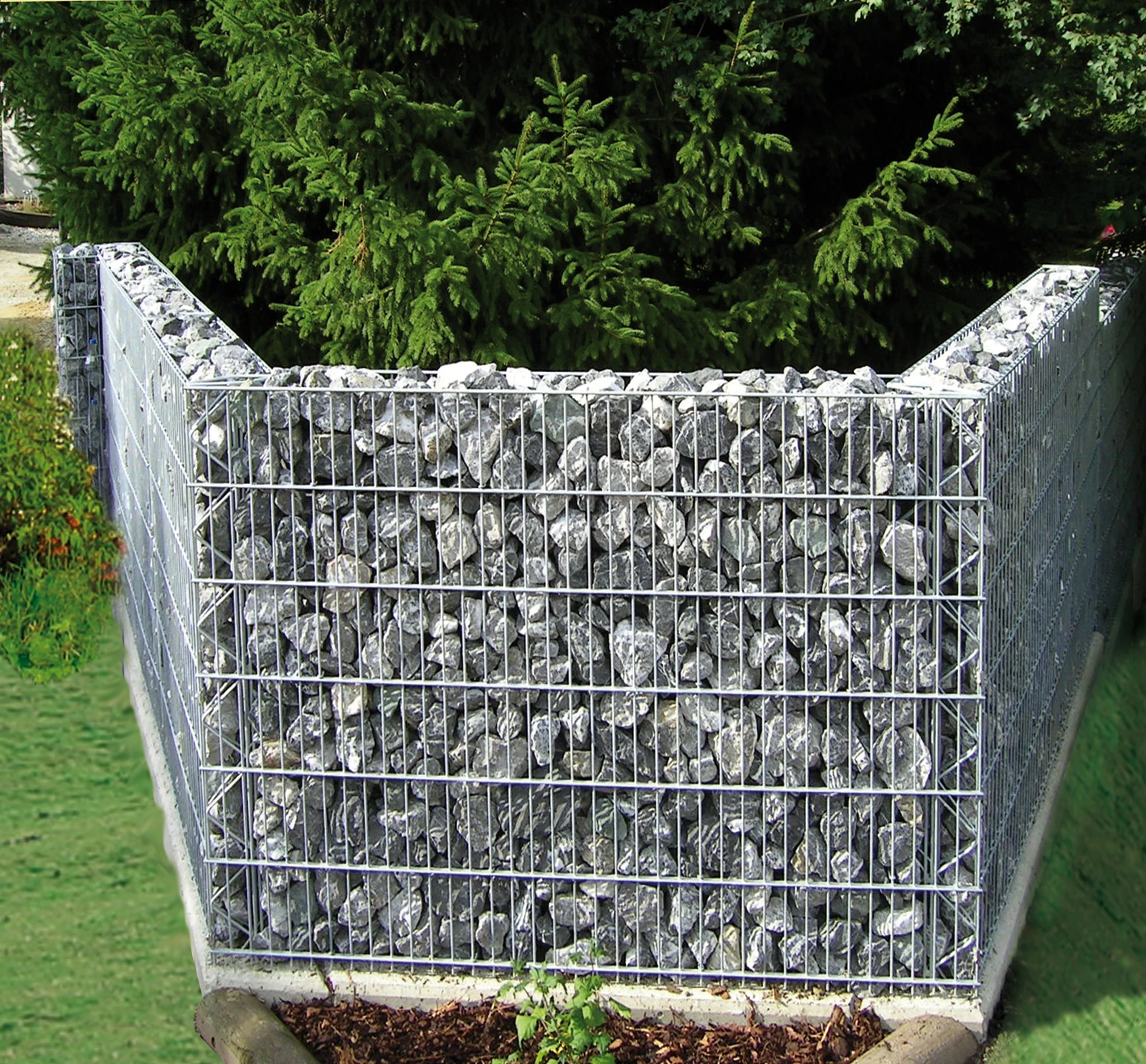

Application

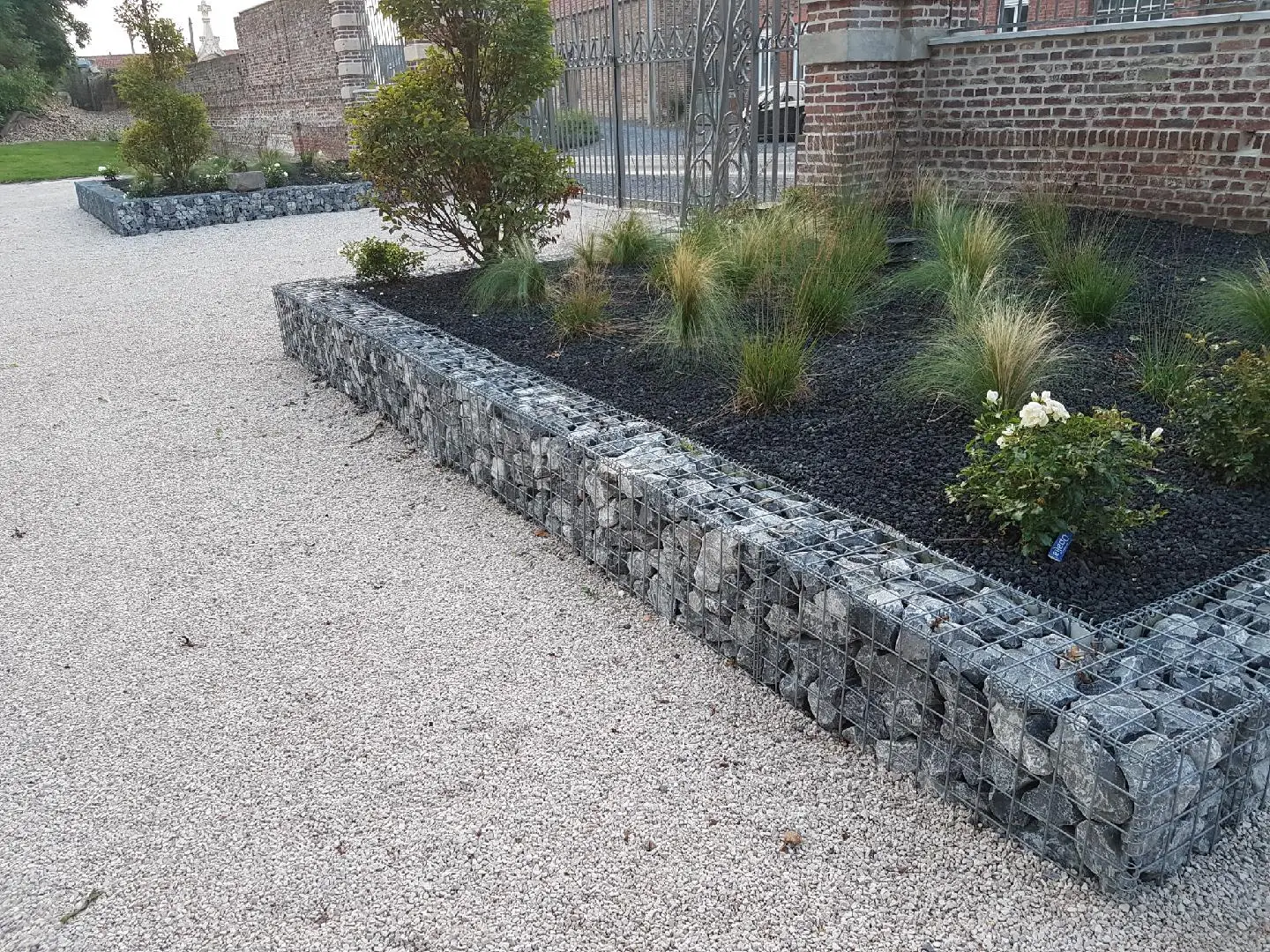

* Gabion planter.

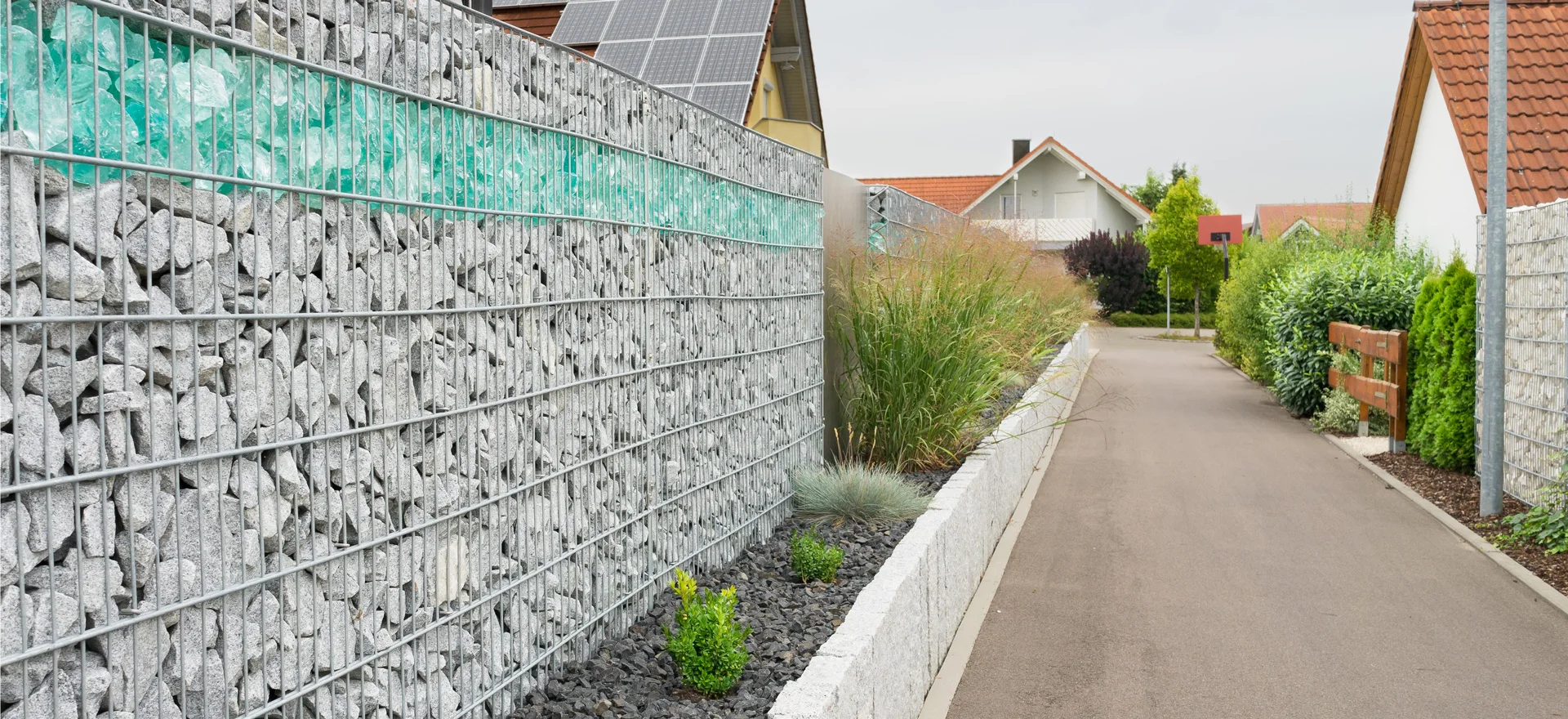

* Retaining wall.
* Fireplaces.

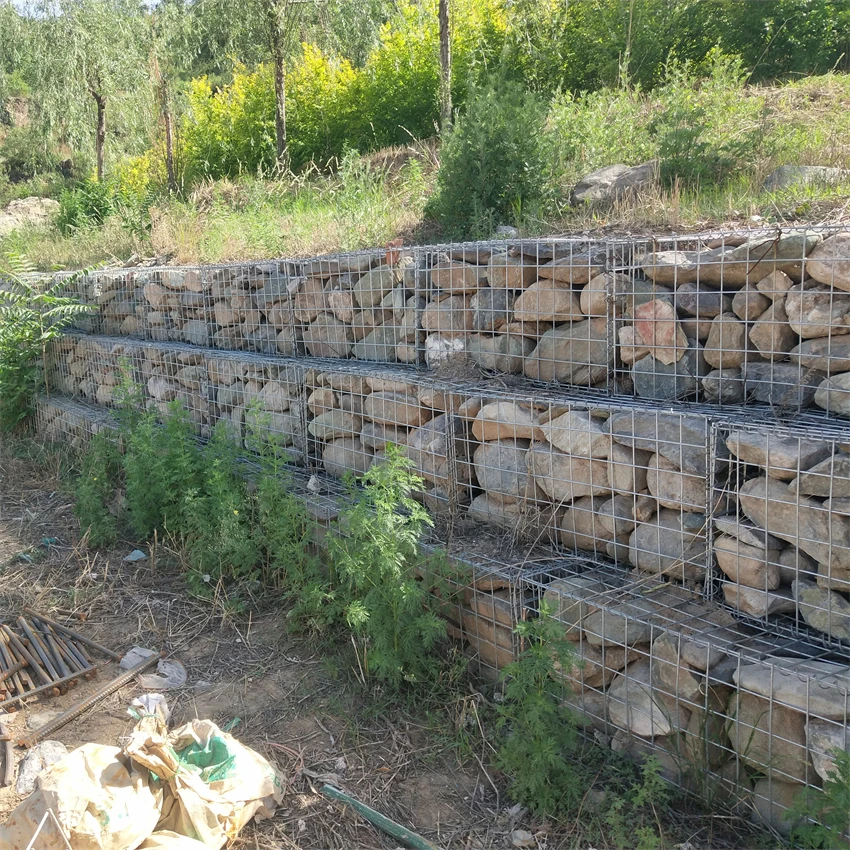

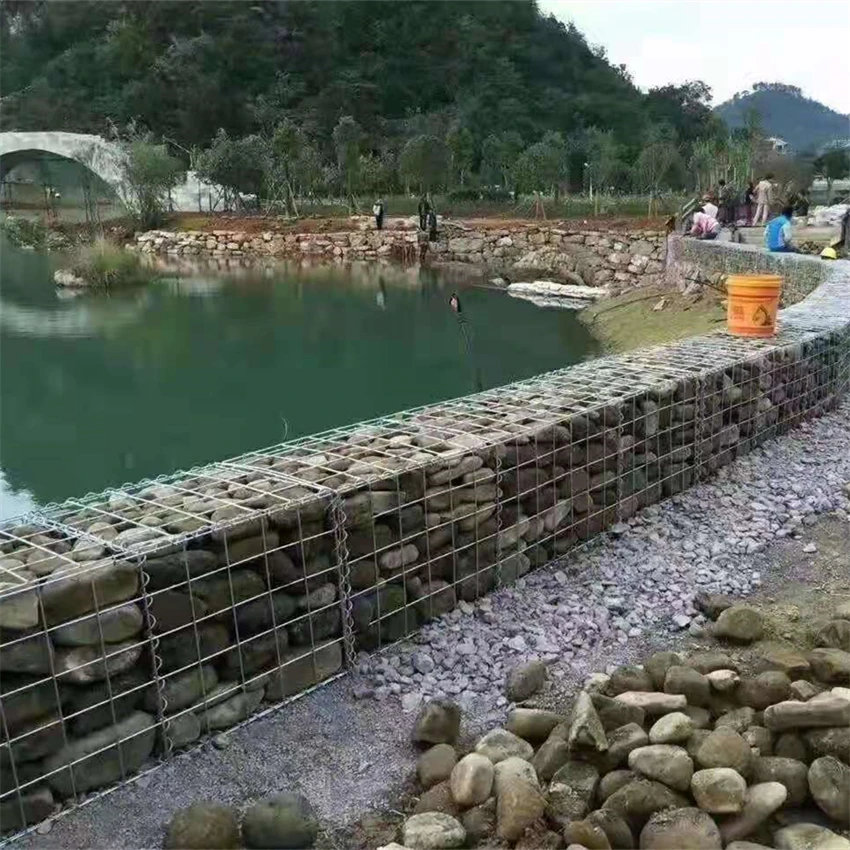

* Slope protection.
* Military defense.

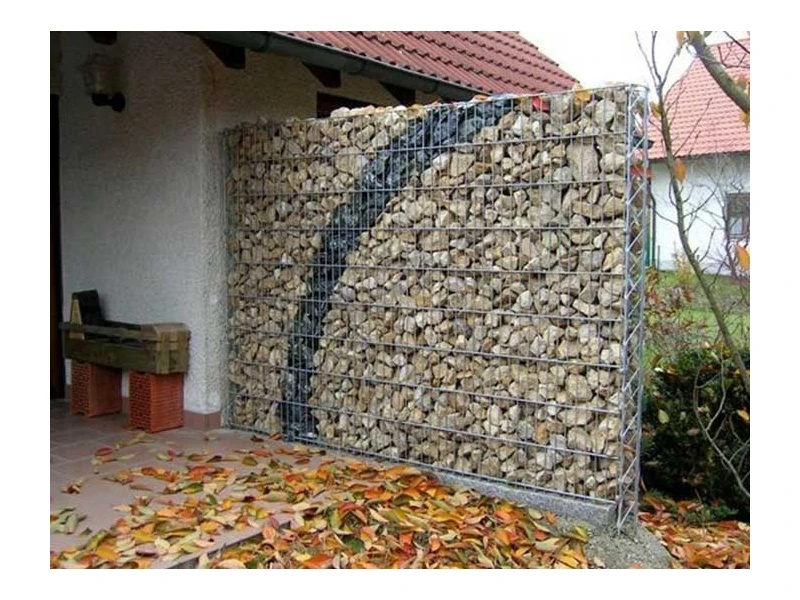

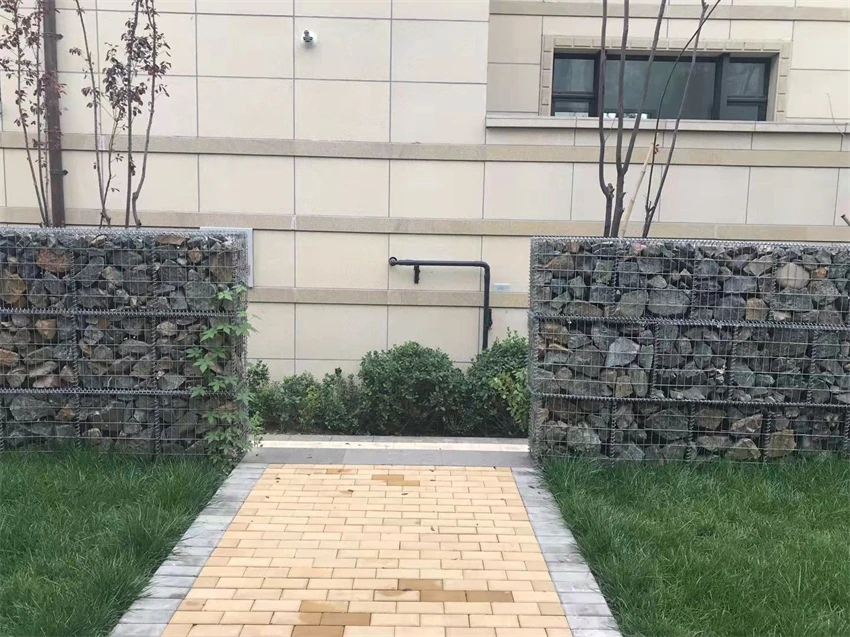

* Landscape construction.
* Road protection.
* Retaining wall.
* Fireplaces.
* Slope protection.
* Military defense.
* Landscape construction.
* Road protection.
FAQ
Q: ARE YOU A MANUFACTURER?
A: Yes, we have specialized in wire mesh for more than 10 years.
Q: COULD YOU PROVIDE SAMPLE ?
A: Yes, we can provide sample for free, and buyer pays for the express cost. We'll send back the courier charge if you make an
order.
Q: WHAT INFORMATION SHOULD I PROVIDE,IF I WANT A LOWEST QUOTATION?
A: The basic specification with quantity and special requirements.
Q: HOW IS YOUR DELIVERY TIME?
A: The delivery time is 7 days for goods in stock.
We'll check with production department for the non-stock items to offer you the soonest delivery time and producing schedule.
Q: HOW DO YOU SHIP THE FINISHED GOODS?
A:Usually by sea. If small quantity, can also by air.
Q: WHAT IS THE PAYMENT?
A:Usually our payment term is: T/T 30% in advance, balanced be paid against copy of B/L.
A: Yes, we have specialized in wire mesh for more than 10 years.
Q: COULD YOU PROVIDE SAMPLE ?
A: Yes, we can provide sample for free, and buyer pays for the express cost. We'll send back the courier charge if you make an
order.
Q: WHAT INFORMATION SHOULD I PROVIDE,IF I WANT A LOWEST QUOTATION?
A: The basic specification with quantity and special requirements.
Q: HOW IS YOUR DELIVERY TIME?
A: The delivery time is 7 days for goods in stock.
We'll check with production department for the non-stock items to offer you the soonest delivery time and producing schedule.
Q: HOW DO YOU SHIP THE FINISHED GOODS?
A:Usually by sea. If small quantity, can also by air.
Q: WHAT IS THE PAYMENT?
A:Usually our payment term is: T/T 30% in advance, balanced be paid against copy of B/L.
