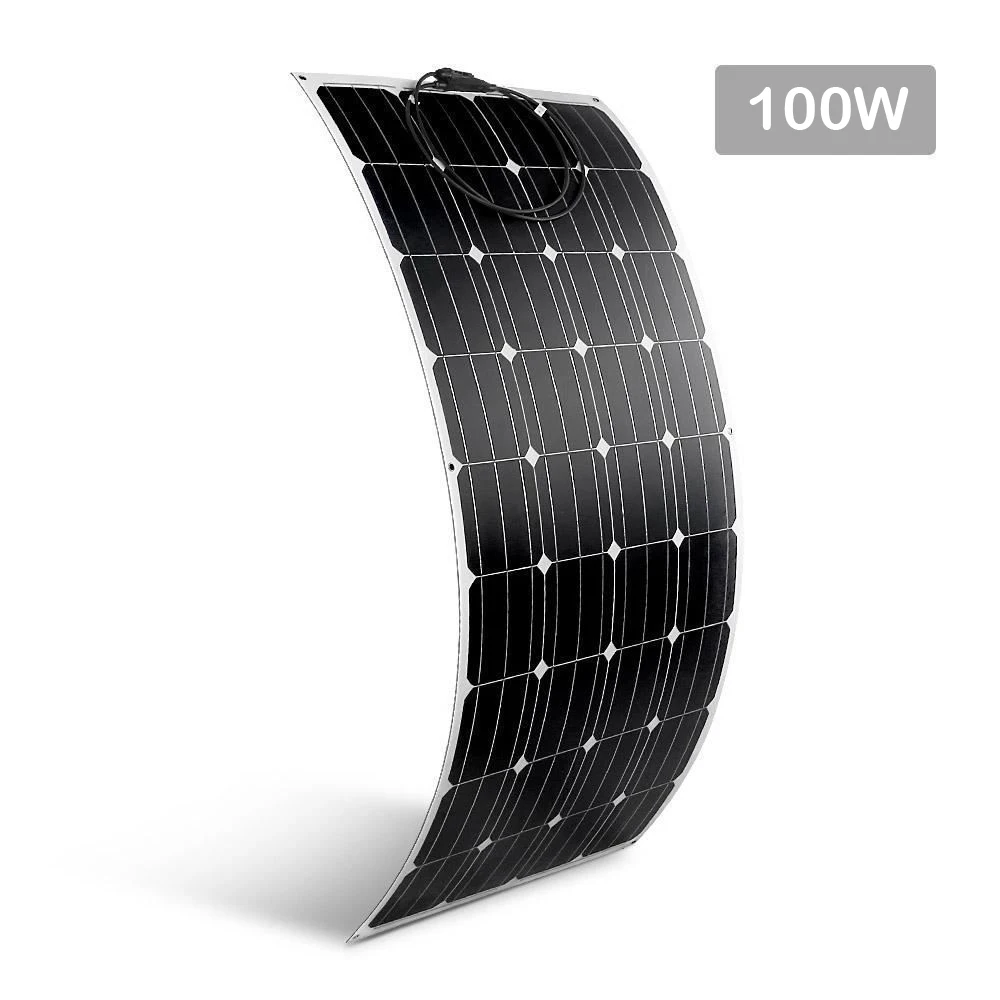

100W & 200W Flexible Solar Panels ETFE Thin Film Technology High Efficiency Easy Installation
- Category: >>>
- Supplier: Guangzhou Future Green Machinery Co. Ltd .Guangzhou .
Share on (1601231079254):
Product Overview
Description
Company Profile
Future Green Technology CO.,LTD.
We are proud to offer a wide range of high-quality solar panels and solar energy systems at Future Green Technology. Our solar panels are made with the latest technology and materials, ensuring maximum efficiency and durability. We offer a variety of sizes and power output options to fit your specific needs, whether for residential or commercial use. Our solar energy systems are designed to provide reliable, clean energy to power your home or business. We provide complete one-stop solutions for solar energy systems, including installation, maintenance, and repair services. At Future Green Technology, we are committed to providing environmentally friendly, cost-effective, and sustainable energy solutions for our customers.
At Future Green Technology, we are dedicated to being your personal home clean energy solution provider. Thank you for considering us as your battery and solar power system supplier.
Product Description
100W Solar Flexible Panel Technical Parameters | ||||
Product code | FL-100W/18V | FL-100W/18V | ||
Maximum power(Pmax) | Wp | 100 | ||
Voltage at Pmax(Vmp) | V | 18.2 | ||
Current at Pmax(Imp) | A | 5.85 | ||
Open-circuit voltage(Voc) | V | 21.1 | ||
Short -circuit current(Isc) | A | 6.26 | ||
Power temperature coefficient | %/℃ | -0.38 | ||
Voltage temperature coefficient | %/℃ | -0.27 | ||
Current temperature coefficient | %/℃ | +0.05 | ||
Solar Cells Efficiency | % | 21.45 | ||
Maximum system voltage | VDC(IEC) | 500 | ||
Output power tolerance | W | ±3% | ||

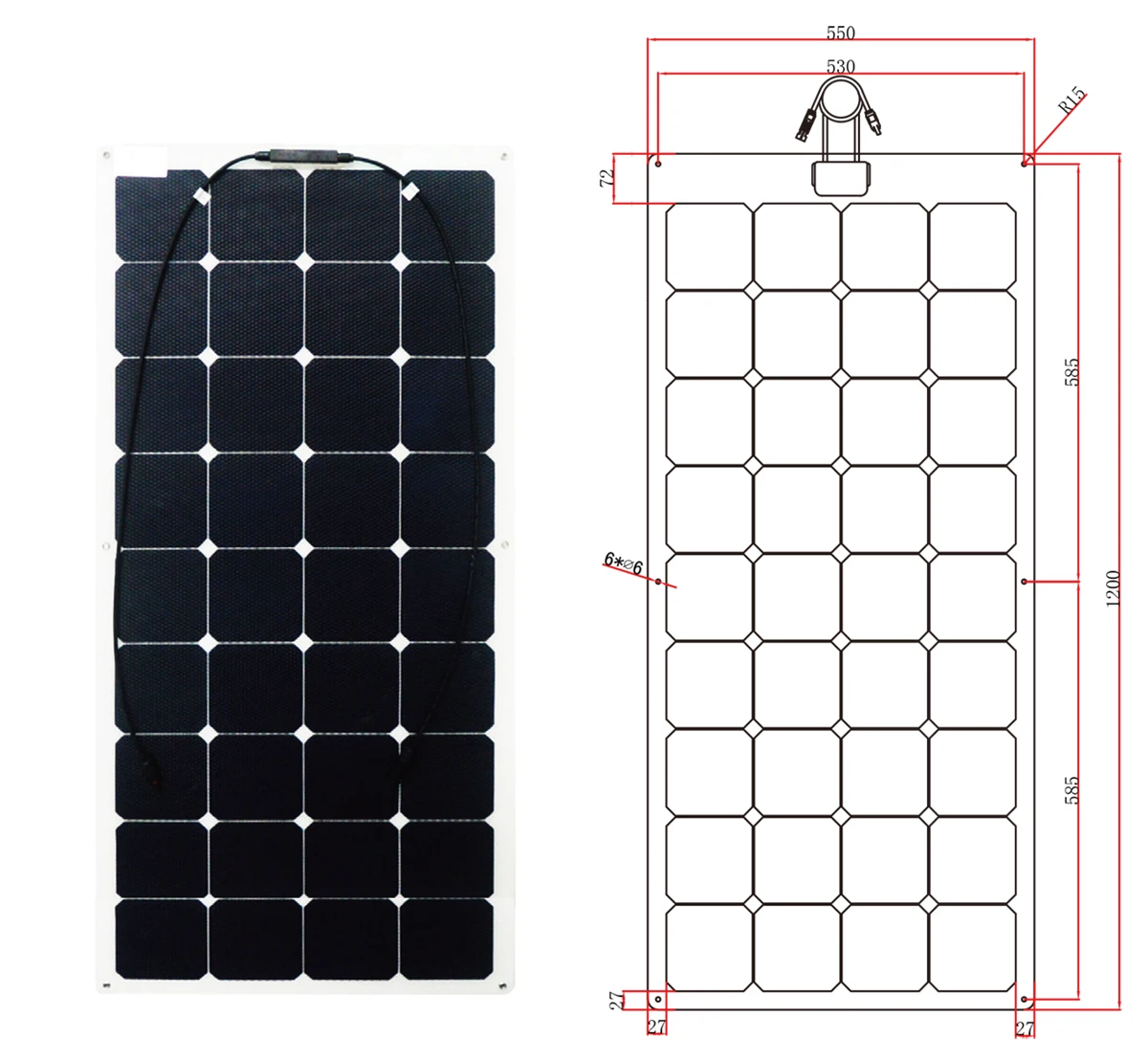

Dimension L×W×H (mm) | mm | 1000*600*3 or Customized | ||
Net Weight (±3%KG) | KG | 1.8 | ||
STC | lrradiance 1000W/㎡ CellTemperature 25°C AM1.5 | |||

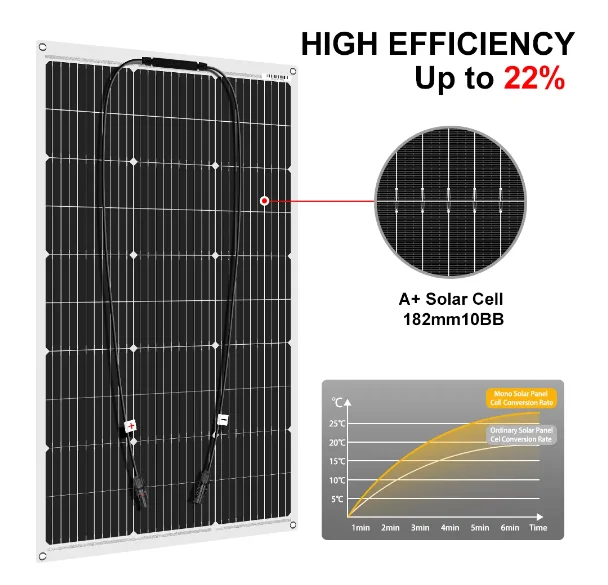

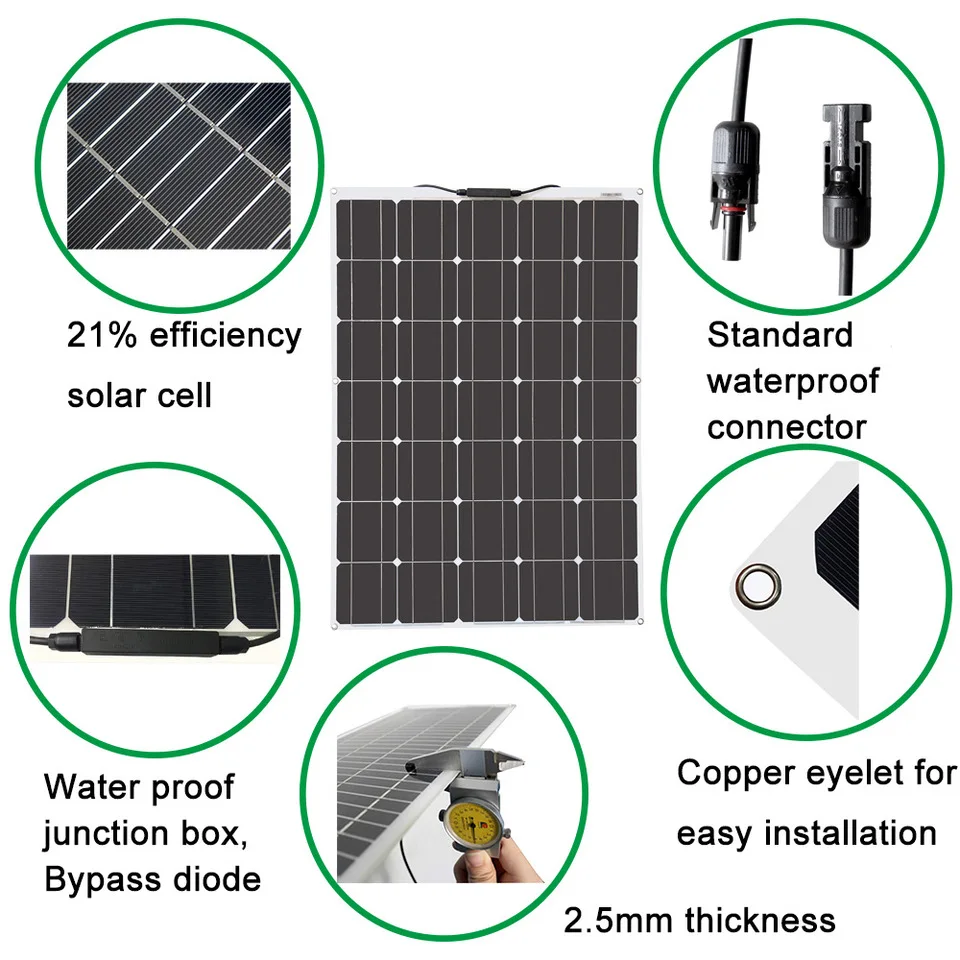

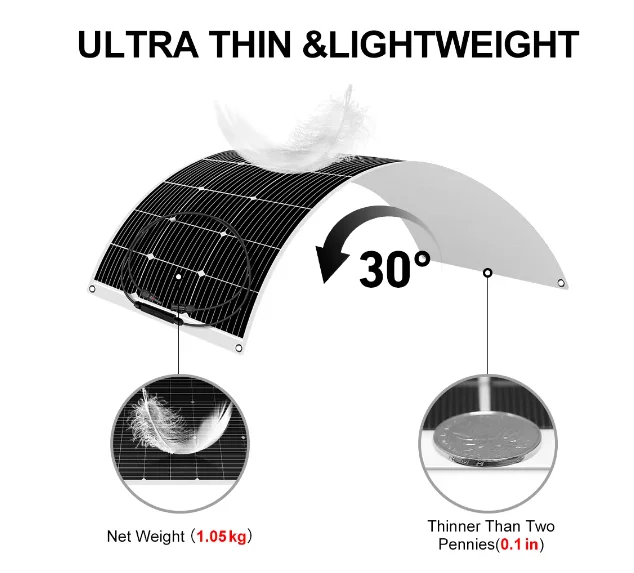

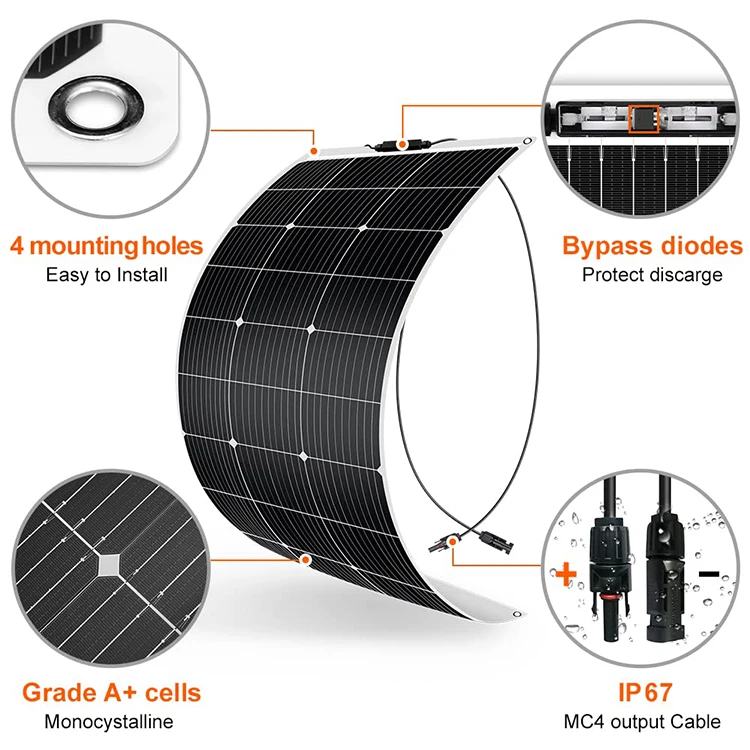

Product Feature
Flexible Series Parameter
Item No. | FL-50W | FL-100W | FL-150W | FL-200W | We can offer you | ||||
Maximum power(Pmax) | 50W | 100W | 150W | 200W | Customized | ||||
Voltage at Pmax(Vmp) | 18V | 18.2V | 18.2V | 20.5V | Customized | ||||
Current at Pmax(Imp) | 2.85A | 5.85A | 8.22A | 9.76 | / | ||||
Open-circuit voltage(Voc) | 21.1V | 21.1V | 22.58 | 25.38 | / | ||||
Short -circuit current(Isc) | 3.05A | 6.26 | 8.80 | 10.44 | / | ||||
Power temperature coefficient | -0.45%/℃ | -0.34%/℃ | -0.34%/℃ | -0.34%/℃ | / | ||||
Voltage temperature coefficient | -0.37%/℃ | -0.27%/℃ | -0.27%/℃ | -0.27%/℃ | / | ||||
Current temperature coefficient | 0.1%/℃ | 0.04%/℃ | 0.04%/℃ | 0.04%/℃ | / | ||||
Solar Cells Efficiency | 21~22.5% | ||||||||
Maximum system voltage | 500VDC | ||||||||
Output power tolerance | ±3% | ||||||||
Dimension L×W×H (mm) | 585*460*3 | 1000*600*3 | 1100*800*3 | 1320*800*3 | Customized | ||||
Net Weight (±3%KG) | 0.9 | 2.1 | 2.6 | 3.2 | / | ||||
LOGO | FGET Brand or Customized | ||||||||
Carton | FGET Brand or Customized | ||||||||
STC | lrradiance 1000W/㎡ CellTemperature 25°C AM1.5 | ||||||||

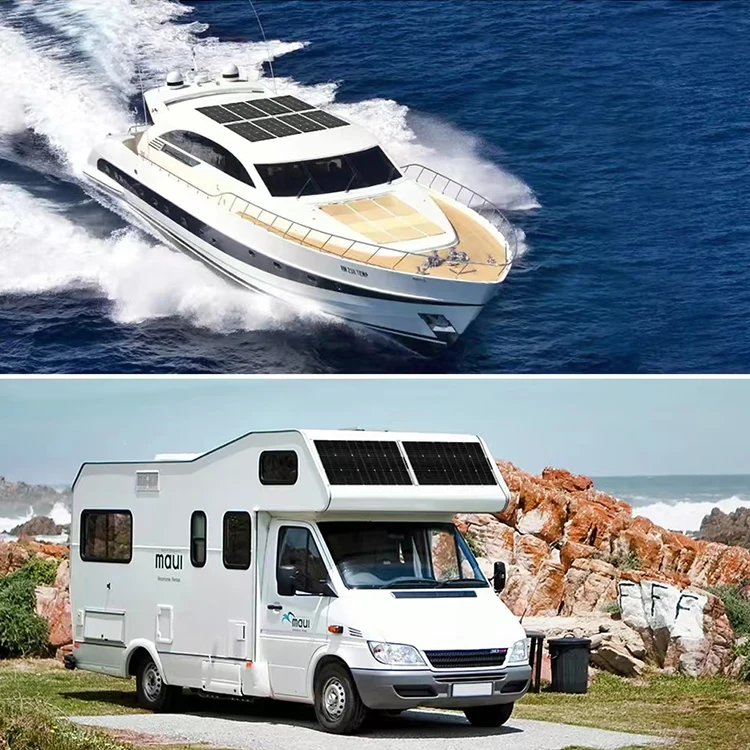

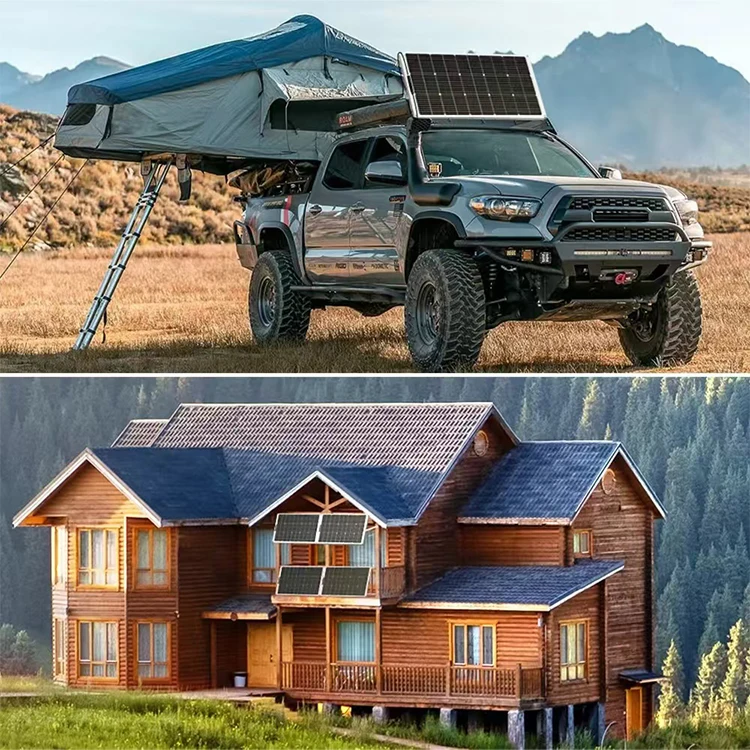

Application Scenario
FAQ
Q1: How to choose the right Panel?
A1: Tell us your demand, then our sales will recommend a suitable panel for you.
Q2. Can I provide sample orders for your products?
A2: Of course, We provide free samples for part of the models. You can check our quality before ordering. If you have any
requirements, please contact us.
Q3. What is your delivery time?
A3: It depends on the order quantity. Usually, it takes about 7-10 days after receiving the small deposit. Bulk ordering takes
10-15 days (more than 10,000 pieces per watt).
Q4. Do you have a minimum order quantity requirement? Can you accept mixed goods for FCL orders?
A4: We have low MOQ requirement for 100pcs. We prefer you can mix items for FCL order for save both side cost.
Q5. How long will it take after placing an order?
A5: Depends on the order volume. We will ship most online wholesale orders within 5 days of receiving payment.
Q6. What's the difference between Mono and Poly panel?
A6: Monocrystalline solar panels have the highest efficiency rates since they are made out of the highest-grade silicon. The process used to make polycrystalline silicon is simpler and costs less. The amount of waste silicon is less compared to monocrystalline.
Q7: Are you a factory?
A7: We are manufacturer in solar products area more than 10 years.
Q8. What kind of customers and what kind of companies do you work with?
A8: We have 11 years of export experience and serve more than 100 customers, such as retailers, wholesalers and online store owners.
Q9. Which packaging product do you usually use?
A9: Usually we provide color box packaging and standard pallet/carton.
Q10. Is it possible to put our logo on your product or product packaging?
A10: Of course, welcome to customize your brand, LOGO, color, product manual, packaging, etc. The minimum order quantity is 100 per piece.
Q11: Can you OEM for me?
A11: We accept all OEM orders, just contact us and give me your design. We will provide you with a reasonable price and make samples for you as soon as possible.
Q12: What are your payment terms?
A12: We provide a variety of payment methods, including PayPal, Visa, MasterCard, Alibaba Trade Assurance, Western Union and wire transfer. According to T/T, LC AT SIGHT, 30% deposit in advance, and the balance 70% before shipment. If use our forwarder. we accept the balance after BL COPY.
Q13: What is the warranty for solar panels?
A13: 25 years warranty on FGET Solar product.
Q14: How to solve the technical problem?
A14: 24 hours after-service consultancy just for you and to make your problem to solve easily.
A1: Tell us your demand, then our sales will recommend a suitable panel for you.
Q2. Can I provide sample orders for your products?
A2: Of course, We provide free samples for part of the models. You can check our quality before ordering. If you have any
requirements, please contact us.
Q3. What is your delivery time?
A3: It depends on the order quantity. Usually, it takes about 7-10 days after receiving the small deposit. Bulk ordering takes
10-15 days (more than 10,000 pieces per watt).
Q4. Do you have a minimum order quantity requirement? Can you accept mixed goods for FCL orders?
A4: We have low MOQ requirement for 100pcs. We prefer you can mix items for FCL order for save both side cost.
Q5. How long will it take after placing an order?
A5: Depends on the order volume. We will ship most online wholesale orders within 5 days of receiving payment.
Q6. What's the difference between Mono and Poly panel?
A6: Monocrystalline solar panels have the highest efficiency rates since they are made out of the highest-grade silicon. The process used to make polycrystalline silicon is simpler and costs less. The amount of waste silicon is less compared to monocrystalline.
Q7: Are you a factory?
A7: We are manufacturer in solar products area more than 10 years.
Q8. What kind of customers and what kind of companies do you work with?
A8: We have 11 years of export experience and serve more than 100 customers, such as retailers, wholesalers and online store owners.
Q9. Which packaging product do you usually use?
A9: Usually we provide color box packaging and standard pallet/carton.
Q10. Is it possible to put our logo on your product or product packaging?
A10: Of course, welcome to customize your brand, LOGO, color, product manual, packaging, etc. The minimum order quantity is 100 per piece.
Q11: Can you OEM for me?
A11: We accept all OEM orders, just contact us and give me your design. We will provide you with a reasonable price and make samples for you as soon as possible.
Q12: What are your payment terms?
A12: We provide a variety of payment methods, including PayPal, Visa, MasterCard, Alibaba Trade Assurance, Western Union and wire transfer. According to T/T, LC AT SIGHT, 30% deposit in advance, and the balance 70% before shipment. If use our forwarder. we accept the balance after BL COPY.
Q13: What is the warranty for solar panels?
A13: 25 years warranty on FGET Solar product.
Q14: How to solve the technical problem?
A14: 24 hours after-service consultancy just for you and to make your problem to solve easily.
