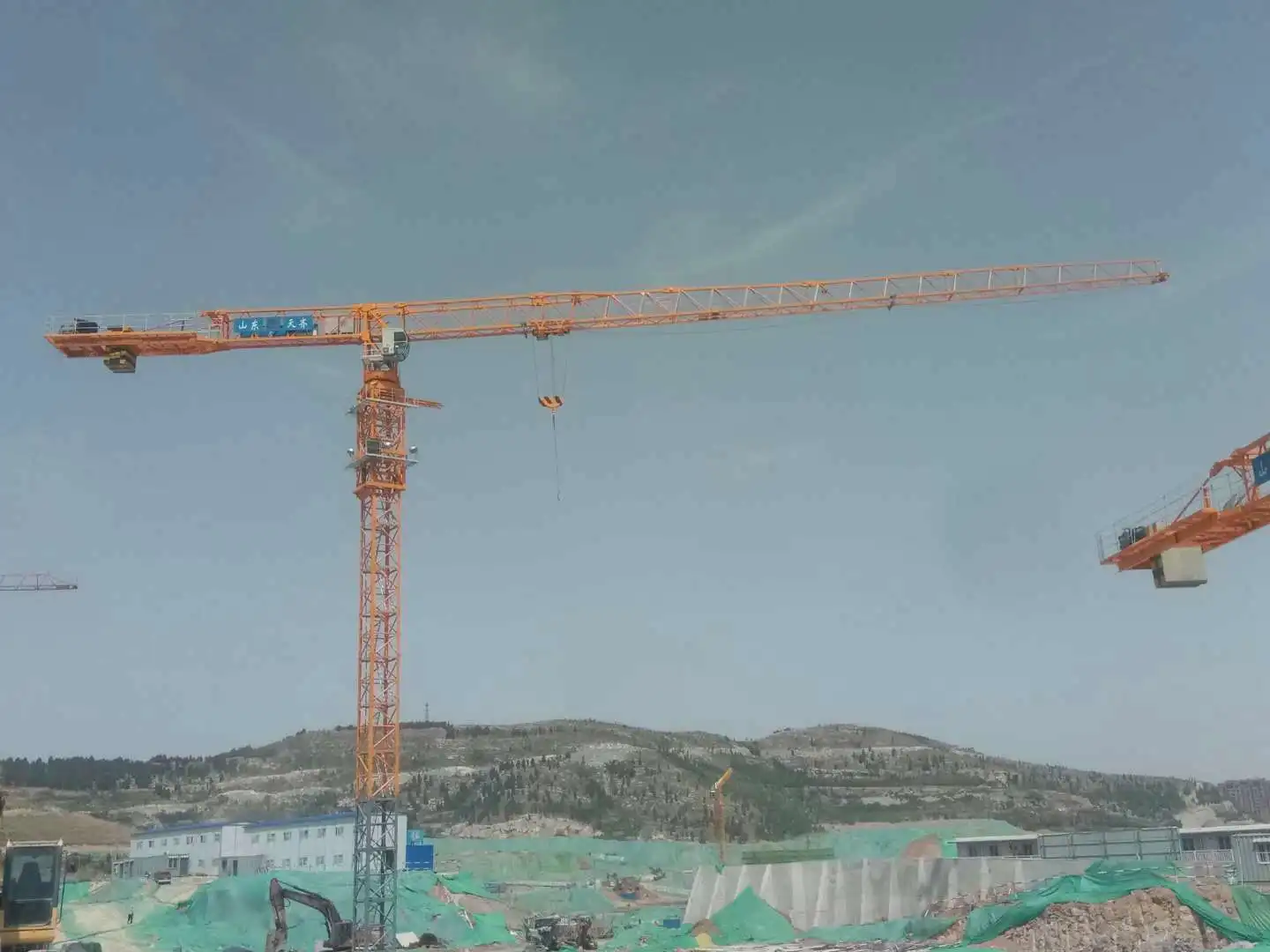

PT7528 Construction Building Equipment Tower Crane From China construction hoisting equipment building construction tower crane Large mobile tower crane
Technical parameters | PT3006 | PT5510 | PT6015 | PT6513 | PT6516 | PT6520 | PT7023 | PT7032 | PT7528 | |
max.lifting moment | kN·M | 220 | 870 | 1510 | 1515 | 2880 | 2880 | 3250 | ||
rated lifting moment | kN·M | 200 | 630 | 1250 | 1250 | 1600 | 2000 | 2500 | 2500 | 2750 |
max.lifting capacity | t | 2 | 6 | 8 | 8 | 10 | 10 | 16 | 16 | 18 |
work range | m | 2.5~30 | 2~55 | 2.5~60 | 2.5-60 | 2.5-65 | 3-65 | 3.5~70 | 3.5~70 | 3.5~75 |
rated lifting capacity at max.working range | t | 0.6 | 1 | 1.5 | 1.3 | 1.6 | 2 | 2.3 | 3.2 | 2.8 |
independent lifting height | m | 22 | 40 | 54 | 46 | 50 | 60 | 60 | 60 | 60 |
work power | V/Hz | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 |
total weight of the tower structure | t | 9.66 | 37.5 | 65 | 70 | 77.5 | 102.7 | 115.9 | 116.36 | |
total power(no including jacking) | kW | 14.7 | 34.7 | 40.7 | 45 | 61.5 | 61.5 | 95.5 | 95.5 | 105 |
PT7528 Construction Building Equipment Tower Crane From China construction hoisting equipment building construction tower crane Large mobile tower crane
Automatic Rising or Lowering Tower Crane Automatic Rising or Lowering Tower Crane Automatic Rising Tower Crane Tower Crane
PT7528 Construction Building Equipment Tower Crane From China construction hoisting equipment building construction tower crane Large mobile tower crane
Automatic Rising or Lowering Tower Crane Automatic Rising or Lowering Tower Crane Automatic Rising Tower Crane Tower Crane
