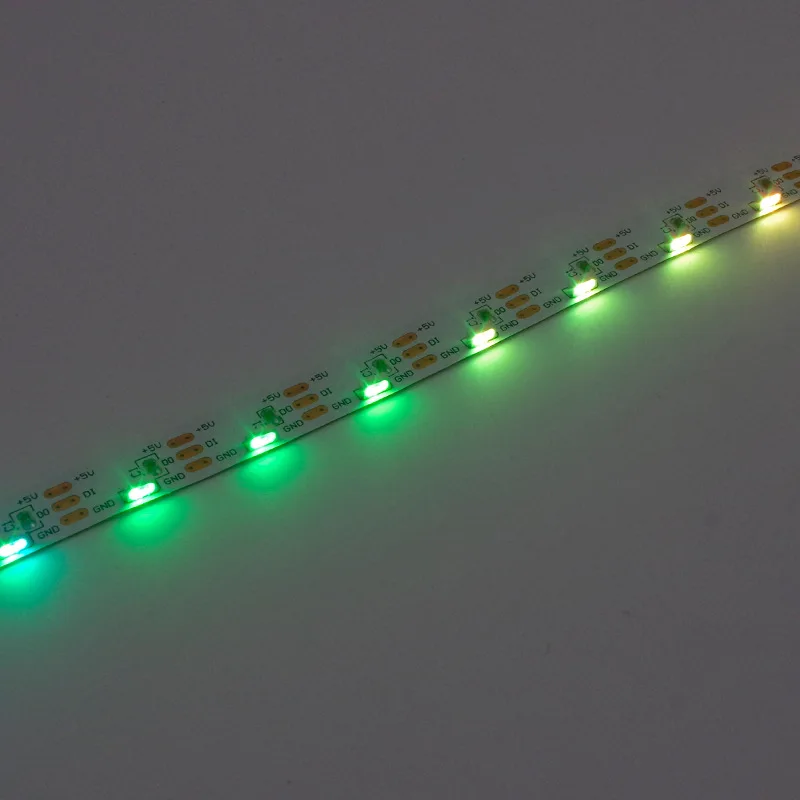

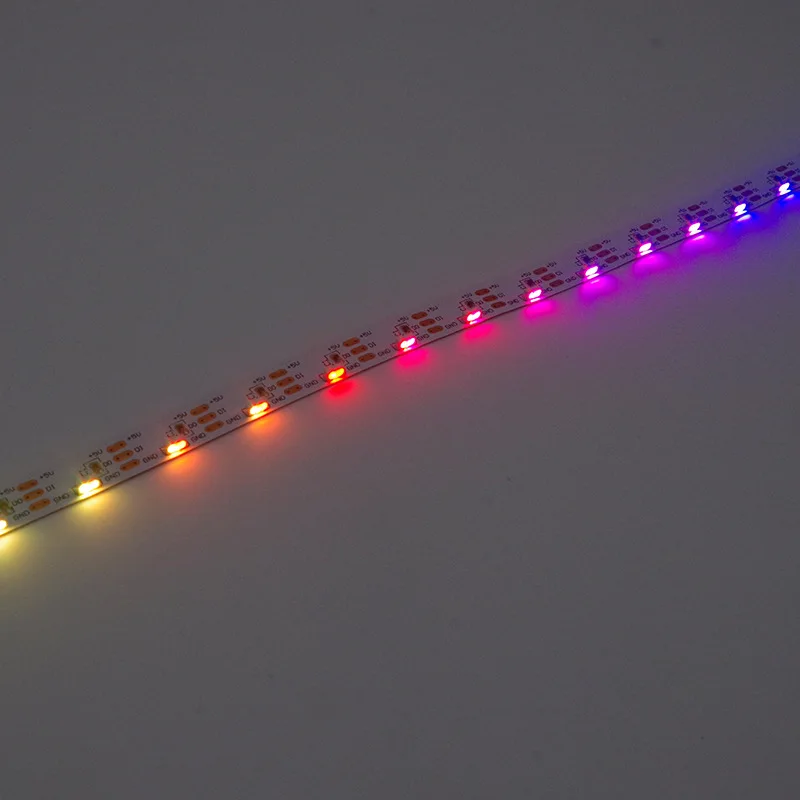

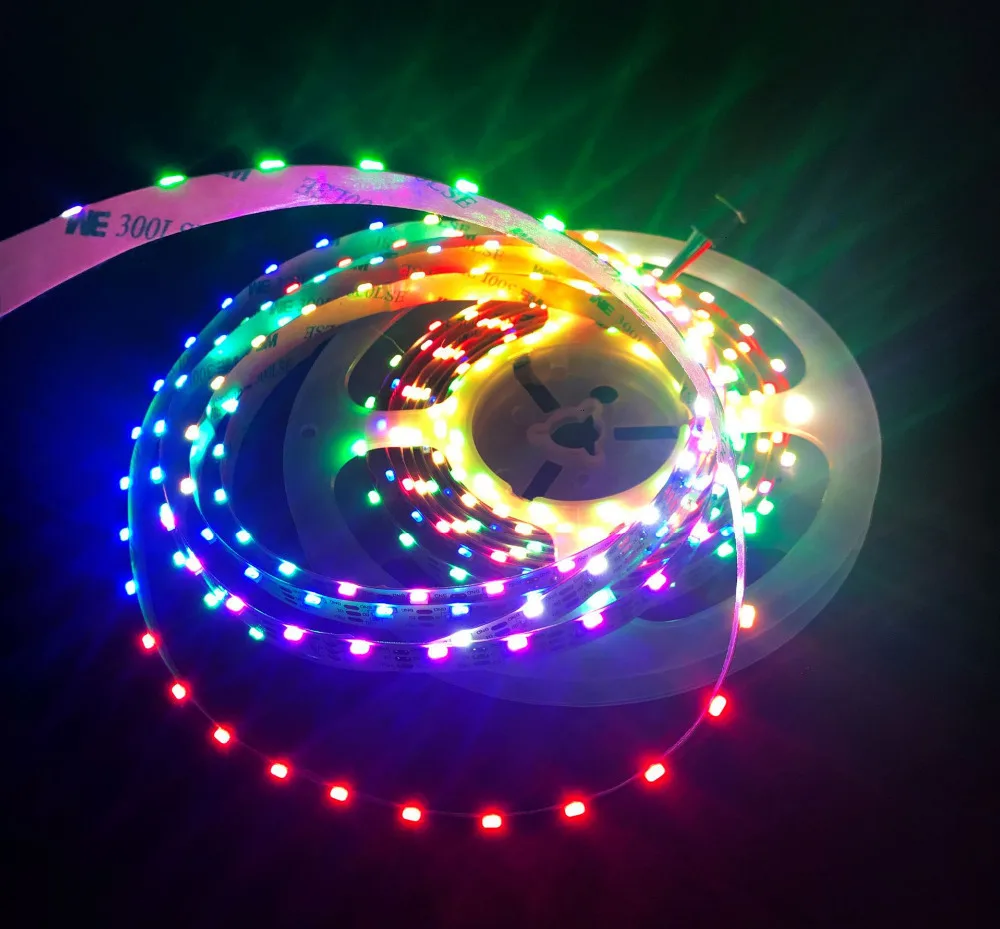

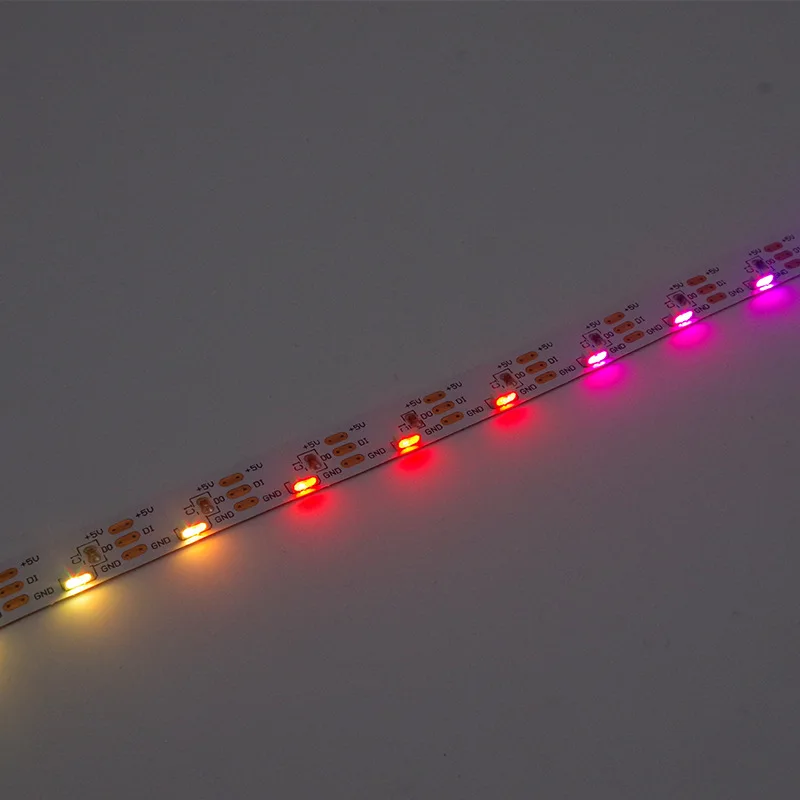

Side emitting LED SK6812 SPI Addressable Digital LED strip,
Digital (Magic / Dream Color) LED Strip with addressable LEDs can be used for advanced light effects like rainbow, chasing lights,or custom light programs.
This LED strip contains 60 LEDs per meter and each single LED can be controlled individually. The IC is integrated into the LED package, which makes it possible to put so many LED pixels on a single digital LED strip. With 60 invididually addressable LEDs,

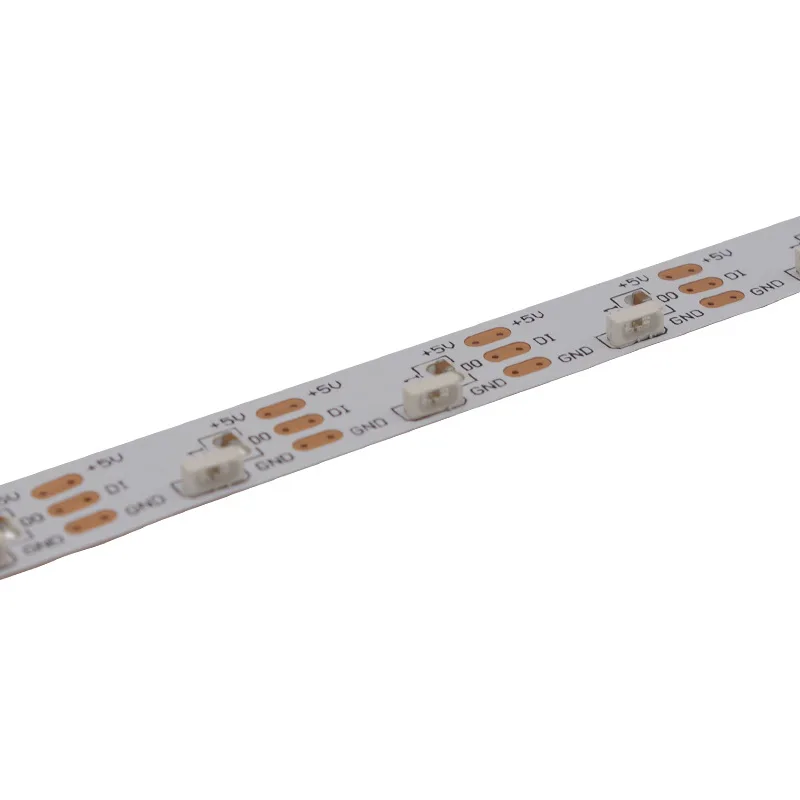

This strip is very easy to install. You can cut the strip after every 1 LED to create any size you need. Moreover, this LED-strip is extremely flexible and very narrow corners can be made with it. The power is supplied through the soldering points which can be found on the strip at each LED.
This LED Strip requires the use of an Digital Controller.
The LED Strip works on 5 Volts, so to connect it to a 110-230V power outlet you will also need a power supply. The more LED strip you want to connect, the higher the power consumption will be and therefore the bigger the power supply must be. Look below for an indication of which power supply to use with this LED strip:
LED Strip Data Sheet
Item Number | HY-4020-60 |
LED Type | SMD4020 |
LED Quantity | 60 LED/M |
Pixel Quantity | 60 Pixel/M |
Luminous flux | Max. 1000 lumen per meter. |
IC Type | SK6812 |
Signal Protocal | SPI (Data,GND,Positive) |
Power | Max. 12W/Meter |
PCB Width | 8mm width, |
PCB Board color | Black PCB , White PCB |
Default Length | 5 Meters per reel, 3pin JST SM Wire connector at both end |
Input Voltage | DC5V |
LED Color | RGB |
Channel | Red,Green,Blue, (3 channel) |
Grey Level | 256 |
Waterproof Grade | IP20 Non-waterproof,Double adhesive 3M Tape on backside IP65 Glue coating ,Double adhesive 3M Tape on backside IP66 soft tube waterproof ,Double adhesive 3M Tape on backside |
View Angle | 120° |
Product Warranty | 2 Years |
Life time | > 50000 Hours |
Packing & Delivery
Destination | Express/Courier DHL/TNT/UPS/FedEx | Ship by Air | Ship by Sea |
North Amercia | 3-7 days | 5-7 days | 15-24 days |
South Amercia | 3-7 days | 5-7 days | 15-24 days |
European Countries | 3-7 days | 5-7 days | 15-24 days |
Africa Countries | 3-7 days | 5-7 days | 15-24 days |
The Middle East | 3-7 days | 5-7 days | 15-24 days |
Australia | 3-7 days | 5-7 days | 15-24 days |

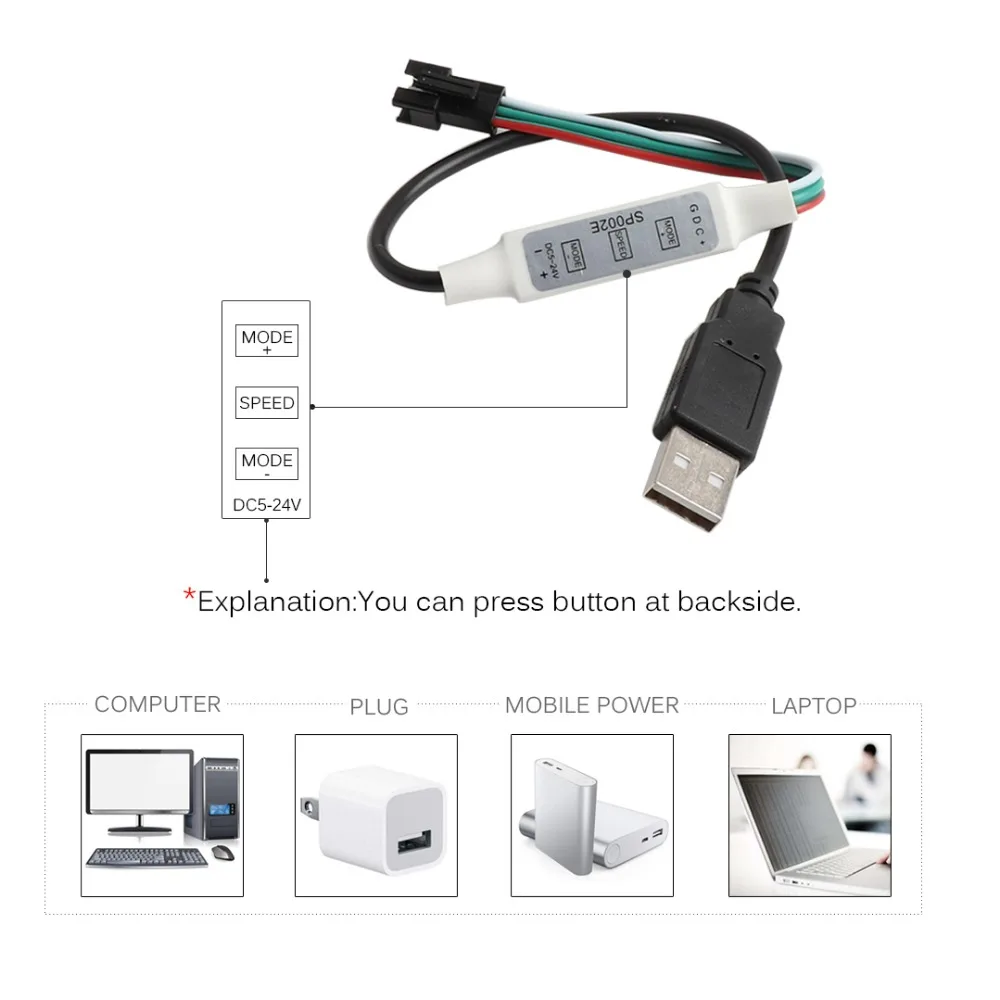

LED Controller
Features:
1.Works stably, easy to use and connection is easy. plug & play2.With 76 kinds of patterns,which are vivid and beautiful.
3.Can control up to 2048 pixels.

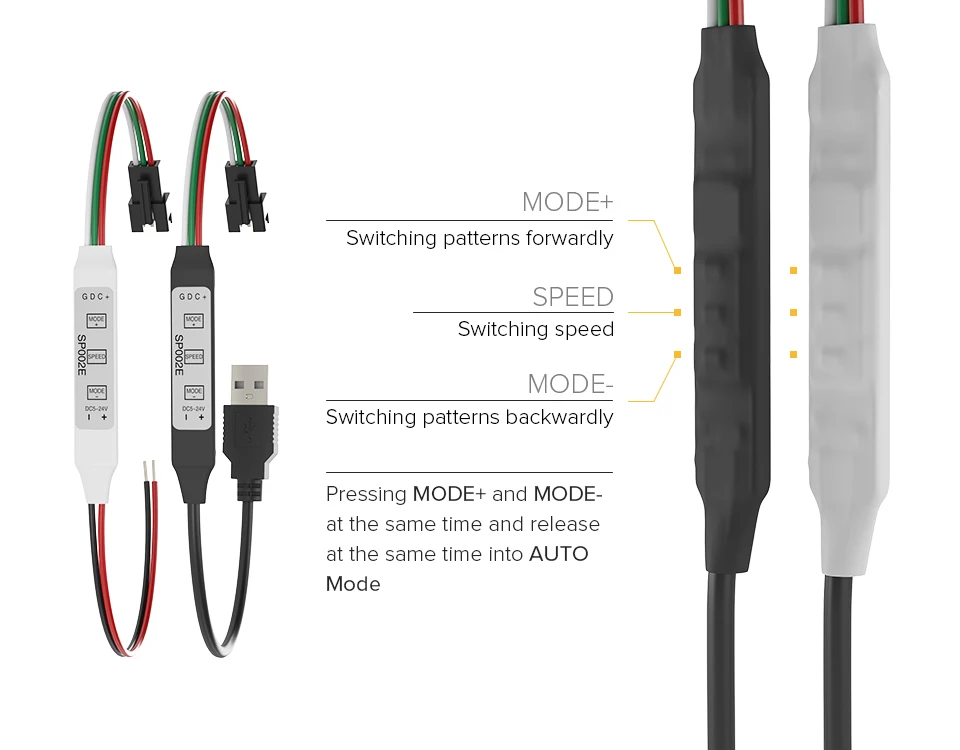

Functions Of Keys.
MODE+: Switching patterns forwardly.
SPEED: Switching speed.
MODE-: Switching patterns backwardly.
MODE+ AND MODE-: Pressing MODE+ and MODE- at the same time and release at the same time into AUTO Mode. Parameters.
Operating Voltage: DC5V-24v;
Power Consumption: Less than 1W.
NOTE: Please figure out what power supply voltage is right for your controller before you power it.
(if the strip's volt is 5V , controller's input need be 5V )
