Product Overview

Description

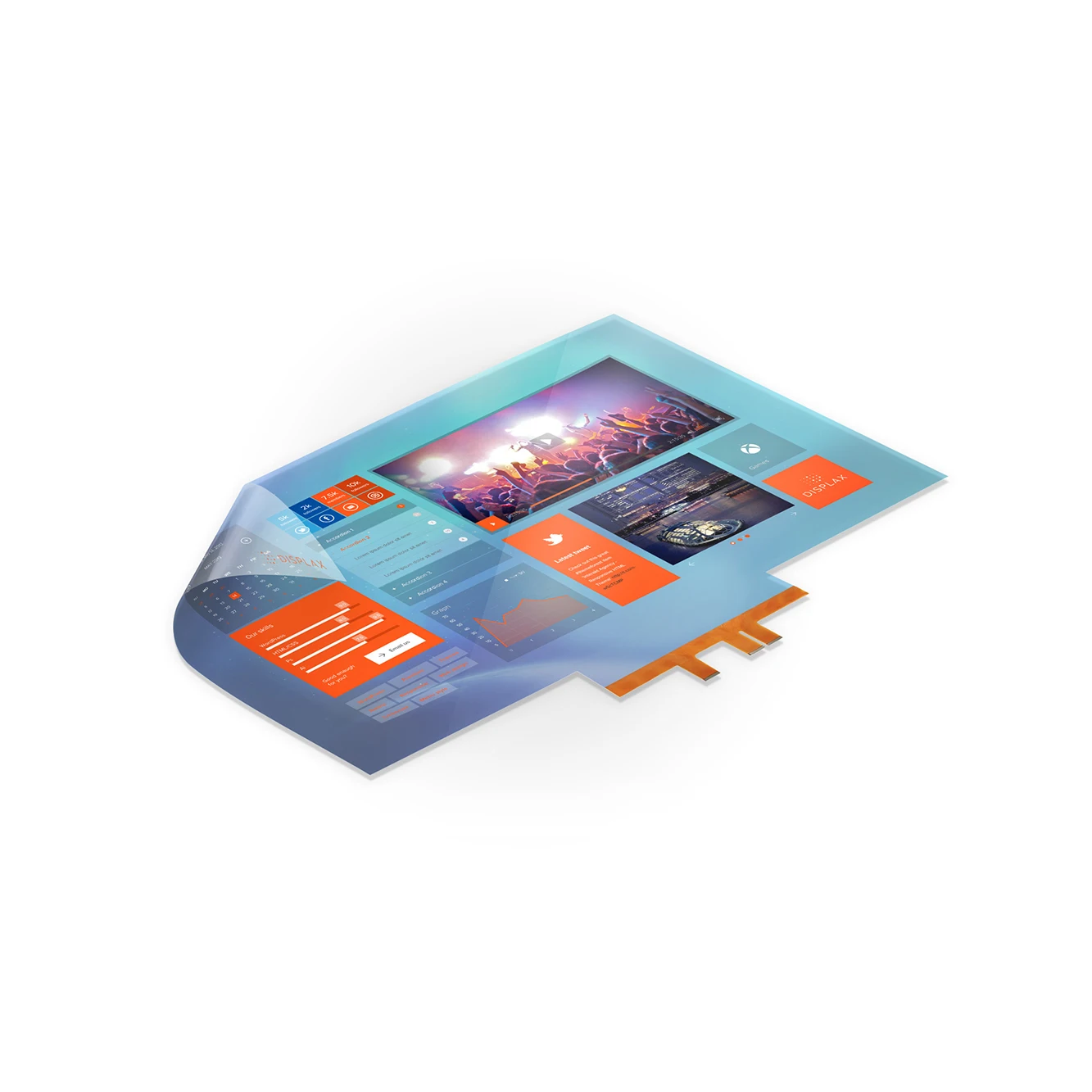

ChariotTech Multi-touch foil is an innovation core part of touch screen, support single-touch & multi-touch.

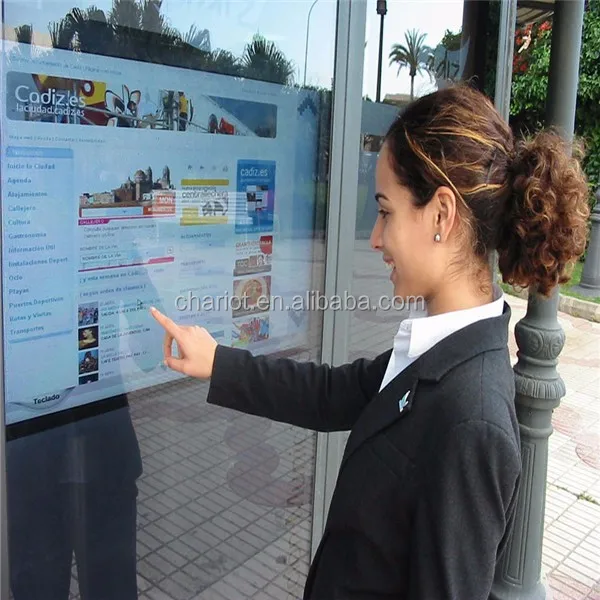

ChariotTech Multi-touch foil is an optically clear, large format projected capacitance film that can be applied to and works through glass and other non-metallic surfaces. This Multi-touch foil technology can transforms any glass or acrylic surface into a touch screen. It is an ideal choice for interactive window displays.




Advertising
Shopping Mall


Hotel
Entertainment




Multi-touch foil
Infrared touch frame
Using Life
No limited
1-2 years
Disturbed by environment
Litter
Bigger
Flexibility
Flexible
Inflexible
Integration level
Seamless integration into glass, lcd screen
Infrared frame integration
Difficult to integrate into glass




Item Category
Multi-Touch foil
Technological principle
Improved project capacitive
Product series
MTouch Standard
Touch points
≤40points
Size
19-100 inch
Position accuracy
≤1mm
Sensor
8192
Scanning speed
16ms/frame
Power
1.5W
Customize
Irregular size
Thickness
≤100um
Light transmittance
>93%
Voltage
5V USB
Connection
USB2.0
Transmission distance
≤50m (signal amplifier)
Safe distance
>2mm(distance between lcd and foil)
Temperature range
-20℃+70℃
Humidity Control
0-95%
Touch form
touch,drag,boost,shrink,Rotation
Sensing range
≤20mm
Driver
Andriod,Linux,Windows7,windows8(32/64)
Hierarchy
Kemel-level
Authentication
EC.1282.0A131017.STP2755
Packing list
Foil*1 PCB*1 USB Line *1






Q1: What OS you support?
A: The multi-touch foil support Andriod, Linux, Windows 7 / 8 (32/64).
Q2: How many points your multi-touch foil support?
A: ≤40 points.
Q3: How's the handwriting performance?
A: The Multi-touch foil have best-in-class handwriting performance, high speed and good linearity.
Q4: The length of USB is only 10M valid, the distance between my control center and thru- glass touch screen is far more than 30M. Any solution?
A: Yes, we have verified USB extender for your long distance application.
Q5: What is the Product MOQ?
A: The MOQ is one piece.
Q6: What is the delivery time?
A: The foil will be sent within 5-10 working days after payment.
