Concrite Mixer Portable Concrete Mixer Concrete Machinery Machine Ready mix Concrete Mixer For Concrete Batching Plant
- Category: >>>
- Supplier: Ningdu Xingye Machinery Manufacturing Co. Ltd.
Share on (1601231426066):
Product Overview
Description
Product Description

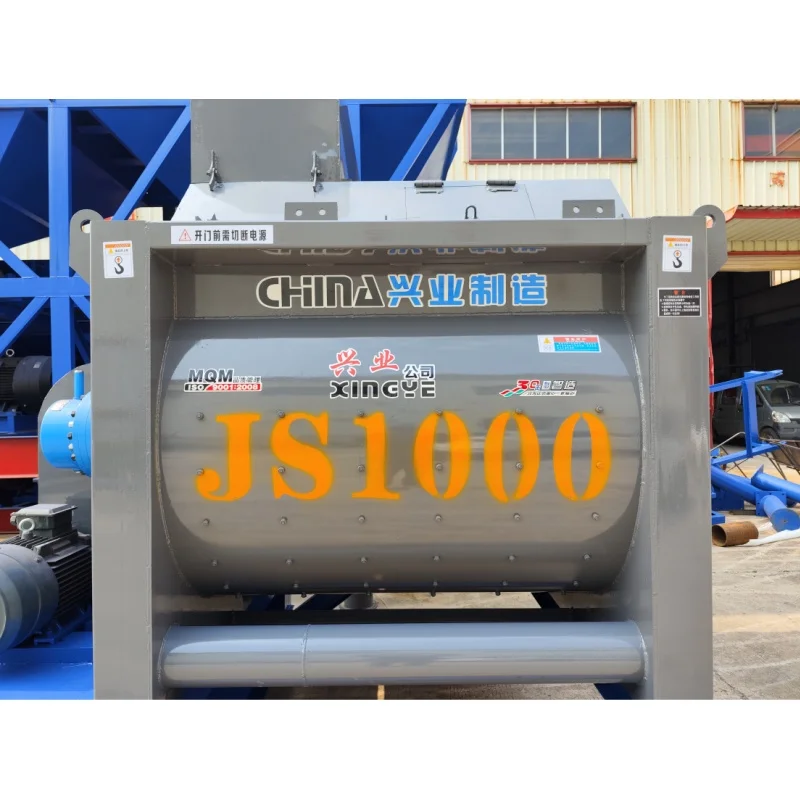

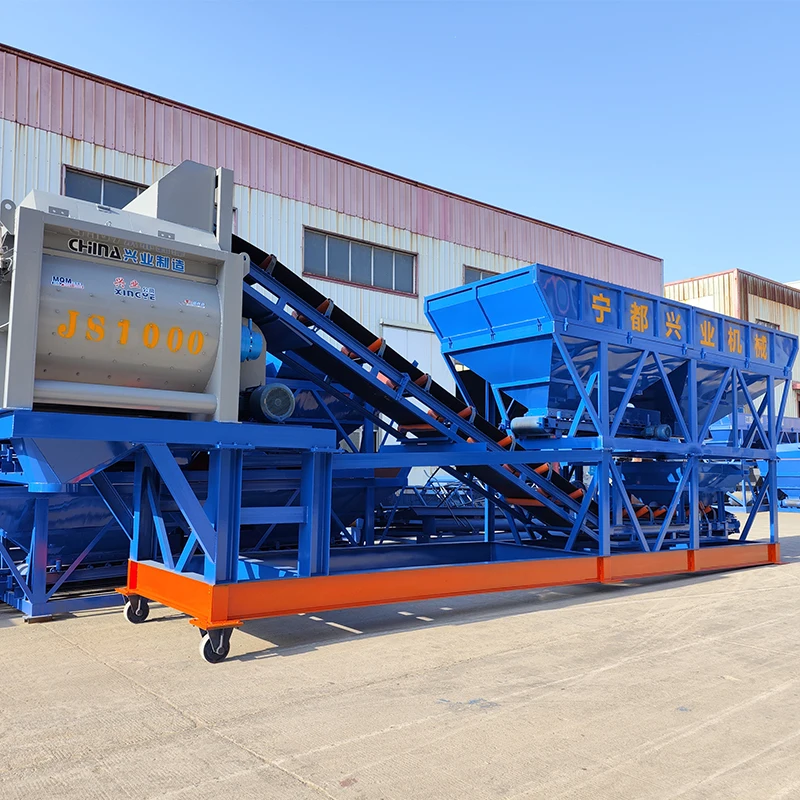

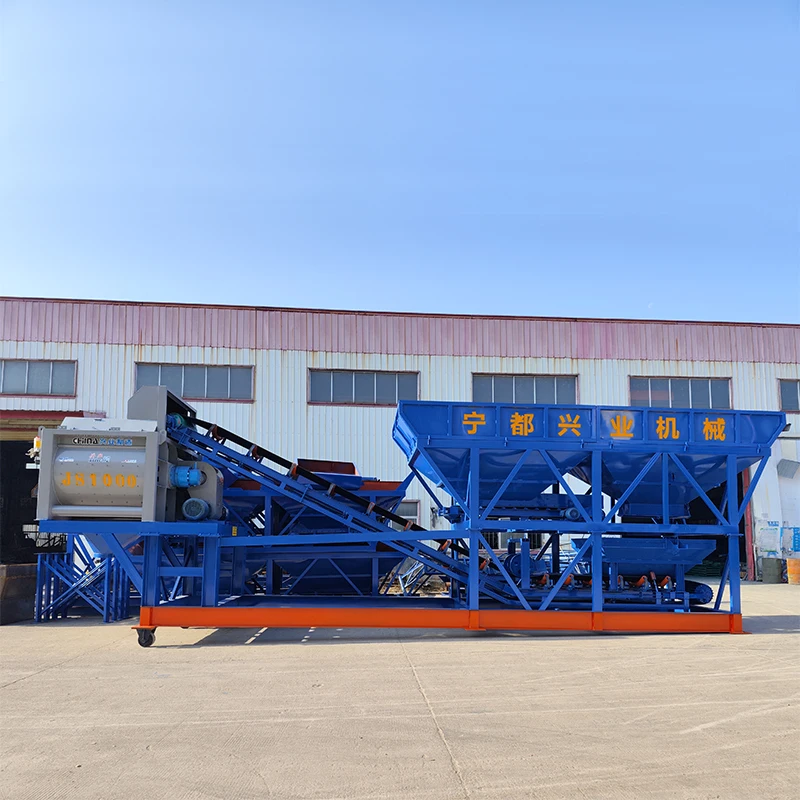

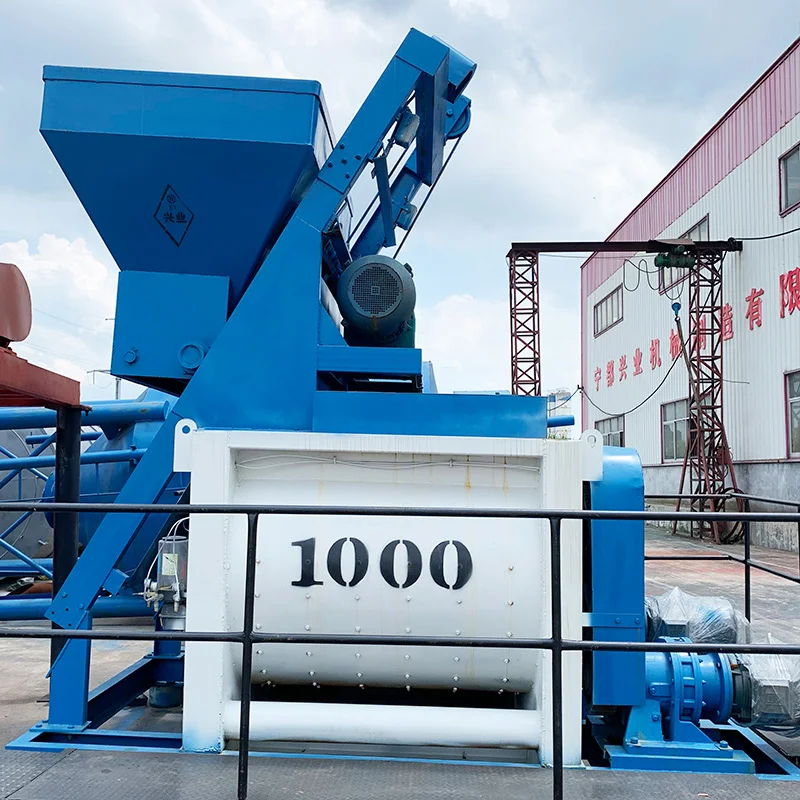

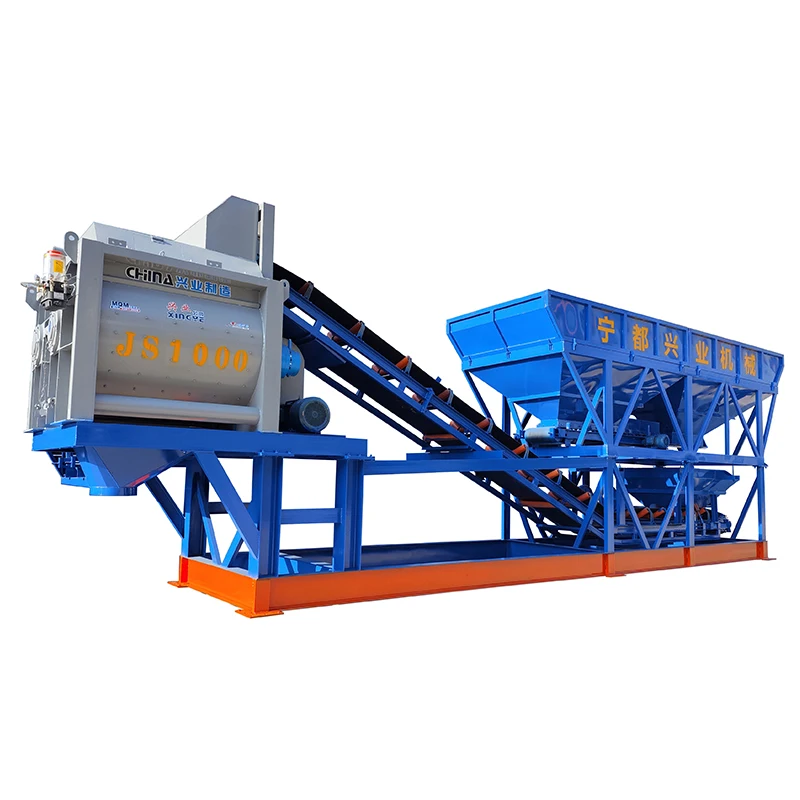

Concrite Mixer Portable Concrete Mixer Concrete Machinery Machine Ready-mix Concrete Mixer For Concrete Batching Plant

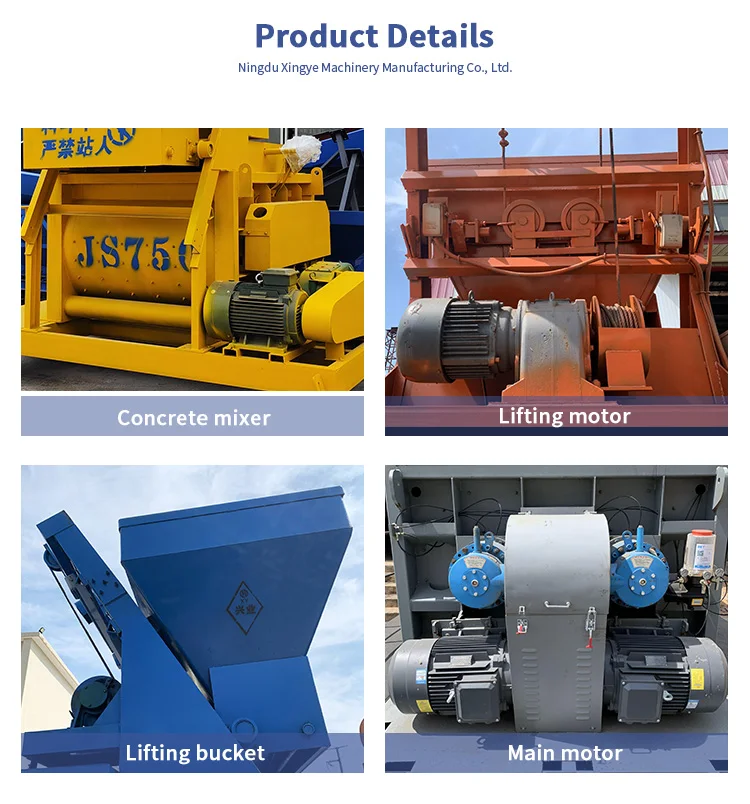

Product Details
Product Paramenters
Model No. | JS500 | JS750 | JS1000 | JS1500 | JS2000 | ||||||
Output capacity | 500L | 750L | 1000L | 1500L | 2000L | ||||||
Input capacity | 800L | 1200L | 1600L | 2400L | 3200L | ||||||
Productivity | ≥25m3/h | ≥37.5m3/h | ≥50m3/h | ≥75m3/h | ≥100m3/h | ||||||
Aggregate Maximum Particle Size (Pebble/Gravel) mm | 80/60 | 80/60 | 80/60 | 80/60 | 80/60 | ||||||

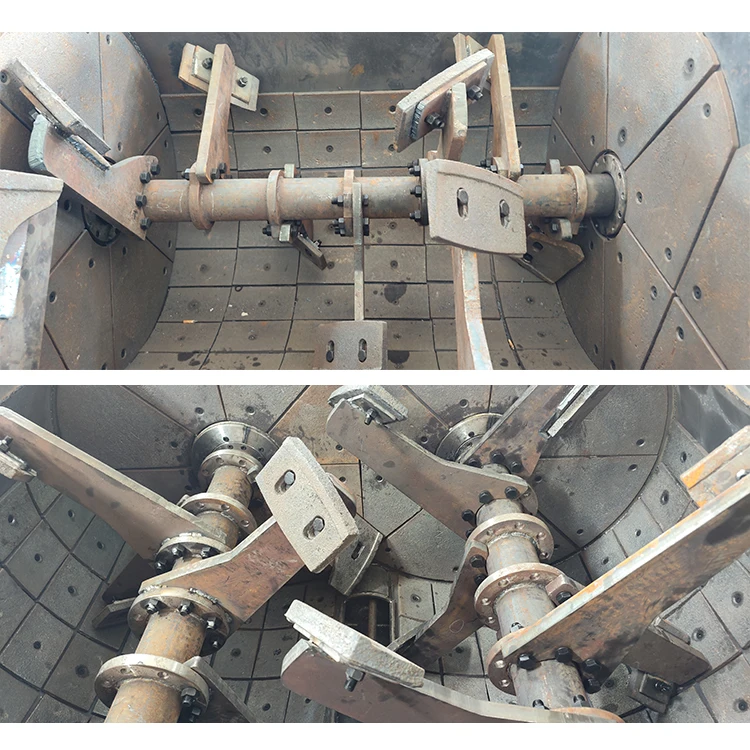

Stirring blade | Rotating speed | 35r/m | 31r/m | 25.5r/m | 25.5r/m | 23r/m | |||||
Quantity | 2×7 | 2×7 | 2×7 | 2×8 | 2×8 | ||||||
Stirring motor | Model No. | Y180M-4 | Y200L-4 | Y225S-4 | Y225M-4 | Y280S-4 | |||||
Productivity | 18.5KW | 30KW | 18.5KW*2 | 30KW*2 | 37KW*2 | ||||||
Hoist motor | Model No. | YEZ132S-4-B5 | YEZ132M-4-B5 | YEZ160S-4 | YEZ180L-4 | YEJ180L-4 | |||||
Productivity | 5.5KW | 7.5KW | 11KW | 18.5KW | 22KW | ||||||
Water pump motor | Model No. | 50DWB20-8A | 65DWB35-5 | KQW6 | KQW65 | CK65/20L | |||||
Productivity | 750W | 1.1KW | 3KW | 3KW | 4KW | ||||||
Hopper lifting speed | 18m/min | 18m/min | 21.9m/min | 23m/min | 26.8m/min | ||||||
Dimensions (length x width x height) | shipping status | 3050×2300×2680mm | 3650×2600×2890mm | 4640×2250×2250mm | 5058×2250×2440mm | 5860×2250×2735mm | |||||
working status | 4461×3050×5225mm | 4951×3650×6225mm | 8765×3436×9540mm | 9645×3436×9700mm | 10720×3870×10726mm | ||||||
Total Weight | 4000kg | 5500kg | 8700kg | 11130kg | 15000kg | ||||||
Discharge height | Customized | ||||||||||
Company Profile
Ningdu Xingye Machinery Manufacturing Co., Ltd.
is a concrete batching plant manufacturer with 15 years of professional production experience. We are the only and largest concrete mixing plant manufacturer in Jiangxi.
The company has developed rapidly in recent years, and the new plant will be completed and put into production in May 2023, with a total area of 20,000 square meters.
We have a professional design team that can design various concrete mixing equipment for different customers.
At the same time, we also have a strict quality inspection team.
Excellent after-sales installation team makes our products exported to all over the world.
The company has developed rapidly in recent years, and the new plant will be completed and put into production in May 2023, with a total area of 20,000 square meters.
We have a professional design team that can design various concrete mixing equipment for different customers.
At the same time, we also have a strict quality inspection team.
Excellent after-sales installation team makes our products exported to all over the world.
Certifications
The product has many certification,has patented products,and obtained relevant production licenses.
Packing and Delivery
Our products have been exported to more than 20 countries in Southeast Asia, Middle East, Africa and so on.
FAQ
Question 1: Are you factory or a trading company?
Answer: We are a factory dedicated in concrete batching plant over 15 years, all the supporting equipment are available, including but not limited to batching machine, Stabilized soil batching plant, cement silo, concrete mixers, screw conveyor, etc.
Answer: We are a factory dedicated in concrete batching plant over 15 years, all the supporting equipment are available, including but not limited to batching machine, Stabilized soil batching plant, cement silo, concrete mixers, screw conveyor, etc.
Answer: Just tell us the capacity (m3/day)of concrete you want to produce concrete per day or per month.
Question 3: What's your advantage?
Answer: Rich production experience, Excellent design team, Strict quality audit department, Strong after-sales installation team
Answer: Rich production experience, Excellent design team, Strict quality audit department, Strong after-sales installation team
Question 4: Do you supply training and after-sale service?
Answer: Yes, we will supply installation and training on site and also we have a professional service team that can solve all the problems ASAP.
Answer: Yes, we will supply installation and training on site and also we have a professional service team that can solve all the problems ASAP.
Question 5: What about the payment terms and incoterms?
Answer: We can accept T/T and L/C, 30% deposit, 70% balance before shipment.
EXW, FOB, CIF, CFR these are the common incoterms we operating.
Question 6: What about the delivery time?
Answer: Normally, the stock items can be send out in 1~2 days after receive the payment.
For customized product, the production time need about 7~15 working days.
Question 7: What about the warranty?
Answer: All of our machines can provide 12-months warranty.
