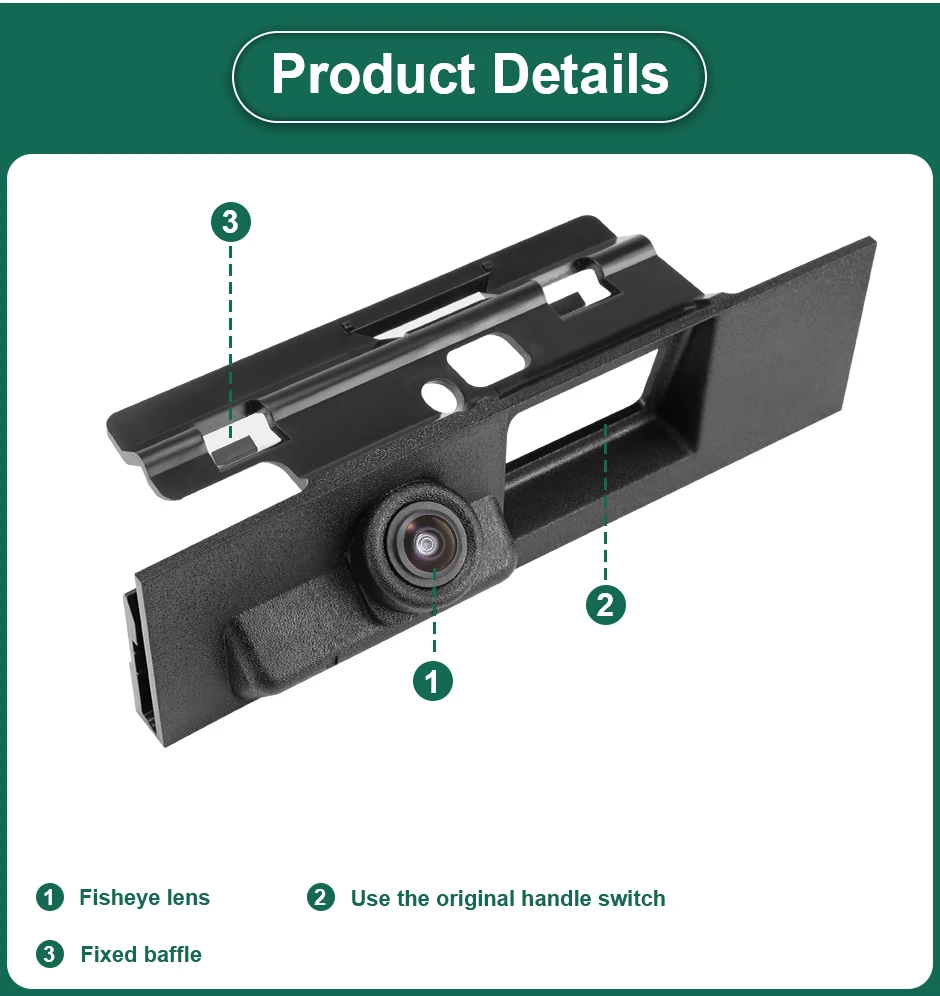

Backup Rear View Reverse AHD 1080P Vehicle Trunk Switch Handle Camera For Ford Mondeo MK3 MK4 MK5 S Max 2014 2018 Cars

Product Overview

Description

Product Name:

Backup Rear View Reverse AHD 1080P Vehicle Trunk Switch Handle Camera For Ford Mondeo MK3 MK4 MK5 S-Max 2014-2018 Cars



Products Characteristics:

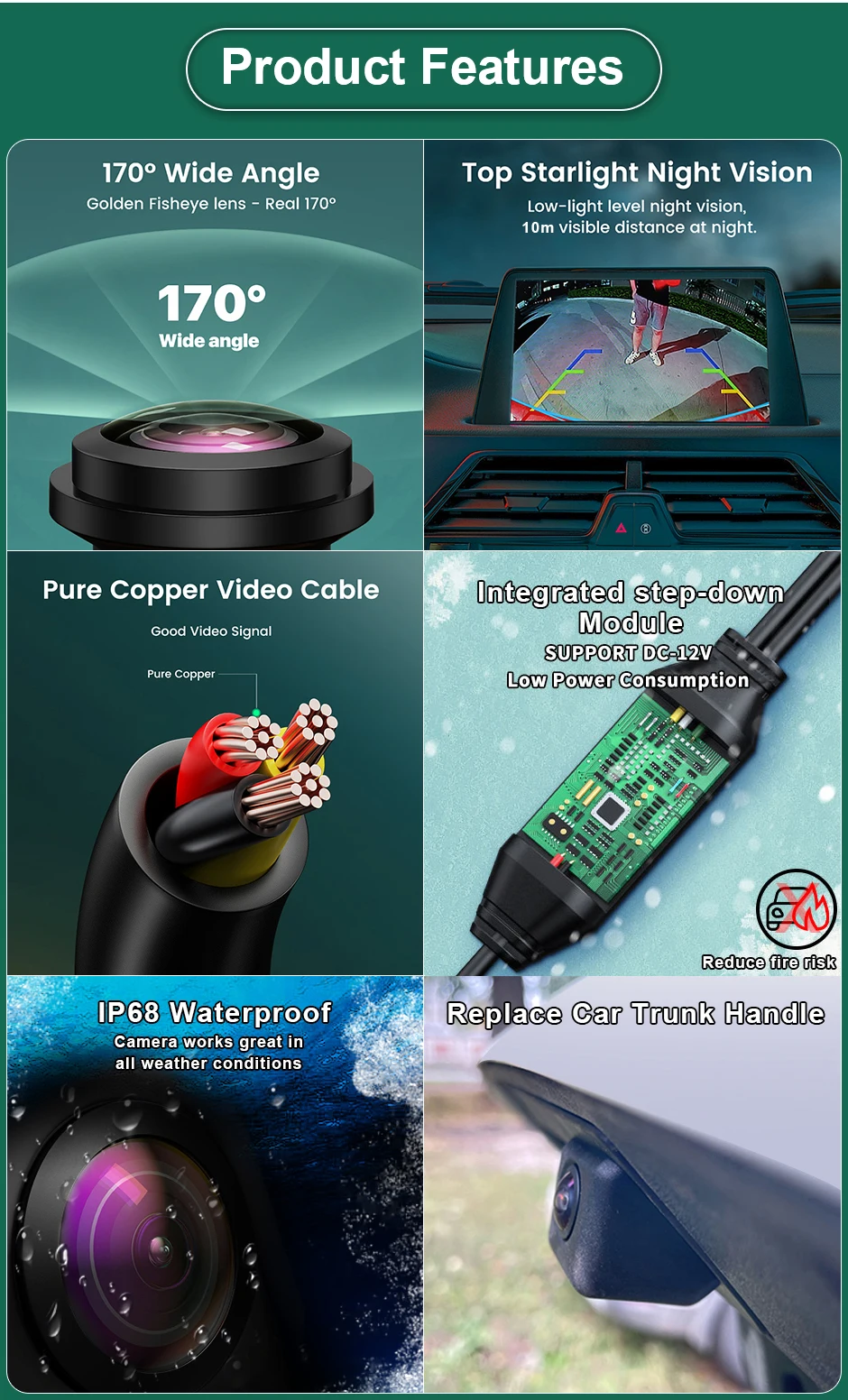

* AHD technology is High-definition video signals, it adopts advanced Y/C signal separation and filtering technology, bright color separation, signal filtering, 3D noise reduction technology, higher image clarity and better image reproduction.

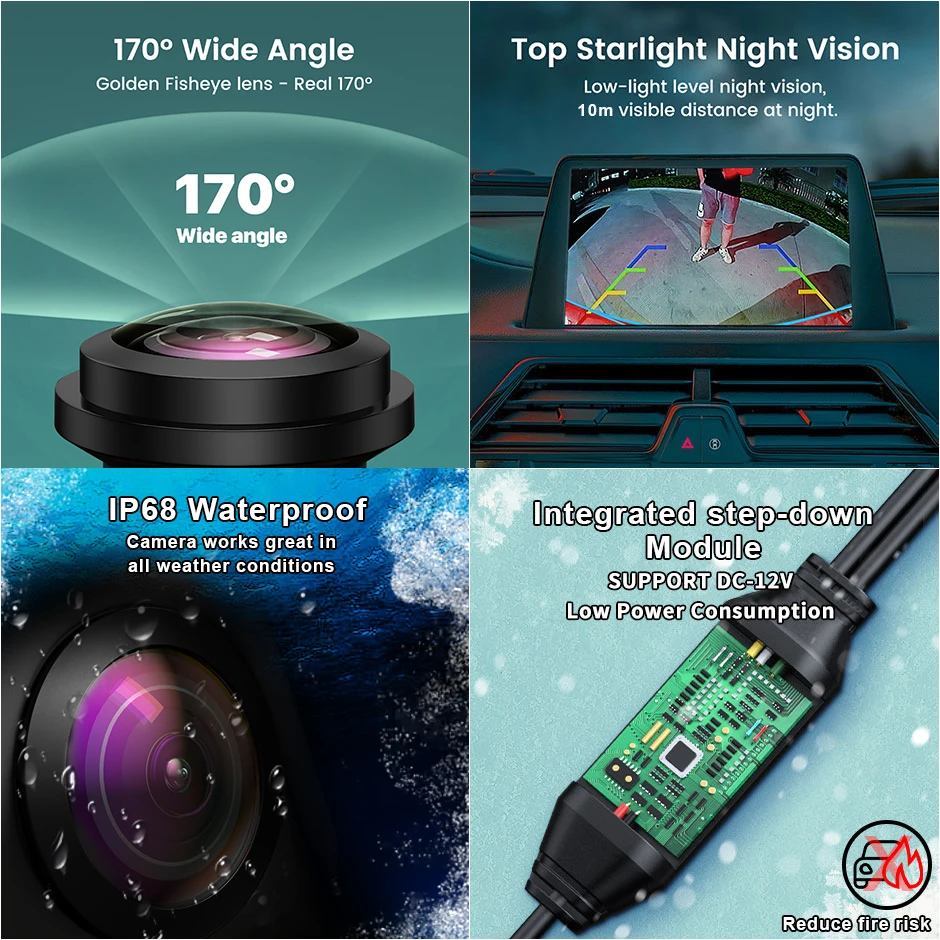

* Highly integrated 2053HD chips, Max HD 1080P Pixel. 170 degrees 6 Glass Fisheye Lens. Zero-delay front-end data is not encoded and compressed to the back end, Full real-time, High fidelity.
* The Camera support both AHD and CVBS video signal, it can work with both AHD Android monitors and all CVBS TFT monitors.



Chips components	HD Sony/OV2053HD
Viewing angle	155~175 Degrees Visible Range
Effective pixels	CVBS:1280x720P (NTSC)
AHD	1920x1080P (PAL) or 1280x720P (NTSC)
Signal format	NTSC or PAL
Image resolution	92W/200W pixels
Video output	AHD Video Signal or CVBS Signal
Night Vision	Starlight Night Vision. The visible distance is greater than 10 meters
Night Vision Image	Automatic Gain Control, Auto White Balance, Auto Backlight Compensation
Lens	14/16MM Fisheye 6 glass Lens
Waterproof	IP68 /IP69
Working Power Supply	DC 12V~24V, 2A
Working Temperature	-30 °C ~ +70°C
Maximum Power	3W

Tip:

1. Because there may be slight differences between cars produced in different countries, please check the size before buying.

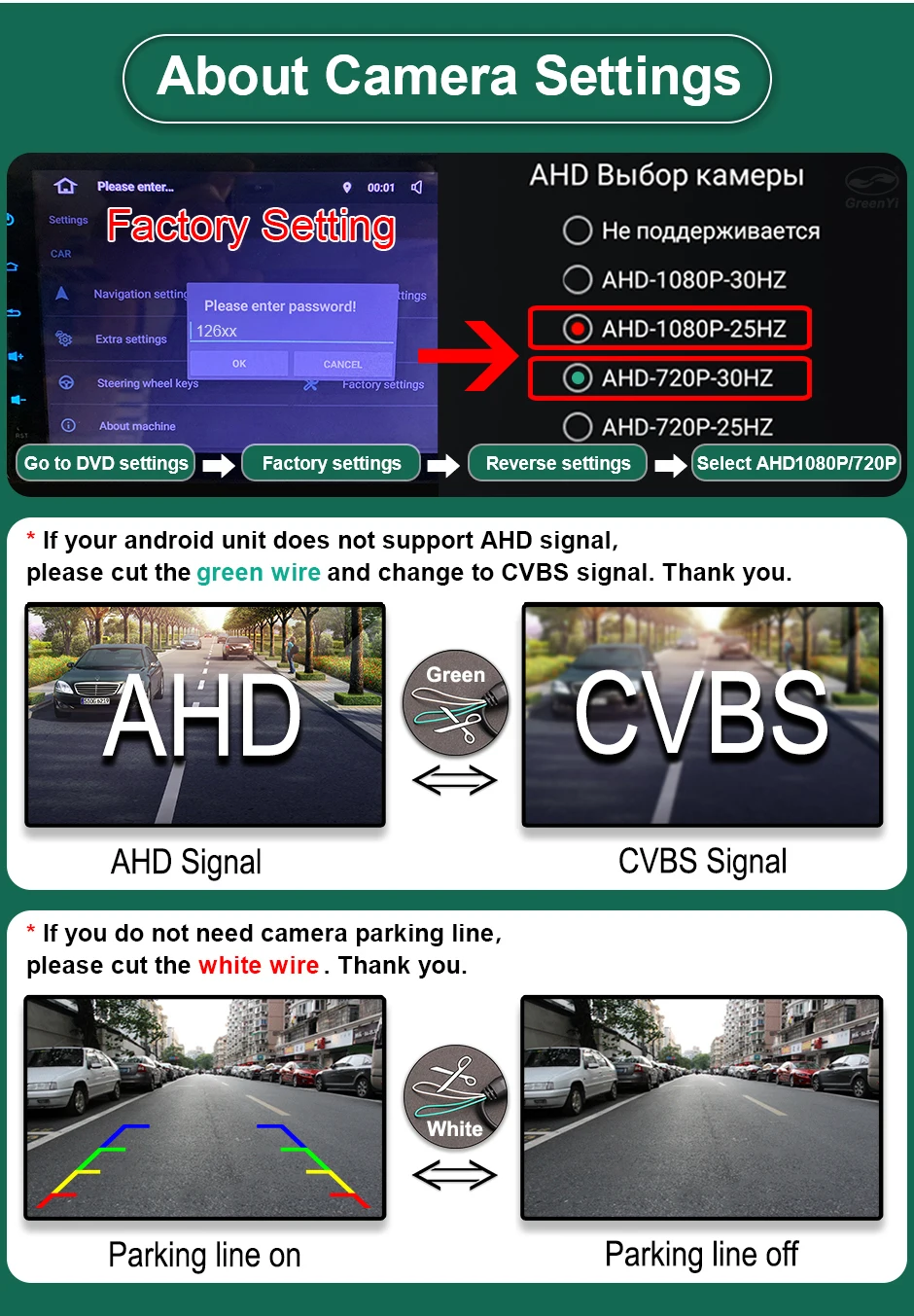

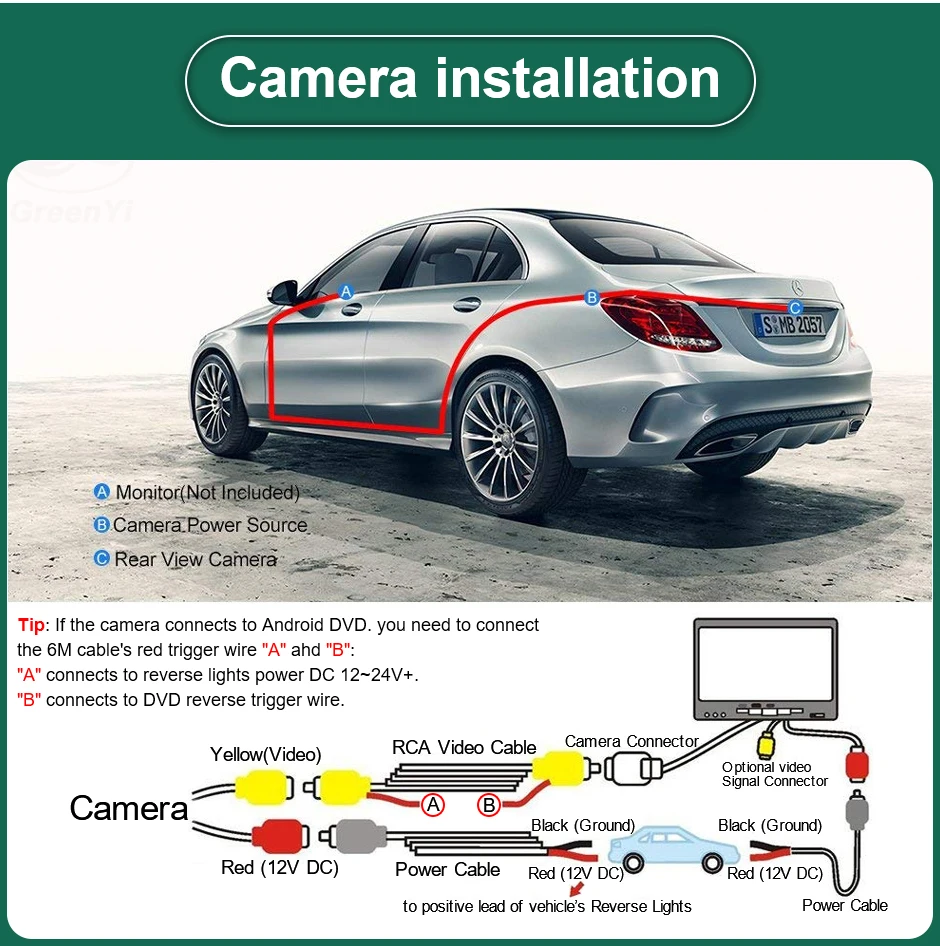

2. If your monitor can not support AHD video signal, please Cut the white wire change to CVBS video signal, please re-connect all cables.(The trajectory camera only supports AHD video signal)
3. Optional "F" only is CVBS 7080 cheap Chips . it is 120 degree plastic flat glass lens, suitable for old android dvd and and monitor .
4. When connecting the camera with a DVD player, and it does not work properly, please check if the DVD reverse trigger wire is correctly connected.

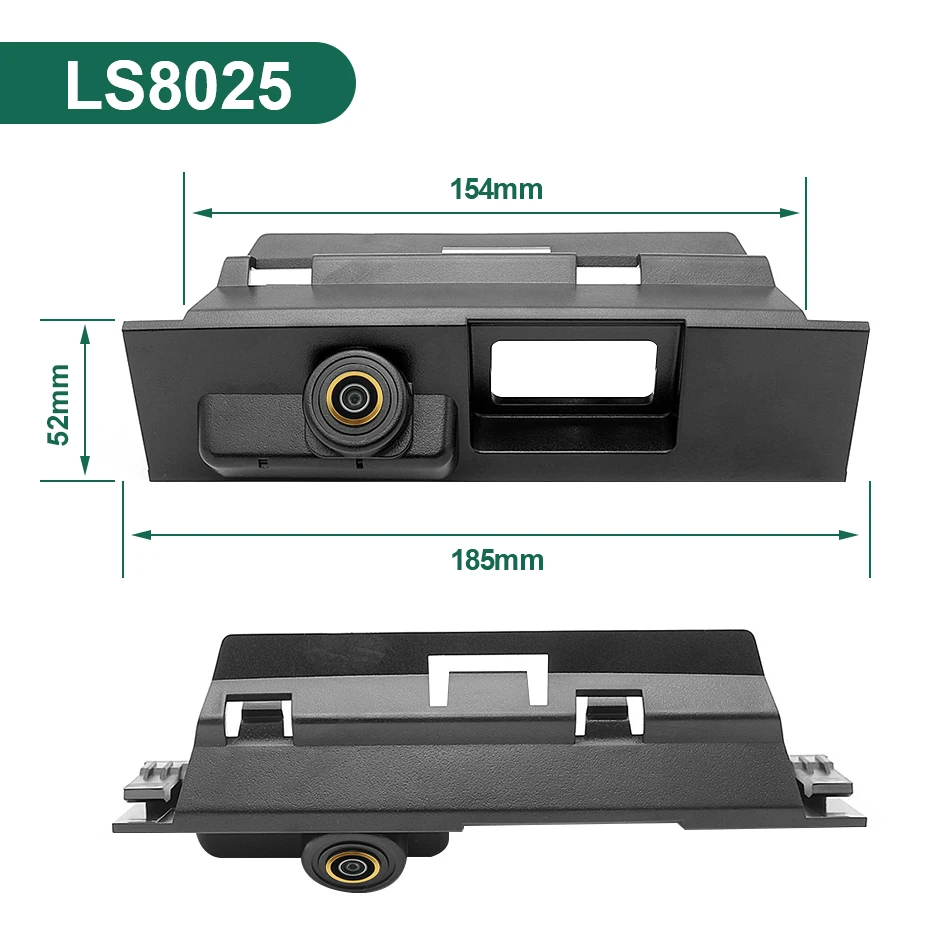

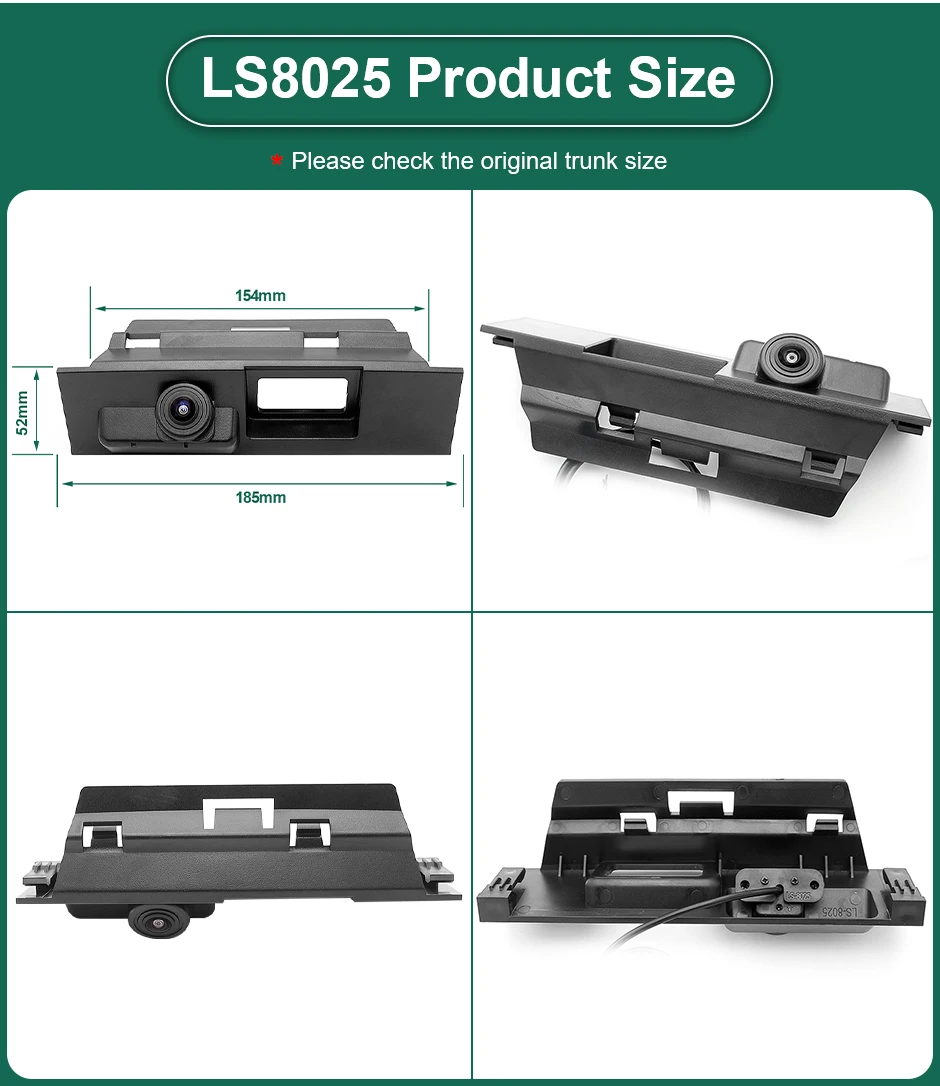

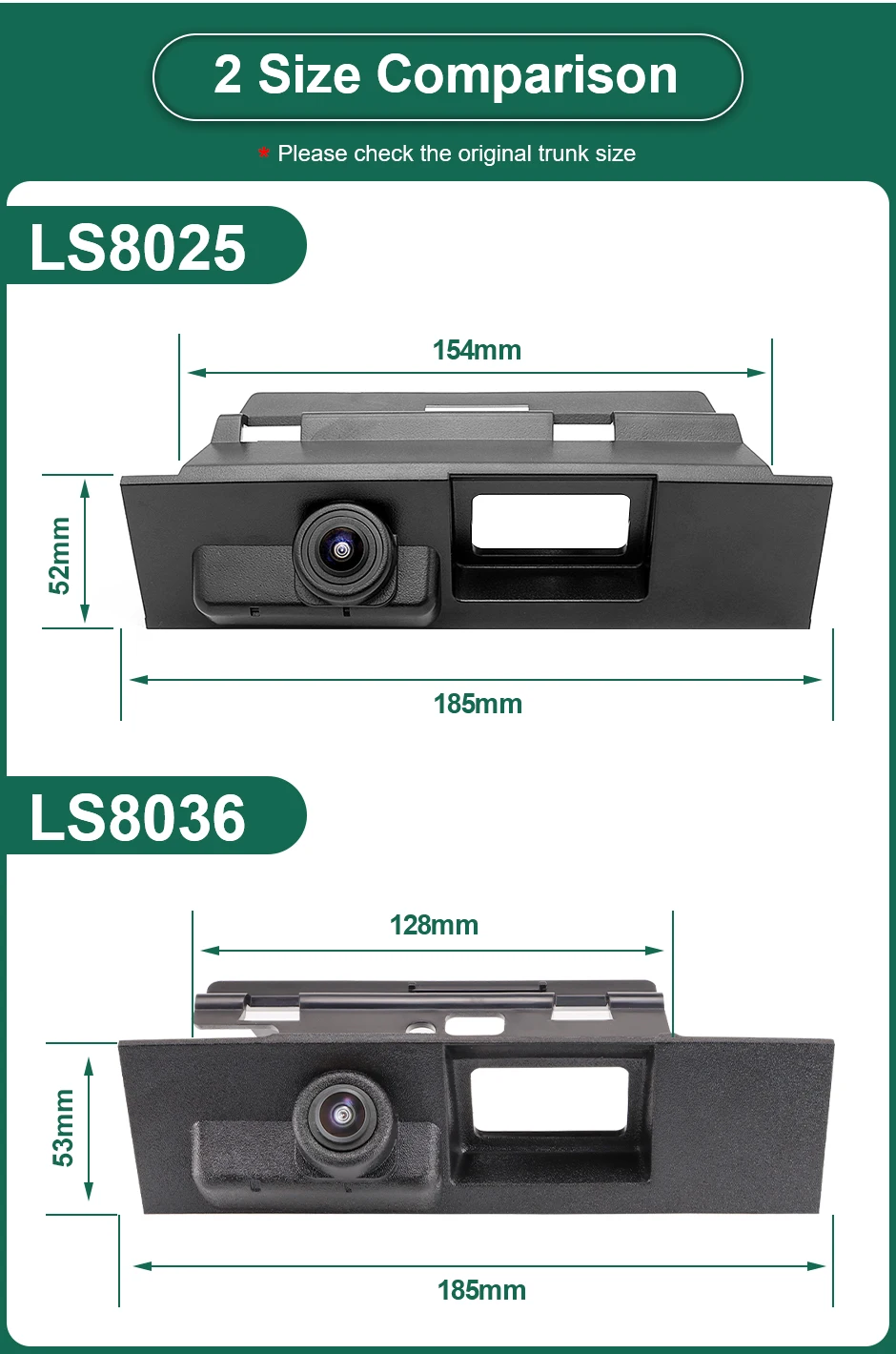

LS8025: For Ford Mondeo 2014 2015 2016

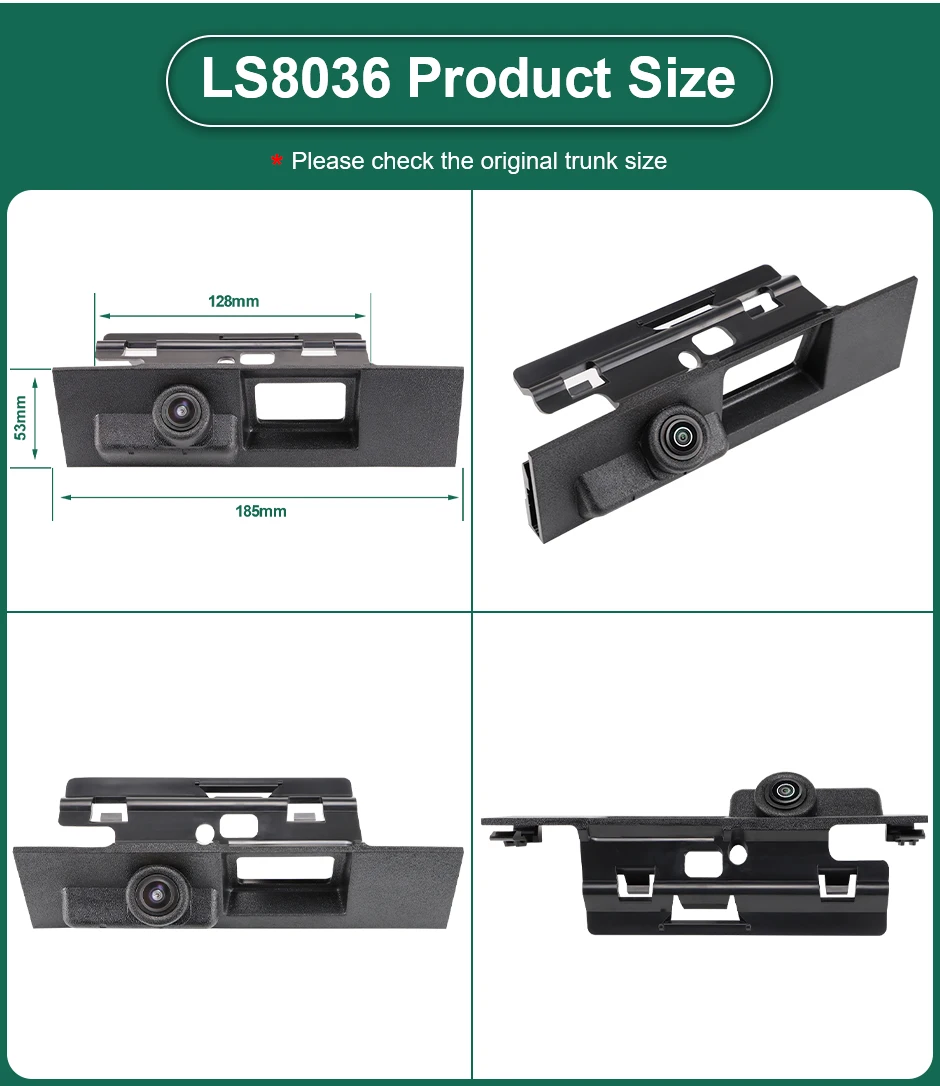

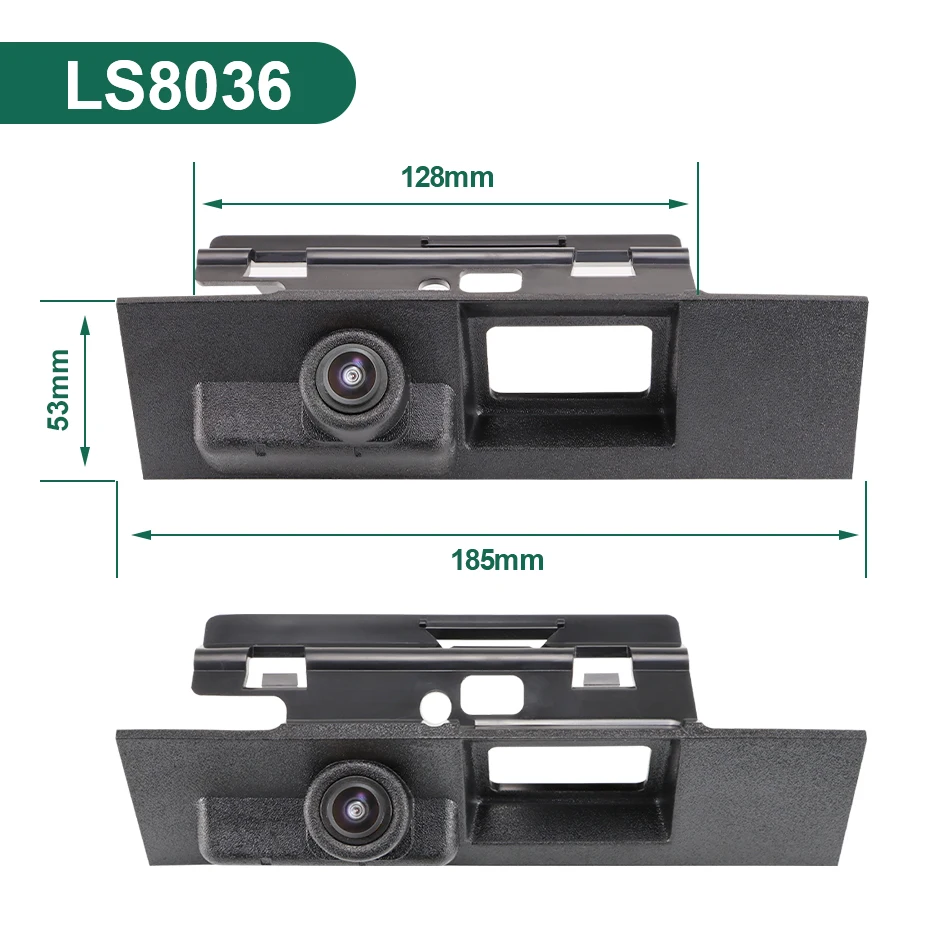

LS8036: For Ford Mondeo 2017 2018
