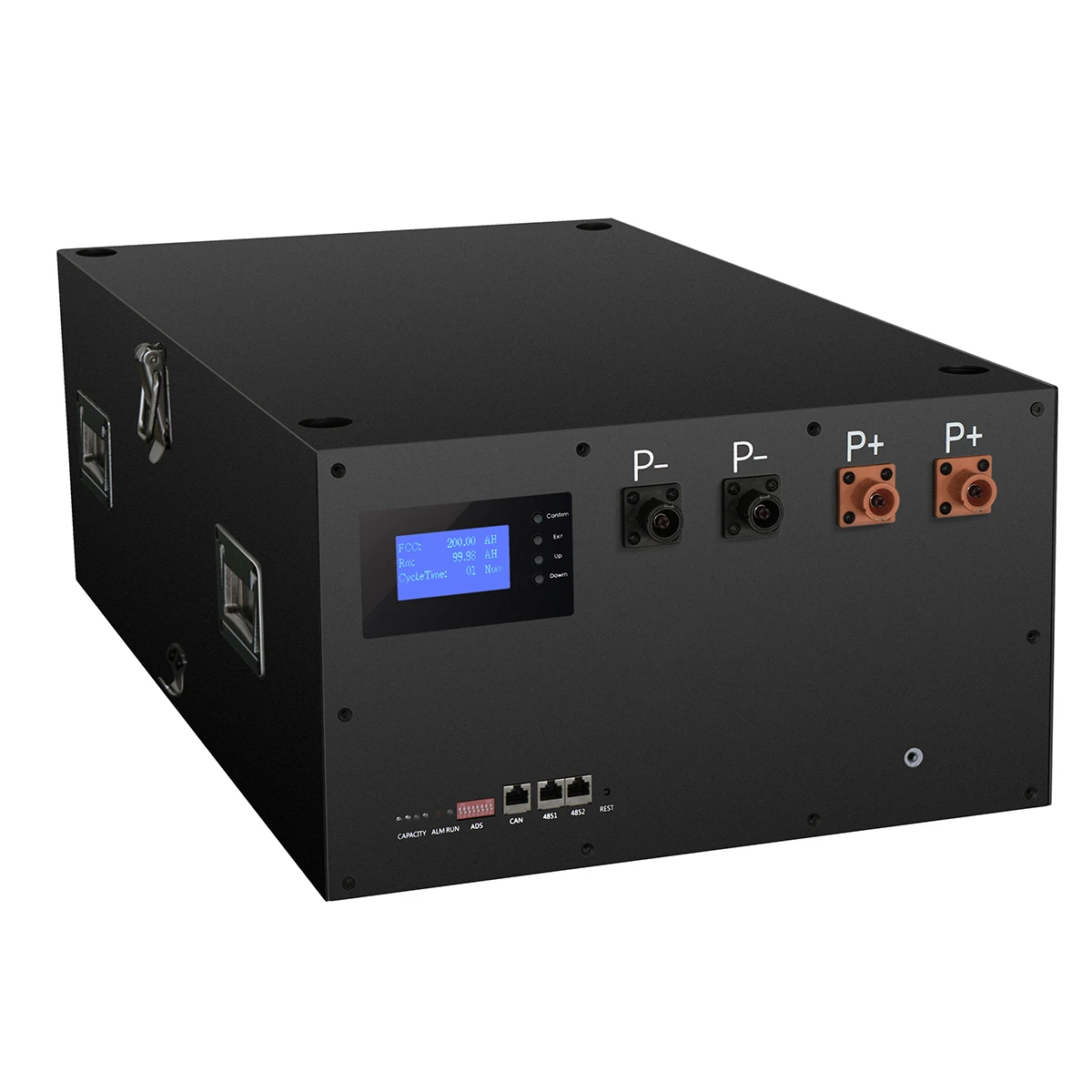

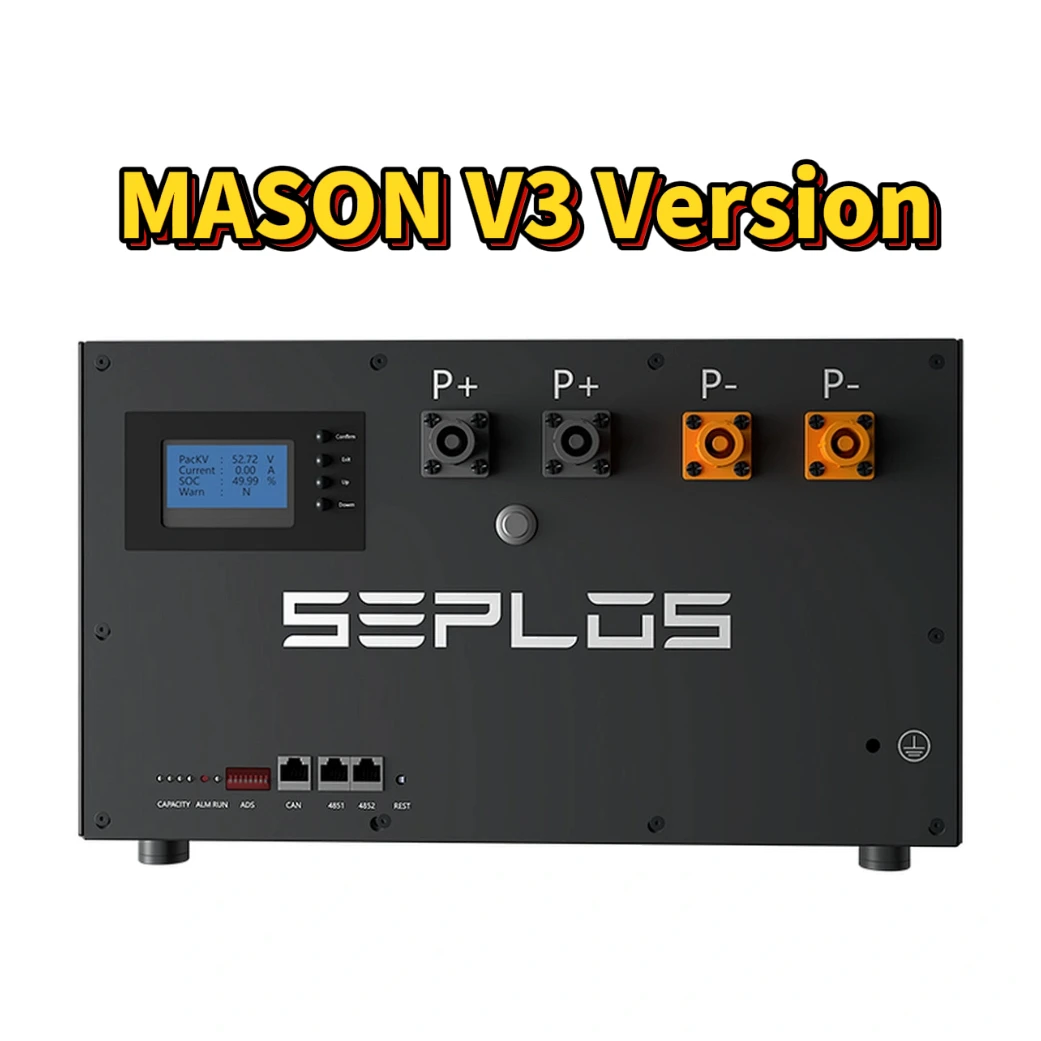

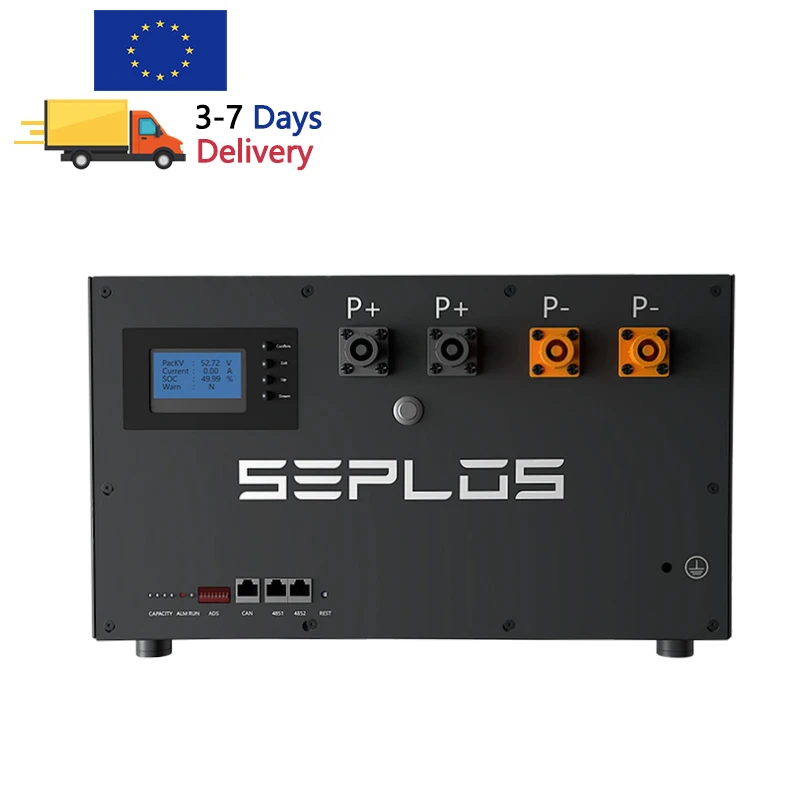

EU STOCK Seplos 3.0 48V 51.2V 280Ah MASON 280 Diy Kit battery with active balancer solar energy storage lithium battery system
- Category: >>>
- Supplier: Shenzhen Rimdin energy Co. LTD
Share on (1601231649738):
Product Overview
Description
HOT Product
Product parameters
Basic Parameters | MASON 280 3.0 | ||||||
Nominal Voltage (V) | 42V-58V | ||||||
Dimension (mm) | 750*440*251mm | ||||||
Weight (Kg) | 32.5KG | ||||||
Discharge Cut-off Voltage (V) | 41.6V | ||||||
Suitable battery | 280Ah/302Ah/304Ah | ||||||
Max Standard Charge/Discharge Current (A) | 200A @25±2°C | ||||||
Working Temperature | 0~50°C(Charge） | ||||||
-10~50°C(Discharge） | |||||||
-20～55℃(Storage) | |||||||
SOC Range | 5%-100% | ||||||
Recommunication SOC Range | 15-95% | ||||||
CAN(Default) and RS485 | |||||||
Humidity | 10%-85% | ||||||
IP level | IP 20 | ||||||
Do you want to know more product details,please click this link to our Youtube channel ,you will get it.
https://www.youtube.com/channel/UCTh9ZWzDt8pBb1BMNxjrBvA

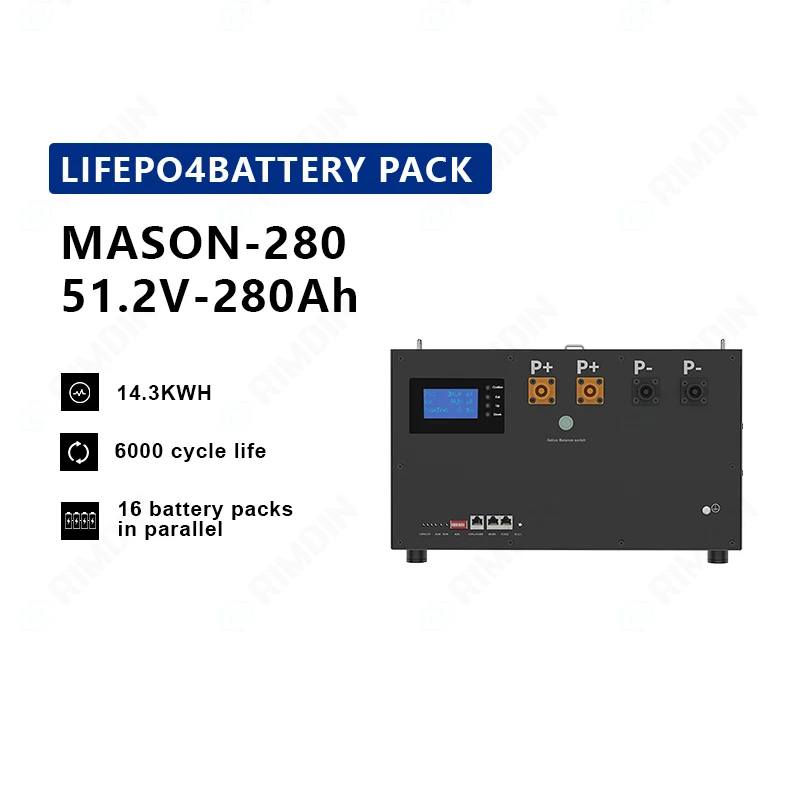

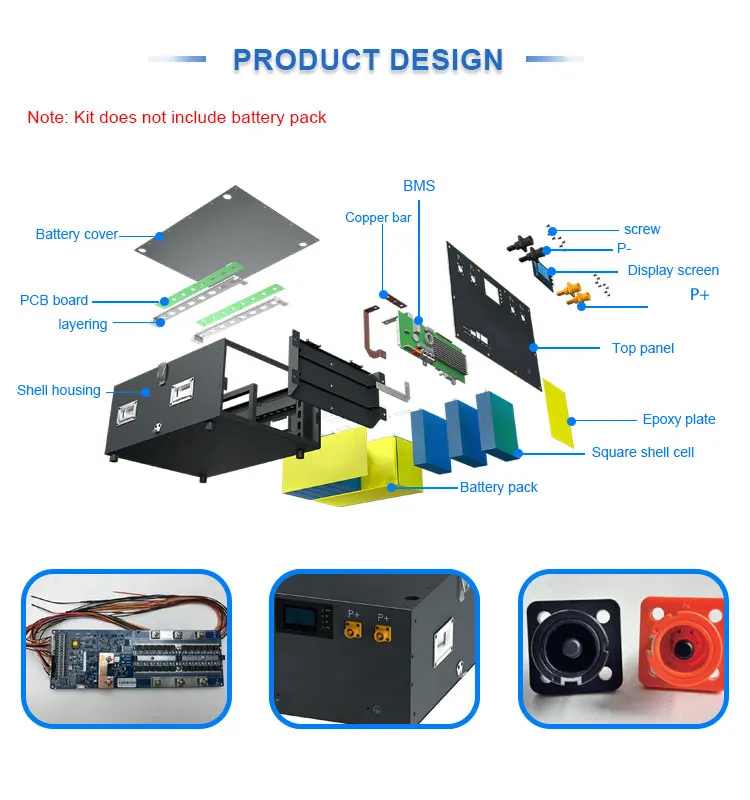

professional storage battery pack solution specially designed for DIYers with high
safety ratings and better performances. And MASON-280 is specifically designed to fit with EVE 3.2V 280Ah prismatic cells.
EU STOCK
We have set up a warehouse in Germany, where batteries and battery boxes can be shipped quickly and products can be received
within 3-7 days
Our overseas
warehouse's battery boxes come with or

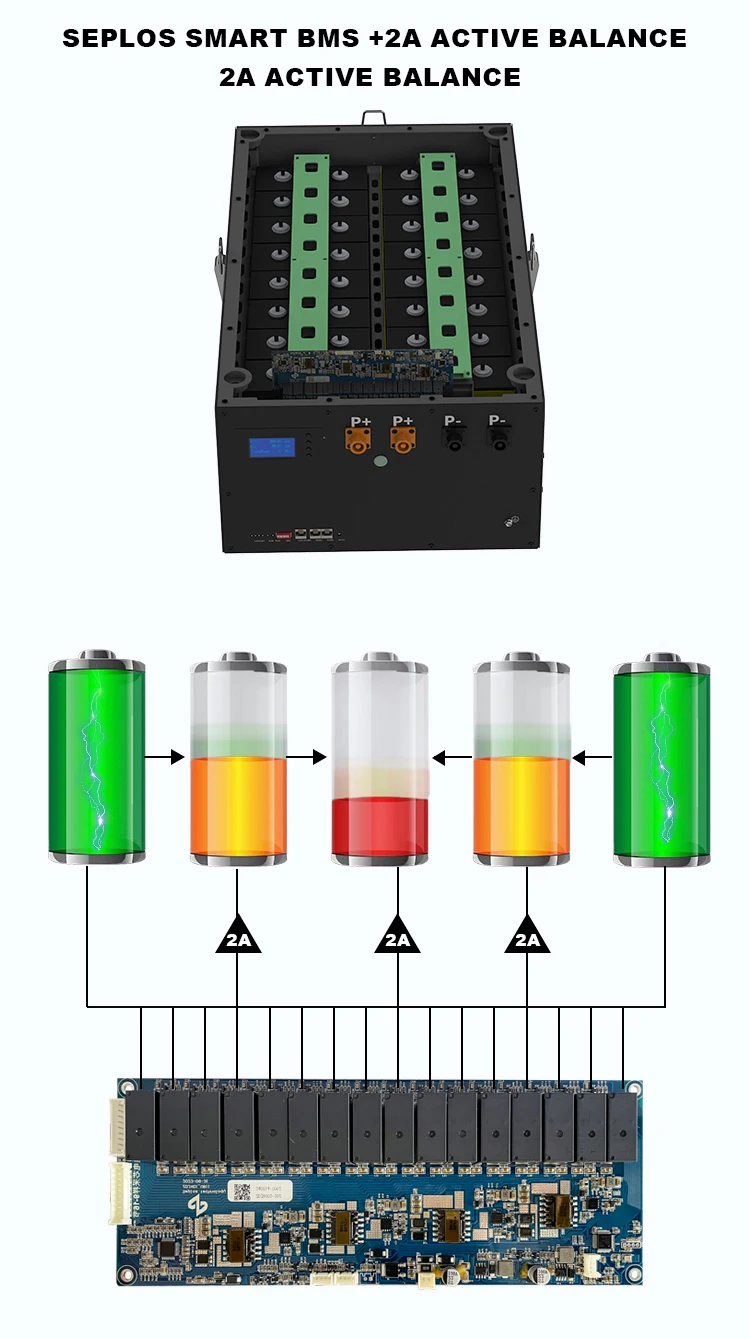

without active balancing modules. You can contact customer service to determine which model you need to purchase
EU STOCK 280Ah and 304Ah
Our overseas warehouse also has 280Ah and 304Ah A-level battery cells. If you purchase both at the same time, we will give you an
additional discountProduct Picture
Product details
FAQ

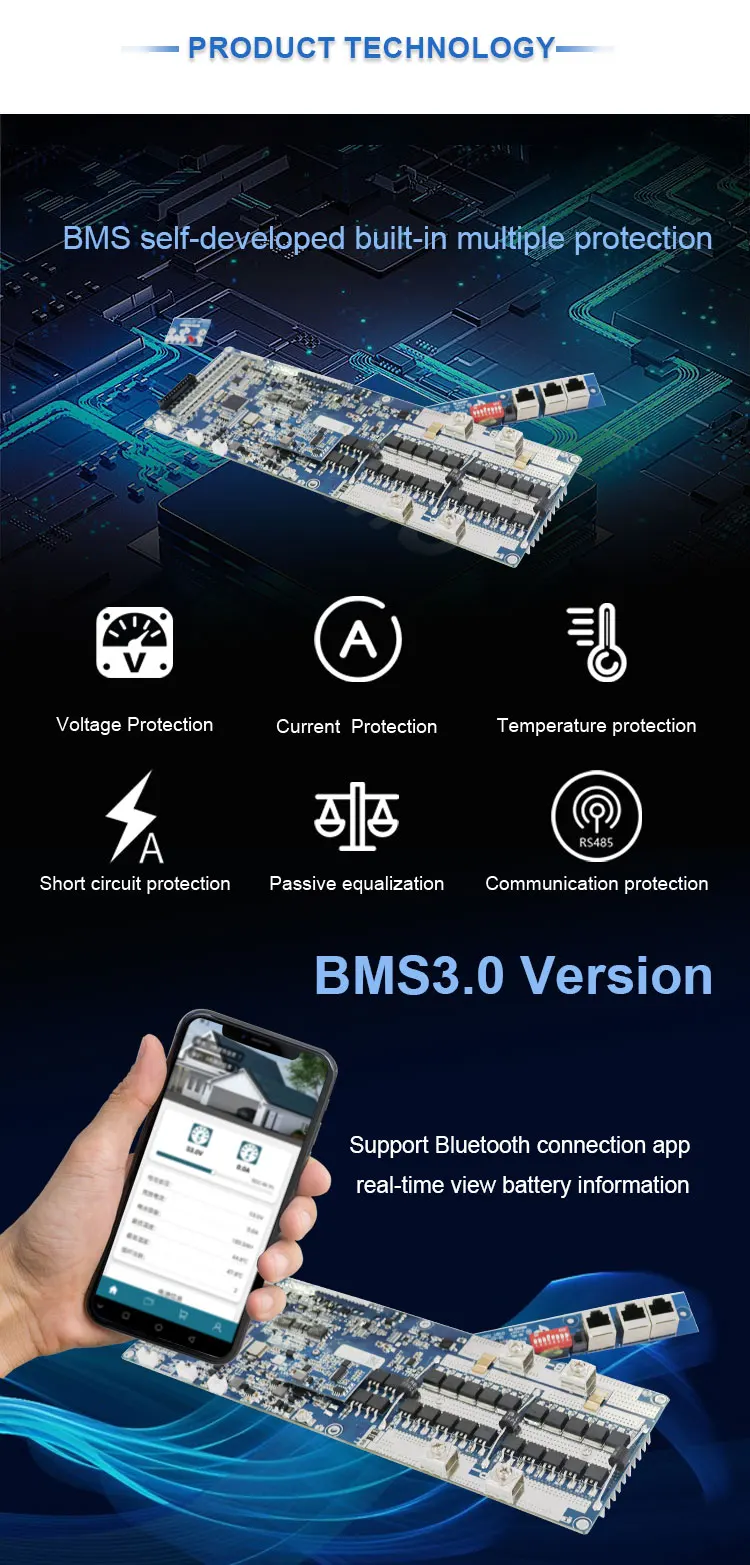

Q：Does your BMS have current balance?
A：yes,We have the current passive balance function, the passive balance function module is
integrated on the BMS board, do not need external balance device.
Q：What brand of inverter can your BMS connect to?
A：This is the inverter brand we have actually tested,they are work well together,
1.Goodwe
2.Growatt
3.Victron
4.Voltronic
5.LUXPOWET
6.Sofar
7.DEYE
8.Sermatec
9.RENAC
10.TBBPOWER
11.SOLIS
12.SMA
13.FoxESS
Q：How does your BMS look at battery data?
A：We can view the simple data of the battery string through the LCD screen connected with BMS, or view the detailed data of the
battery string from the inverter after communicating with the inverter, or connect the computer through RS485 to USB adapter, and
view the upper computer software we provide installed on the computer.
integrated on the BMS board, do not need external balance device.
Q：What brand of inverter can your BMS connect to?
A：This is the inverter brand we have actually tested,they are work well together,
1.Goodwe
2.Growatt
3.Victron
4.Voltronic
5.LUXPOWET
6.Sofar
7.DEYE
8.Sermatec
9.RENAC
10.TBBPOWER
11.SOLIS
12.SMA
13.FoxESS
Q：How does your BMS look at battery data?
A：We can view the simple data of the battery string through the LCD screen connected with BMS, or view the detailed data of the
battery string from the inverter after communicating with the inverter, or connect the computer through RS485 to USB adapter, and
view the upper computer software we provide installed on the computer.
