Hot Sale Carbon Bike China Rims Road Disc Carbon Clincher Rims Factory Wholesale Price 28mm Width Carbon Fiber Rims

 Road Disc Brake 28mm Width Carbon Clincher Rims

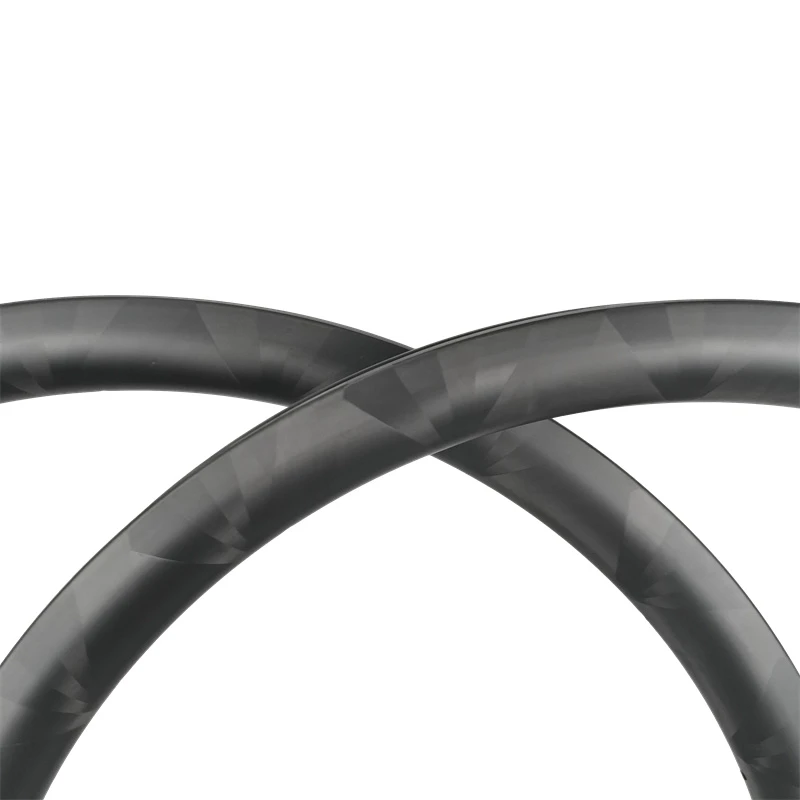

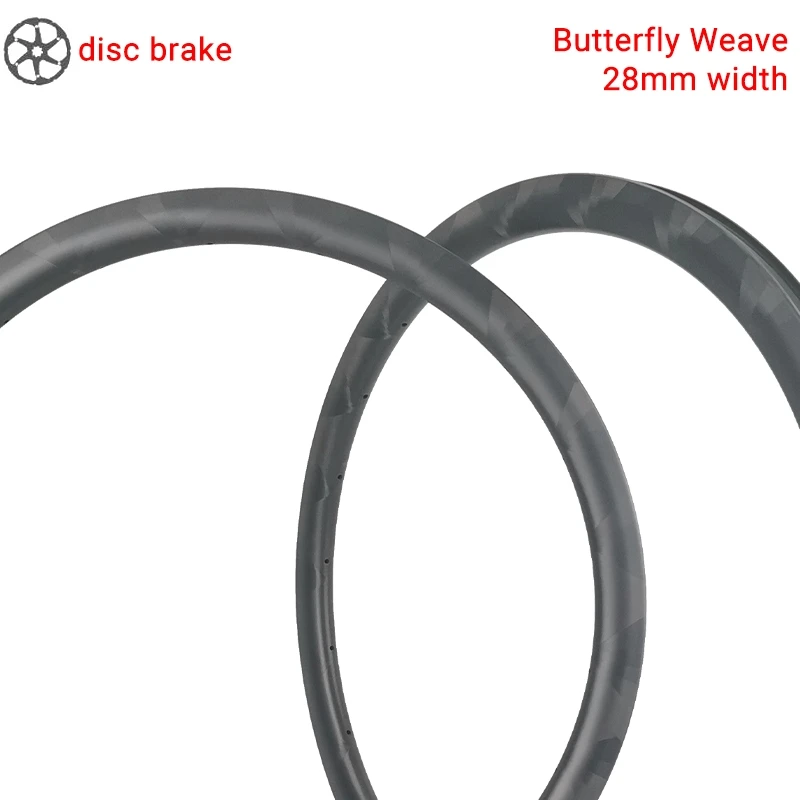

- carbon rims are high-performance bicycle rims made with a unique weaving pattern. This weaving pattern adds strength and durability to the rims, making them ideal for riding. With their eye-catching design and superior performance, butterfly weave carbon rims are a popular choice among cyclists.

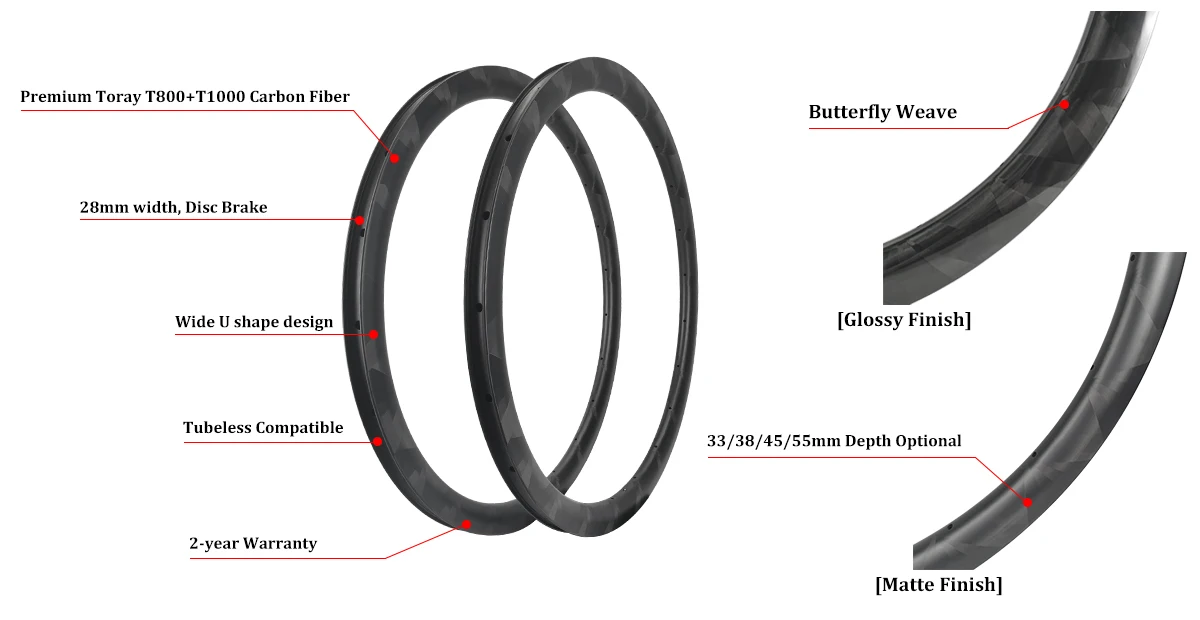

- Wide U shape design, of better aerodynamics and stiffness.

- Premium Toray T800 + T1000 carbon fiber ensure that the rims are lightweight (10g less compared to other regular UD weave rims), yet incredibly strong and durable.

- Rims will come without any LOGO by default, but we can also help to make your own customized LOGO decal (with extra cost).

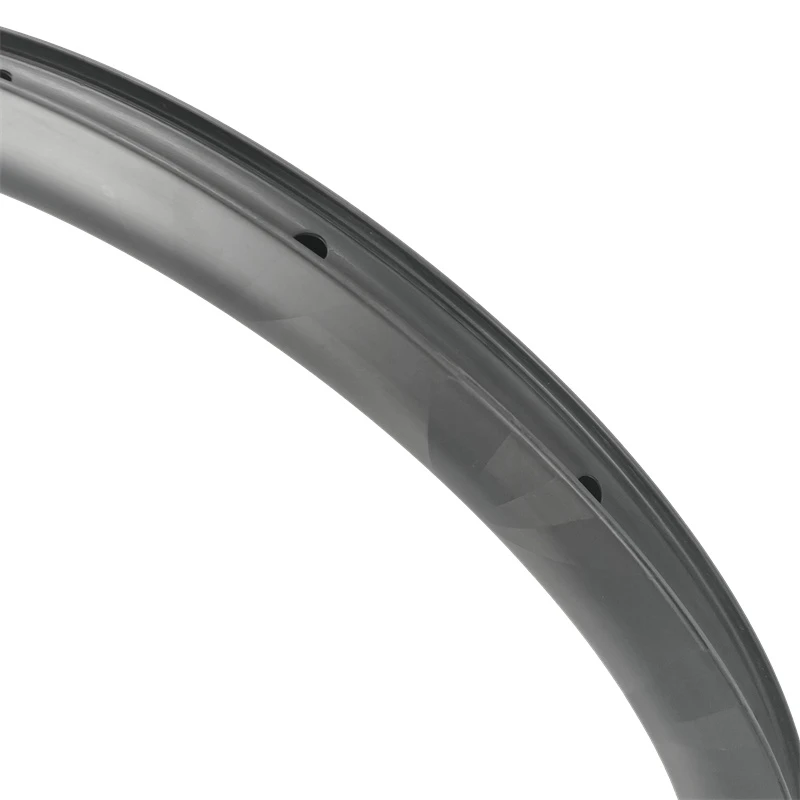

- Customized spoke holes drilling are available without extra fee (18-32H as you wish), ensuring a high-quality and reliable wheel assembly.

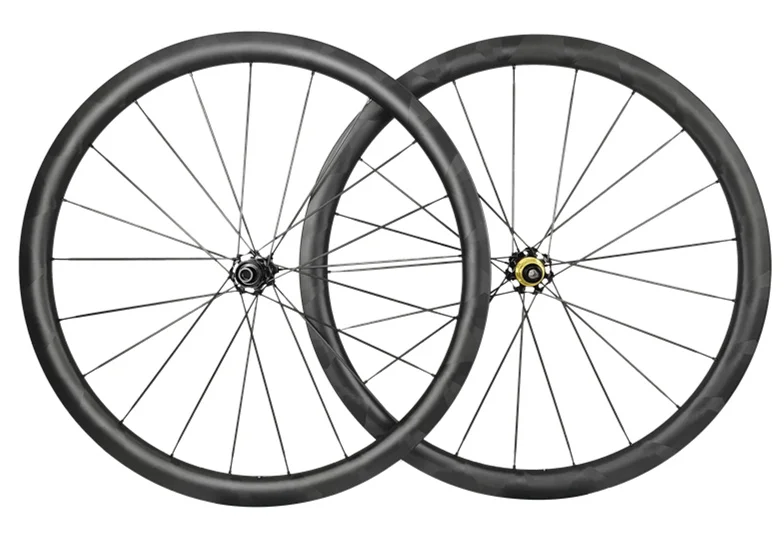

- We can also build these rims with different hubs and spokes options as complete disc brake carbon road wheelset for you.

 ERD Calculate

ERD is short for effective rim diameter, it is the maximum distance that spokes bridge going from one end of the rim to another.
How do we calculate the ERD of our rims? Below are calculation equation and sketch for your reference:

ERD=Rim outer diameter-(rim depth)*2+(Rim nipple bed thickness)*2

For example:

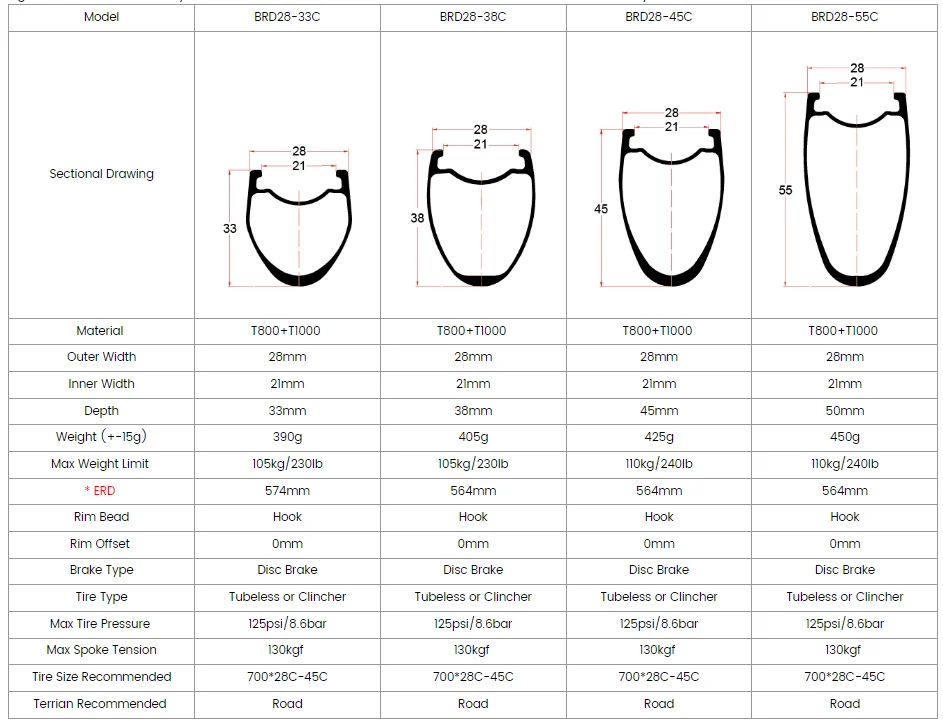

ERD of BRD28-33C rim=633mm-33mm*2+3.5mm*2=574mm
Most people prefer ERD including the length of the nipple head.
However, customers may use different nipples and components for building.
Please add the length of the nipple head (2.5mm~3mm generally) for your spoke calculation.
If the length of the nipple head is 3mm, then ERD of your RD28-22C rim is 574mm+3mm*2=580mm
A: Rim nipple bed thickness (=3.5mm)
B: Length of nipple head (2.5mm~3mm generally)

CHA/Customized spoke hole angle

All spoke hole angles must be customized according to the geometric angle of the hub.all drilled holes are inspected to ensure they are free of burrs.

You can request a customized drilling pattern if you have a unique wheel build.

TRD/Tubeless R angle design

All wheels are tubeless compatible.We design a R angle,The rounded edge makes tire installation easier and offers increased support

during hard cornering with a softer edge and larger surface area.

LMS/lighter materials improve the strength

We use lighter materials and make full use of the combination of T700 and T800 to improve the strength.

SIW/smooth Inside Wall

We use a specific, thinner, high-pressure air bladders to control the inner wall smoothness, and the inner wall air bladders can be extracted clean at one time,

Without residue, not only effectively improve the tightness of the carbon fiber yarn, but also allow the spoke cap to be more tightly integrated with the spoke hole

OPT/one piece technology

Compared to the technology of 3 piece, our one piece tech is more technically difficult and takes longer to produce, but the rigidity of the rim is at least 7% higher

BLT/Bead Lock technology

The bump on the rim bed helps to create a buffer during tire inflation, making the mounting process easier. When the tire is mounted,

the raised portion reinforces the tire bead, making it harder to “burp” or fall back into the drop channel.

Design your brake surface?

Basalt brake surface or crystal polishing brake surface.

What is the role of basalt braking surface?

Basalt is a special carbon fiber material, the surface is rough and high temperature resistance, wear-resistant.

Basalt has a good performance, both on dry and wet roads.

What is the difference between UD, 3K, and 12K Weaves?

The weave patterns you see on some of our rims are only the external layer and are done for cosmetic reasons.

This layer utilizes the same resin system as the rest of the rim and so the weight and performance are not significantly changed. UD is the most popular option.

What is the role of crystal polishing brake surface?

Crystal polishing is a special technology, in the final steps of the machining rim, we use crystals to polish the surface of the braking surface,

so that the surface of the braking surface has better flatness,Thus increasing the wear resistance of the brakes, also effectively avoid the noise when braking.

Crystal Polishing is only a technology, not a specific individual refers to a type of braking surface, ud/3k/6k/12k braking surface all can be used with crystal polishing this technology.
