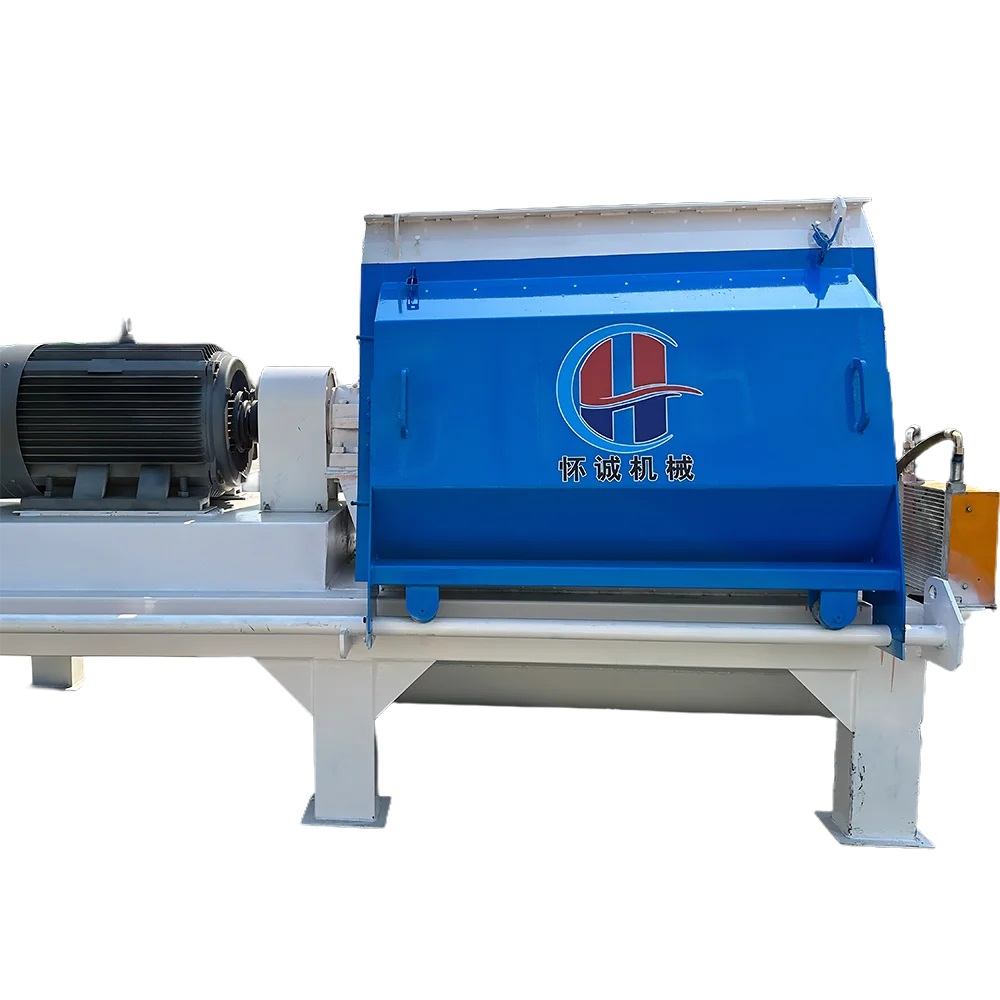

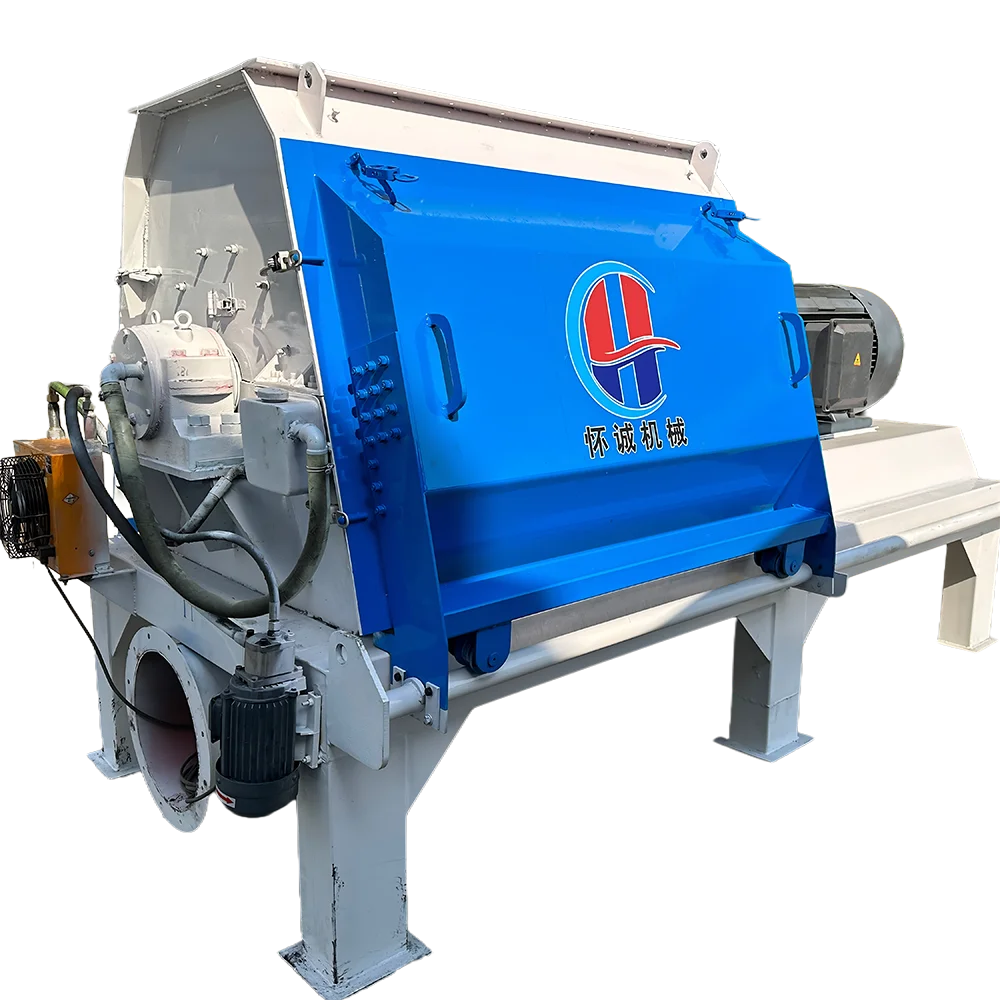

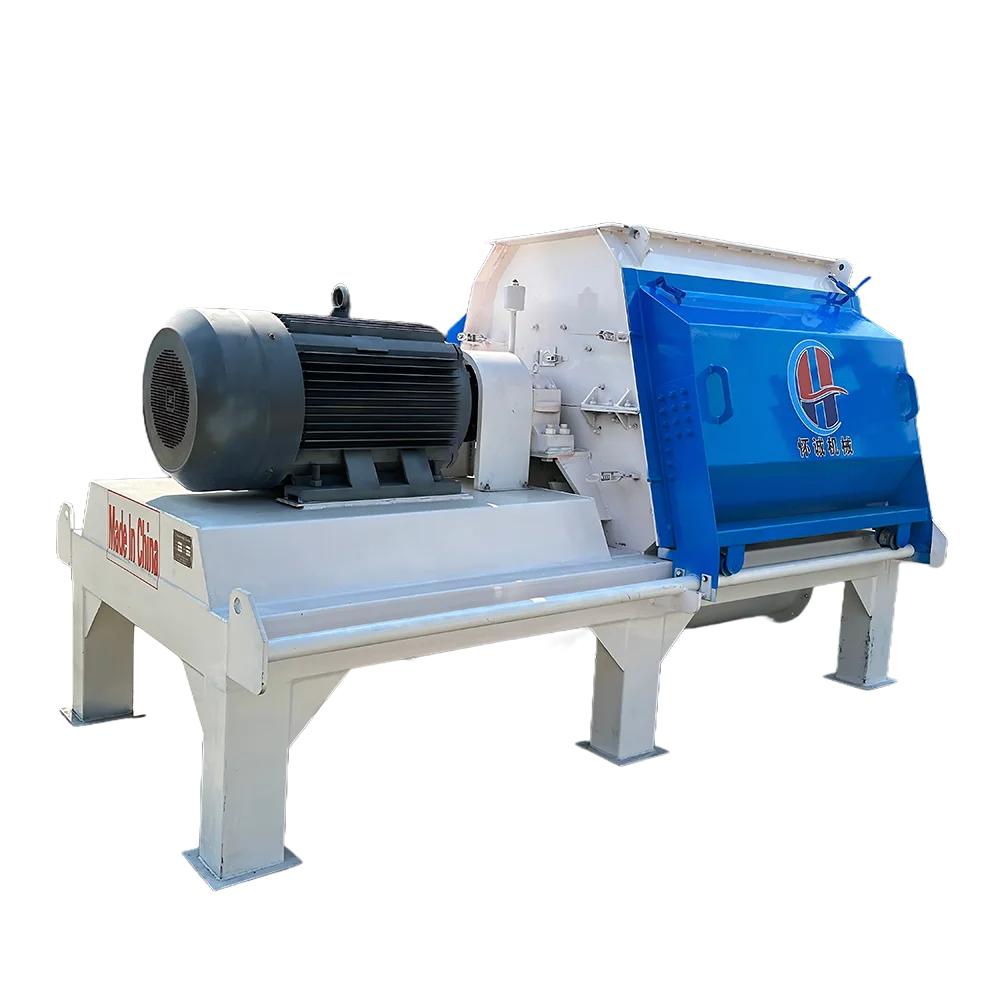

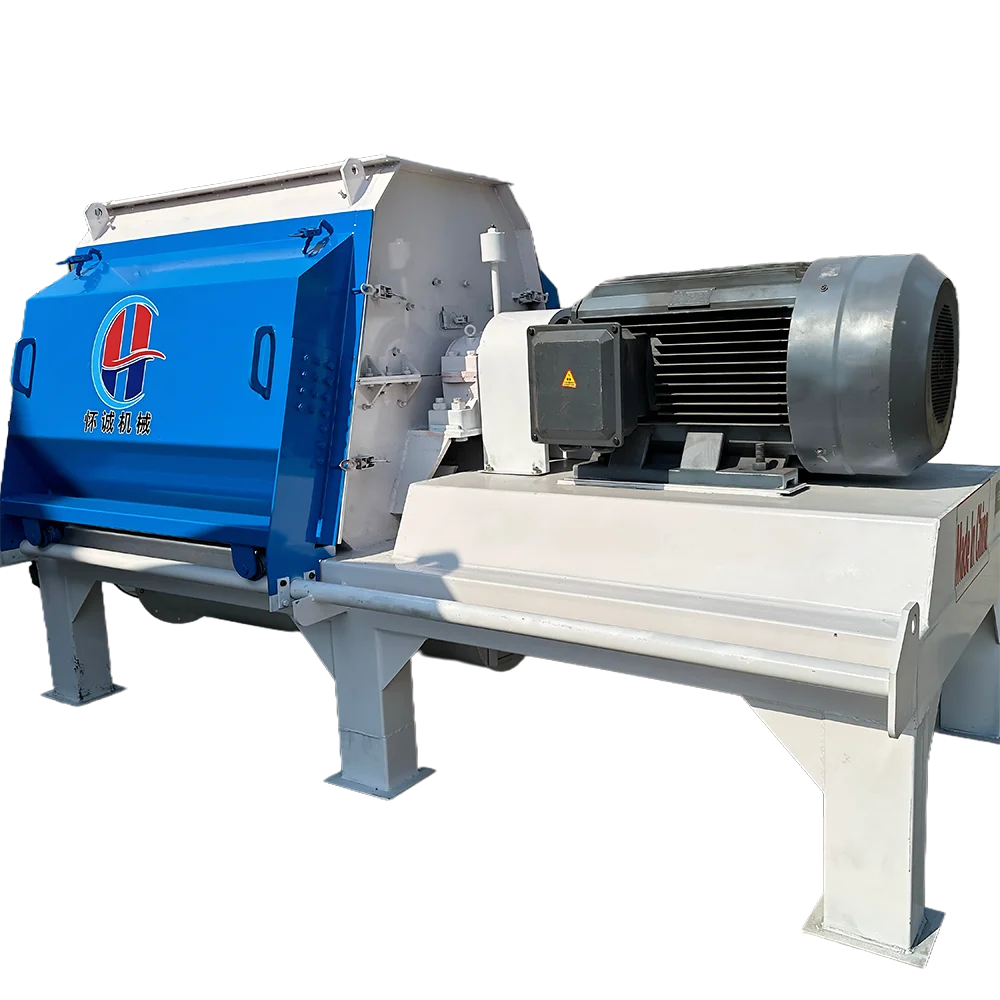

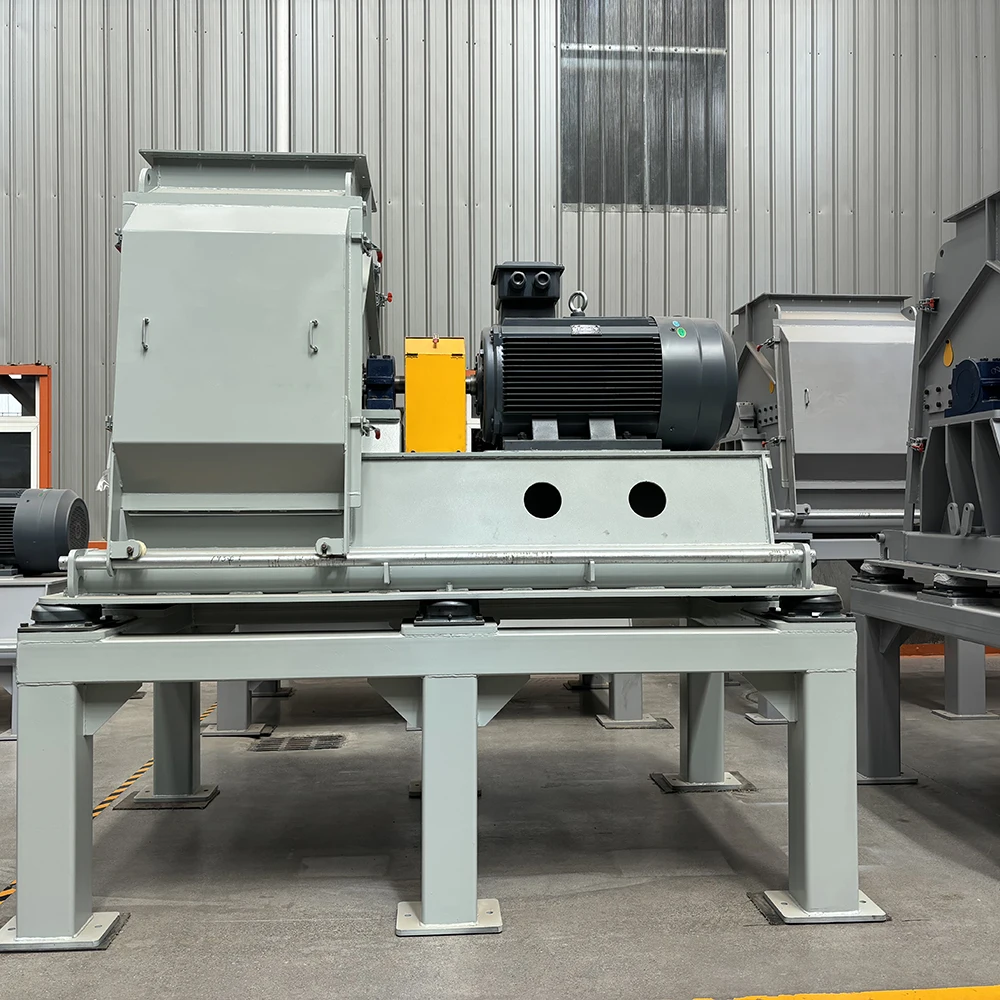

Hammer Mill Machine
The feed hammer mill is composed of hopper, ball type magnetic separation machine, guide mechanism, upper casing, operation gate, rotor, engine base and shock absorber. It can be used grinding corn, wheat, soybean, sorghum, also grinding forage and medicine raw materials. And it is widely suitable for large and medium feed mills and large scale breeding factory and pharmaceutical factory.
Working Principles of feed hammer mill
This feed hammer mill process is divided into two parts:
Hammer Blow: There are several crushing methods: crushing, grinding, smashing and Shear broke. Our machine is smashing, raw materials in grinding chamber are crushed small granular with hammer fast rotate and strike.
Mesh Filter. Some of crushed small granular are according with standard and through screen, and the rest of materials need hitting again to meet standard.
Water drop grinding chamber design, it can remove circulation to get secondary crushing and improve grinding uniformity and capacity.
feed hammer mill rotor by checking, equipment operation less vibration, less noise, more stable.
Adopt direct drive, new bibby coupling, avoid bearing heating.
Import advanced bearing, long life, and stable run.
Can use impeller feeding,
Working Principles of feed hammer mill
This feed hammer mill process is divided into two parts:
Hammer Blow: There are several crushing methods: crushing, grinding, smashing and Shear broke. Our machine is smashing, raw materials in grinding chamber are crushed small granular with hammer fast rotate and strike.
Mesh Filter. Some of crushed small granular are according with standard and through screen, and the rest of materials need hitting again to meet standard.
Water drop grinding chamber design, it can remove circulation to get secondary crushing and improve grinding uniformity and capacity.
feed hammer mill rotor by checking, equipment operation less vibration, less noise, more stable.
Adopt direct drive, new bibby coupling, avoid bearing heating.
Import advanced bearing, long life, and stable run.
Can use impeller feeding,
Specification
item | value |
Max. Capacity | 10 ton/h |
Applicable Industries | Power Plant, Feed Factory |
Showroom Location | India |
Place of Origin | China |
Hebei | |
Weight | 4500kg |
Warranty | 1 Year |
Key Selling Points | High Productivity |
Marketing Type | New Product |
Machinery Test Report | Provided |
Video outgoing-inspection | Provided |
Warranty of core components | 1 Year |
Core Components | Motor, Reducer |
Condition | New |
Type | Mill Machine |
Voltage | 380V |
Product Name | Hammer Mill Machine |
Power | 132KW/160KW |
Model | GXPS1200*1000 |
Output | 4-6t/h |
Number of hammers | 118 |
Fan | 37KW |
Pulse bag collector | 120/200holes |
Cyclone | Diameter 1200/1500mm |
Unloader | 3KW |
Iron remover | 800 to 400 |
Details

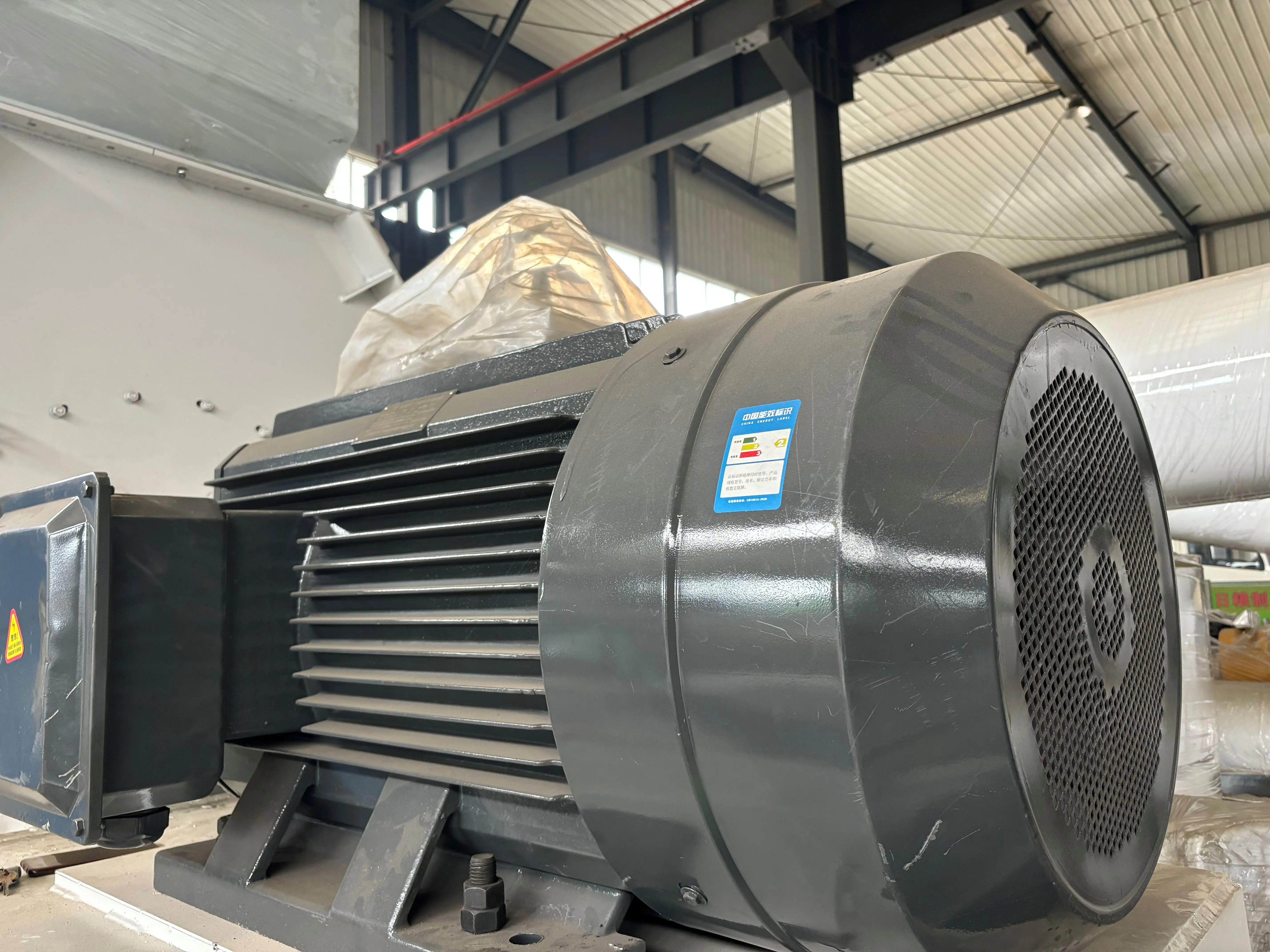

Pure copper national standard motor
Well-known brand pure copper national standard motor with stable performance, high torque, low failure rate and long warranty period.

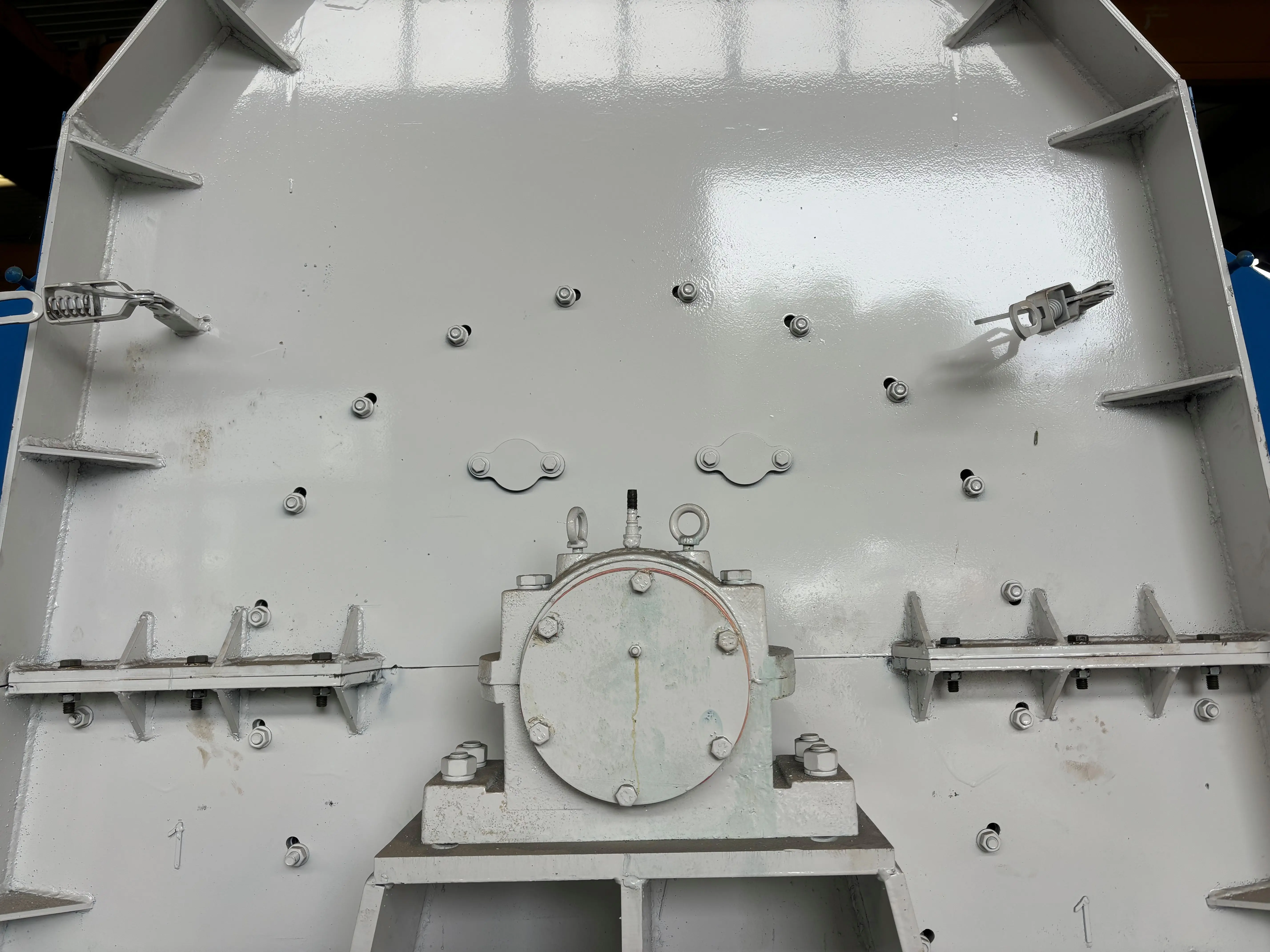

Cast steel base bearing
The bearing adopts a cast steel base with a special built-in structure, which enables the bearing to withstand greater vibration and high temperature, providing technical guarantee for the long-term operation of the equipment.

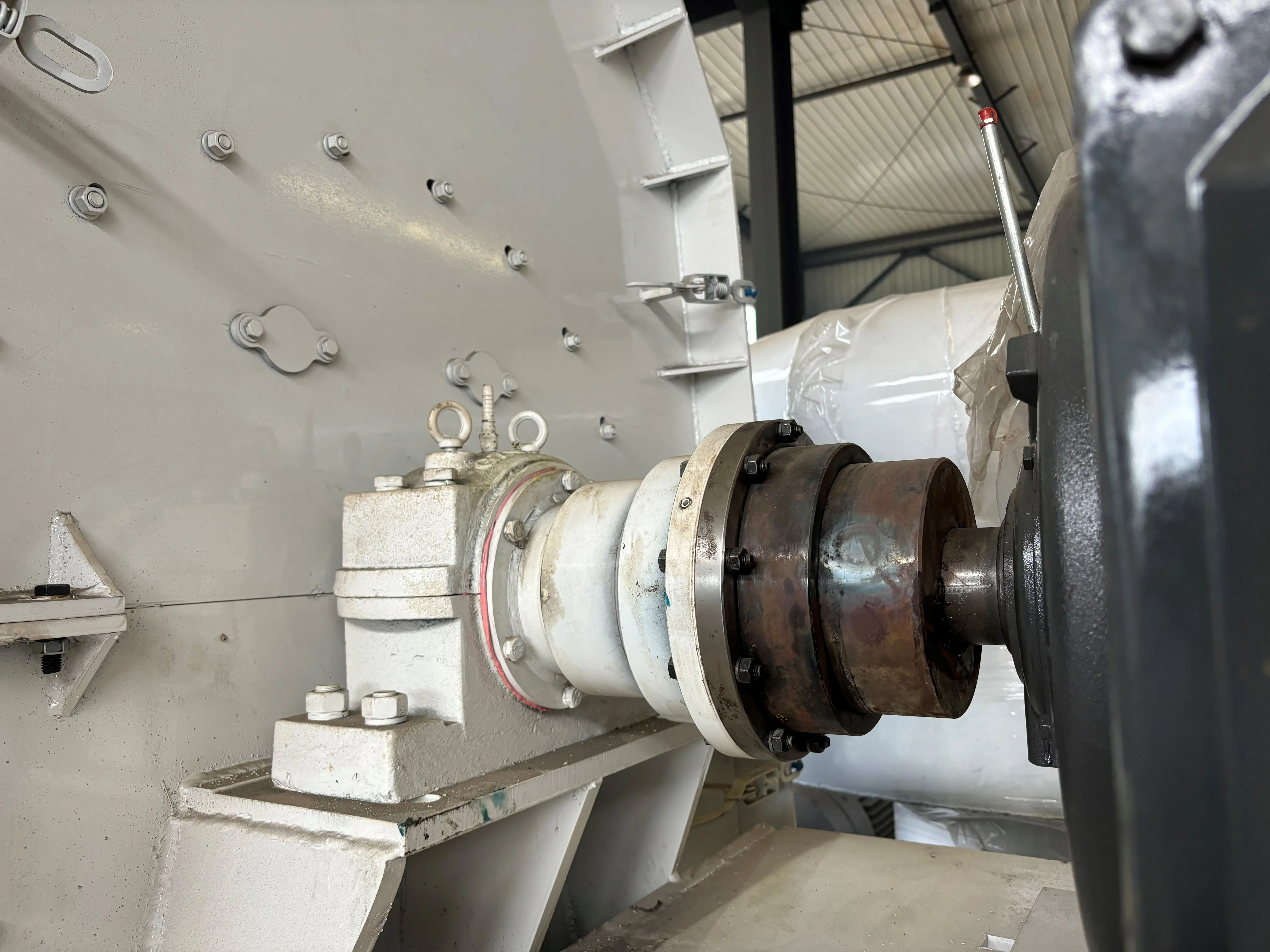

High precision, high strength coupling
High precision serpentine spring coupling -easy to maintain without the need for motor movement and lower noise.

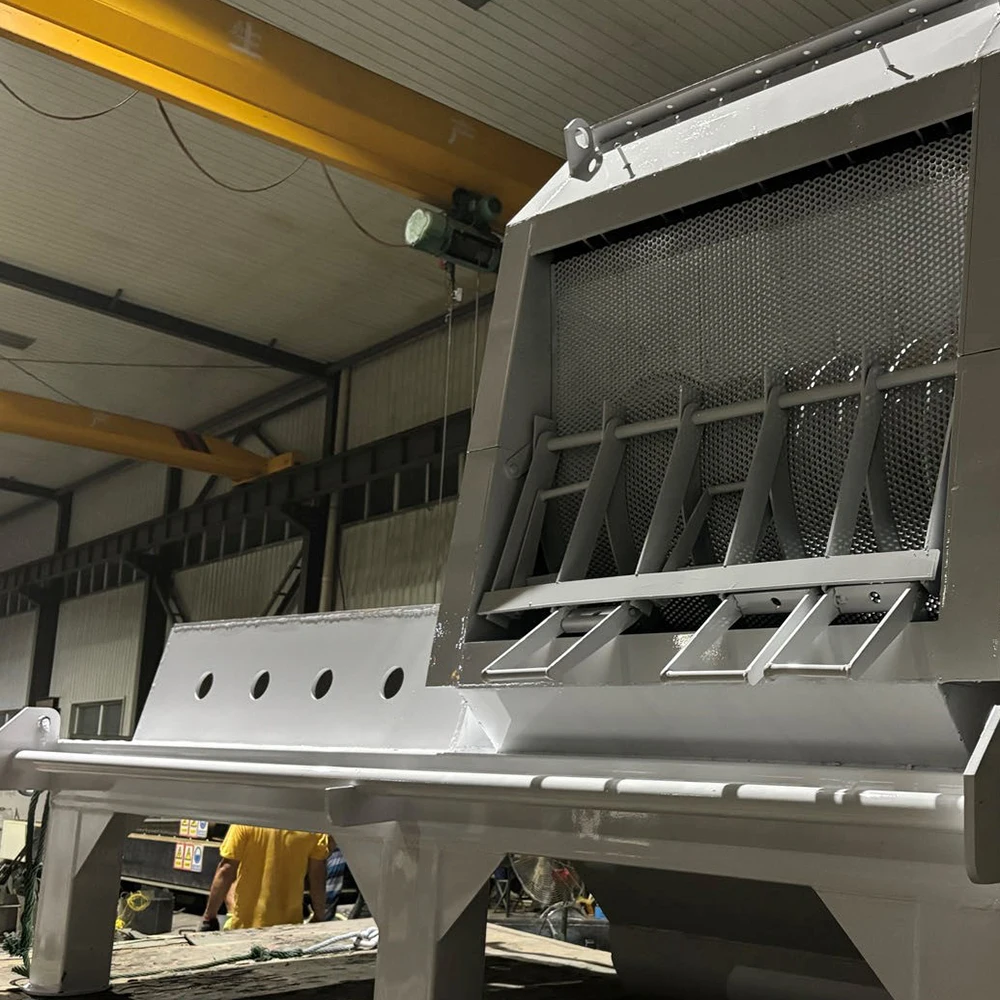

Thick materials are used to extend service life.
Reinforced box, large material, manganese steel, long service life.
Easy to replace, various screen specifications can be replaced according to customer's required length.
A special hammer screen gap adjustment structure that can be adjusted between 2-12mm, suitable for crushing with different sizes of coarse and fine particles;
PRODUCT SPECIFICATIONS
No | Item | Data | Model | Color |
1 | Power | 132KW/160KW/250KW | GXPS1200*1000 | Yellow/Blue/White |
2 | Bucket capacity | 4-8T | GXPS1200*1000 | Yellow/Blue/White |
3 | Operating weight | 4000KG | GXPS1200*1000 | Yellow/Blue/White |
SALES AND SERVICE NETWORK

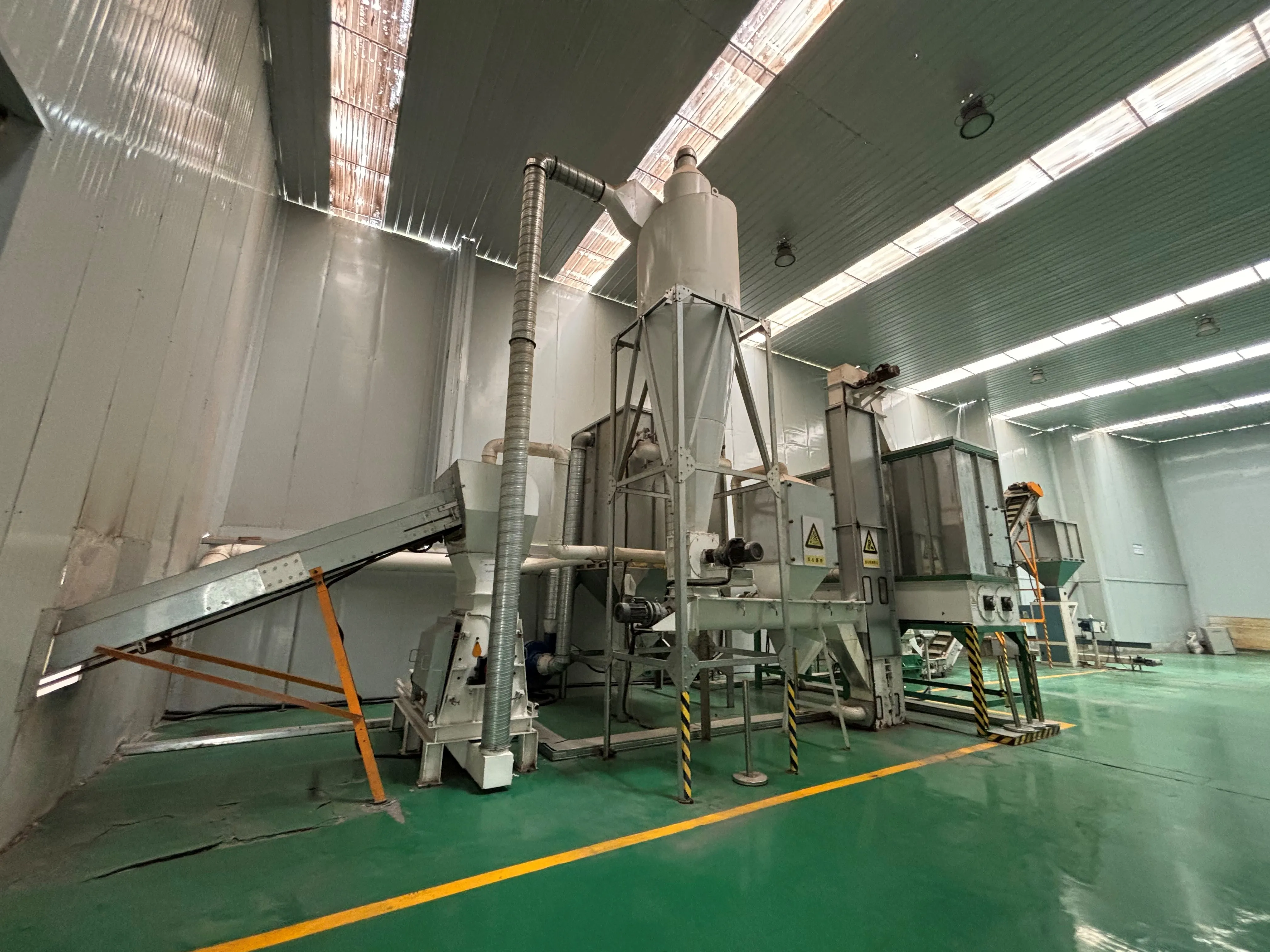

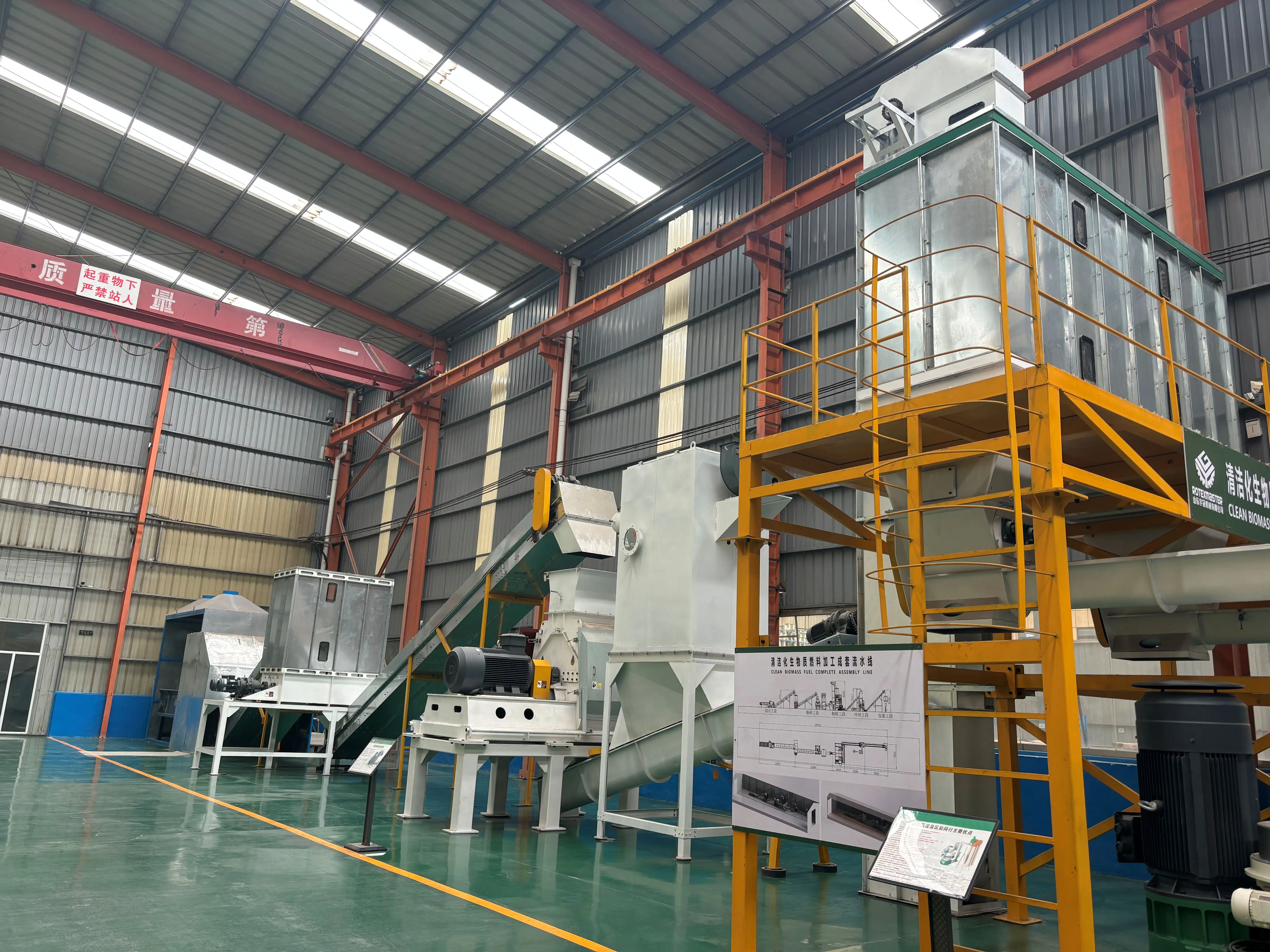

Successful Project

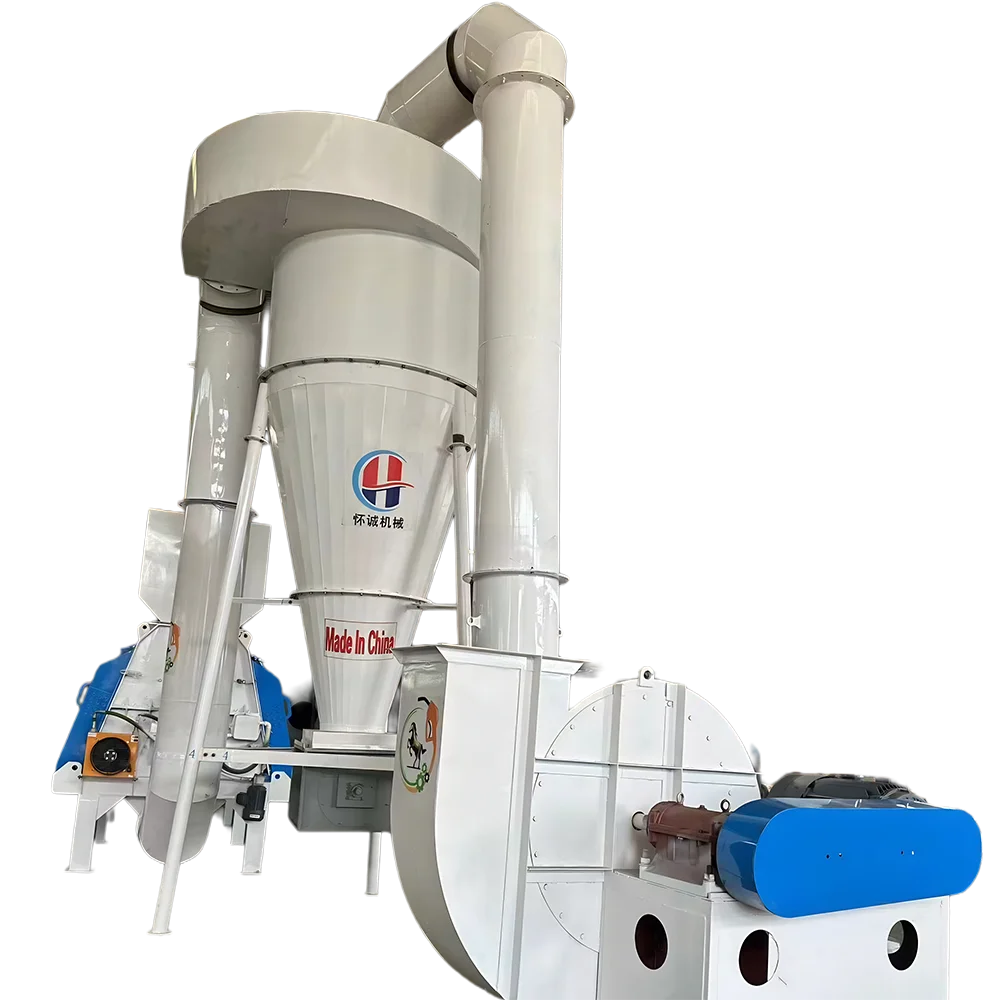

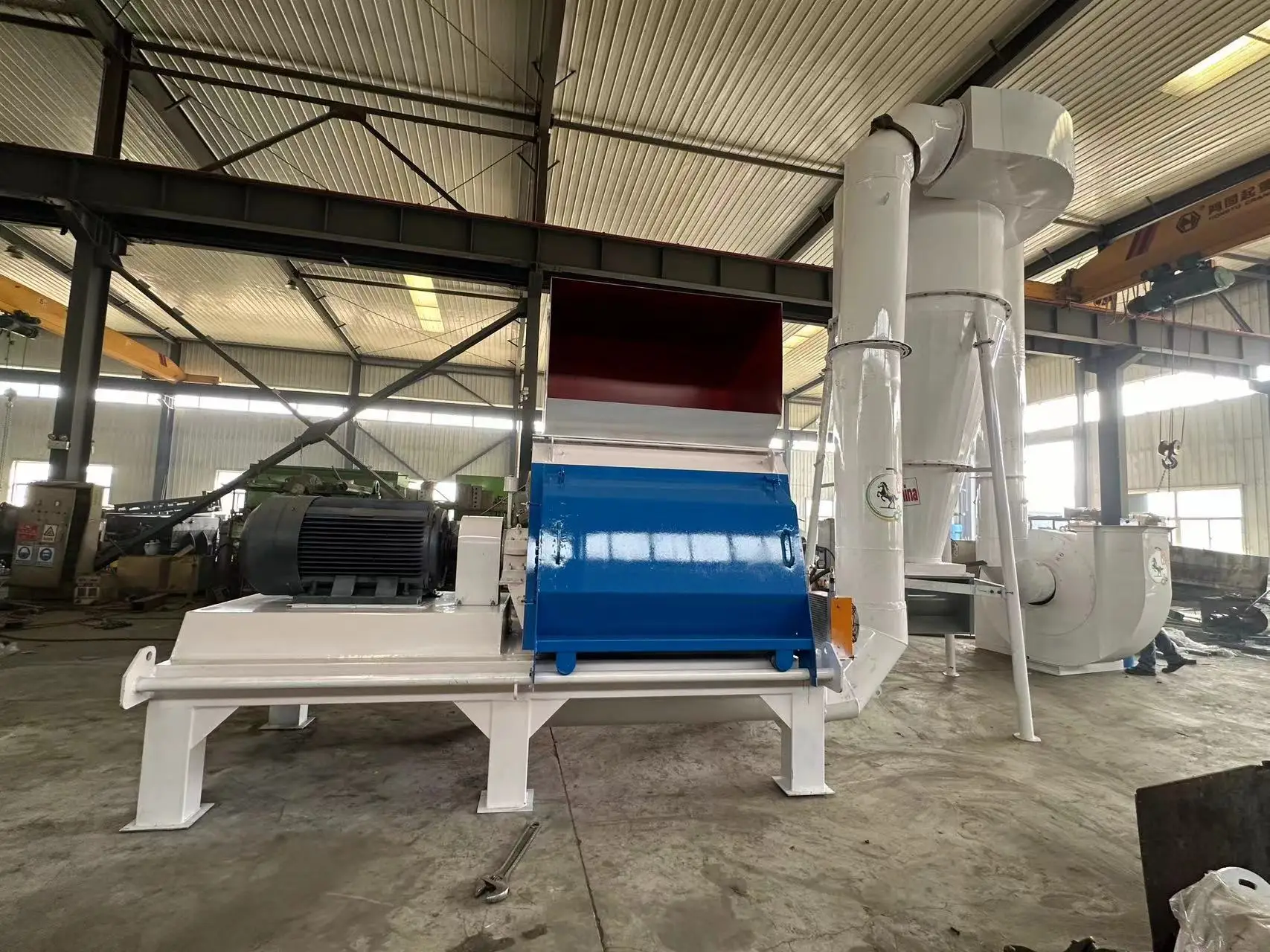

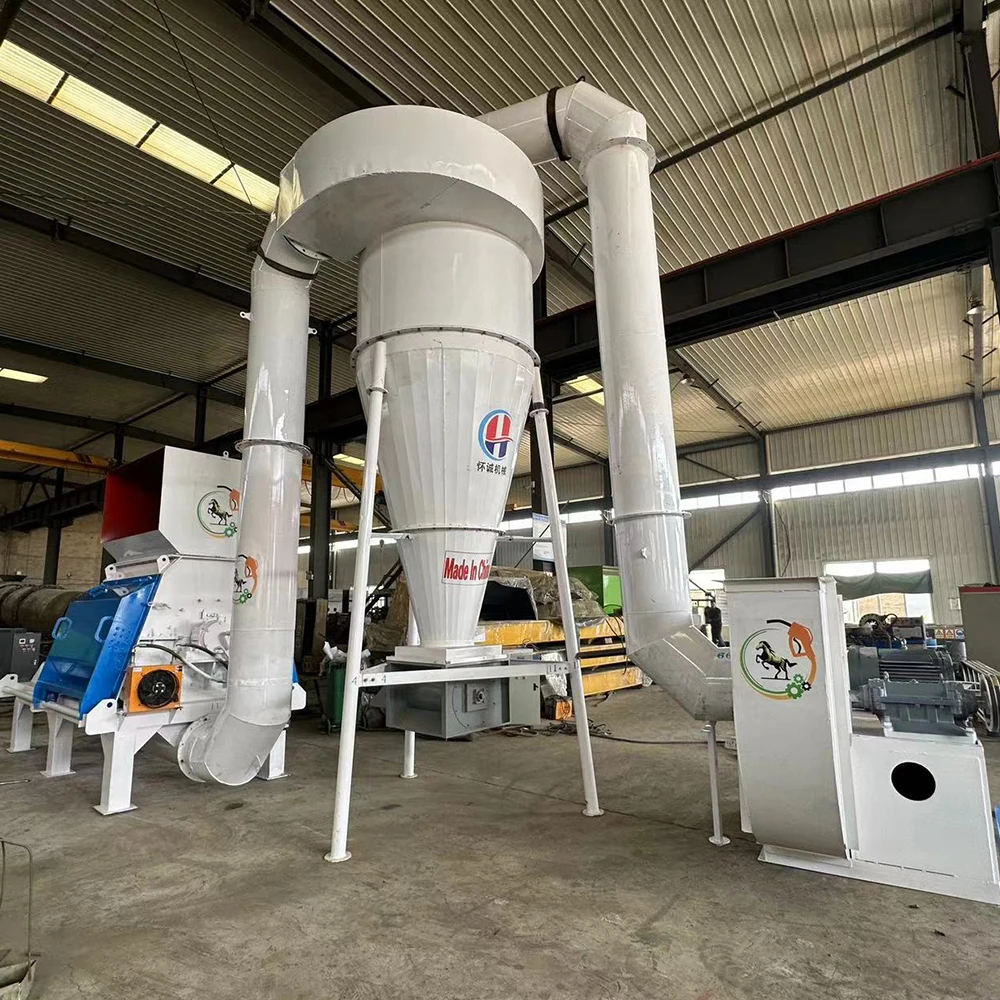

After the material is crushed by the hammer mill, it enters the cyclone tube through the discharge port under the action of the fan. Under the action of centrifugal force, the material goes downward and the dust goes upward, and enters the pulse bag dust collector, where the dust is collected by the bags to complete the material dust removal.

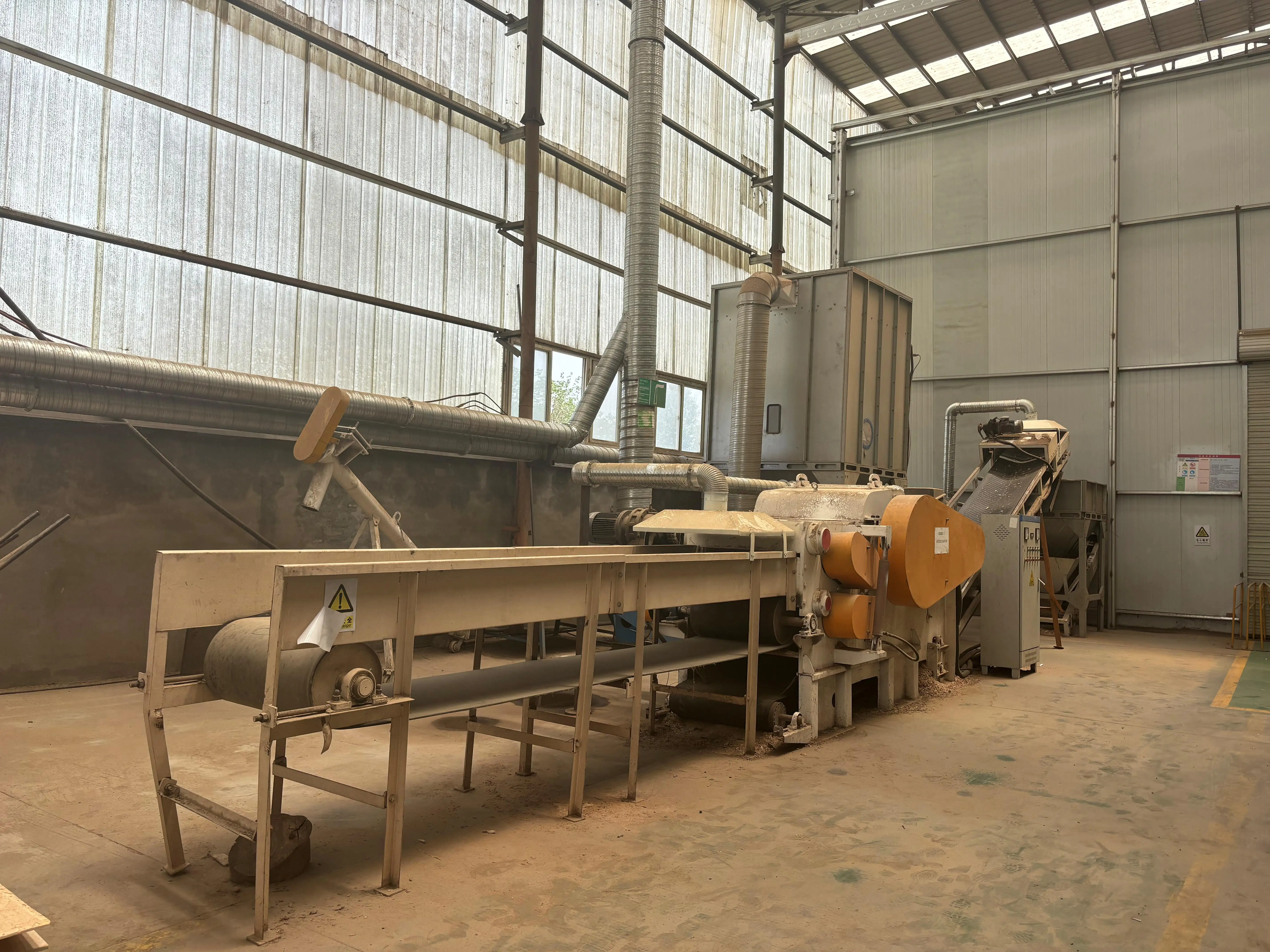

Biomass pellet machine is a kind of biomass energy pretreatment equipment. It mainly uses agricultural and forestry waste such as wood chips, straw, rice husks, bark and other biomass as raw materials, and solidifies them into high-density pellet fuel through pretreatment and processing.

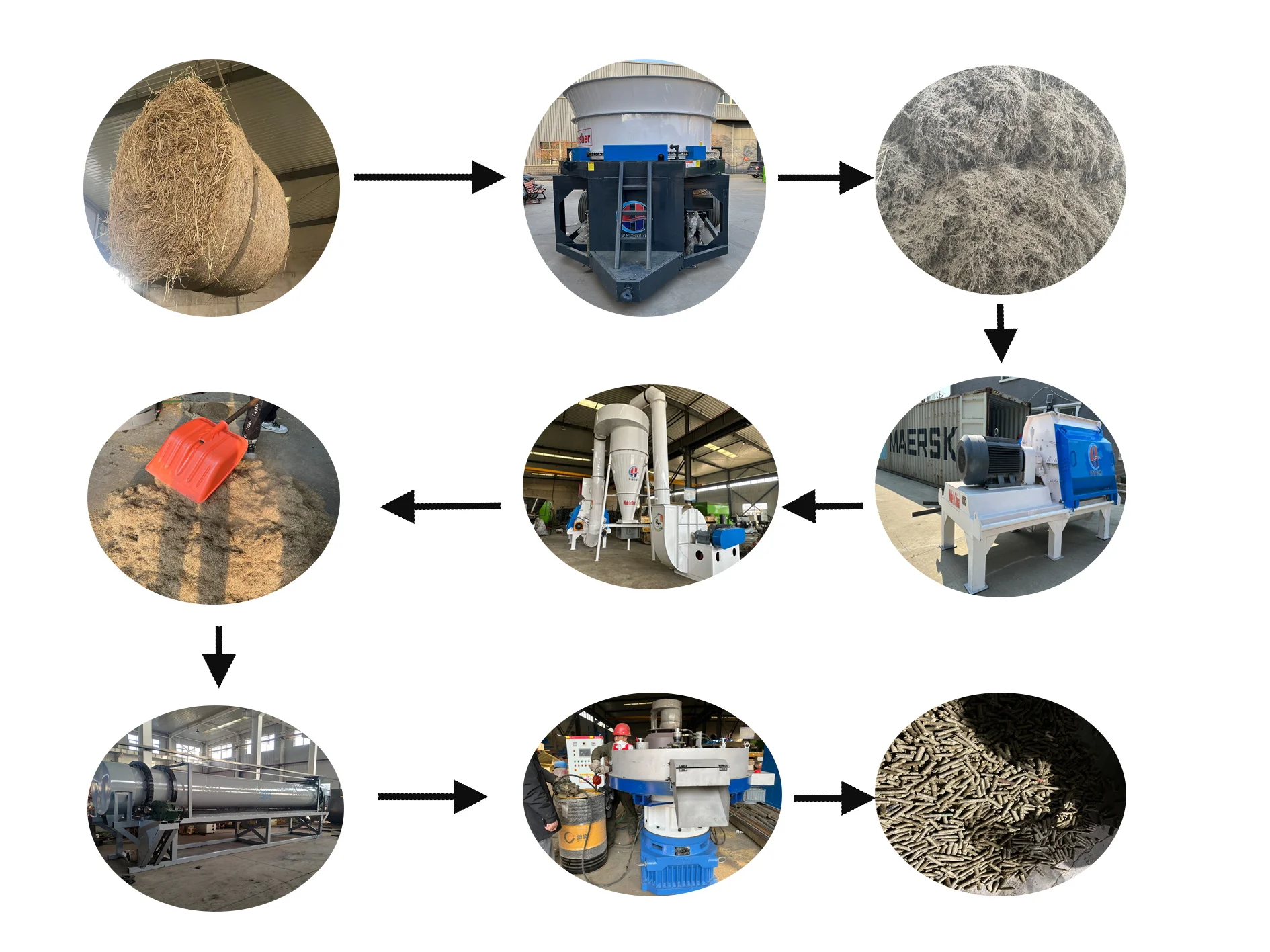

With the joint management of energy and environment in my country, straw fuel (i.e. biofuel) uses solid waste such as corn stalks, wheat straw, rice straw, peanut shells, corn cobs, cotton stalks, soybean stalks, weeds, branches, leaves, sawdust, bark and other solid wastes of crops as raw materials, which are crushed, pressurized, densified and formed into small stick-shaped solid pellet fuel. Pellet fuel is made by squeezing sawdust, straw and other raw materials using rollers and ring dies at room temperature. The density of the raw material is generally about 0.6-0.8, and the density of the pellets after forming is greater than 1.1, which is convenient for transportation and storage. At the same time, its combustion performance is greatly improved, reducing human dependence on fossil energy and atmospheric emissions.
With the joint management of energy and environment in my country, straw fuel (i.e. biofuel) uses solid waste such as corn stalks, wheat straw, rice straw, peanut shells, corn cobs, cotton stalks, soybean stalks, weeds, branches, leaves, sawdust, bark and other solid wastes of crops as raw materials, which are crushed, pressurized, densified and formed into small stick-shaped solid pellet fuel. Pellet fuel is made by squeezing sawdust, straw and other raw materials using rollers and ring dies at room temperature. The density of the raw material is generally about 0.6-0.8, and the density of the pellets after forming is greater than 1.1, which is convenient for transportation and storage. At the same time, its combustion performance is greatly improved, reducing human dependence on fossil energy and atmospheric emissions.
