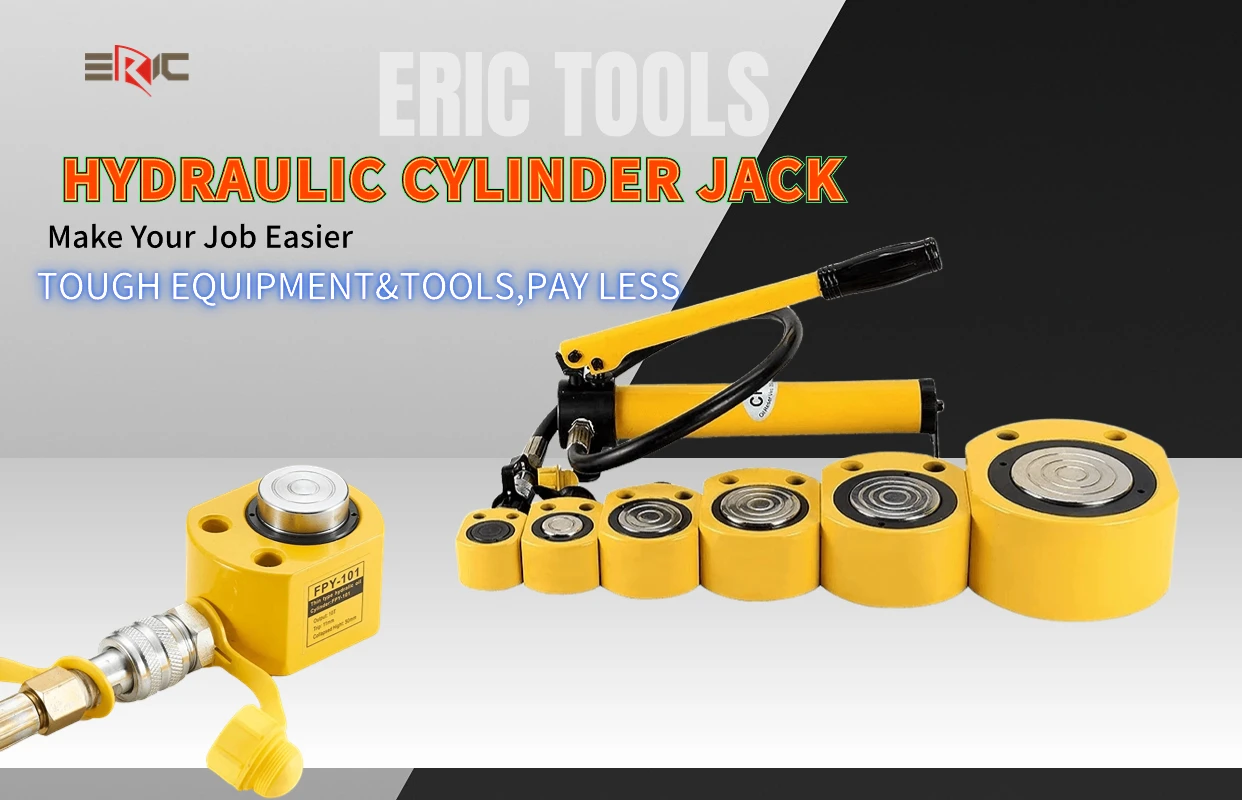

Mechanical Jacks Lifting 25 Ton 30 Ton 50 Ton Hydraulic Tank Jack
$600.00-1,000.00

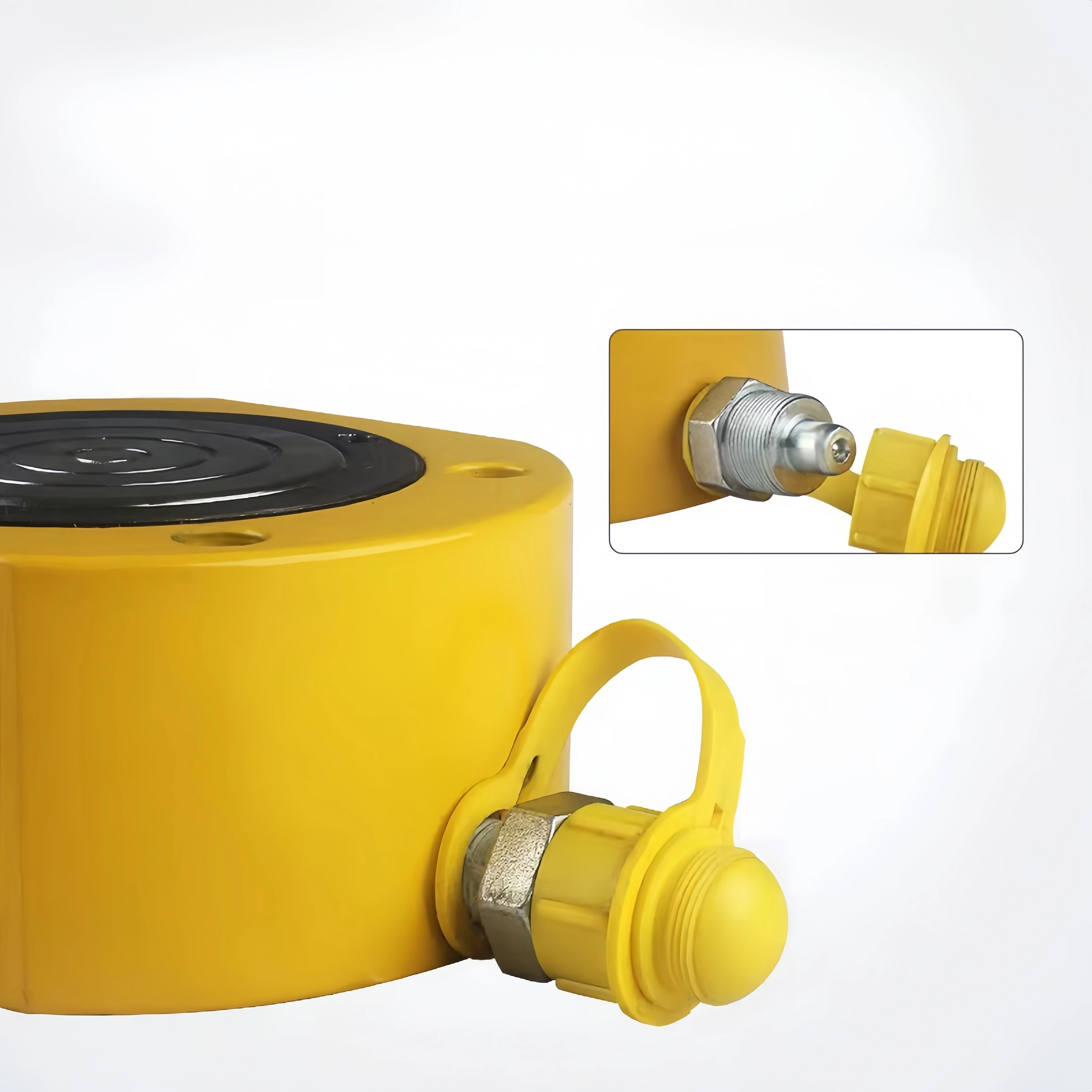

Ultra Thin Single Acting Portable Hydraulic Lifting Jack 5T/10T/20T/30T/50T Adjustable Split Booster Steel Hydrocy Linder OEM GS
- Category: >>>
- Supplier: Taizhou Eric Trade Co. Ltd.
Share on (1601231995259):
Product Overview
Description
Hydraulic Single Section Jack

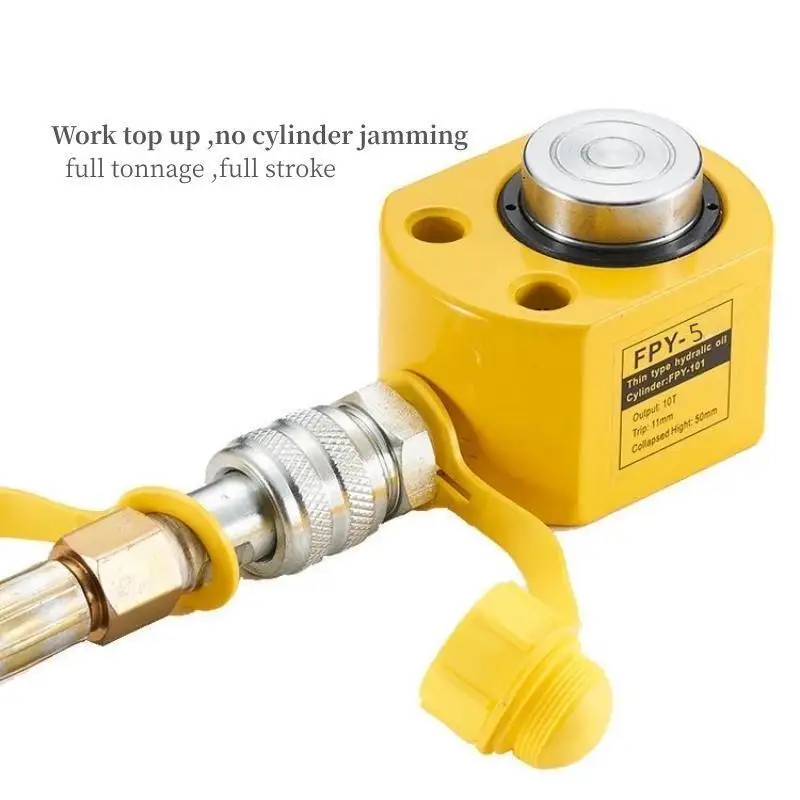

The Operation of Mini Jack

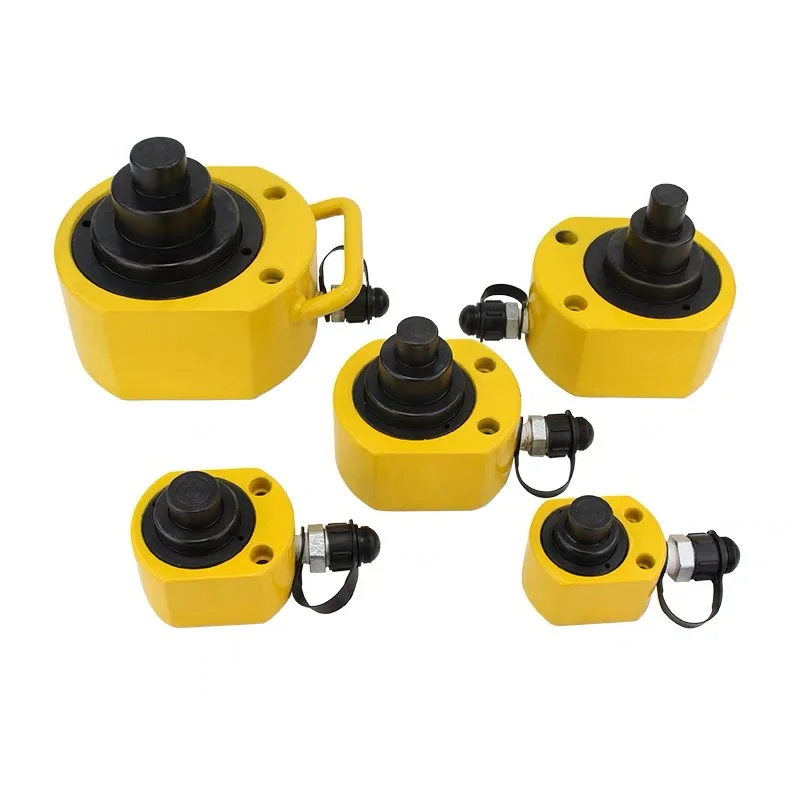

This low profile hydraulic ram is small in size, strong in load-bearing capacity.
It is especially suitable for use in narrow spaces and has the characteristics of lightness and flexibility.
We have 5-50 ton hydraulic cylinders for you to choose, which can meet your needs in different places.

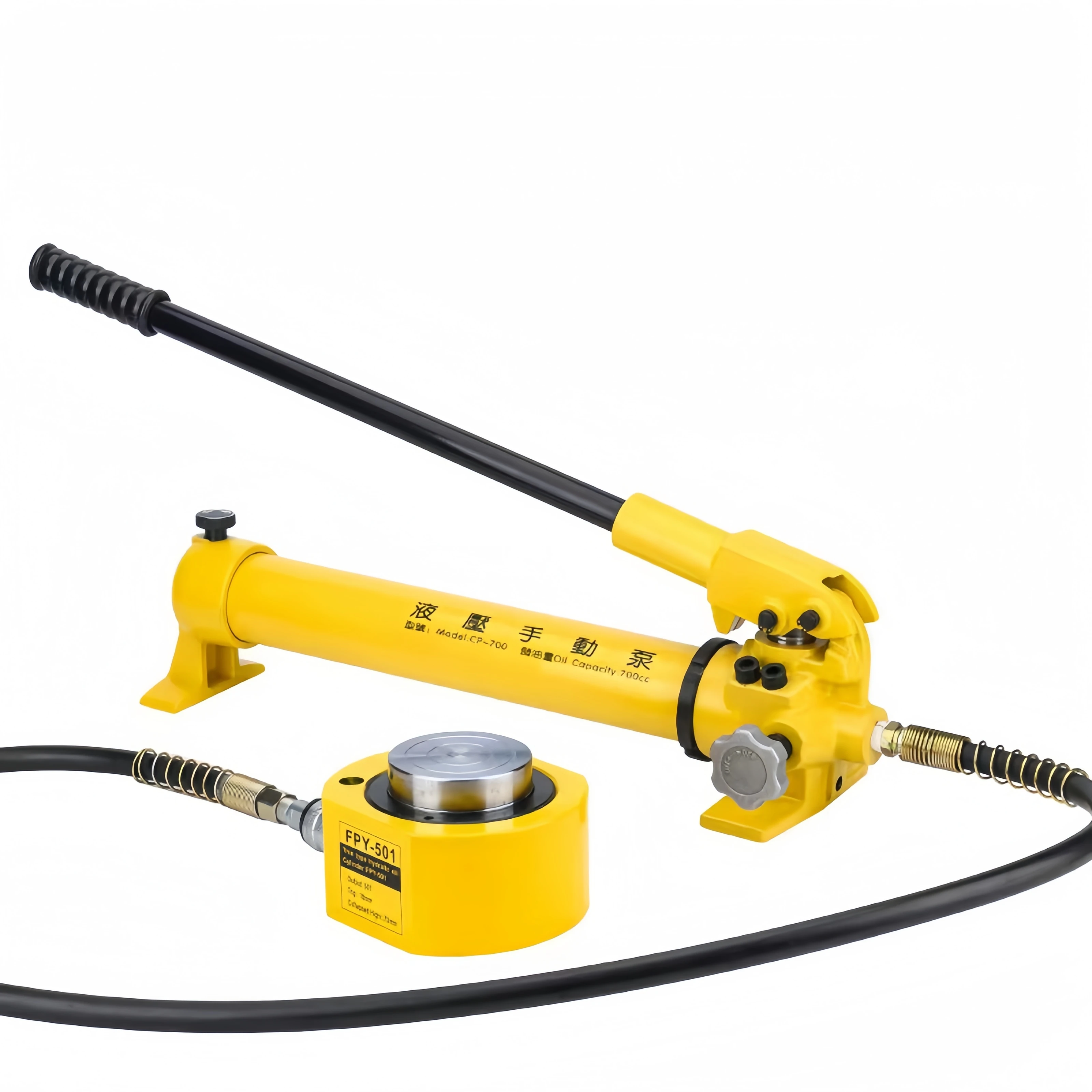

5-20 ton jacks are suitable for cp-180 hand pump. 30-50 ton jacks can be used with cp-700 hand pump.
If you need the pump, please search
https://post.alibaba.com/product/publish.htm?spm=a2747.manage.0.0.989c71d2L93fGG&itemId=60737710295 in our store to buy.

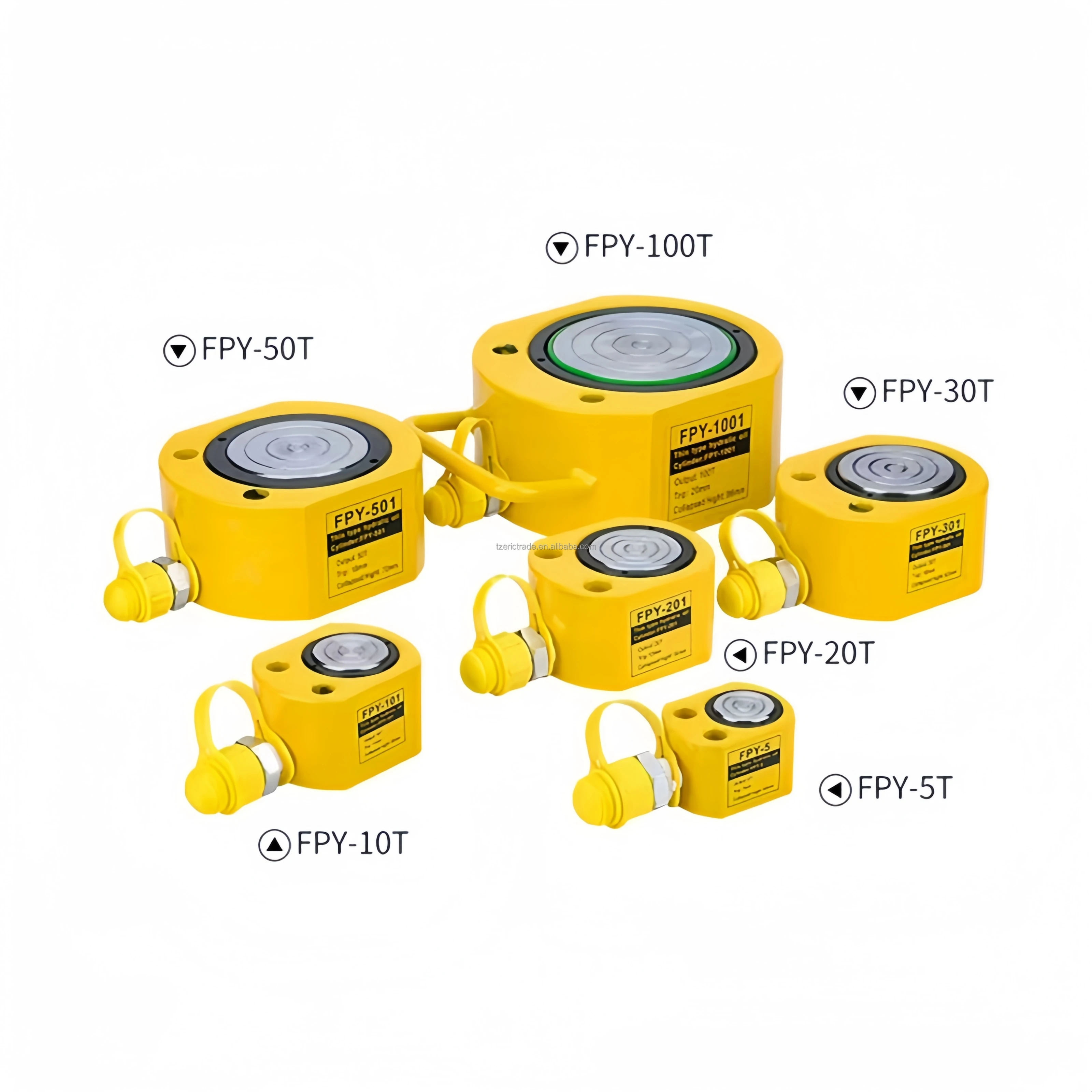

ULTRA-THIN HYDRAULIC JACKS
Model NO.
FPY-5T
FPY-10T
FPY-20T
FPY-30T
FPY-50T
FPY-100T
FPY-150T
FPY-200T
Height of self | Outside Diameter | Inner Diameter | |||||||||||||
FPY-5 | 5T | 42mm | 8mm | 64x48mm | 30mm | 0.7kg | 9.61cm | CP-180 | |||||||
FPY-10 | 10T | 52mm | 12mm | 83x65mm | 38mm | 1.6kg | 15.89cm | CP-180 | |||||||
FPY-20 | 20T | 58mm | 14mm | 99x80mm | 50mm | 2.75kg | 33.16cm | CP-180 | |||||||
FPY-30 | 30T | 64mm | 14mm | 118x100mm | 65mm | 5kg | 50.24cm | CP-700 | |||||||
FPY-50 | 50T | 72mm | 16mm | 148x128mm | 80mm | 8.5kg | 78.5cm | CP-700 | |||||||
FPY-100 | 100T | 88mm | 22mm | 188x165mm | 110mm | 19kg | 143.06cm | CP-700 | |||||||
FPY-150 | 150T | 100mm | 23mm | 228x200mm | 135mm | 23kg | 226.8cm | CP-700-2 | |||||||
FPY--200 | 200T | 106mm | 23mm | 268x236mm | 160mm | 33kg | CP-700-2 | ||||||||

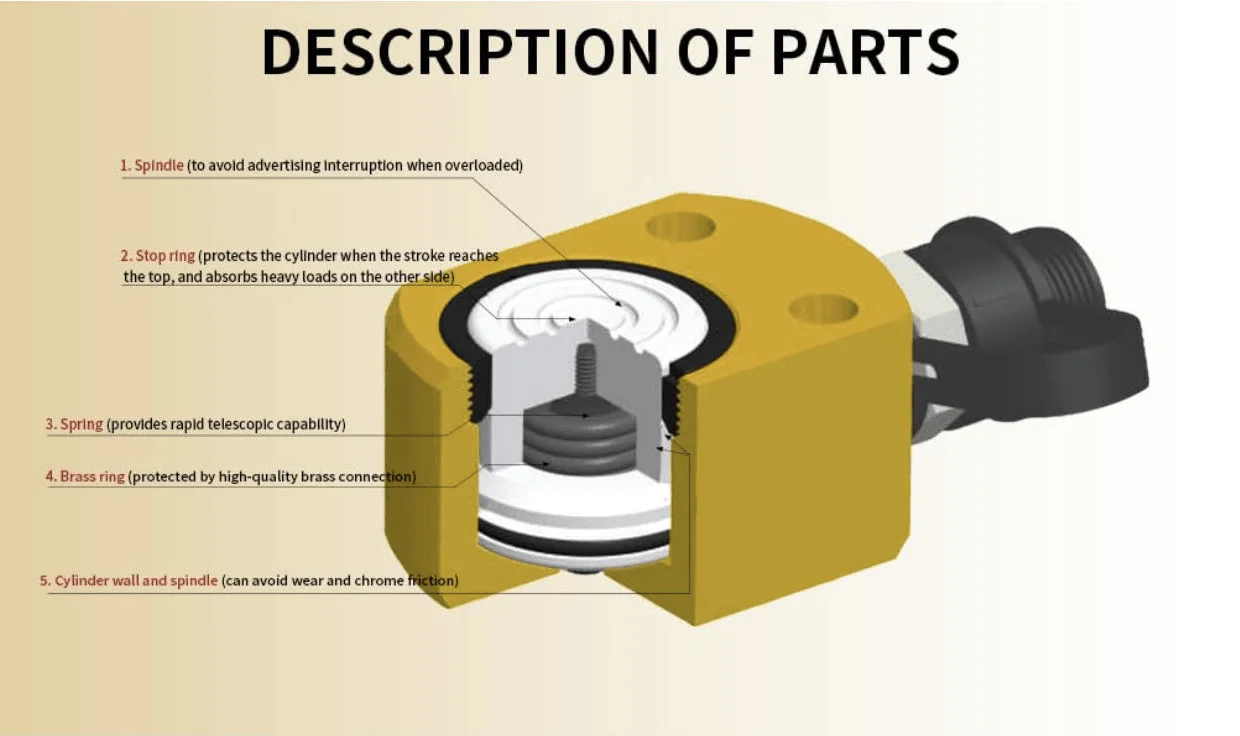

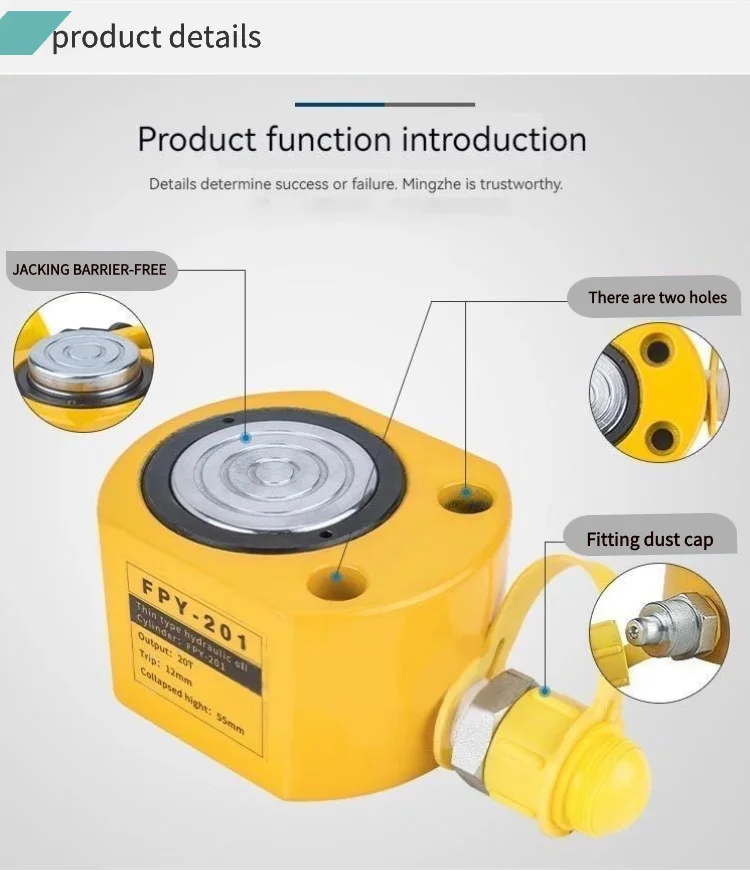

Function Description | *Light weight and compact design for use in tight work space | ||||||||||||||

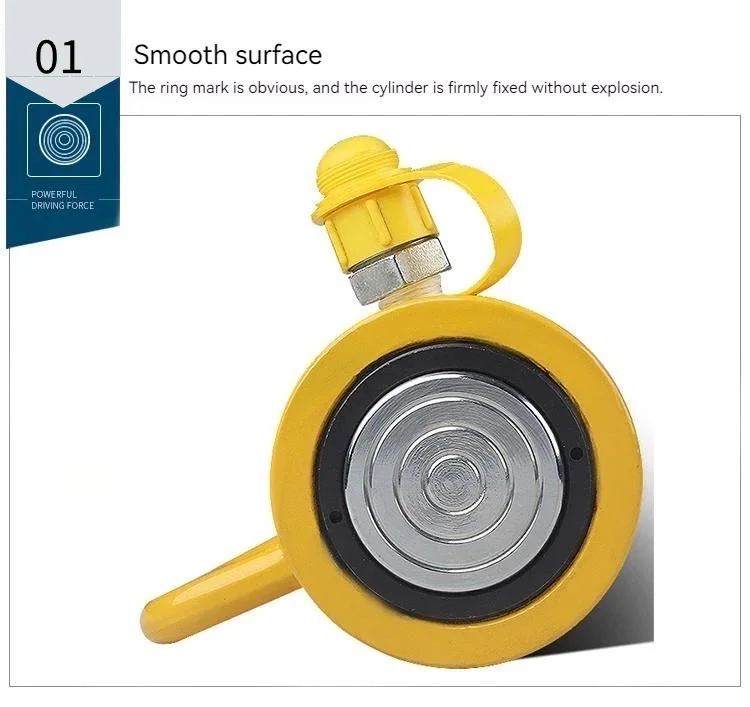

*The surface of the paint enhances corrosion resistance | |||||||||||||||

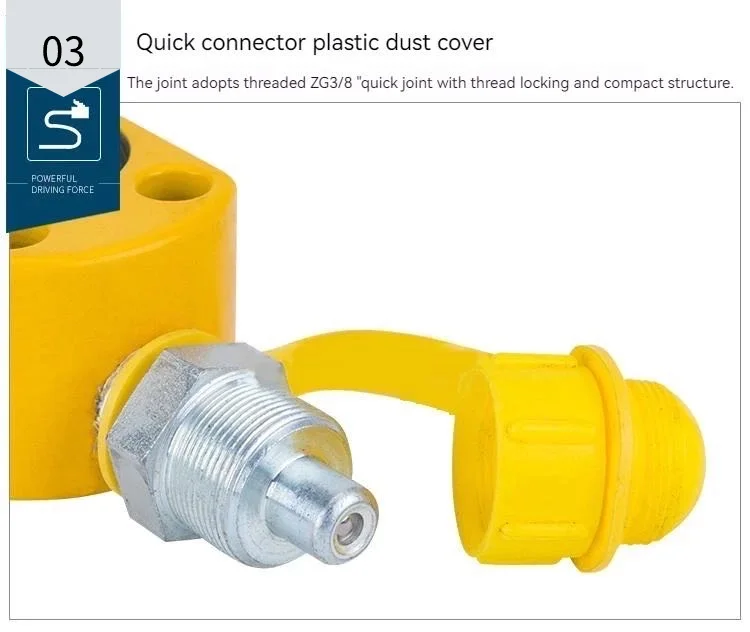

*Dust rings reduce contamination and extend cylinder life | |||||||||||||||
*Light weight and easy to carry ,the cylinder plance has two holes for fixed use | |||||||||||||||

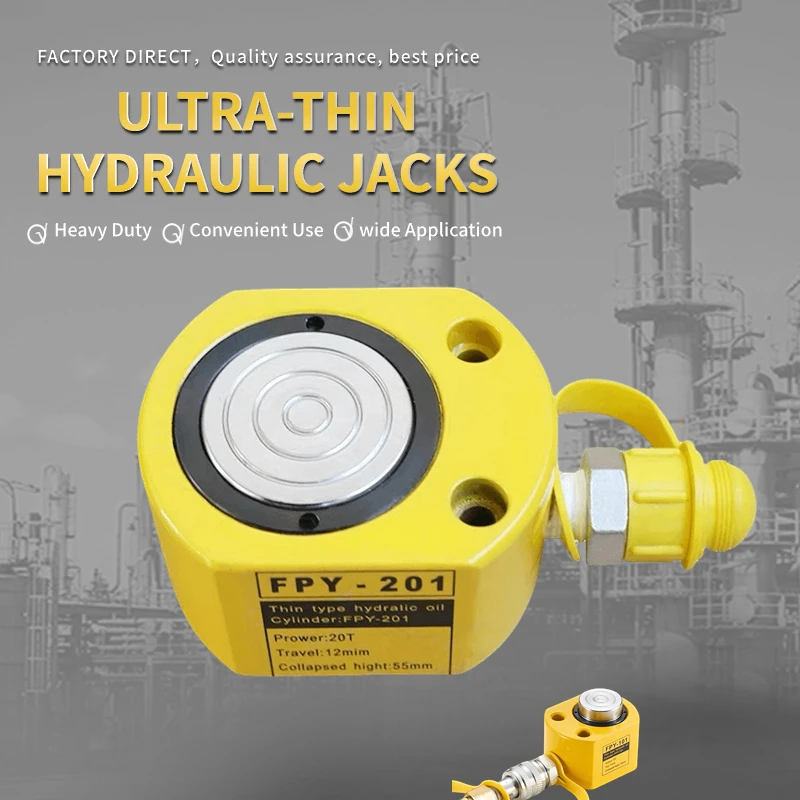

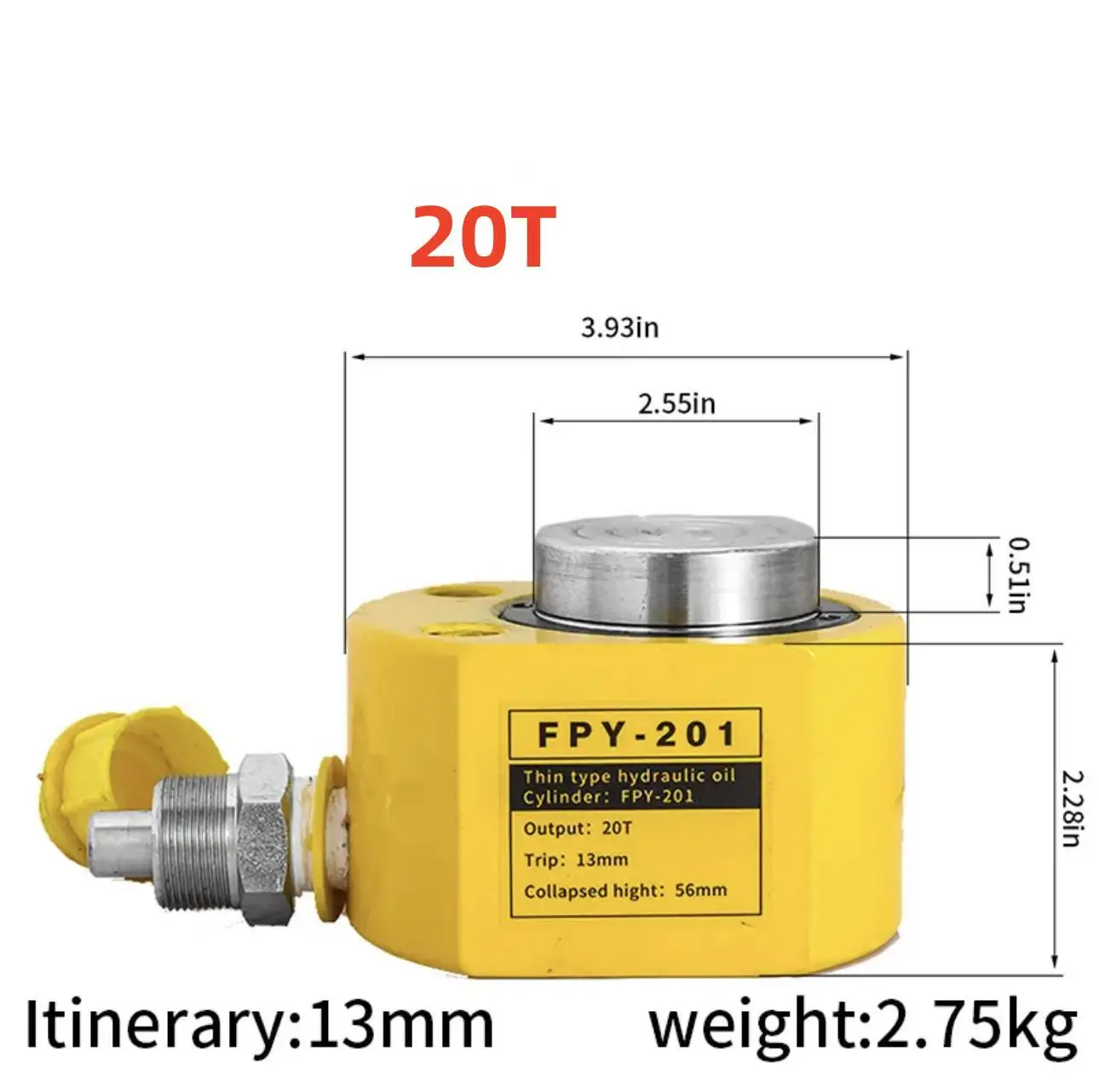

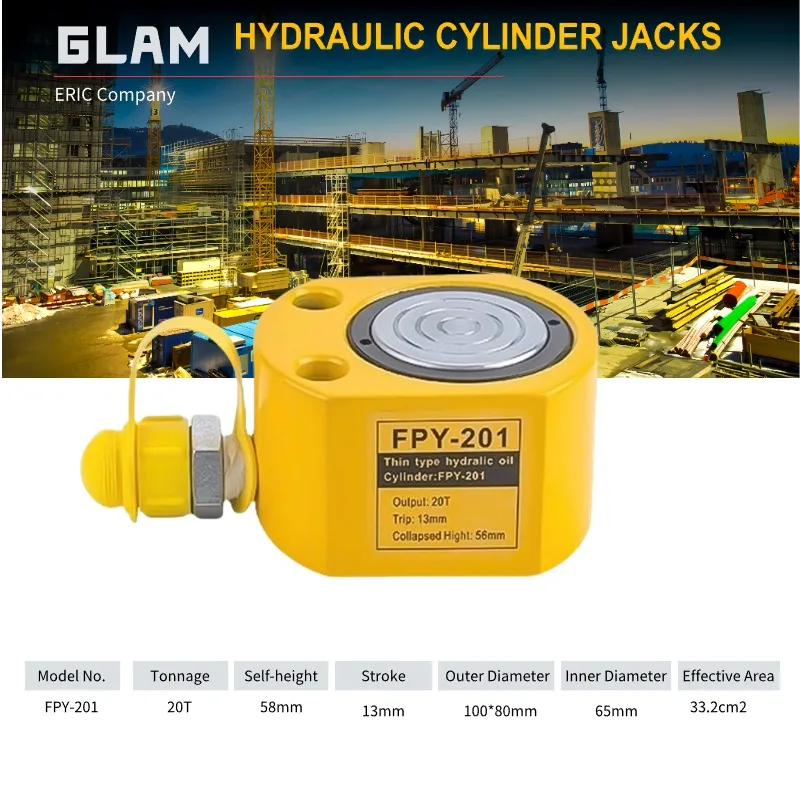

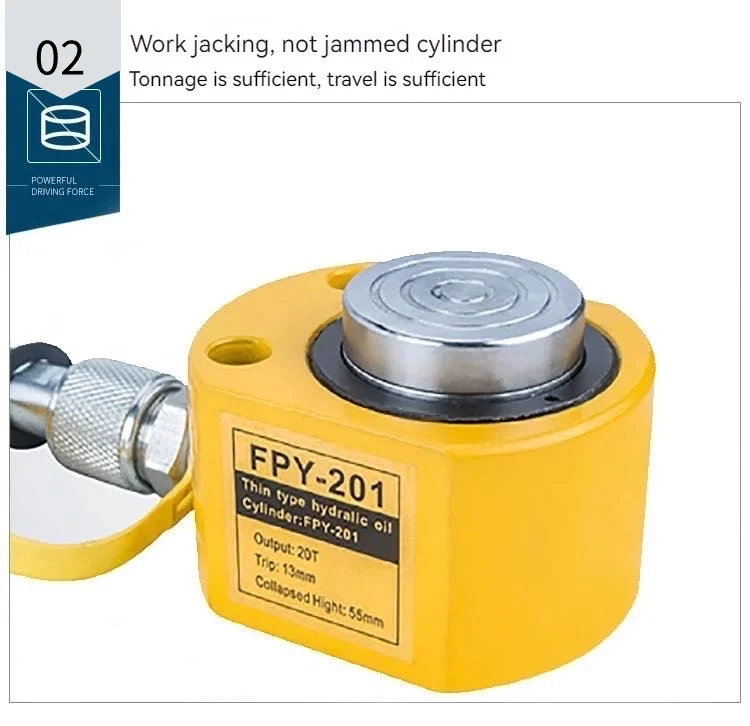

ULTRA-THIN HYDRAULIC JACKS 20T
Model: FPY-201
Tonnage: 20T
Self-height:58mm
Stroke:13mm
Outlet Diameter:100 x 80mm
Inner Diameter: 65mm
Effective Area:33.2cm2
Weight:2.6kg
package:16.5 x 8.5 x6 cm
Tonnage | 20T | Stroke | 0.51"/13mm |
Self Height | 2.3"/58mm | Outer Diameter | 4x3"/100x80mm |
Effective Area | 13square inches/33.16cm2 | Internal Diameter | 2.6"/65mm |
Weight | 6LBS/2.75KG | Used With Pump | CP-180 |
Recommend :
The Cylinder jack is the split type ,need work with the pump.

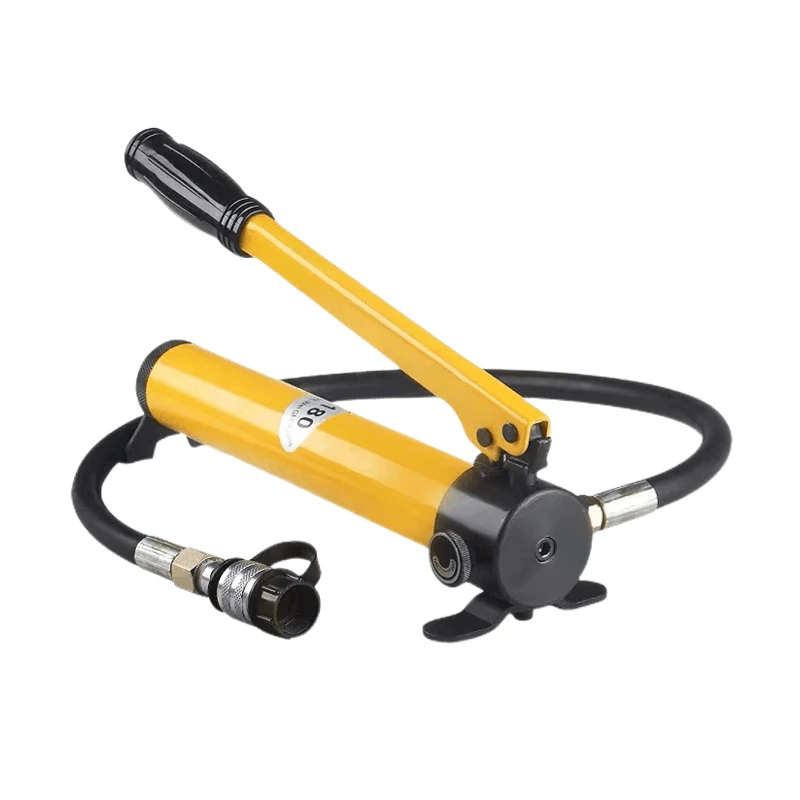

5-20 ton jacks are suitable for cp-180 hand pump.
If you need the pump, please click link https://tzerictrade.en.alibaba.com/product/60689985148-927864217/Hydraulic_Hand_Pump_CP_180_Single_Acting_Lifting_Manual_Pump_Porto_Power_Kit_With_3_8_Thread.html in our store to buy.

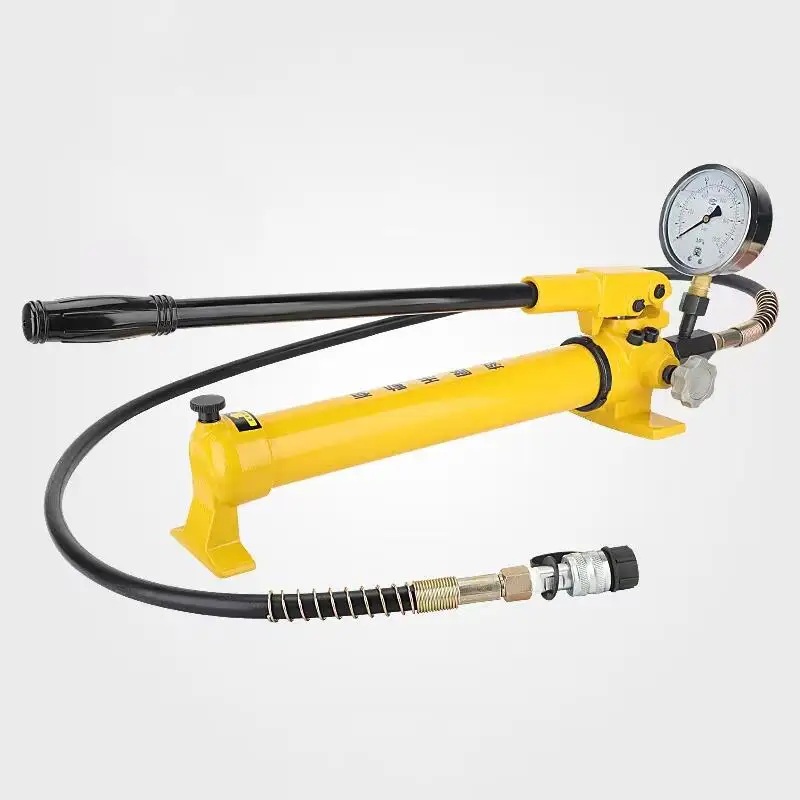

30-50 ton jacks can be used with cp-700 hand pump https://tzerictrade.en.alibaba.com/product/60784448269-927864217/portable_small_high_pressure_manual_hand_10_000_psi_700_bar_hydraulic_pump_with_pressure_gauge_and_gauge_adapt.html.
