A U Type Acrylic Channel Letter Heat Bender Machine For Advertising Pvc Plastic Acrylic Bending Tool
- Category: >>>
- Supplier: Guangzhou Hengyue Advertising Equipment Co. Ltd.Guangzhou Ltd.
Share on (1601232018999):
Product Overview
Description
Product Description
A+U Model Acrylic Bending Machine
The A model arc shaping device and angle shaping device are ideal for making signs using materials such as acrylic. These two devices are based on the previous generation of hot bending tools, and they're squove been innovated and upgraded with PTC heating components to ensure safety, better heating efficiency with less energy consumption, faster heating-up, longer service life. The heating temperature is automatically controlled, saving the trouble of turning any thermostats, thus very easy to use. The heat-conduction aluminum panels guarantee even and stable heating for the materials processed, ensuring the proper contact between the materials and the heating plates. Plastic materials within a thickness of 1.5 mm - 4 mm can be processed with the devices, letting out no smokes or vapors at all while heated and softened very quickly. The heating plates have undergone oxidation treatment, and it will not become sticky due to the processed materials. The devices also feature simple and easy-to-use design, with heat-proof ABS to make the outer case. The bottoms, edges of the heating parts and the heating plates are flat and even, so the devices can directly process sheet materials with a max width of nearly 100 mm.
Specification
Product Name | Acrylic Bending Machine |
Bending Thickness | 1.5 - 4mm |
Voltage | 100 - 240V |
Power | 39W(Sharp)60W(Round) |
Material / Metal Processed | Plastic, PVC, Acrylic |
Surface Temperature | 200℃±5% |
Sharp Corner Bender Heating Size | 100mm*2.5mm*2 |
Round Corner Bender Heating Size | 100mm*50mm*2 |
Sharp Corner Bender Soften Time | 3 Sec |
Round Corner Bender Soften Time | 9 Sec |
Packing Size | 310mmX165mmX60mm |
One carton Packing with 12 Sets | 520mmX370mmX315mm |
Details Images
Advantages:
• PTC heating elements have features of safe and energy-saving, fast heat up, durable, automatic temperature control.
• Tungsten alloy thermal conductive plate can automatic adjust the angle between heating plate and acrylic.
• Making angle bending straight.
• Make your curved angles in beautiful arc.
• Easy operation, time-saving.
• Tungsten alloy thermal conductive plate can automatic adjust the angle between heating plate and acrylic.
• Making angle bending straight.
• Make your curved angles in beautiful arc.
• Easy operation, time-saving.
A Type Angle bender
Power: 39 W
Voltage:100-240 V
Heating plate temperature: 200 C±5%
Heating plate size: 100 mm x 2.5 mm x 2
Softening time: About 3 s
(2.5 mm thick plate, chamber Temperature 20℃)
Softening time: About 3 s
(2.5 mm thick plate, chamber Temperature 20℃)

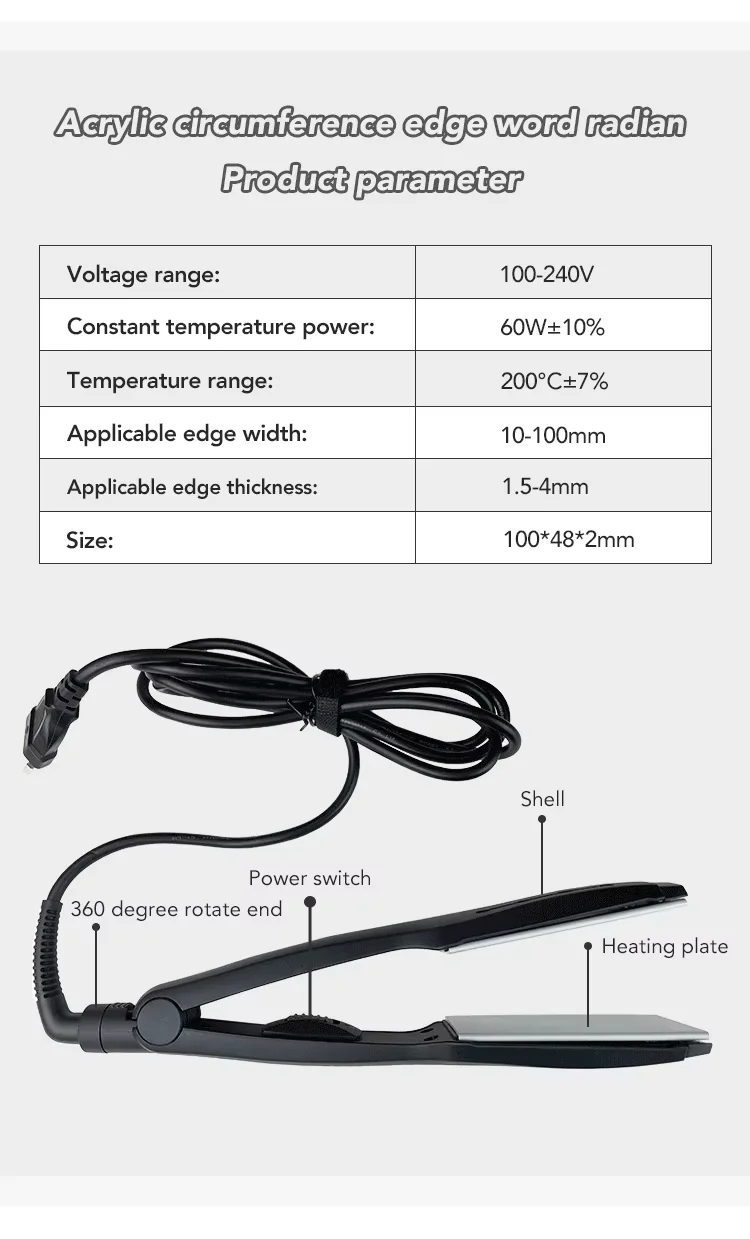

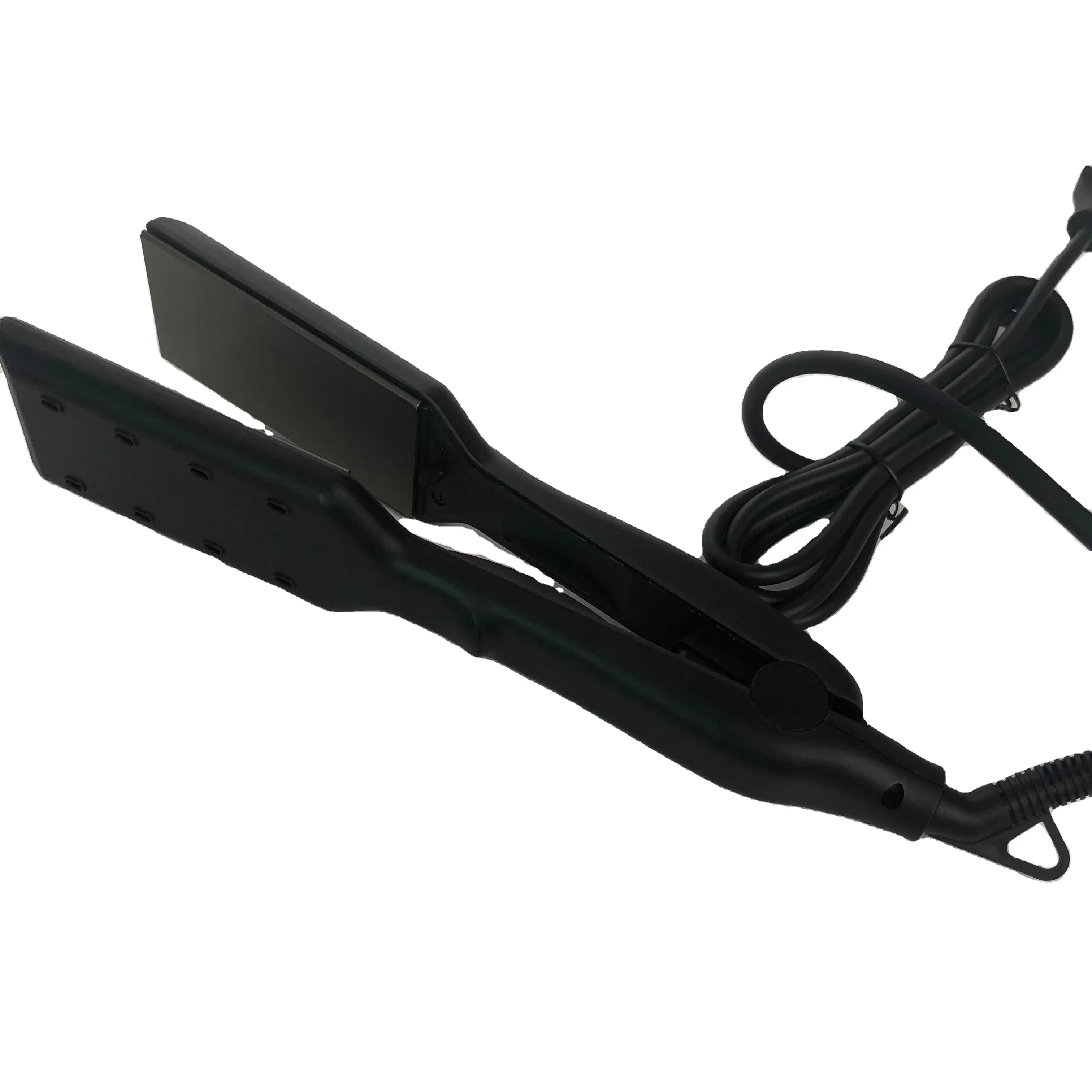

U Type Arc bender
Power: 60 W
Voltage:100-240 V
Heating plate temperature: 200 C±5%
Heating plate size: 100 mm x 50 mm x 2
Softening time: About 9 s
(2.5 mm thick plate, chamber Temperature 20℃)
Heating plate temperature: 200 C±5%
Heating plate size: 100 mm x 50 mm x 2
Softening time: About 9 s
(2.5 mm thick plate, chamber Temperature 20℃)
Features:
*Easy operation, time-saving.
*Constant temperature technology with longer life.
*The heating plate using oxidation treatment, heating but don't smoke.
*Automatic constant temperature, without tedious temperature Settings, it is more convenient to use.
*PTC heating elements have features of safe and energy-saving, fast heat up, durable, automatic temperature control.
*Suitable for heating acrylic within 1 mm - 5 mm (0.04" x 0.16") thickness.
*Constant temperature technology with longer life.
*The heating plate using oxidation treatment, heating but don't smoke.
*Automatic constant temperature, without tedious temperature Settings, it is more convenient to use.
*PTC heating elements have features of safe and energy-saving, fast heat up, durable, automatic temperature control.
*Suitable for heating acrylic within 1 mm - 5 mm (0.04" x 0.16") thickness.

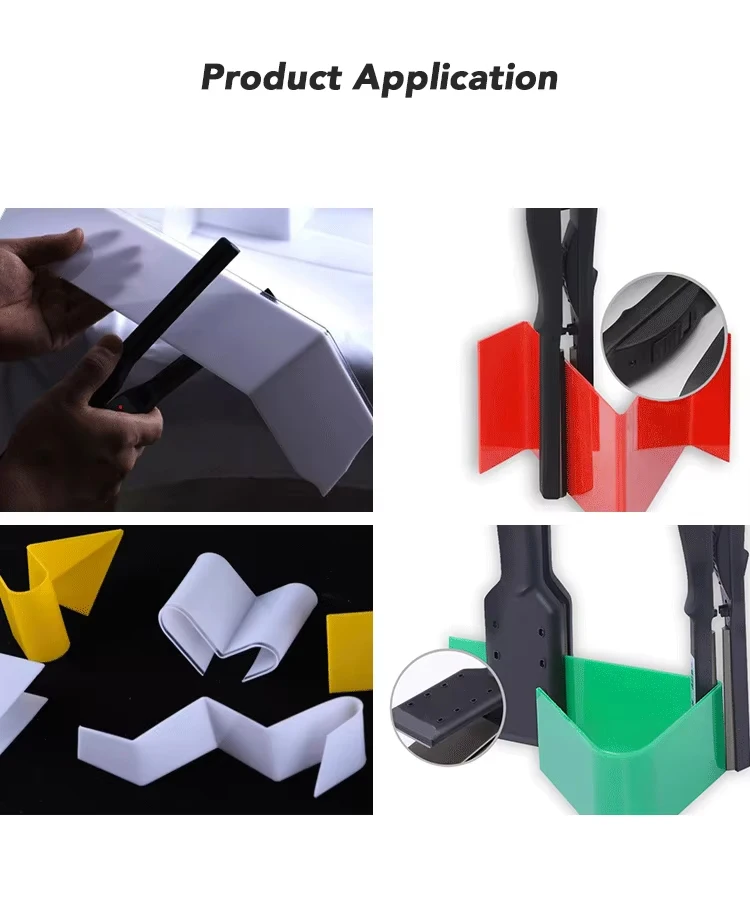

Application

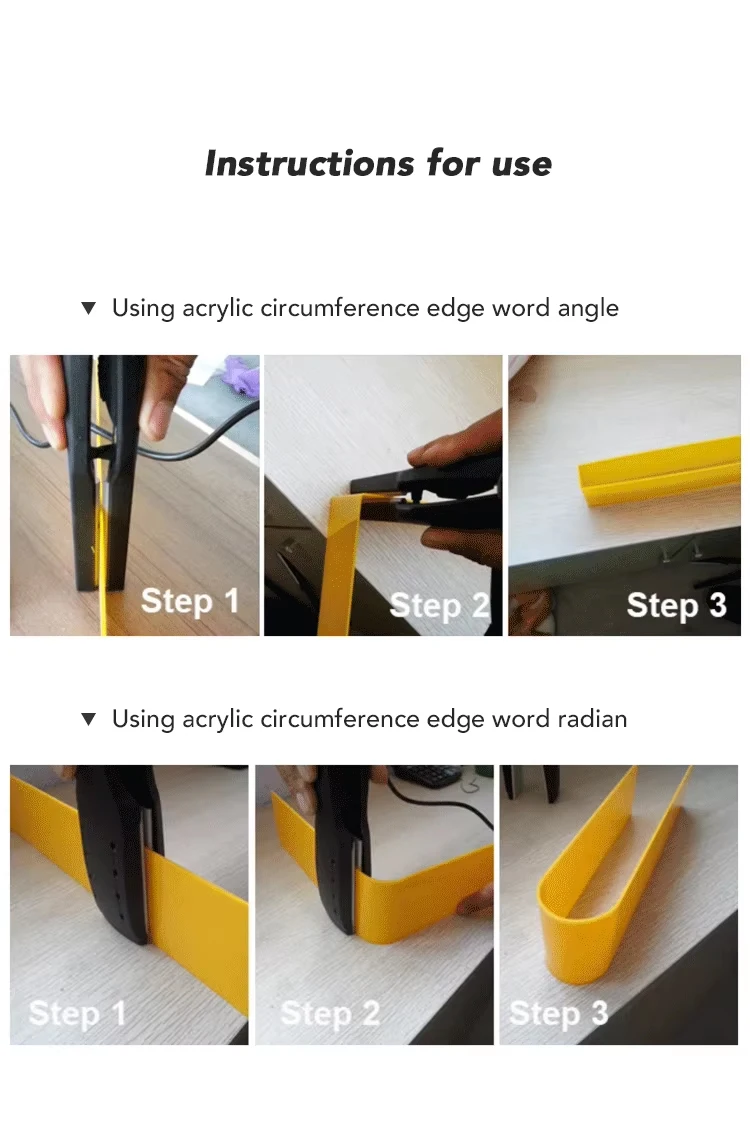

HOW TO USE?

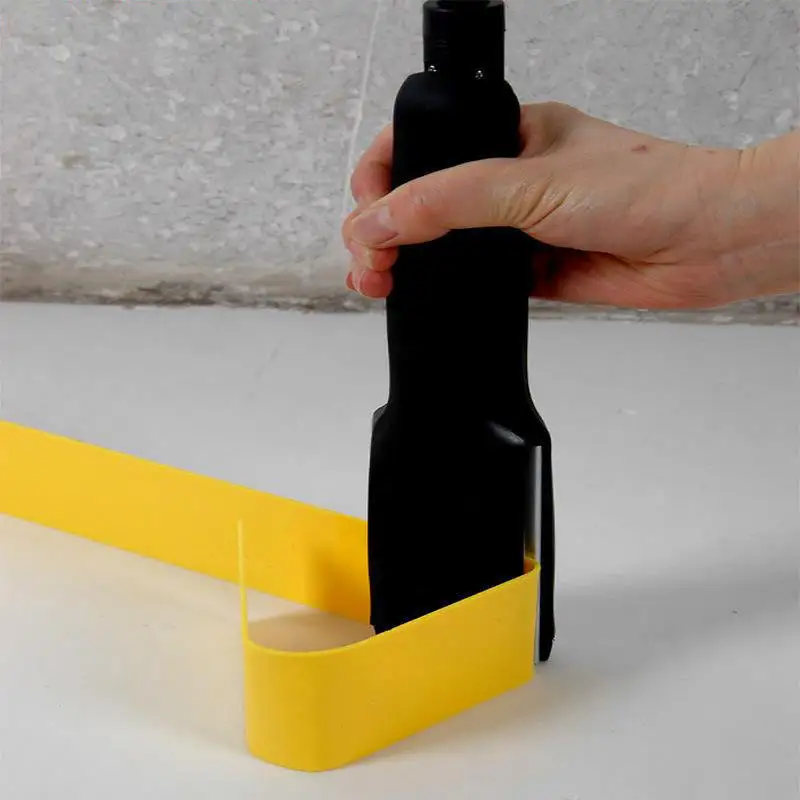

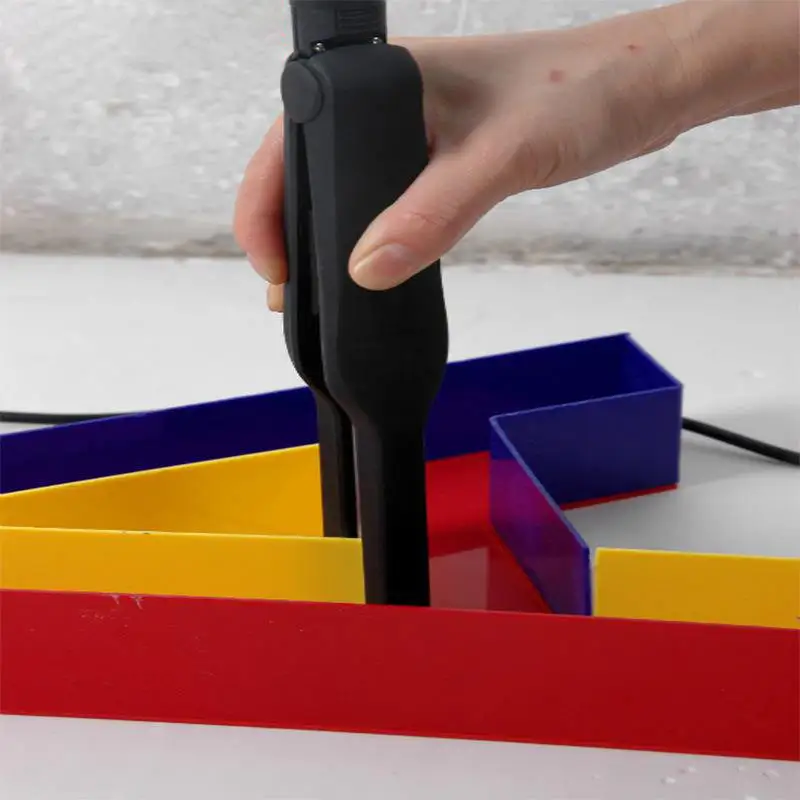

Connect the power cable, after about 15-30 seconds heating time, you can use the bender. Using the angle or arc bender vertically clamp the acrylic plate, soften the acrylic plate several seconds, and then remove the bender, make angle and arc you want, fix it with glue. Sharp Corner Bending Machine Tool (Acrylic Angle Bending Machine Tool)
Packing & Delivery
Package Included:
1 x Angle Bender
1 x Arc Bender
1 x Angle Bender
1 x Arc Bender
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
About HY- Sign
Guangzhou HengYue Advertising Co., Ltd (here short for HY-sign) is a manufacturer with over 5 years' experience in signage and light box making. We always insist on using high quality materials with an honest and trustworthy attitude and adhere to the value of "continuous improvement and win-win coopertion ". We are committed to development of the world's advertising and sign industry.
Our main business includes: Led signage, LED Light boxes, LEDs, digital screens, display stands, printing materials, reflective and traffic signs, advertising machines and accessories...etc. Sincerely welcome your inquiry and visit at any time.
FAQ
Q1. When can I get the price?
A1. We usually quote within 8 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.
Q2. How can I get a sample to check your quality?
A2. After price confirmation, you can require for samples to check our quality.If you need the samples, we will charge for the sample cost. But the sample cost can be refundable after order confirmation when your quantity of the order is more about the MOQ.
Q3. What kind of files do you accept for printing?
A3. PDF, Core Draw, AI.
Q4. Can you design for us?
A4. Yes. We have a professional team with rich experience in design and manufacturing. Just tell us your detailed requirements, we will do the rest for you.
Q5. How to customize product from you?
A5. Tell us your requirements of the product. Sending vector drawing of the product is the best. Then, we will do the rest for you.
