Asphalt Bitumen Spreader Reliable Engine Pump Motor Road Filling Joint Machine for Driveway Repair and Sealing
- Category: >>>
- Supplier: Xinxiang Tongda Road New Technology Co. Ltd.
Share on (1601232043960):
Product Overview
Description
Products Description
Asphalt Bitumen Spreader Reliable Engine Pump Motor Road Filling Joint Machine for Driveway Repair and Sealing
500L Highway Crack Filling Machine also called road crack sealing machine, asphalt crack filling and sealing machine, it is mainly used for asphalt pavement, cement pavement surface cracks repair and treatment. In the highway, municipal highway, airport roads, bridge crack, county roads and other aspects,the machine can irrigate asphalt, pour glue, etc..
Road crack filler and sealer applied to seal pavement cracks. It is independently developed by our company. It has large capacity hopper, fast heating and the thermal insulation effect is good, heat conduction oil cyclic heating.
Compared with similar equipment, it is easy to operate, more stability and maneuverability, and have a long service life.

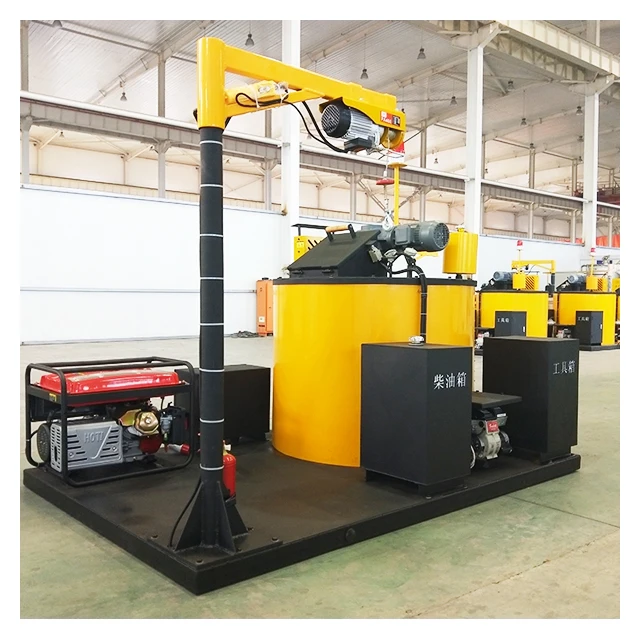

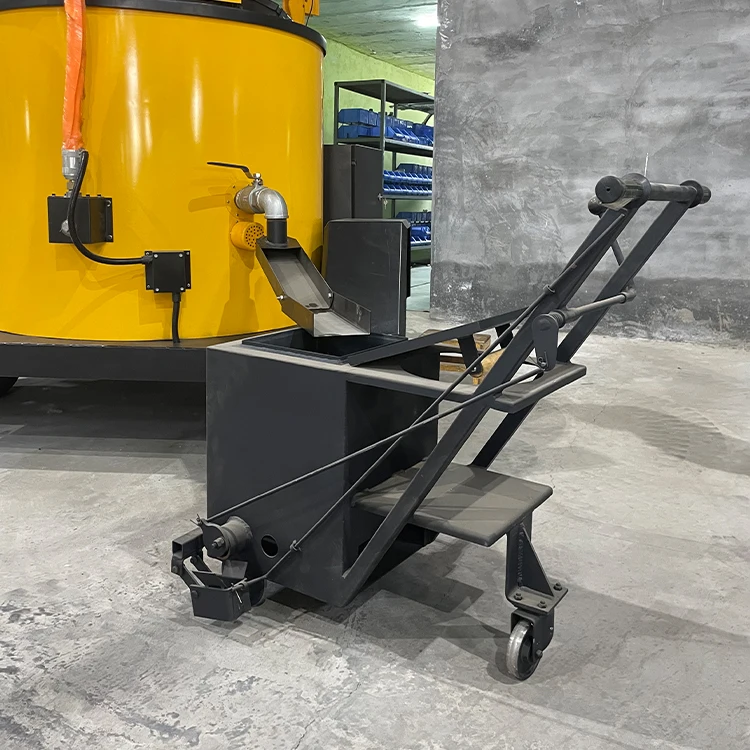

Sealing hand cart with heater
With rubber hose
Frequency control asphalt sealant flow rate
Easy to pack and transfer
Large capacity save construction man cost

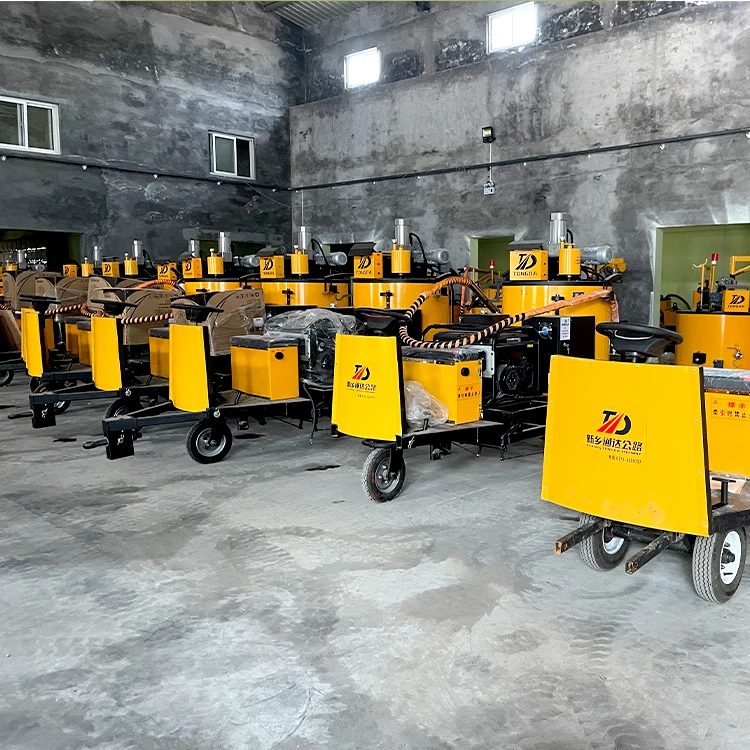

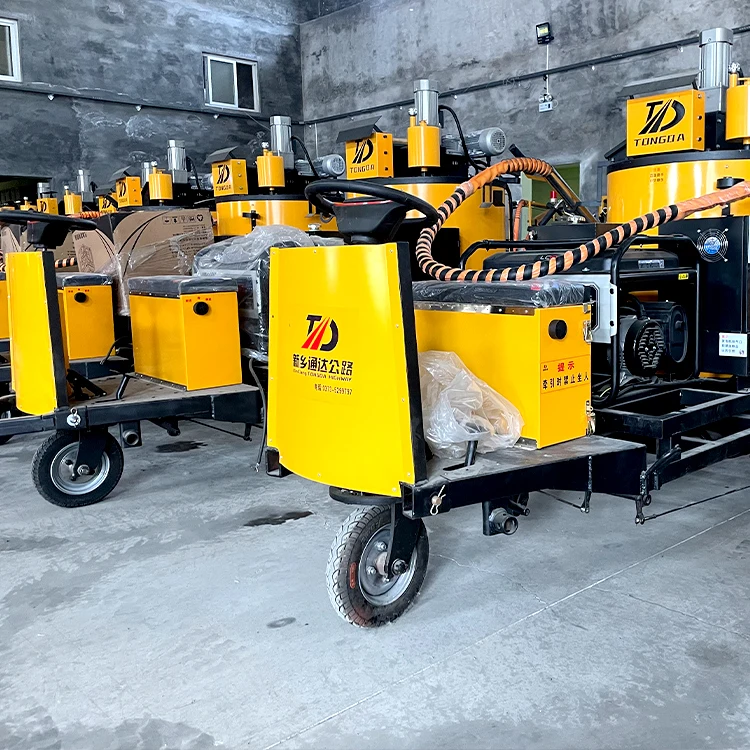

Self driving type asphalt filling machine

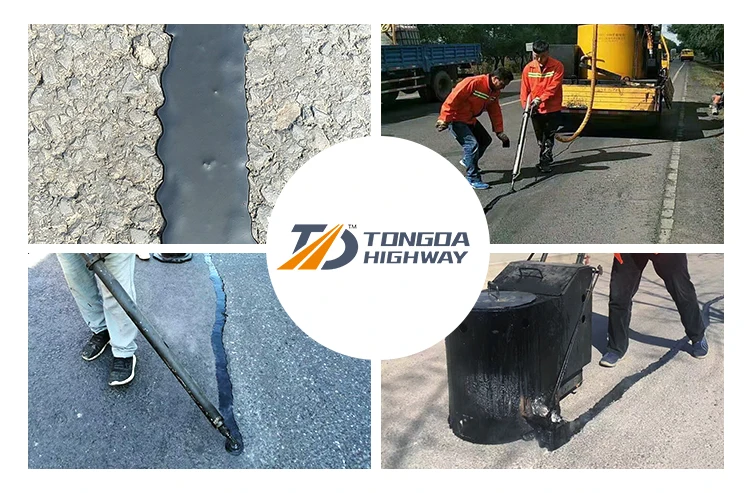

Asphalt crack sealant

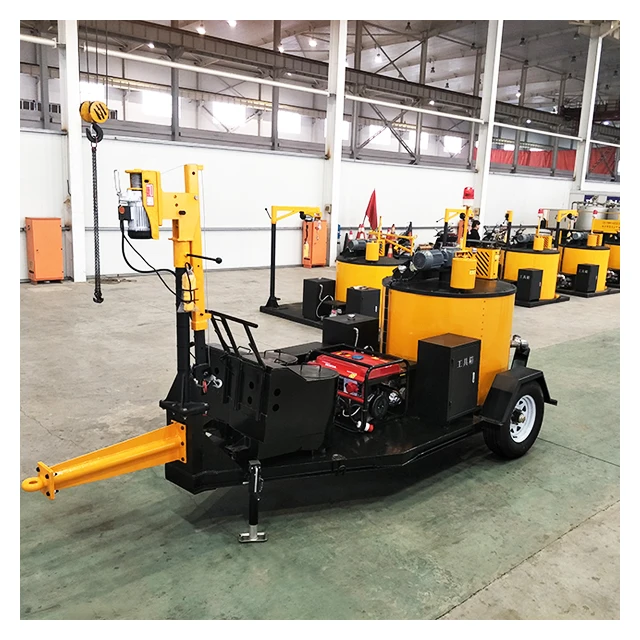

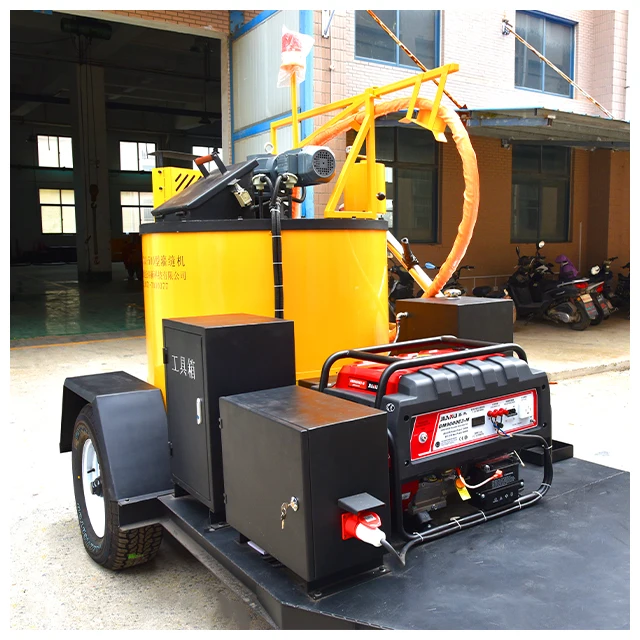

Traction type crack sealing machine

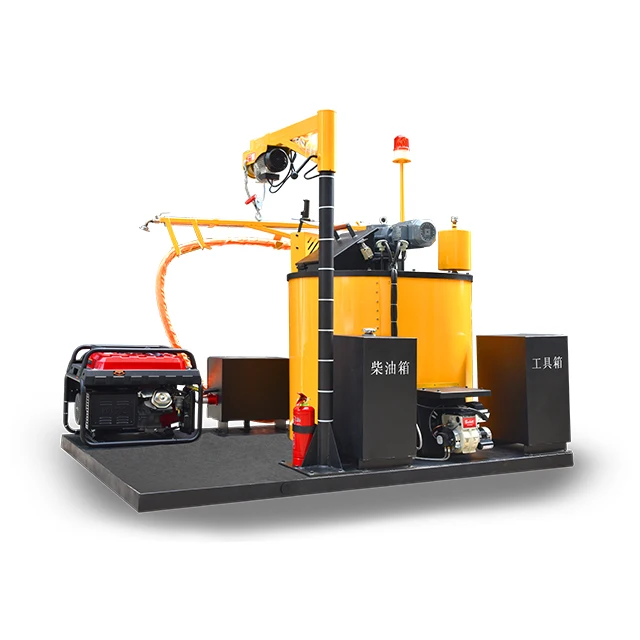

PRODUCT SPECIFICATIONS
NO. | Items | TDQ-500 | TDQR-500 | TDZ-500 | TDZR-500 |
1 | Overall dimension | 4455x1820x2270mm | 4455x1820x2270mm | 3000x1700x2000mm | 2500x1700x1850mm |
2 | Sealant tank | 500L | 500L | 500L | 500L |
3 | Net weight | 1500kg | 1350kg | 1250kg | 1250kg |
4 | Melt capacity | 260kg/h | 260kg/h | 260kg/h | 260kg/h |
5 | Burner brand | Beckett | Beckett | Beckett | Beckett |
6 | Burner calorific value | 92400Kcal/h | 92400Kcal/h | 92400Kcal/h | 92400Kcal/h |
7 | Conduction oil consumption | 140L | 140L | 140L | 140L |
8 | Volume of burner diesel tank | 80L | 80L | 80L | 80L |
9 | Mixer power | 1.5KW | 1.5KW | 1.5KW | 1.5KW |
10 | Heating power for sealant output hose | 1.08KW | / | 1.08KW | / |
11 | Sealant output motor power | 1.1KW | / | 1.1KW | / |
12 | Sealant output hose length | 7m | / | 7m | / |
13 | Generator max. power | 7KW | 7KW | 7KW | 7KW |
14 | Generator oil tank | 25L | 25L | 25L | 25L |
15 | Generator oil consumption | 1.1L | 1.1L | 1.1L | 1.1L |
16 | Output voltage | 380V/220V | 380V/220V | 380V/220V | 380V/220V |
17 | Tyre model | ST255/75R15 | ST255/75R15 | / | / |
Nine Notes for the Operation of the Asphalt Crack Filling Machine:
1. The operator of the asphalt crack sealing machine must be trained.
2. Workers should wear reflective overalls when working on the road.
3. Before starting working, workers should check the oil circuit and pipeline connection to ensure no leakage when the crack
sealing machine is working.
4. Be careful of the high-temperature part of the asphalt crack sealing equipment to avoid burns.
5. When adding the cracking sealing material, pay attention to avoiding the asphalt splash.
6. There should be no water and air when adding heat conduction oil.
7. When operating the road crack sealing machine, please keep an eye on the condition of the furnace and temperature thermometer.
8. If an emergency happens, please turn off the power supply engine in time.
9. Don't put stones and other debris into the oil tank of the hot asphalt crack filler machine.
2. Workers should wear reflective overalls when working on the road.
3. Before starting working, workers should check the oil circuit and pipeline connection to ensure no leakage when the crack
sealing machine is working.
4. Be careful of the high-temperature part of the asphalt crack sealing equipment to avoid burns.
5. When adding the cracking sealing material, pay attention to avoiding the asphalt splash.
6. There should be no water and air when adding heat conduction oil.
7. When operating the road crack sealing machine, please keep an eye on the condition of the furnace and temperature thermometer.
8. If an emergency happens, please turn off the power supply engine in time.
9. Don't put stones and other debris into the oil tank of the hot asphalt crack filler machine.

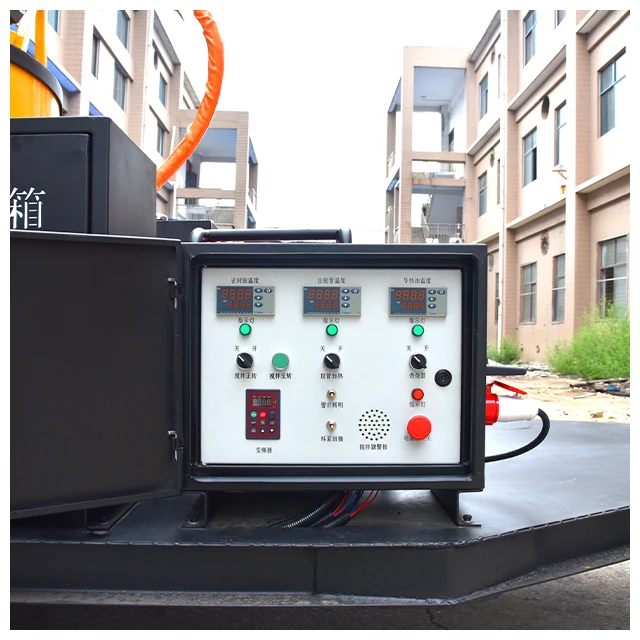

Details Images

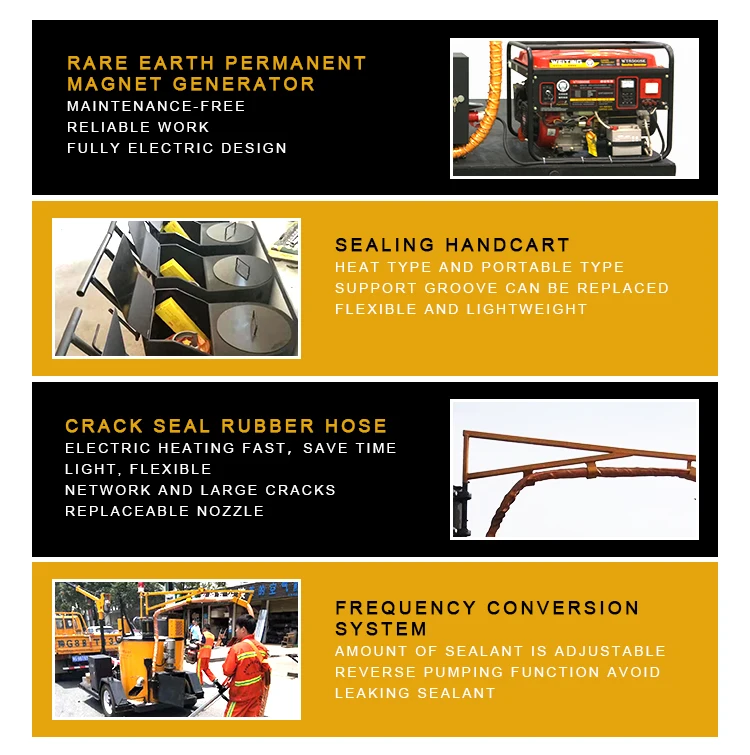

1.Set up maintenance-free rare earth permanent magnet generator as total power source, which has advantages of fully electric
design and low maintenance cost.
2.Glue amount is adjusted by frequency converter motor, reduce rubber pump abrasiveness.
3.The hose adopts electrically heating, faster warming up.
4.The burner adopts fully automatic control, reduce oil consumption.
5.Material tank heating system use HTF indirect multi-area heating, 360°mixing, ensure evenly heating.
6.Quickly heating flue, which has good heat preservation.
7.The heating reactor replaces storage bin part.
design and low maintenance cost.
2.Glue amount is adjusted by frequency converter motor, reduce rubber pump abrasiveness.
3.The hose adopts electrically heating, faster warming up.
4.The burner adopts fully automatic control, reduce oil consumption.
5.Material tank heating system use HTF indirect multi-area heating, 360°mixing, ensure evenly heating.
6.Quickly heating flue, which has good heat preservation.
7.The heating reactor replaces storage bin part.

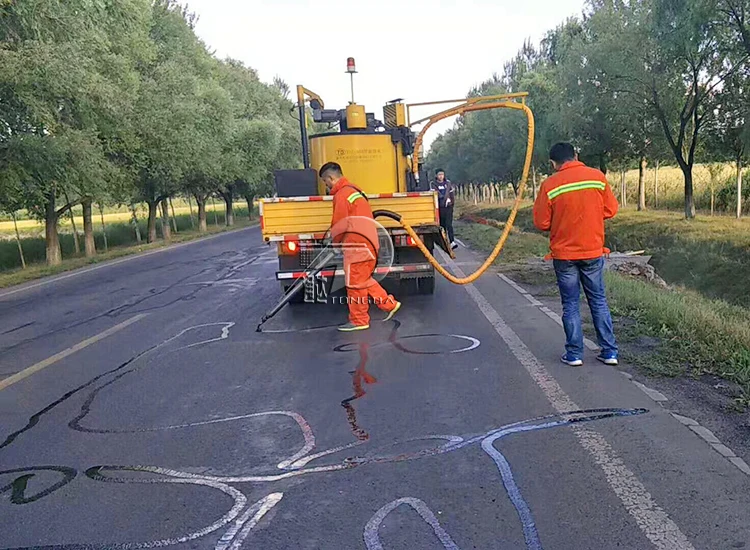

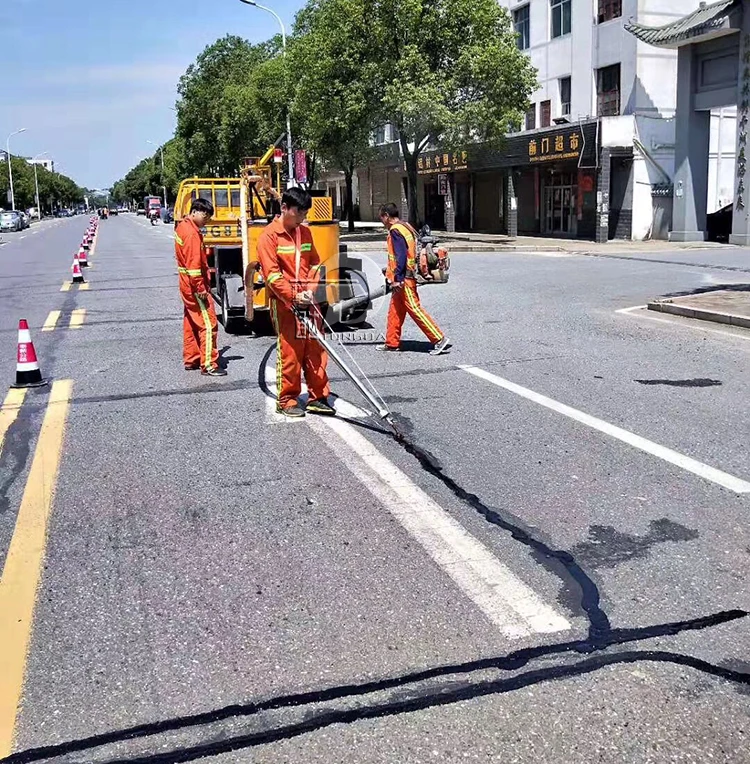

Successful Project
Product packaging
Export package
1 unit asphalt crack sealing machine was packed into an iron frame and then packed with 5 layers of corrugated carton. 4 strips reinforced the carton. the fix package guaranteed the machines were not damaged during transportation
Company Profile
About us
Xinxiang TongDa Road New Technology Co., Ltd. is a highly innovative science and technology enterprises engaged in making highway maintenance materials, road maintenance mechanical equipment and researching maintenance of new technology. TongDa is a R&D and export enterprise combined with sales and service, integrating road construction and equipment production. It mainly covers special-purpose vehicles (fiber micro-surface-slurry sealer paver series, asphalt distributor series, fiber synthetic chip sealer series) and pavement maintenance equipment (asphalt emulsification equipment, road sweeping equipment and potting smidahk construction equipment) and other equipments’ R&D, production, sales and technical services.
Why Choose Us
FAQ
1. Are you manufacturer or trading company?
We are direct manufacturer with the experience of 17 years.
2. Do you have oversea service?
When you have some problems which you can't solve, we will arrange our engineers to your country to help you.
3. How about your product quality?
All our spare parts are from the original manufacturers, the quality is 100% guaranteed.
4. Payment terms?
TT, LC.
We are direct manufacturer with the experience of 17 years.
2. Do you have oversea service?
When you have some problems which you can't solve, we will arrange our engineers to your country to help you.
3. How about your product quality?
All our spare parts are from the original manufacturers, the quality is 100% guaranteed.
4. Payment terms?
TT, LC.
