IC Temic Card Key Energy Saving Switch For Hotel
- Category: >>>
- Supplier: Shenzhen Eternal Technology Co. Ltd.
Share on (1601232168704):
Product Overview
Description
IC Energy Saving Switch for Hotel Max Load 30A/6000W
Product Description
| Operating voltage: 50/60Hz 180-260VAC (other voltages can be customized) |
Maximum load current: 30A |
Quiescent operating power: 1W |
Delay power-off time :10- 20 seconds |
Non-working condition: light blue |
Service life: When relay contacts 220V in the full load, life expectancy greater than 10 million |
Operating temperature: -10 - 60 |
Working humidity: 50 10-95% RH |

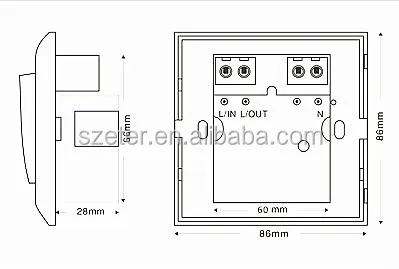

Overall dimensions: W86mm * H86mm * D35mm |
Case Material: Imported fire retardant PC plastic |
Shell Color: Gold, Silver, White (other can be customized) |
| |
Functions & how to work:

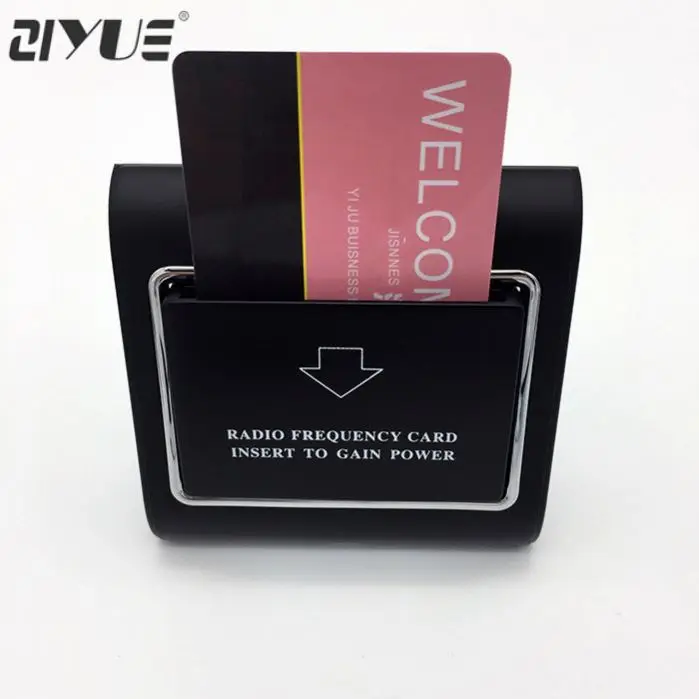

1 .With the special card, you can open the door, and just insert the same card, you can gain power of the room. Also there is option of our swiches which suitable for any kinds of the same size cards.
2. LED indicator design
LED indicator light-emitting design, more convenient to use at night.
3. Delay power off design
When leaving the room, the guest draw the key card, and then the general power supply can be automatically shut off within 15 seconds, convenience to guests, and also protect the electric device safety.

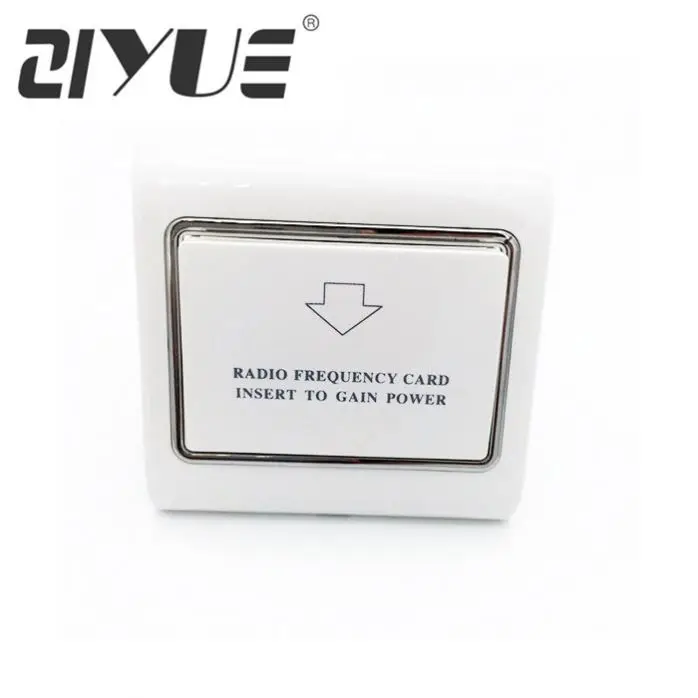

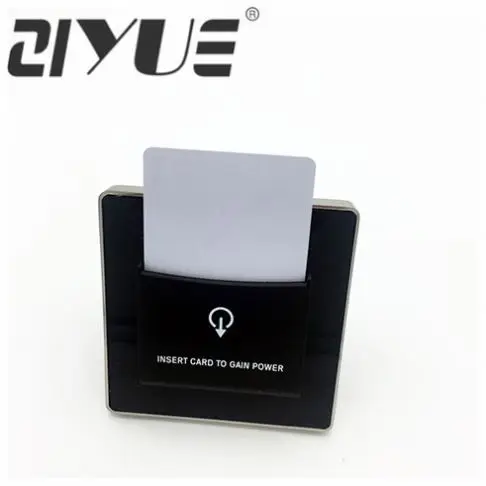

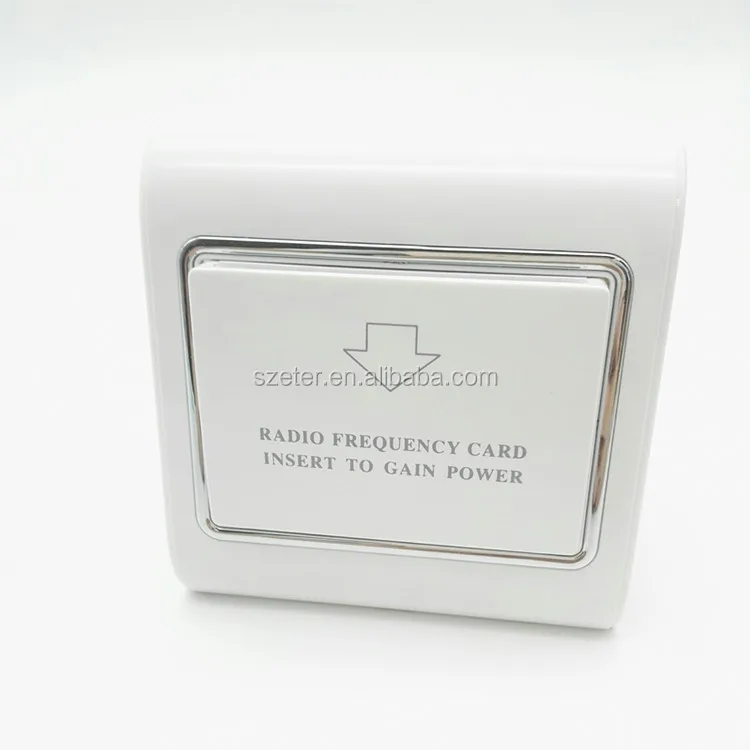

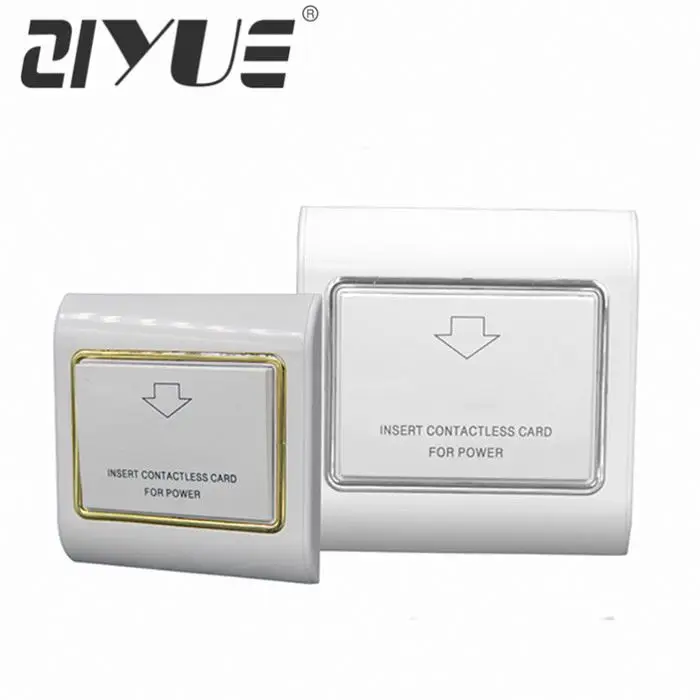

Different Color/Design:
Tips: Language on panel will be in English or your language!
Packaging & Shipping
Qty:100pcs/CTN or 50pcs/CTN
CTN Size: 46*32*50cm
G/W: 0.33kg/pc
Our Certification
Our Services
1). Low price: very competitive price range.
2). Best quality: manufactory supply, stable with fast after-sale service
3).Quick shipping: For 100 hotel switches delivery time 1-2-days.
4). Safe&secure transaction: Payment by TT; Western Union,Escrow
5) .Experienced technical service: Any tech demands or special requirement we can supply for you.
6) . After-sale service:2 yearsant warry.
FAQ
1.How to use Hotel card key switch
When guest get in the room, insert card for power of the room appliance, when he/she leaves the room and withdraw the card, power cut delay to protect the circuit.
2.Used in different areas:

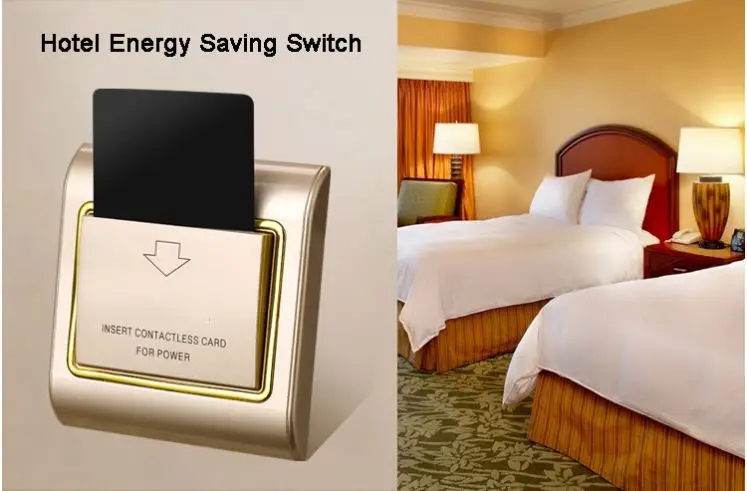

Suitable for hotels, apartment, motel, schools, colleges, universities, hospitals, leisure centres and offices etc.
3.Customzie Service:
1. The language on the panel
2. Logo Printing
3. Color printing
4. How to purchase?
If you have cards already, please tell us which chip it is, RFID? IC ? Magnetic?
If you don't have cards yet, we can recommand one model to you!

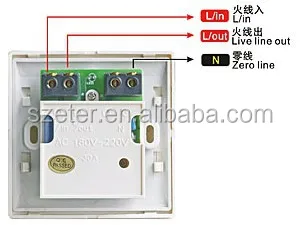

5. How to connect the wires , folloing is our diagram!

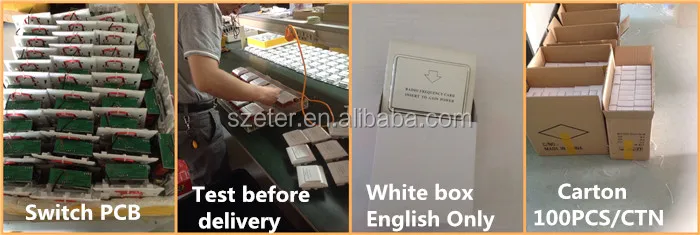

Production Flow
Assembly line and Test Line:
Diagram
