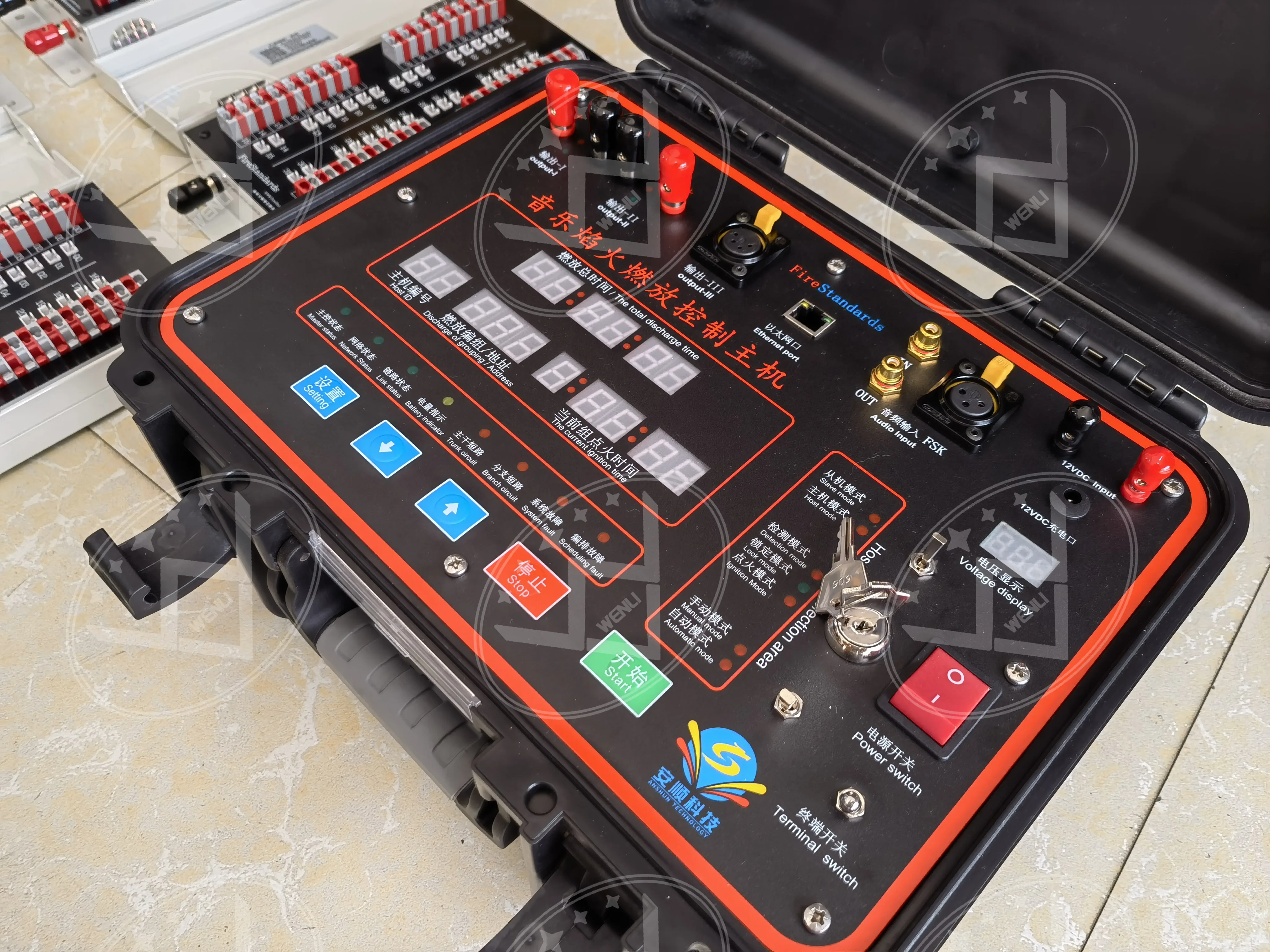

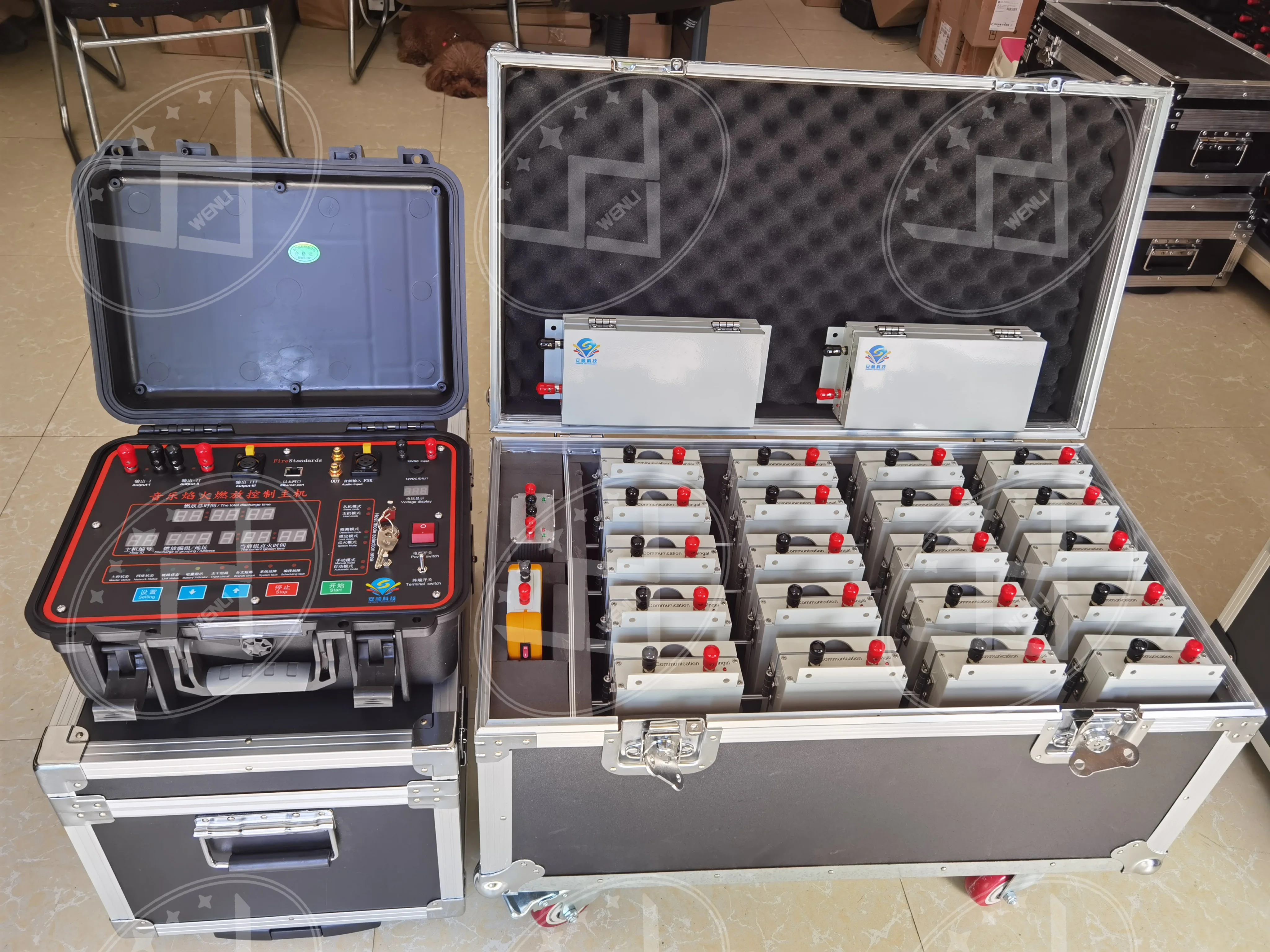

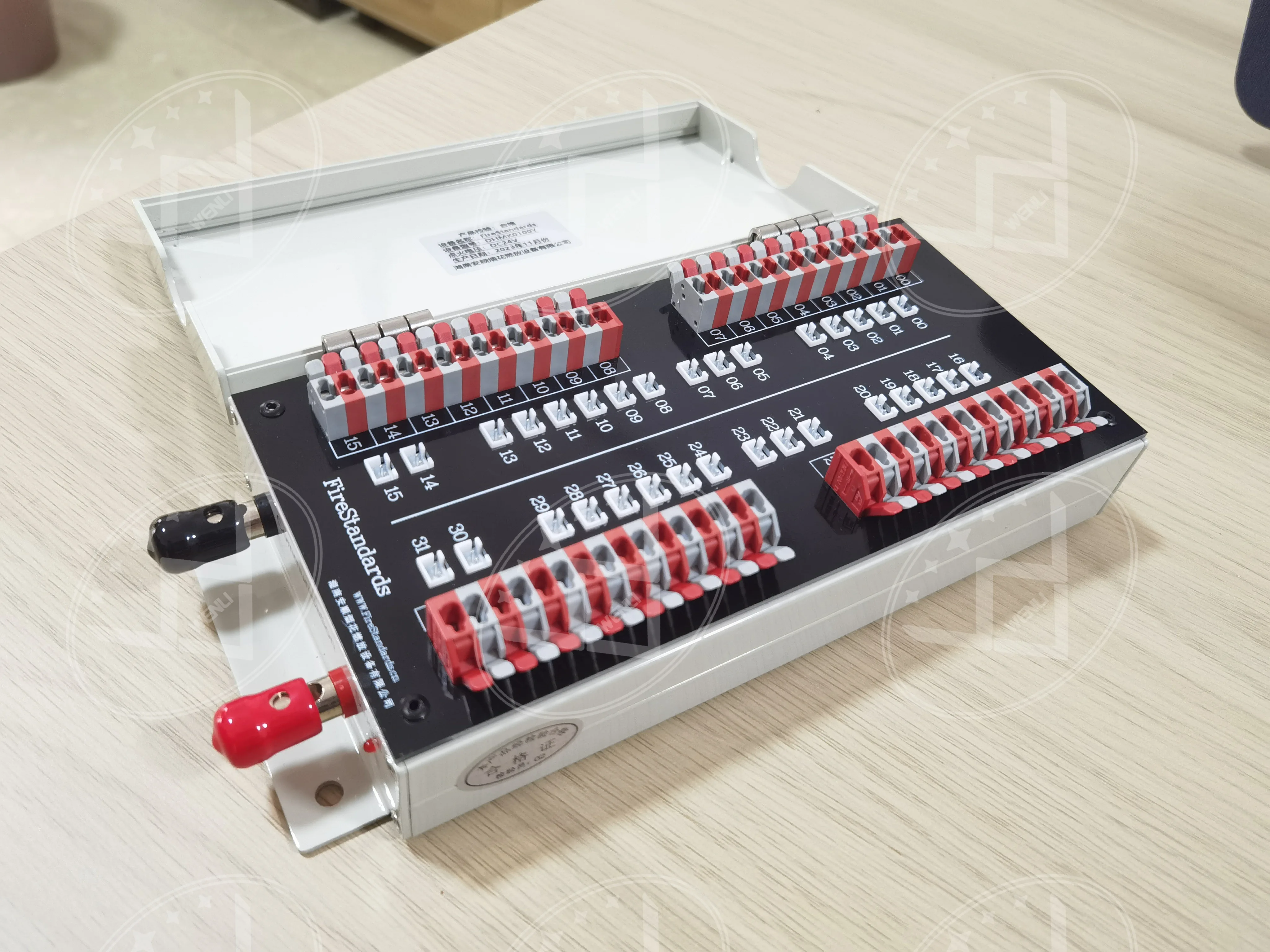

Waterproof Host Machine 32 Cue Distributor Pyro Musical Programmable Professional Fireworks Firing System

product details

The ignition terminal has the following four major functional characteristics

1. 24V point thermal power pulse output
An ignition pulse with an output voltage of 24V and a pulse width of 30ms
2. Power line carrier communication technology
The main feature is that Jin Yong has two non-polar transmission lines to simultaneously supply power and transmit serial data, and the equipment has a small size and safety
The characteristics of easy portability and high reliability greatly ensure the success rate of ignition.
3. Ignition characteristics of terminal ignition module: This system supports multiple terminal ignition modules to issue commands in a single group.
If there are multiple ignition heads in a single wiring clip of the terminal ignition module, do not connect them in parallel and use a series connection. The minimum time interval between two adjacent ignitions of a single ignition module is 10ms
4. Remote power supply technology
Adopting bus communication technology and remote power supply
Easy to install and supports two core non positive and negative pole connections
Convenient, centralized, and efficient power management mode

Ignition and firing operation:
1: Confirm that all ignition modules and ignition heads are functioning properly before proceeding with ignition operations.
2: Confirm that the connecting cable and ignition module are properly connected.
3: Turn on the power switch of the ignition host and turn on the terminal switch to supply power to all ignition modules.

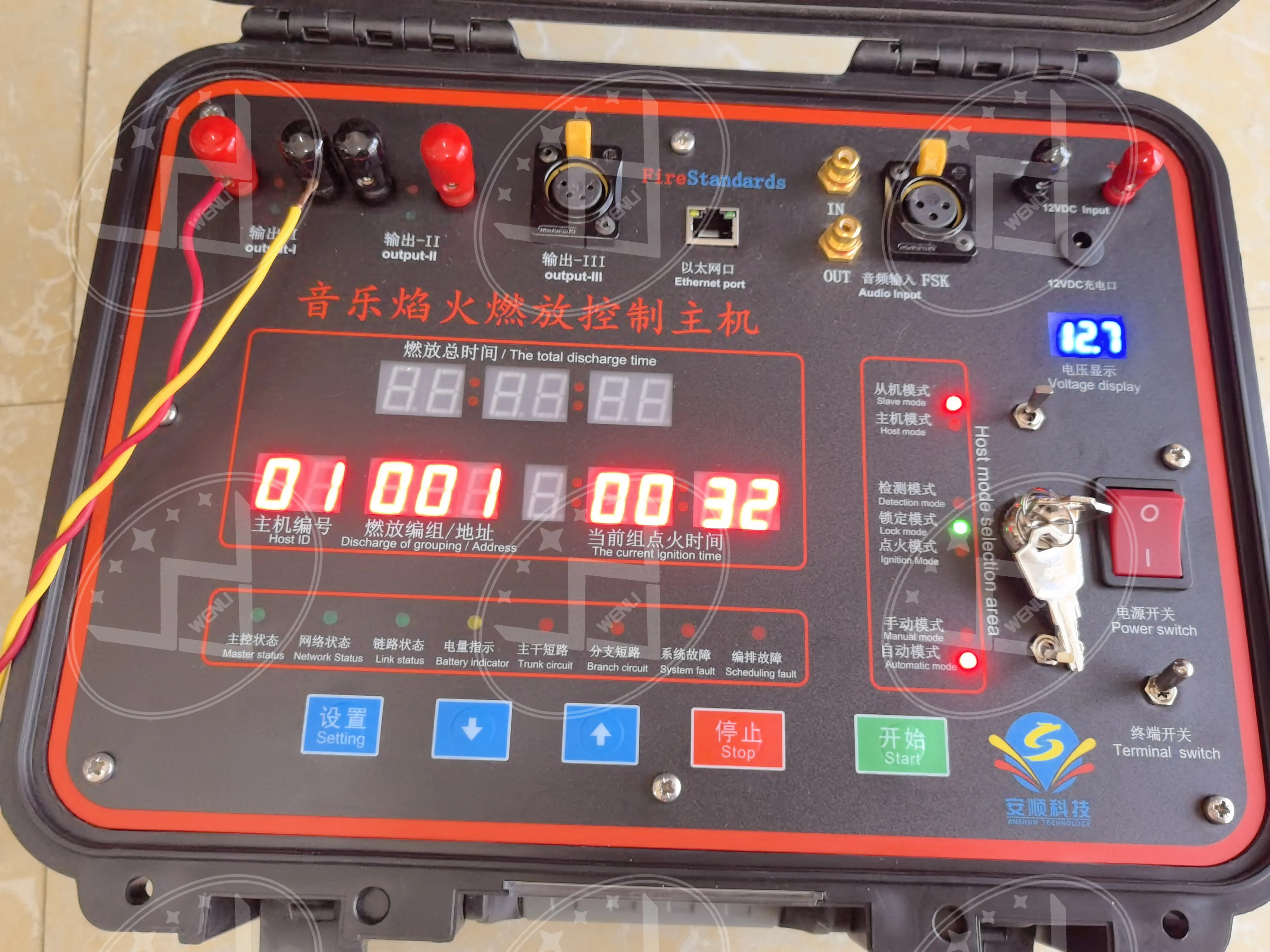

4: Turn the key switch to the ignition mode and the corresponding red indicator light will turn on. (Note: The shape of the mode area during ignition operation)
The mandatory selection for state selection is to turn the switch to the red indicator light corresponding to the host mode when the cluster mode and host mode are activated
When the ignition mode is turned on, the corresponding red indicator light will light up. It is necessary to activate the manual and automatic modes when the key switch is turned on
Turn the switch to automatic mode and the corresponding red indicator light will light up
5: After confirming that all the above operations are normal, press the start button to start the automatic operation of the device and implement the combustion.

Performance Index Parameter Table
