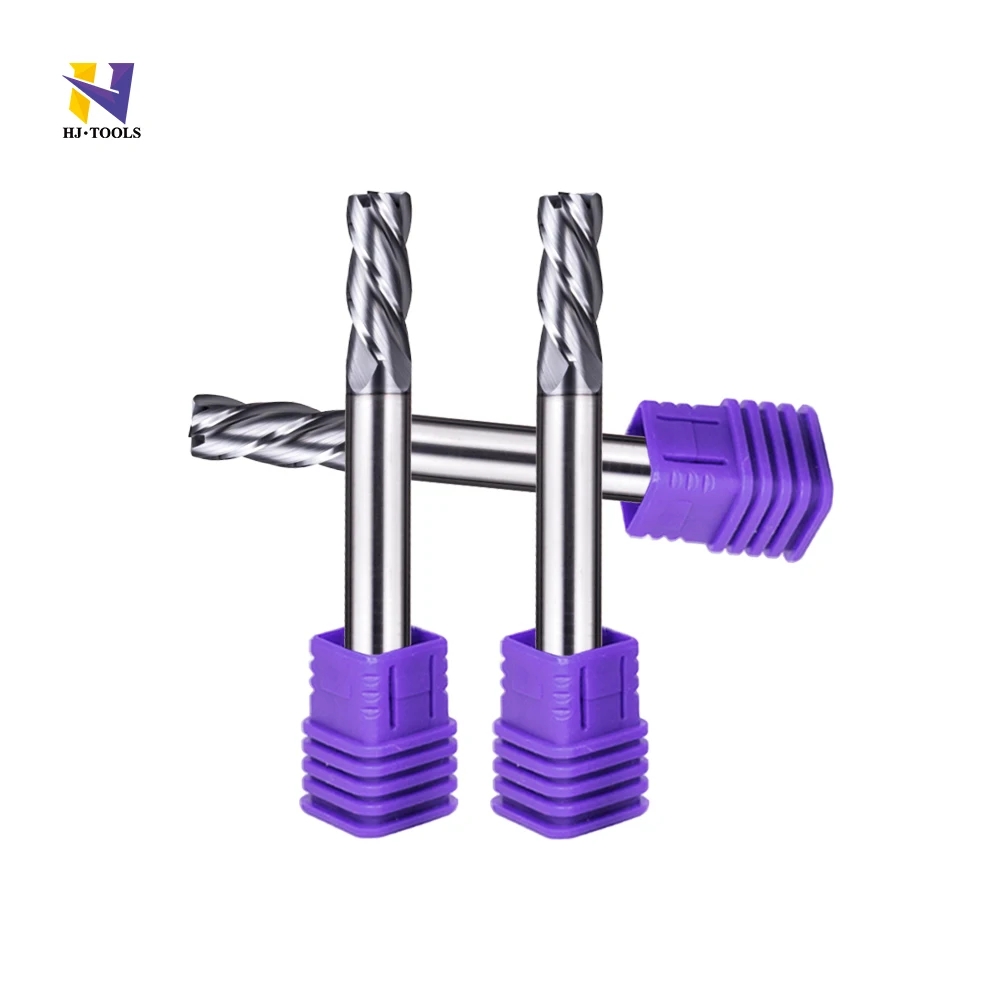

4 Flutes Corner Radius cnc bits end mill carbide Milling Cutter for Stainless steel
- Category: >>>
- Supplier: Xiamen HJ Carbide Technology Co. Ltd.Xiamen Ltd.
Share on (1601232196710):
Product Overview
Description
Product Description

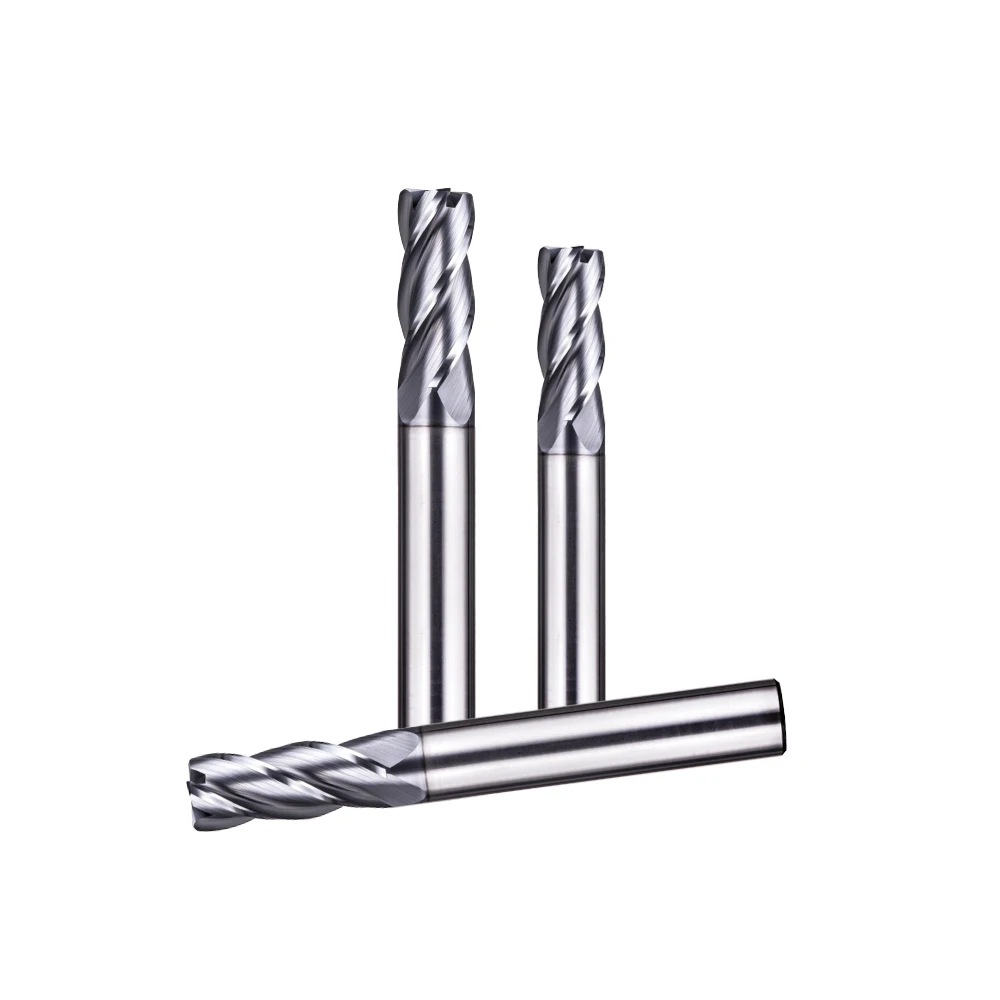

Product name | Radius, Regular/Short, 4 Flutes |
Material | Solid Carbide |
Flute diameter range | Φ2-Φ10 |
Front Corner Degree | 6° |
Helix Angle | 35° |
Coating | TiAlN |
Corner | Corner Radius |
Applications | Side Milling, Slot Milling |
Feature of Coating
Coating name | TiAlN |
Vickers hardness | 2900 |
Friction coefficient | 0.35 |
Maximum applicable temperature | 900℃ |
Features and function | High oxidation resistance and high adhesion. Suitable for milling of stainless steel, dry machining of hardened steel and drilling of titanium alloy. |
Workpiece Materials
Carbon steels Alloy steels | Pre-hardened Steels <45HRC | Hardened steels 45HRC-55HRC | Hardened steels 55HRC-65HRC | Hardened steels >65HRC | Stainless steels | Ti alloy Heat-resistant alloy | Copper alloy | Aluminium alloy |
○ | ◎ |
◎ Best for ○ Suitable for
Specification

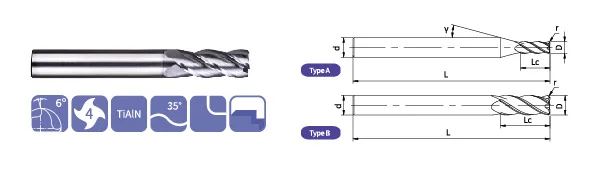

Ordering Code | Mill Dia. (D) | Flute Length (Lc) | Corner (r) | Overall Length (L) | Shank Dia. (d) | Type | Stock |
S-R4-02002 | 2 | 6 | 0.2 | 50 | 4 | A | ● |
SR4-03003 | 3 | 9 | 0.3 | 50 | 4 | A | ○ |
S-R4-03005 | 3 | 9 | 0.5 | 50 | 4 | A | ○ |
S-R4-04003 | 4 | 11 | 0.3 | 50 | 4 | B | ○ |
S-R4-04005 | 4 | 11 | 0.5 | 50 | 4 | B | ○ |
S-R4-64002 | 4 | 11 | 0.2 | 50 | 6 | A | ● |
S-R4-64003 | 4 | 11 | 0.3 | 50 | 6 | A | ○ |
S-R4-05005 | 5 | 13 | 0.5 | 50 | 6 | B | ○ |
S-R4-06005 | 6 | 16 | 0.5 | 50 | 6 | B | ● |
S-RS4-06005 | 6 | 6 | 0.5 | 50 | 6 | B | ● |
S-R4-08002 | 8 | 20 | 0.2 | 60 | 8 | B | ○ |
S-R4-08005 | 8 | 20 | 0.5 | 60 | 8 | B | ● |
S-R4-08010 | 8 | 20 | 1 | 60 | 8 | B | ○ |
S-R4-10005 | 10 | 25 | 0.5 | 75 | 10 | B | ○ |
D | Tol. (mm) |
D≤12 | 0 -0.02 |
◎ Suitable for high-performance processing of titanium alloy and stainless steel materials.
◎ Independently developed high-performance and difficult to machine material specialized matrix with strong high-temperature resistance, achieving longer tool cutting life.
◎ Adopting unequal tooth pitch and unequal spiral segmentation design, effectively prefabricating vibration to achieve higher surface quality.
◎ High strength blade design with special arc rake surface treatment ensures the strength and sharpness of the blade tip, enabling stable cutting of the tool
◎ The use of TiAlCrSiN high-performance nano coating, combined with a special coating process, effectively enhances the wear resistance of the cutting tool.
S-R4/RS4 Recommended Cutting Parameters
Side Milling
Workpiece Materials | Carbon Steels, Alloy Steels, Cast Iron (180-250HB) | Stainless Steels, Tool Steels (25-35HRC) | Pre-Hardened Steels (35-45HRC) | ||||||
Cutting depth (mm) | ap≤1D, ae≤0.1D | ap≤1D, ae≤0.1D | ap≤1D, ae≤0.1D | ||||||
Mill Dia. (mm) | n (r/min) | Vf (mm/min) | n (r/min) | Vf (mm/min) | n (r/min) | Vf (mm/min) | |||
1 | 20000 | 225 | 25000 | 700 | 20000 | 180 | |||
2 | 15000 | 360 | 15900 | 635 | 15000 | 315 | |||
4 | 10800 | 630 | 7960 | 700 | 8000 | 480 | |||
6 | 7000 | 675 | 5300 | 680 | 5300 | 515 | |||
8 | 5200 | 665 | 3980 | 730 | 4000 | 510 | |||
10 | 4200 | 660 | 3180 | 660 | 3800 | 505 | |||
12 | 3500 | 660 | 2650 | 600 | 3200 | 505 | |||
Slot Milling
Workpiece Materials | Carbon Steels, Alloy Steels, Cast Iron (180-250HB) | Stainless Steels, Tool Steels (25-35HRC) | Pre-Hardened Steels (35-45HRC) | ||||||
Cutting depth (mm) | ap≤0.1D, ae≤1D | ap≤0.1D, ae≤1D | ap≤0.1D, ae≤1D | ||||||
Mill Dia. (mm) | n (r/min) | Vf (mm/min) | n (r/min) | Vf (mm/min) | n (r/min) | Vf (mm/min) | |||
2 | 9000 | 180 | 7165 | 280 | 9000 | 150 | |||
4 | 6480 | 315 | 3580 | 240 | 4800 | 240 | |||
6 | 4200 | 335 | 2390 | 310 | 3180 | 255 | |||
8 | 3120 | 330 | 1790 | 310 | 2400 | 255 | |||
10 | 2520 | 330 | 1430 | 310 | 1920 | 250 | |||
12 | 1950 | 330 | 1195 | 310 | 1590 | 250 | |||
