2 inch to 12 inch Cast Iron Semi water Control Lug Butterfly Valve Water SS Disc Electric Control Butterfly Valve
- Category: >>>
- Supplier: Guangzhou ORBY Technology Co. LTD
Share on (1601232232694):
Product Overview
Description
Optional (Must be requested when placing the order)
ON/OFF Type | Modulating Type | Display unit |
Product Paramenters
ON/OFF Electric Actuators | ||||||||||||||||
Model | 03 | 05 | 10 | 15 | 30 | 60 | 100 | 200 | ||||||||
Torque NM | 30Nm | 50Nm | 100Nm | 150Nm | 300Nm | 600Nm | 1000Nm | 2000Nm | ||||||||
Actuator speed | 25S | 25S/50S | 10S/15S/30S/60S | 30S/60S | 30S | 45S | ||||||||||
Working current | 0.25A | 0.25A | 0.48A | 0.68A | 0.8A | 1.2A | 2A | 2A | ||||||||
Motor power | 6W/F | 15W/F | 25W/F | 30W/F | 40W/F | 90W/F | 100W/F | 120W/F | ||||||||
Voltage | AC220V,AC24V,AC110V,DC24V,DC12V,AC380V 1Ph/3Ph | |||||||||||||||
Modulating Electric Actuators | ||||||||||||||||
Model | 03E | 05E | 10E | 15E | 30E | 60E | 100E | 200E | ||||||||
Torque NM | 30Nm | 50Nm | 100Nm | 150Nm | 300Nm | 600Nm | 1000Nm | 2000Nm | ||||||||
Actuator speed | 25S | 25S/50S | 10S/15S/30S/60S | 30S/60S | 30S | 45S | ||||||||||
Working current | 0.25A | 0.25A | 0.48A | 0.68A | 0.8A | 1.2A | 2A | 2A | ||||||||
Motor power | 6W/F | 15W/F | 25W/F | 30W/F | 40W/F | 90W/F | 100W/F | 120W/F | ||||||||
Voltage | AC220V,AC24V,AC110V,DC24V,DC12V,AC380V 1Ph/3Ph | |||||||||||||||
Input signal | 4-20mADC,1-5VDC,0-10VDC | |||||||||||||||
Output signal | 4-20mADC,0-10VDC | |||||||||||||||
Eight wiring types are available,Contact us for the most technical information. |
A: ON/OFF Type Limit switch with Light Indicator |
B: ON/OFF Type Limit switch with Passive Contact signal |
C: ON/OFF Type With Potentiometer |
D: ON-OFF Type Passive signal with Potentiometer |
E: Modulating Type with Control Module |
F: ON-OFF Type DC Circuit |
G: AC380V Three-Phase Circuit |
H: AC380V Three-Phase With Potentiometer |

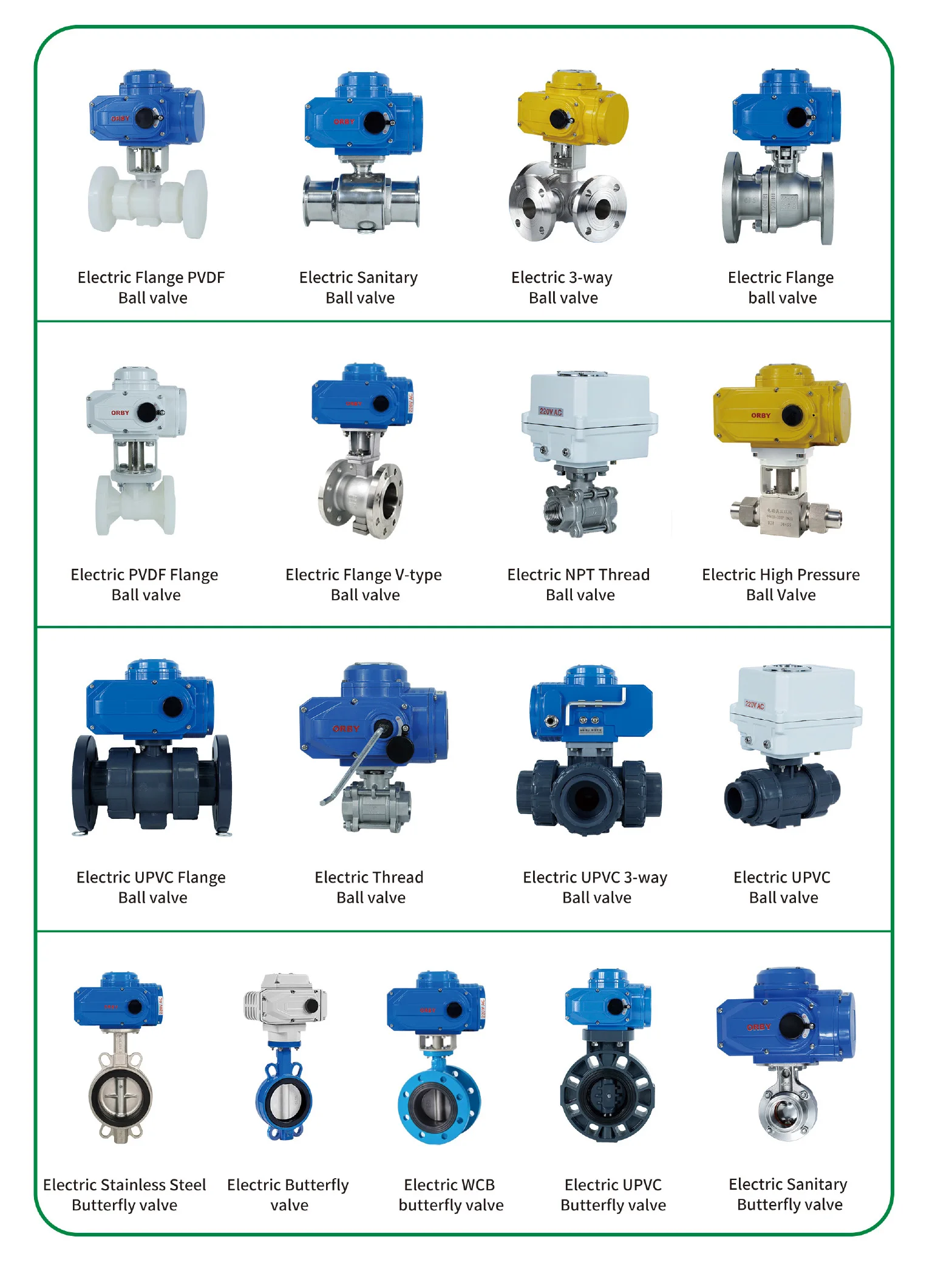

Recommend Products

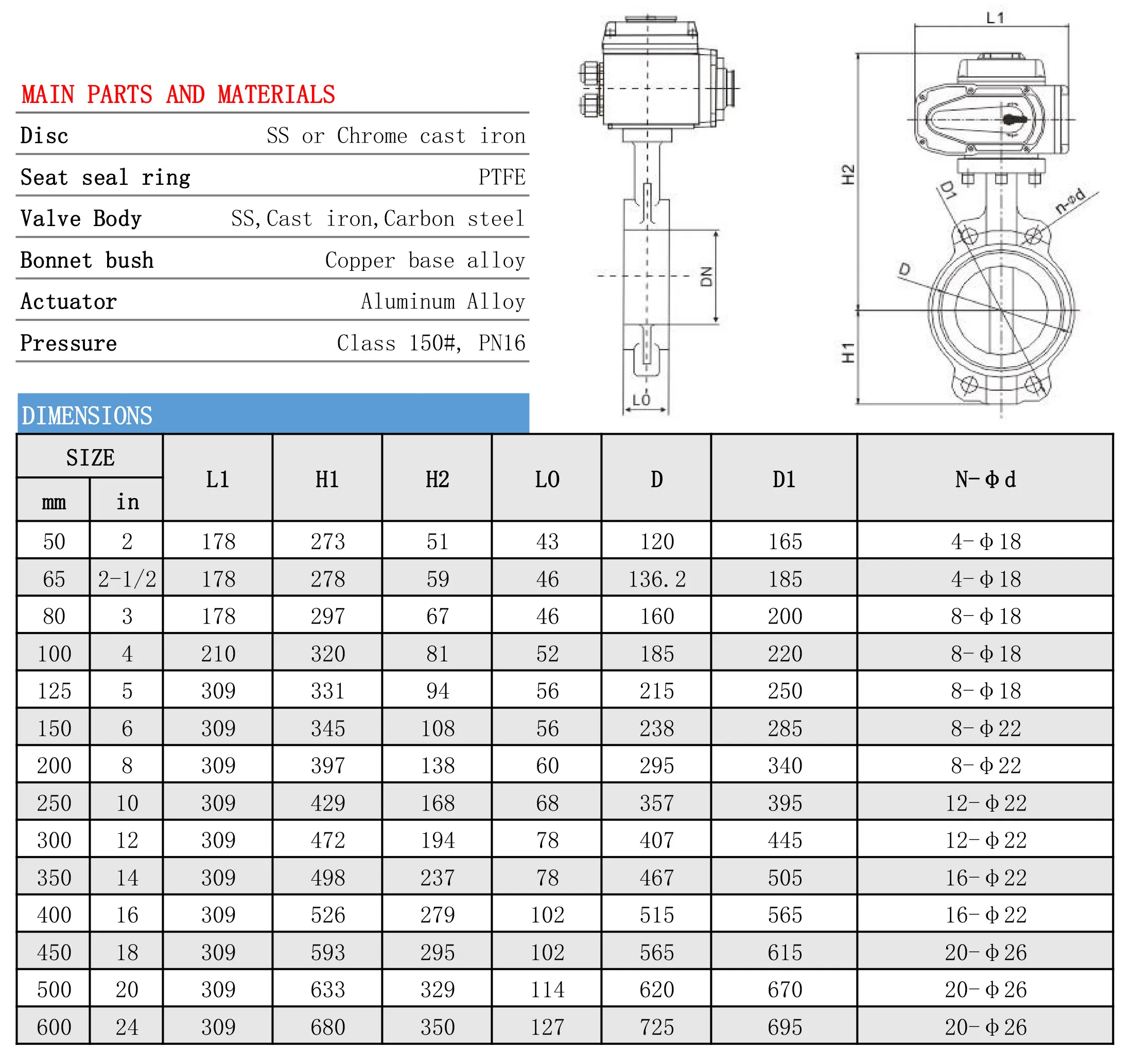

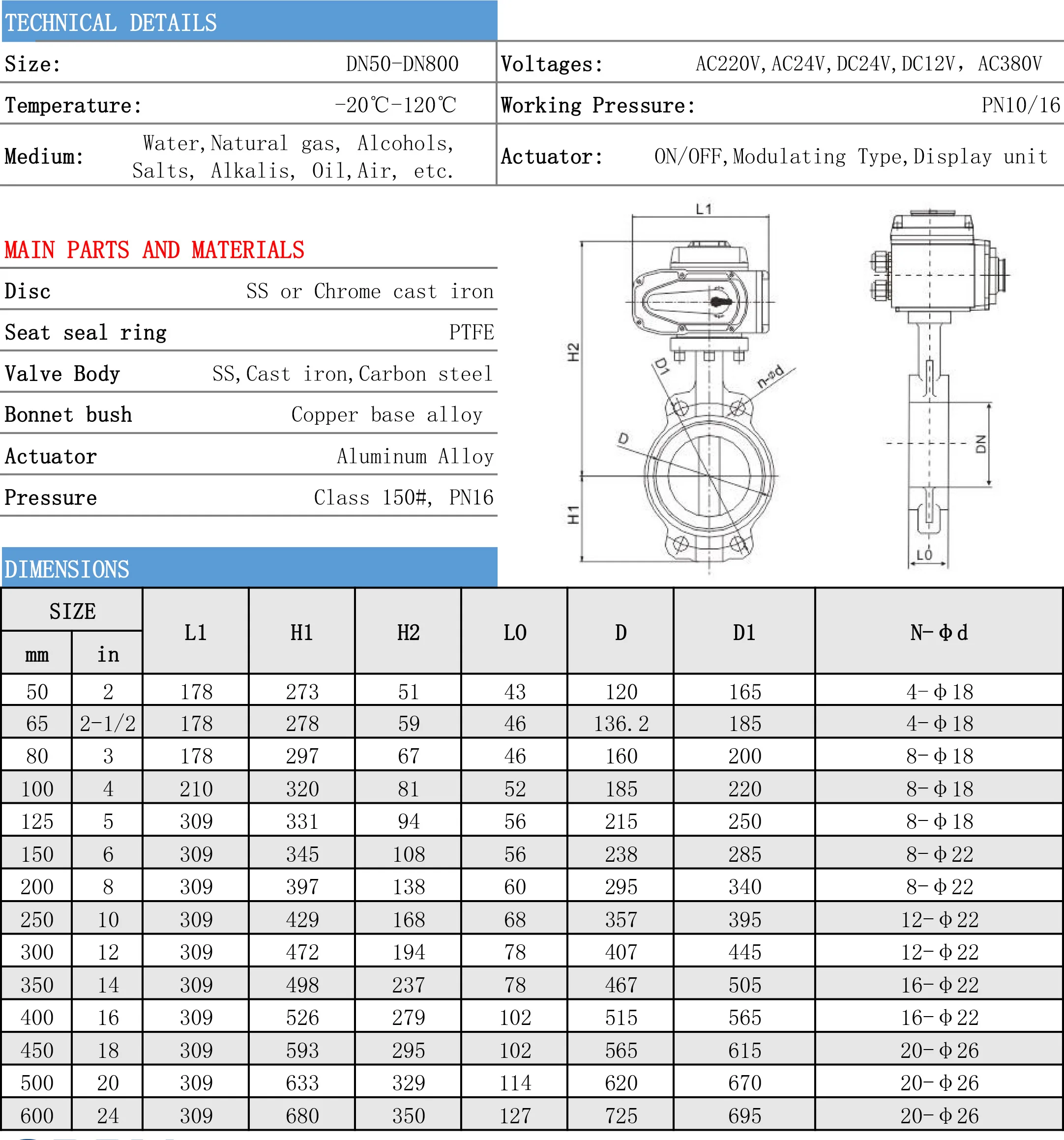

Products Dimension and Drawing

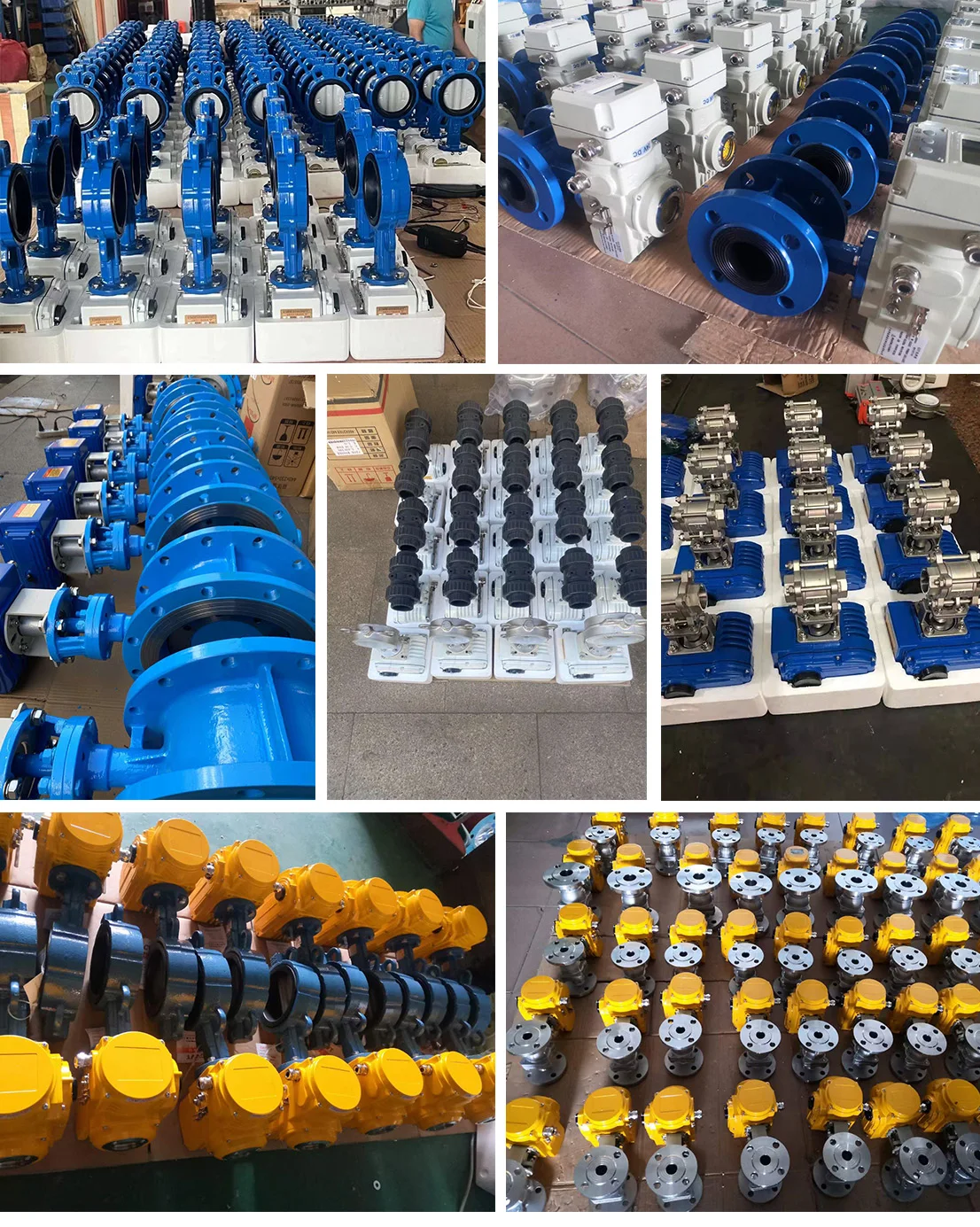

Product Show
Why Choose Us
FAQ
What should i pay attention to when buying valves?
Purpose,Media,Actuation,Materials,Valve Type,Pipe Considerations,End Connections,Industry Standards,Valve Supplier, etc.
What certified documents does your company provide?
Complete with Test Certificate(ISO 9001), CE and RoHS etc.
Do you have a minimum order quantity.
No. We’ll sell you 1 valve, or 10,000.
Do you offer free shipping?
No. Because valves are heavy we make a reasonable freight cost and send to you via DHL, TNT and FedEx.
How often should I test and inspect my valve?
That is dependent upon the application,Typically our valves are tested prior to shipping.
Can you confirm your valve will work with my fluid media?
We encourage the use of samples for validation, which we can typically provide
Purpose,Media,Actuation,Materials,Valve Type,Pipe Considerations,End Connections,Industry Standards,Valve Supplier, etc.
What certified documents does your company provide?
Complete with Test Certificate(ISO 9001), CE and RoHS etc.
Do you have a minimum order quantity.
No. We’ll sell you 1 valve, or 10,000.
Do you offer free shipping?
No. Because valves are heavy we make a reasonable freight cost and send to you via DHL, TNT and FedEx.
How often should I test and inspect my valve?
That is dependent upon the application,Typically our valves are tested prior to shipping.
Can you confirm your valve will work with my fluid media?
We encourage the use of samples for validation, which we can typically provide
