700C Disc Brake Symmetric Road Carbon Rim 28mm Width Carbon Fiber Road Bicycle Wheels Straight Pull Rim Brake For Racing
- Category: >>>
- Supplier: Xiamen Kaixinhui Technology Co. Ltd.
Share on (1601232245645):
Product Overview
Description
Product Description

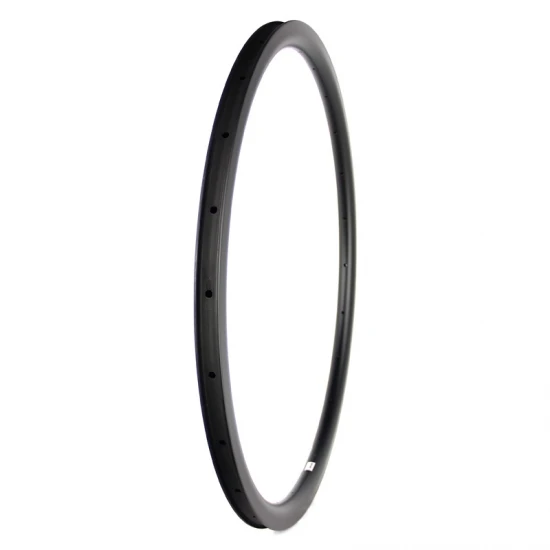

700C Disc Brake Symmetric Road Carbon Rim 28mm Width Carbon Fiber Road Bicycle Wheels Straight Pull Rim Brake For Racing

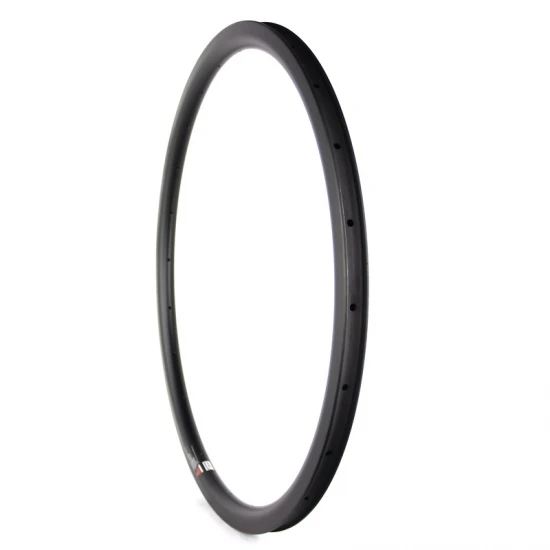

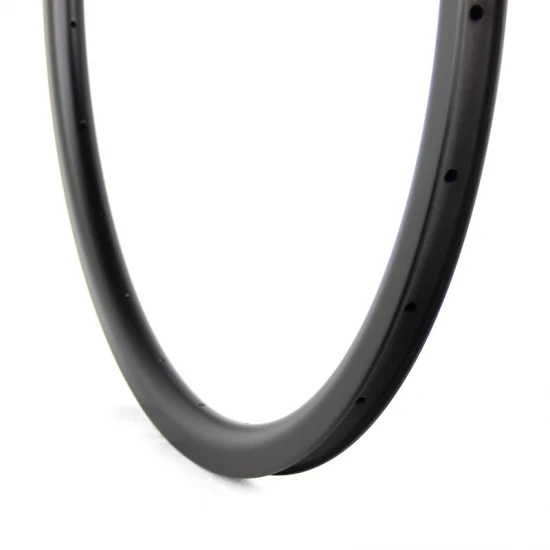

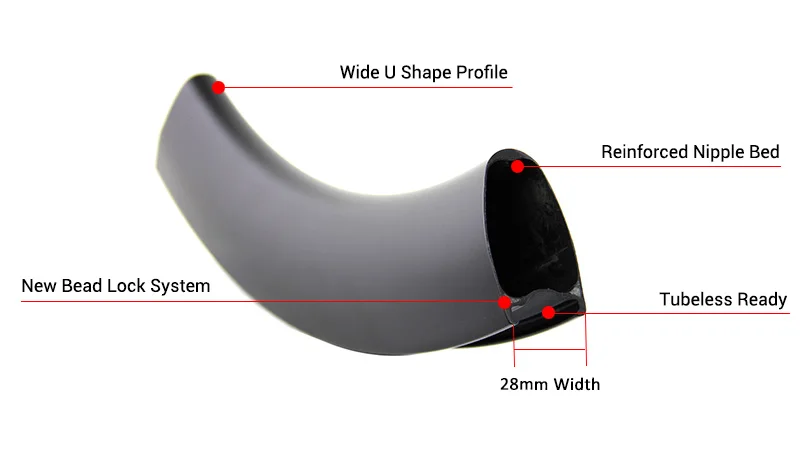

- 28mm width symmetric design road carbon rim for disc brake (no brake surface).
- Reinforced nipple bed, can tolerate larger spoke tension for wheel building.
- New bead lock system, better tire holding, prevent air leaking.
- Wide U shape design, of better aerodynamics and stiffness.
- High quality carbon clincher rim with competitive price.
- Reinforced nipple bed, can tolerate larger spoke tension for wheel building.
- New bead lock system, better tire holding, prevent air leaking.
- Wide U shape design, of better aerodynamics and stiffness.
- High quality carbon clincher rim with competitive price.
Colors

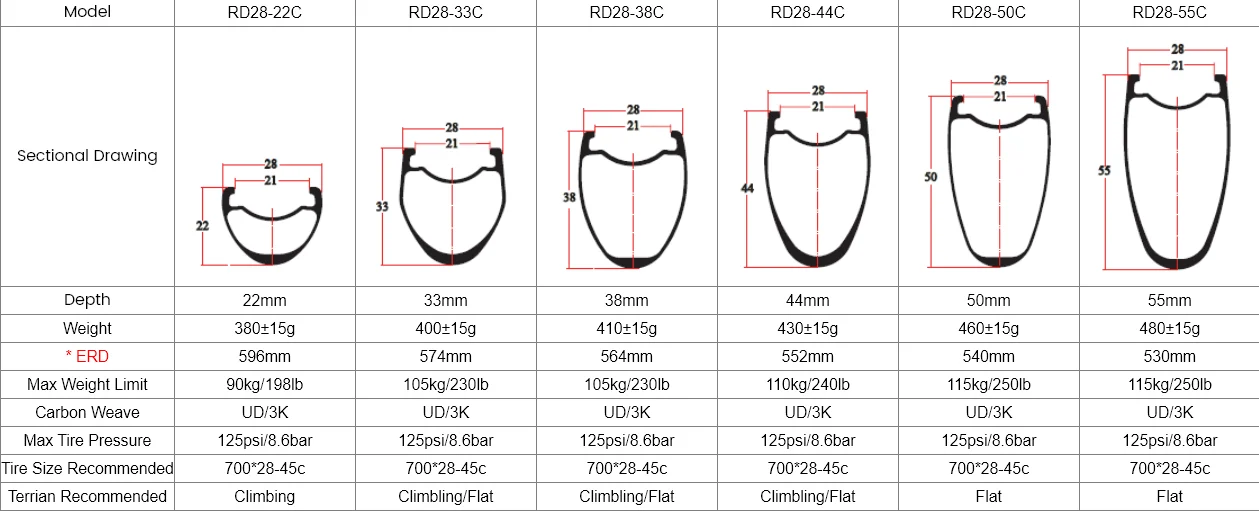

Specification

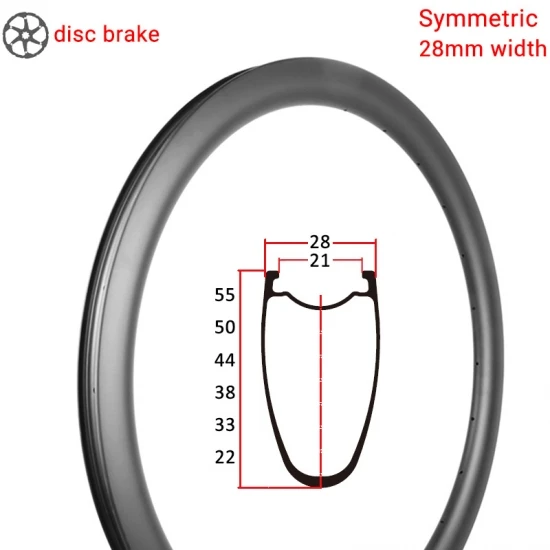

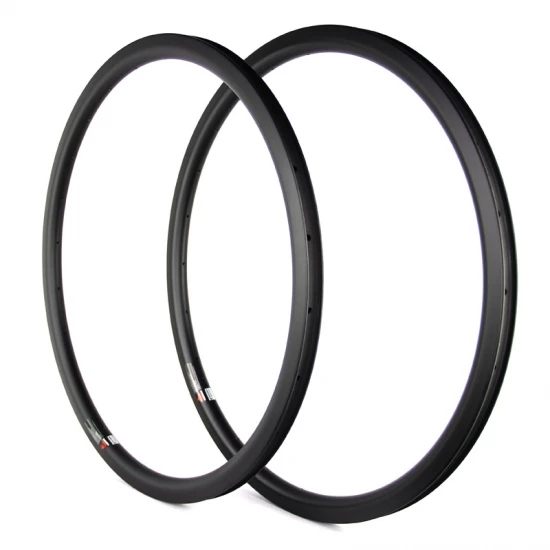

28mm Width 700C Disc Brake Symmetric Road Carbon Rim
ERD Calculate

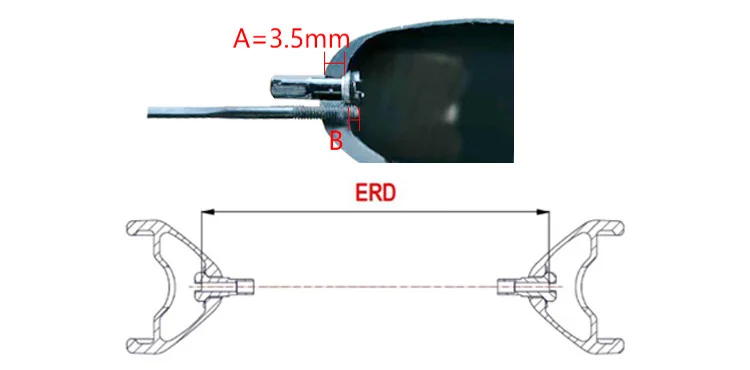

ERD is short for effective rim diameter, it is the maximum distance that spokes bridge going from one end of the rim to another.
How do we calculate the ERD of our rims? Below are calculation equation and sketch for your reference:
How do we calculate the ERD of our rims? Below are calculation equation and sketch for your reference:
ERD=Rim outer diameter-(rim depth)*2+(Rim nipple bed thickness)*2
For example：
ERD of RD25-38T rim=633mm-38mm*2+3.5mm*2=564mm
Most people prefer ERD including the length of the nipple head.
However, customers may use different nipples and components for building.
Please add the length of the nipple head(2.5mm~3mm generally) for your spoke calculation.
If the length of the nipple head is 3mm, then ERD of your RD25-38T rim is 564mm+3mm*2=570mm
A: Rim nipple bed thickness (=3.5mm)
B: Length of nipple head (2.5mm~3mm generally)
For example：
ERD of RD25-38T rim=633mm-38mm*2+3.5mm*2=564mm
Most people prefer ERD including the length of the nipple head.
However, customers may use different nipples and components for building.
Please add the length of the nipple head(2.5mm~3mm generally) for your spoke calculation.
If the length of the nipple head is 3mm, then ERD of your RD25-38T rim is 564mm+3mm*2=570mm
A: Rim nipple bed thickness (=3.5mm)
B: Length of nipple head (2.5mm~3mm generally)
Recommend Products
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Exhibition
Our Advantages

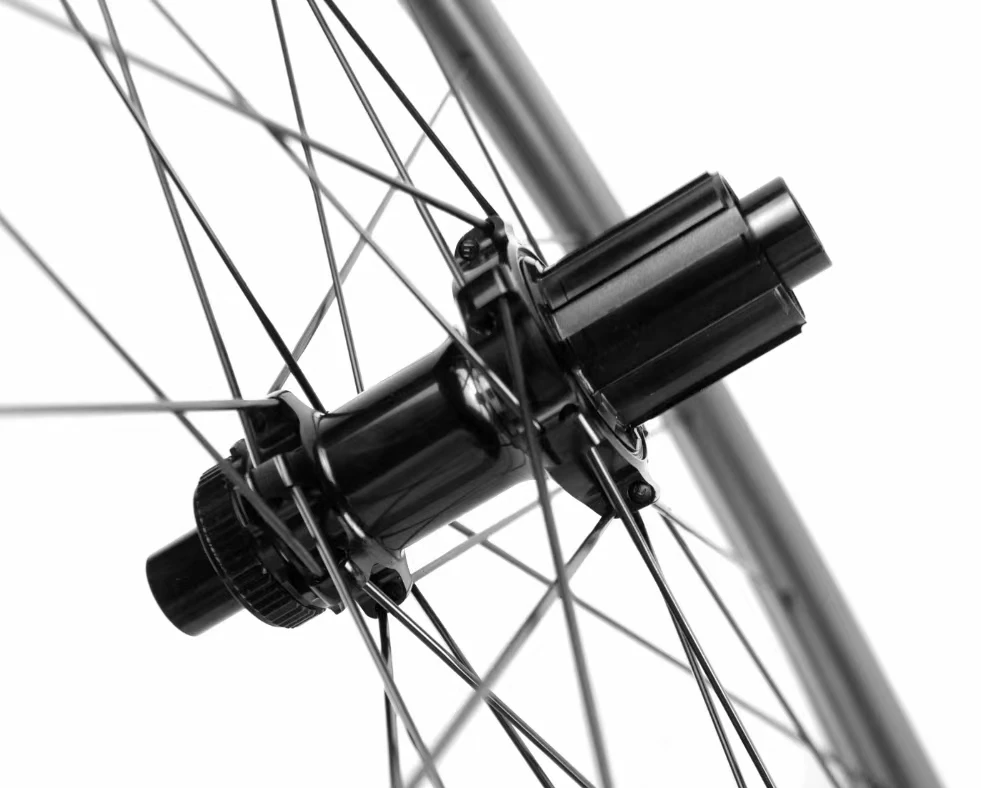

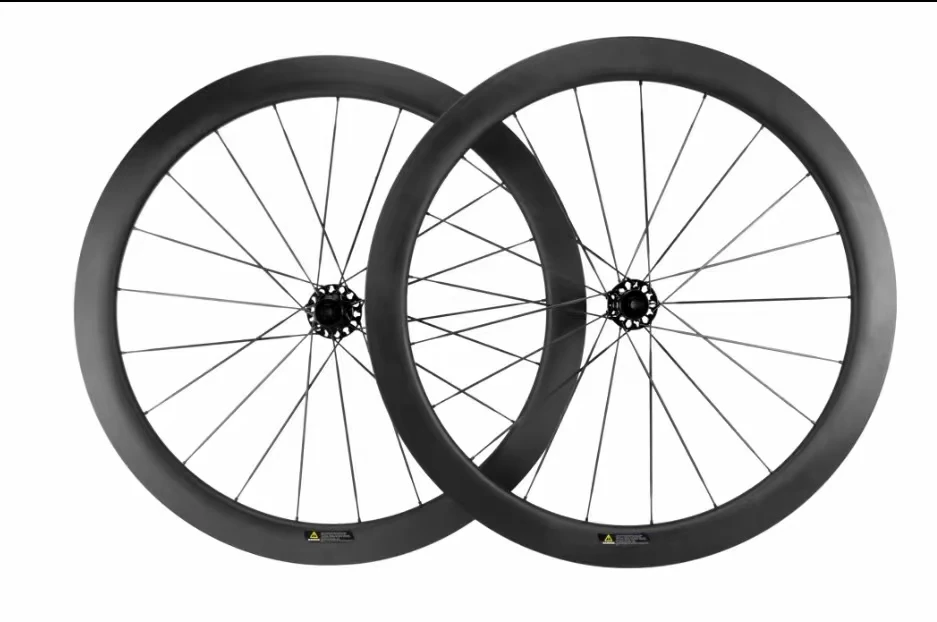

Our Carbon fiber wheelset
Material: Full Carbon fiber
1.Plasticity
2.Stronger hardness
3.Higher lightweighting
4.Steady shot
Disadvantage:
1.Expensive
Application:Daily driving and High end sports events
others Aluminum alloy
Materials：Aluminum alloy
1.price cheaper
Disadvantage:
1.Non plasticity
2.Heavier weight
Aplication:Daily driving of ordinary vehicles
FAQ
A) How could I get a sample?
Before we received the first order, please pay the sample cost and shipping
fee. We will return the sample cost back to you within your first order.
B) Sample time?
Existing items: Within 2-15 days.
C) Whether you could make our brand on your products?
Yes. We can print any Logo on both the products and the packages if you can
meet our MOQ :50 pcs.
D) Whether you could make your products by our color?
Yes, The color of products can be customized if you can meet our MOQ: 50 pcs.
E) How to guarantee the quality of your products?
1) Strict detection during production.
2) Strict sampling inspection on products before shipment and intact product
packaging ensured.
Before we received the first order, please pay the sample cost and shipping
fee. We will return the sample cost back to you within your first order.
B) Sample time?
Existing items: Within 2-15 days.
C) Whether you could make our brand on your products?
Yes. We can print any Logo on both the products and the packages if you can
meet our MOQ :50 pcs.
D) Whether you could make your products by our color?
Yes, The color of products can be customized if you can meet our MOQ: 50 pcs.
E) How to guarantee the quality of your products?
1) Strict detection during production.
2) Strict sampling inspection on products before shipment and intact product
packaging ensured.
