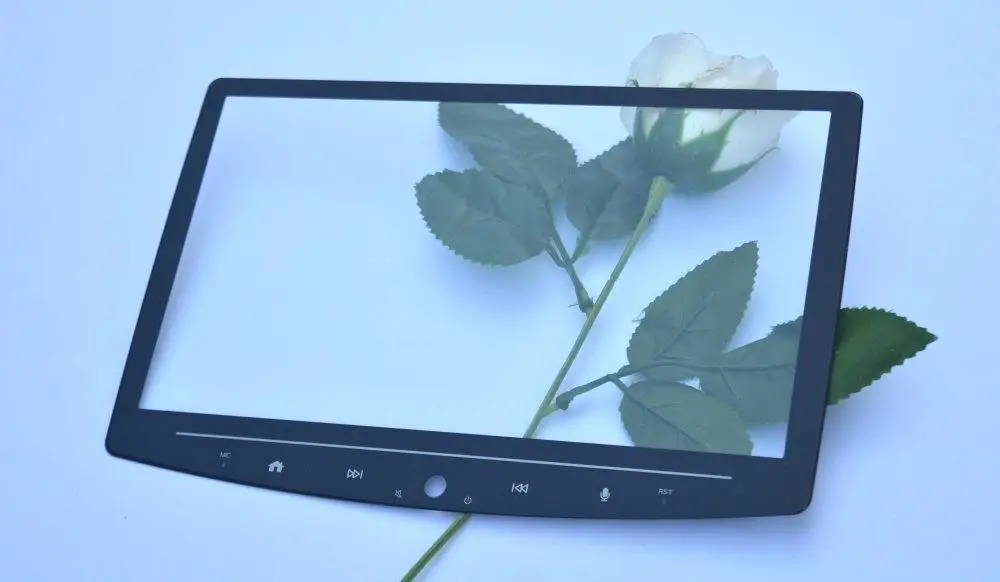

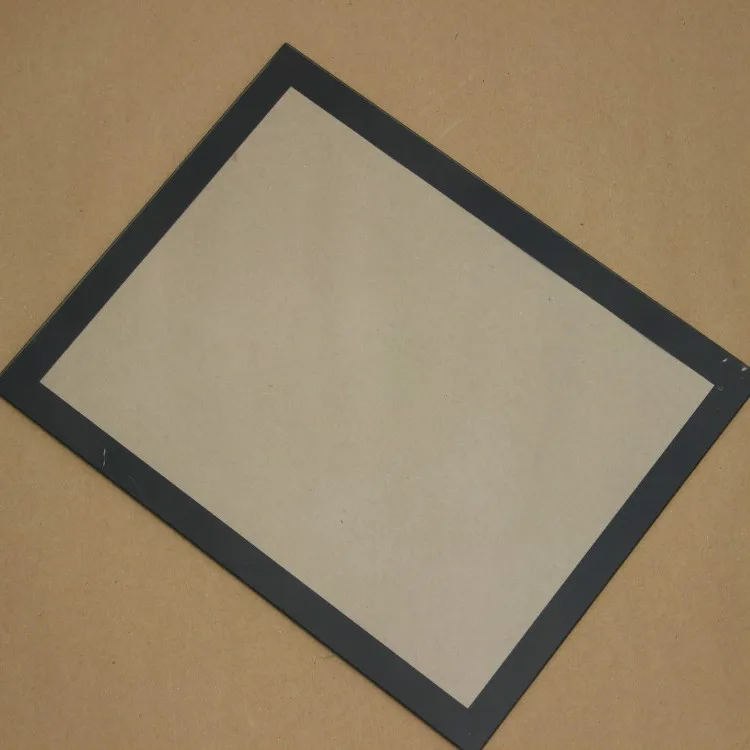

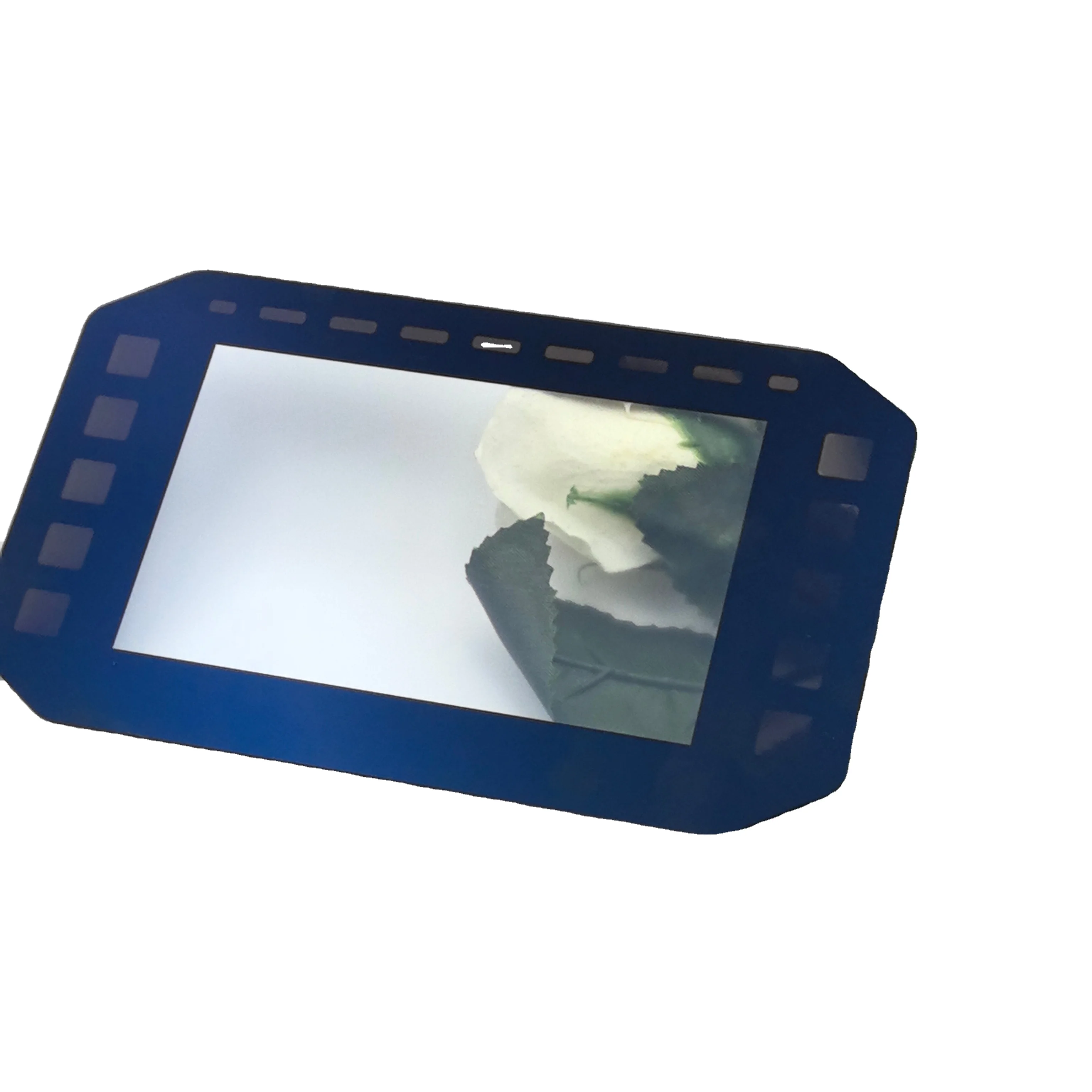

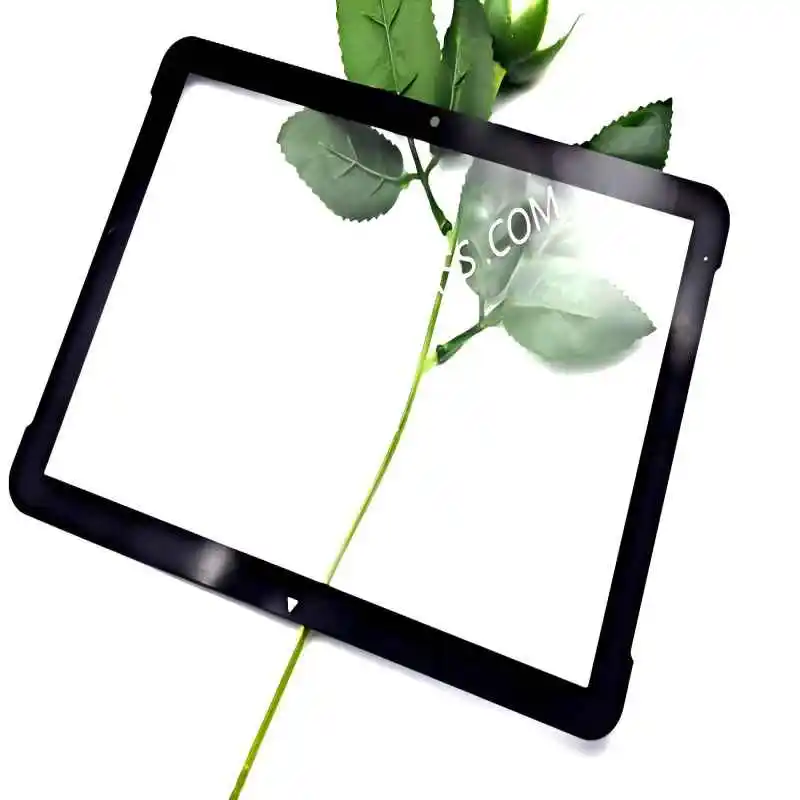

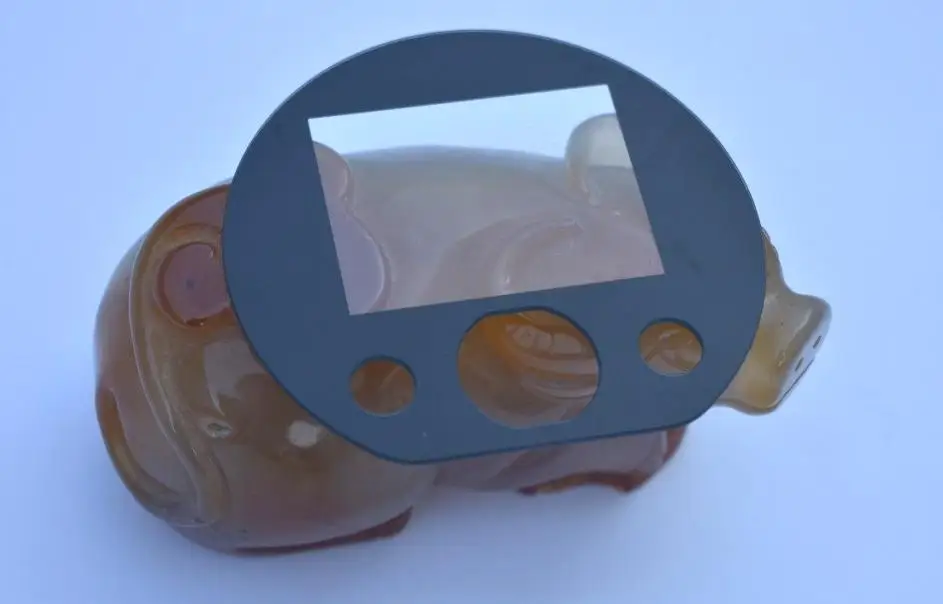

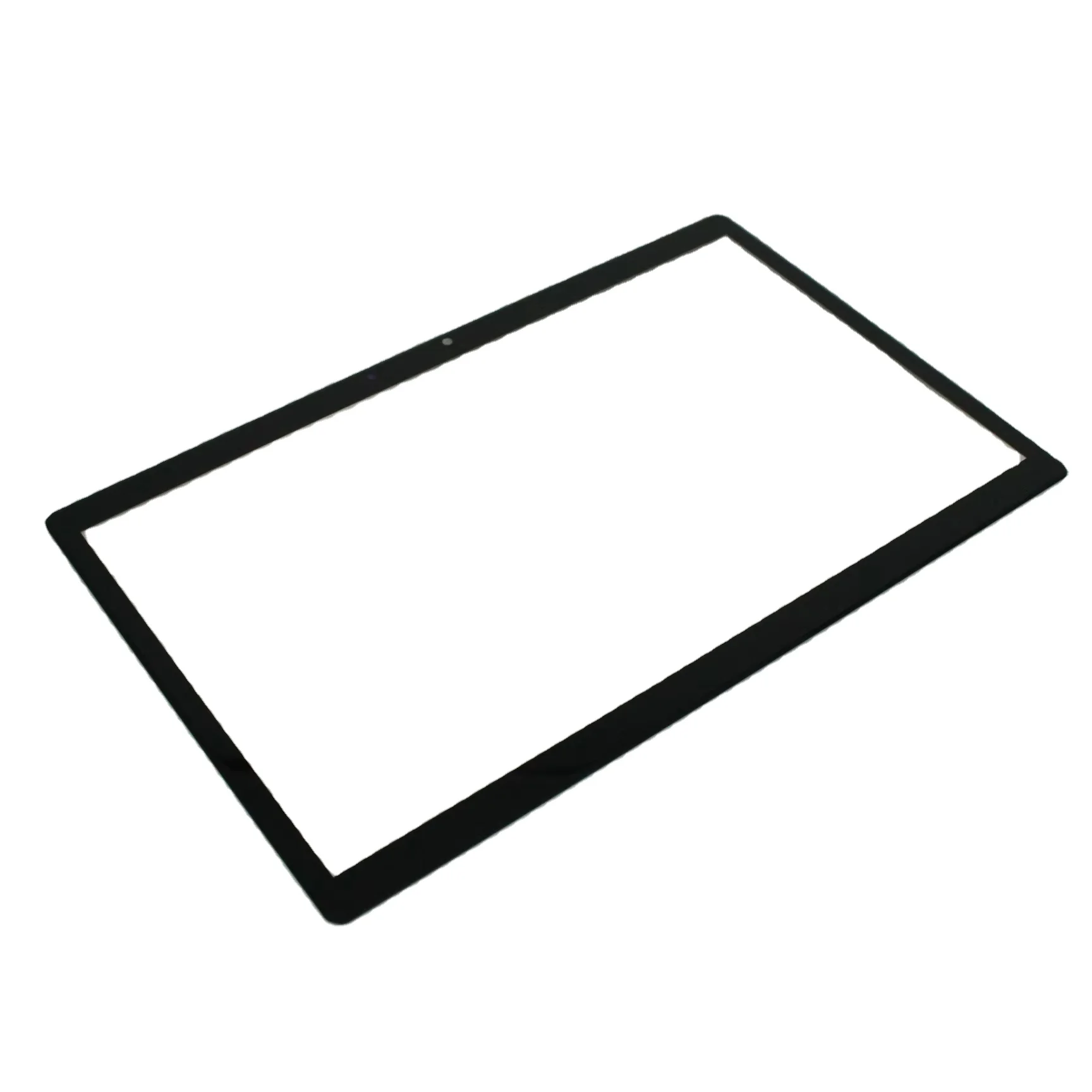

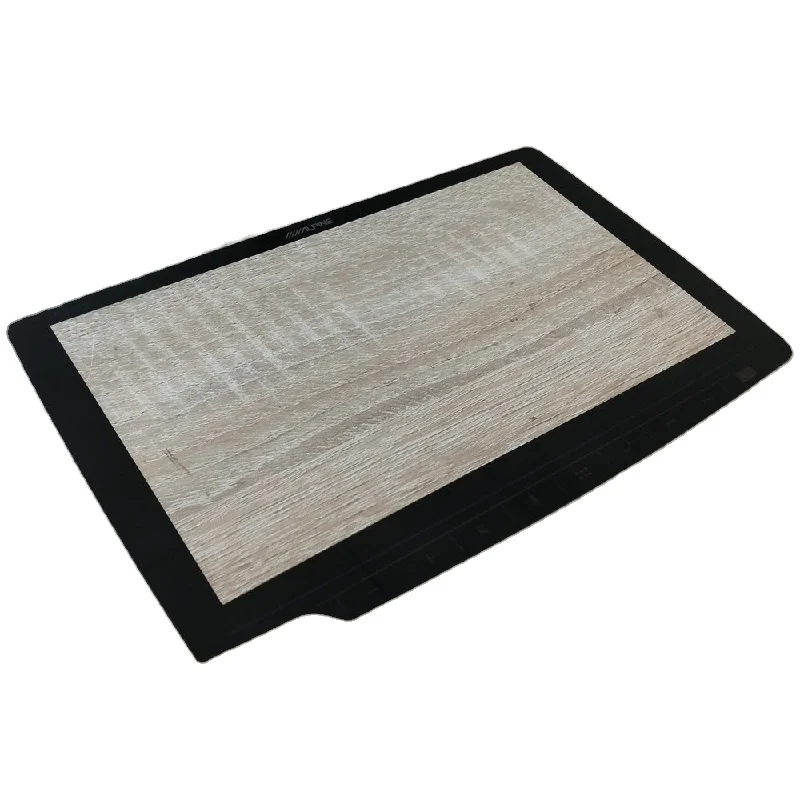

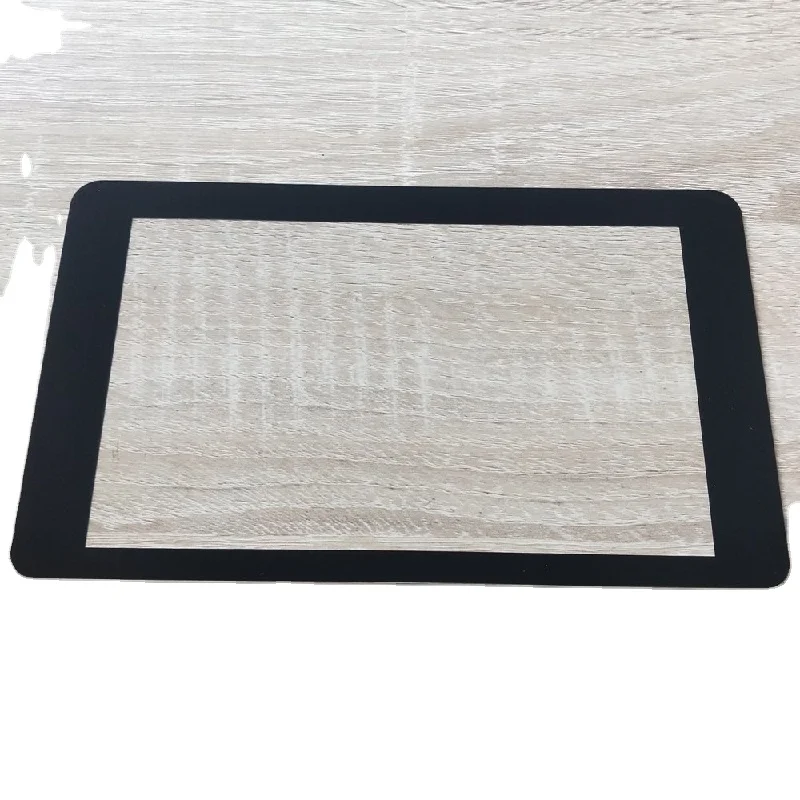

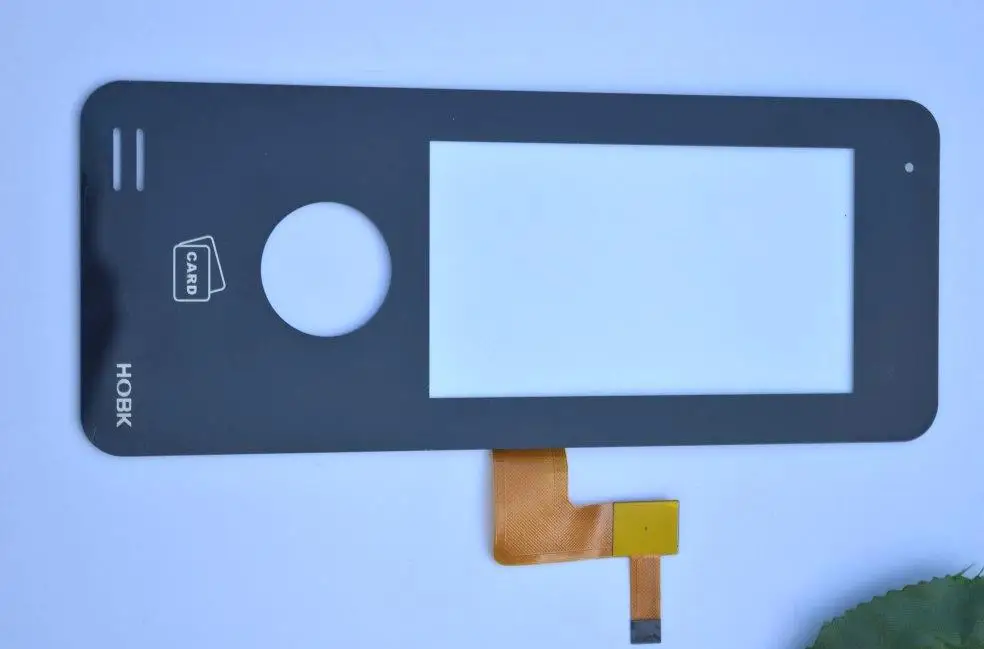

OEM silk screen printing tempered gorilla glass panel for capacitive touch screen lcd display cover
- Category: >>>
- Supplier: Dongguan Saiwei Glass Co. Ltd.Dongguan Ltd.
Share on (1601232280462):
Product Overview
Description
SAIWEIIntroduction: Our company has 3 automatic cutting machines, 4 chemical tempering furnaces, 1 physical tempering machine, 110 CNC machining centers, 2 clean screen printing rooms, specializing in the production of video touch cover plates
Processing specifications: 0.33 0.5 0.55 0.7 1.1mm This thickness range can be processed to a maximum size of 42 inches
The maximum processing size of 2mm-5mm is 120 inches
Processing technology: slicing, edging, toughening, screen printing, coating, etc
Product Description
Production capabilit
Material | AGC glass,Schott glass,Gorilla glass,South glass etc |
Size range | 10*10mm--3600*2440mm |
Thickness range | 0.35mm-19mm |
Shape | flat&curved |

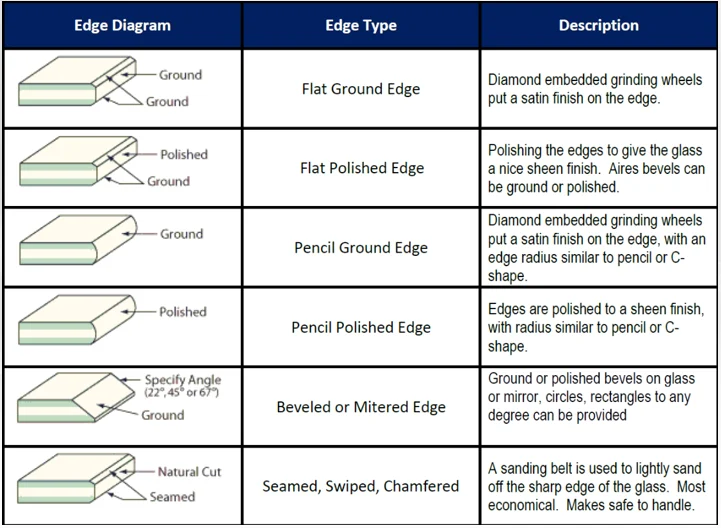

Edge | flat polished egde,flat matt edge,pencil edge,beveled edge |
Thoughened | thermally tempered& chemically tempered |
Color option | available in Pantone& RAL color or customer samples |
Printing | organic serigraphy,ceramic printing,digital printing |
Surface treatment | anti glare etching&anti-reflective& anti-fingerprinting coating,acid etch etc |
FAQ
Q: What SAIWEI Glass role as?
A: SAIWEI is a glass OEM mainly focus on high quality flat/bending glass + mirror process.
A: SAIWEI is a glass OEM mainly focus on high quality flat/bending glass + mirror process.
Q: What kinds of glass will be used?
A: (Lighting)We will use clear / ultra float glass for production, depends on customer's product need.
(Touch screen)We usually use AGC(Dragontail) for production, but available in gorilla/NEG etc base on customer's need.
A: (Lighting)We will use clear / ultra float glass for production, depends on customer's product need.
(Touch screen)We usually use AGC(Dragontail) for production, but available in gorilla/NEG etc base on customer's need.
Q: Should glass be tempered and what's the effect?
A: It depends on glass sizes / thickness.
To small size/thickness less than 3.2, we recommend chemical tempered(surface toughen by 6-7H).
To bigger size/thickness 3.2 or above, we recommend full thermal tempered.
Base on thermal tempered, the fragmentation test standard / partical sizes & quantity could be set base on different thickness.
The glass flatness could be asked after tempering.
A: It depends on glass sizes / thickness.
To small size/thickness less than 3.2, we recommend chemical tempered(surface toughen by 6-7H).
To bigger size/thickness 3.2 or above, we recommend full thermal tempered.
Base on thermal tempered, the fragmentation test standard / partical sizes & quantity could be set base on different thickness.
The glass flatness could be asked after tempering.
Q: What's the edge treatment could meet?
A: We could make direct cut(cut chips, cheapest), fine grinded(CNC) and polish edges base on your need.
The chamfer / radius could be set.
Q: What's the cut hole effect?
A: It depends on different thickness and for thick glass, we usually use waterjet + CNC.
For thin glass, we use CNC for cut hole to make sure no breakage chips exist from hole edge.

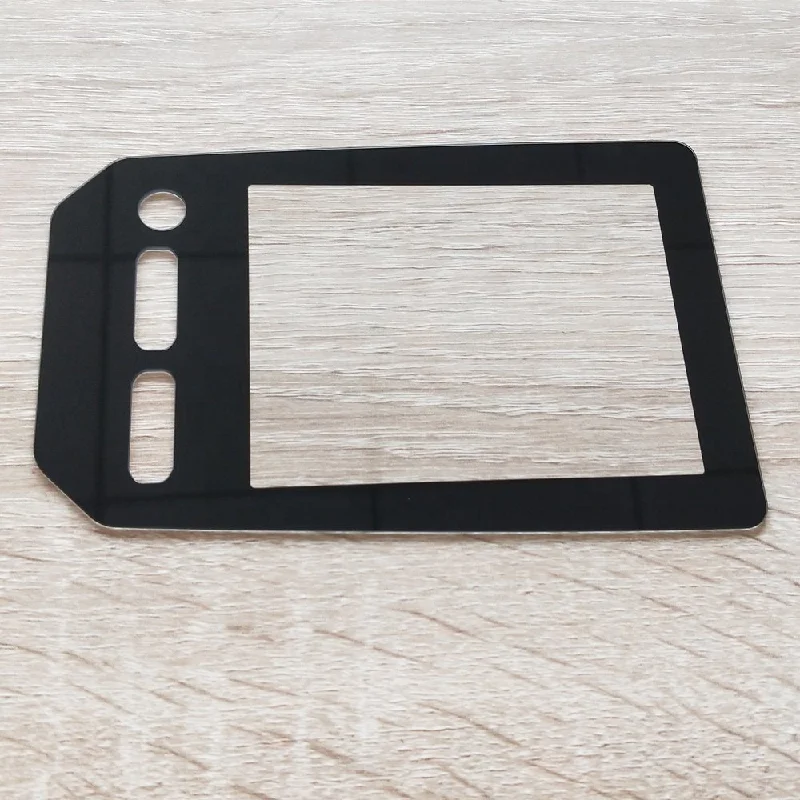

Q: Could irregular shape glass available?
A: No problem because we will use shape cutting machine + CNC to make sure about the quality.

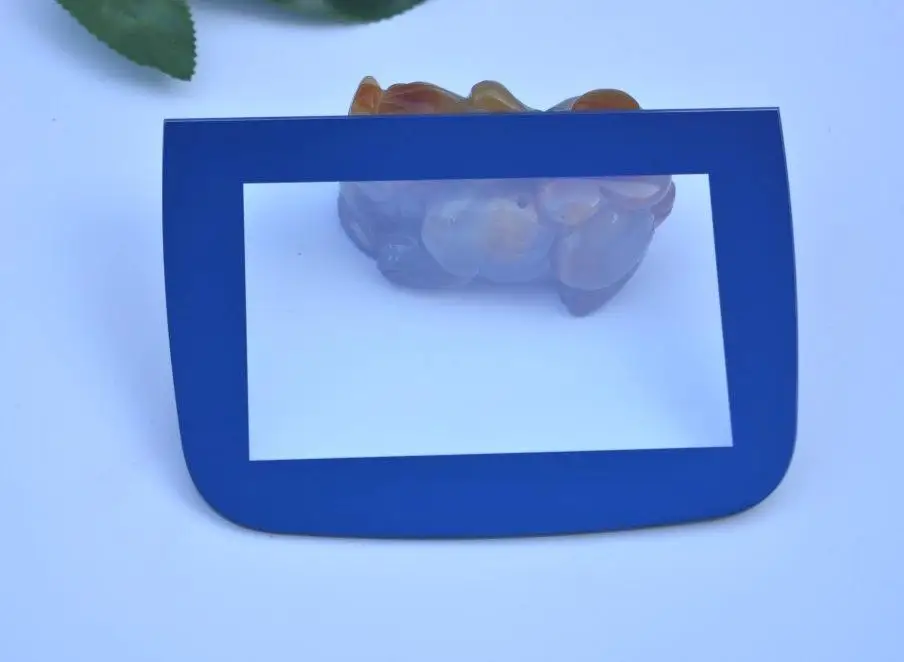

Q: How's the silk print effect?
A: received lots of praise in silk print quality base on import paints + auto silk print machine + dustfree room
Available in high temperature silk print(The paint melt into glass) and low temperature paint(Pass adhesion test).
Paint injection for holes, edges & grinded surface.
Q: What's the surface treatment available in SAIWEI?
A: AR(Anti-reflective), AG(Anti-glare), AF(Anti-fingerprint), sandblasted/etching available.
Packaging & Shipping
