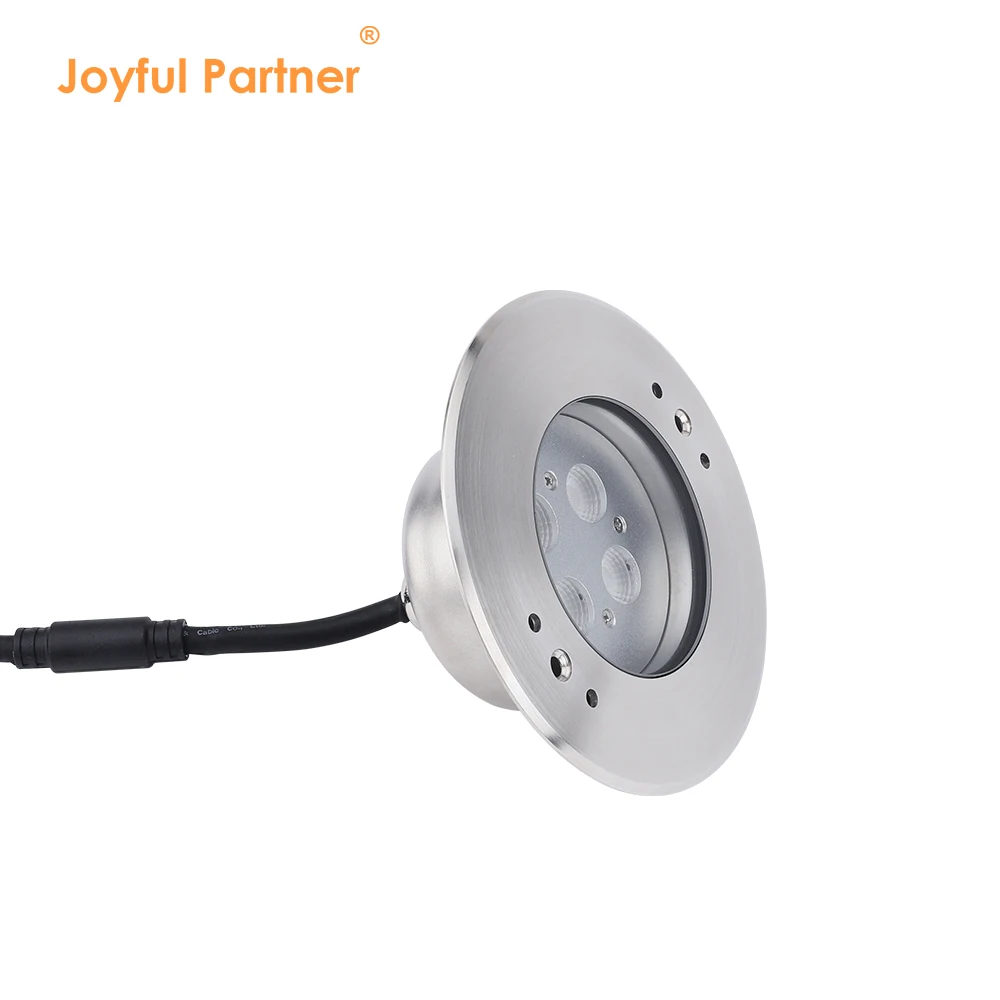

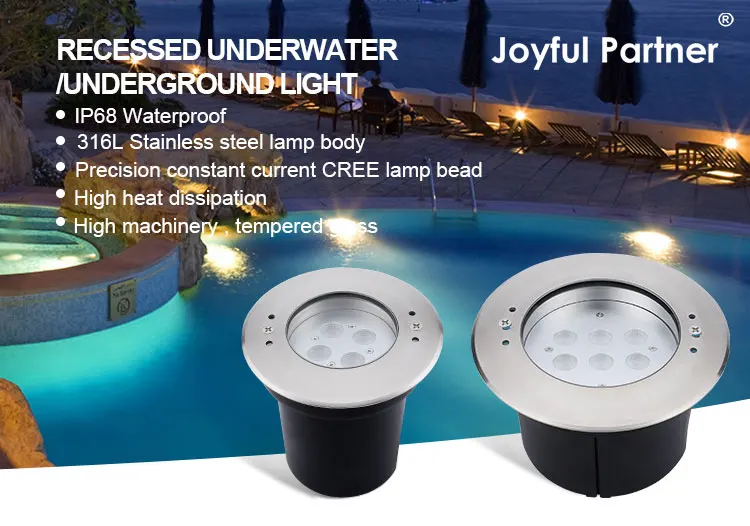

Wall Mounted Super Bright Recessed underground IP68 12V 24V RGB Inground Deck Floor Swimming Pool LED Underwater Light
- Category: >>>
- Supplier: Dongguan Joyful Lamp Company Limited
Share on (1601232400644):
Product Overview
Description
Wall Mounted Super Bright Recessed underground IP68 12V 24V RGB Inground Deck Floor Swimming Pool LED Underwater Light
1. 304# or 316# stainless steel, high light transmittance tempered glass, anti-aging silicone ring.
2. The imported BRIDGELUX/CREE/OSRAM chips, high brightness, low energy consumption, low heat, long life.
3. Lens: Made of PMMA, also known as Acrylic or Plexiglas optical lens, light efficiency ≥ 85%. Beam angles optional at clients' request.
4. Cable gland: IP68 waterproof rating, brass material.
5. Power cord: European standard H05RN-F rubber cable, wear resistance, corrosion resistance, heat resistance and not easily deformed. The Default length is 2m, for convenient maintenance and repair.
Products Description
Product Paramenters
Item No. | Light source | Lens beam angle(°) | Consumption(watt) | Input Voltage(V) | IK rate |
JPD11041 | 4*1W | 8°/12°/25°/ 30°/45°/ 60° | 4 | DC24V | 08 |
JPD11042 | 4*2W | 8°/12°/25°/ 30°/45°/ 60° | 8 | DC24V | 08 |
JPD11046 | 4*3W RGB3 in 1 | 8°/12°/25°/ 30°/45°/ 60° | 12 | DC24V | 08 |
JPD11049 | 4*4W RGBW 4 in 1 | 8°/12°/25°/ 30°/45°/ 60° | 16 | DC24V | 08 |
94636(AS) | 3x3W RGB3in1 | 25°/30°/45°/60° | 9.2 | DC12V/DC24V | 08 |
Material specifications | ||
Housing and Cover | 316# Stainless Steel | |
Glass | Step tempered glass T=8mm | |
Lens | High quality Optical lens,effciency≥85% | |
Cable gland | IP68 PG-11 nickel coated copper | |
PCB | Excellent heat conductivity aluminum,coefficient of heat conductivity≥2.0w/mk | |
Driver | Constant current output single color LED=2-circuit output RGB 3in1 LED=3-circuit output | |
Application temperature | Temperature of water between (-20℃~40℃) less than 1.0 meter depth | |

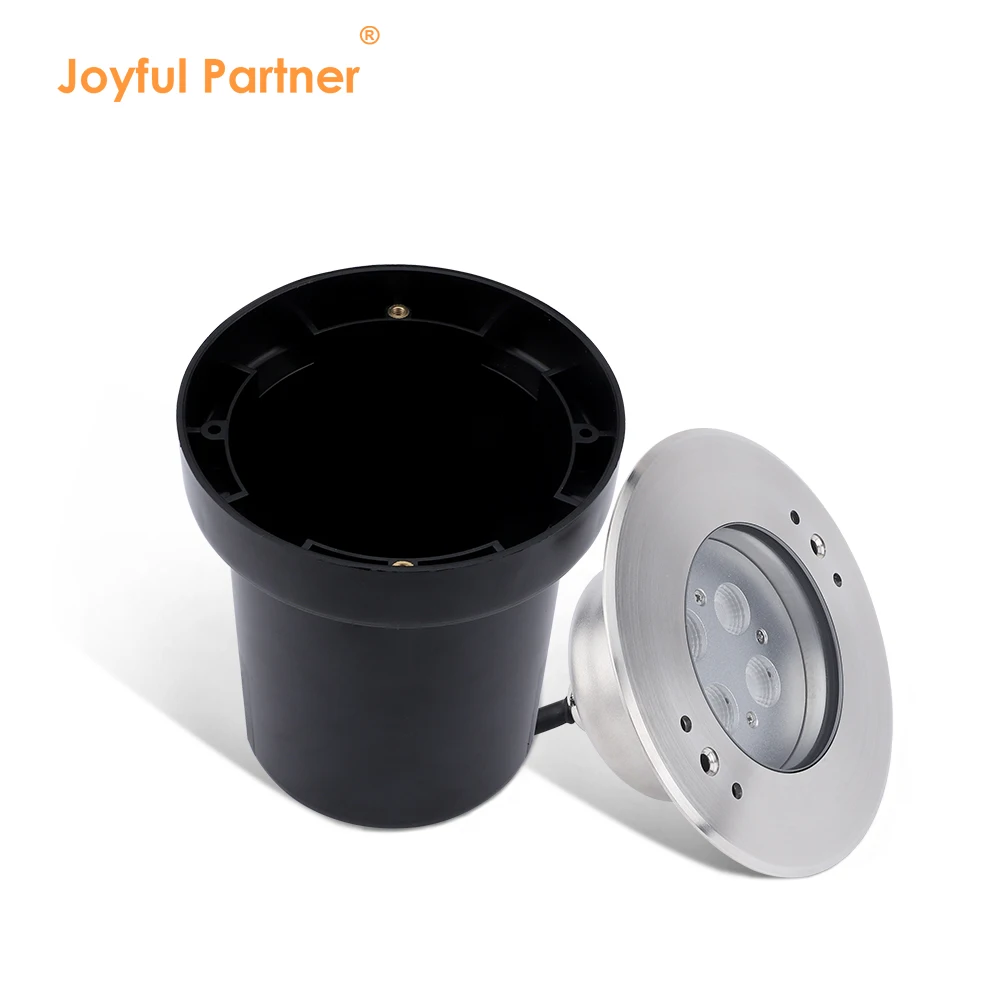

Mounting sleeve | Plastic sleeve | |
Power cable | H05RN-F 2*0.75mm²L=1m(for single color) H05RN-F 4*0.75mm²L=1m(for RGB)H05RN-F 5*0.75mm²L=1m(for RGBW) | |
(1)Hard chromeplated molding shaped 316# stainless steel housing;
(2)High light transmittance tempered glass;
(3)SUS 316# screws;
(4)Super bright brand LED,long life span ,Ra>80;
(4)Super bright brand LED,long life span ,Ra>80;
(5)IP68 PG11 nickel coated copper ;
(6)2M rubber cable,in DC24v voltage, for safeuse.
