Product Overview
Description
Product Description
Small Scale Gold Ore Flotation Machine Price Mini Copper Flotation Line Dressing Plant Equipment For Sale

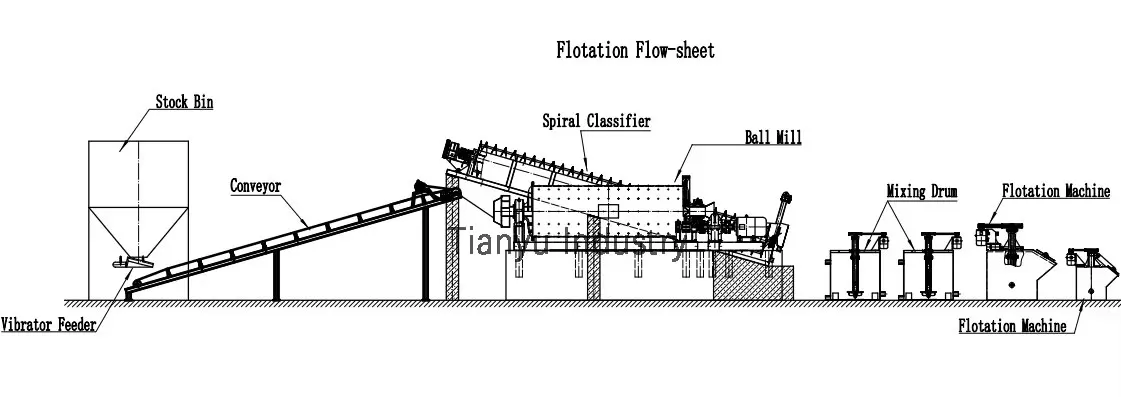

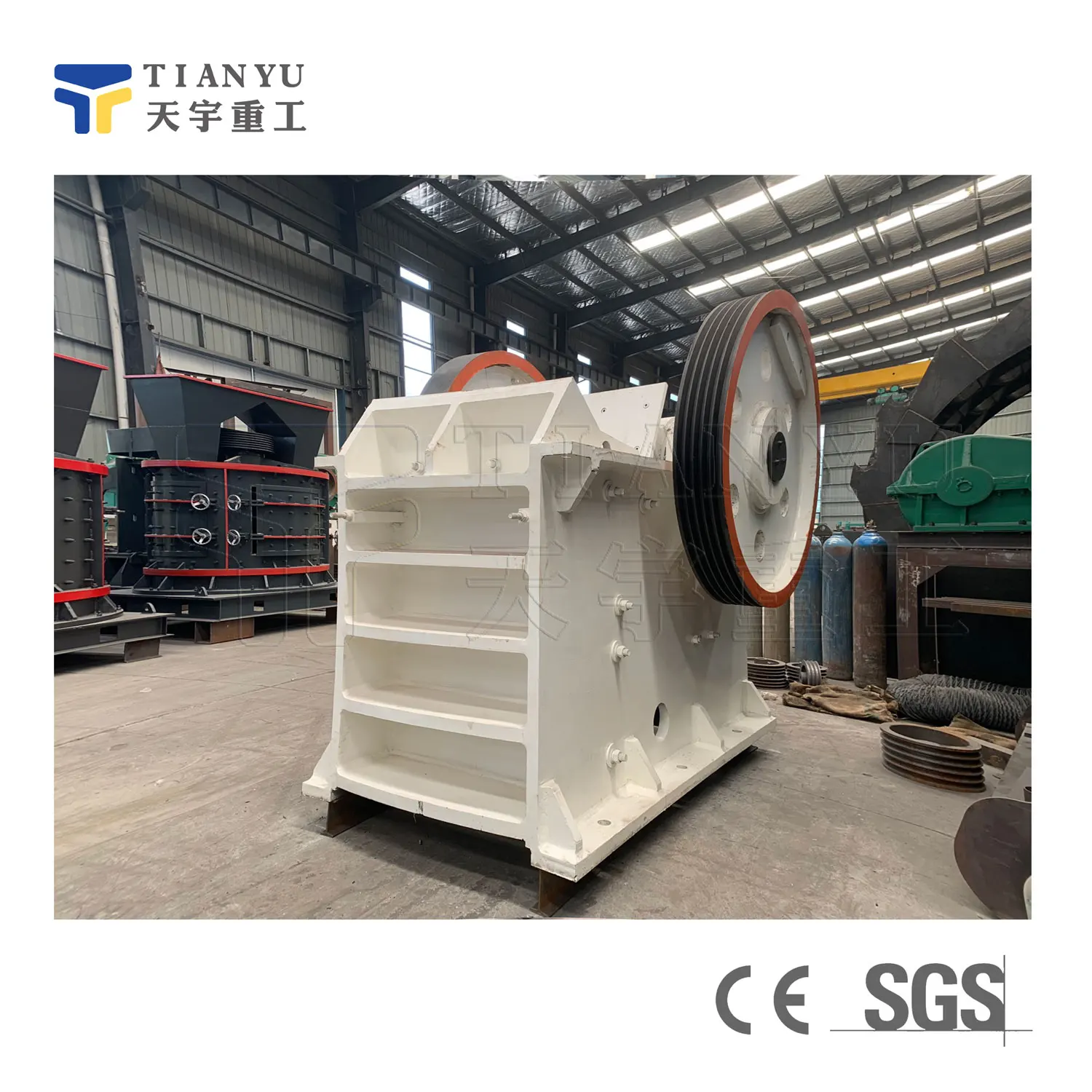

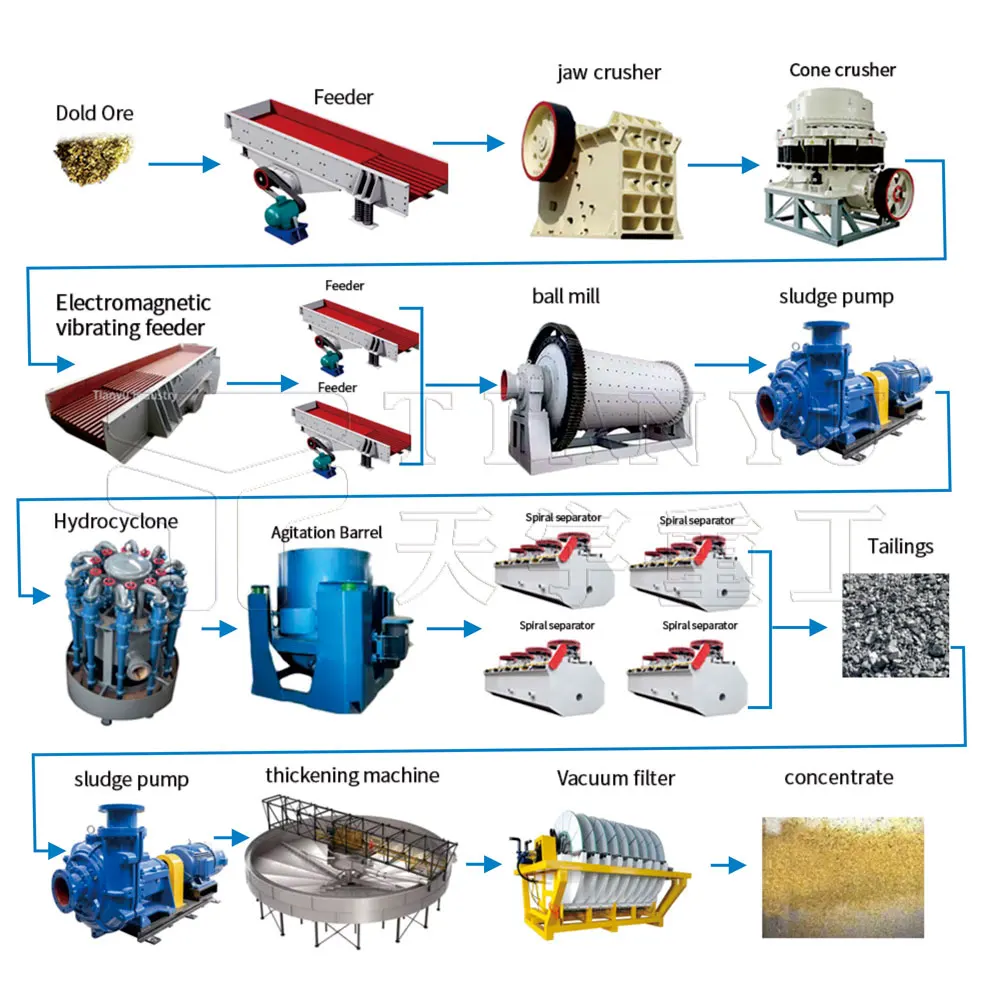

Gold Flotation Process means that gold ore is generally crushed by gold mining equipment (crusher equipment, Jaw crusher), then

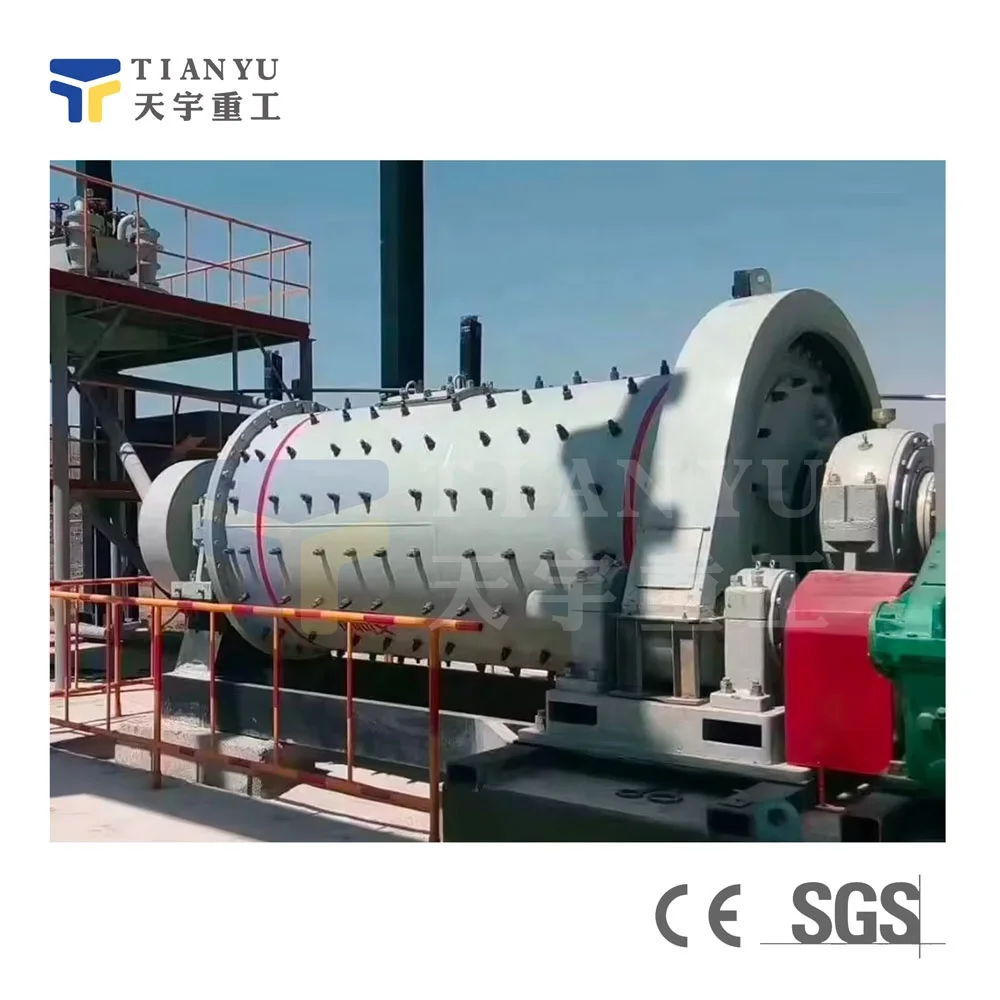

crushed by gold processing equipment (ball mill), and then treated by gold panning equipment such as flotation machine, etc.
Through gravity separation, flotation machine, extraction of metals from ores, and then the application of mineral reagents
through chemical methods, and finally after smelting, the final product into finished gold processing.
crushed by gold processing equipment (ball mill), and then treated by gold panning equipment such as flotation machine, etc.
Through gravity separation, flotation machine, extraction of metals from ores, and then the application of mineral reagents
through chemical methods, and finally after smelting, the final product into finished gold processing.
My WhatsApp&WeChat: +86 150 0399 7983
Specification
Category | Specification Model | Effective cubage （m³） | Processing capacity （m³/min） | Main shaft loam board | Dimensions (L×W×H) （m） | Single trough Weight （t） | ||||||
Power（kw） | Rotate Speed （r/min） | Rotate Speed (r/min） | Power （kw） | |||||||||
XJK type flotation machine | XJK-0.35 | 0.35 | 0.18-0.4 | 1.5 | 483 | 25 | 1.1 | 0.7×0.7×0.7 | 0.5 | |||
XJK-0.62 | 0.62 | 0.3-0.9 | 3.0 | 400 | 25 | 1.1 | 0.90×0.82×0.85 | 1.0 | ||||
XJK-1.1 | 1.1 | 0.6-1.6 | 5.5 | 330 | 25 | 1.1 | 1.1×1.1×1 | 1.4 | ||||
XJK-2.8 | 2.8 | 1.5-3.5 | 11 | 280 | 25 | 1.1 | 1.75×1.6×1.1 | 2.5 | ||||
XJK-5.8 | 5.8 | 5-7 | 22 | 240 | 25 | 1.5 | 2.2×2.2×1.2 | 3.6 | ||||
SF type flotation machine | SF-0.37 | 0.37 | 0.2-0.4 | 1.5 | 386 | 25 | 1.1 | 0.7×0.7×0.75 | 0.5 | |||
SF-0.7 | 0.7 | 0.3-0.9 | 3 | 400 | 25 | 1.1 | 0.9×0.82×0.95 | 1.0 | ||||
SF-1.2 | 1.2 | 0.6-1.6 | 5.5 | 330 | 25 | 1.1 | 1.1×1.1×1.1 | 1.9 | ||||
SF-2.8 | 2.8 | 1.5-3.5 | 11 | 268 | 25 | 1.1 | 1.75×1.6×1.15 | 2.6 | ||||
SF-4 | 4 | 2-4 | 15 | 220 | 25 | 1.5 | 1.85×2.05×1.2 | 2.9 | ||||
SF-8 | 8 | 4-8 | 30 | 191 | 25 | 1.5 | 2.2×2.9×1.4 | 4.2 | ||||
SF-10 | 10 | 5-10 | 30 | 191 | 25 | 1.5 | 2.2×2.9×1.7 | 4.5 | ||||
SF-20 | 20 | 5-20 | 30×2 | 191 | 25 | 1.5 | 2.85×3.8×2 | 9.9 | ||||
JJF type flotation machine | JJF-2 | 2 | 1-3 | 7.5 | 443 | 25 | 1.5 | 1.4×1.4×1.1 | 1.7 | |||
JJF-4 | 4 | 2-4 | 11 | 305 | 25 | 1.5 | 1.6×2.15×1.25 | 2.4 | ||||
JJF-8 | 8 | 4-8 | 22 | 233 | 25 | 1.5 | 2.2×2.9×1.4 | 4.5 | ||||
JJF-10 | 10 | 5-10 | 22 | 233 | 25 | 1.5 | 2.2×2.9×1.7 | 4.9 | ||||
JJF-16 | 16 | 5-16 | 30 | 180 | 25 | 1.5 | 2.85×3.8×1.7 | 8.0 | ||||
JJF-20 | 20 | 5-20 | 37 | 180 | 25 | 1.5 | 2.9×3.8×2.0 | 10.5 | ||||
Working Principle
Placer Gold Processing with Sticky clay
Ore: Placer gold with sticky clay Capacity: Customized Equipment Used: Trommel scrubber + vibrating feeder + centrifugal concentrator + slurry pump + sluice box + shaking table
Processing:
1. Loader or Excavator feed raw ore into the hopper;
2. Vibrating feeder feed trommel scrubber. Trommel scrubber is to wash off clay from ore, and screen out different sized particles.
3. Overscreen materials of trommel are transported to far place by belt conveyor, this is waste sand.
4. Under screen materials of trommel are sent to the centrifugal concentrator by a slurry pump, Centrifugal concentrator is to concentrate 0-5mm fine gold.
5. Tailings of centrifugal concentrator will be sent to sluice box for recovering more gold.

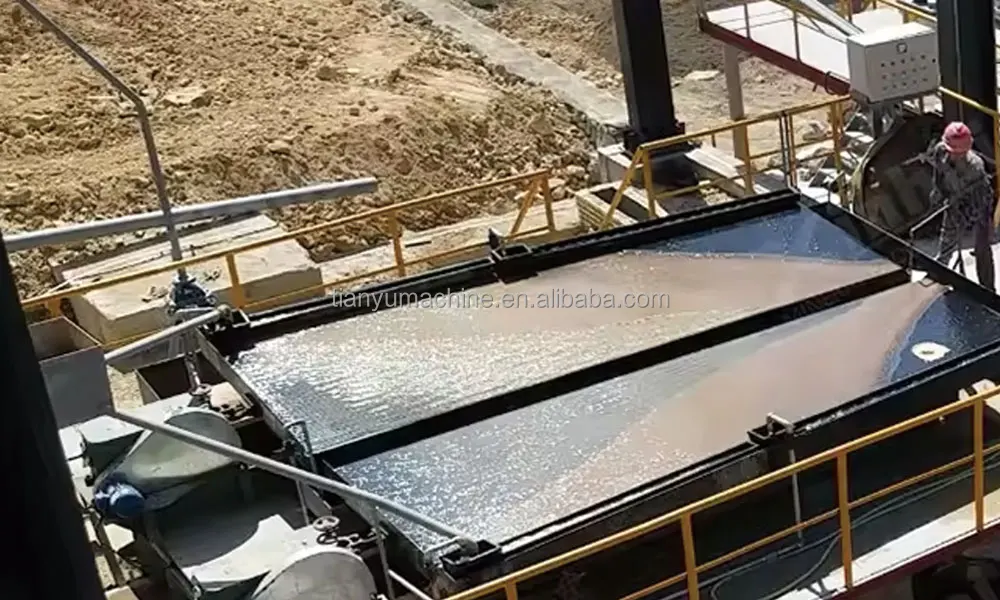

6. Concentrates of sluice box and centrifugal concentrator are sent to shaking table for fine concentration gold in order to increase the purity of gold content.
This flowchart is suitable for any type of alluvial ores, especially placer gold with sticky clay, gold particles with 5mm below.
If the gold particle size is bigger than 5mm, just add one more sluice box for recovering gold nuggets with 5mm up.
Processing:
1. Loader or Excavator feed raw ore into the hopper;
2. Vibrating feeder feed trommel scrubber. Trommel scrubber is to wash off clay from ore, and screen out different sized particles.
3. Overscreen materials of trommel are transported to far place by belt conveyor, this is waste sand.
4. Under screen materials of trommel are sent to the centrifugal concentrator by a slurry pump, Centrifugal concentrator is to concentrate 0-5mm fine gold.
5. Tailings of centrifugal concentrator will be sent to sluice box for recovering more gold.
6. Concentrates of sluice box and centrifugal concentrator are sent to shaking table for fine concentration gold in order to increase the purity of gold content.
This flowchart is suitable for any type of alluvial ores, especially placer gold with sticky clay, gold particles with 5mm below.
If the gold particle size is bigger than 5mm, just add one more sluice box for recovering gold nuggets with 5mm up.
Feature & Advantage
1.Long service life of vulnerable parts
2.Large air-absorption capacity and low power consumption
3.Flotation Beneficiation not only to reduce investment costs for customers, and the annual output is large, fast income.
2.Large air-absorption capacity and low power consumption
3.Flotation Beneficiation not only to reduce investment costs for customers, and the annual output is large, fast income.
4.Flotation Beneficiation production line is made of high-strength wear-resistant materials, with small loss and long service life,which can bring considerable economic benefits to customers.
5.Flotation Beneficiation production line is not only high efficiency and energy saving, and the energy saving of flotation
machine can reach 60%, the dosage of flotation agent is reduced by 20%, and the recovery rate is increased by 1%~5%.
5.Flotation Beneficiation production line is not only high efficiency and energy saving, and the energy saving of flotation
machine can reach 60%, the dosage of flotation agent is reduced by 20%, and the recovery rate is increased by 1%~5%.
Company Profile
FAQ
Q1：What is the flotation efficiency of the product?
A：The ore flotation machine efficiency of the product is up to 98%
Q2：What are some key options to consider when purchasing a ore flotation machine?
A：Grinding fineness, pulp concentration and flotation time, etc.
Q3：How to choose pulp concentration during flotation?
A：The slurry concentration is 25%-35% during roughing, 10%-20% for flotation of fine-grained ores with high mud content, 10%-20% for selection, and 20%-30% for sweeping.
Q4:How long is your delivery time?
A: Generally it is 7-10 days if the goods are in stock. or it is 20-30 days if the goods are not in stock, it is according to quantity.
A：The ore flotation machine efficiency of the product is up to 98%
Q2：What are some key options to consider when purchasing a ore flotation machine?
A：Grinding fineness, pulp concentration and flotation time, etc.
Q3：How to choose pulp concentration during flotation?
A：The slurry concentration is 25%-35% during roughing, 10%-20% for flotation of fine-grained ores with high mud content, 10%-20% for selection, and 20%-30% for sweeping.
Q4:How long is your delivery time?
A: Generally it is 7-10 days if the goods are in stock. or it is 20-30 days if the goods are not in stock, it is according to quantity.
