OCEAN Deep Oil Well Drill Machine Crawler Borehole Diamond Exploration Rc Drill Rig for Sale
- Category: >>>
- Supplier: Henan Ocean Machinery Equipment Co. Ltd.Henan Ltd.
Share on (1601232727875):
Product Overview
Description
Product Description
Introduction
This fully hydraulic core drilling rig is a new type of drilling rig developed by us based on the advanced technology of similar drilling rigs at home and abroad. It has advanced structure, stepless speed regulation, smooth and reliable movement, and can drill holes within the range of 0-90°. It has high working efficiency and large torque, and is suitable for a variety of terrains.
Application
It is widely used in geological exploration, engineering geology, shallow oil, natural gas, etc. drilling, it can also be used for drilling exploration of railways, highways, bridges, water conservancy, hydropower and tunnel engineering.
Features

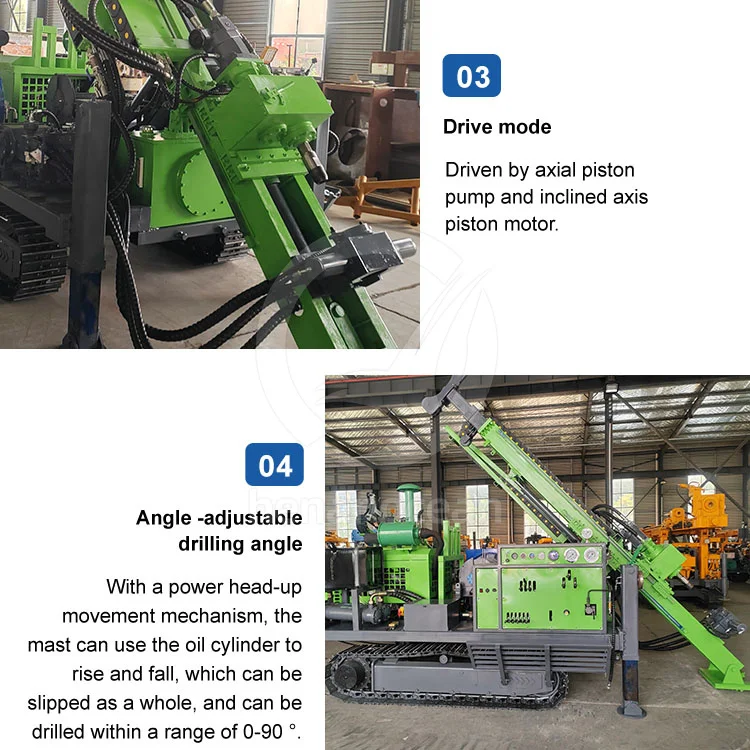

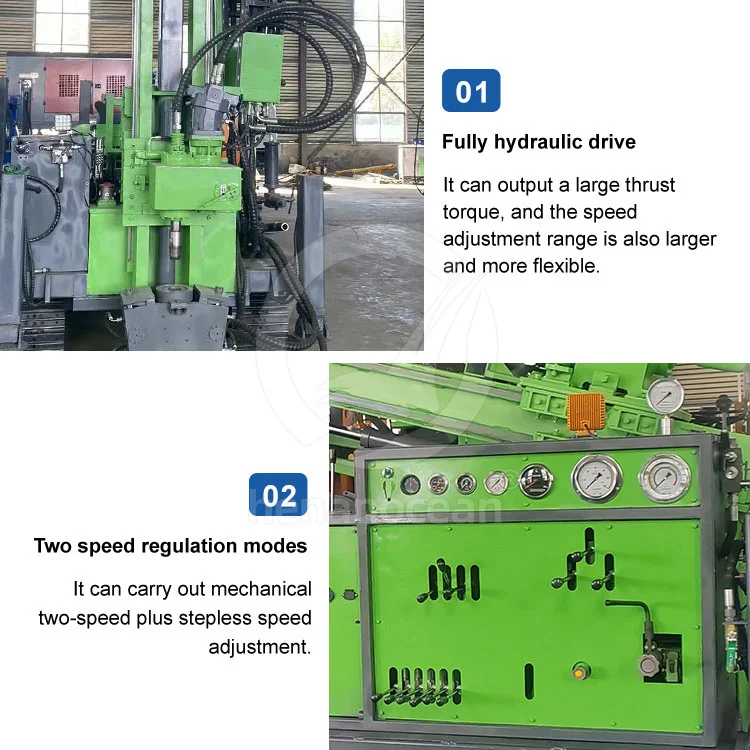

1. The drilling rig is fully hydraulically driven, and the power head rotation is driven by an axial piston pump and an inclined axis piston motor. It has two mechanical gears and stepless speed regulation, and has an advanced structure.
2. The power head adopts an oil cylinder chain double-speed feeding mechanism, which has smooth and reliable movement. It is equipped with a lateral translation mechanism of the power head. The mast adopts an oil cylinder to lift and slide as a whole, and can drill holes within the range of 0-90°.
3. The hydraulic system adopts load-sensitive control, with high working efficiency and large torque.

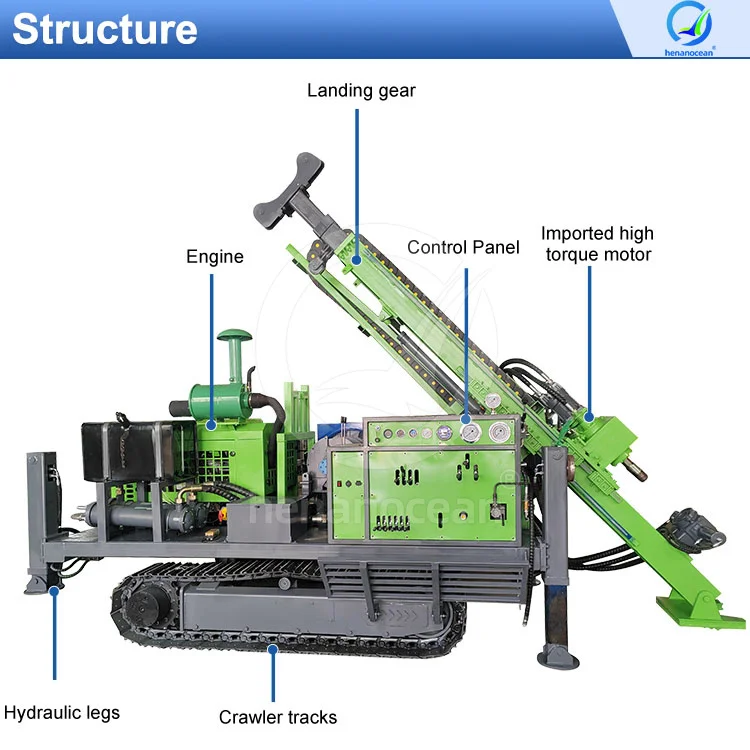

4. The drilling rig is equipped with hydraulic Trojan holder, hydraulic leveling legs, retractable mast and other devices to facilitate the rapid positioning of the drilling rig.
5. Equipped with wireless remote control crawler tracks, it is suitable for a variety of terrains and can control the crawling of the drilling rig within a safe distance to prevent sudden dangers.
2. The power head adopts an oil cylinder chain double-speed feeding mechanism, which has smooth and reliable movement. It is equipped with a lateral translation mechanism of the power head. The mast adopts an oil cylinder to lift and slide as a whole, and can drill holes within the range of 0-90°.
3. The hydraulic system adopts load-sensitive control, with high working efficiency and large torque.
4. The drilling rig is equipped with hydraulic Trojan holder, hydraulic leveling legs, retractable mast and other devices to facilitate the rapid positioning of the drilling rig.
5. Equipped with wireless remote control crawler tracks, it is suitable for a variety of terrains and can control the crawling of the drilling rig within a safe distance to prevent sudden dangers.
Model | OCEAN-JY-800S | OCEAN-JY-1000 | ||
Drilling ability | BTW (m) | 1200 | 1200 | |
NTW (m) | 1000 | 1000 | ||
HTW (m) | 800 | 800 | ||
Hydraulic system | Rated pressure (Mpa) | 32+16 | 32+16 | |
Cooling method | Secondary air cooling + water cooling | Secondary air cooling + water cooling | ||
Plunger motor | Ward 107 | Ward 107 | ||
Piston pump | Ward 125 | Ward 125 | ||
Engine parameters | Model | Weichai 92kw, 6cylinders | Weichai 129kw, 6cylinders | |
Rated power | 92kw | 129kw | ||
Rated rotary speed | 2400rpm | 2200rpm | ||
Mud pump | BW1000 | Three cylinders | Three cylinders | |
Power head parameters | Variable box | Two gears | Two gears | |
Maximum torque (N.m) | 1800 | 1800 | ||
Maximum (rpm) | 1400 | 1400 | ||
Give the course (m) | 2 | 3.5 | ||
Through hole diameter (mm) | 95 | 95 | ||
Lifting force (KN) | 300 | 300 | ||
Propulsion (KN) | 150 | 150 | ||
The rope asks for core winch parameters | The capacity of the rope (m) | 800 | 1000 | |
Lifting force (KN) | 20 | 20 | ||
Increase speed (m/min) | 110 | 110 | ||
Wire rope diameter (mm) | 6 | 6 | ||
Mast parameters | Full height (m) | 6.1 | 7.9 | |
Drilling angle (°) | 45-90 | 45-90 | ||
Slip stroke (mm) | 1200 | 1200 | ||
Gripper parameters | Through hole 130mm-76mm | Through hole 130mm | ||
Shipping dimensions | Length * width * height (mm) | 4500*2100*2800 | 5600*2200*2500 | |
Whole machine gross weight | 6 ton | 6 ton | ||

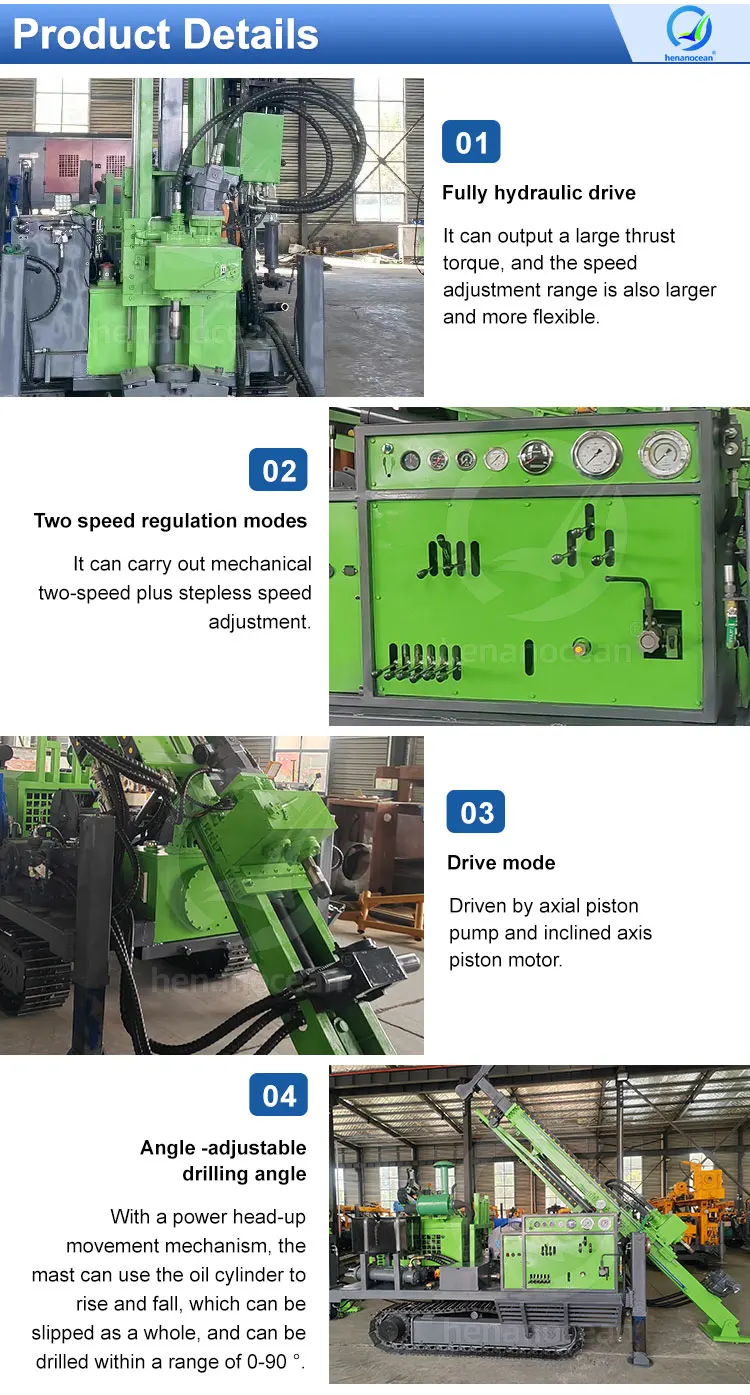

Production Details

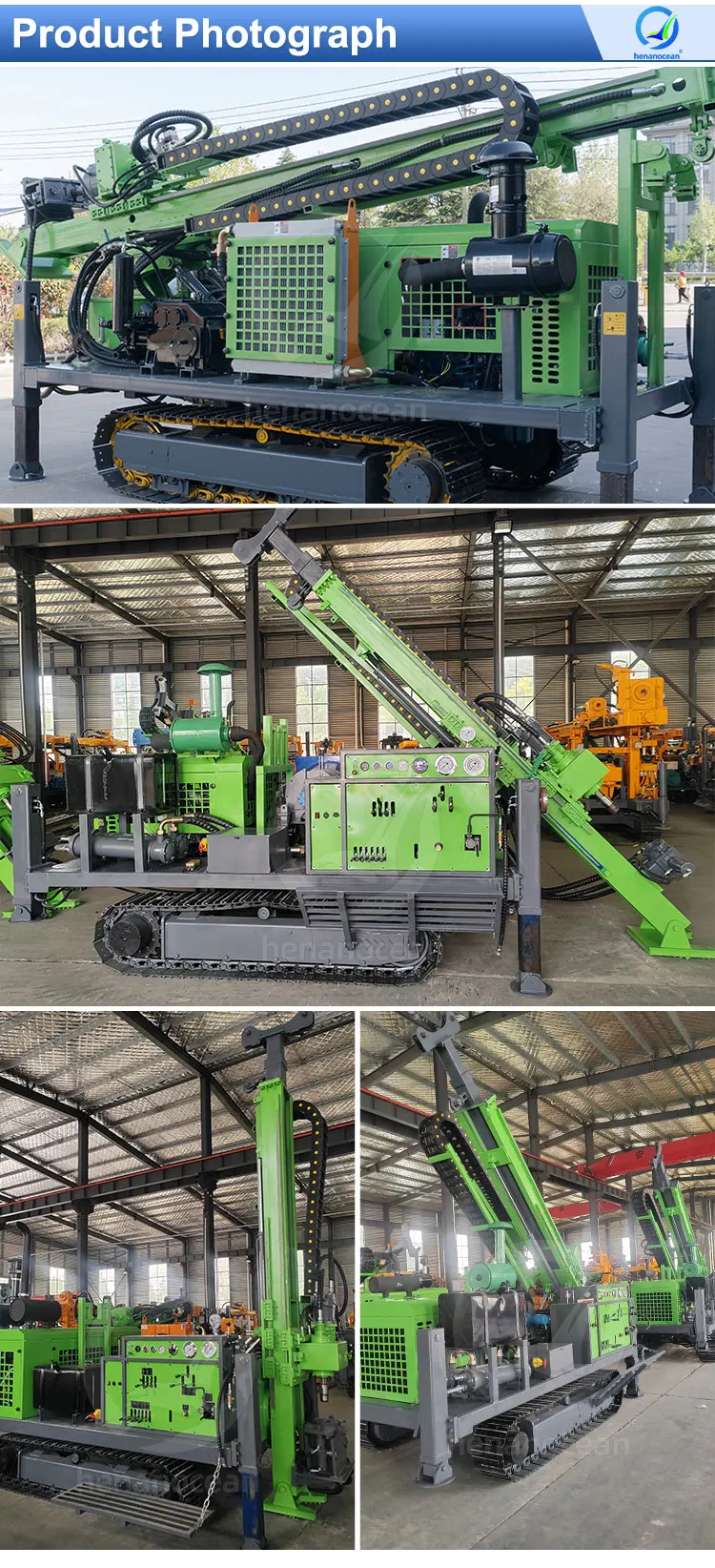

Product photograph
Company Information
1. More than 20 years of professional mechanical equipment manufacturers.
2. R&D team keep sustained technology improving anddeveloping.
3. Strict Q.C.and full process monitoring management.
4. ISO 9001, ISO 14001, ISO 45001, CE. BSCI, ETL certificated.OEMODM services.
5. Self owned professional R&D capacity,lab, QC capability.
Certification and Approva
Oversea Customer Visit
Exhibition Photos
Oversea After-sales Service
Our Services
1. 24-hour communication service.
2. Fast logistics provides you with smooth delivery service; if you are not familiar with customs clearance, we can provide you with door-to-door delivery (DDU&DDP).
3. One-year warranty, lifetime technical support and free staff training.
4. New design or product recommendation.
5. Participate in international expositions and negotiate face-to-face with customers.
6. If you come to China, please provide a formal invitation.
7. Front desk service, help you book the hotel.
8. Support local after-sales service.
3. One-year warranty, lifetime technical support and free staff training.
4. New design or product recommendation.
5. Participate in international expositions and negotiate face-to-face with customers.
6. If you come to China, please provide a formal invitation.
7. Front desk service, help you book the hotel.
8. Support local after-sales service.
FAQ
Q1: What's your company after- sales service ?
A1: Our machine will be checked three times before shipment to ensure that the
machine itself has no problems. If the machine has some problems under incorrect operation:
1. improper operation problem, we will solve all the usage problems by video call.
2. machine parts problem, we will send you accessories to ensure the normal use of the machine.
3. In addition, our engineers go abroad every year to help customers solve problems they cannot solve. Give customers the best quality machine, the best service, Is the standard of our company.
Q2: Do you provide any warranty about your equipment ?
A2: One year warranty. Frankly speaking, The quality of our machines is very stable. The machine will be tested three times before leaving the factory to ensure that the machine is in the best condition when it arrives at your address. Some minor problems of the machine are usually caused by incorrect operation by novices, so we provide a full set of English instruction videos and common problem solving videos,To help users better understand it. On the other hand, we put a set of spare parts in the toolbox of the machine in advance. During your use, if you need any spare parts, we can send it to you via UPS, and it only takes 5-7 days to arrive at your door. During use, if you have any questions, we can make a video call at any time.
Q3: How to transport without customs clearance experience ?
A3: We have reliable forwarder agent which can ship items to you by sea/air/
Express to your home. We will help you choose the most suitable shipping service.
Q4: Does your company provide training ?
A4: Yes, we provide a series of instructional videos and after-sales service
videos,supporting Chinese, English, French, Spanish, and Arabic.
Q5: Differences from other brands in China ?
A5: We are not only selling machines, we pay more attention to after-sales service.We have always believed that the customer's reputation is the best advertisement.We hope to really help our customers use machines and bring growth to their business. You can view our customers' feedback, facts speak louder than words.
