Tulip Type 1kw 3kw 5kw Vertical Axis Wind Turbine System With Inverter and Controller
- Category: >>>
- Supplier: Nantong R&x Energy Technology Co. Ltd.Nantong Ltd.
Share on (1601232798348):
Product Overview
Description
You May Like
Specification
Model | RX-TL600 | RX-TL1000 | RX-TL2000 | RX-TL3000 |
Rated Power | 600W | 1KW | 2KW | 3KW |
Max Power | 650W | 1100W | 2100W | 3200W |
Blades Length | 0.65M | 0.65M | 1.2M | 1.7M |
Wheel Diameter | 0.5M | 0.5M | 0.7M | 1.0M |
Rated Voltage | 12~24V | 12~48V | 12~48V | 24V~96V |
Start Up Speed | 1.2m/s | 1.5m/s | 1.5m/s | 2.0m/s |
Rated Speed | 12m/s | 12m/s | 12m/s | 12m/s |
Cut-in Speed | 3.5m/s | 3.5m/s | 4.0m/s | 4.0m/s |
Survival Speed | 40m/s | 40m/s | 45m/s | 45m/s |
Blades Quantity | 2 | |||
Blades Material | Fiber glass | |||
Generator Type | Coreless Disc Type Maglev Levitation Permanent Magnet Generator | |||
Working Temperature | -40℃~+40℃ | |||
Protection Level | IP54 | |||
Working environment humidness | ≤90% | |||
Altitude | ≤4500m | |||
Install Height | 3~12m | |||
Overload Protection | Electromagnetic Brake | |||
Gross Weight | 21kg | 26kg | 30kg | 105kg |
Packing List(cm) | 112*30*22 One carton | 112*30*22 One carton | 141*36*25cm One carton | 177*65*53 One wooden box |
Recommended for
--Household,Garden,Farm,Urban,Rooftop
--Telecom sites
--Rural electrification programs.Island,sentry,island,sight lighting
--Automatic speed reduction protection
--Automatic speed reduction protection
Wiring Diagram

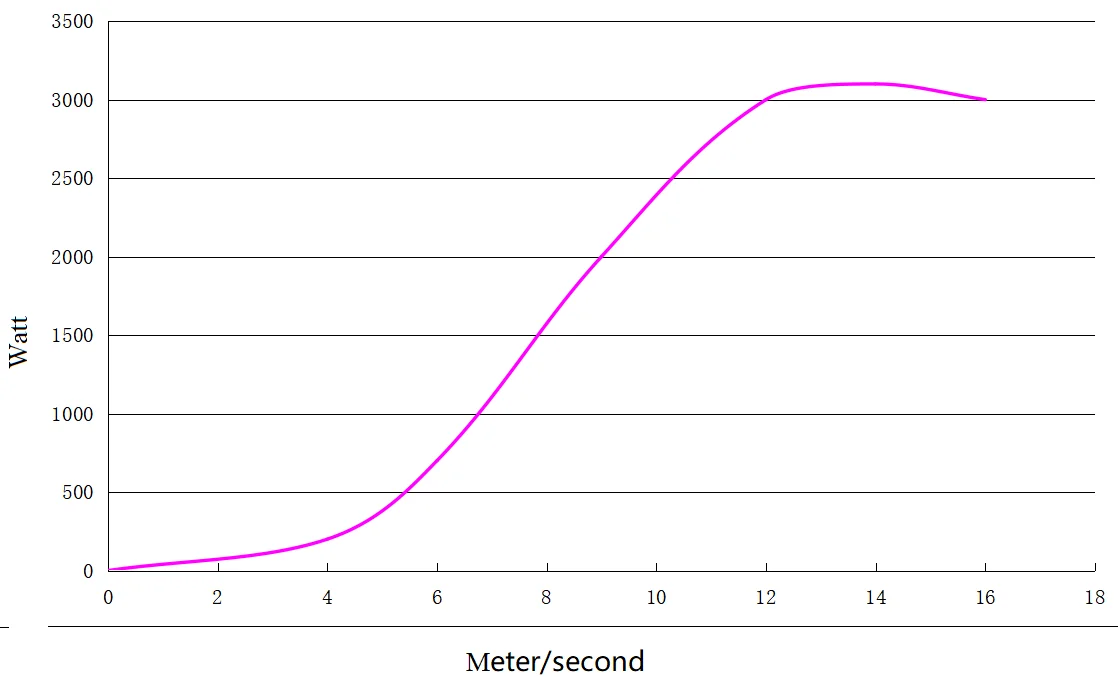

Power Curve

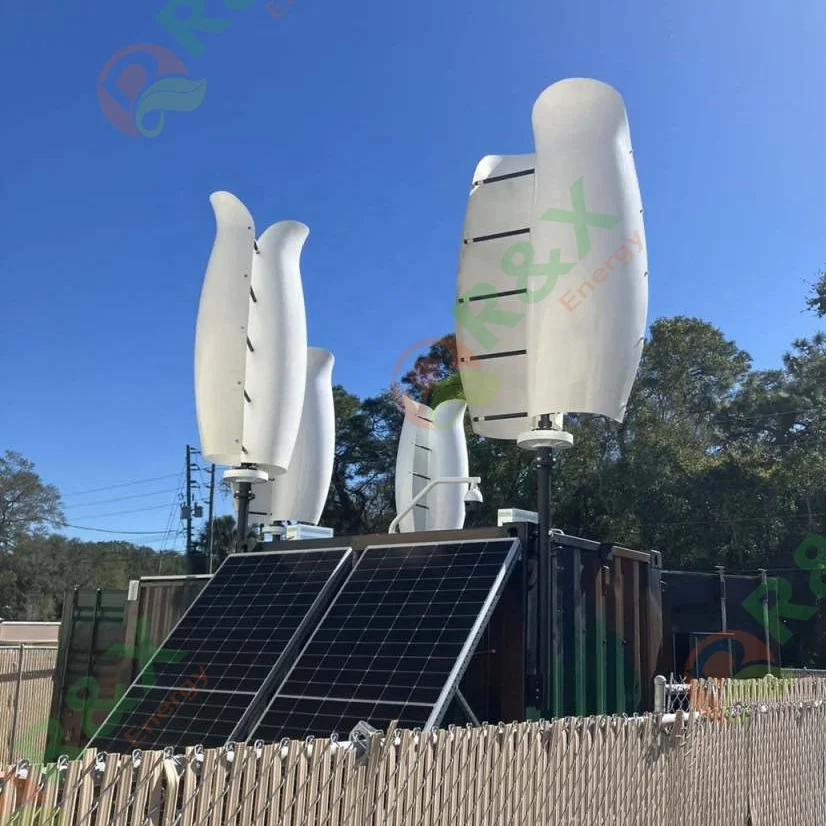

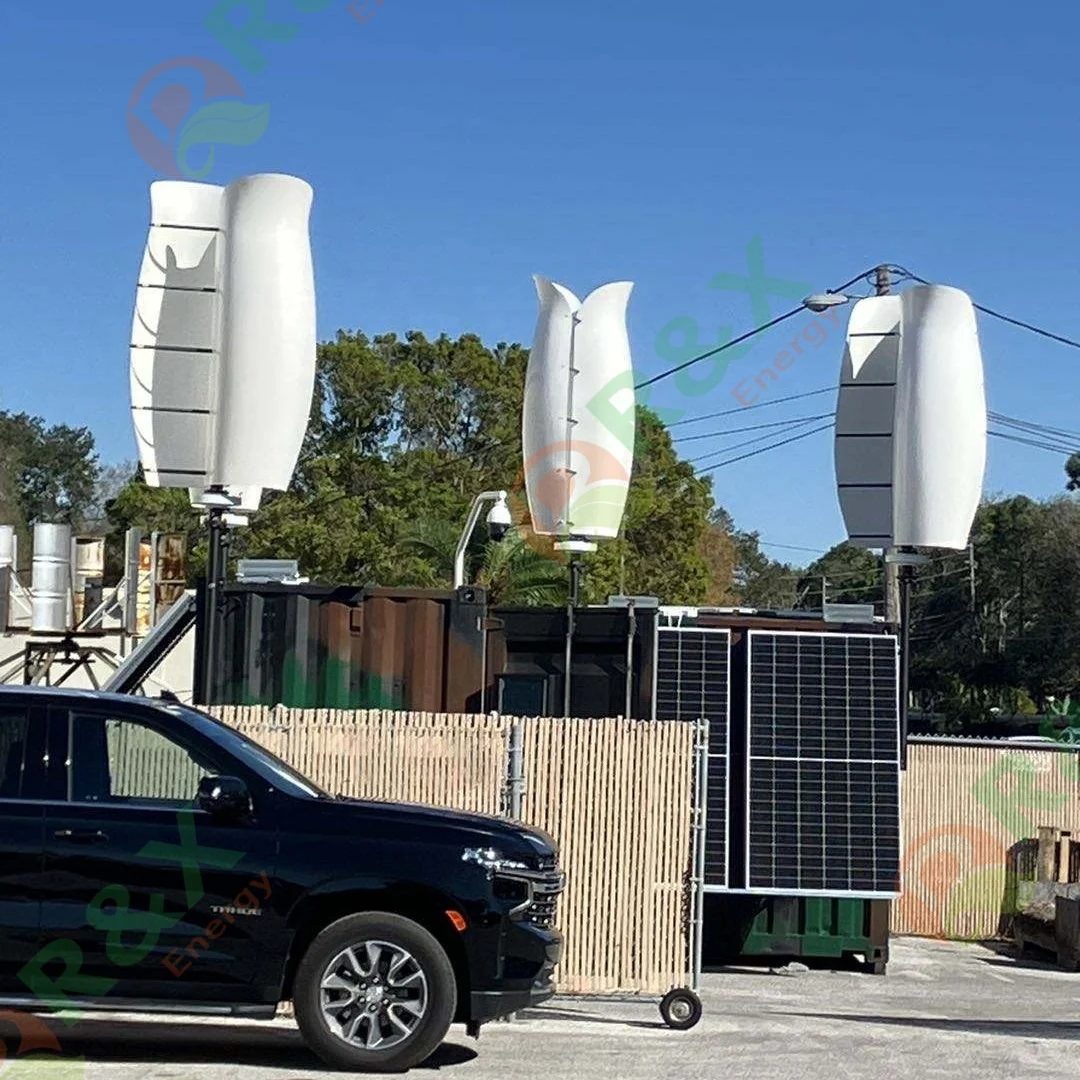

Project Photos Show
Packing photos
