Led High Bay Light US Warehouse Linear Motion Sensor 130W 175W 210W 300W 400W Canopy Led High Bay Light with UL ETL DLC Listed
- Category: >>>
- Supplier: Shenzhen Nuoguan Technology Co. Ltd.
Share on (1601232808789):
Product Overview
Description
Product Description
Construction | Control |

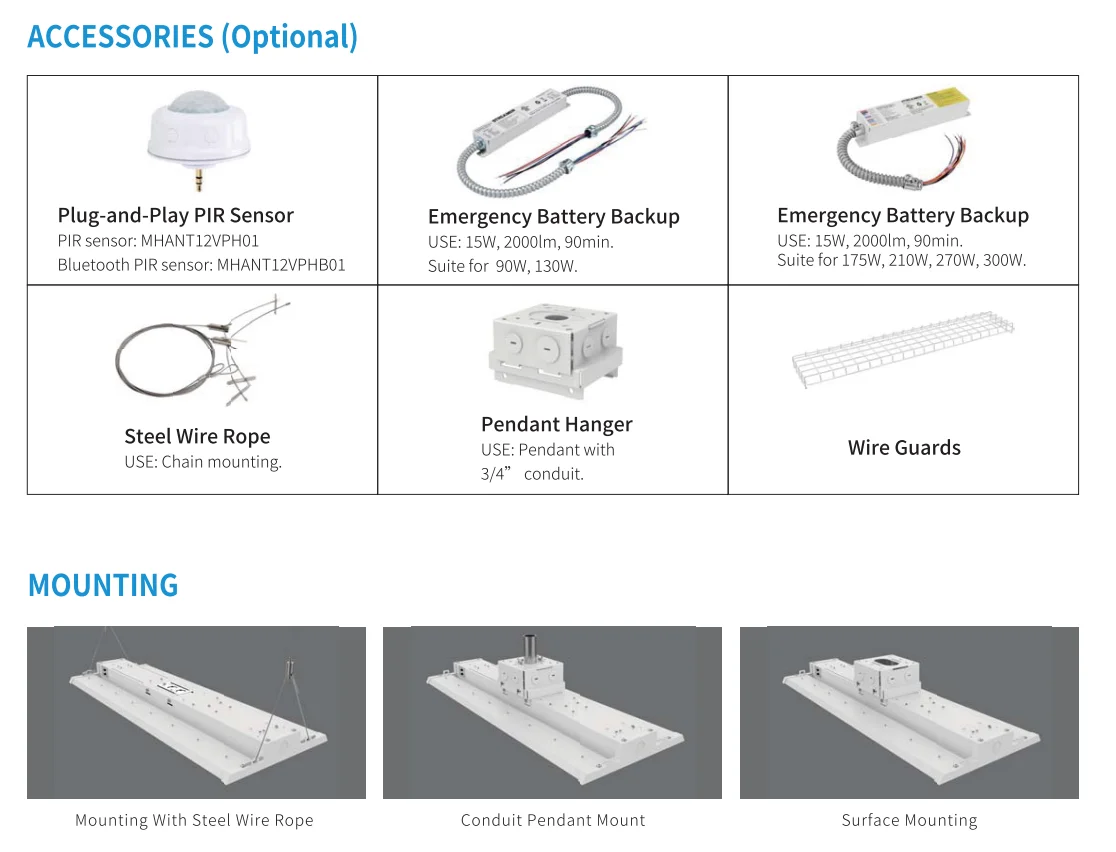

* Rugged cold-rolled steel plate corrosion-resistant housing. * Ultra-Compact,Sturdy Design saves freight and space on lifts and racks during installation. * Visual comfortable lightcomes from a simple contour. | * Optional Occupancy sensor,Microwave senso,Multifunction Sensor or daylight sensor. * Optional Bluetooth sensor or Bluetooth controller * Sharkward Luminaire Level Lighting Control (LLLC)optional. Haisen Luminaire Level Lighting Control (LLLC)optional. Also compatiblewith 3rd party smart network control system. Compatible with high end trim. |
Optics | Installation |
* Scalable Lumen Packages from 3,980 to 70,000 Lumens. Prismatic diffuserfor least glare light. * Aisle opticsare designed for lighting long strips. * Narrow optics are suitable for places with high requirements for lighting accuracy and illumination. * This fixture has the function of adjusting the lumens output and color temperature on-site. | * Steel wire rope mount (default). * Pendant mount (opton). * Surface mount (option). |
LED Module | Lifespan |
Light engine has color adjustable version,CCT can be adjusted to 4000K/5000K. | Estimated 50,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations. |
Electrical | Certifications |

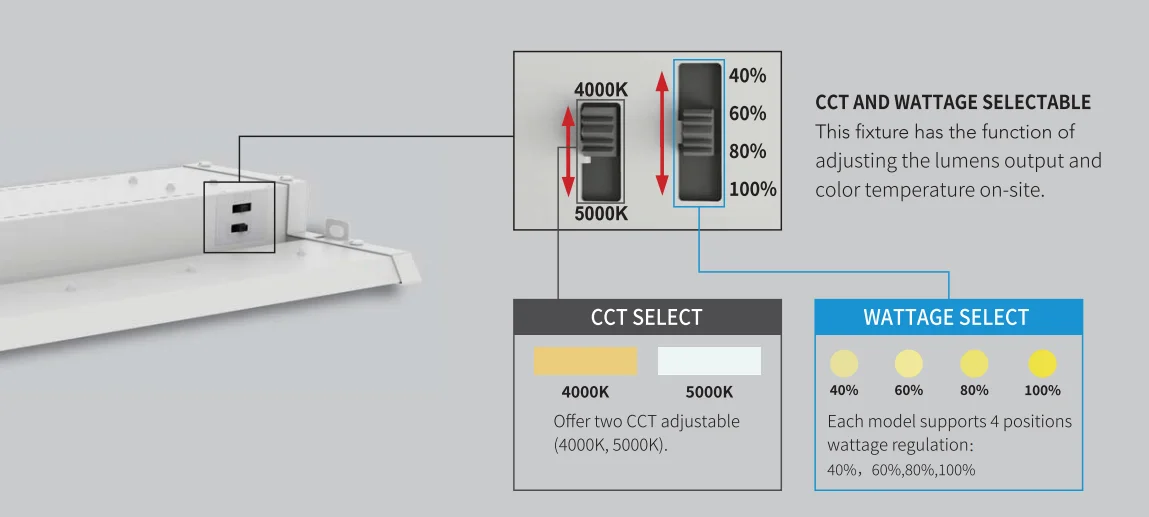

* Universal 120-277VAC or 347-480V AC input voltage. * 0-10V dimming driver standard for 10% to 100% dimming. * 6KV surge protection. * Both drivers have a power factor>90%,TH＜20% * Each model can be adjusted four watts :100%,80%,60%,40% * Operating temperature is -40℃ to 50℃(-40°Fto 122°F). Note:Operating with emergency battery temperature range: 0℃ to 50℃(+32°F-+122°F). | UL cUL damp location listed. |

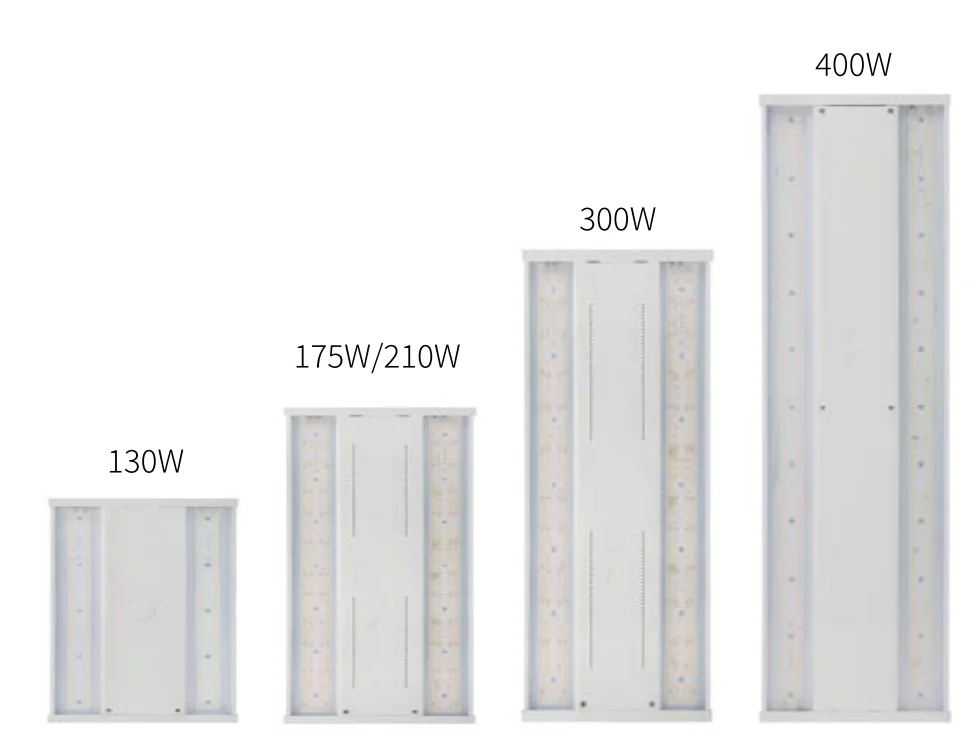

130W | ||||||||||||
SETTING | SYSTEM WATTS | VOLTAGE | 4000K(70CRI) | 5000K(70CRI) | ||||||||
LUMENS | LPW | LUMENS | LPW | |||||||||
100% | 130W | 120-277VAC | 18460lm | 142 lm/w | 17940lm | 138 Im/w | ||||||
80% | 104W | 120-277VAC | 15080lm | 145 lm/w | 14660lm | 141lm/w | ||||||
60% | 78W | 120-277VAC | 11540lm | 147 lm/w | 11230lm | 144 Im/w | ||||||
40% | 52W | 120-277VAC | 7850lm | 151 lm/w | 7640lm | 147 Im/w | ||||||
175W | ||||||||||||
SETTING | SYSTEM WATTS | VOLTAGE | 4000K(70CRI) | 5000K(70CRI) | ||||||||
LUMENS | LPW | LUMENS | LPW | |||||||||
100% | 175W | 120-277VAC | 24500lm | 140 lm/w | 23975lm | 137 Im/w | ||||||
80% | 140W | 120-277VAC | 20020lm | 143 lm/w | 19600lm | 140 Im/w | ||||||
60% | 105W | 120-277VAC | 15330lm | 146 lm/w | 15015lm | 143 Im/w | ||||||
40% | 70W | 120-277VAC | 10430lm | 149 Im/w | 10290lm | 147 Im/w | ||||||
210W | ||||||||||||
SETTING | SYSTEM WATTS | VOLTAGE | 4000K(70CRI) | 5000K(70CRI) | ||||||||
LUMENS | LPW | LUMENS | LPW | |||||||||
100% | 210W | 120-277VAC | 31080lm | 148 lm/w | 30450lm | 145 Im/w | ||||||
80% | 180W | 120-277VAC | 27180lm | 151lm/w | 26640lm | 148 Im/w | ||||||
60% | 130W | 120-277VAC | 20020lm | 154 lm/w | 19630lm | 151lm/w | ||||||
40% | 100W | 120-277VAC | 15700lm | 157Im/w | 15400lm | 154 Im/w | ||||||
LH06 300W | ||||||||||||
SETTING | SYSTEM WATTS | VOLTAGE | 4000K(70CRI | 5000K(70CRI) | ||||||||
LUMENS | LPW | LUMENS | LPW | |||||||||
100% | 300W | 120-277VAC | 42600lm | 142 Im/w | 42000lm | 140 Im/w | ||||||
80% | 240W | 120-277VAC | 34800lm | 145Im/w | 34320lm | 143 Im/w | ||||||
60% | 180W | 120-277VAC | 26640lm | 148 lm/w | 26280lm | 146 lm/w | ||||||
40% | 120W | 120-277VAC | 18120lm | 151 lm/w | 17880lm | 149 lm/w | ||||||
LH06 400W | ||||||||||||
SETTING | SYSTEM WATTS | VOLTAGE | 4000K(70CRI | 5000K(70CRI) | ||||||||
LUMENS | LPW | LUMENS | LPW | |||||||||
100% | 400W | 120-277VAC | 64000lm | 160 Im/w | 62800lm | 157 Im/w | ||||||
80% | 320W | 120-277VAC | 52160lm | 163 Im/w | 51200lm | 160 lm/w | ||||||
60% | 240W | 120-277VAC | 39840lm | 166 Im/w | 39120lm | 163Im/w | ||||||
40% | 160W | 120-277VAC | 27040lm | 169 Im/w | 26560lm | 166 Im/w | ||||||
The linear high bay is a simple linear design oflamps,showinghigh energy efficiency and high performance on a low budget Compared to traditional light sources,it can save more than 60 percent of energy costs and signifcantly improve lighting perfor-mance.The perfect combination of optics and design makes it afixture that is both beautiful and practical.It also comes with acolored temperature adjustment function that allows it to capturethe unique atmosphere of the scene,and an excellent thermalmanagement system effectively extends the service life of the fixture,makingit ideal for warehousing,large indoor Spaces,retailand commercial applications.
Packing & Delivery
Company Profile
SHENZHEN NUOGUAN TECHNOLOGY CO., LTD founded in 2010.Located in Shiyan town,Shenzhen,China.We are high-Technology company specialized in manufacture Commercial and industrial LED light.Advanced production equipment and Excellent R & D ability help us to combining Service,production,sell together provide top-level products to our customers.
Mainly products LED Corn bulbs,LED retrofit kits,LED high bay fixture,LED Shoebox fixture,LED Canopy fixture etc. All Series of innovative Energy Saving LED products for provide solutions of indoor and outdoor lighting.Safety certification UL\\CUL\\ETL and Energy certification DLC for rebate.
NUOGUAN has been set up warehouse in CA and OH.
We are researching 2~3 new products every year to meet the market demand and international standard.We will enlarge research new products and apply certification for every products in the future.Good quality always our basic mission no matter how fast we develop in the future,Meanwhile,we accept OEM&ODM,Sincerely waiting cooperation with you.
10 Years LED Light Manufacturer
SHENZHEN NUOGUAN TECHNOLOGY CO., LTD founded in 2010.Located in Shiyan town,Shenzhen,China.We are high-Technology company specialized in manufacture Commercial and industrial LED light.Advanced production equipment and Excellent R & D ability help us to combining Service,production,sell together provide top-level products to our customers.
UL / DLC Certified Safety LED Light Products
Mainly products LED Corn bulbs,LED retrofit kits,LED high bay fixture,LED Shoebox fixture,LED Canopy fixture etc. All Series of innovative Energy Saving LED products for provide solutions of indoor and outdoor lighting.Safety certification UL\\CUL\\ETL and Energy certification DLC for rebate.
US Warehouse Fast&Convenient Delivery
NUOGUAN has been set up warehouse in KY and OH.
We are researching 2~3 new products every year to meet the market demand and international standard.We will enlarge research new products and apply certification for every products in the future.Good quality always our basic mission no matter how fast we develop in the future,Meanwhile,we accept OEM&ODM,Sincerely waiting cooperation with you.
Why Choose Us?
(1)Professional LED light manufacturer since 2010 only focus produce LED lights.
(2) 30,000 square foot production area &100 employees professional team.
(3) UL,cUL,cETL,ETL,DLC approved products standard produce by certified request.
(4)7 production line separately ensure fast production strictly control quality.
(5) Professional Aging test machine&SMT Machine&IES test system&Reflow oven&Standard production line.
(6)US warehouse distribute in KY&OH including all products ensure fast&convenient delivery
Mainly products LED Corn bulbs,LED retrofit kits,LED high bay fixture,LED Shoebox fixture,LED Canopy fixture etc. All Series of innovative Energy Saving LED products for provide solutions of indoor and outdoor lighting.Safety certification UL\\CUL\\ETL and Energy certification DLC for rebate.
NUOGUAN has been set up warehouse in CA and OH.
We are researching 2~3 new products every year to meet the market demand and international standard.We will enlarge research new products and apply certification for every products in the future.Good quality always our basic mission no matter how fast we develop in the future,Meanwhile,we accept OEM&ODM,Sincerely waiting cooperation with you.
10 Years LED Light Manufacturer
SHENZHEN NUOGUAN TECHNOLOGY CO., LTD founded in 2010.Located in Shiyan town,Shenzhen,China.We are high-Technology company specialized in manufacture Commercial and industrial LED light.Advanced production equipment and Excellent R & D ability help us to combining Service,production,sell together provide top-level products to our customers.
UL / DLC Certified Safety LED Light Products
Mainly products LED Corn bulbs,LED retrofit kits,LED high bay fixture,LED Shoebox fixture,LED Canopy fixture etc. All Series of innovative Energy Saving LED products for provide solutions of indoor and outdoor lighting.Safety certification UL\\CUL\\ETL and Energy certification DLC for rebate.
US Warehouse Fast&Convenient Delivery
NUOGUAN has been set up warehouse in KY and OH.
We are researching 2~3 new products every year to meet the market demand and international standard.We will enlarge research new products and apply certification for every products in the future.Good quality always our basic mission no matter how fast we develop in the future,Meanwhile,we accept OEM&ODM,Sincerely waiting cooperation with you.
Why Choose Us?
(1)Professional LED light manufacturer since 2010 only focus produce LED lights.
(2) 30,000 square foot production area &100 employees professional team.
(3) UL,cUL,cETL,ETL,DLC approved products standard produce by certified request.
(4)7 production line separately ensure fast production strictly control quality.
(5) Professional Aging test machine&SMT Machine&IES test system&Reflow oven&Standard production line.
(6)US warehouse distribute in KY&OH including all products ensure fast&convenient delivery

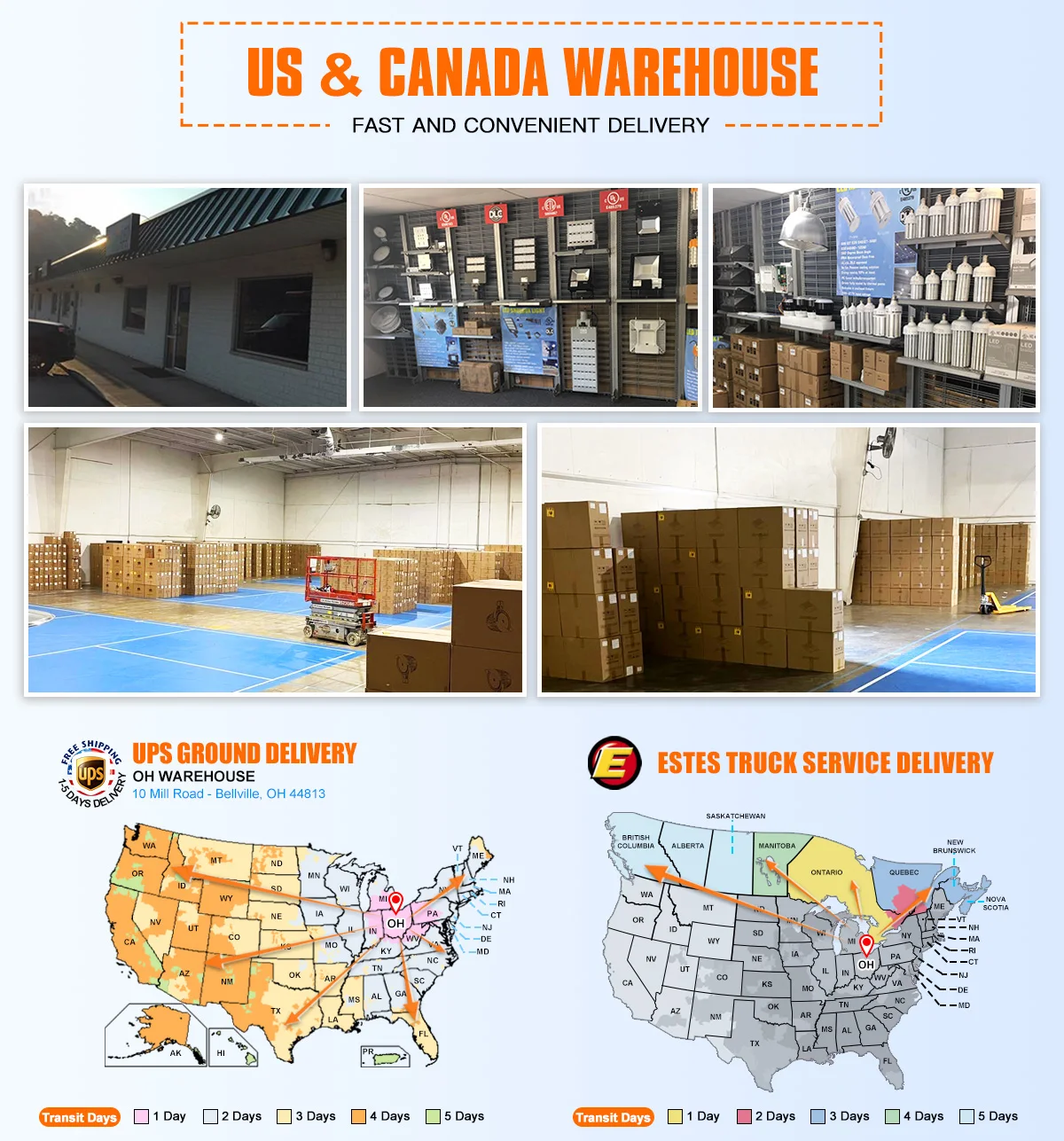

US warehouse
US warehouse located in Kentucky and Ohio
customers.Your order would be carefully packed and shipped out within 24 hours after order proceeded.And we ship by UPS which
takes around 1-5 days for delivery.
Stocked item including:
LED shoe box light
LED UFO high bay lights
LED corn lights
LED garage lights
LED flood light
LED stadium lights
LED yard lights
LED grow lights
UV LED black light
Related Products
FAQ
Q: Is your company a manufacturer?
NGT: Yes,We are LED lights manufacturer only focus on LED commercial/industrial lights with own R&D base since 2010 located in Shenzhen,China.
Q: Can I have a sample order?
NGT: Sure,welcome sample order test check quality.
Q: What is lead time?
NGT: Depends on the order quantities.
1~100pcs 3~5 days..
100~500pcs 5~7 days.
Above 500pcs 7-10 days.
Q: Can you print LOGO on the light or package?
NGT: Yes,We have own logo laser machine to print logo on light body or package.
Q: What is your warranty?
NGT: We provide 5 years warranty.Once any quality issue we offer free replacement or repair service during warranty.
Q: How do your company control quality?
NGT: We have very strictly quality control process with own professional facility:
1.Own surface mount machine for led chip to get the bonding procedure well controlled by ourselves.
2.Strict pre-production test on led beads,boards,housing,cords,etc to avoid any potential faulty from very beginning.
3.Integral sphere to secure accurate rate of parameters,includes light efficiency,CCT,watt,lumen,etc.
4. 48 hours aging test to stimulate various working conditions to secure the performance of lights.
5.Waterproof test lasts 6-10 hours.
Q: What payment method your accept?
NGT:Alibaba Trade Assurance,Paypal,Credit card,T/T,Check,Western Union.
Or consult us directly for special payment method you want.
NGT: Yes,We are LED lights manufacturer only focus on LED commercial/industrial lights with own R&D base since 2010 located in Shenzhen,China.
Q: Can I have a sample order?
NGT: Sure,welcome sample order test check quality.
Q: What is lead time?
NGT: Depends on the order quantities.
1~100pcs 3~5 days..
100~500pcs 5~7 days.
Above 500pcs 7-10 days.
Q: Can you print LOGO on the light or package?
NGT: Yes,We have own logo laser machine to print logo on light body or package.
Q: What is your warranty?
NGT: We provide 5 years warranty.Once any quality issue we offer free replacement or repair service during warranty.
Q: How do your company control quality?
NGT: We have very strictly quality control process with own professional facility:
1.Own surface mount machine for led chip to get the bonding procedure well controlled by ourselves.
2.Strict pre-production test on led beads,boards,housing,cords,etc to avoid any potential faulty from very beginning.
3.Integral sphere to secure accurate rate of parameters,includes light efficiency,CCT,watt,lumen,etc.
4. 48 hours aging test to stimulate various working conditions to secure the performance of lights.
5.Waterproof test lasts 6-10 hours.
Q: What payment method your accept?
NGT:Alibaba Trade Assurance,Paypal,Credit card,T/T,Check,Western Union.
Or consult us directly for special payment method you want.
