2200W mobility scooter,mini golf cart
US $4650-$5650

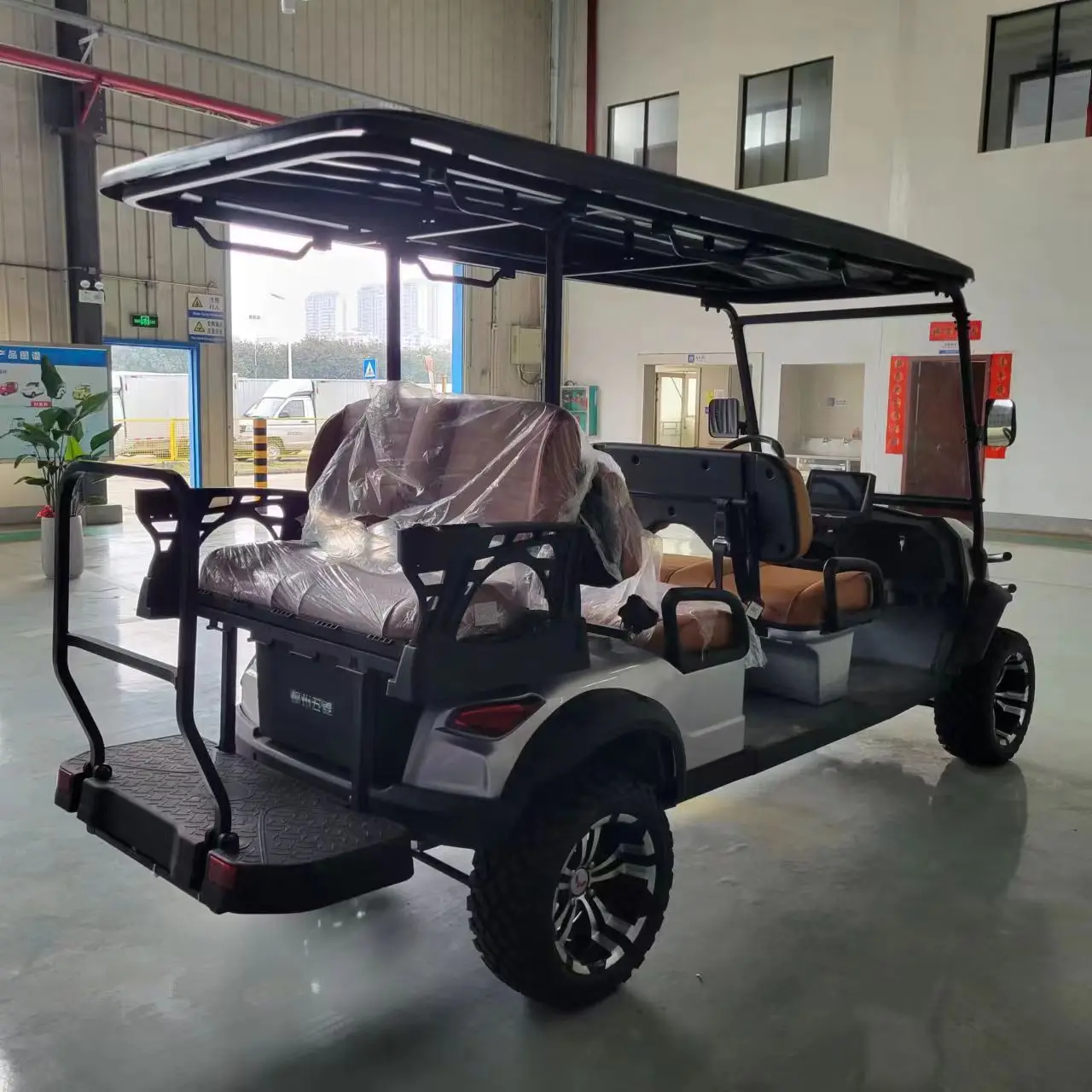

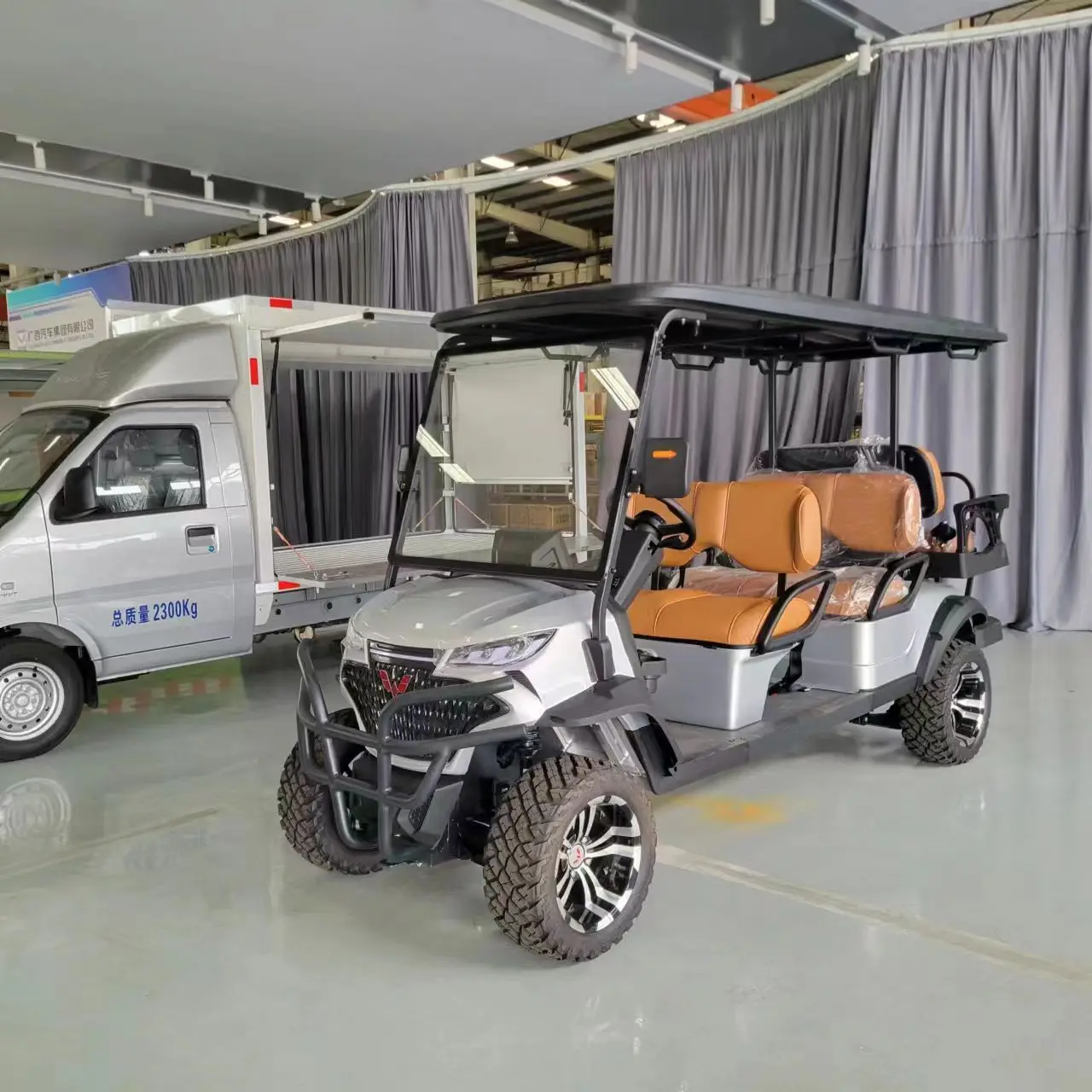

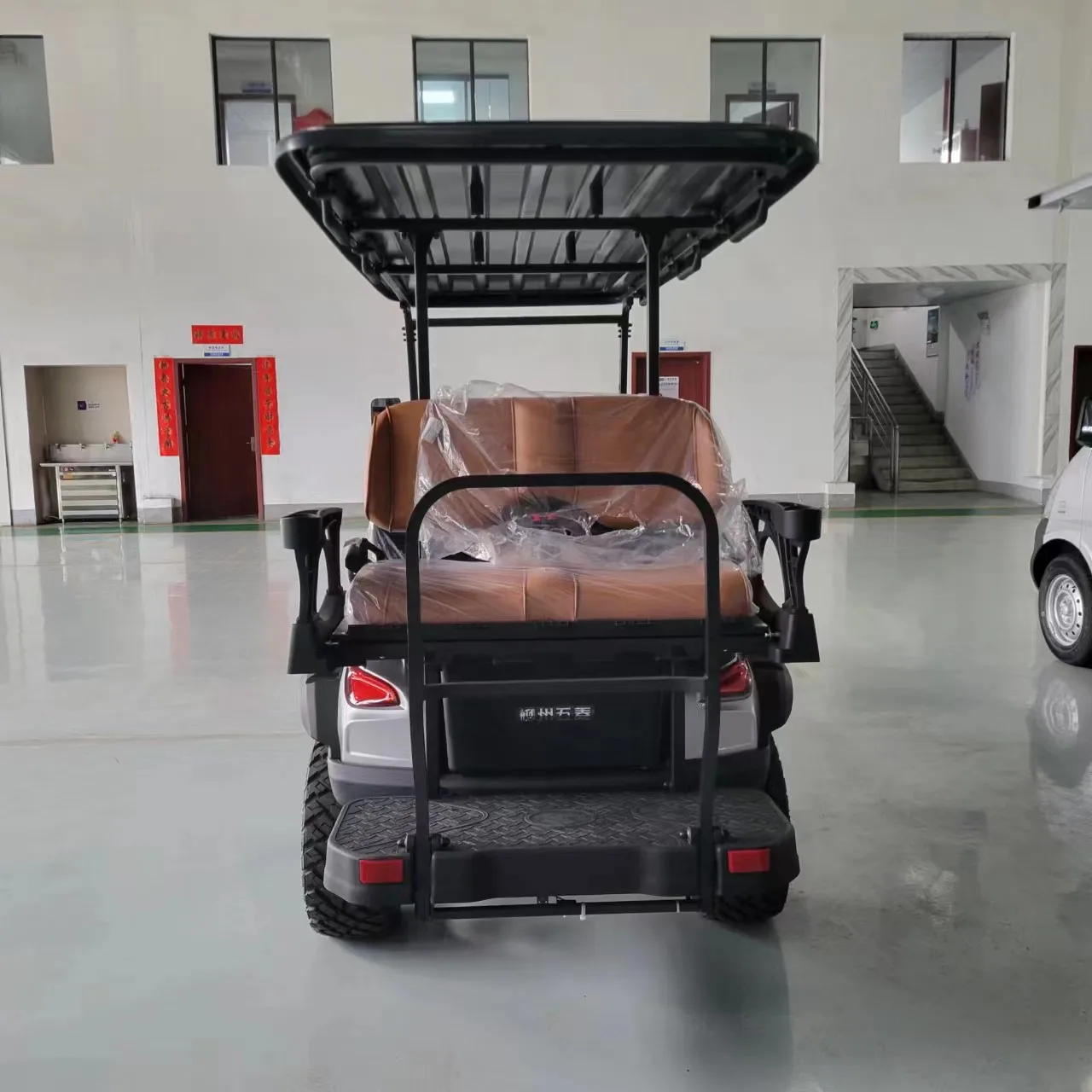

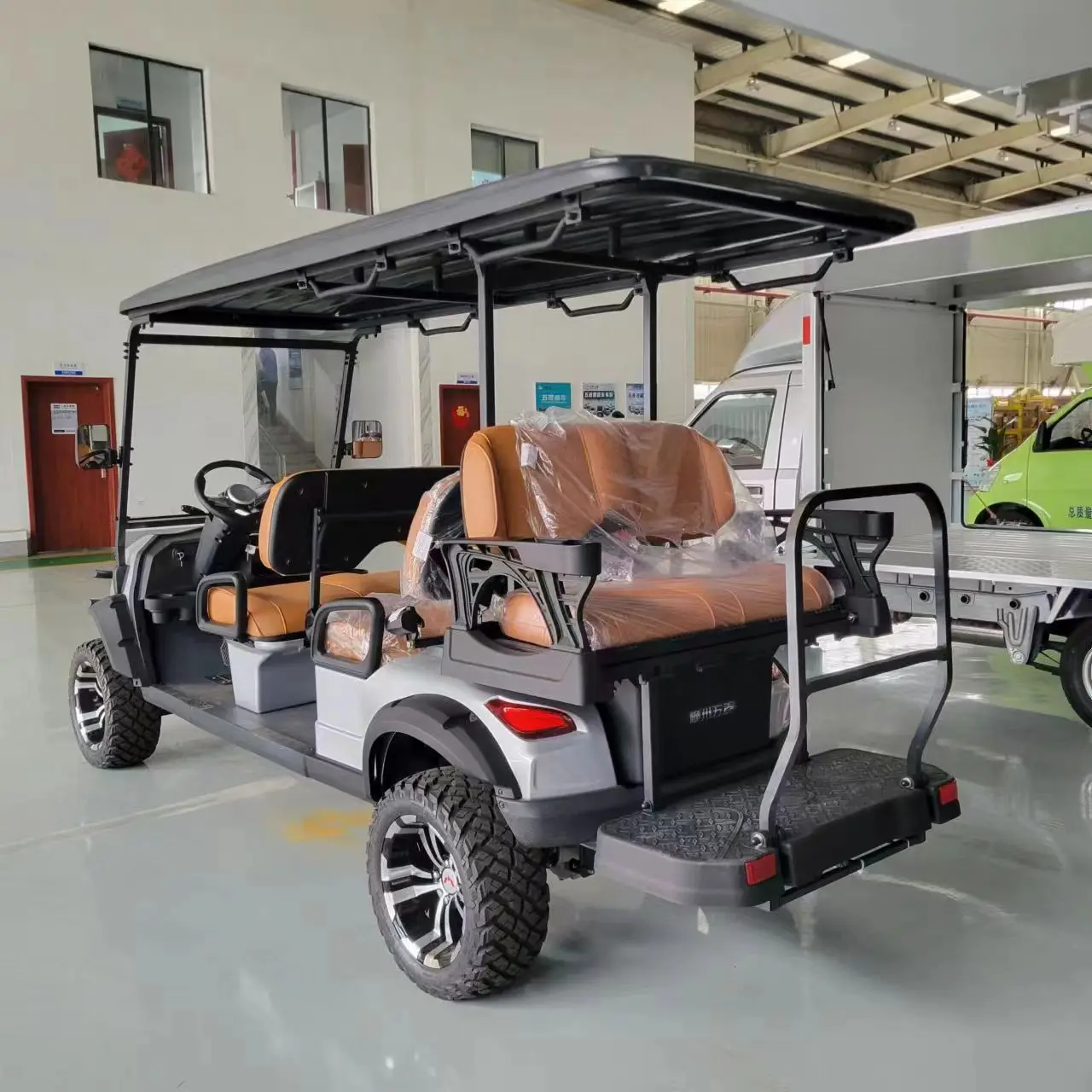

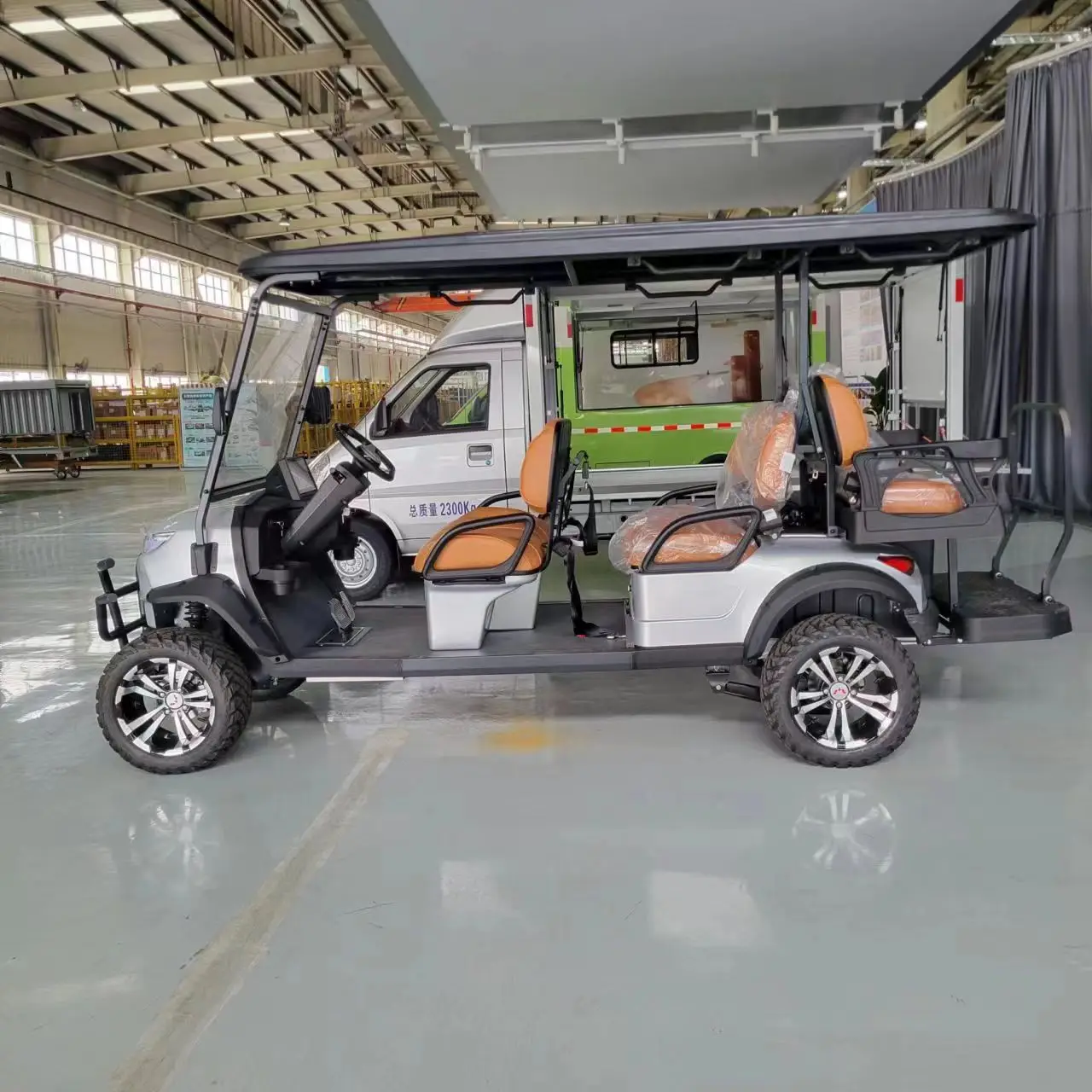

5kw Electric Golf Cart with Aluminum Frames 4 2 Seaters 5kw Curtis Controller
- Category: >>>
- Supplier: Liuzhou Wuling Automobile Industry Co. Ltd.
Share on (1601232853323):
Product Overview
Description
Company Information

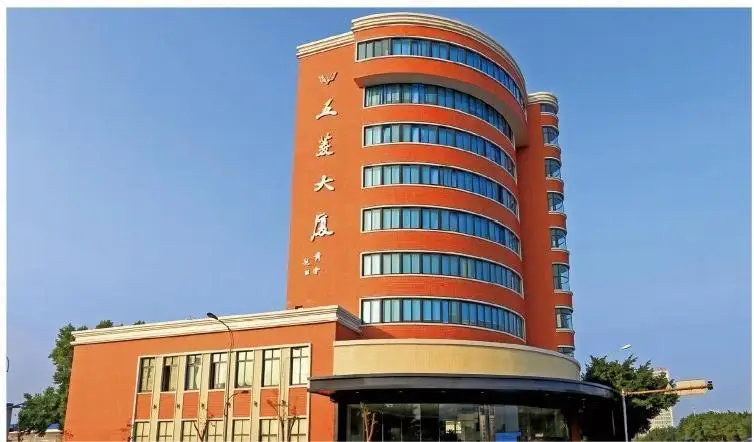

Liuzhou Wuling Automobile Industry Co., Ltd (Wuling Industry for short) is a large manufacturing joint venture established by Guangxi Automobile co. ltd and Wuling Automobile Group Holding Ltd(HK0305) in 2007.
Wuling Industry has specialized in sightseeing cars, refit trucks, golf carts, and engine and auto parts for over 40 years. The company follows a Lean Production manufacturing system, supplying a series of "low cost but high value" products. Wuling Industrial achieved USD 2.6 billion in sales revenue in 2022. Leading products and their annual productivity are shown below: Wuling Industrial is one of the top 20 biggest auto companies in China. and It is willing to supply with excellent products, and the partners and customers are expected to profit a lot by cooperation.
Product Description
The material of the body frame is high-strength aluminum alloy. Compared with the iron material based on the same configuration, the cruising range is increased by 25%,
The chassis standard parts are all treated with Dacromet to minimize the risk of rust.
The rear axle is developed according to the standard of passenger cars, with higher bearing capacity, more reliable performance and longer service life.
| motor | Electric Motor | 48V 3KW AC Asynchronous Motor |
| Controller | Curtis | |
| Battery | 48v 150ah | |
| Charger | On board charger | |
| Charging time (hour) | >9 | |
| Body Frame Material | High-Strength aluminum alloy | |
| Voltage | 48V | |
| Size | Length (mm) | 3920 |
| Width (mm) | 1340 | |
| Height (mm) | 2020 | |
| Wheelbase (mm) | 2600 | |
| Weight | Curb weight (kg) | 690 |
| Through parameters | Min. turning diameter (m) | 10.5 |
| Min. ground clearance (empty/full load) (mm) | 174/150 | |
| performance | Max. speed (full load) (km/h) | 25 |
| Max. climbing ability ( %) | 20 | |
| Cruising range(full load)(km) | 55 | |
| Tire specification | 23X10-14 | |
| Braking mode | Front/Rear hydraulic disc brake | |
| Capacity of Battery (Ah) | 150 | |
| Combination lamp assembly (F/R) | with | |
Packaging & Shipping
| WULNG Golf Car Packing Plan | |||
| SN. | Model | 20 GP (QTY) | 40 HQ (QTY) |
| 1 | 2 | 6 | 21 |
| 2 | 2+2 | 6 | 21 |
| 3 | 4 | 6 (2 Units 4 seats or 4+2seats and 4 Units 2 seats or 2+2seats ) | 12 (9 Units 4 seats or 4+2seats and 3 Units 2 seats or 2+2seats ) |
| 4 | 4+2 | ||
| 5 | 6,6+2 | 4 (2 Units 4 seats or 4+2seats and 2 Units 2 seats or 2+2seats ) | 9 |
Our Services
- Battery with a 1-5 years warranty(lead acid with 1 years, lithium with 5 years)
- The new vehicle comes with a set of complimentary accessories
