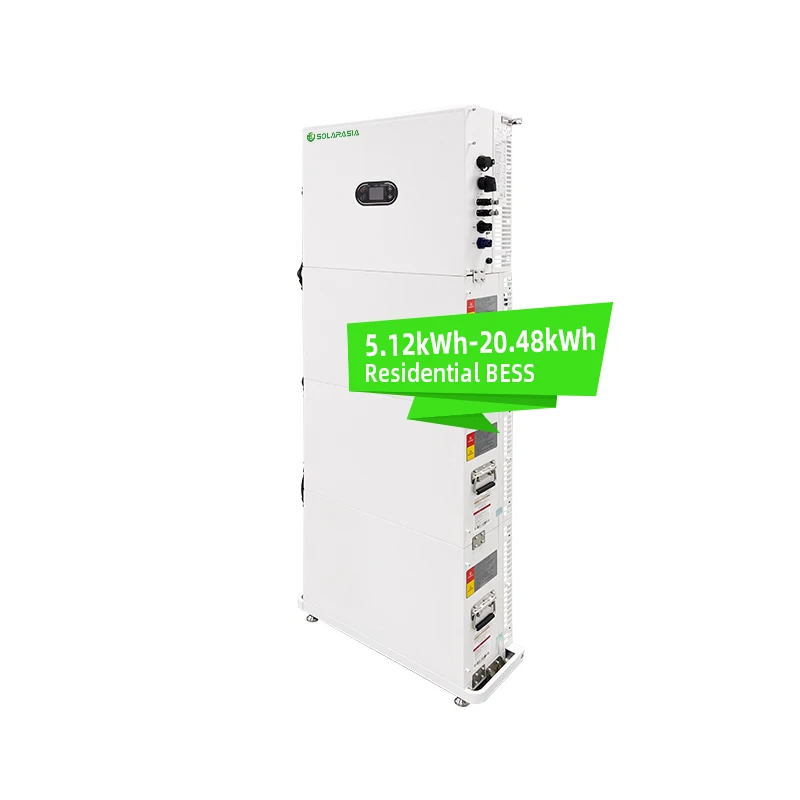

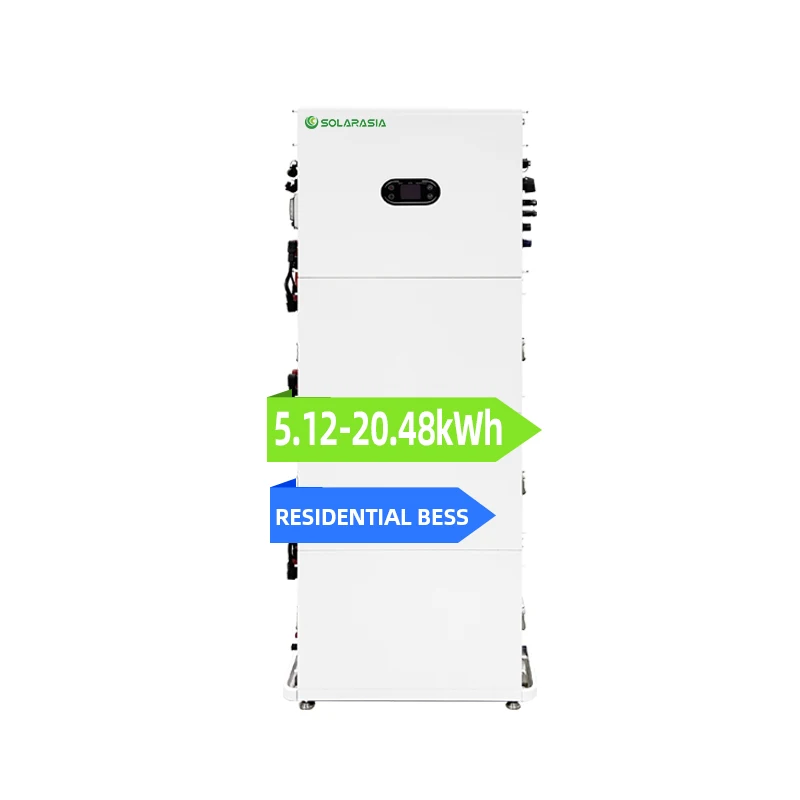

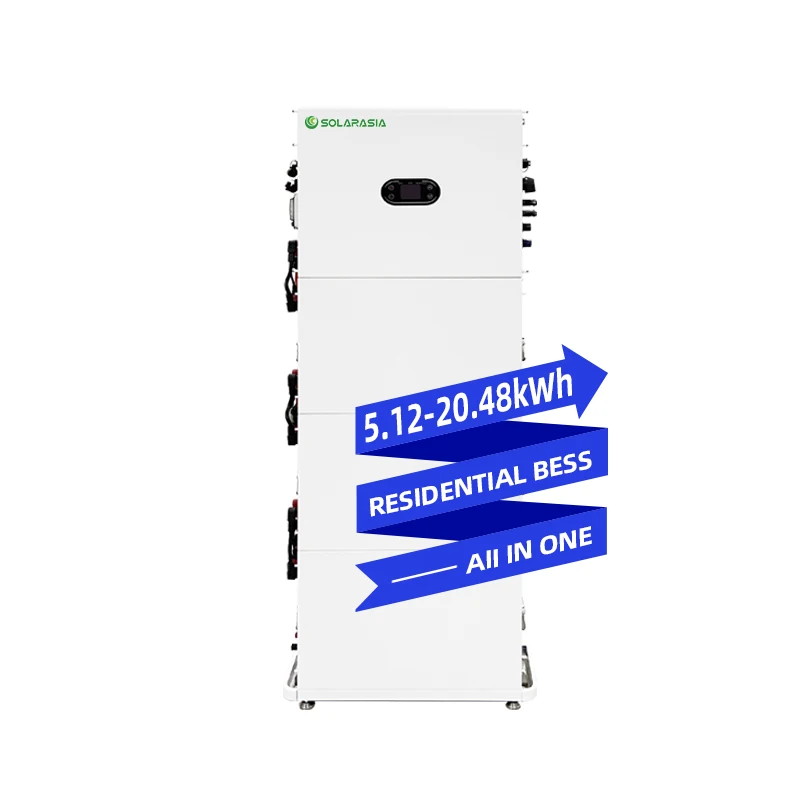

  • Large Capacity All In One Lifepo4 Inverter 51.2V 5Kwh All In One Solar Energy System
Large Capacity All In One Lifepo4 Inverter 51.2V 5Kwh All In One Solar Energy System
Large Capacity All In One Lifepo4 Inverter 51.2V 5Kwh All In One Solar Energy System
Large Capacity All In One Lifepo4 Inverter 51.2V 5Kwh All In One Solar Energy System
Large Capacity All In One Lifepo4 Inverter 51.2V 5Kwh All In One Solar Energy System
Large Capacity All In One Lifepo4 Inverter 51.2V 5Kwh All In One Solar Energy System
Large Capacity All In One Lifepo4 Inverter 51.2V 5Kwh All In One Solar Energy System
Large Capacity All In One Lifepo4 Inverter 51.2V 5Kwh All In One Solar Energy System

Large Capacity All In One Lifepo4 Inverter 51.2V 5Kwh All In One Solar Energy System

Share on (1601232892202):


Price:$252.00-375.00

Quantity:


Product Overview

Description

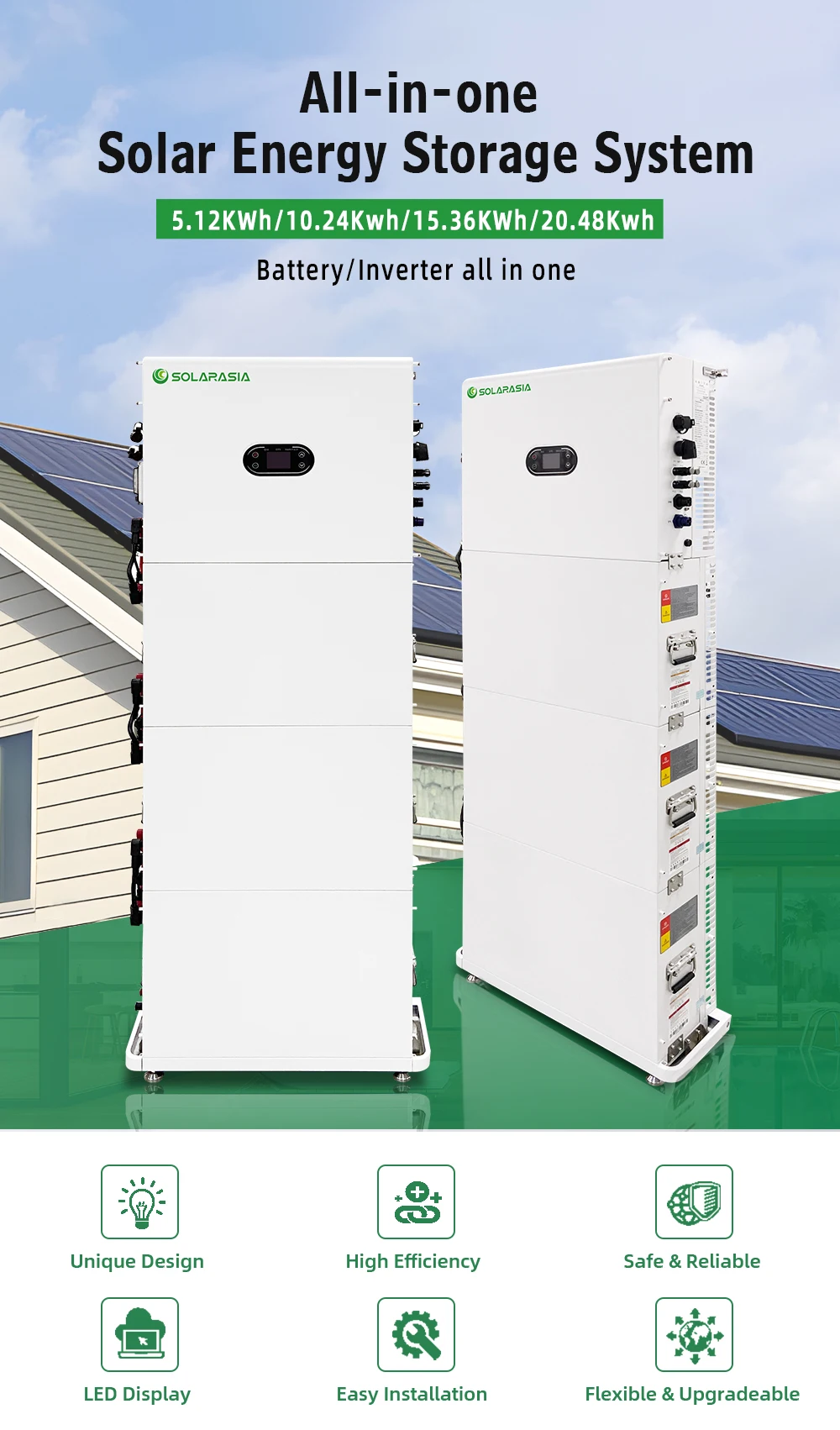

Product Description

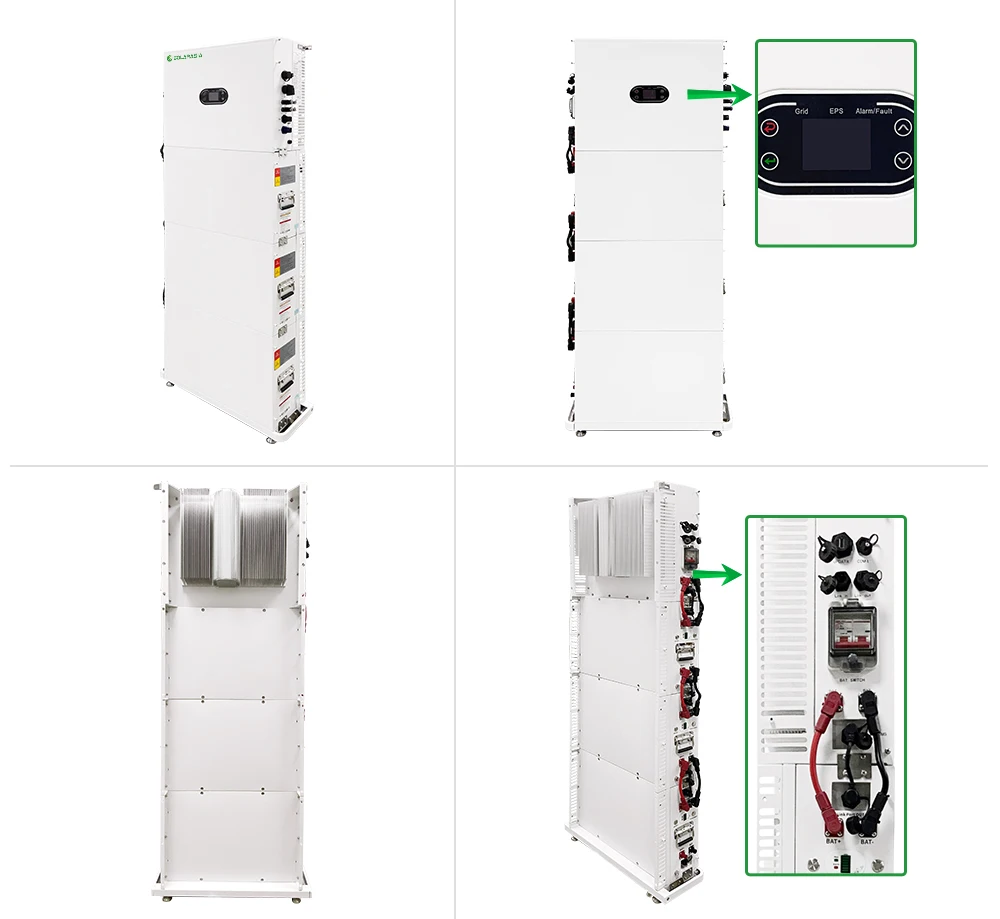

Product Detail

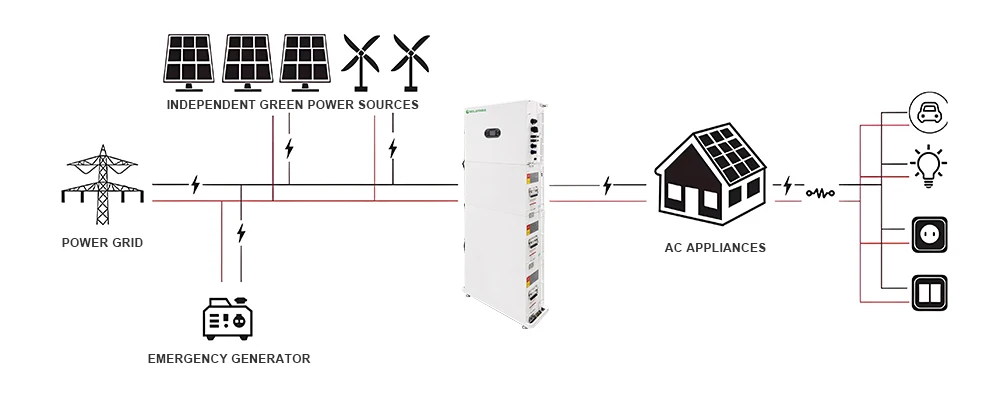

Product Application




Packaging&Shipping




Product Parameters


Battery
HOMESTACK-L-XD36
Chemistry
LiFePO4
Cycle Llife
≥6000 (@25℃, 0.5C/0.5C)
Energy
5.12kWh
10.24kWh
15.36kWh
20.48kWh
Number
1
2
3
4
Dimension (W xHx D)
64X87X21CM
64X125X21CM
64X162X21CM
64X200X21CM
Voltage
51.2v
Voltage Range
44.8V ~ 56.16V
Max.Charging/Discharging Current
100A
Inverter Selection
Inverter P/N
XD3KTL/XD3K6TL
XD3/4/5KTL
XD3/4K6TL
XD3/4/5/6KTL
XD3/4K6TL
XD3/4/5/6KTL
XD3/4K6TL
Input(PV)
XD3KTL
XD3K6TL
XD4KTL
XD4K6TL
Max.PV Input Power
4.5KW
5.4KW
6KW
6.9KW
Max. PV Input Voltage
600V
Start-up Voltage
100V
MPPT Voltage Range
100V~550v
Number of MPP Trackers
2/1
Max. PV Input Current
16A
Max. Short Circuit Current per MPPT
24A
Output（AC）
Rated Output Power
3KW
3.68KW
4KW
4.6KW
Max. Output Power
3.3KVA
3.68KVA
4.4KVA
4.6KVA
Max. Output Current
15A
16A
20A
20.9A
Rated Voltage
230V
Rated Frequency
50Hz/60Hz
THDi(@Rated Power)
<3%
Power Factor
0.8 Leading ~0.8lagging
Output（EPS）
Max. Output Power
3KVA
3.68KVA
4KVA
4.6KVA
Max. Output Current
15A
16A
20A
20.9A
Peak Output Power，Time
4.5KW,10S
5.5KW,10S
6KW,10S
6.9KW,10S
Rated Voltage，Frequency
230V,50Hz
THDv(@Rated Power)
<3%
Switch Time
<10ms
Efficiency
Max. Efficiency
97.5%
EU Efficiency
97.2%
Max. Battery Charge/Discharge Efficiency
95%
Protection
Protection
DC Reverse Polarity Protection, Insulation Resistance Monitoring, Ground Fault Monitoring,
Over Current / Over Voltage Protection, Battery Soft Start Protection
AFCI Protection
Optional
Surge Protection
Type II
General Data
Operating Temperature Range
-10℃～ +45℃
Self-consumption
＜ 10W
Protection Degree
IP65
Relative Humidity
0 ~ 100%
Display
LCD
Communication
RS485 / CAN / WIFI / 4G / LAN / Bluetooth
Max. Operating Altitude
4000m
Noise
≤25dB
Cooling Method
Natural


Certifications




FAQ


Q1: What are the battery capacity options for this home energy storage system?
The product has 4 battery capacity options: 5.12kWh, 10.24kWh, 15.36kWh, and 20.48kWh.

Q2: What inverter power capacities does this energy storage system support?
The product has 6 inverter model options, with power ratings ranging from 3kW to 6kW, which can meet the electricity needs of different sized households.

Q3: What is the operating temperature range of this energy storage system?
This energy storage system can operate normally in the temperature range of -10°C to +45°C, suitable for most climate conditions.

Q4: How about the quality about the products?
We will offer 5 years warranty and we’ll test all goods and send you test reports before out of factory.

Q5: 1.Q: OEM or ODM accepted?
Yes, we can do OEM&ODM.

Q6: . Still have questions?
You can click CONTACT SUPPLIER to send us message, we will get back to you within 24 hours.
