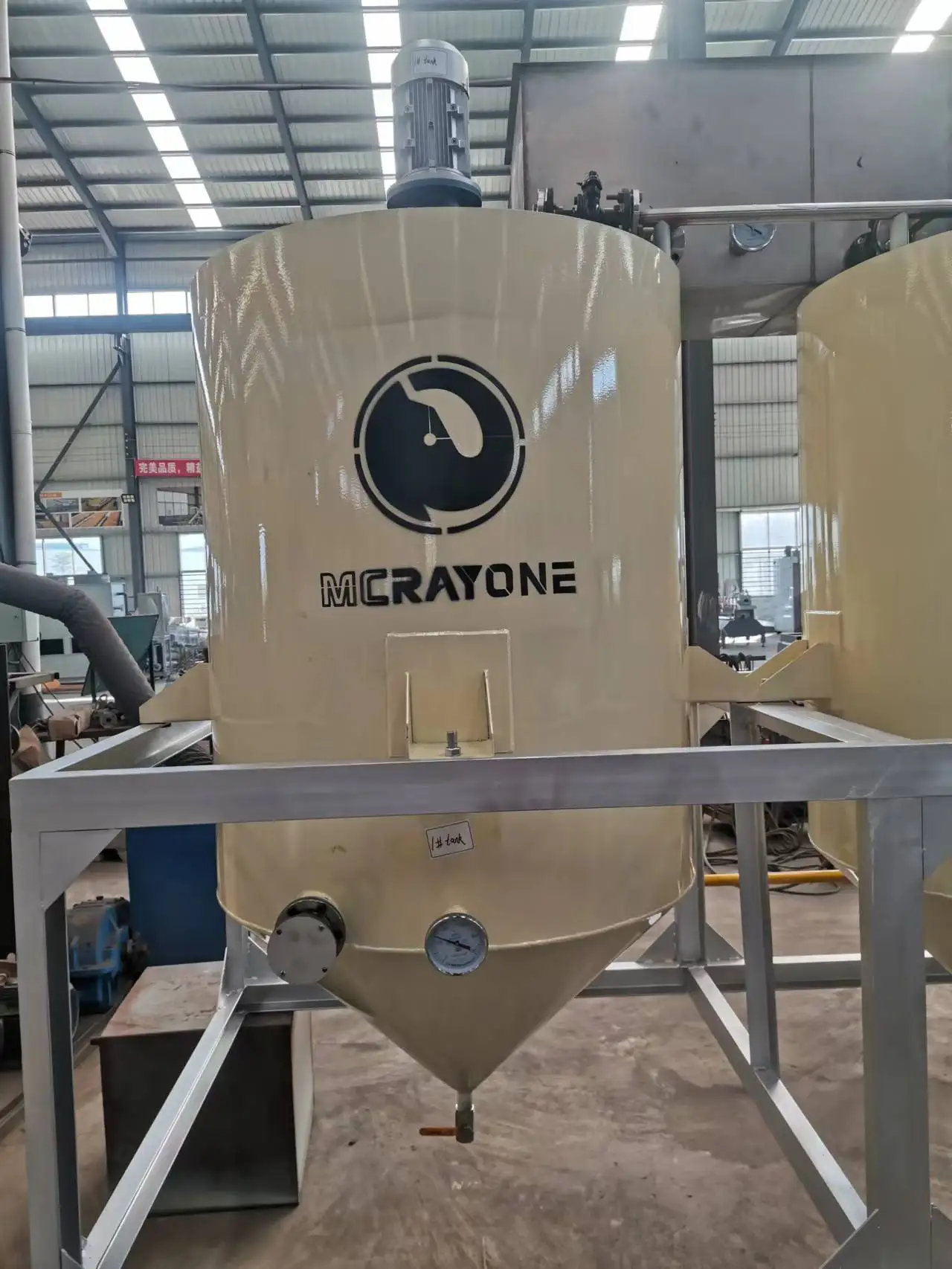

Small Crude Palm Soybean Mini Coconut Oil Refinery Machine For Refining/Processing Sunflower,Mustard,Sesame,Groundnut Edible Oil
- Category: >>>
- Supplier: Ruian Every Machinery Co. Ltd.
Share on (1601232918055):
Product Overview
Description
Model | Volume | Quantity | Capacity | Material | Power |
500KG/D | 200KG/Tank | 4 Tanks | 500KG/D | Stainless Steel | 120KW |
500KG/D | 200KG/Tank | 4 Tanks | 500KG/D | Carbon Steel | 120KW |
1T/D | 500KG/Tank | 4 Tanks | 1T/D | Stainless Steel | 120KW |
1T/D | 500KG/Tank | 4 Tanks | 1T/D | Carbon Steel | 120KW |
2T/D | 1T/Tank | 4 Tanks | 2T/D | Stainless Steel | 170KW |
2T/D | 1T/Tank | 4 Tanks | 2T/D | Carbon Steel | 170KW |
3T/D | 1.5T/Tank | 4 Tanks | 1.5T/Tank | Stainless Steel | 225KW |
3T/D | 1.5T/Tank | 4 Tanks | 1.5T/Tank | Carbon Steel | 225KW |

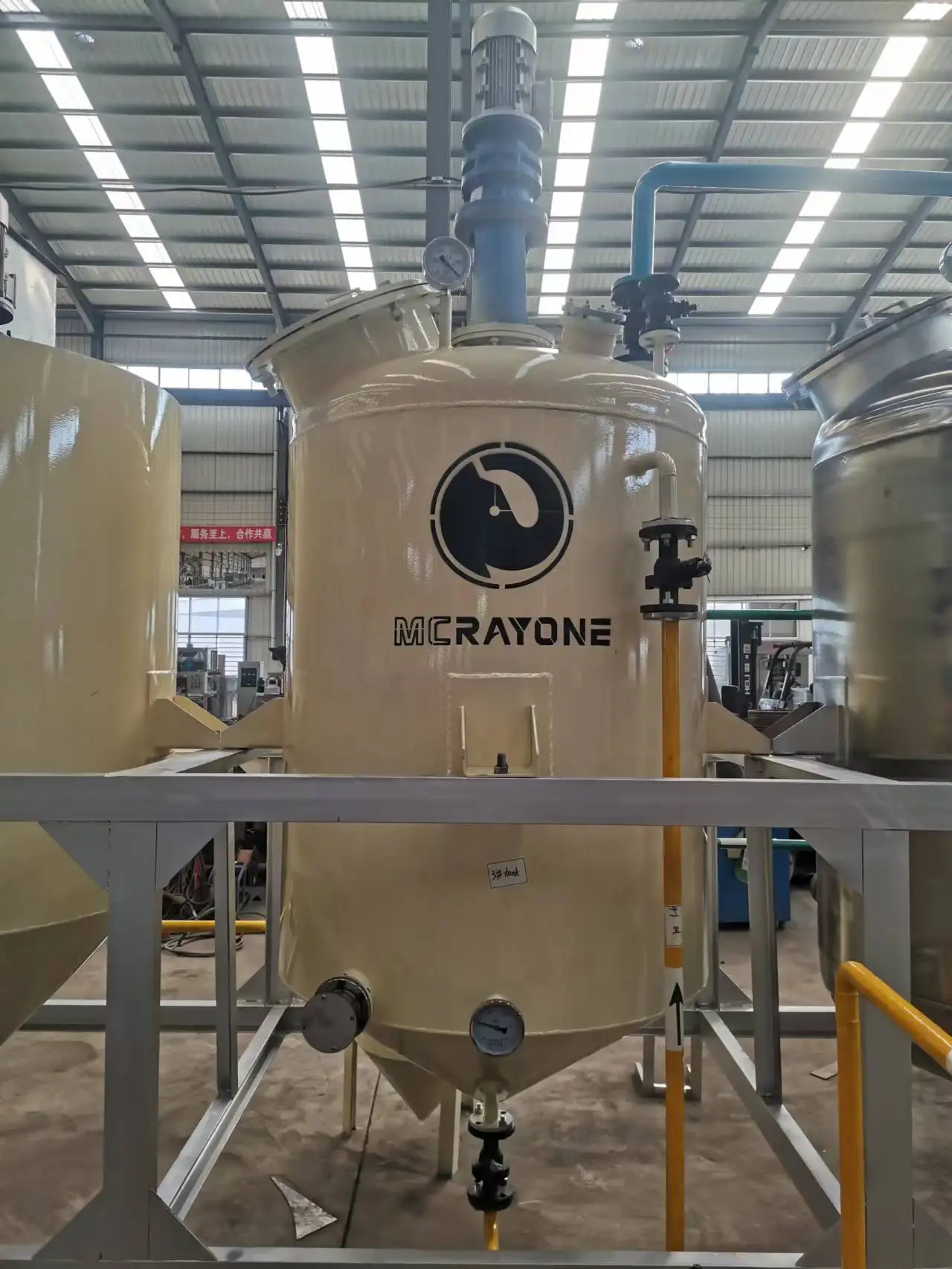

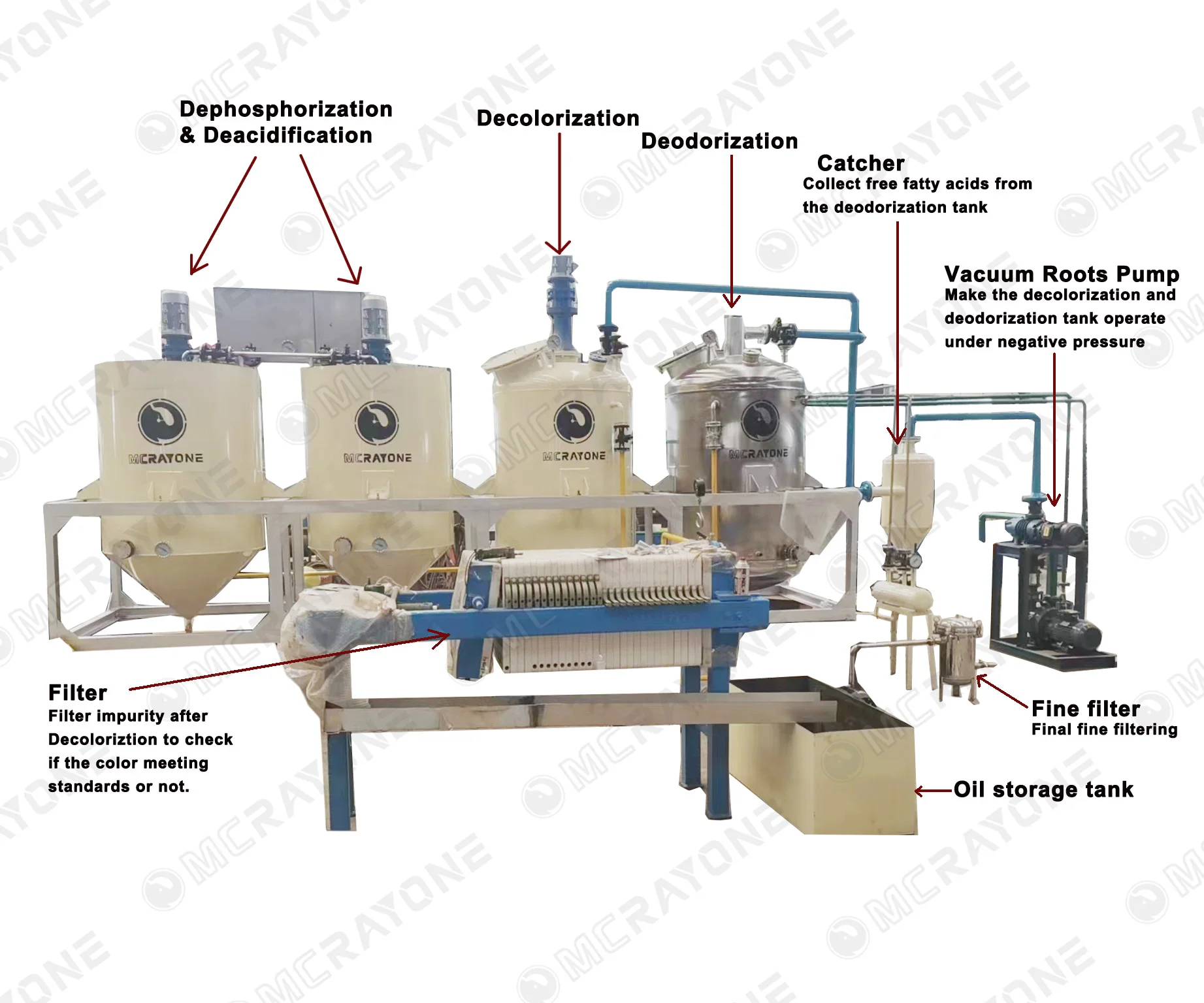

Deacidifcation and Degumming
When oil is not fully mature and processing, storage is not suitable, free fatty acids is produced Free fatty acids will increase the oil acidity thereby reducing the quality of oil. Acid value reflect:the content of free fatty acids in the oil. Alkali refining method is to neutralize free fatty acids with adding alkali. Fatty acid salts (soap) and water are generated. Soap adsorb some impurities and settle from the oil. Formed precipitate is said soap.
Degumming process is to remove colloidal substances in the oi. The removal colloida-substances are primarily phospholipids and phospholipid binding with calcium, magne-siumiron trace metals and other impurities. in short, degumming is to add amount of hot water dilute electrolyte solutions into the oil with hydration contained. The colloidal lipid-solubleswelling, cohesion, and seperate through settlement or centrifugal manner.
Dehydration and Decolorization
Dehydration needs to be carried out in a sub vacuum environment to ensure that the oil will not contact with the air during dehydration and produce oxidation reaction. The process of dehydration can be understood as heating oil in vacuum environment to separate water from oil.
Adsonption decolorization is the use of certain surface active substances with strong adsorption capacity into the oil, under certain process conditions adsorption of pigments and other impurities in the oil, after fltering the adsorbent and impurities to achieve the purpose of oil decolorization and purification process.

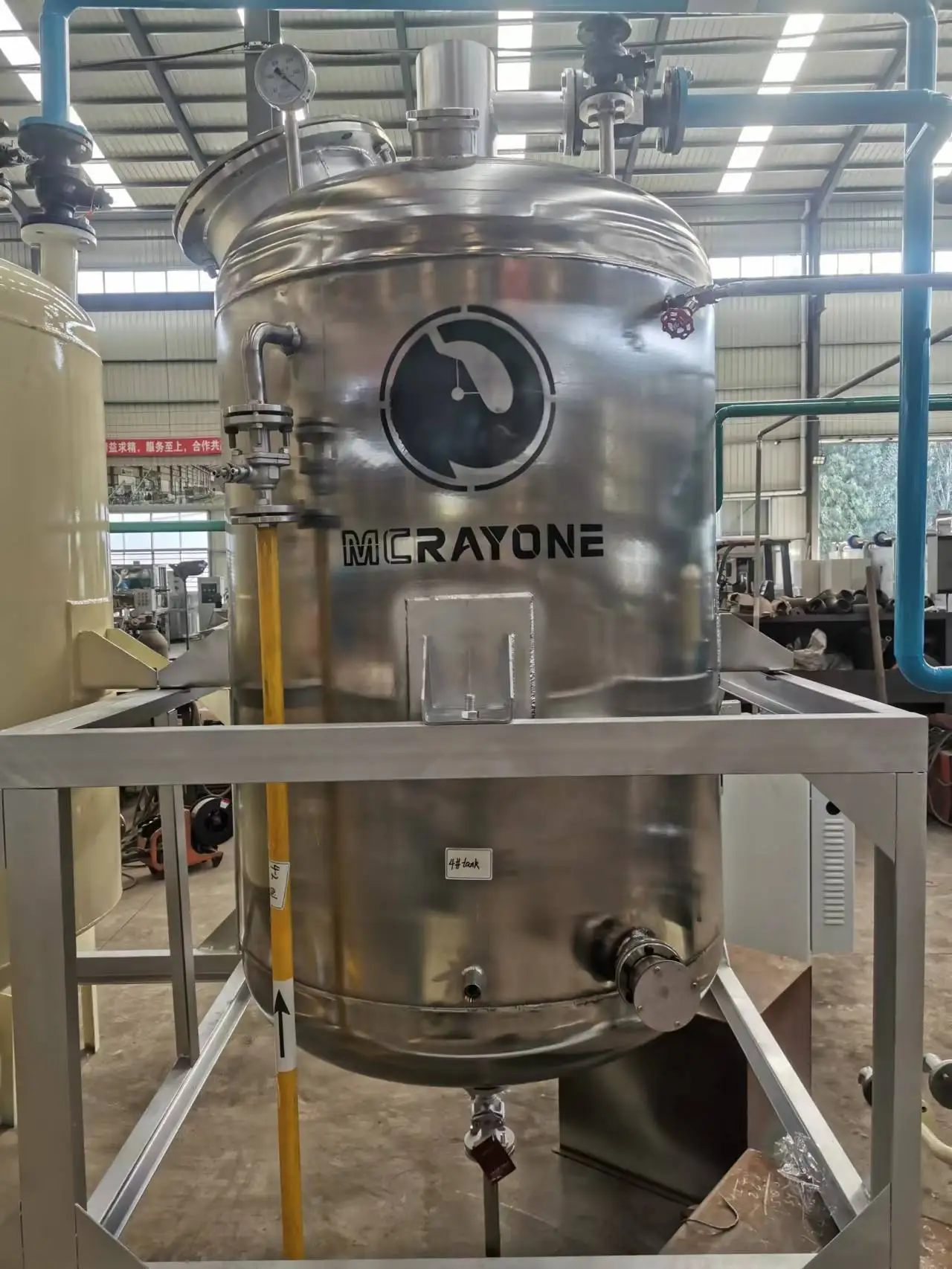

Deodorization
Vacuum steam deodorization method is currently the most widely used at home and abroad, the effect of a better method. It is the use of fats and oils within the odor and triglycerides of the volatility of the great difference in high temperature and high vacuum conditions, with the principle of water vapor distillation, so that fats and oils in the odor caused by volatile substances in the deodorizer and water vapor together to escape and achieve the purpose of deodorization.
