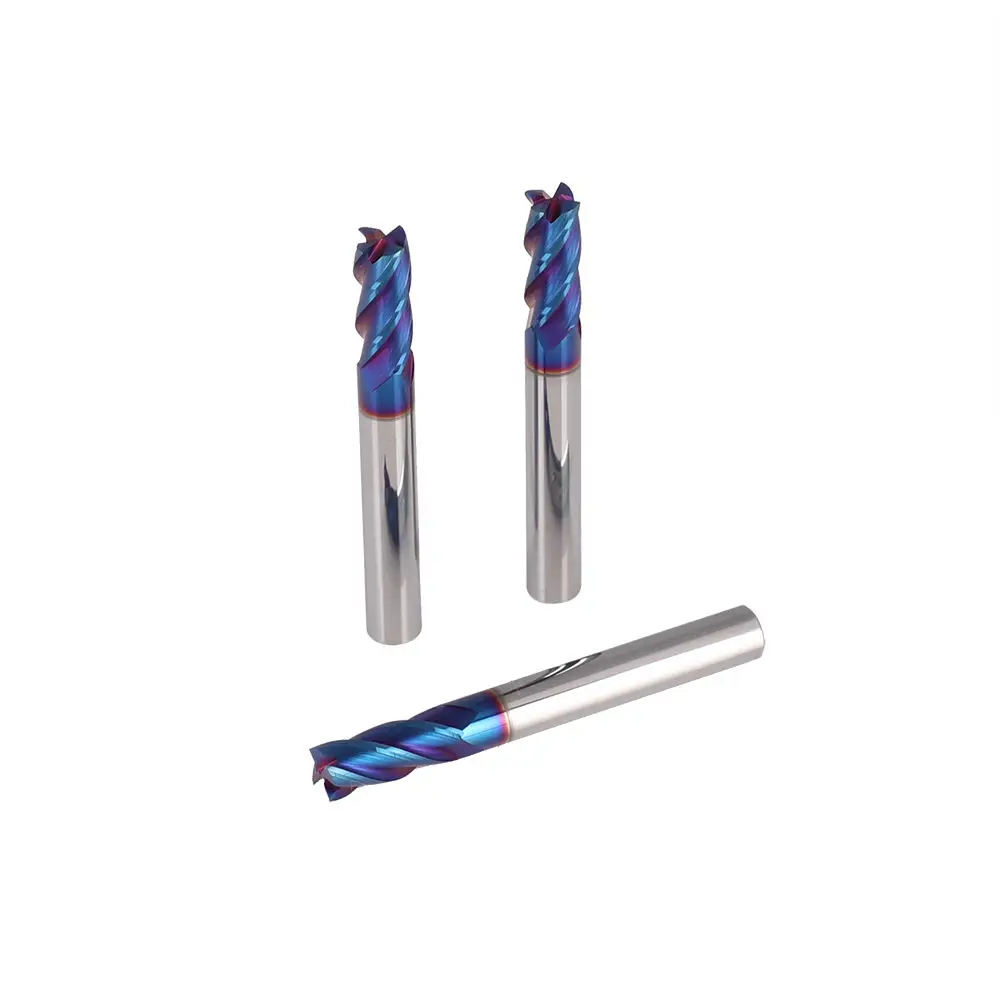

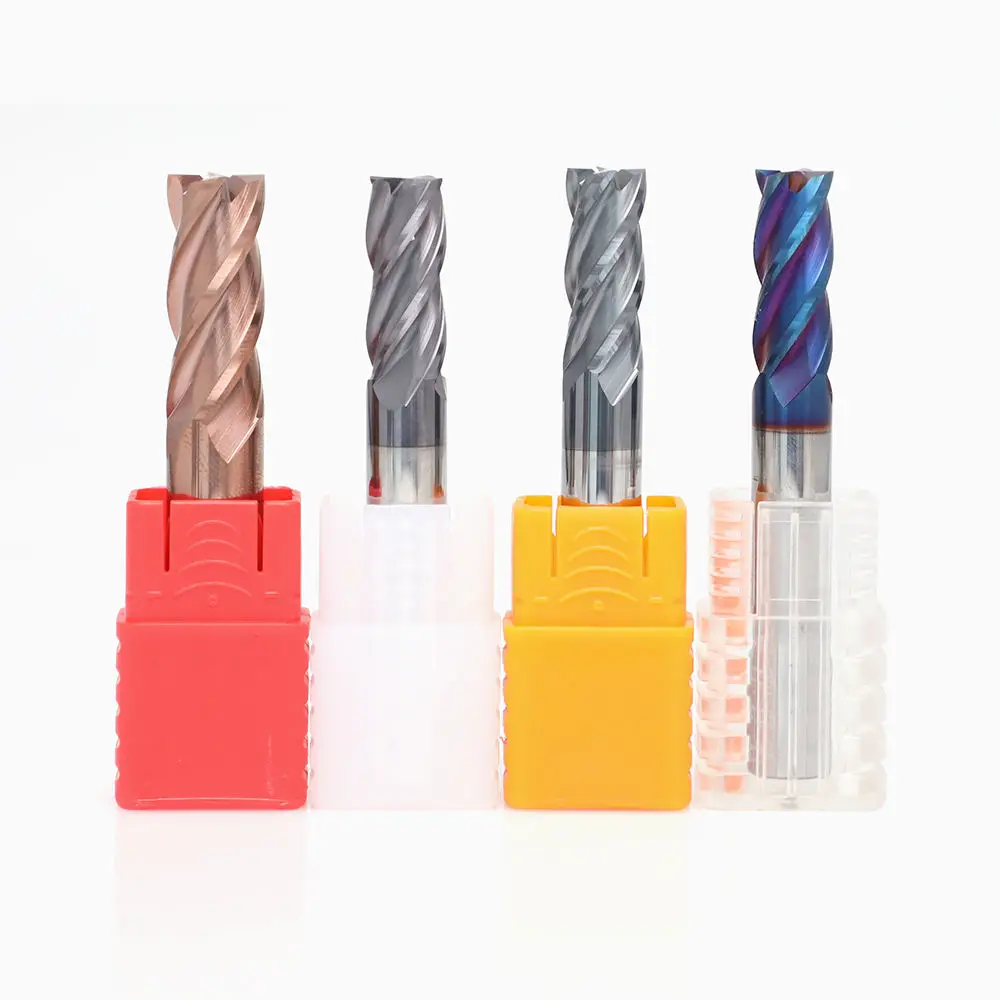

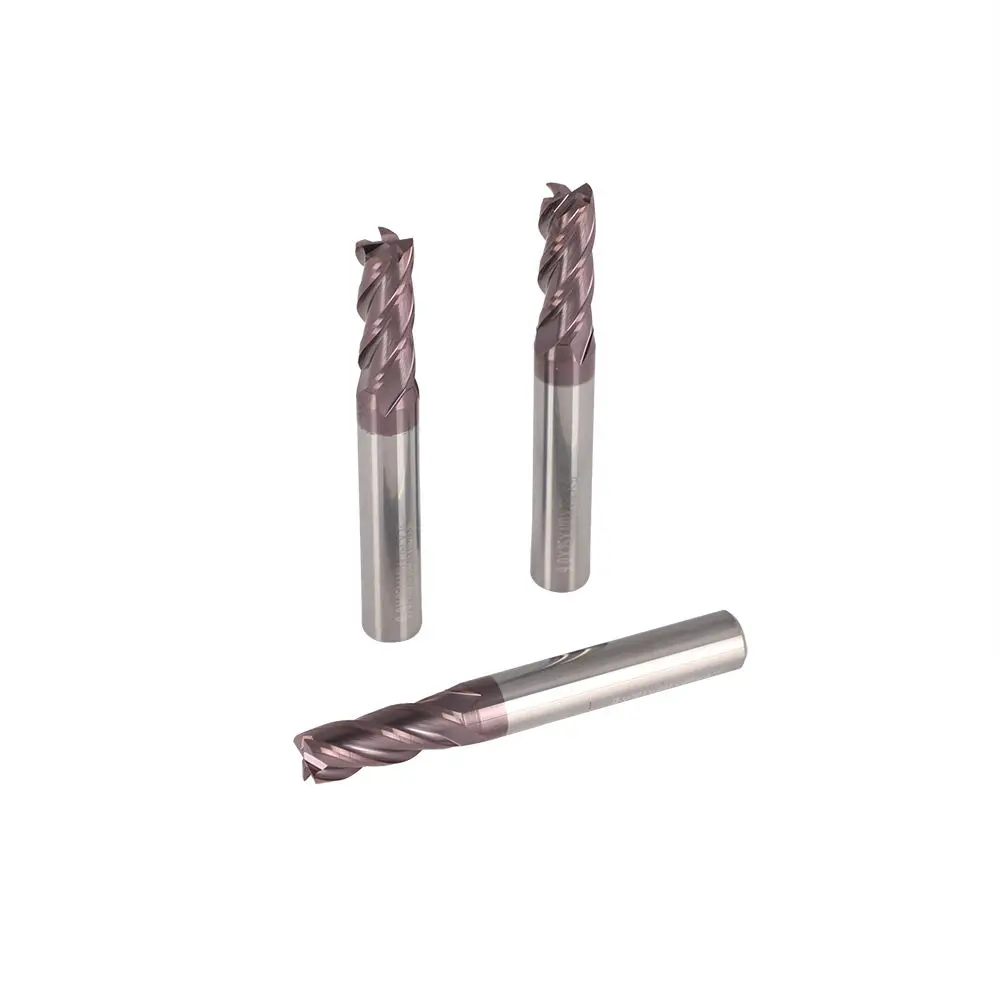

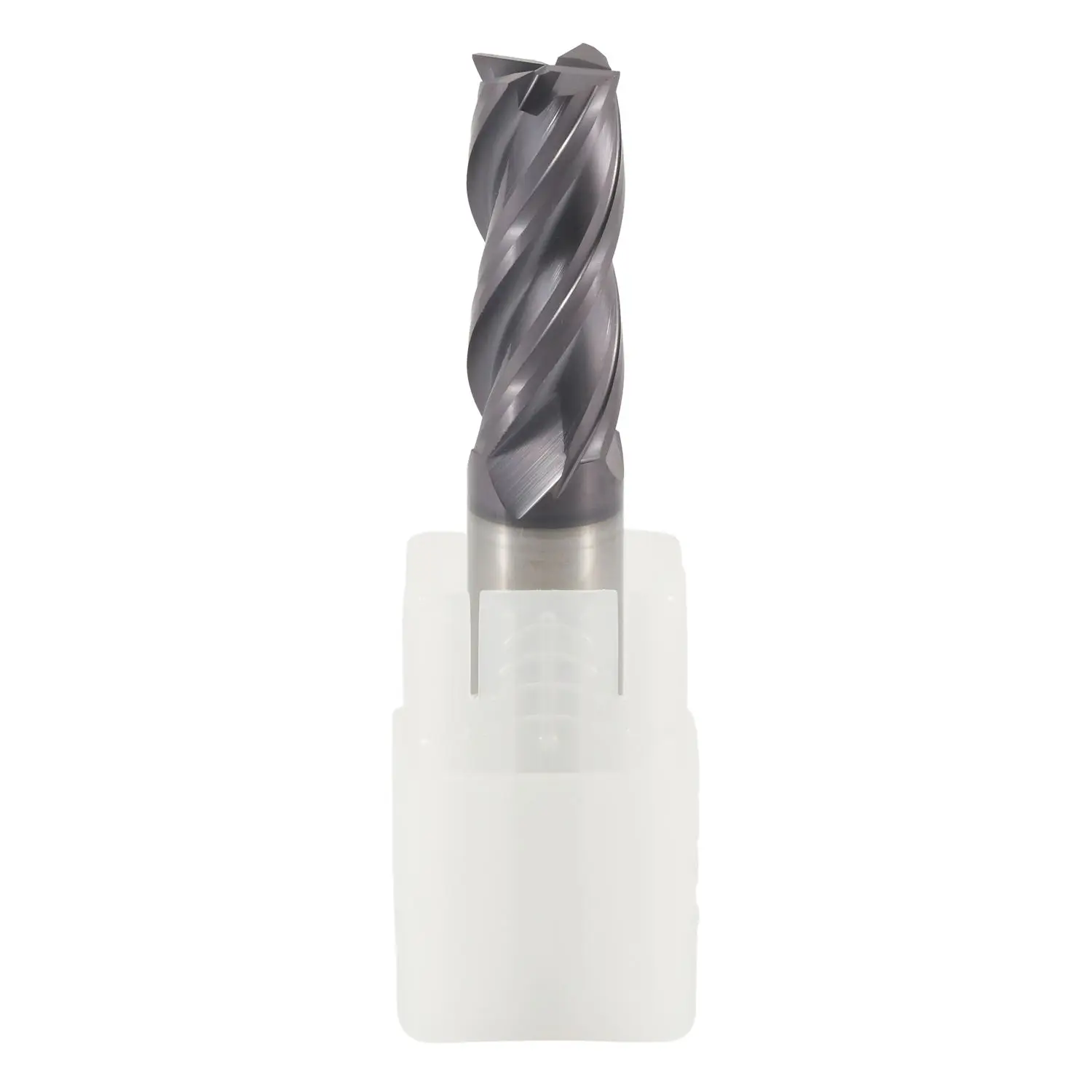

Customized Milling Cutter Solid Carbide CNC Tools Ball Nose End Mill Carbide End Mills HRC55
- Category: >>>
- Supplier: Changzhou Zhuohao Tools Co. Ltd.Changzhou Ltd.
Share on (1601232983174):
Product Overview
Description
Product Name | CNC Milling Tools Ball Nose End Mill |
Material | Tungsten Carbide, Solid Carbide |
Size | 2~20mm |
Cutting Hardness | 55HRC |
Diameter | R0.5 - R10 |
Flute | Standard 2 flutes, can do 4 flutes if needed. |
Application | CNC Machine |
OEM | Supply |
Use for | Carbon Steel/Mould steel /Stainless steel |
1.Fully enables running at rough machining parameters, resulting in finish surface quality.
2.Excellent performance in machining titanium, stainless steel and high temperature alloys.

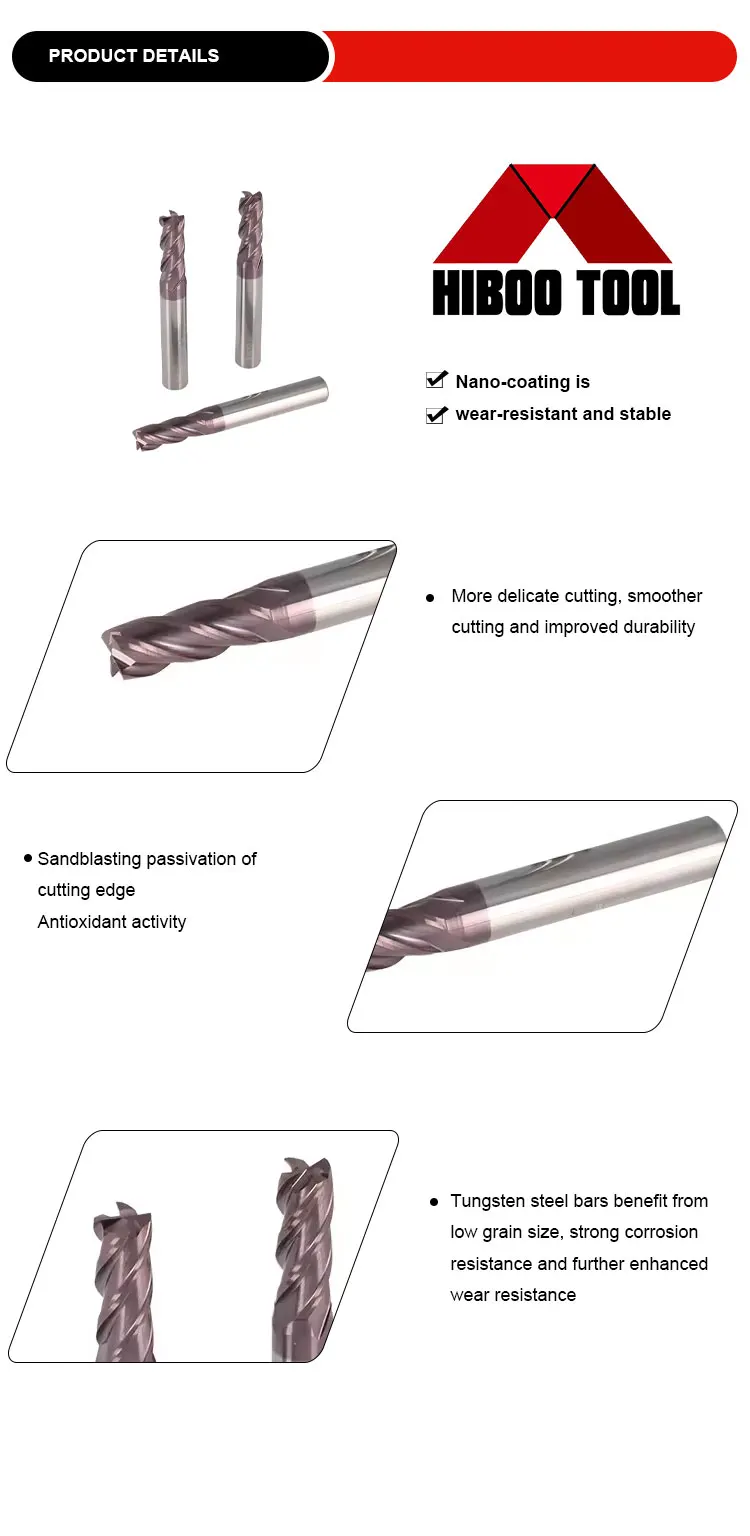

3.The coating provides longer tool-life or increased cutting-values.
4.Suitable for all types of steel or metal.
Cemented carbide is a hard material used extensively as cutting tool material, as well as other industrial applications. It
consists of fine particles of carbide cemented into a composite by a binder metal.
Mining and tunneling cutting tools are most often fitted with Cemented Carbide tips, the button bits.
2.Excellent performance in machining titanium, stainless steel and high temperature alloys.
3.The coating provides longer tool-life or increased cutting-values.
4.Suitable for all types of steel or metal.
Cemented carbide is a hard material used extensively as cutting tool material, as well as other industrial applications. It
consists of fine particles of carbide cemented into a composite by a binder metal.
Mining and tunneling cutting tools are most often fitted with Cemented Carbide tips, the button bits.
Order No | R Dia | Length of Cut | Shank Dia | O.A.L |
R0.5*2*4D*50L | R0.5 | 2 | 4 | 50 |
R0.75*3*4D*50L | R0.75 | 3 | 4 | 50 |
R1.0*4*4D*50L | R1.0 | 4 | 4 | 50 |
R1.25*5*4D*50L | R1.25 | 5 | 4 | 50 |
R1.5*6*4D*50L | R1.5 | 6 | 4 | 50 |
R1.5*6*3D*50L | R1.5 | 6 | 3 | 50 |
R1.75*7*4D*50L | R1.75 | 7 | 4 | 50 |
R2.0*8*4D*50L | R2.0 | 8 | 4 | 50 |
R2.5*10*6D*50L | R2.5 | 10 | 6 | 50 |
R2.5*10*5D*50L | R2.5 | 10 | 5 | 50 |
R3.0*12*6D*50L | R3.0 | 12 | 6 | 50 |
R4*16*8D*60L | R4 | 16 | 8 | 60 |
R5*20*10D*75L | R5 | 20 | 10 | 75 |
R6*24*12D*75L | R6 | 24 | 12 | 75 |
R7*28*14D*100L | R7 | 28 | 14 | 100 |
R8*32*16D*100L | R8 | 32 | 16 | 100 |
R9*36*18D*100L | R9 | 36 | 18 | 100 |
R10*40*20D*100L | R10 | 40 | 20 | 100 |
