Top brand 20 50t/h double tooth roller stone crusher smooth roller crusher for sale
- Category: >>>
- Supplier: Zhengzhou Sinoma Engineering Technology Co. LtdZhengzhou Ltd
Share on (1601233204819):
Product Overview
Description
Product Description
Double Roller crusher is suitable for mining, metallurgy, building materials, chemical industry, refractory materials and other industries. It is used for crushing medium hardness and high hardness materials. It can perform fine or ultra-fine crushing operations on various Ore, rock, coke, coal mine, tailings, slag, cinder, cement clinker, ceramic raw materials, slag, refractory materials, chemical raw materials, etc.

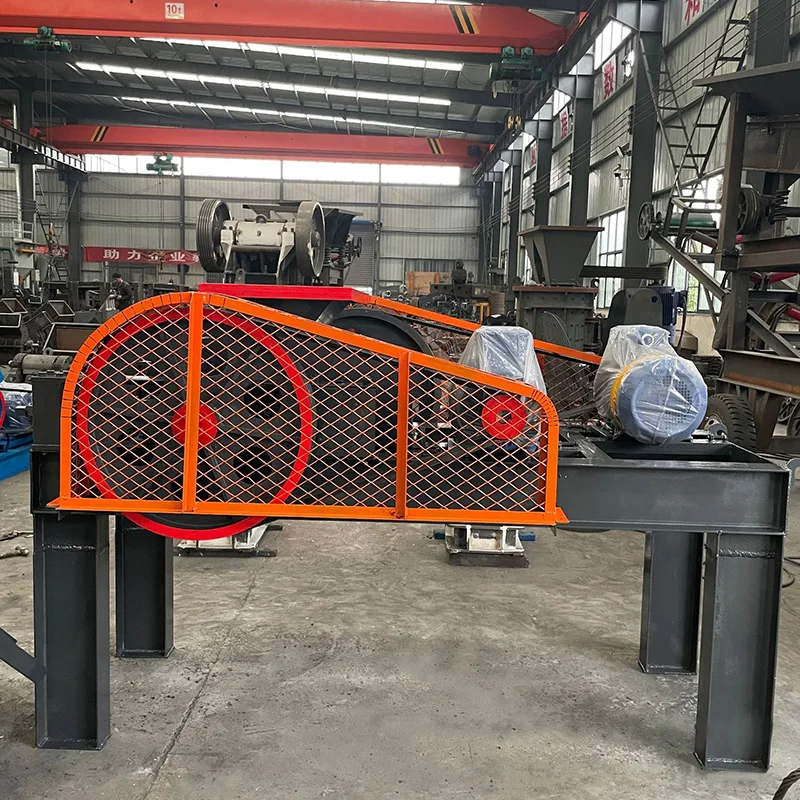

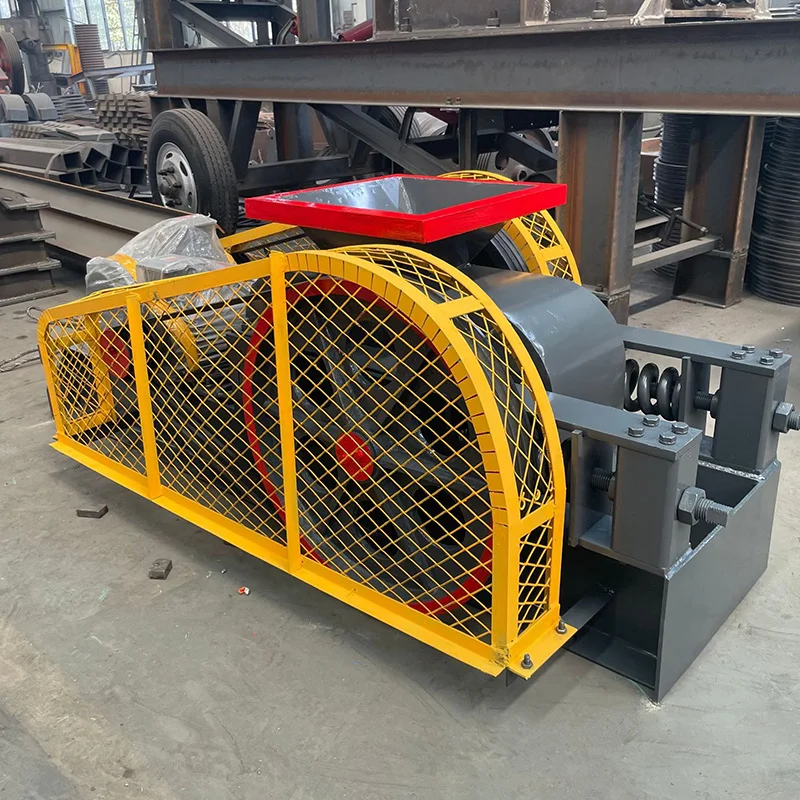

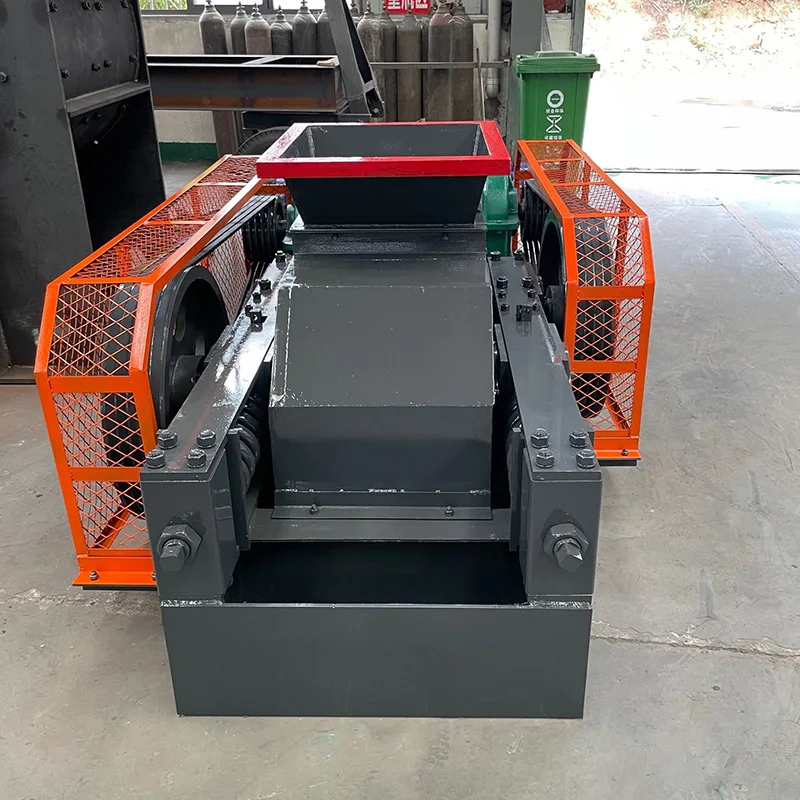

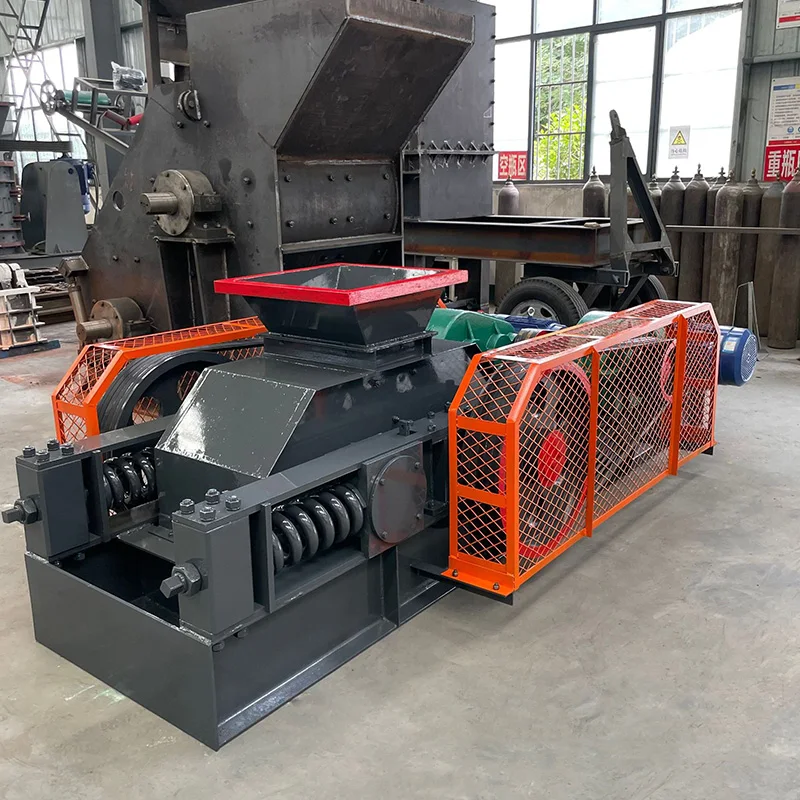

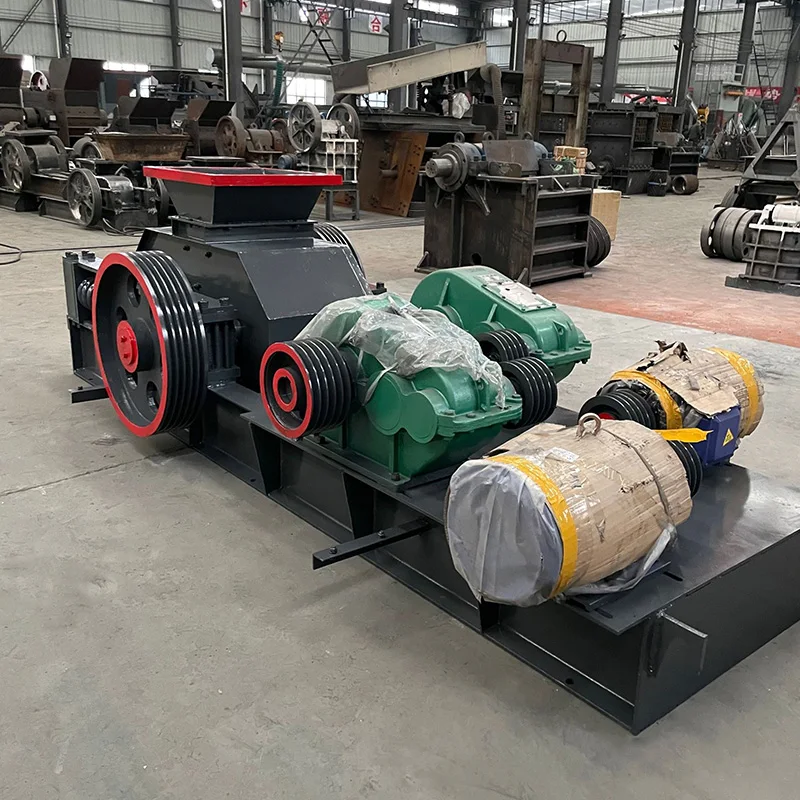

Details Images

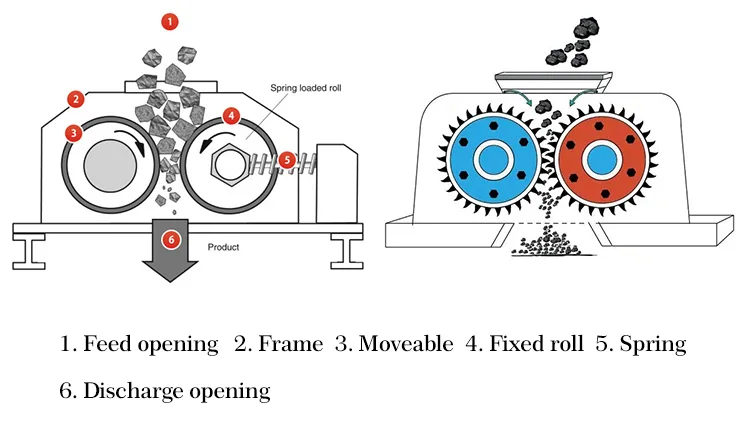

Working principle: Double-roller crusher is driven by an electric motor through a triangle belt to rotate two rollers in opposite directions to crush material.The material falls into the V-shaped crushing cavity between the two crushing rollers, and is affected by the squeezing force or shearing force of the two crushing rollers rotating relative to each other. Under extrusion, shearing and grinding, the material is broken into the required size and then discharged from the discharge port.
Features:
1. Simple structure and few parts, easy to maintain.
2. Large production capacity. From 10tph to 200tph, depending on your need.
3. The crushing roller is made by super wear-resistant alloy and has a longer service life.
4. The equipment operates reliably, with low failure rate, low noise.
5. The discharge size of the crushing roller can be adjusted to change the crushing particle size and production capacity.
6. When metal materials enter machine, the spring or hydraulic system can be automatically protect the machine.
7. The crushing rollers run at differential speeds and clean each other to prevent the material sticking together.
Product Paramenters
Model | Roller (mm) | Input size (mm) | Output size (mm) | Capacity (t/h) | Motor power (kw) |
2GP400*250 | 400*250 | ≤30 | ≤1-8 | 5-10 | 5.5*2 |
2GP610*400 | 610*400 | ≤35 | ≤2-15 | 13-35 | 15*2 |
2GP750*500 | 750*500 | ≤40 | ≤2-15 | 15-40 | 18.5*2 |
2GP800*600 | 800*600 | ≤50 | ≤2-20 | 20-50 | 22*2 |
2GP800*800 | 800*800 | ≤55 | ≤3-20 | 20-65 | 30*2 |
2GP1000*800 | 1000*800 | ≤60 | ≤3-25 | 30-70 | 37*2 |
Application Areas&Materials
Application:
Iron ore, rock, coke, coal, copper ore, non-ferrous metal ore, granite, limestone, quartz stone, sandstone, pebbles, basalt, sandstone, marble, cement clinker, slag, ceramic raw materials, refractory materials, chemical raw materials,etc.
Packing & Delivery
Company Profile
Zhengzhou Sinoma Engineering Technology Co., Ltd. is a large-scale equipment manufacturer that integrates researching & development, production and sales together. Our equipment includes stone crusher, grinding mill machine, VSI sand maker, vibrating screen, ball-mill and cement mill and is widely used in building,mining, cement making, construction area, etc. We are the largest EPC supplier for new aggregate production-line in China.
FAQ
1. What is your payment method?
30% TT in advance, and the rest amount to be paid before goods leave factory by T/T. The other payment methods can also be discussed with our sales manager.
2. How is the device packaged and shipped?
The package is suitable for both land and sea. We can also choose a special package depending on your needs.
3. How long is the production time?
7-10 days for the stock, 15-30 days for immediately production.
4. How long is the warranty? Does your company supply the spare parts?
One year. We supply spare parts for you with lowest price.
5. If I need the complete crushing plant, can you help us to build it?
Yes, we can help you set up a complete production line and give you the best professional design. We had already build many big quarry projects in China & Overseas.
6. What can you buy from us?
Jaw Crusher/Cone Crusher/Vibrating Screen/Sand Making Machine/Mobile Stone Crusher Plant/Vibrating Feeder/Fine Sand Recovery Machine/ Sand Washer Machine/Impact Crusher/Vertical Shaft Impact Crusher/Hammer Crusher/Belt Conveyor/Stone Crushing Plant/Mobile Stone Crusher/Cement making machine/Rotary Kiln /Concrete Mixing Station
30% TT in advance, and the rest amount to be paid before goods leave factory by T/T. The other payment methods can also be discussed with our sales manager.
2. How is the device packaged and shipped?
The package is suitable for both land and sea. We can also choose a special package depending on your needs.
3. How long is the production time?
7-10 days for the stock, 15-30 days for immediately production.
4. How long is the warranty? Does your company supply the spare parts?
One year. We supply spare parts for you with lowest price.
5. If I need the complete crushing plant, can you help us to build it?
Yes, we can help you set up a complete production line and give you the best professional design. We had already build many big quarry projects in China & Overseas.
6. What can you buy from us?
Jaw Crusher/Cone Crusher/Vibrating Screen/Sand Making Machine/Mobile Stone Crusher Plant/Vibrating Feeder/Fine Sand Recovery Machine/ Sand Washer Machine/Impact Crusher/Vertical Shaft Impact Crusher/Hammer Crusher/Belt Conveyor/Stone Crushing Plant/Mobile Stone Crusher/Cement making machine/Rotary Kiln /Concrete Mixing Station
