Sand vibrating screen separator / Roller Screen / Sawdust screening machine
Product Description
Working Principle

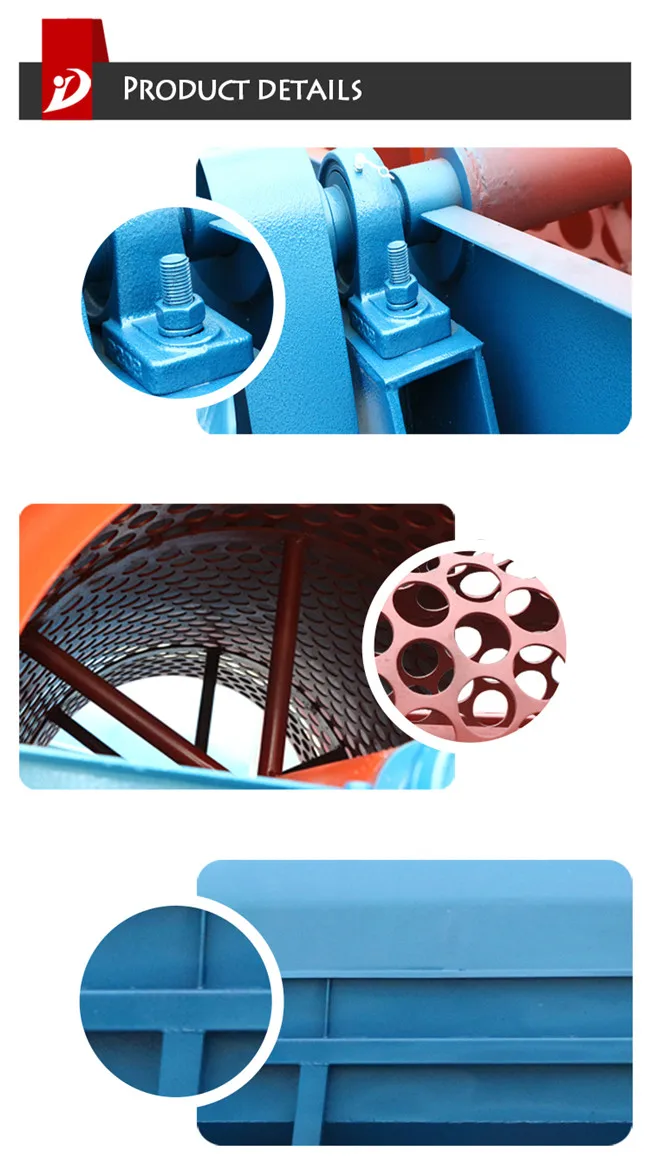

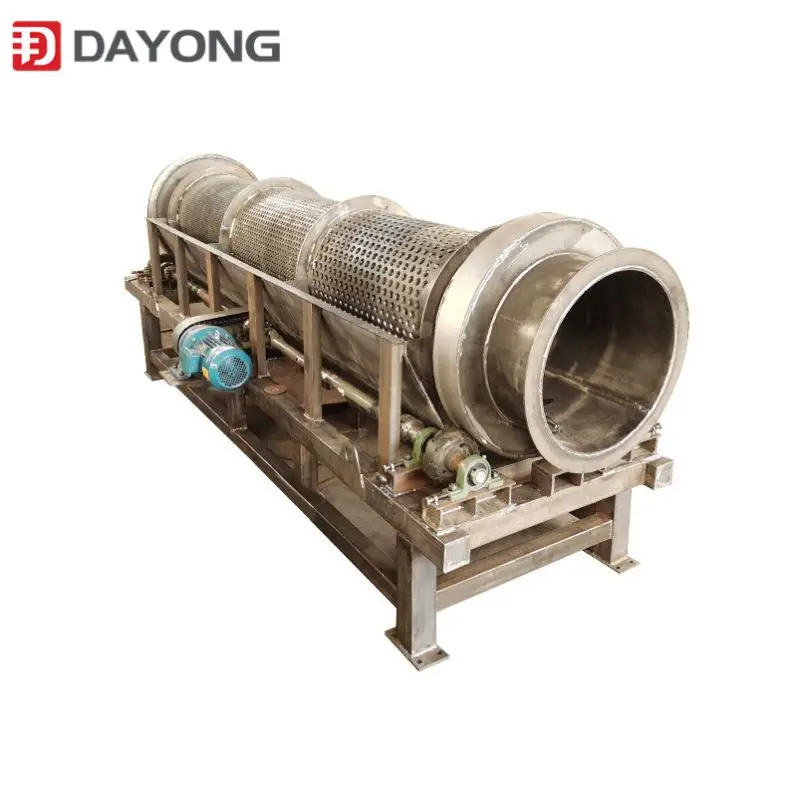

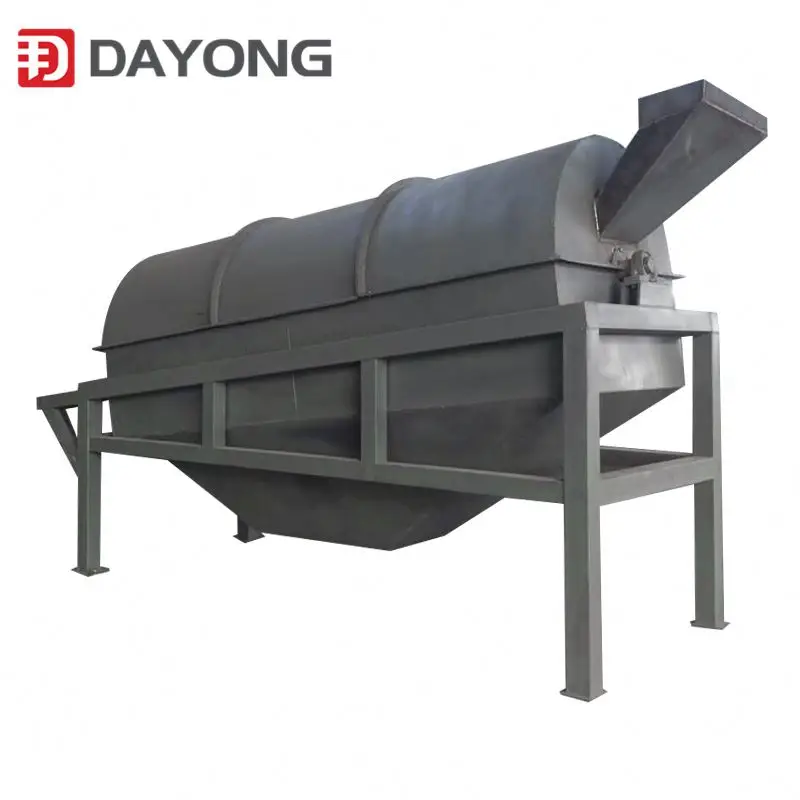

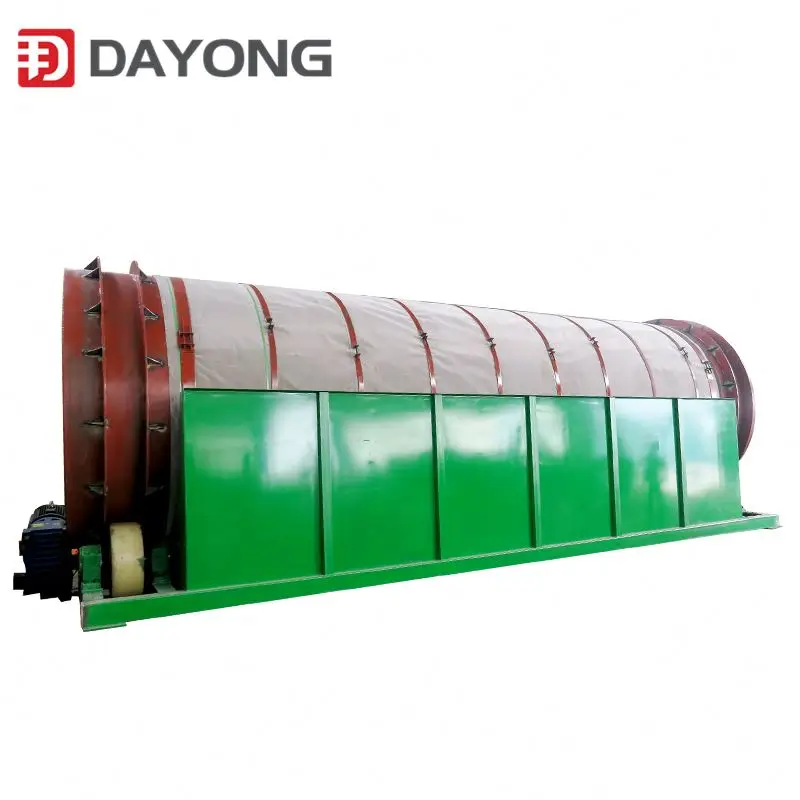

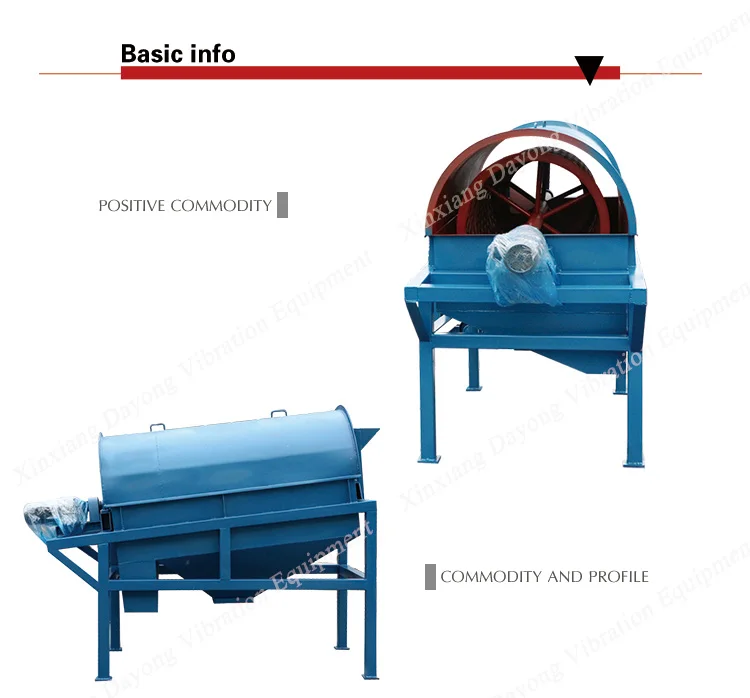

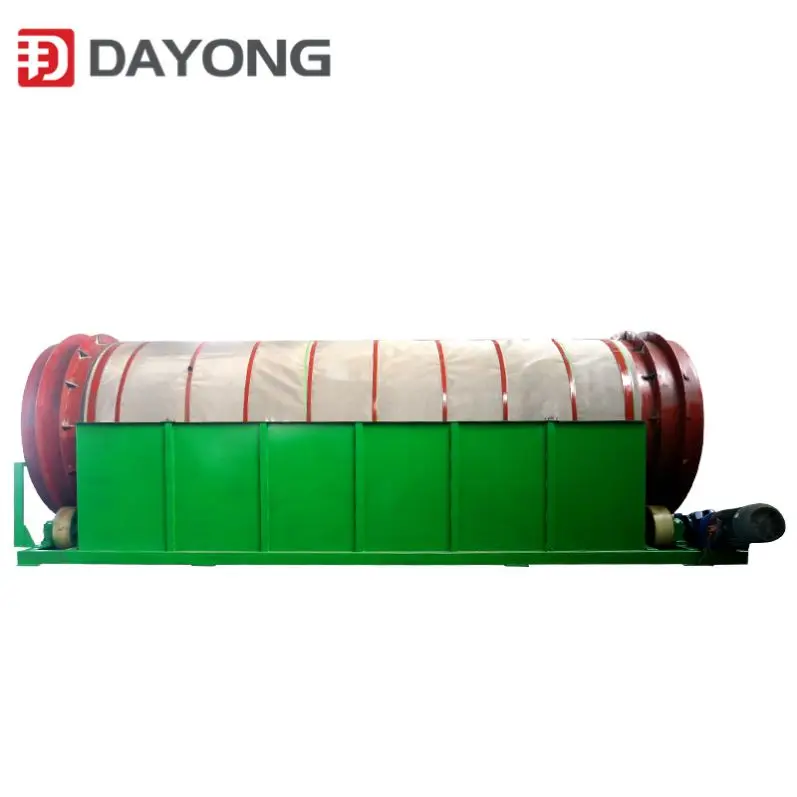

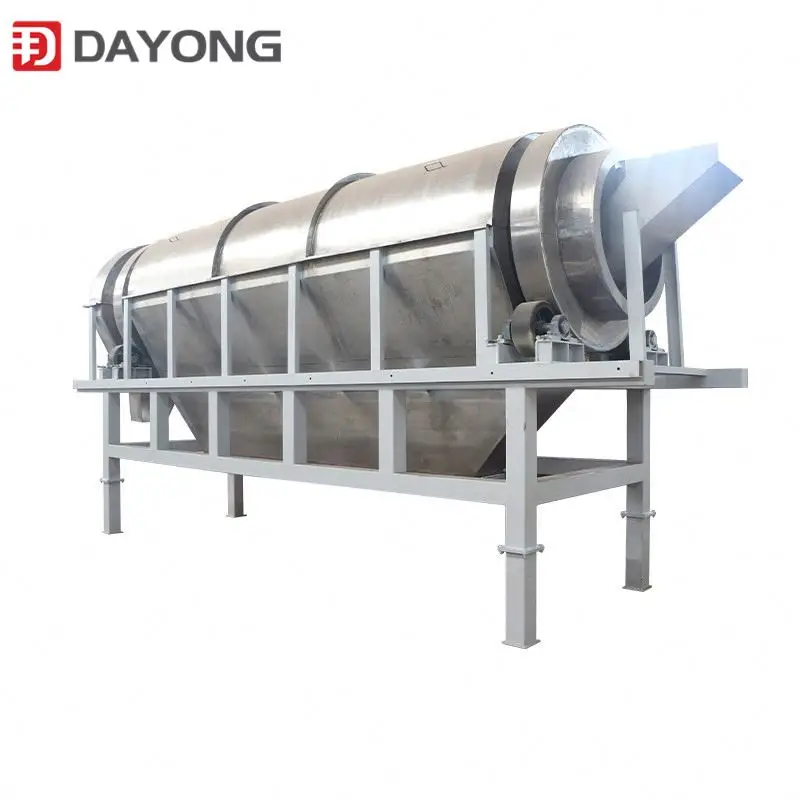

The granite trommel screen components are round drum, framework, funnel, reducer and motor.On the one hand with the rotating drum, the materials were screened after the broken materials put into the drum, by the centrifugal force of the rotating drum to separate materials. On the other hand, large granule materials for ward flow along the slope of roller, they have been gradually weeded out when it through different meshes of screen,different sizes of material falling into respective funnels after screening, then moved out by artificial or move down to end product heap.
1.It is fully-enclosed design and all parts are stainless steel 304, which meet the demanding of medicine and health care
2.The rubber ring is mounted between the layers,which is locked with fastening belt outside
3.In achieving high precision and high mesh screening at the same time, control of a narrow size range.Quickly change the screen in less than 5 minutes
4.Beam is connected to the main body with bolts, has the feature of high strength
5.It can help to aerate product to improve mixing, conveying times.
2.The rubber ring is mounted between the layers,which is locked with fastening belt outside
3.In achieving high precision and high mesh screening at the same time, control of a narrow size range.Quickly change the screen in less than 5 minutes
4.Beam is connected to the main body with bolts, has the feature of high strength
5.It can help to aerate product to improve mixing, conveying times.
Using Scope
1.Quarry industry: suitable for screening and classifying gravel, clay, mountain meal, sand, etc.
2.Coal Industry: suitable for screening and classifying lump coal, coal dust, coal washing, etc.
3.Chemical industry: fertilizer industry etc.
4.Mineral-selecting Industry: suitable for grading and classifying lump, powder substance, etc.
5.Metallurgy, construction, building materials, abrasives, and other industries.
Model | Trommel Dia. | Trommel Length | Screen Segment No. | Aperture Size | Power | Inclined Angle | Handling Capacity |
DYT600 | φ600 | 2-4m | 1-2 | 5-35mm | 2.2-3kw | 0-7° | 1-5m³/h |
DYT800 | φ800 | 2-5m | 1-3 | 5-40mm | 3-5.5kw | 0-7° | 2-8m³/h |
DYT1000 | φ1000 | 2-6m | 1-4 | 5-50mm | 4-7.5kw | 0-7° | 5-10m³/h |
DYT1200 | φ1200 | 3-8m | 1-4 | 5-60mm | 5.5-11kw | 0-7° | 8-15m³/h |
DYT1500 | φ1500 | 3-10m | 1-5 | 5-60mm | 7.5-15kw | 0-7° | 20-50m³/h |
DYT2000 | φ2000 | 4-12m | 1-5 | 5-75mm | 7.5-18.5kw | 0-7° | 50-80m³/h |
DYT2500 | φ2500 | 5-12m | 1-6 | 5-90mm | 11-18.5kw | 0-7° | 80-150m³/h |
Company Information
Packaging & Shipping
Available Options:
- Voltage:110v,220V,230v,380V,415v,440v
- structure material:all carbon steel Q205;Contact part stainlee steel;all stainless steel 304/316L
- Custom paint color:Green,blue,white,orange or other
- Increase or decrease parts:as your request
Our Services
Not only Sell Machines, But also Build Solutions.
- Design the equipment according to your technical request.
- Providing solutions according to the real situation.
- If needed, relevant technical documents would be available.
- Payment terms is flexible.
- Delivery on time
- Warranty: 12 months.
- 13 years engaged in machinery production
- 65 experienced R & D personnel to provide technical guide
- Certification supporting
- Standard production workshop
- Professional sales team
FAQ
1.How to choose the machine?
a: Customers who are familiar with technical performance and parameters can directly order.
Note: You had better send us the pictures you have ever used.
b: Customers who need us to choose the models, please follow the information, tell us:
- Name and feature of the raw material?
- Aim of using: get rid of impurity, filtration, grading
- Handling capacity: kg /h, L/h
- The raw material size: (mesh or mm)
- How many final materials you want, or how many layer you need?
Note: You had better send us the relevant pictures about the details.
2.How many kinds of material are supported?
- All stainless steel (304, 316L)
- All carbon steel Q235A
- Contact part Stainless steel.
3.Is it special requirement available?
Yes, the equipment could be designed according to customer's using aim or special requirements.
Hot Selling Products
 |  |  |

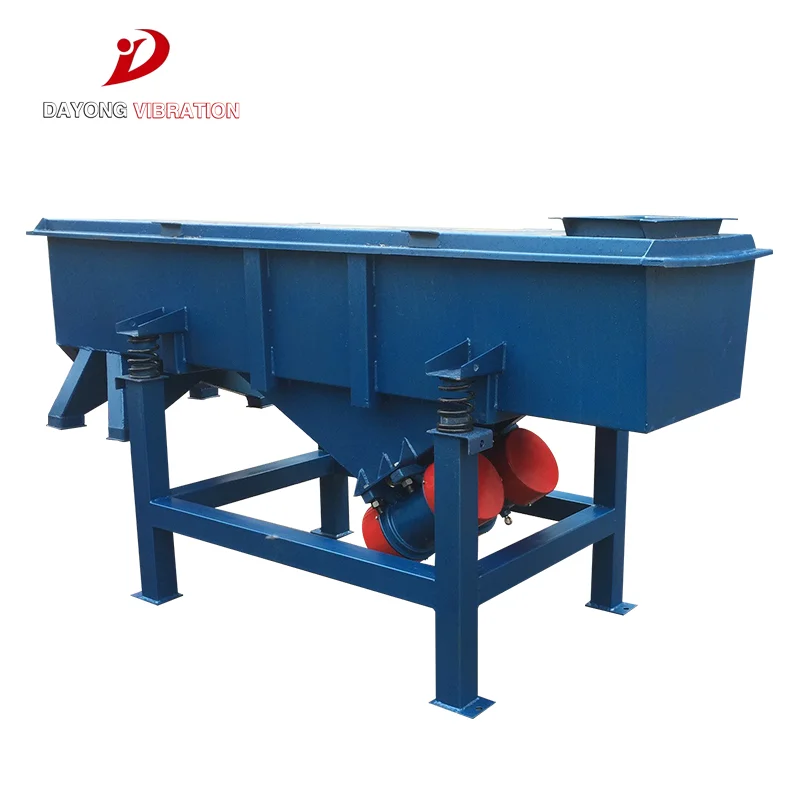

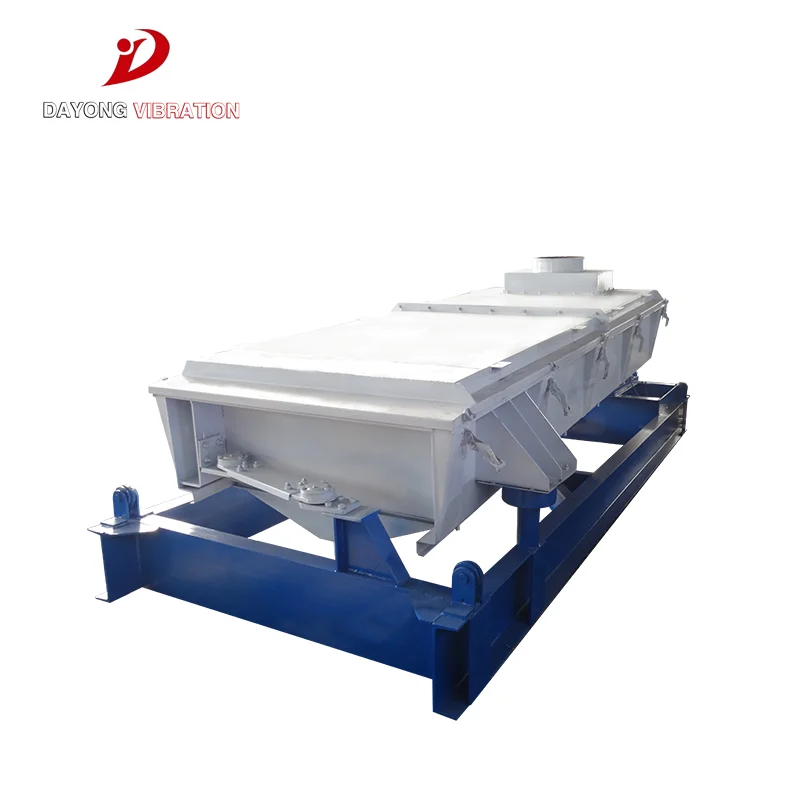

| Linear Vibrating Screen | Linear Vibrating Screen | Gyratory Vibrating Screen |
