Automatic Double Loop Wire Punching Binding Machine For Calendar Notebook With High Speed
Automatic Double Loop Wire Punching Binding Machine For Calendar Notebook With High Speed
Automatic Double Loop Wire Punching Binding Machine For Calendar Notebook With High Speed
Automatic Double Loop Wire Punching Binding Machine For Calendar Notebook With High Speed
Automatic Double Loop Wire Punching Binding Machine For Calendar Notebook With High Speed
Automatic Double Loop Wire Punching Binding Machine For Calendar Notebook With High Speed
Automatic Double Loop Wire Punching Binding Machine For Calendar Notebook With High Speed

Automatic Double Loop Wire Punching Binding Machine For Calendar Notebook With High Speed

Share on (1601233407780):


Price:$30,000.00 - $32,000.00

Quantity:


Product Overview

Description



Product Description

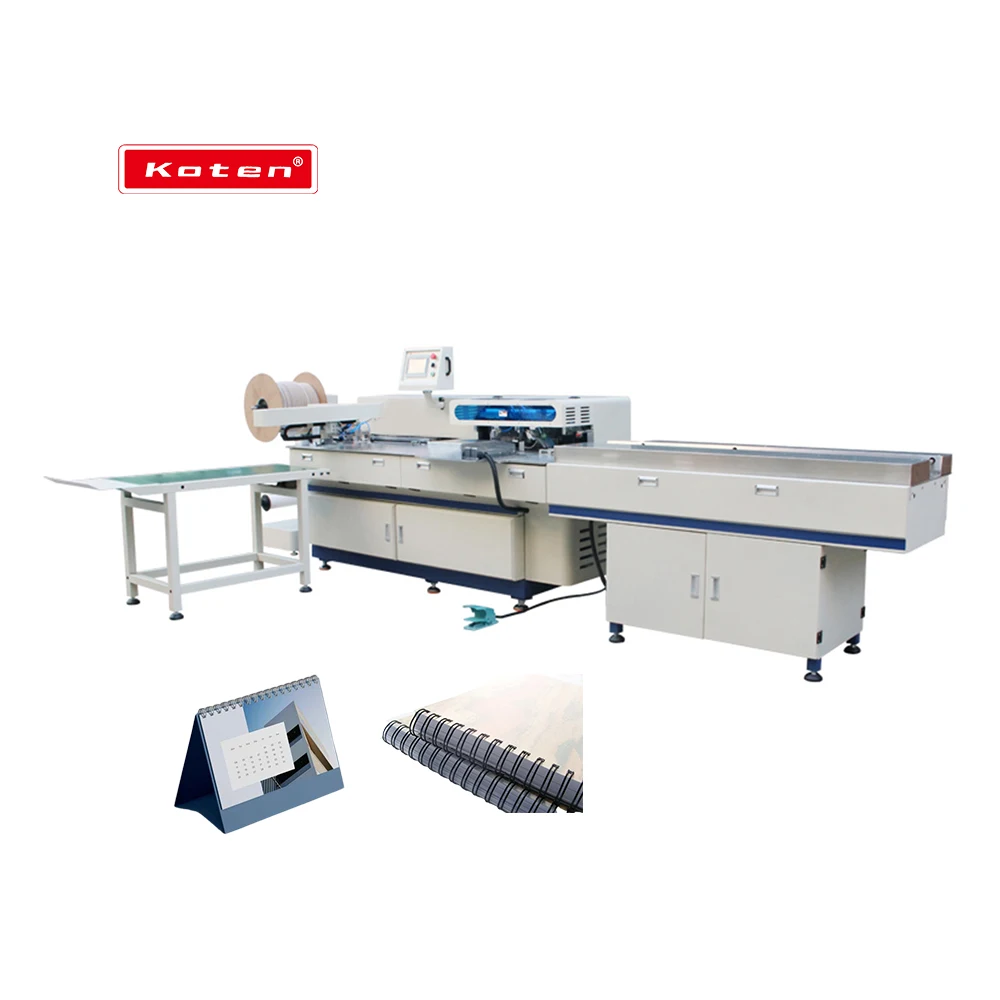

Automatic Punching And Binding Machine For Double Spiral Book
HB-520PB
The latest automatic punching and binding machine for double spiral book,the only machine in China that can complete punching,forming,binding and collecting together.It is also the only machine that can solve the punching and binding of the cover larger than the inner page.The machine has at least ten items invention patents,which can improve the efficiency above 80%.

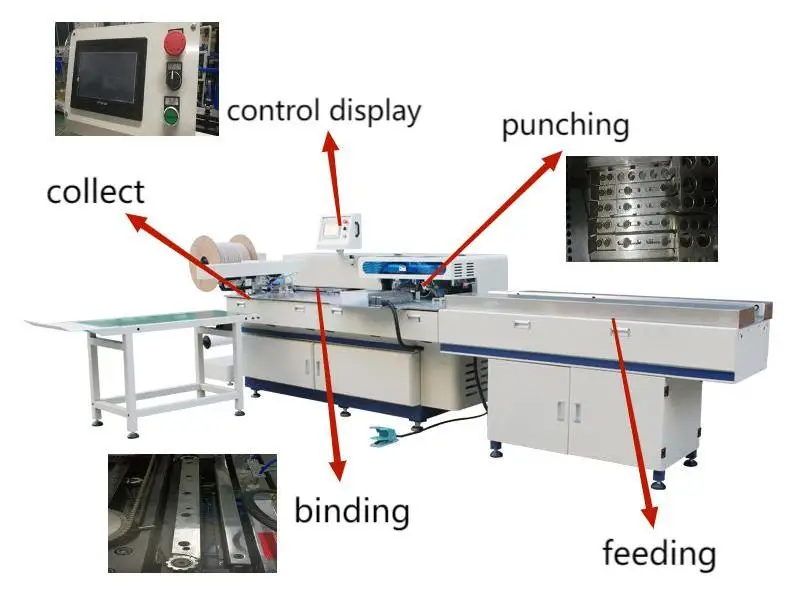

Details Images




Main Parameters


Working Speed
800-2000 pcs/hour
Thickness of punch for one time
1mm-6mm
Max punching thickness
13mm(special product:16mm)
Max punching times for one book
5times
Max book size
510mm*800mm
Min book size
100mm*140mm
Max book size for feed conveyor
420mm*420mm
Size of double loop wire
1/4-5/8
Pitch
2:1,3:1
Size of paper for binding
100mm-520mm
Air compressor(customer prepare)
3KW
Air pressure
7-8Bar
Machine size
4800mm*2600mm*1600mm
Weight
2000kg
Power
382V/50HZ/60HZ/4.5KW


Configuration list


Name
Brand
Touching Screen
WEINVIEW(TaiWan China)
PLC
Mitsubishi(Japan)/Delta(Taiwan China)
Power Protection Switch
CHNT(China)
Stepping Motor
Leadshine(China)
Solid State Relay
FOTEK(TaiWan China)
Wwitching Power Supply
China
Cylinder
AirTAC（TaiWan China）
Stepper Motor Driver
Leadshine（China）
Phototube
TaiWan China
Photoelectric Sensor
FOTEK(TaiWan China)
Servo
Delta(Taiwan China)
Motor
GPG(China)
Linear Motion Guide
HIWIN（TaiWan China）
Electric Appliance
CHNT(China)


Application
