Rock crusher stone crushing machine to make sand and gravel vertical compound hammer crusher
Rock crusher stone crushing machine to make sand and gravel vertical compound hammer crusher
Rock crusher stone crushing machine to make sand and gravel vertical compound hammer crusher
Rock crusher stone crushing machine to make sand and gravel vertical compound hammer crusher
Rock crusher stone crushing machine to make sand and gravel vertical compound hammer crusher
Rock crusher stone crushing machine to make sand and gravel vertical compound hammer crusher
Rock crusher stone crushing machine to make sand and gravel vertical compound hammer crusher

Rock crusher stone crushing machine to make sand and gravel vertical compound hammer crusher

Share on (1601233549336):


Price:$6,999.00-7,999.00

Quantity:


Product Overview

Description


Products Description

Vertical compound crusher (sand crusher), is one of the common equipment in crushing plant and sand making plant. it can be widely used in crushing raw materials, clinker of cement plant, also available in medium hardness materials fine crushing of dolomite, lead-zinc mine, serpentine, blast furnace slag, coal gangue, phosphate rock and so on.
Application Areas&Materials
Product Advantages
1.Simple structure low operation cost. using the principle of stone strike stone , smaller wear.
2.High crushing ratio, low energy consumption.
3.It can crush material with high moisture content, humidity can reach 8%.
5.Working noise is less than 75 db, less dust pollution.
6.Suitable for breaking medium hard, especially like clay, limestone and gypsum
Working Principle
Materials fall into the high-speed rotation impeller from the above of machine, under the action of high-speed centrifugal force, have high-speed impact with another umbrella form materials which flow around the impeller, after they attack each other, then discharged from the bottom, it forms close-circuit and with many times circulation, it can achieve the required product size by screening equipment controlling.

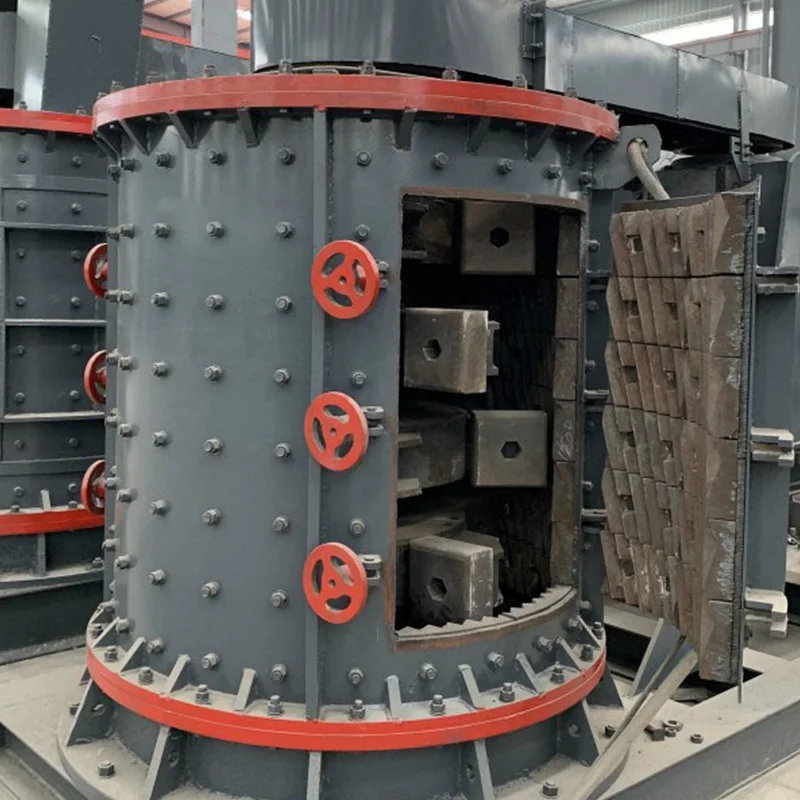

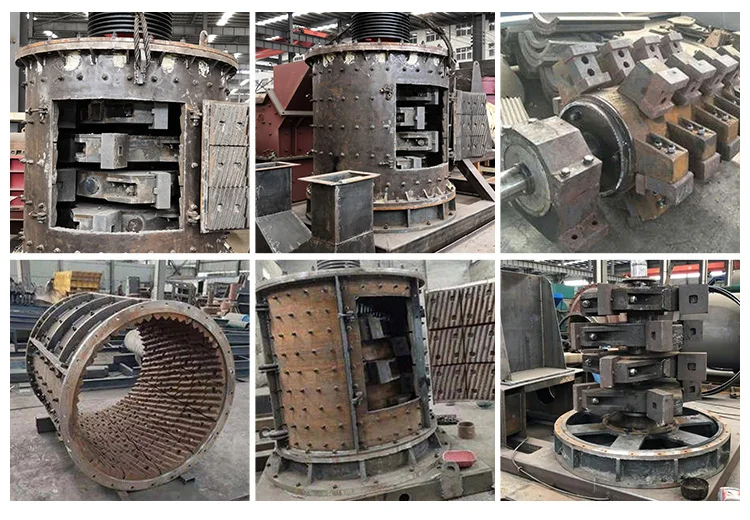

Spare Parts
Upper Cover Liner Hammer Discharging Mouth Hammer Disk Rask Access Dooer
Rotor Main case
Product Paramenters
Model
PFL-800
PFL-1000
PFL-1250
PFL-1500
PFL-1750
Feed Grain(mm)
100
120
150
180
200
Material-in Size (mm)
0-5
0-5
0-5
0-5
0-5
Trening Capacity(t/h)
10-20
20-40
40-70
70-100
130-190
Motor Power (kw)
22
45-55
75
90-110
132-160
Maine Shaft Speed(r/min)
934
769
530
495
424
Overall Dimension(mm)
2100*1200*1700
2600*1400*1900
2800*1600*2100
3100*1900*2200
3710*2360*2390
Weight(t)
2.3
4.5
6.2
8.3
12

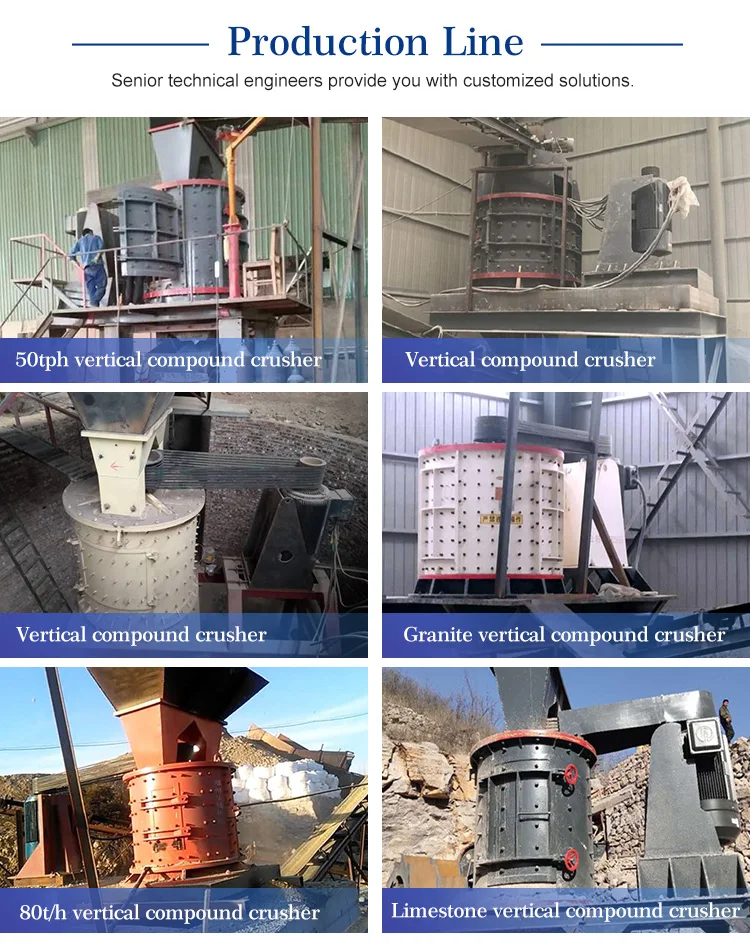

Customer Site
Company Profile
FAQ
Q1. Installation
A: We’ll send the technicians to help with the installment in site, if needed, and you need take all the charges.

Q2. If you want us recommend a suitable type and best offer for you ,please let us know as follows:
A 1). what is your rawmaterial?and capaticy(/h)
2).what is the max size of the raw material (mm/inch)?
3).what is the required output size?

Q3. How long is the warranty? Does your company supply related spare parts?
A: The crusher equipment is warranted for one year.
And we provide spare parts at reasonable price.

Q4: How long is the delivery time?
A: Generally it takes one week if the goods are in stock. Otherwise it needs 15-20 days, and it also depends on the ordered quantity.
