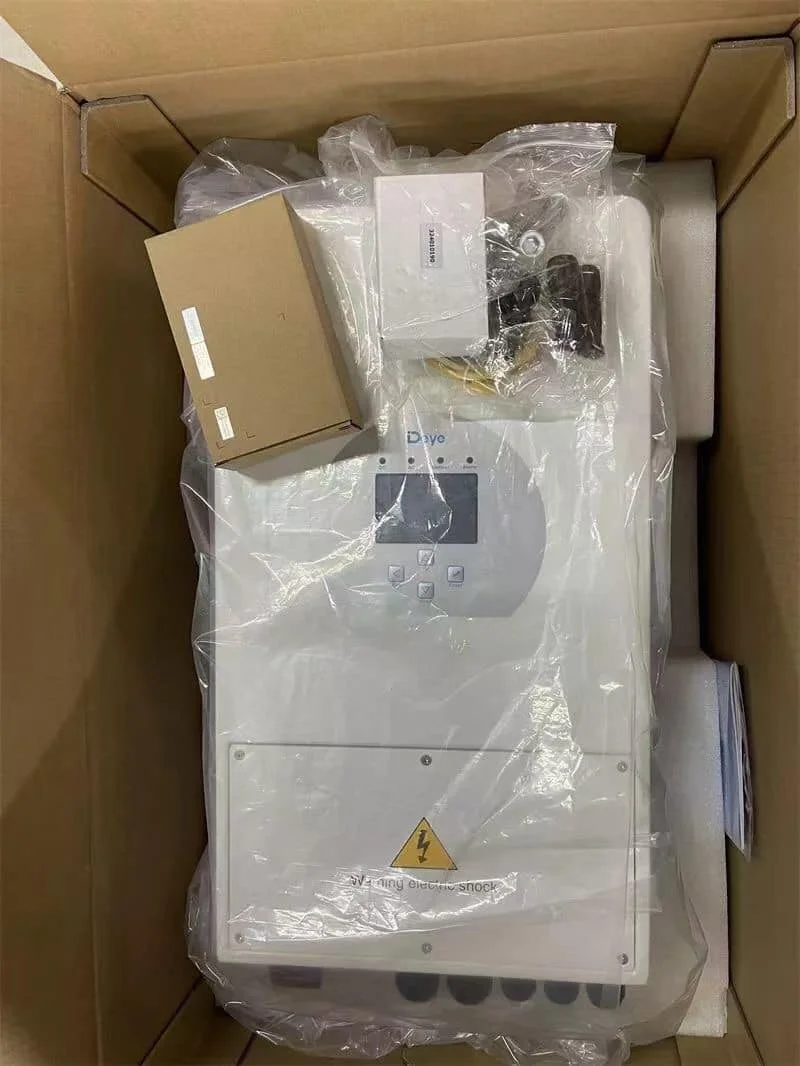

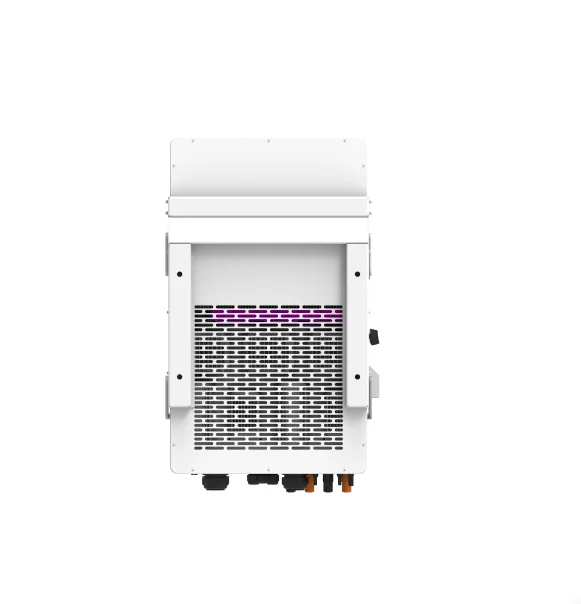

Best Price High Voltage Deye 30KW 40KW 50KW Hybrid Inverter SUN 30K SG01HP3 EU BM3 HV Solar System Inverter
- Category: >>>
- Supplier: Anhui Wingo Technology Co. Ltd.
Share on (1601233629377):
Product Overview
Description
Product Description
Specification
Function description | Specifications | ||
Power input | Input voltage (V) | AC 3PH 380V(-15%)~440V(+10%)Rated voltage, 380V | |
AC 3PH 520V(-15%)~690V(+10%) voltage, 660V | |||
Input Current(A) | Please refer to "Product Ratings" | ||
input frequency(Hz) | 50Hz or 60Hz,allowable range 47~63Hz | ||
Power output | Output voltage(V) | 0~input voltage | |
Output current(A) | Please refer to "Product Ratings" | ||
Output Power(kW) | Please refer to "Product Ratings" | ||
Output frequency(Hz) | 0~400Hz | ||
Technical control performance | Control method | Space voltage vector control mode, without PG vector control mode, with PG vector control mode | |
Motor type | Asynchronous motor, permanent magnet synchronous motor | ||
speed ratio | Asynchronous machine 1:200(SVC), synchronous machine 1:20(SVC), 1:1000(VC) | ||
Speed control accuracy | ±0.2% (without PG vector control), ±0.02% (with PG vector control) | ||
speed fluctuation | ± 0.3% (without PG vector control) | ||
Torque Response | <20ms (without PG vector control), <10ms (with PG vector control) | ||
Torque control accuracy | 10% (without PG vector control), 5% (with PG vector control) | ||
starting torque | Asynchronous motor, 0.25Hz/150% (without PG vector control) | ||
Synchronous machine, 2.5 Hz/150% (without PG vector control) | |||
0Hz/200% | |||
overload capacity | 150% rated current for 1 minute, 180% rated current for 10 seconds, 200% rated current for 1 second | ||
Running control performance | Frequency setting method | Digital setting, analog setting, pulse frequency setting, multi-speed running setting, simple PLC setting, PID setting, MODBUS communication setting, PROFIBUS communication setting, etc. | |
Realize set combination and set channel switching | |||
Automatic voltage adjustment function | When the grid voltage changes, it can automatically keep the output voltage constant | ||
Failsafe function | Provide more than 30 kinds of fault protection functions: overcurrent, overvoltage, undervoltage, overtemperature, phase loss, overload and other protection functions | ||
Speed tracking restart function | Realize shock-free smooth start of rotating motors | ||
Note: 4kW (inclusive) and above have this function | |||
Peripheral interface | Terminal analog input resolution | not more than 20mV | |
Terminal switch input resolution | no more than 2ms | ||
analog input | 2 way,AI1:0~10V/0~20mA,AI2:-10~10V | ||
Analog output | 1way,AO1:0~10V /0~20mA | ||
digital input | 4 common inputs, maximum frequency 1kHz, internal impedance: 3.3kΩ | ||
2-channel high-speed input, maximum frequency 50kHz, support quadrature encoder input, with speed measurement function | |||
digital output | 11 high-speed pulse output, maximum frequency 50kHz | ||
-way Y terminal open collector output | |||
relay output | Two programmable relay outputs | ||
RO1A normally open, RO1B normally closed, RO1C common terminal | |||
RO2A normally open, RO2B normally closed, RO2C common terminal | |||
Contact capacity: 3A/AC250V, 1A/DC30V | |||
Extension ports | Three expansion interfaces: SLOT1, SLOT2, SLOT3 | ||
Expandable PG card, programmable expansion card, communication card, I/O card, etc. | |||
Other | Installation method | Support wall-mounted, floor-mounted, flange-mounted three ways | |
Operating ambient temperature | -10~50℃, use with derating above 40℃ | ||
Protection class | IP20 | ||
pollution level | 2stage | ||
cooling method | forced air cooling | ||
brake unit | 380V 37kW (inclusive) and below are built-in, 380V 45kW~110kW (inclusive) are optional built-in | ||
660V optional external | |||
EMC filter | 380V full range of products can meet IEC61800-3 C3 level requirements | ||
Optional external filter: meet IEC61800-3 C2 level requirements | |||
Packing & Delivery
Company Profile
Anhui Wingo Technology Co., Ltd. has set up two sole-funded companies in Heifei one Jointed Venture in Anhui province successively since 2020.Wingo is able to provide customers with annual capacity of 300MW solar cells,400MW solar cells modules and 60,000 sets of solar power systems.
FAQ
Are you a factory or a trading company?
We are the manufacturer of solar panel and storage battery. Such as inverter, brackets and accessories from our long term
partners. Full certificates with competitive price.
How about the delivery time?
Usually need 10-15 days to prepare. We will update the info for you during our production.
Can i install them by myself?
Each part has installation instructions, convenient installation.For products wire connection, considering security, we suggest you can find an electrician to help you.
What is the payment method?
We accept T/T bank, Western Union payment , Trade assurance.More than 10,000usd, which can pay 30% deposit in advance, pay 70% balance before shipping.
How about the after sales?
Damage in transit will be resolved according to the contract terms.
During the warranty period, if there is a problem with the product, our engineers will first propose a solution according to the specific situation. If the product still has a problem, it will be refunded or replaced for free.
Can we visit your factory?
Welcome to visit our factory to know more of each other.We will pick you up from airport or train port.
We are the manufacturer of solar panel and storage battery. Such as inverter, brackets and accessories from our long term
partners. Full certificates with competitive price.
How about the delivery time?
Usually need 10-15 days to prepare. We will update the info for you during our production.
Can i install them by myself?
Each part has installation instructions, convenient installation.For products wire connection, considering security, we suggest you can find an electrician to help you.
What is the payment method?
We accept T/T bank, Western Union payment , Trade assurance.More than 10,000usd, which can pay 30% deposit in advance, pay 70% balance before shipping.
How about the after sales?
Damage in transit will be resolved according to the contract terms.
During the warranty period, if there is a problem with the product, our engineers will first propose a solution according to the specific situation. If the product still has a problem, it will be refunded or replaced for free.
Can we visit your factory?
Welcome to visit our factory to know more of each other.We will pick you up from airport or train port.
