M driver 30kw 3 phase VFD MPPT Solar DC to AC Converter 22kw Submersible pump Inverter
- Category: >>>
- Supplier: Shenzhen M-Driver Technology Co. Ltd.Shenzhen Ltd.
Share on (1601233639832):
Product Overview
Description
900 series VFD
Product Description

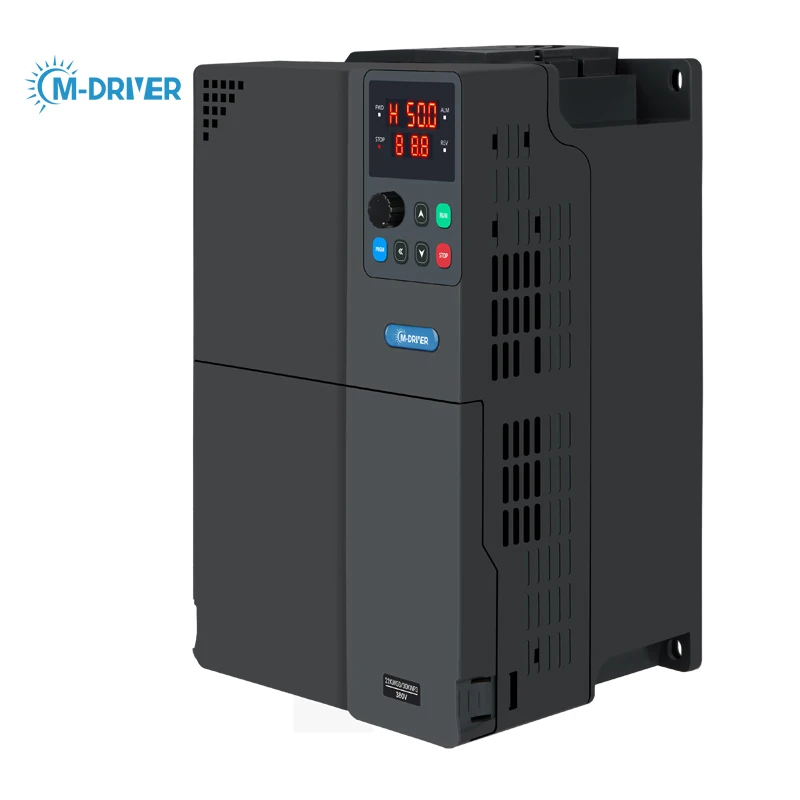

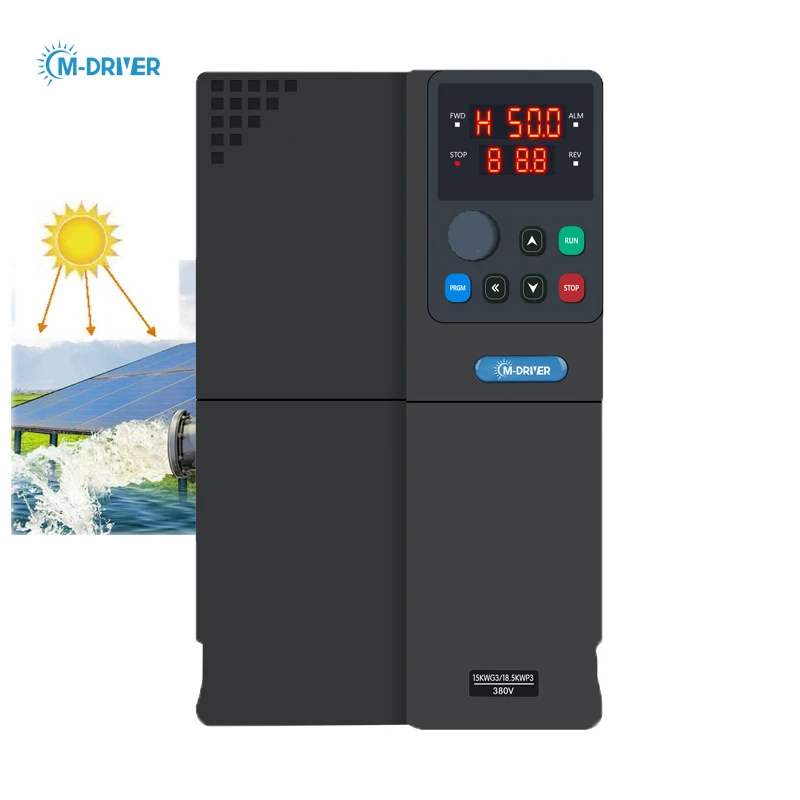

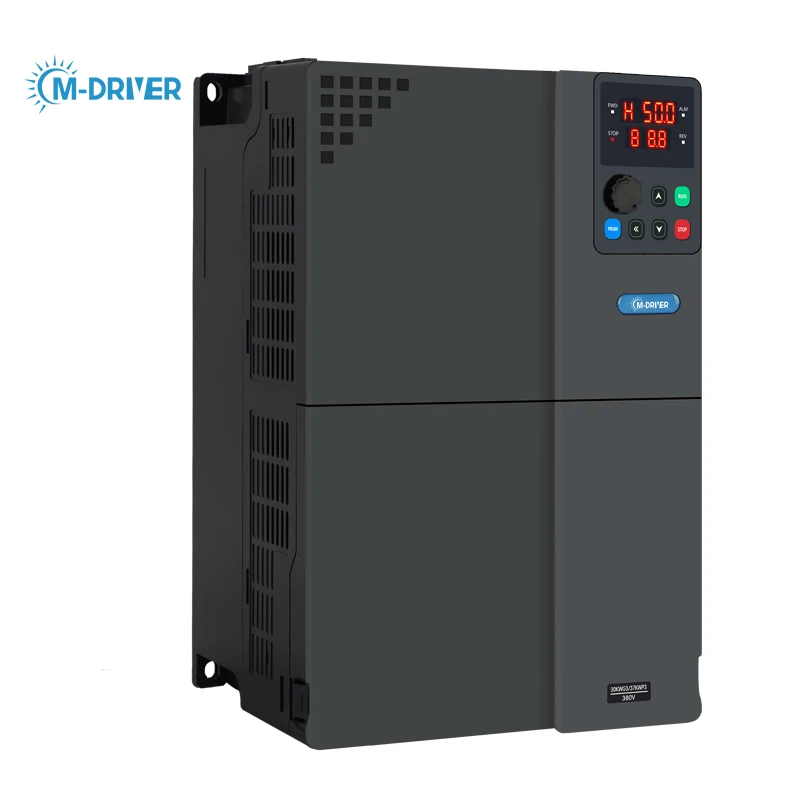

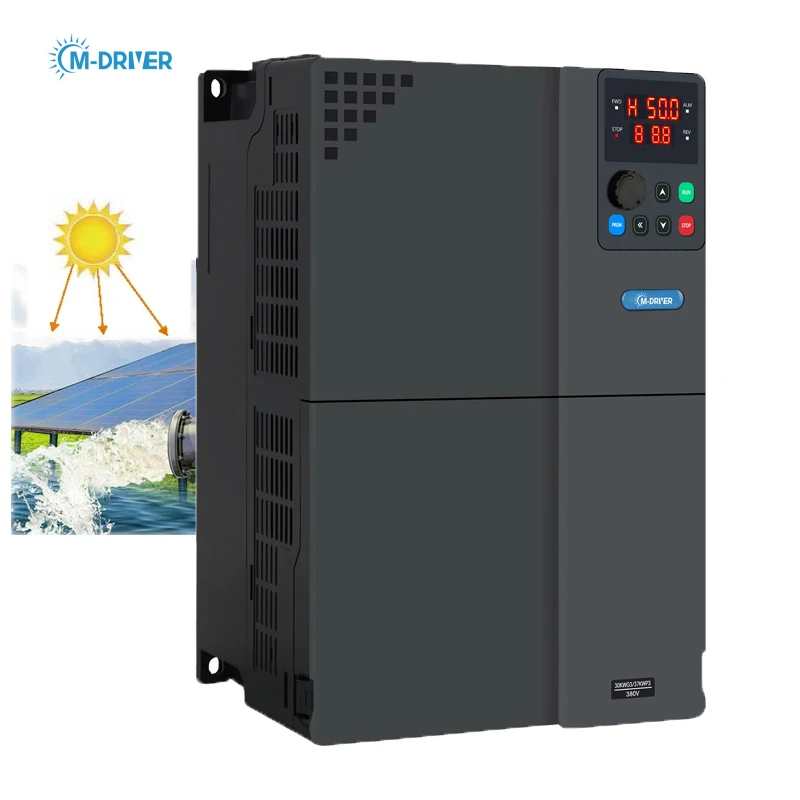

M-driver 30kw 3 phase VFD MPPT Solar DC to AC Converter 22kw Submersible pump Inverter
| Model | PV500-0300G3,PV500-0220G3 |

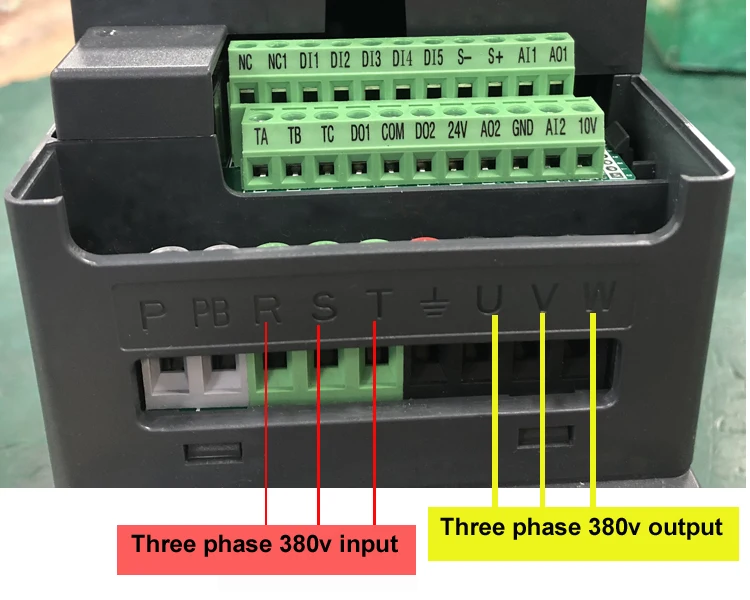

| Rated Voltage | 380vac/250vdc-800vdc |
| Output Frequency Range | 0-500hz |
| Control Mode | V/F Control,MPPT |
| Communication port | RS485 modbus |
| Vibration | Less than 5.9m/s |
| IP Level | IP20 |

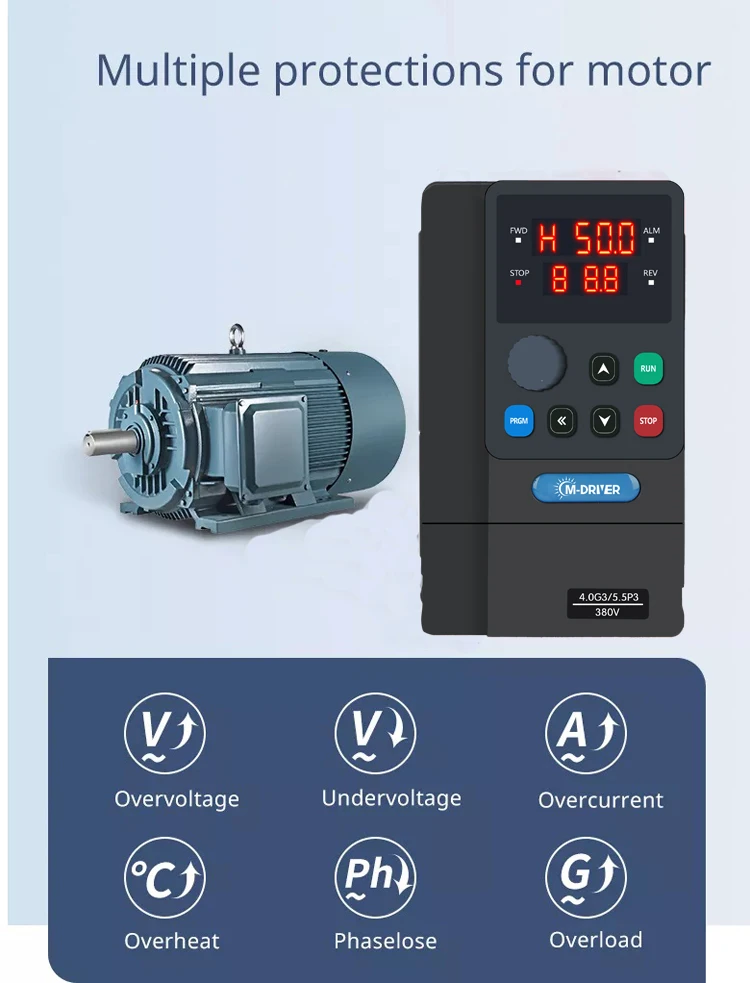

| Protection function | short circuit,phase loss,overcurrent,over voltage,under voltage,overheating,overload,etc |
| Item | Specifications | |
| Basic function | Over load capability | G type:150% rated current 60s;180% rated current 3s |
| P type:120% rated current 60s;150% rated current 3s | ||
| Torque boost | Auto torque boost function; Manual torque boost 0.1%~30.0% | |
| V/F curve | Linear V/F, multi-point V/F and square V/F curve(power of 1.2,1.4,1.6,1.8,2) | |
| V/F separation | 2 ways: separation and semi-separation | |
| Acc./dec curve | Straight line or S curve acceleration and deceleration mode,time range between 0.0 to 500.0s | |
| DC braking | DC braking frequency:0.00Hz to maximum frequency. Braking time:0.0s to 36.0s | |
| Brake current value:0%-100% | ||
| Jog control | Jog frequency range:0.00Hz~50.00Hz; | |
| Jog acceleration/deceleration:0.0s~6500.0s. | ||
| Basic function | Multiple segment speed running | It can realize at maximum of 4 segments speed running via the control terminal. |
| Built-in PID | It is easy to realize process-controlled closed loop control system. | |
| Over-voltage/current stall control | It can limit the running voltage/current automatically and prevent frequent over-voltage/current tripping during the running process. | |
| Personalized function | Instantaneous stop non-stop | When instantaneous power off, voltage reduction is compensated through load feedback energy, which could make AC Drive keep running in a short period of time. |
| Rapid current limit | To avoid AC Drive frequent over-current fault. | |
| Timing control | Timing control function:set time range 0Min~6500.0Min. | |
| Running | Command source | Operation panel reference, control terminal reference and serial communication port reference. |
| Frequency source | Digital reference, analog signal reference , Multi-Segment speed reference, PID and communication reference. | |
| Input terminal | 5 digital input terminals. | |
| 2 analog input terminals. | ||
| 1 supporting 0-10V voltage input or 0~20mA current input terminal. | ||
| Output terminal | 2 relay output terminals. | |
| 1 analog output terminals, supporting 0~10V voltage output or 0~20mA current output. | ||
| Environment | Ambient Temperature | -10 ℃ to +40 ℃ (Derating use when under ambient temperature of 40 ℃ to 50 ℃) |
Features
____________________________________________________________________________________________________________________
1. MPPT control
Built-in optimized MPPT algorithm for faster response tracking the PV array output by the maximum power point, driving the pump motor to meet various pump applications in agriculture, irrigation etc.
2. Built-in dual PID mode, better adaptability to different lighting.

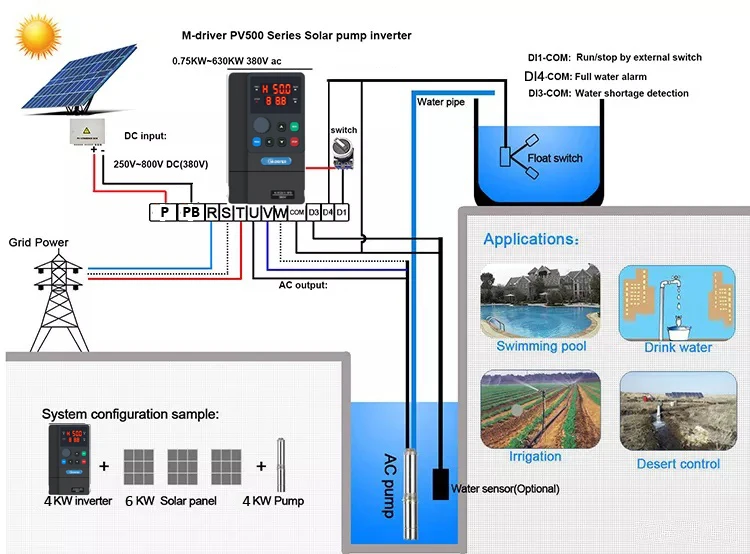

3. Supports AC&DC input
The system is powered by the solar panels regularly. When the sunlight is not good, the system can also be powered by AC grid.
4. Lower undervoltage protection value, lower illumination requirement.
5.Dry protection
If there's no water in the ground, the water pump will stop working automatically and when the water comes, the system starts to work automatically.
6. Auto sleep&Wake:
The pump will slow down automatically when the sunlight is weak , and it will sleep and wake automatically as the sulight .

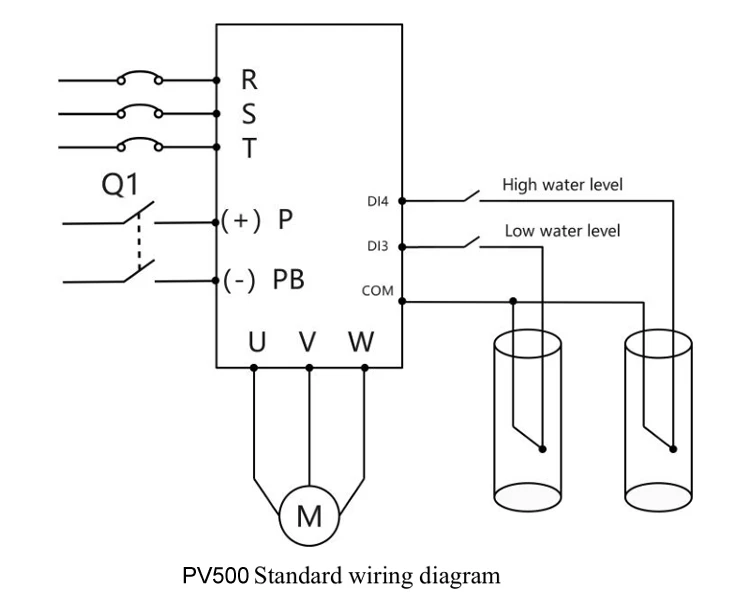

7. Smart water level control
The water level in the tank can also be controlled . The inverter will sleep when the water level is above maxium water level and it will wake up automatically when it's under the minimum water level. The maximum and minimum water level can be set by the user.
