Hydraulic Cold Oil Press Machine Sesame Coconut Mustard Semi automatic Oil Pressers Extraction Chili Peanut Walnut Cocoa butter
- Category: >>>
- Supplier: Luohe High Mechanical Equipment Co. Ltd.
Share on (1601233663584):
Product Overview
Description

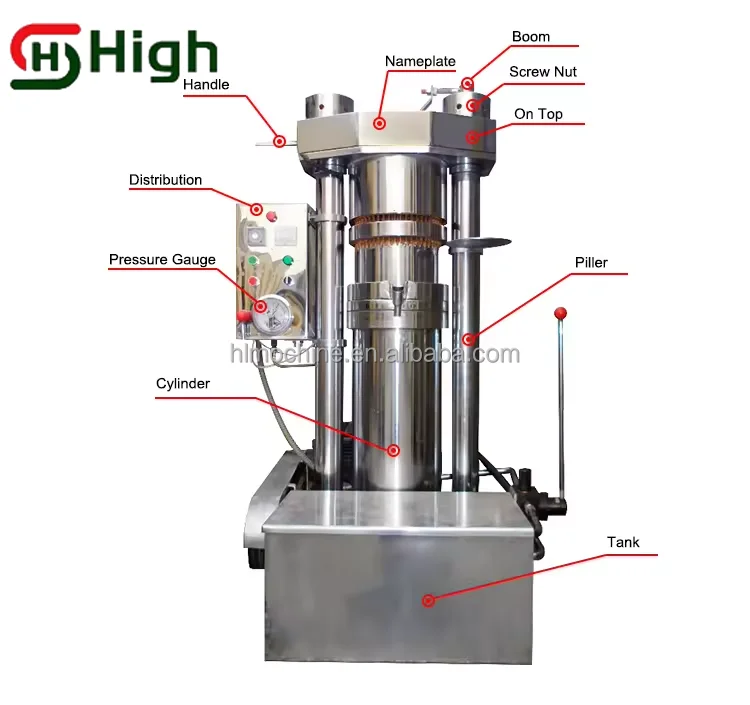

The hydraulic oil press is mainly composed of two parts:
the hydraulic system and the oil pressing system.
The hydraulic system includes components such as hydraulic pumps, hydraulic valves, oil tanks, and oil pipes; The oil pressing system includes components such as the oil pressing cylinder, pressing screw, and oil filter.
When working, first put the oil material into the oil squeezing cylinder, and then start the hydraulic pump to pump hydraulic oil from the oil tank to the oil squeezing cylinder.
When working, first put the oil material into the oil squeezing cylinder, and then start the hydraulic pump to pump hydraulic oil from the oil tank to the oil squeezing cylinder.
At this time, the hydraulic valve controls the working pressure of the hydraulic system and controls the movement of the oil extraction screw through the hydraulic cylinder.
When the oil extraction screw rotates, the oil material is pressed into the screw groove and gradually advances forward with the rotation of the screw.
As the material is compressed, the oil and grease inside the material are squeezed out and filtered through an oil filter, thereby separating oil and slag.
The separated oil is discharged through the oil outlet, while the residue remains in the oil pressing cylinder.
When the material is pushed to the end of the oil pressing cylinder, adjusting the working pressure of the hydraulic system can increase the oil pressing pressure to ensure that as much oil as possible is squeezed out.

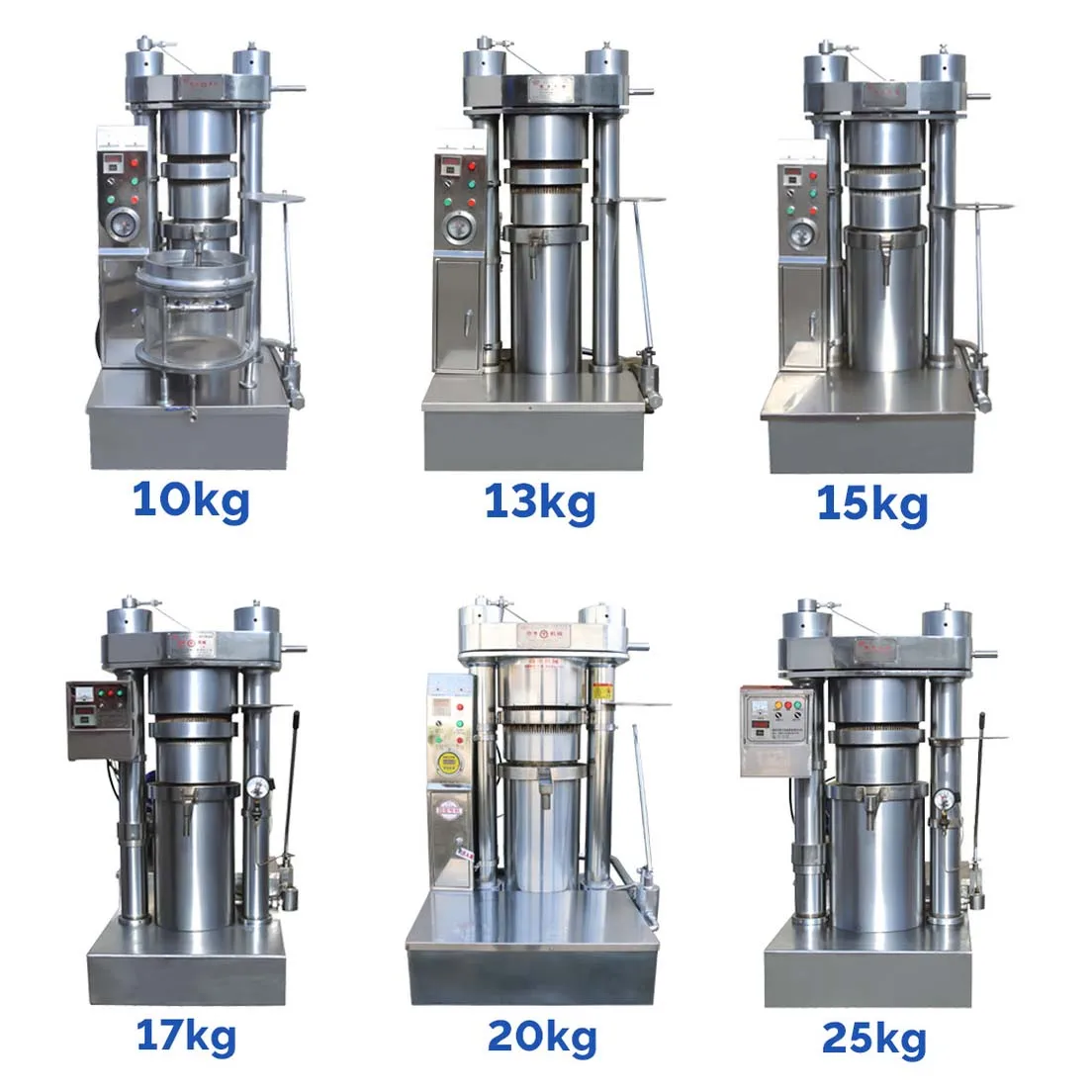

Model | Power | Size（L*W*H/mm） | Discharge port diameter | Net weight | Heating power | Hourly processing capacity |
HM-240 | 1.5kw | 950*850*1550 | 76mm | 1000kg | 2kw | 30kg |
HM-270 | 1040*950*1560 | 1300kg | 2.6kw | 40kg | ||
HM-285 | 1100*950*1590 | 1550kg | 2.6kw | 45kg | ||
HM-300 | 2.2kw | 1128*820*1600 | 85mm | 1700kg | 3kw | 50kg |
HM-340 | 1230*1120*1630 | 76mm | 1800kg | 3.6kw | 60kg | |
HM-360 | 3kw | 1370*950*1720 | 2500kg | 4kw | 75kg |
Certifications
Our customers
Exhibition
Why Choose Us
Q: Are you a manufacturer or trade company?
A: We are a manufacturer. located in luohe city, Henan Province, China, have been in this industry since 2000 and passed SGS long
time ago.
Q:Do you have any certification?
A: SGS, CE, ISO etc.
Q:What do you do quality controlling?
A: All of machines needs to be tested well before shipping.
Q: ls customization acceptable?
A Yes, it is customized on raw material processing, processing capacity, finishes product required.We can also make it as your
design.
Q: What is the warranty of your machines?
A.2 years warranty is given.Within 2 years after the goods shipped, we will send new parts for free for any broken part(except
human damage)
Q:What is after-sale service given?
A: We offer 24 hours service call. Solve basic questions by Telephone, Email, Whatsapp, Operating manuals will be sent with
machine or by email. We are also cooperating with a lot oversea service companies in many countries.
Q:What is the payment term?
Q:30%TT deposit and rest 70 TT before delivery .
A: We are a manufacturer. located in luohe city, Henan Province, China, have been in this industry since 2000 and passed SGS long
time ago.
Q:Do you have any certification?
A: SGS, CE, ISO etc.
Q:What do you do quality controlling?
A: All of machines needs to be tested well before shipping.
Q: ls customization acceptable?
A Yes, it is customized on raw material processing, processing capacity, finishes product required.We can also make it as your
design.
Q: What is the warranty of your machines?
A.2 years warranty is given.Within 2 years after the goods shipped, we will send new parts for free for any broken part(except
human damage)
Q:What is after-sale service given?
A: We offer 24 hours service call. Solve basic questions by Telephone, Email, Whatsapp, Operating manuals will be sent with
machine or by email. We are also cooperating with a lot oversea service companies in many countries.
Q:What is the payment term?
Q:30%TT deposit and rest 70 TT before delivery .
