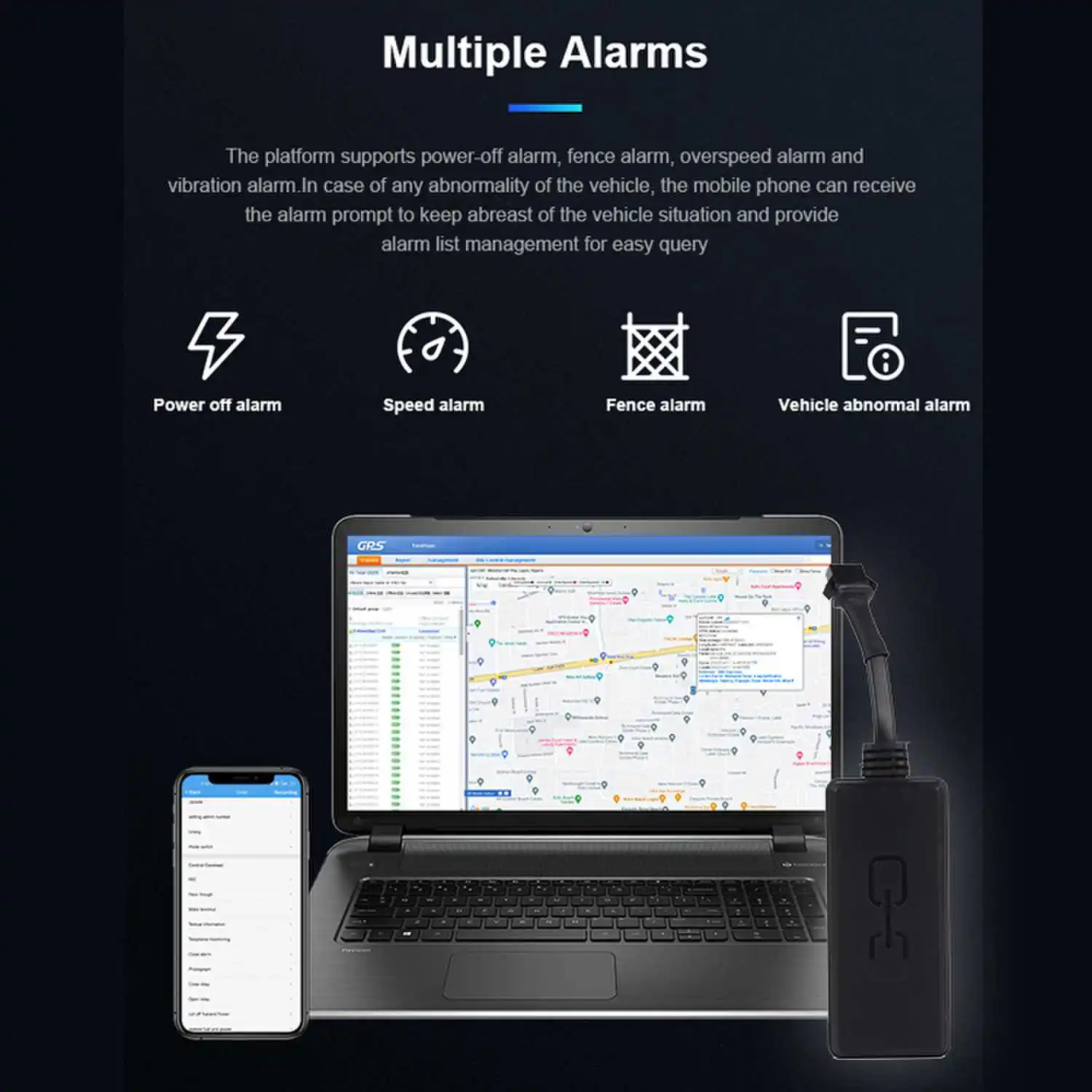

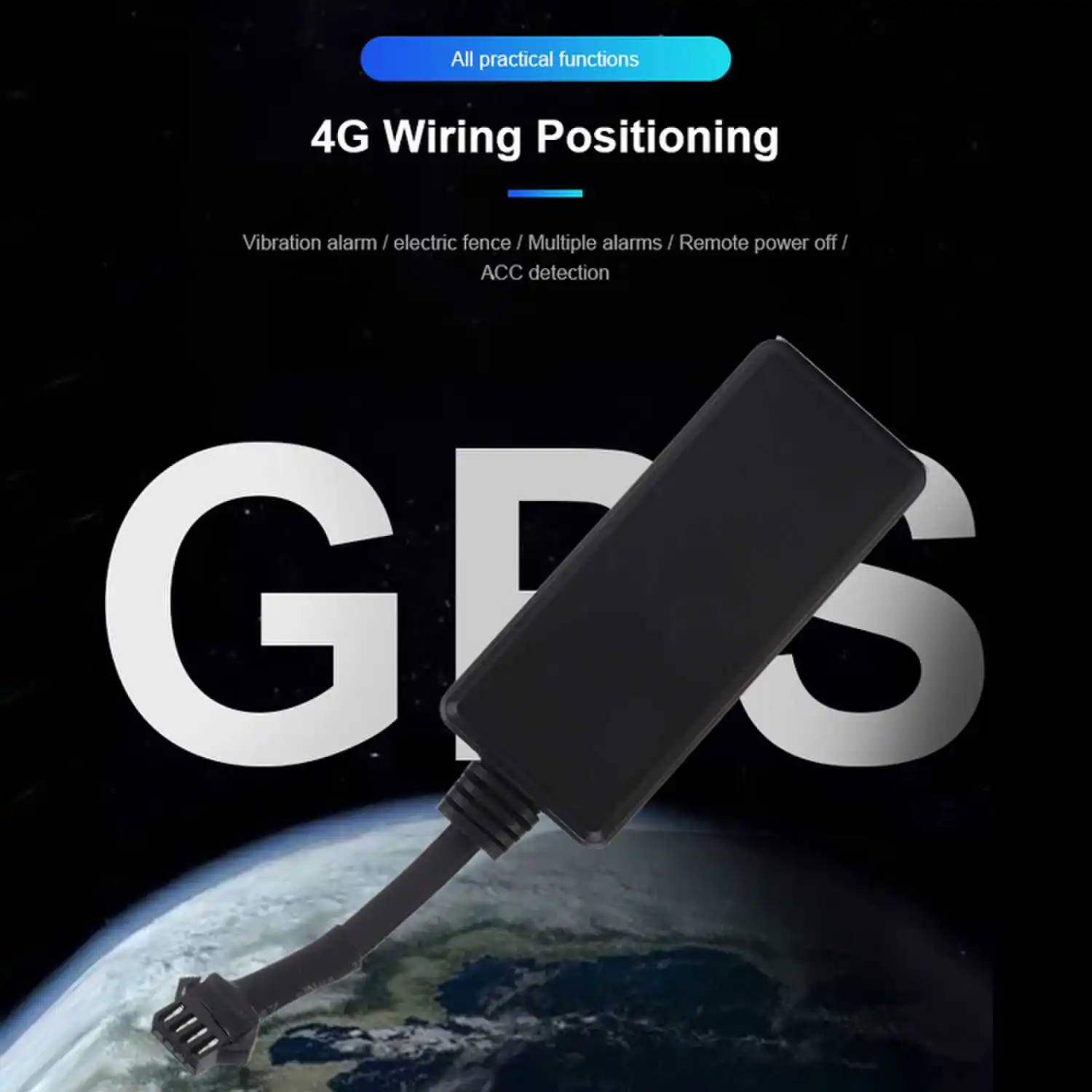

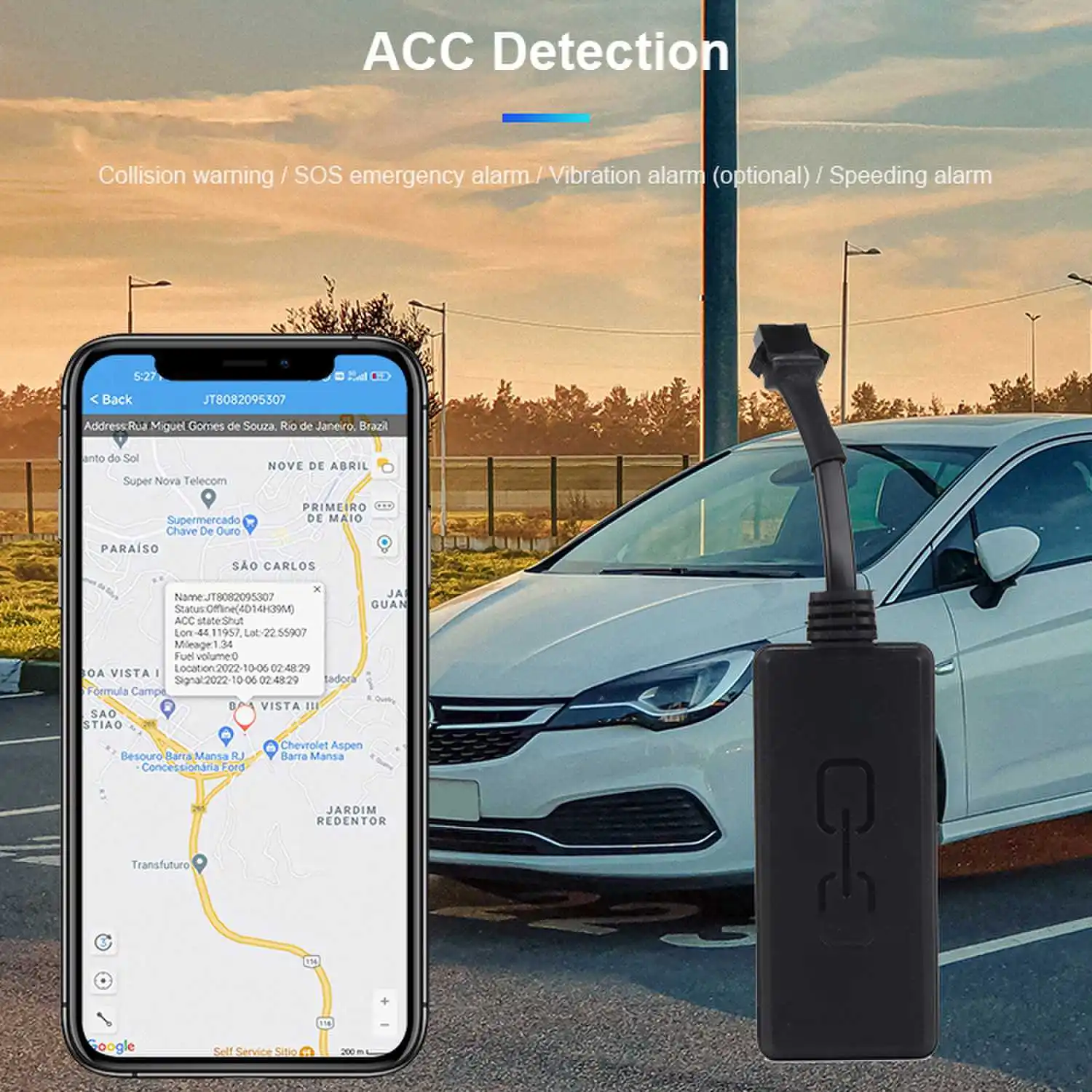

Car Antitheft Gps Tracking Devices 4G LTE Tracker Overspeed buzzer warning Online Mini 4G With App For Fleet Car Motorcycle
- Category: >>>
- Supplier: Shenzhen Bayao Technology Co. Ltd.
Share on (1601233673482):
Product Overview
Description
Product Description
Communication chip/module specifications | value | |
Network standard | 4G | |
Frequency band | China: FDD:B1/B3/B5/B8 TDD:B34/B38/B39/B40/B41 | |
Europe: FDD:B1/3/5/7/8/20 TDD:B38/40/41 | ||
North America: FDD:B2/4/5/12/13/17/66/71 | ||
Japan: FDD:B1/3/8/11/18/19/21/26/28 TDD:B41 | ||
Latin America: FDD:B1/2/3/4/5/7/8/28/66 TDD:B38/40 | ||
Europe Australia: FDD:B1/3/5/7/8/20/28 TDD:B38/40/41 | ||
Body memory | 8MB | |
phase error | Root mean square phase error＜5, peak phase error＜20 | |
Maximum output power | LTE-TDD : Class3(23dBm+1/-3dB) LTE-FDD : Class3(23dBm+-2dB) | |
Maximum frequency error | ±0.1ppm | |
Receiving sensitivity | TD-LTE :≤96dBm(10M) LTE-FDD :≤96dBm(10M) | |
Positioning chip specifications | Guangdong | |
frequency | BDSB1, 1561.098MHz ； GPS L1,1575.42MHz | |
RF channel | BDS, GPS single and dual channel switching | |
Number of channels | 66 | |
Antenna specifications | 25*25*2mm | |
positioning accuracy | ＜10m | |
Tracking sensitivity | -165dBm | |
Capture sensitivity | -148dBm | |
Positioning time | Average hot start: 1sec (open sky), average cold start: 32sec (open sky) | |

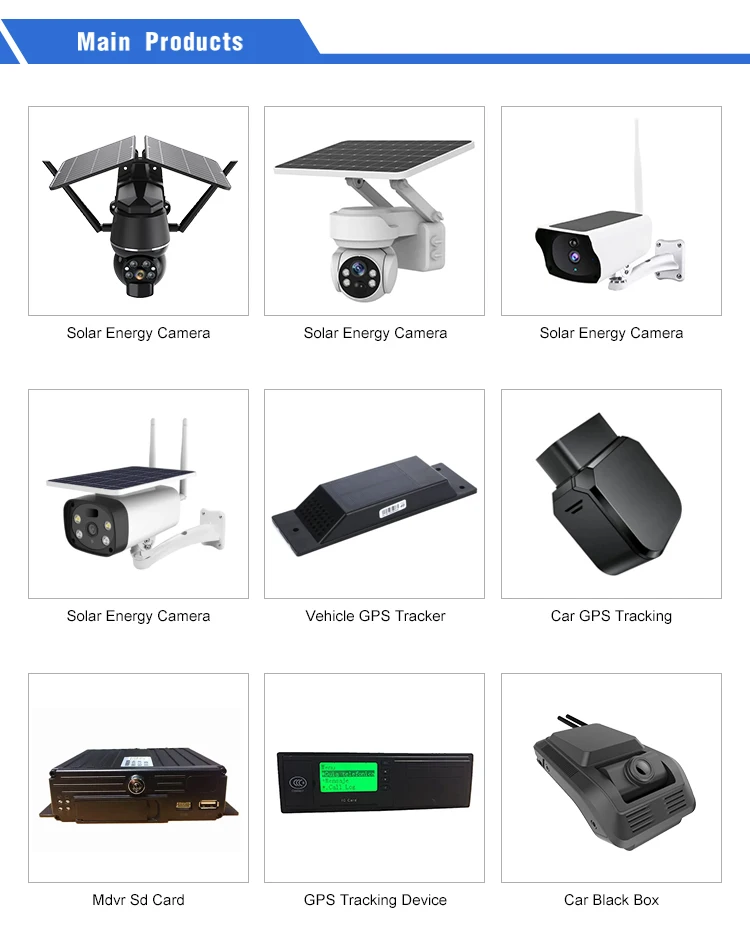

Main Products
Our Advantages
Company Profile
Product packaging
FAQ
Q1. Why do we choose bayao Technology?
A1: We promise: All of our products are power regulated. The output voltage
and current are true one. all with good quality and competitive price. We
assure you timely delivery by keeping 80% standard products inventory and
best after-sale service. All have done 100% longtime full-load aging test/
burn-in test before shipment
Q2. What is the applicable range of this product?
A2: We focus on intelligent vehicle terminal for logistics vehicles, private
cars taxis etc
Q3. Can your products pass CE/ROHS certificate?
A3: Yes, our products meet the industrial standards, like: CE/ROHS/CCC
Q4.Accept sample order What is your minimum order quantity?
A4: trial order or sample order is accept, but same cost as bulk
Q5. What are the shipping ways you can offer?
A5: By air/sea according to customers'requirements
Q6. Do your products come with warranty?
A6: Yes, we promise 1-3 year warranty according to different modele print in
the watch dial, case back, crown, buckle and straps for free.
A1: We promise: All of our products are power regulated. The output voltage
and current are true one. all with good quality and competitive price. We
assure you timely delivery by keeping 80% standard products inventory and
best after-sale service. All have done 100% longtime full-load aging test/
burn-in test before shipment
Q2. What is the applicable range of this product?
A2: We focus on intelligent vehicle terminal for logistics vehicles, private
cars taxis etc
Q3. Can your products pass CE/ROHS certificate?
A3: Yes, our products meet the industrial standards, like: CE/ROHS/CCC
Q4.Accept sample order What is your minimum order quantity?
A4: trial order or sample order is accept, but same cost as bulk
Q5. What are the shipping ways you can offer?
A5: By air/sea according to customers'requirements
Q6. Do your products come with warranty?
A6: Yes, we promise 1-3 year warranty according to different modele print in
the watch dial, case back, crown, buckle and straps for free.
