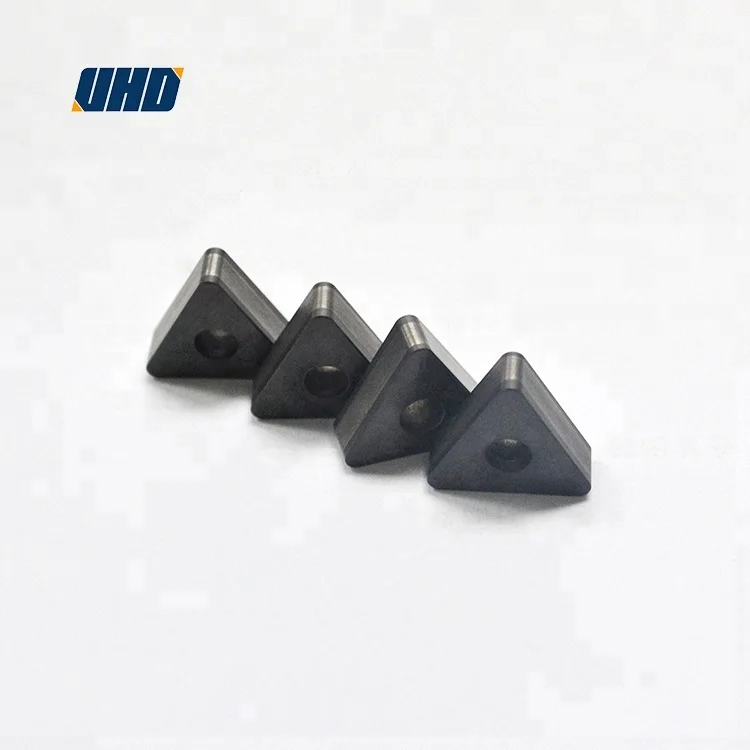

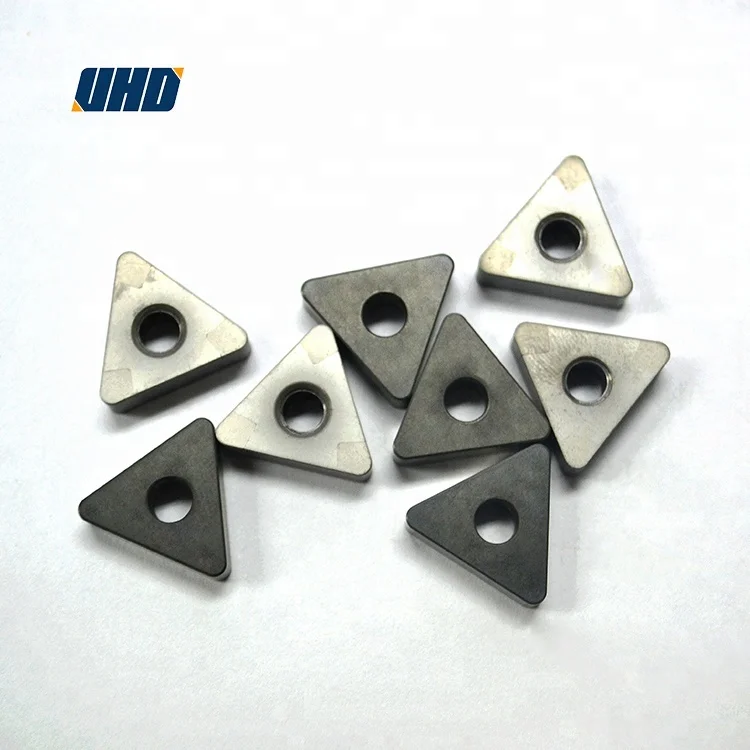

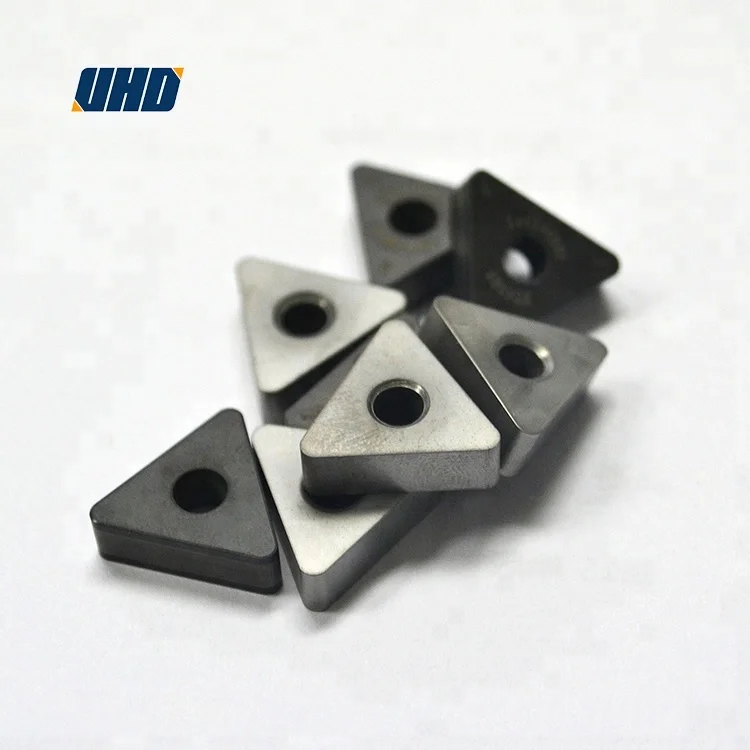

China PCD inserts scrap TNMG 160408 diamond carbide insert

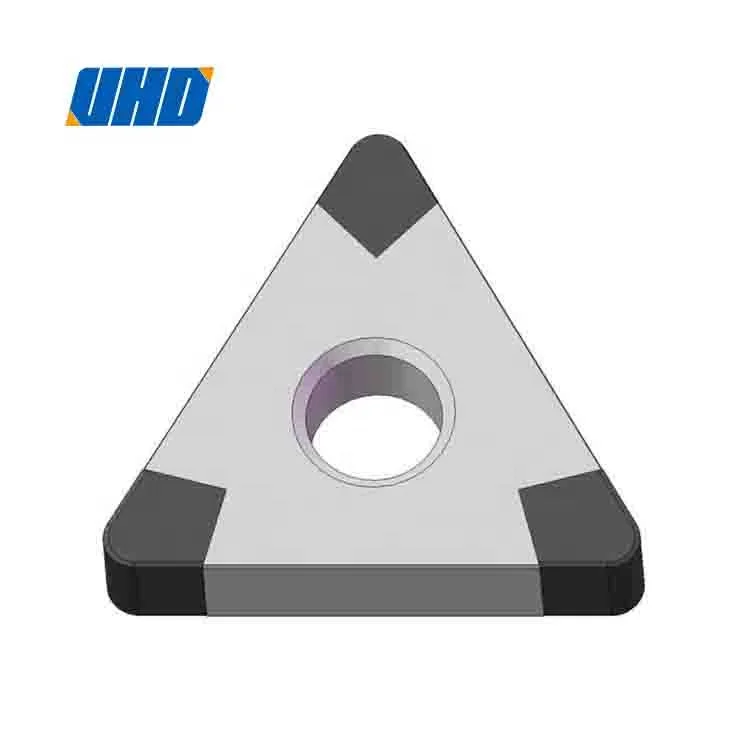

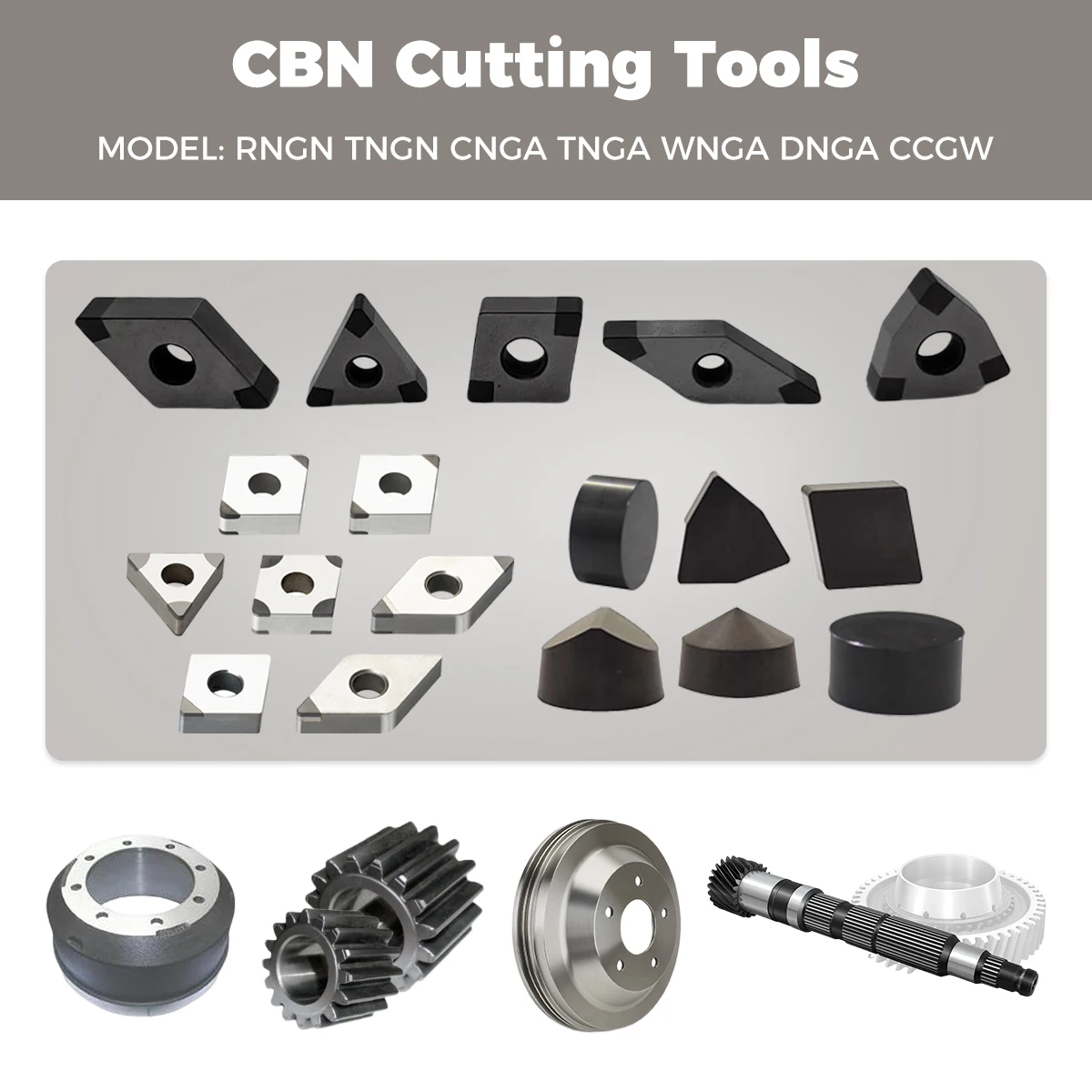

CBN, an ultra-hard cutting material consisting of polycrystalline cubic boron nitride with a metallic or ceramic binder is primarily used to machine hardened ferrous material. It's available either as a tip brazed to a carbide insert carrier or as a solid insert.

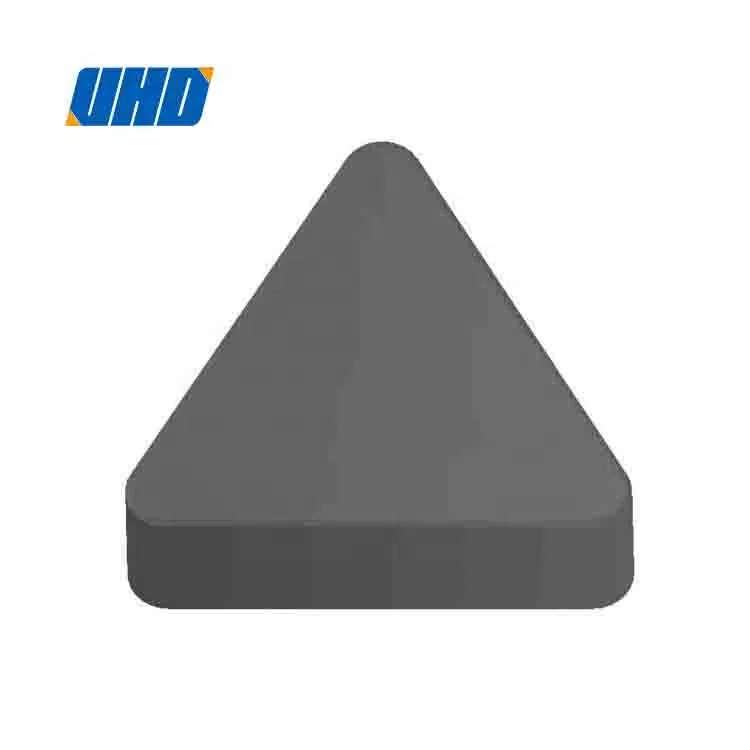

CBN Inserts can be double-sided grinding and have a longer service life. If you’re using a solid CBN tip, after one side is worn out you simply flip it over and use it again.
Product Application
These PCBN blades are widely used in pearlite cast iron, high chromium high nickel alloy cast iron, quenched steel, powder metal, hard alloy, and superalloys. In traditional mechanical processing applications, not only does it significantly reduce the overall production cost, but it also significantly improves the production capacity and efficiency of the entire production operation, while significantly reducing equipment investment.
For Hardened Steel
Grade | CBN Content | Machining Mode | Workpiece Material | Application |
UBN S1 | 90% | Interrupted Continuous | Grey cast iron Rough/semi-finish | Roll, surfacing roll repairing, mining machinery, large gear and etc. |
UBN S2 | 70% | Interrupted Continuous | Hardened steel Rough/semi-finish | Wind powder bearing, crankshaft, mining machinery, automobile gear and etc. |
UBN S3 | 50% | Interrupted Continuous | Hardened steel semi-finish/finish | Crankshaft, drive shaft and etc. |
UBN S4 | 60% | Interrupted Continuous | Hardened steel semi-finish/finish | Gear, shaft and etc. |
UBN S5 | 75% | Interrupted Continuous | Hardened steel semi-finish/finish | Wind powder bearing, gear for mining machinery, gear for automobile. |
Tip: insert can be customized with special ingredients.

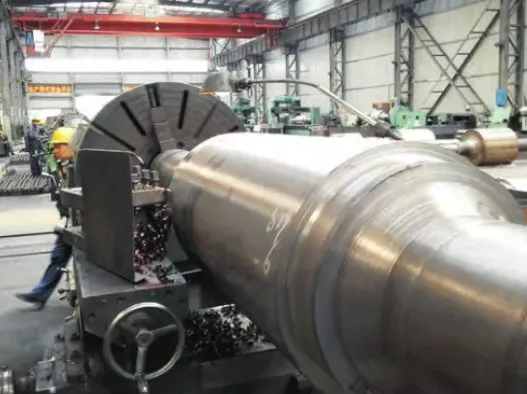

Roll
Workpiece material:
High ncikel chromium alloy cast iron;
Hardness: HSD 78;
Cutting parameters:
Vc=55m/min, ap=2mm, f=0.2mm/r;
Grade: WBN S1

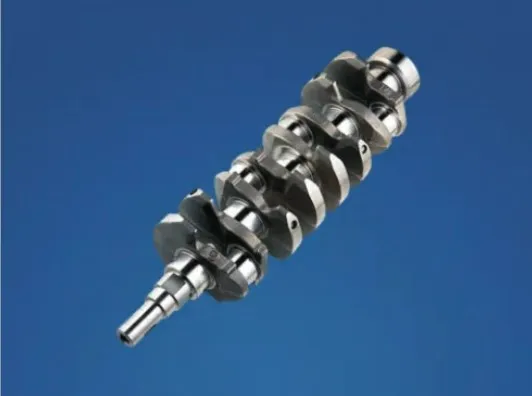

Crankshaft
Workpiece material: 42CrMo
Cutting parameters:
Vc=150-180m/min;
Hardness: HRC 42-47;
Cutting parameters:
Vc=150-180m/min;
ap=0.2-0.3mm;
f=0.08~0.12mm/r;
Grade: WBN S3, WBN S4
Grade: WBN S3, WBN S4
For Cast Iron
Grade | CBN Content | Machining Mode | Workpiece Material | Application |
UBN X2 | 85% | Interrupted Continuous | Cast iron hardened steel semi-finis/finish | Automobile brake disc, engine cylinder block, cylinder liner, gear, bear and etc. |
UBN X3 | 92% | Interrupted Continuous | Cast iron | Automobile brake disc, engine cylinder block, cylinder liner, gear, bear and etc. |

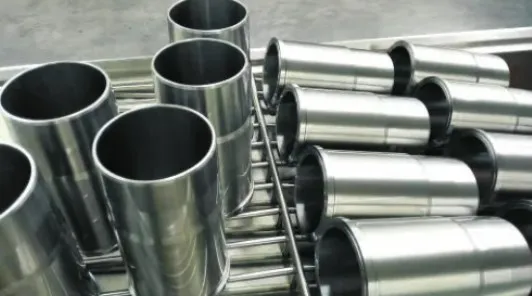

UBN X5 | 85% | Interrupted Continuous | Borron copper/cast iron semi-finish/finish | Cylinder liner |
Tip: insert can be customized with special ingredients.

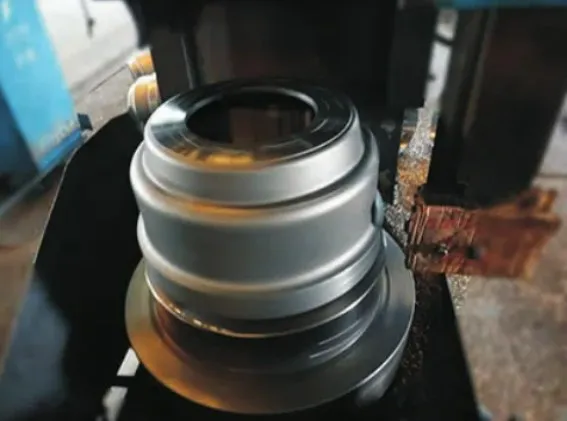

Brake drum
Workpiece Material: HT250
Hardness: HB170-210
Cutting Parameters:
Vc=160m/min,
ap=3mm,
f=0.3mm/r;
Grades: WBN S1

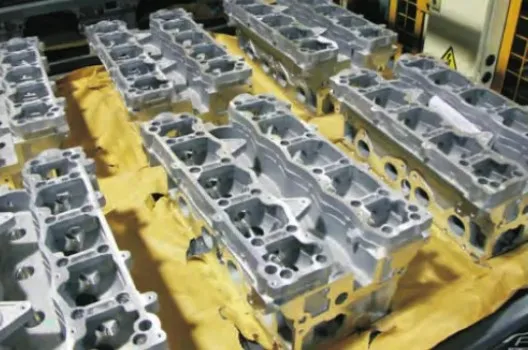

Engine cylinder head
Workpiece Material: Grey Cast Iron
Cutting Parameters:
Vc=3000~ -2500mm/min,
ap=1.5~ 2.6mm,
f=0.1~0.2mm/r;
Grades: WBN X2
For Ductile Iron
Grades | CBN Content | Machining Mode | Workpiece Material | Application |
UDI Q | Special ingredients | Continuous | Bane of ductile iron | Be mainly applied for components such as crankshaft, camshaft, cylinder liner and and engine case for automobile, tractors, heavy duty machinery, intemal combustion engine and etc, mediun-pressure valve for general machinery, which are under complex conditions, and have high requirements for strength，toughness and wear resistance at the same time. |
Tip: insert can be customized with special ingredients.
Workpiece Material: QT400，500，600，800
Hardness:HB350
Cutting Parameters:
Vc=200m/min,
ap=1mm,
f=0.1mm/r

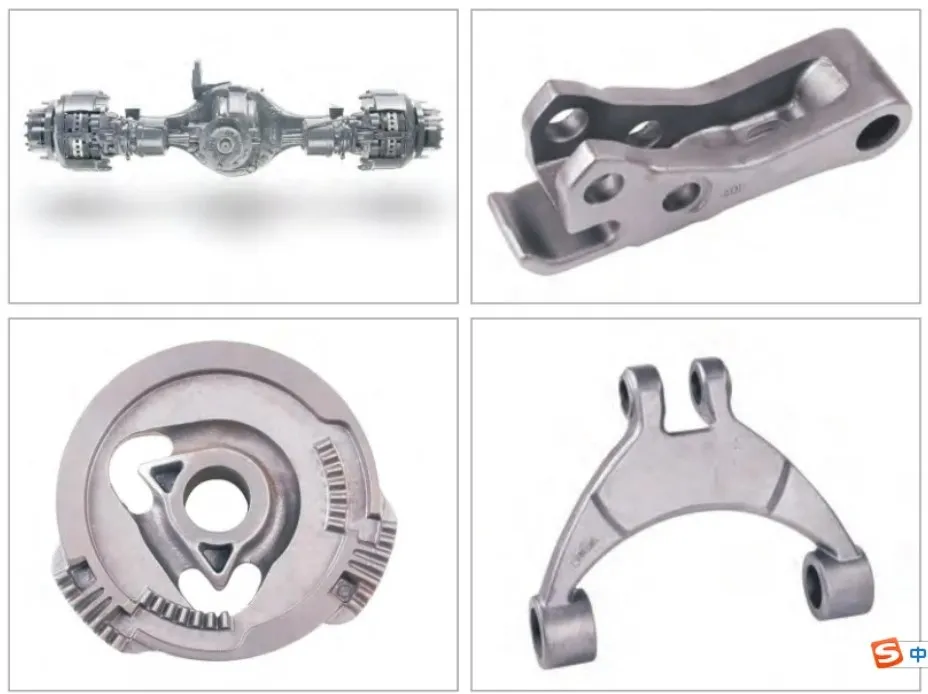

ADI(Austempering Ductile Iron)Coupling
