Medical Gas System PSA Oxygen Generator for Hospital Oxygen Plant with CE Certification
Medical Gas System PSA Oxygen Generator for Hospital Oxygen Plant with CE Certification
Medical Gas System PSA Oxygen Generator for Hospital Oxygen Plant with CE Certification
Medical Gas System PSA Oxygen Generator for Hospital Oxygen Plant with CE Certification
Medical Gas System PSA Oxygen Generator for Hospital Oxygen Plant with CE Certification
Medical Gas System PSA Oxygen Generator for Hospital Oxygen Plant with CE Certification
Medical Gas System PSA Oxygen Generator for Hospital Oxygen Plant with CE Certification

Medical Gas System PSA Oxygen Generator for Hospital Oxygen Plant with CE Certification

Share on (1601233996017):


Price:$5,000.00 - $50,000.00

Quantity:


Product Overview

Description



Product Description


AmcareMed medical oxygen generator system could supply pure oxygen for all kinds of hospitals and clinics continuously. Medical Oxygen Generators System use Pressure Swing Adsorption (PSA) technology to separate the oxygen from air.
Our Oxygen plant equipment put the air as raw material, zeolite molecular sieve as adsorbent, under the normal temperature low pressure, using the selectivity of zeolite molecular sieve for oxygen adsorption. The purity is 93%±3%.
In addition to the existing oxygen generators, we can also customize the oxygen generator system according to the installation conditions of the customer site, and can be installed on site for customers.




WORKING PRINCIPLE

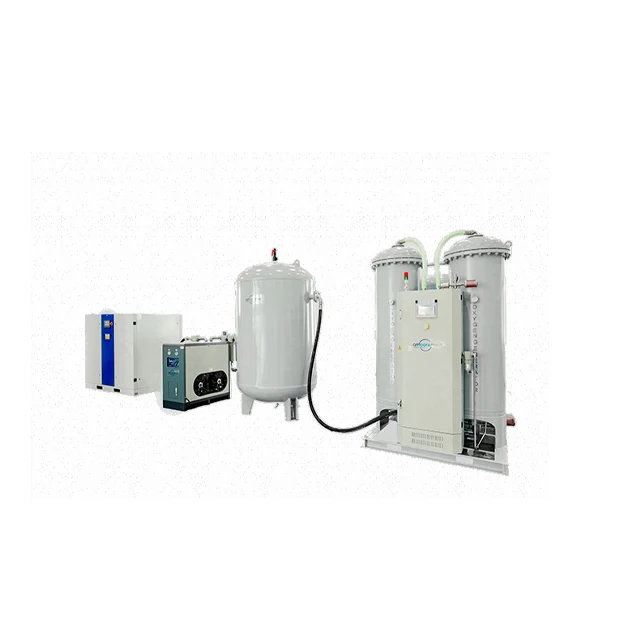

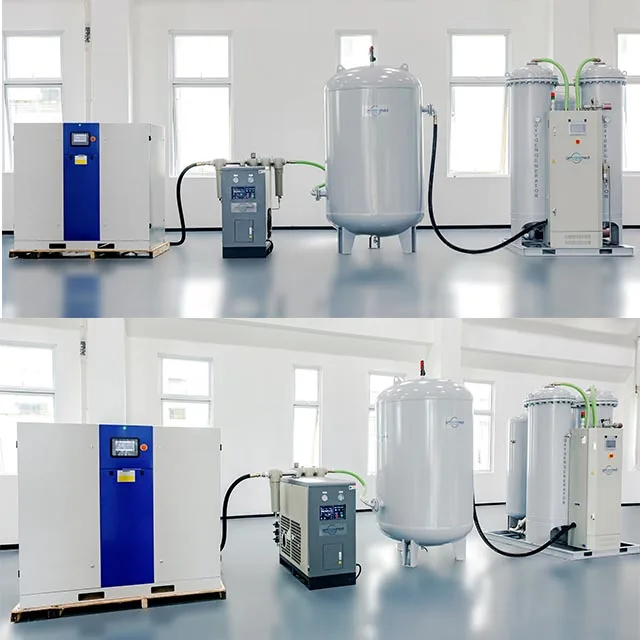

The oxygen production process of the medical oxygen generator is shown in the figure. Detailed work process is the medical air which after dryer and purification, by switching valve into the absorption tower. In the adsorption tower, oxygen gas was gathered at the top of adsorption tower, then into oxygen storage tank. Through the different filter to remove dust, bacterial and peculiar smell, achieve the quality oxygen gas. Our Oxygen Concentrator allow the hospital to have stand-alone oxygen production capability directly on the facility site.


OXYGEN STANDARD


European Pharmacopoeia Requirements For Medical Oxygen
Oxygen
93 ±3%
Carbon Monoxide
<5ppm
Carbon Dioxide
<300ppm
Nitrogen Monoxide and Dioxide
<2ppm
Sulphur Dioxide
<1ppm
Oil
< 0.1 mg/m³
Water
<67ppm
Working dewpoint
- 46℃



FEATURES

* Capacity: 5Nm³/hr to 100 Nm³/hr
* Operating temperature: 5℃-45℃
* Two pcs molecular sieve beds, ensure uninterrupted operation
* Modular design for easy installation
* Higher separation efficiency AmcareMed oxygen generators have higher separation efficiency than other PSA oxygen generators of the same type, requiring only a relatively small amount of air to obtain more oxygen.
* Easy to Install and Maintain All parts of the oxygen generator will be commissioned before leaving the factory and sent to the installation site together, making installation very easy. If necessary, we will arrange professional installation personnel to install and guide on site.
* Automatic and stable operation 24/7 – 365 days fully automatic operation. Reliable, tested and controlled components ensure smooth performance. Control and checking via monitoring control system automatically, real-time display and monitoring pressure, purity, flow rate, operating condition of each unit and with alarm function.

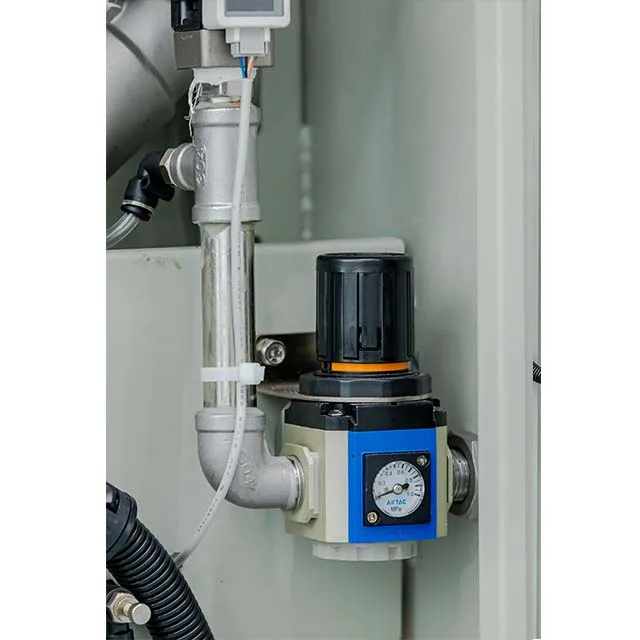

Detailed Images






Model


Model
Oxygen Capacity
Air Compressor
Booster Compressor
Installation Area
Nm³/h
LPM
Feed air required
(m³/min)
Power(kw)
Power(kw)
Capacity
(m³/h)
Single line
solution
Dual line
solution
OY-50
5
83
0.875
7.5
5.5
5
25
45
OY-80
8
133
1.4
11
5.5
8
28
48
OY-100
10
167
1.75
15
5.5
10
30
50
OY-150
15
250
2.625
18.5
5.5
15
30
50
OY-200
20
333
3.5
22
11
20
40
80
OY-250
25
417
4.375
30
11
25
40
80
OY-300
30
500
5.25
37
11
30
45
90
OY-400
40
666
7
55
15
40
45
90
OY-500
50
833
8.75
55
15
50
50
95
OY-600
60
1000
10.5
75
15
60
60
110
OY-800
80
1333
14
90
22
80
65
115
OY-1000
100
1666
17.5
110
30
100
70
135
Note:The installation area is not an absolute area, we will design according to the specific location.
