Yake Led P4 P6 P8 P10 Flexible Adhesive LED Transparent Film Screen On Glass Video Wall Clear Super Thin LED Film Display
- Category: >>>
- Supplier: Shenzhen Yake LED Tech Co. Limited
Share on (1601234061049):
Product Overview
Description
Our Transparent LED Film Screen for Glass
*Super Slim and Light -- the thickness is 1-3mm, and the weight is only 1~3.5kg/m2.
*High Durability -- FPC flexible material is adopted for screen circuit, which can prevent internal components from cracking, long service life.
*Higher Transparency -- 86% high light transmittance rate, can bring the perfect display performance.
*More Beautiful Appearance -- without frame structure, cables and power supply are hidden in the side position.
*Strong Flexibility -- the film screen is creative and can be stuck on different radians of glass wall.
*Without limited of size -- Support arbitrary Clipping and Splicing,as close as possible to the required screen size.

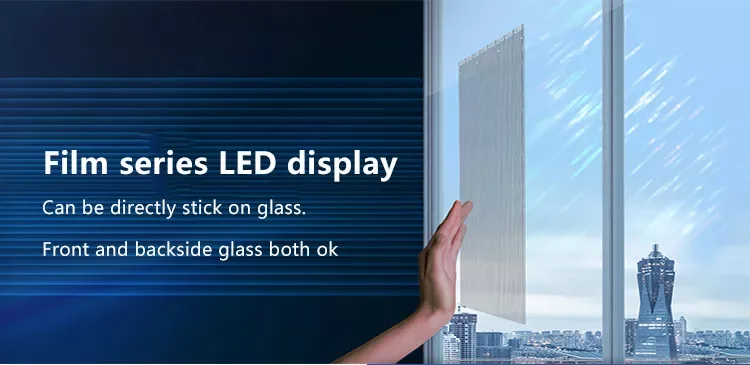

*Easy Installation --Just stick the membrane screen gently, indoor front or backside glass both ok, and then connect the signal and power supply.
Product Description
Transparent LED screen
Heavy frame structure
LED Film Screen
Super thin and light

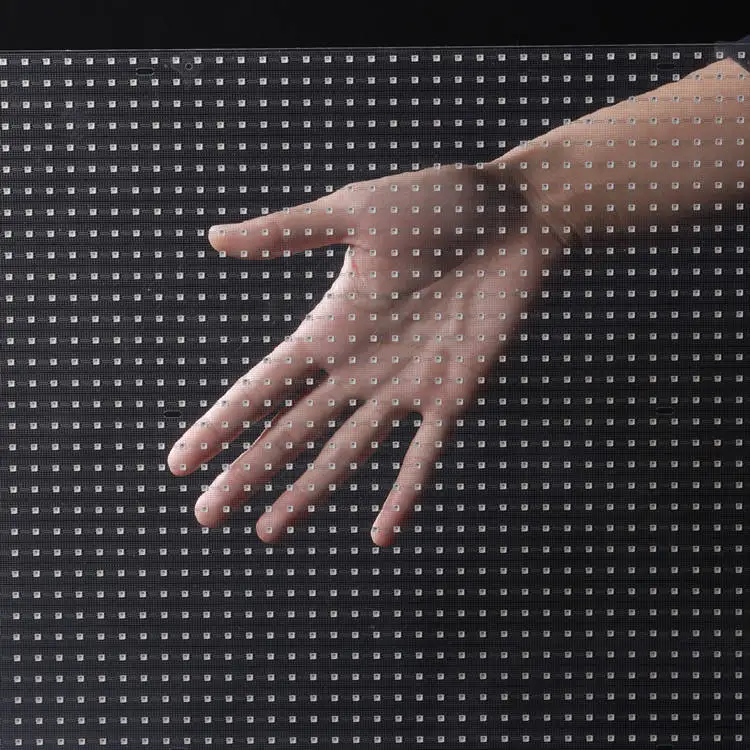

Higher Transparency
*86% high light transmittance rate, brings the perfect display performance.

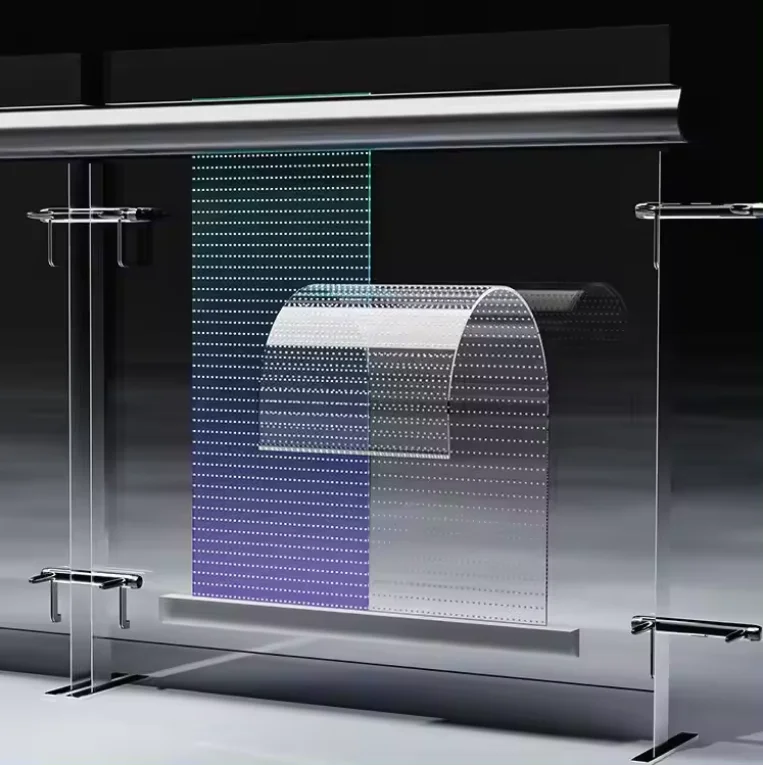

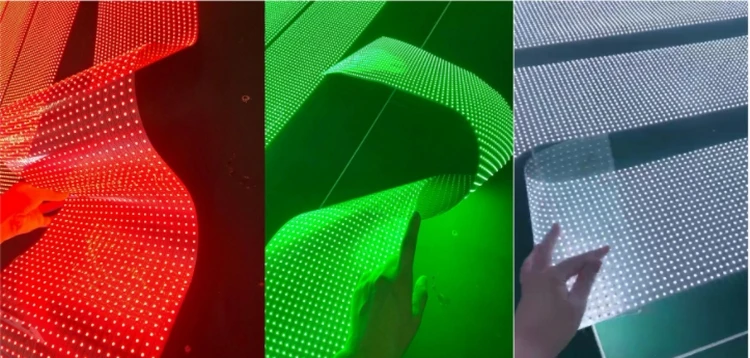

Strong Flexibility

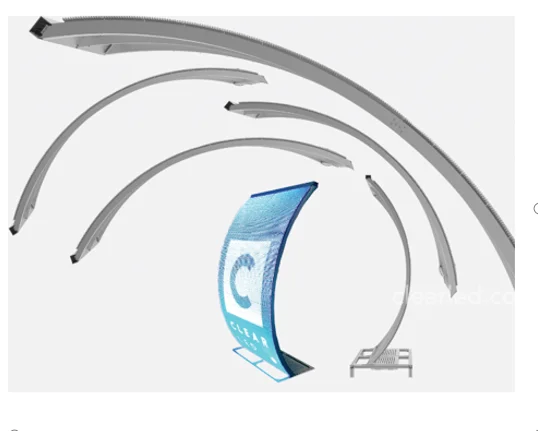

*The film screen is creative,it can be made into various shapes like cuboid,cylinder, and can be stuck on different radians of glass wall.
More Beautiful Appearance

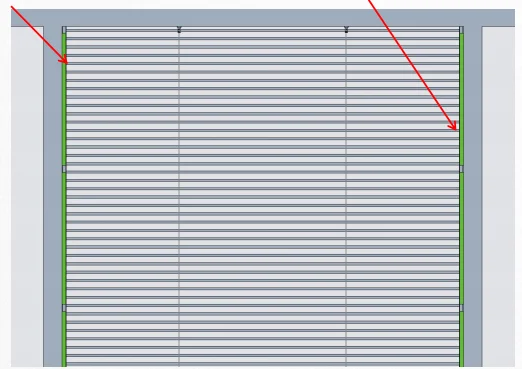

*without frame structure, cables and power supplies are hidden in the side position.

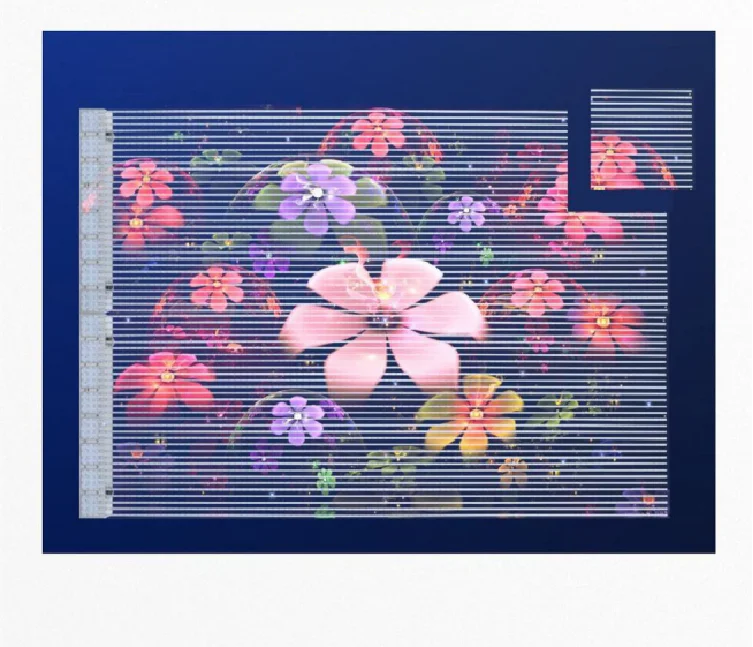

Without limited of size
*Support arbitrary Clipping and Splicing,as close as possible to the required screen size.

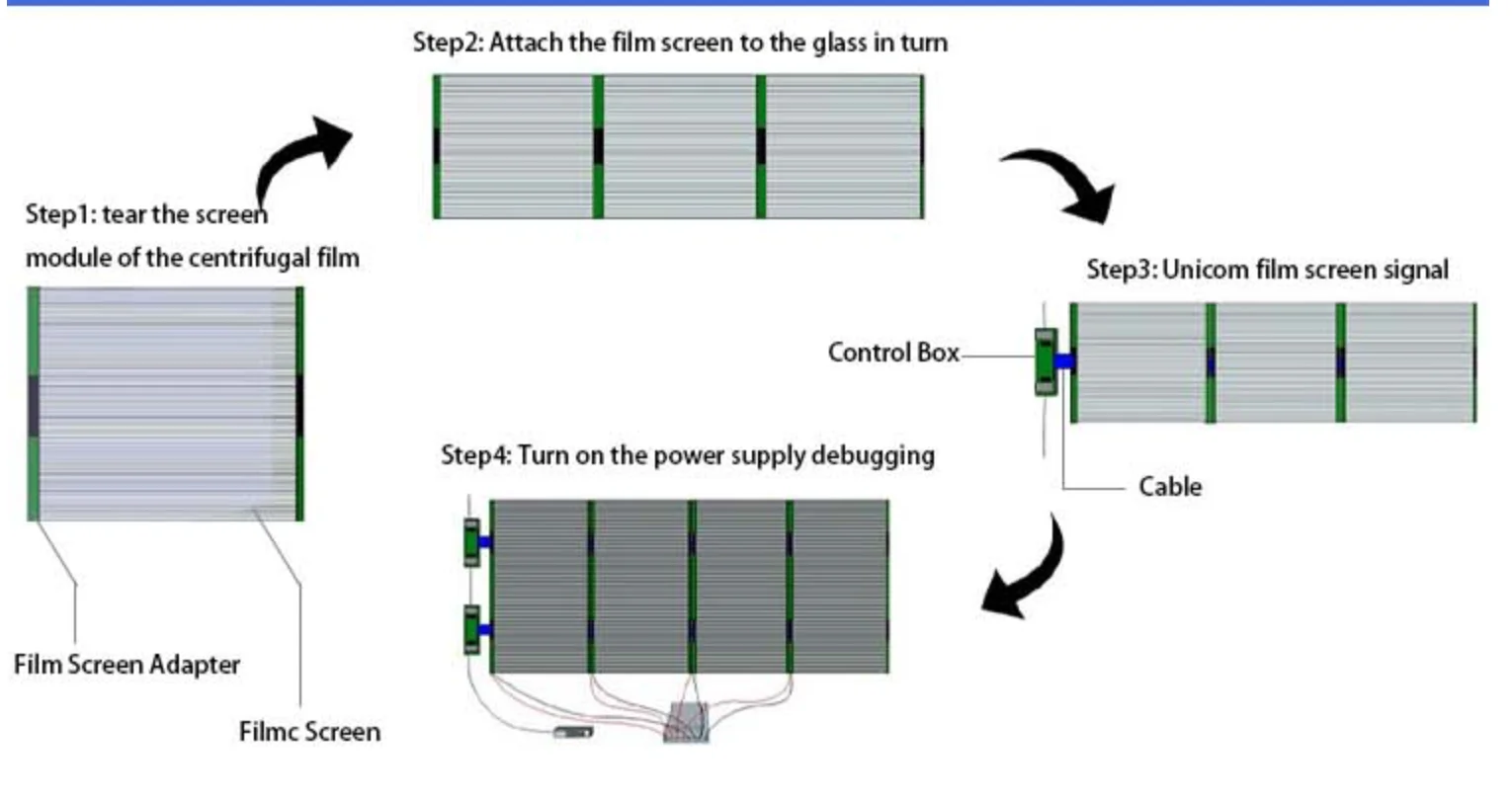

How to install transparent LED Film screen
Specification
Horizontal/Vertical Spacing | H2.8-V5.6 | H3.9-V7.8 | H5.2-V10.4 | ||
Pixel Matrix Per Sqm | 61,952 | 32,768 | 18,532 | ||
LED Configuration | SMD1921 | SMD1921 | SMD1921 | ||
Scan Method | 1/11 | 1/8 | 1/6 | ||
Module Weight | 3.5kg | ||||
Module Dimension | 1000 x 500 x 3mm (3.28ft x 1.64ft) | ||||
Module Resolution | 352x88 | 256x64 | 192x48 | ||
Brightness | 5000-7500nits | ||||
Transparency Rate | 50% | 70% | 80% | ||
Best Viewing Angle | 160/140 | ||||
Max Power Consumption | 500w/m2 | 500w/m2 | 500w/m2 | ||
Average Power Consumption | 175w/m2 | 175w/m2 | 175w/m2 | ||
Refresh Rate | 3840Hz | ||||
Transparent Rate | 70% | 70% | 80% | ||
Lifetime | ≥100000hours | ||||
Protection Level | IP24 | ||||
Aging screen display
at least 72hours aging test time before delivery,ensure every detail of perfect screen.

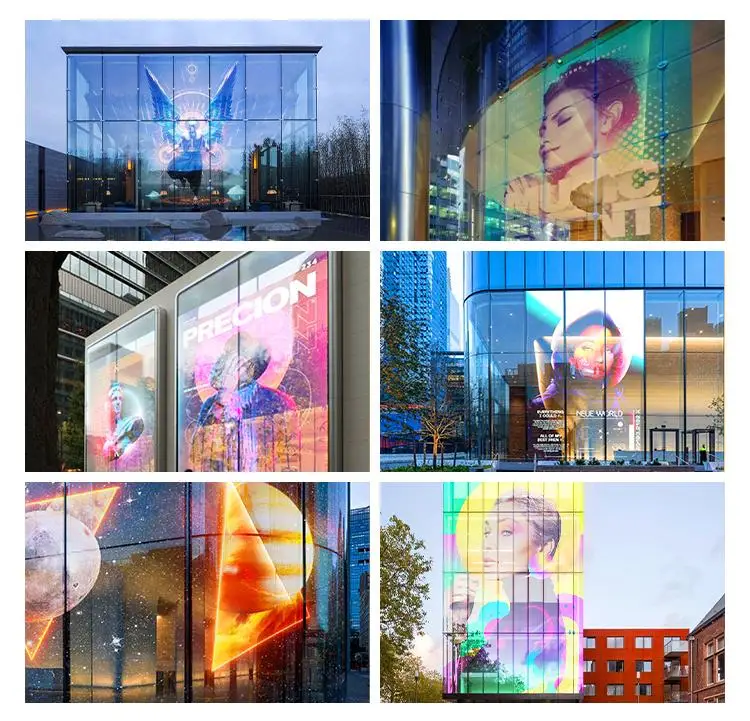

Applications

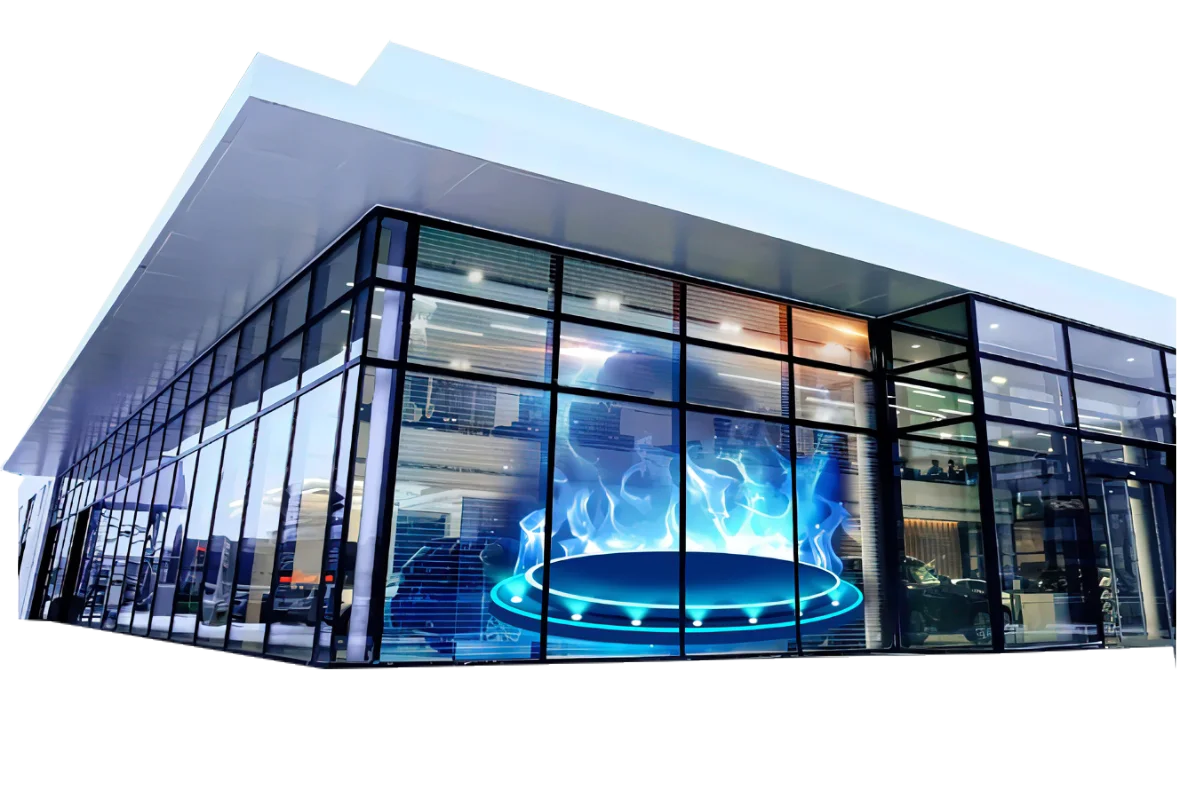

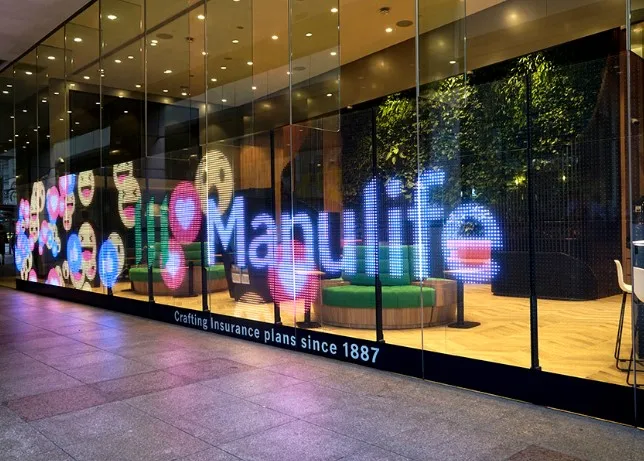

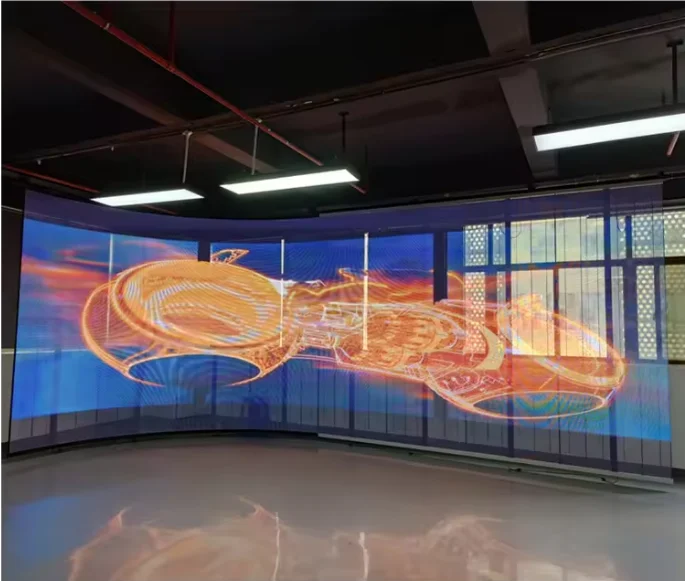

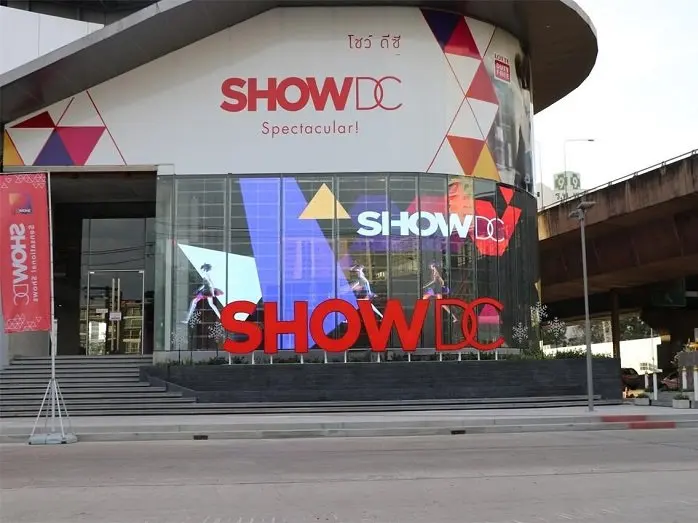

Commercial advertising Glass Screen, night clubs, entertainment events, shopping malls, stock exchanges, schools, telecommunications, stadiums,railways, airports, stages, events, etc.
Packing & Delivery

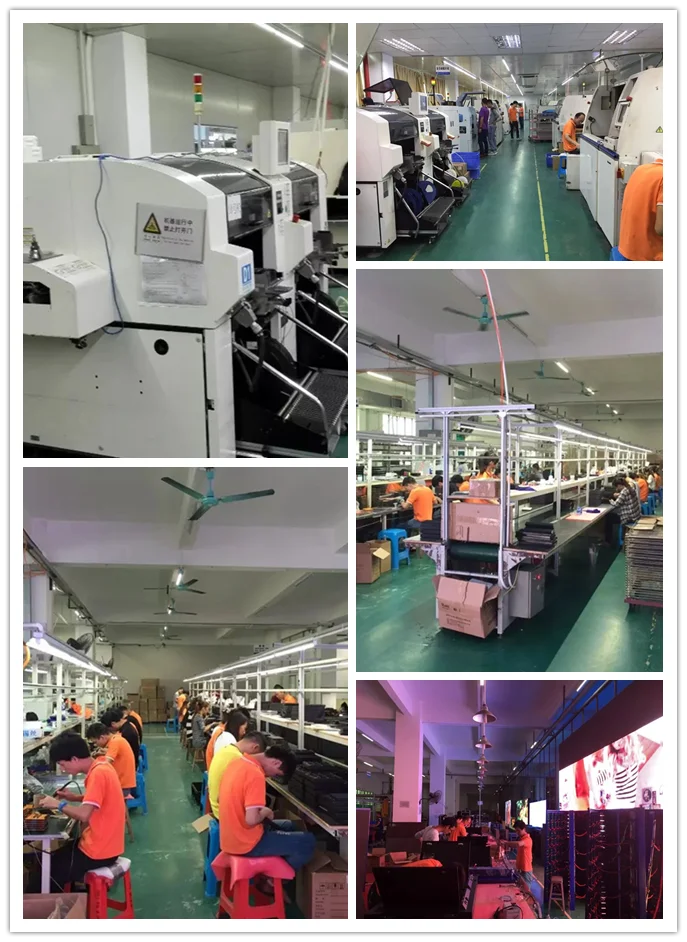

Company Profile
Here at Shenzhen Yake LED Tech Co., Ltd
Found in 2009, we have become a pioneer in the LED industry for the development of our double sides led screen, gas station LEDs,taxi top led screen, outdoor LED screen, indoor LED screen, outdoor led modules, indoor led modules. We are proud to offer our
customers comprehensive service, earning us their trust and respect.
customers comprehensive service, earning us their trust and respect.
Certifications
Interaction with Clients
Our Service
We have an excellent customer service system with a well-trained, strong and skilled service team to provide customers with comprehensive pre-sales service, product services and after-sales service.
Our customer service department has more than a dozen highly skilled and experienced technical support engineers, who are all in charge of the technical support of all LED display products we provide all over the world.
We are continuously improving upon our level of service and quality to quickly and effectively meet customer needs and guarantee their benefits and interests.
We believe in taking the initiative, maintaining honesty and trustworthiness, which means we will respond quickly to customer questions and do everything possible to meet customer demands.
Service Content
1. 24-hour hotline service, including counseling and technical guidance.
2. On-line service.
3. Failure maintenance of LED panels.
4. Free professional technical training
5. Paid software upgrade.
6. Warranty service.
7. Engineering technical service.
Warranty Period
Each of our LED display products comes with at least two years warranty and a lifetime maintanance services.
Our customer service department has more than a dozen highly skilled and experienced technical support engineers, who are all in charge of the technical support of all LED display products we provide all over the world.
We are continuously improving upon our level of service and quality to quickly and effectively meet customer needs and guarantee their benefits and interests.
We believe in taking the initiative, maintaining honesty and trustworthiness, which means we will respond quickly to customer questions and do everything possible to meet customer demands.
Service Content
1. 24-hour hotline service, including counseling and technical guidance.
2. On-line service.
3. Failure maintenance of LED panels.
4. Free professional technical training
5. Paid software upgrade.
6. Warranty service.
7. Engineering technical service.
Warranty Period
Each of our LED display products comes with at least two years warranty and a lifetime maintanance services.
