2.0X 2.3X TTL Dental Loupes Embedded Surgical Magnifying Glass With Long Working Distance
- Category: >>>
- Supplier: Foshan Maiqun Electronic Technology Co. Ltd.
Share on (1601234347957):
Product Overview
Description
2.0X 2.3X Dental Loupe Surgical Magnifying Glass
This product is frame type fixed magnifying glass, working distance: 420mm, pupil distance normalization design has 56, 58, 60, 62 four specifications for selection, for the choice of users with different pupil distance. This product is designed strictly according to the man-machine relationship, and can get accurate observation position.Professional appearance design, fashionable, high-end and elegant. This product has the simplest structure and light weight.It can achieve the integration of lighting and magnification by equipping with a lamp device. This product is suitable for the operation of otolaryngology,dental, ophthalmology, general surgery, microsurgery and so on.
Model | FD-504G-2A/FD-504G-2B |
Magnification | 2.0X and 2.3X (measured data) |
Distance between pupillary distance of farsightedness | 54~64mm |
Working distance | 340mm, 420mm and 500 mm. |
Field diameter | ≥80mm |
Scene depth | ±30mm (nominal distance) |
Head negative weight | 106g |
Package size | 85*65*170mm |
Packaging material | Nylon Pulling Bag+White Cowhide E Leng Paper |

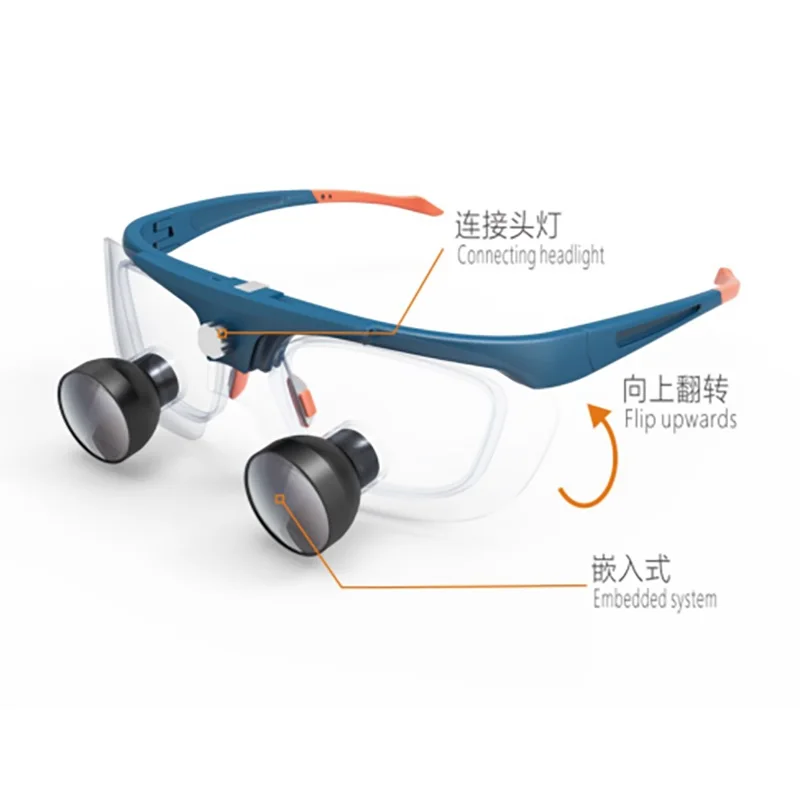

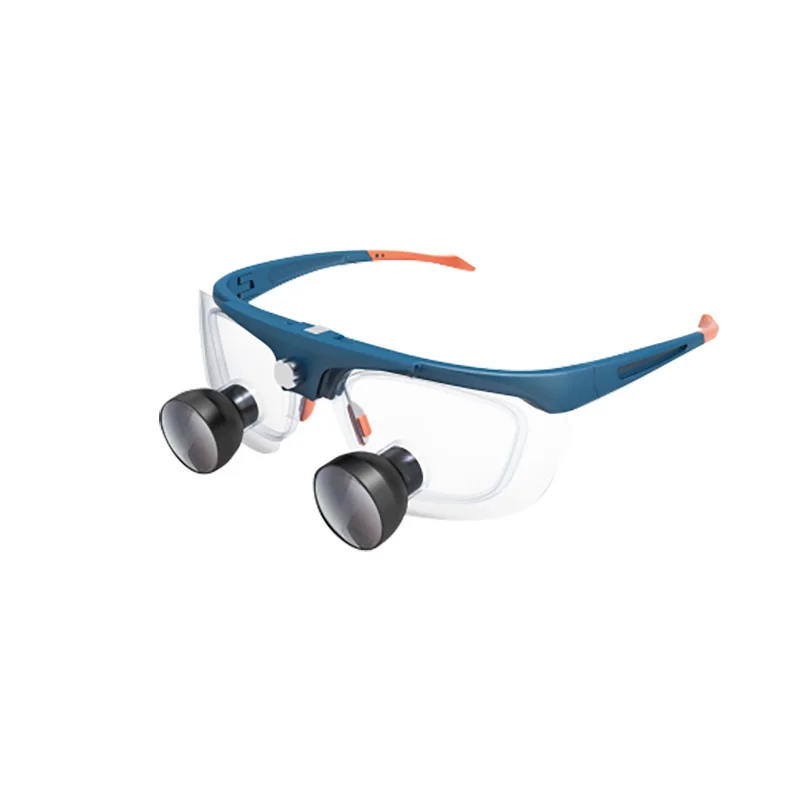

A-Style

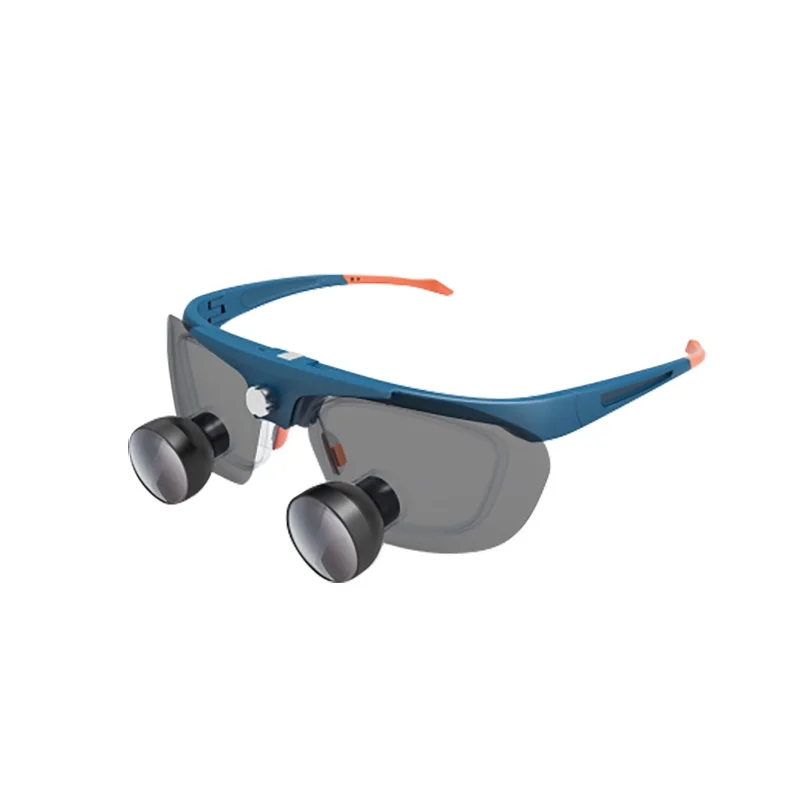

B-Style

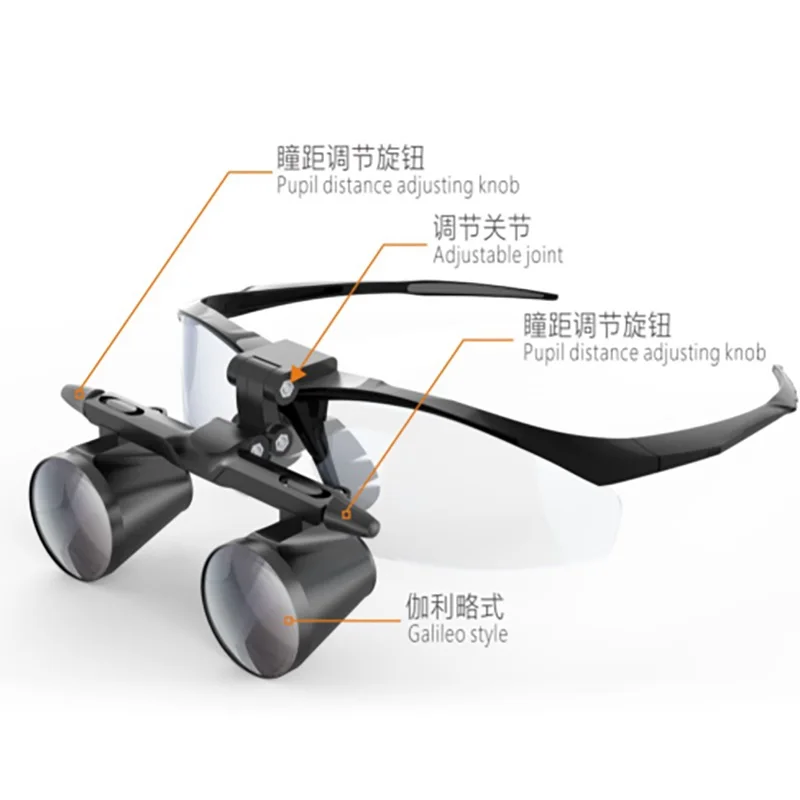

FD-501G-2 Frame
Magnification: 2.5X, 3.5x.
Working distance: 420m .
Interpupillary distance range; 54mm~68mm Field diameter: ≥φ70mm
Scene depth: ≥ nominal working distance ±30mm
Head negative weight: 100g Packaging: 190x125x70mm inside
Outside 200*130*70mm
Packing material (inside): nylon zipper bag (Outside): White Cowhide E Leng Paper

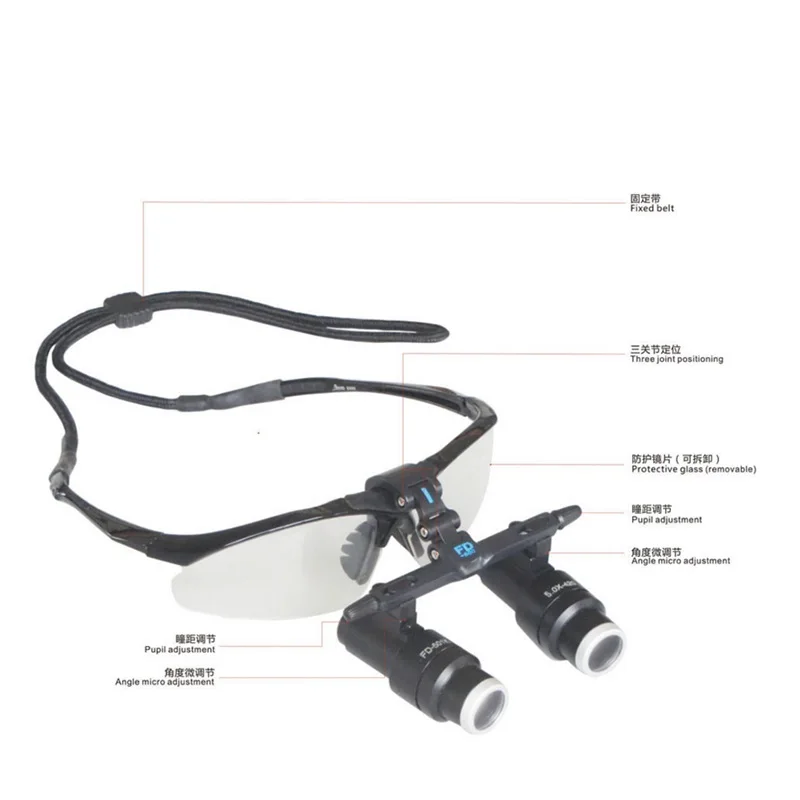

FD-501K-1 Frame
Magnification: 4.0x.5.0x6.0x.
Working distance: 420mm
Field of view: ≥φ40mm
Scene depth: nominal working distance ±25mm
Interpupillary distance range: 54~68mm
Head negative weight: 140g
Package size: 190*130*100mm
Packing material: cardboard box
Field of view: ≥φ40mm
Scene depth: nominal working distance ±25mm
Interpupillary distance range: 54~68mm
Head negative weight: 140g
Package size: 190*130*100mm
Packing material: cardboard box

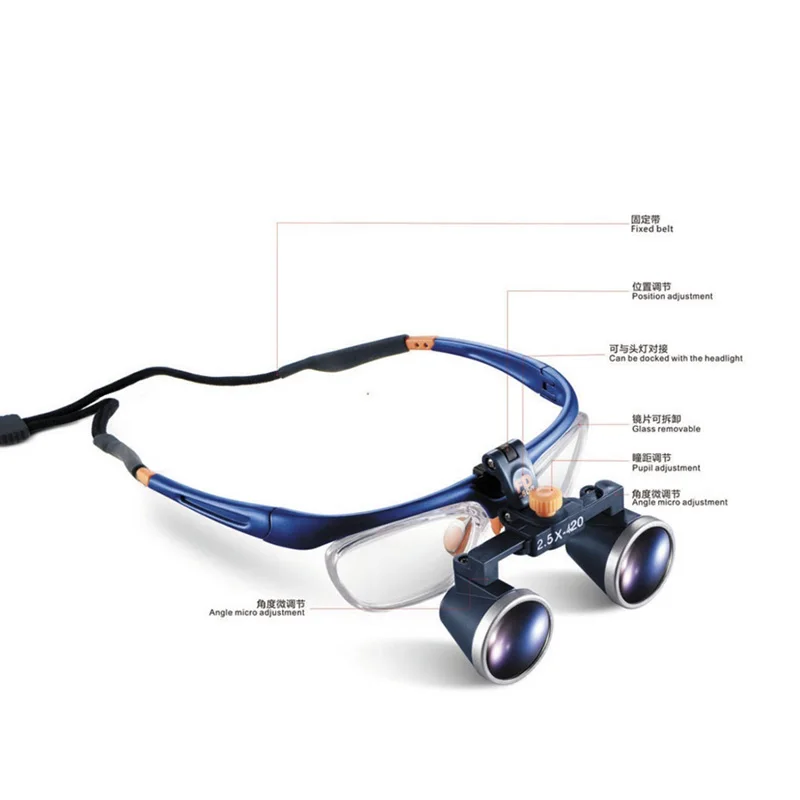

FD-503G-1 Frame
Magnification: 2.5X, 3.5x.
Working distance: 420mm
Field diameter: ≥φ70mm
Scene depth: ≥ nominal working distance ±30mm
Interpupillary distance range: 54~68mm Head negative weight: 100g
Interpupillary distance range: 54~68mm Head negative weight: 100g
Package size: 185*125*70mm / 200*130*70 Package: nylon zipper bag White cowhide e leng paper

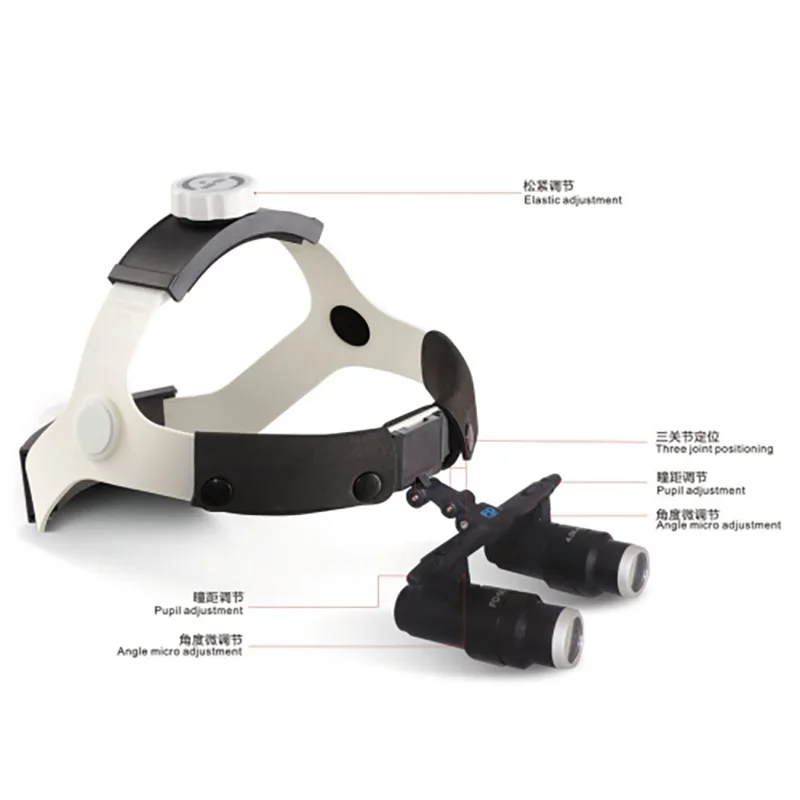

FD-501K-1 Cap
Magnification: 4.0 X, 5.0X, 6.0X
Working distance: 420mm
Field diameter: 65mm, 60mm, 50mm
Depth of field: 30~40mm
Interpupillary distance range: 53~63mm
Head diameter: 160~200mm
Weight: 235g
Package size: 230*230*140 mm
Packing material: white paper box

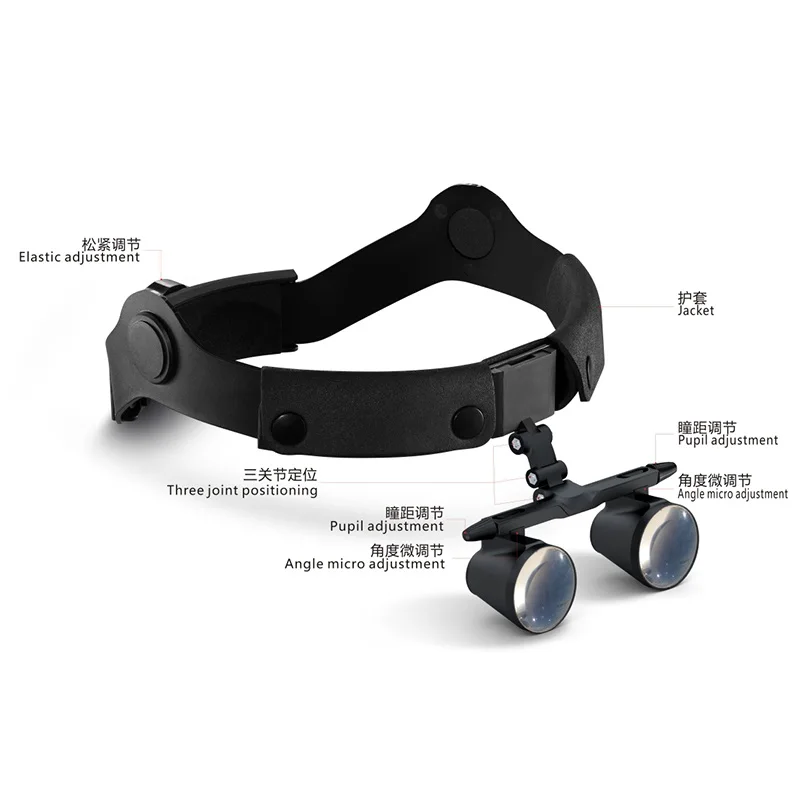

FD-503G-1 Cap
Magnification: 2.5X, 3.5X
Working distance: 420mm
Diameter of field of view: 100mm, 80mm Depth of field: 50mm
Interpupillary distance range: 48~64mm
Head diameter: 160~200mm
Weight: 115g
Package size: 210*180*70mm
Packaging: Cartons
FD-501G-2 Cap
Magnification: 2.5X, 3.5X
Working distance: 420mm
Diameter of field of view: 100mm, 80mm Depth of field: 50mm
Interpupillary distance range: 54~64mm
Head diameter: 160~200mm
Weight: 150g
Package size: 210*180*70mm
Packaging Material: Carton
Specification
item | value |
Warranty | 1 Year |
After-sale Service | Online technical support |
Place of Origin | China |
Brand Name | FD |
Model Number | FD-504G-2 |
Power Source | Manual |
Material | Plastic, Glass |
Shelf Life | 3 years |
Quality Certification | CE |
Instrument classification | Class I |
Safety standard | None |
Magnification | 2.0X 2.3X |
Working distance | 340mm 420mm 500 mm |
Field diameter | ≥80mm |
Scene depth | ±30mm (nominal distance) |
Head negative weight | 106g |
Package size | 85*65*170mm |
