China Supplier CE Passed Colposcope Gynecology Examination Optical Colposcopy colposcope Machine for Clinic

Share on (1601234394293):


Price:$1,700.00-2,900.00

Quantity:


Product Overview

Description







Product Description

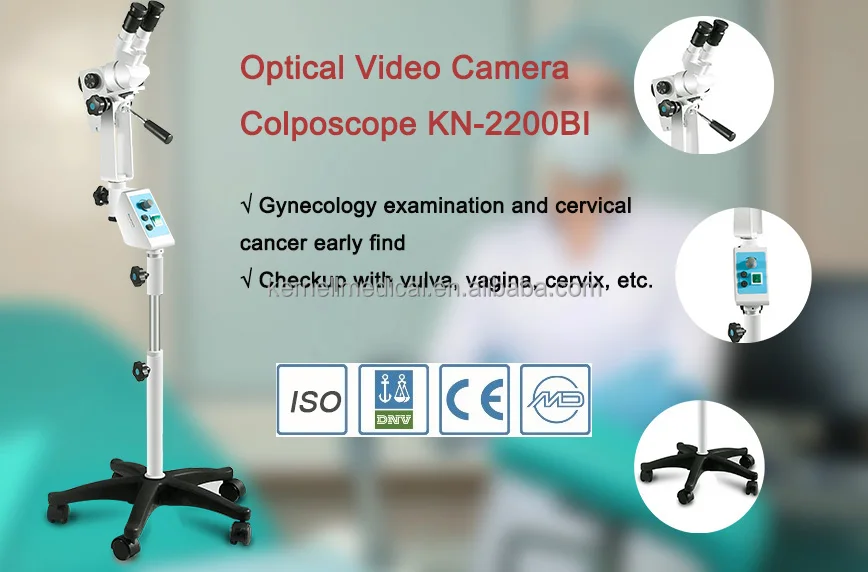

OPTICAL COLPOSCOPE GYNECOLOGY EXAMINATION

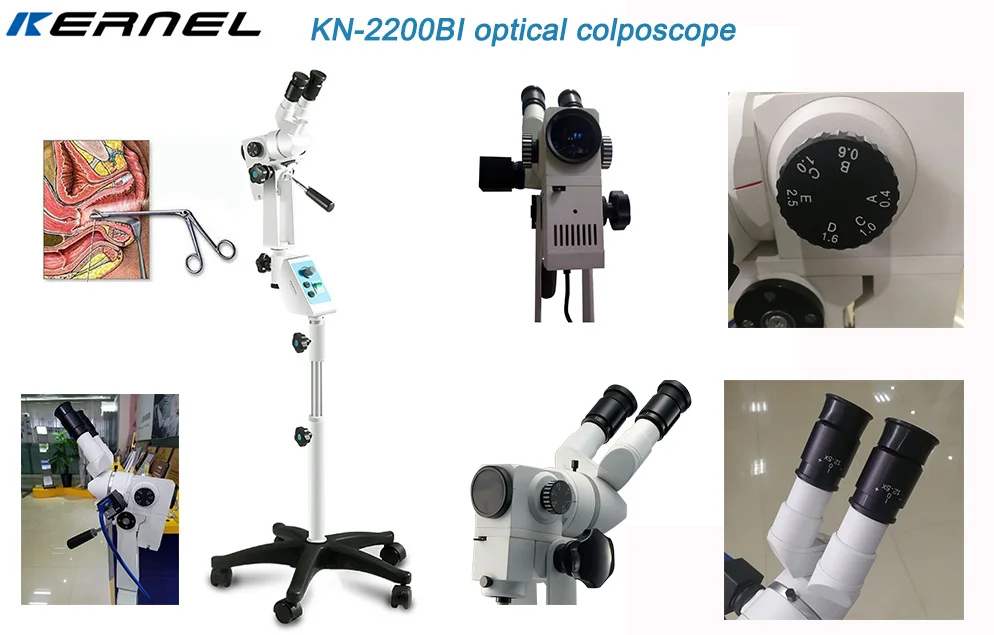

KN-2200BI for cervical cancer pre-screening
Sony camera, 1080P resolution, remote handle, TILT pan, adjustable height five corner trolley





*Clinical value of  colposcope
A. Diagnose early cervical cancer, distinguish tumor from inflammation

B. It has guiding significance in treatment, especially for the treatment of cervical intraepithelial neoplasia, which can indicate the location and extent of the lesion.

C. Colposcopy is also valuable for the estimation and treatment of benign cervical lesions.

D. The storage of colposcopy photos or computer images is very important for the follow-up observation of cervical lesions.

E. To study the relationship between HPV and sub-HPV infection and precancerous lesions and cervical cancer




*Application
1.Suitable for gynecology examination and cervical cancer early diagnose
2.On the clinical, checkup with vulva, vagina, cervix and other part

*Features
High resolution and high definition observation system.
LED light source, luminance can be adjusted freely.
Fast manual focus control, white-balance auto-adjustment.
High eye point, wide field eyepiece, 45 degree and 0 degree eyepiece
Unique beam splitter design and CCD imaging trimming, makes imaging stereo, acquire the best observation effect for the various level of lesions
Built-in scale,can measure the size of lesions.
Five-step magnification and focus, strong stereoscopic effect, distinct gradation, large viewing.

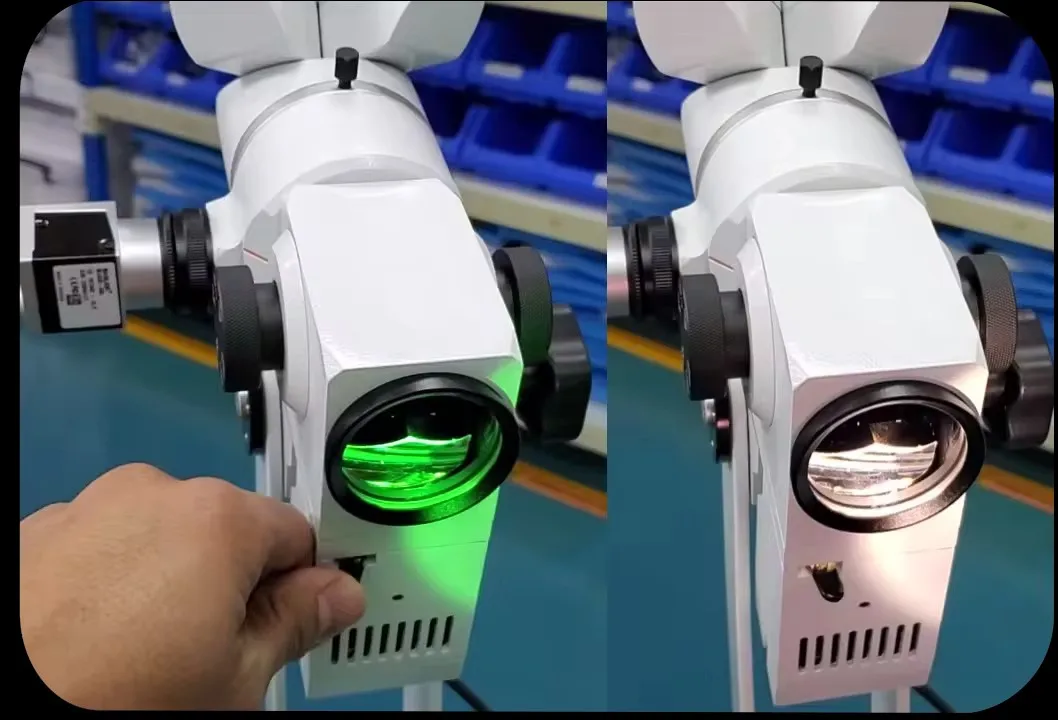

Equipped with green filter, easy to observe capillary of lesions.

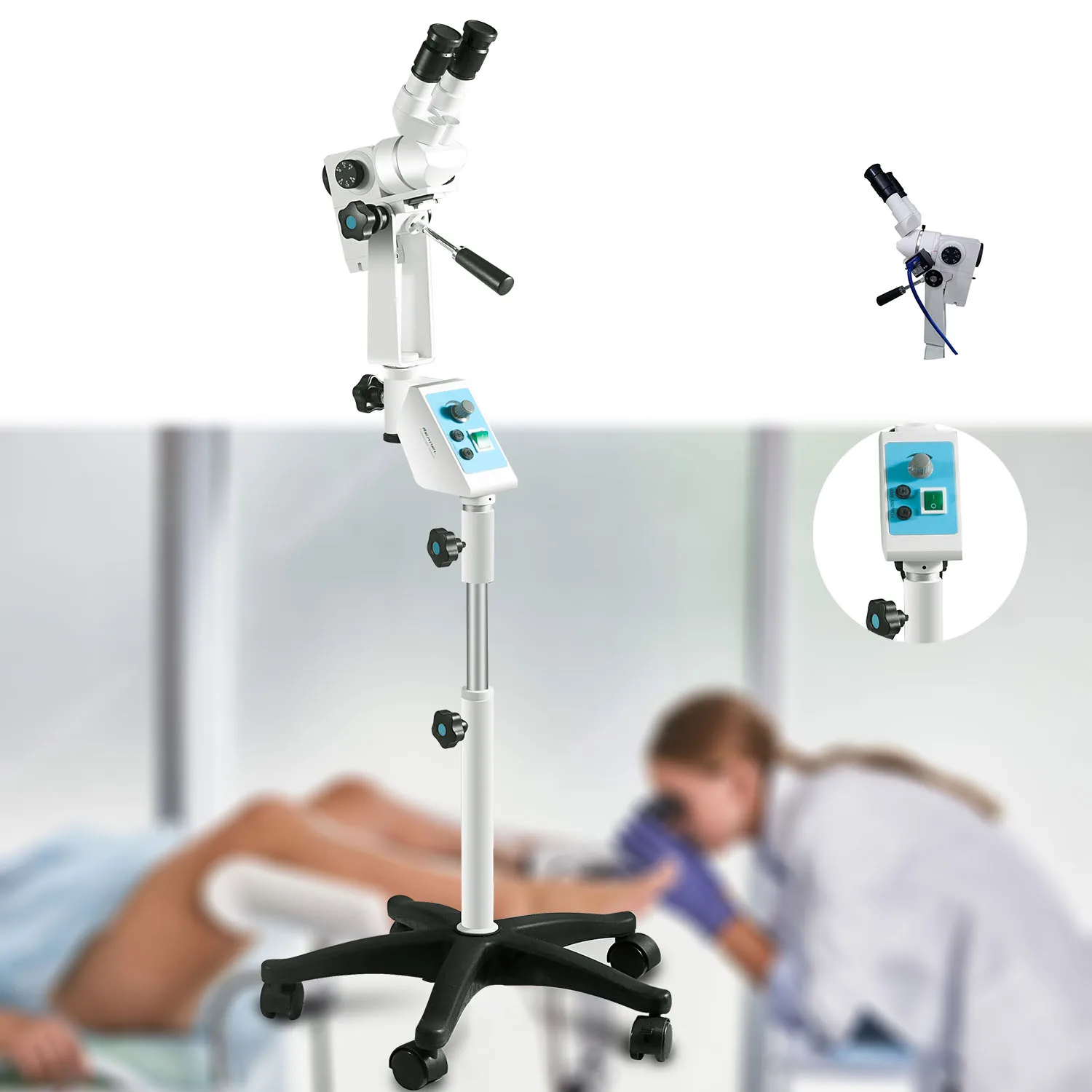

●Vertical stand, easy to move and covers a small area, suitable for any kinds of examination rooms.

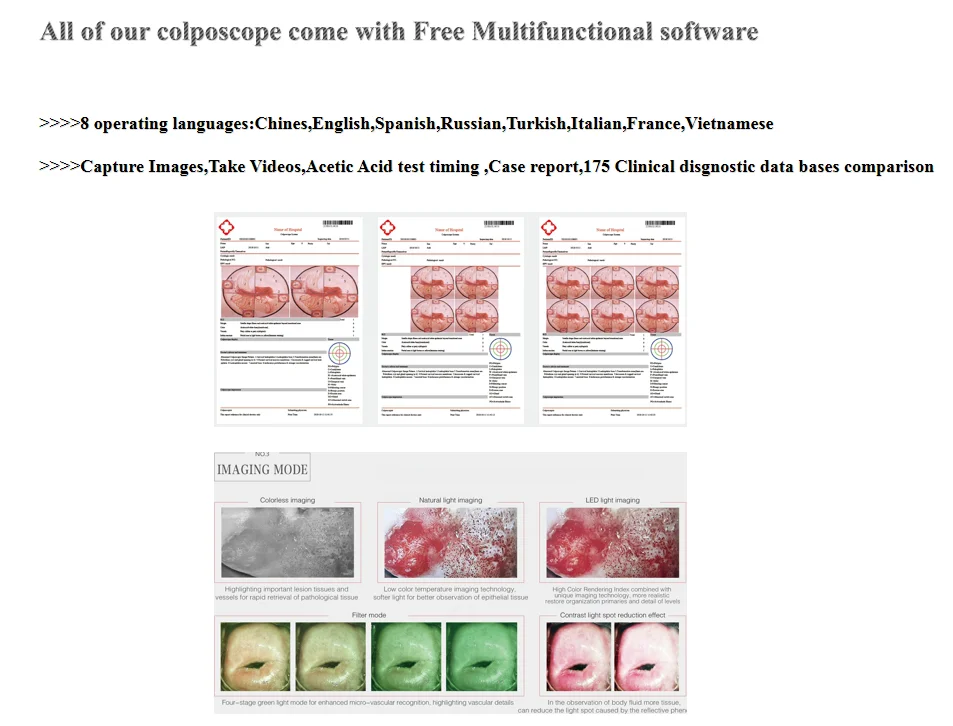

Multi-function management software with the ability of image observation, capture, video recording, freezing, editing, report printing and storage.
Special Software package, with the function of acetic acid reaction countdown, applicable to dynamic observation of examination and operative treatment.
Support Win7/8/10

*Parameters


Optics System
Binocular eyepiece focus
160mm, Built-in accurate measurement ruler
Eyepiece
12.5x, wide-angle vision adjustment(Refraction adjustment) 0±5D
Work distance
300mm
Eye-distance adjustment range
50-75mm
Micro focusing range
0-40mm
Image collection Raster
f 4.5-f 32
Cold light source
Green Filter
Light illumination
≥30000Lux
Optics magnification times
2.8-17 times
Camera  System
Type
1/3'' color CCD camera, successive scans
Level Resolution
540lines
Minimum illumination
0.05Lux
Signal Noise Ratio of lens
≥50 dB

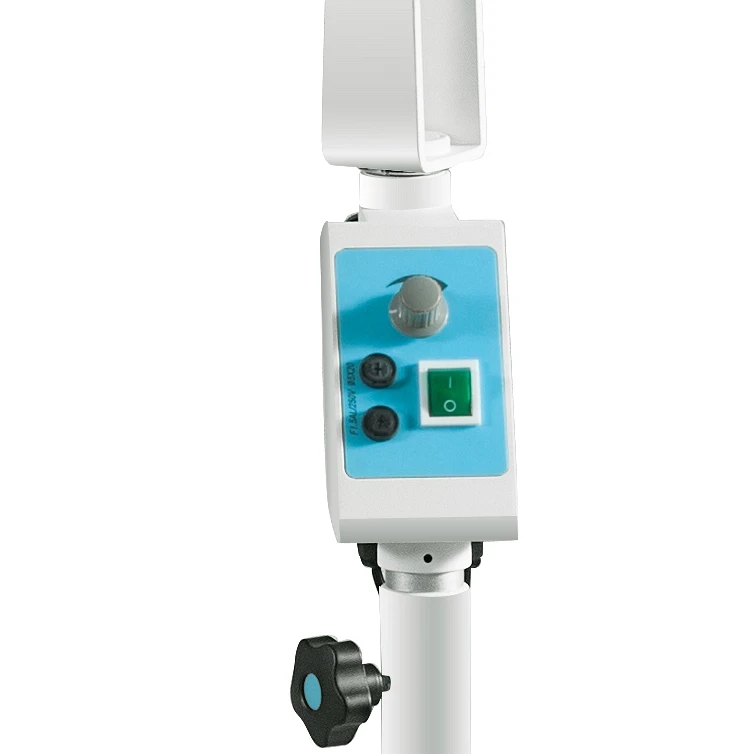

Details Images

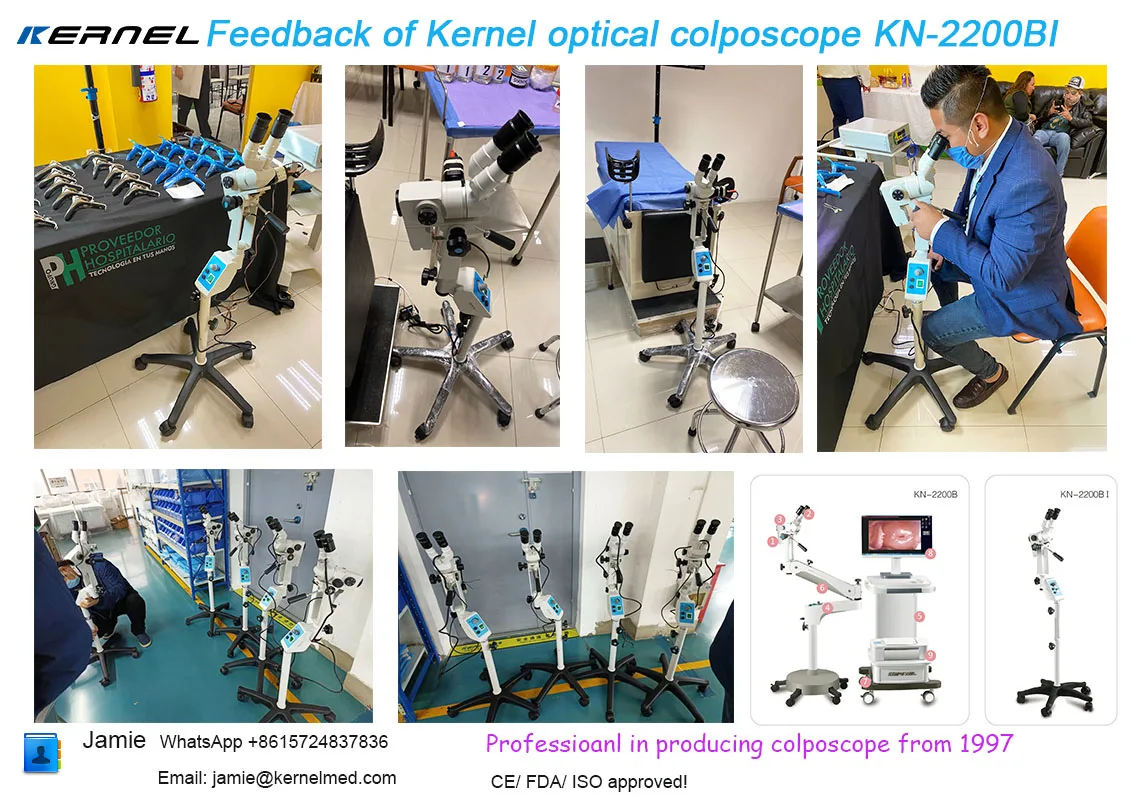

Customer Feedback






Related Products




Packing & Delivery

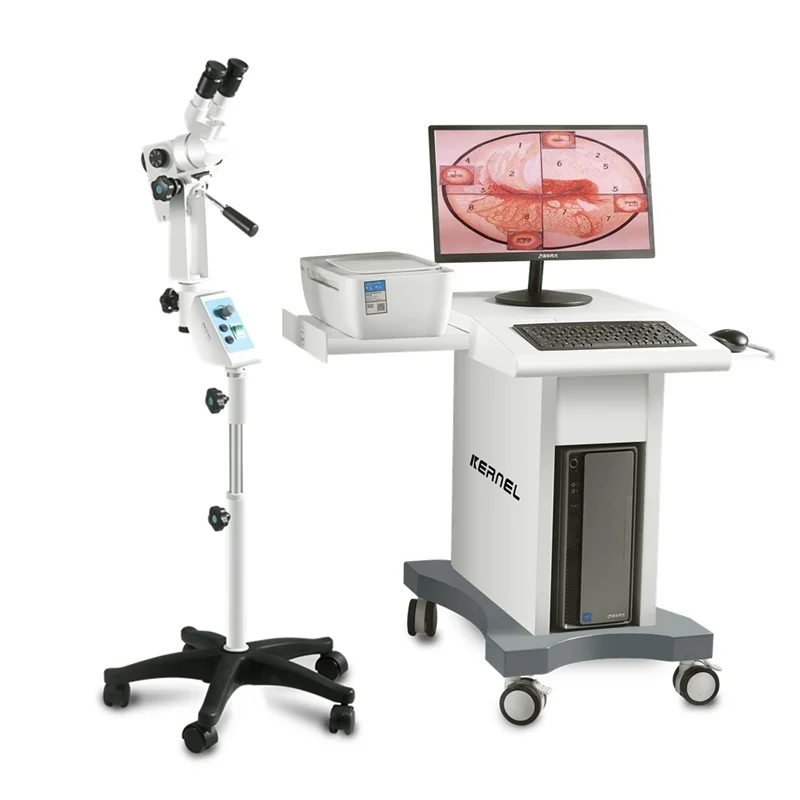

Standard Configuration
Image capture system
*1
Image control system
*1
Bracket
*1
Footswitch
*1
Software
*1
