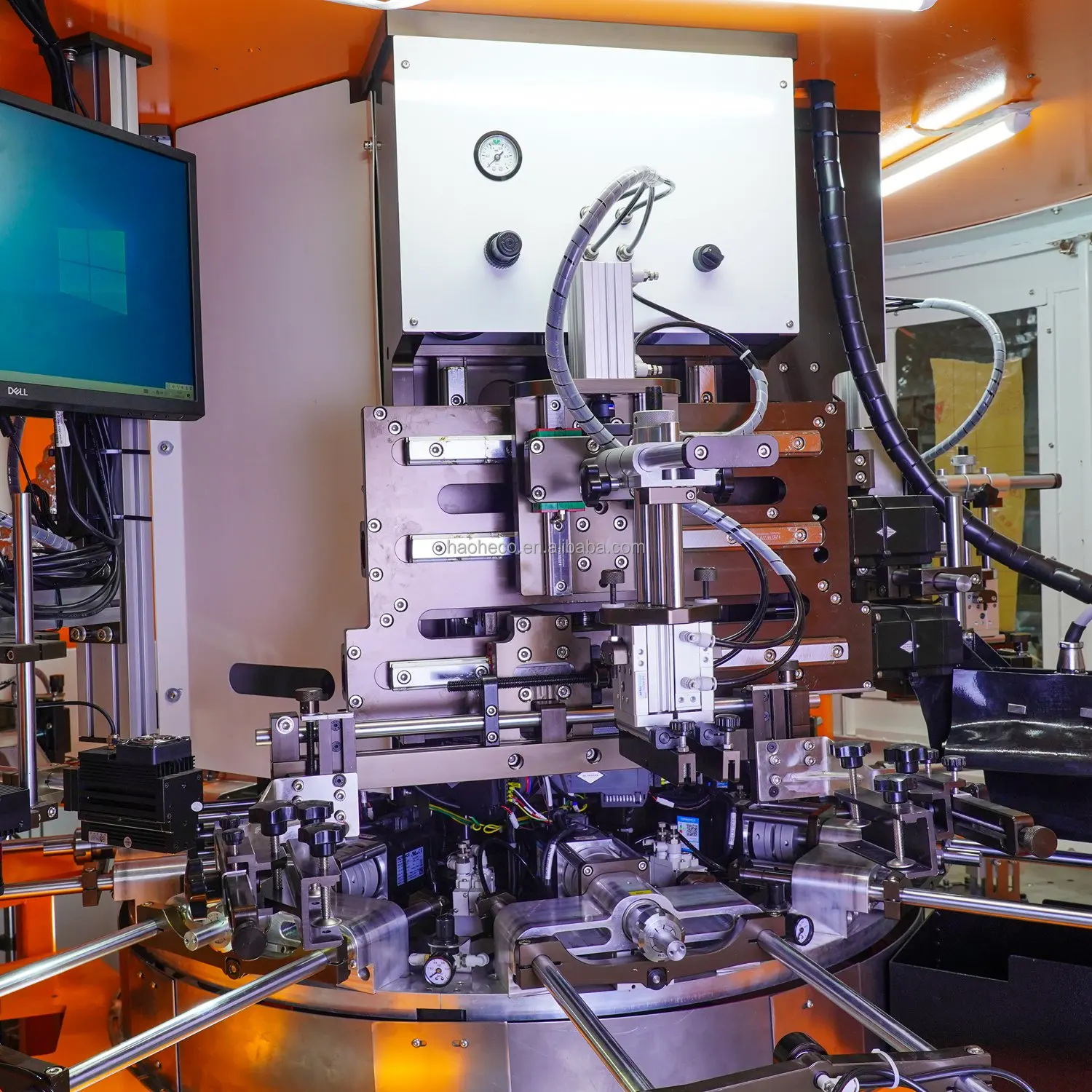

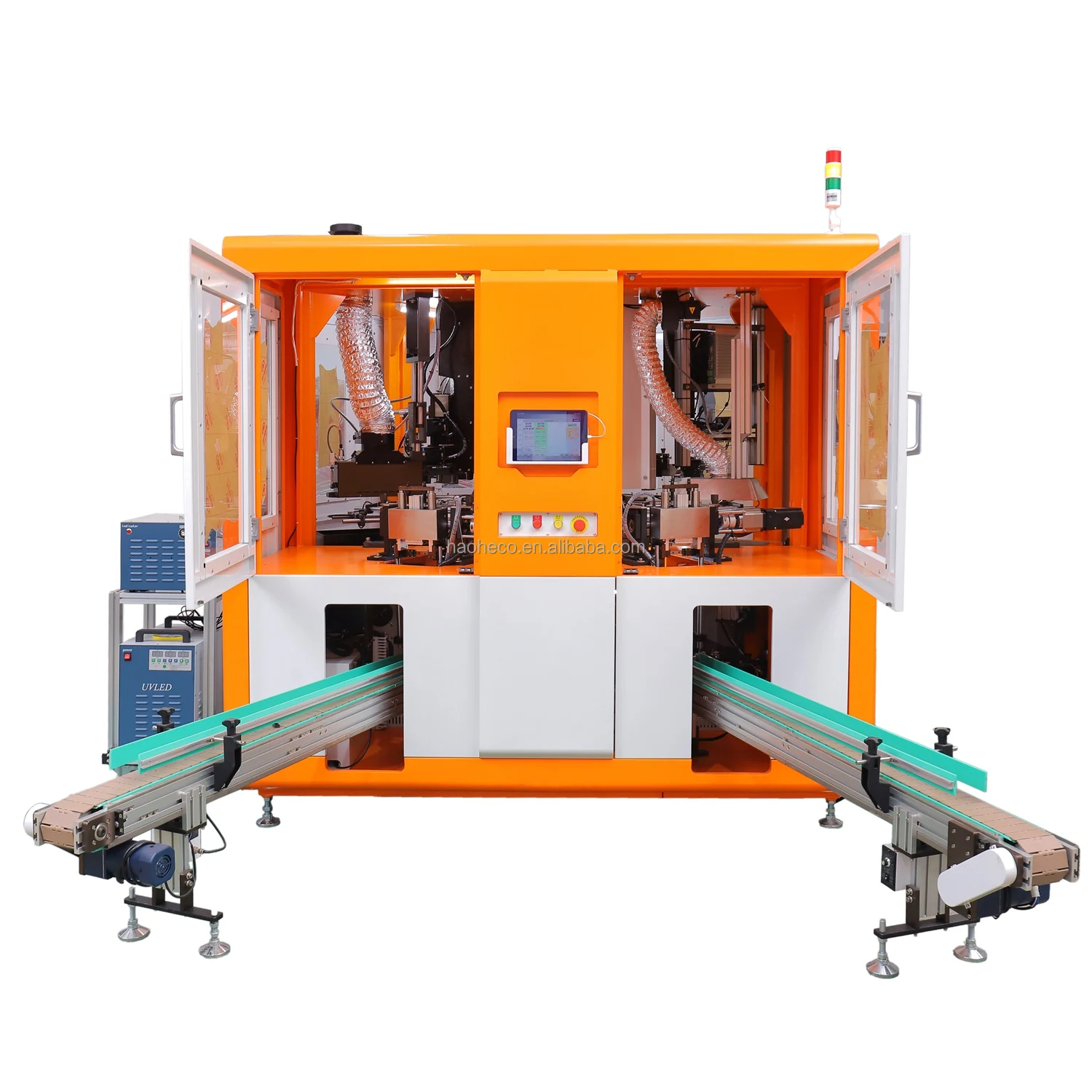

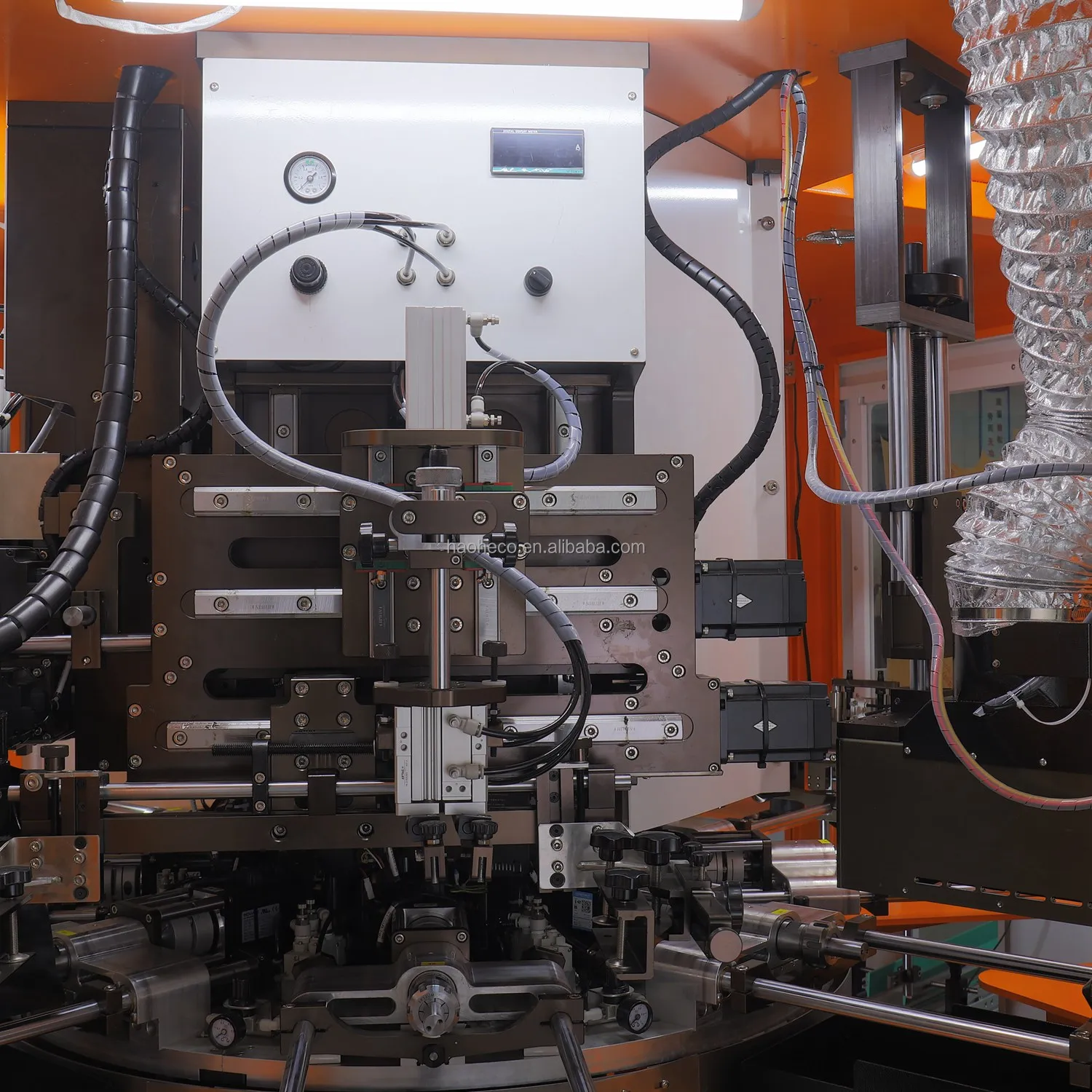

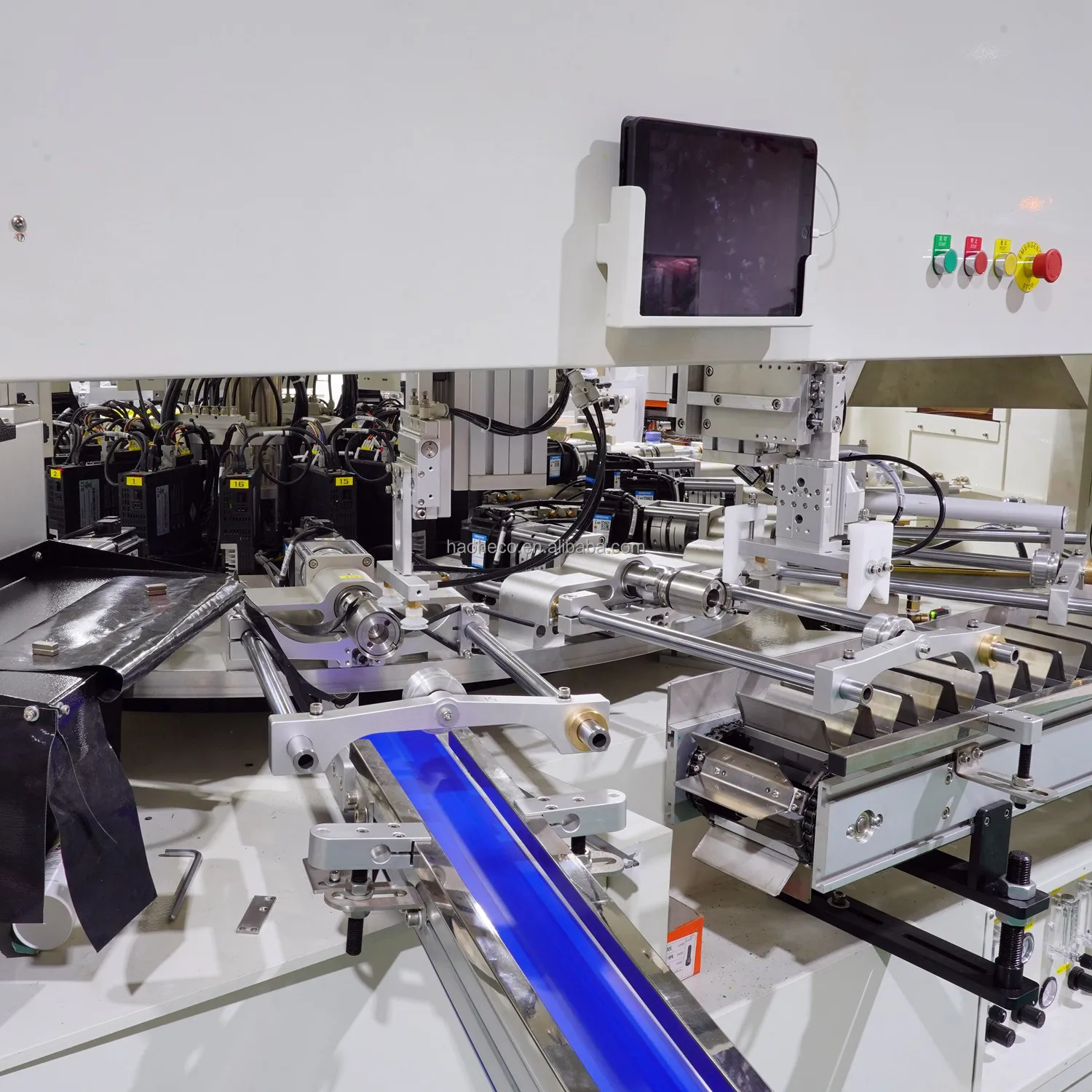

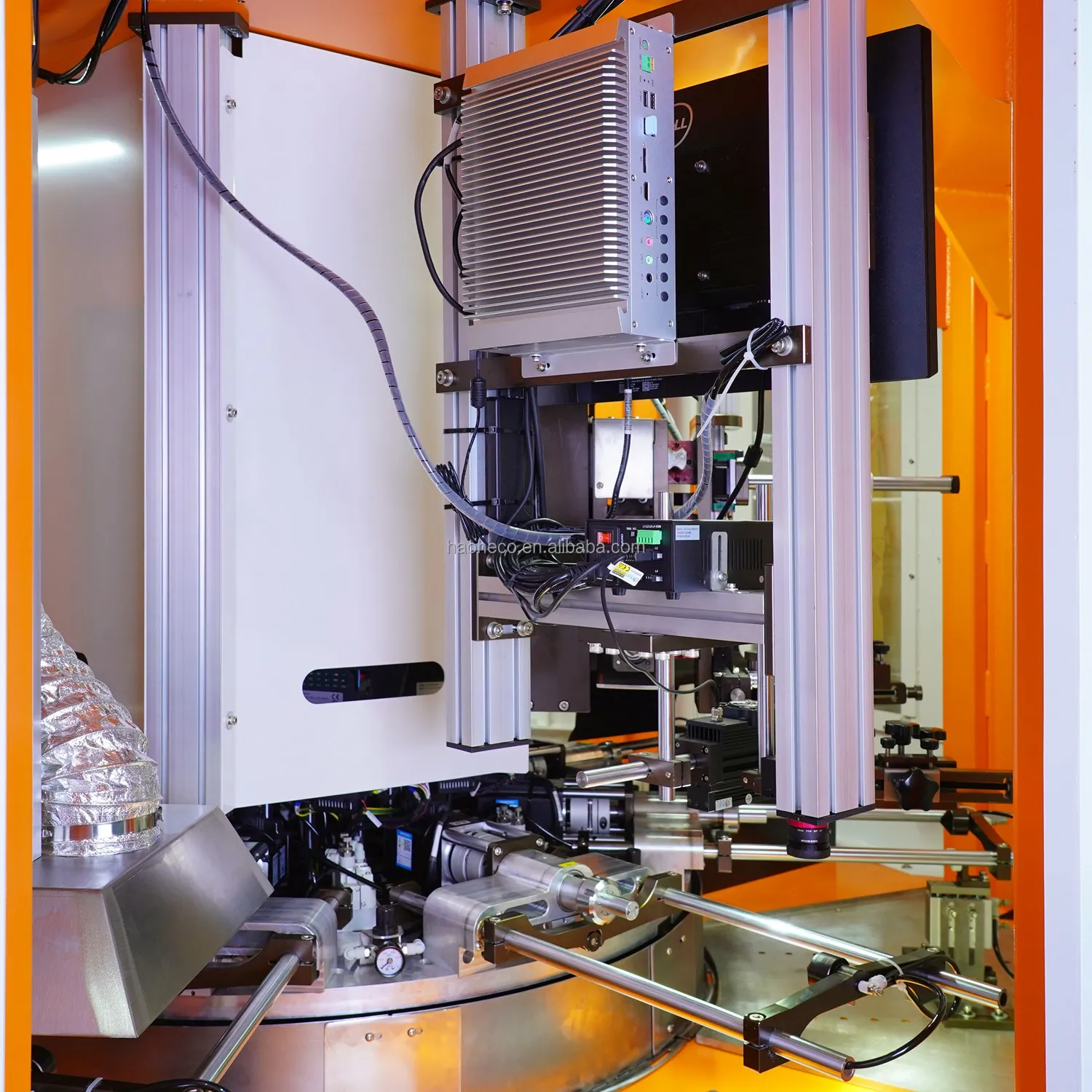

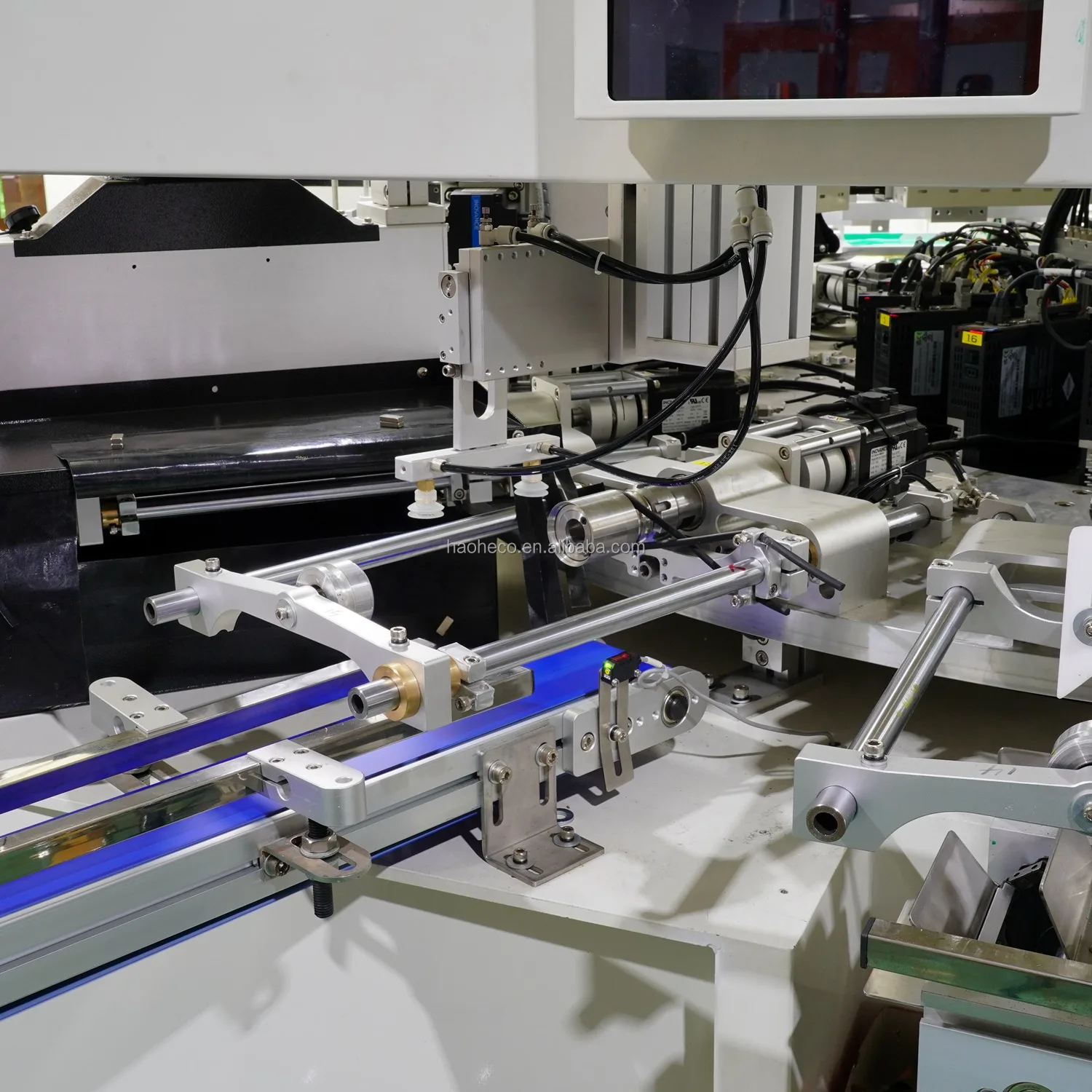

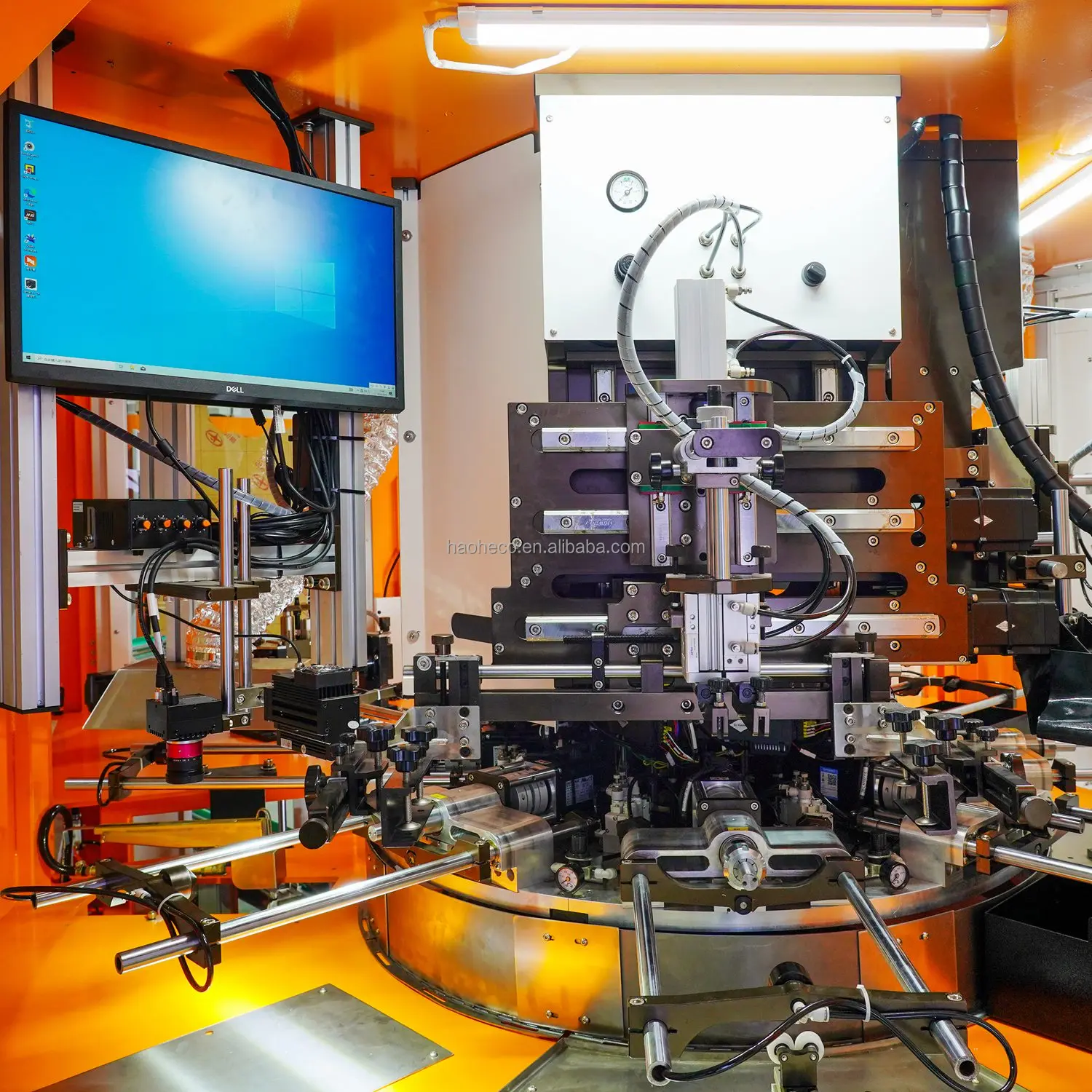

2 Colors CNC Auto Servo Cylindrical Glass Bottle Container Cream Cosmetic Bottle Screen Printing Machine
- Category: >>>
- Supplier: Dongguan Howell Machinery Limited
Share on (1601234446802):
Product Overview
Description
Product Description
Specifications | ||
Printed Object Dimension | Cylindrical, Cone, Cube, etc; φ: 100mm, L: 300mm | |
Power Supply | 380V, 3Phase, 50Hz, 25Kw | |
Air Supply | 6-8Bar | |
Max.Printing Speed | 3000Pcs/hr | |
Machine Dimension | 2735(L)x 2450(W)x 2315(H)mm | |
Total Power | 25kw | |
Weight | 3500 KG | |
Features:
2. Adopt high precision imported servo turntable and full servo drive system. High printing speed, easy and fast debugging, stable and reliable quality.

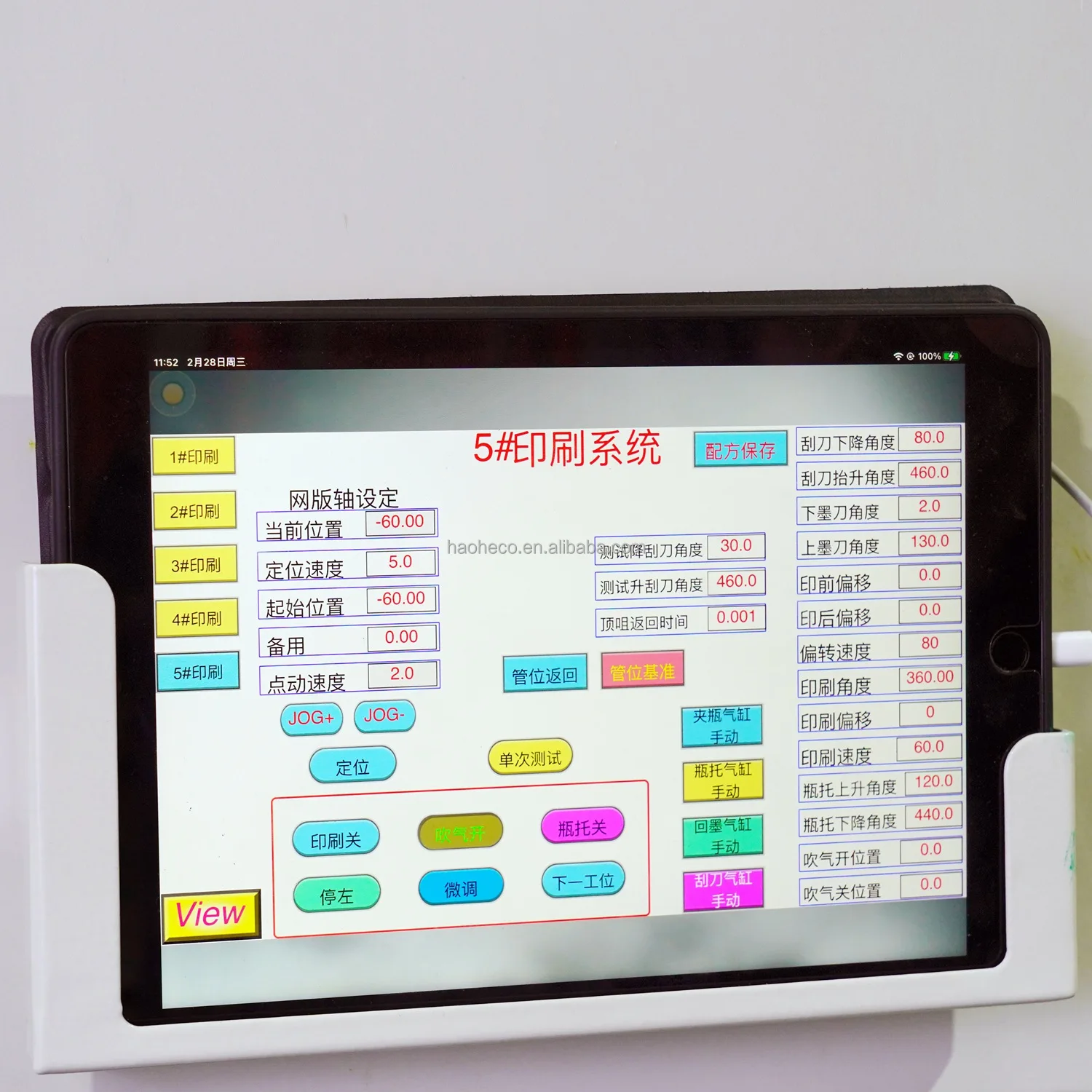

3.Germany BECKHOFF motion controller,and 10"ipad mobile touch screen.

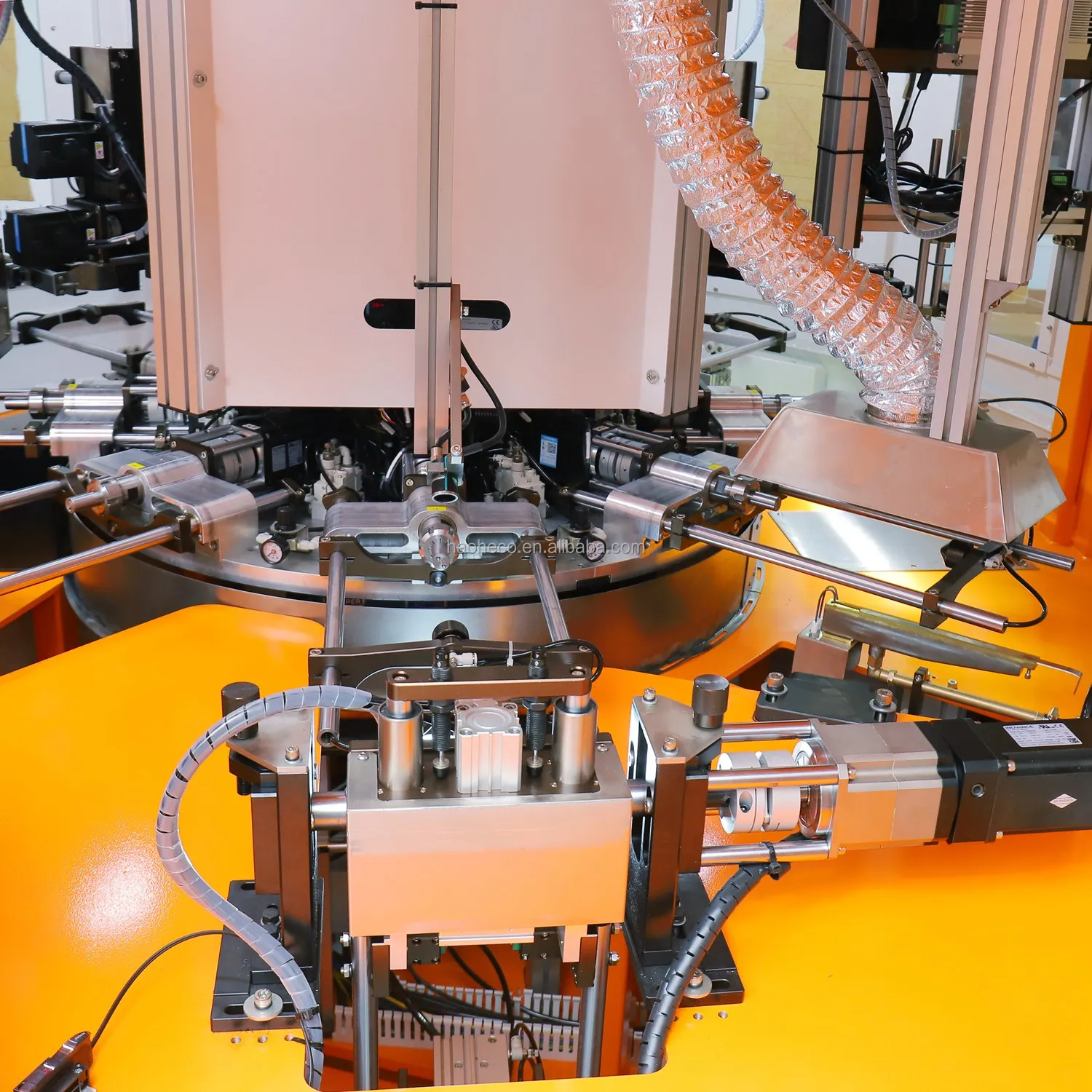

4. The 8-axis tube position holder is controlled and operated by absolute servo motor.
5. The main drive is controlled by high precision reducer with absolute value servo motor.
6. Ball screws and guide rails all adopt international famous brands,which have higher precision and longer life.
7. LED UV curing is also servo-driven.The curing time can be set arbitrarily according to the requirements of product
printing,which greatly increases the adhesion of the ink.
8. It has an independent vacuum system,and the anti-wear products can be made by vacuum suction.Effectively avoid product abrasion during the printing process,and ensures independent vacuum for more stable printing quality.
9. Printing in the same color on round, oval,square,triangular, and other shapes' surface of container can be completed at one time.
10. Flame treating with servo drive can achieve arbitrary speed adjustment.

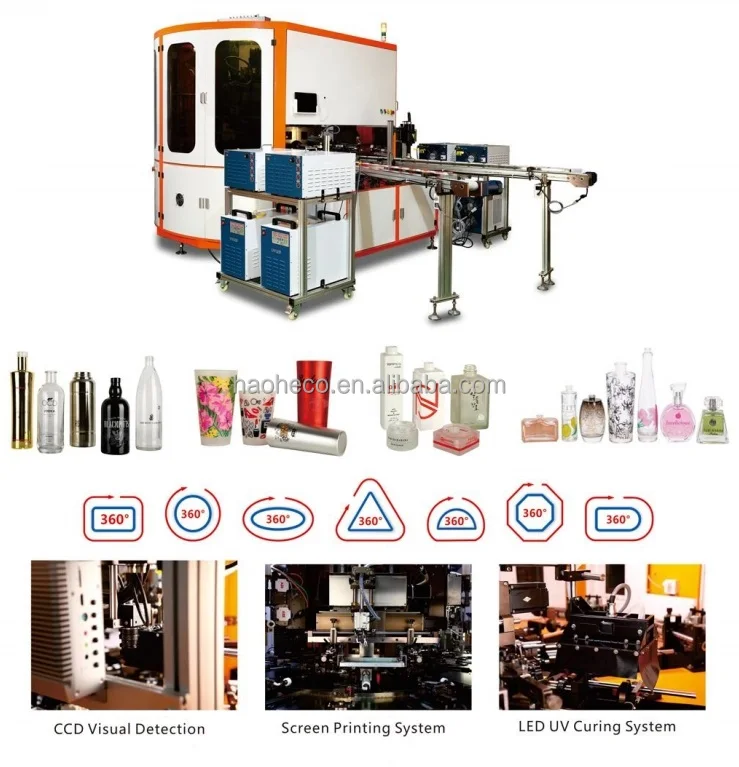

11. It can achieve multi-color overprinting and precise control of patterns based on product surface position, via bottle opening or pattern positioning point detection by laser sensor or CCD vision detection.
12. Simple debugging of replacement models without gears. Thus avoiding the inaccuracy of color registration after wear of the rack and pinion, and significantly save time on tuning.
13. CCD post-print inspection system can also be configured,and leave space for subsequent additions.
14. More reasonable design of the main structure and significant optimization over existing domestic machines make it achieve stable and efficient production.
1. Suitable for screen printing on round, oval, square, triangular and other shapes 'surface of containers (cosmetics,wine,beverage bottles, and general purpose containers).
2. Adopt high precision imported servo turntable and full servo drive system. High printing speed, easy and fast debugging, stable and reliable quality.
3.Germany BECKHOFF motion controller,and 10"ipad mobile touch screen.
4. The 8-axis tube position holder is controlled and operated by absolute servo motor.
5. The main drive is controlled by high precision reducer with absolute value servo motor.
6. Ball screws and guide rails all adopt international famous brands,which have higher precision and longer life.
7. LED UV curing is also servo-driven.The curing time can be set arbitrarily according to the requirements of product
printing,which greatly increases the adhesion of the ink.
8. It has an independent vacuum system,and the anti-wear products can be made by vacuum suction.Effectively avoid product abrasion during the printing process,and ensures independent vacuum for more stable printing quality.
9. Printing in the same color on round, oval,square,triangular, and other shapes' surface of container can be completed at one time.
10. Flame treating with servo drive can achieve arbitrary speed adjustment.
11. It can achieve multi-color overprinting and precise control of patterns based on product surface position, via bottle opening or pattern positioning point detection by laser sensor or CCD vision detection.
12. Simple debugging of replacement models without gears. Thus avoiding the inaccuracy of color registration after wear of the rack and pinion, and significantly save time on tuning.
13. CCD post-print inspection system can also be configured,and leave space for subsequent additions.
14. More reasonable design of the main structure and significant optimization over existing domestic machines make it achieve stable and efficient production.
Application

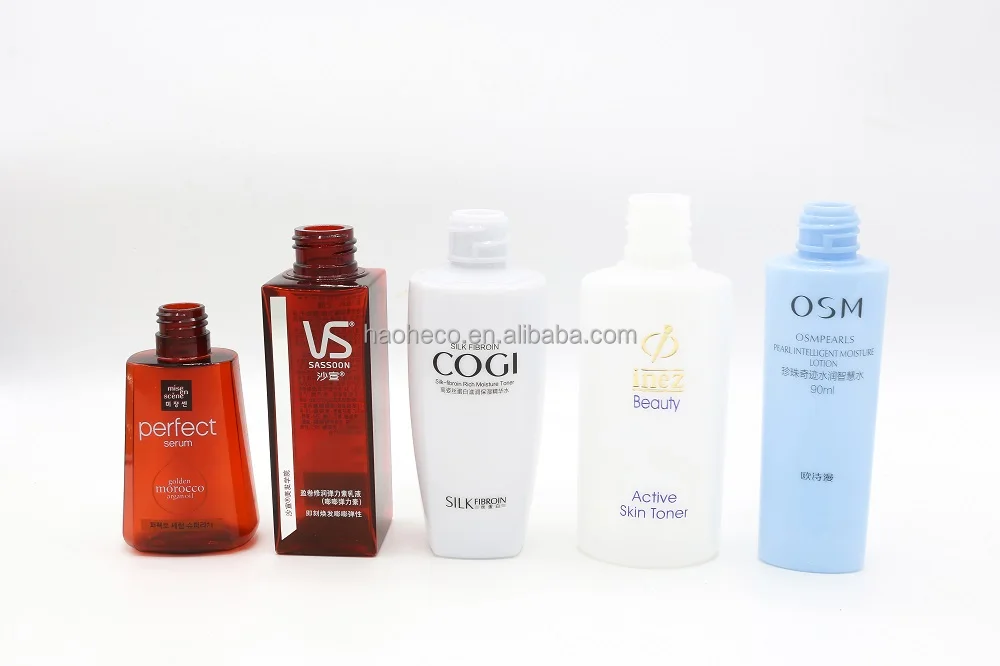

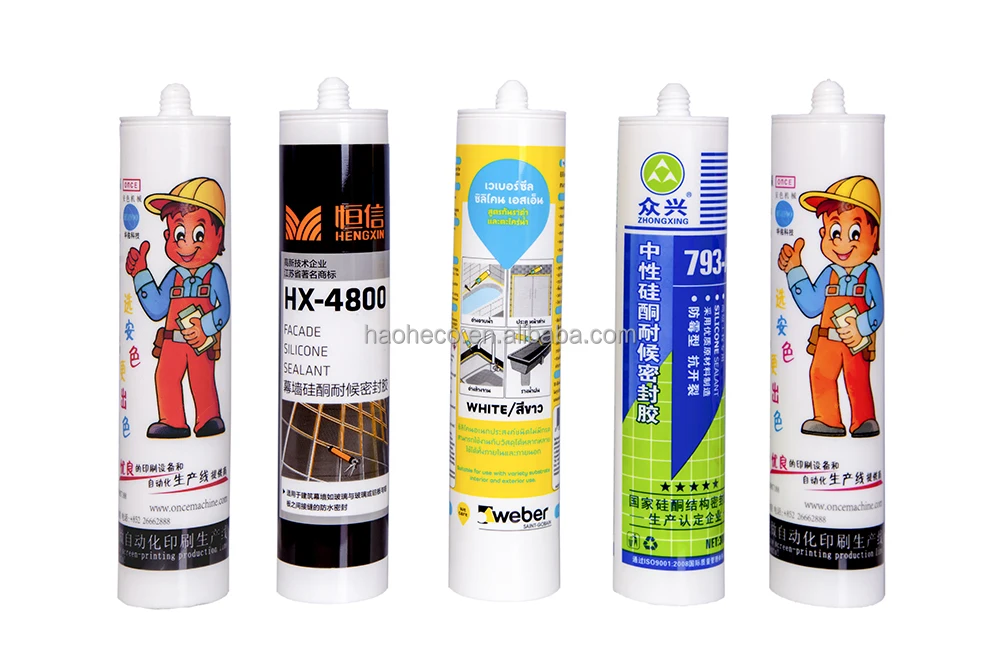

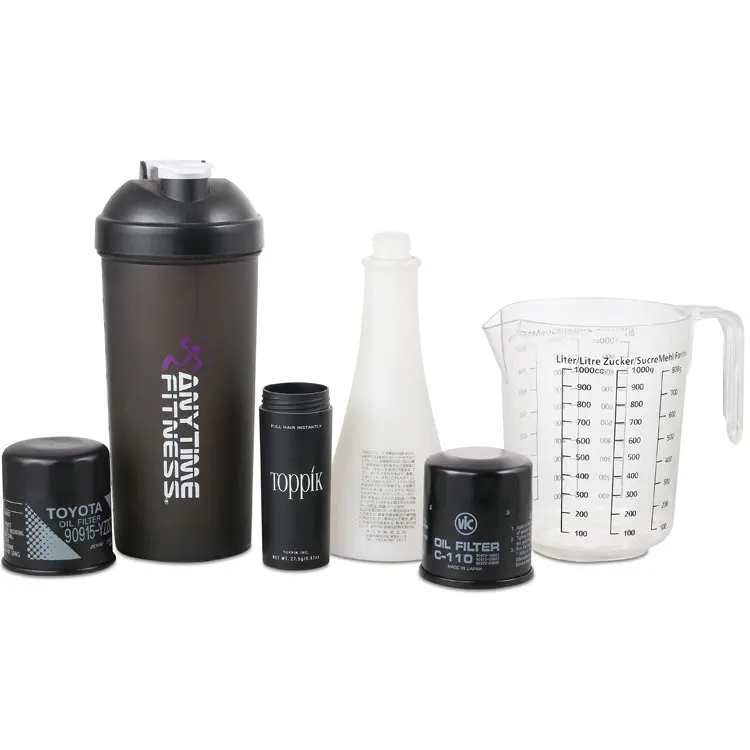

Suitable for cylindrical objects printing, such as blow molded bottles, cosmetic tubes, aluminum water bottle, lipstick tubes, glass pipettes, test tubes, jars, syrings etc.
Packing&Shipping
Packing: Wooden case suitable for export, carton box for small parts.
Lead Time: 25 Days
Standards Certificate: CE
Shipping: By air, by sea, by express (DHL, TNT, UPS, FEDEX,etc).
After Sales Service
Professional after sales service
We provide one year warranty and life-long maintenance.
Free online training is available.
If necessary, we can also provide field maintenance, but travel charge will be on buyer's side.
If necessary, we can also provide field maintenance, but travel charge will be on buyer's side.
Online service time: 16 hours online services
8:00 am--12:00pm (Monday- Saturday)
24 hours phone call services (Monday- Sunday)
In order to benefit good rights and interests for our customers, we have done the testing strictly before the machine exports; try to provide the best after-sales service for our customers.
8:00 am--12:00pm (Monday- Saturday)
24 hours phone call services (Monday- Sunday)
In order to benefit good rights and interests for our customers, we have done the testing strictly before the machine exports; try to provide the best after-sales service for our customers.
Why Choose Us
1. Top quality electrical & Pneumatic parts, OMRON, Mitsubishi, FESTO and SMC brands.

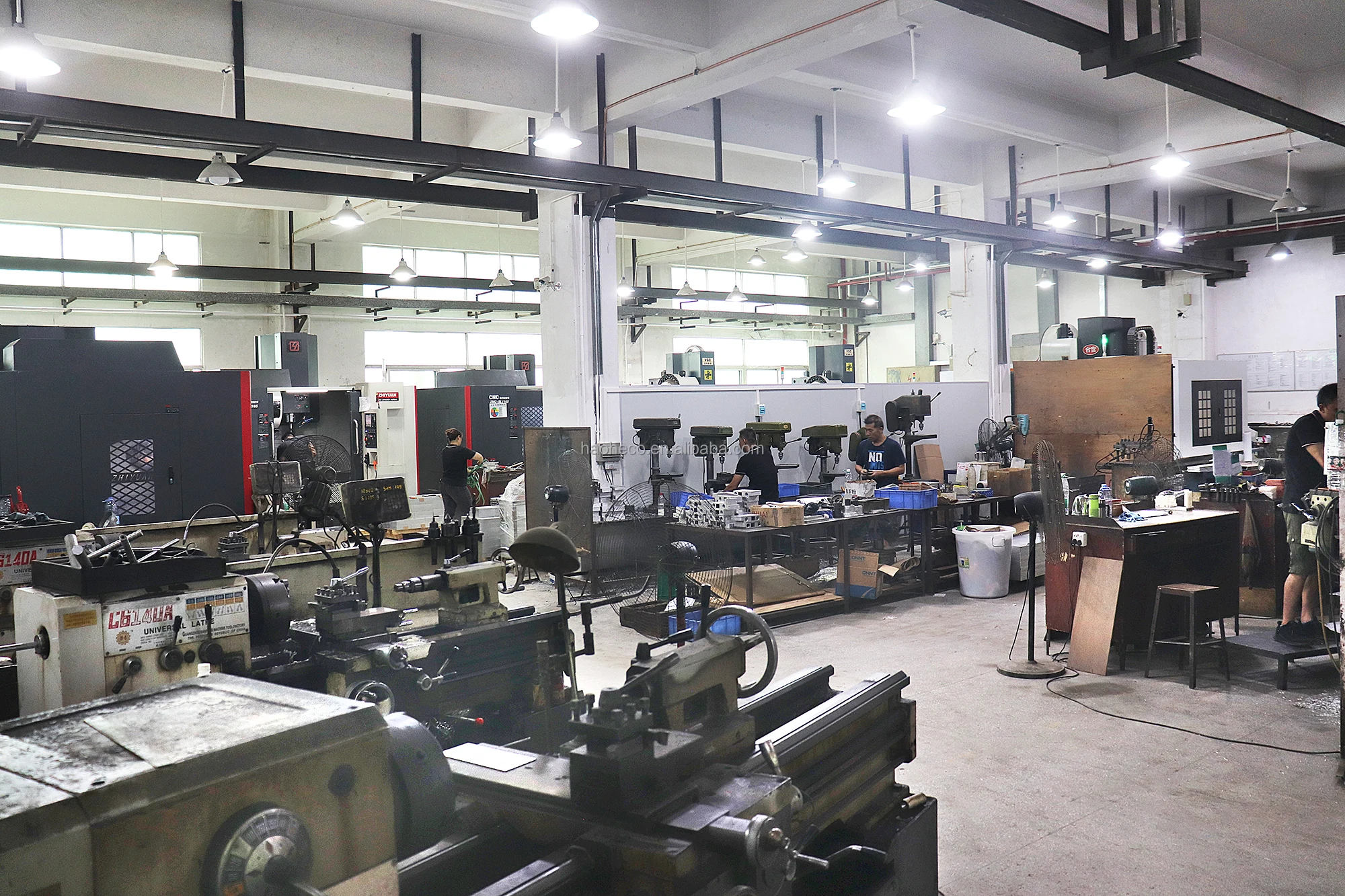

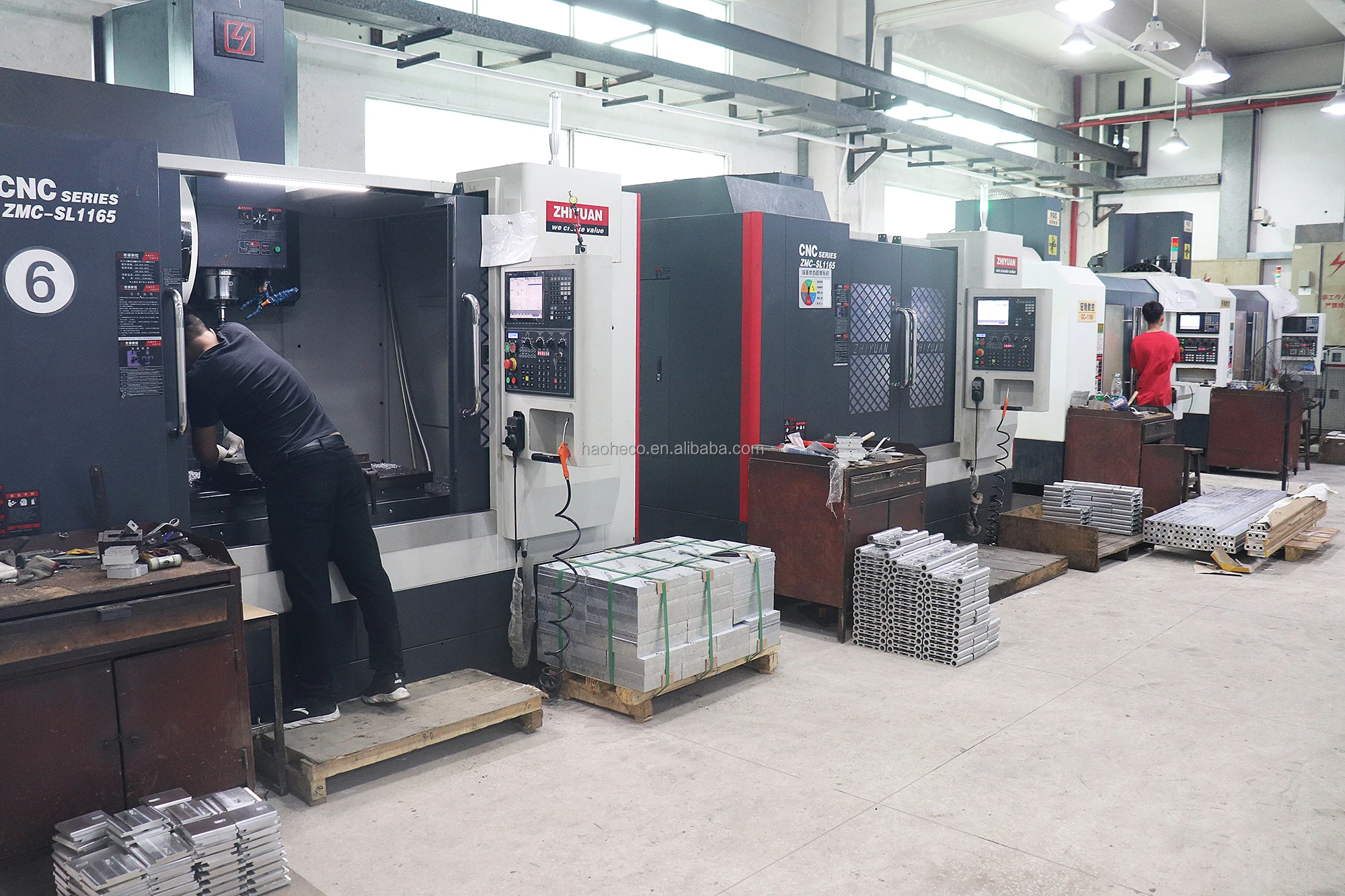

2. Most parts are processed by ourselves, quality and cost are under control.
3. Professional engineers with more than 20 years’experience, can design the machine for your products.
4. One year warranty and life-long maintenance.
2. Most parts are processed by ourselves, quality and cost are under control.
3. Professional engineers with more than 20 years’experience, can design the machine for your products.
4. One year warranty and life-long maintenance.
Company Introduction

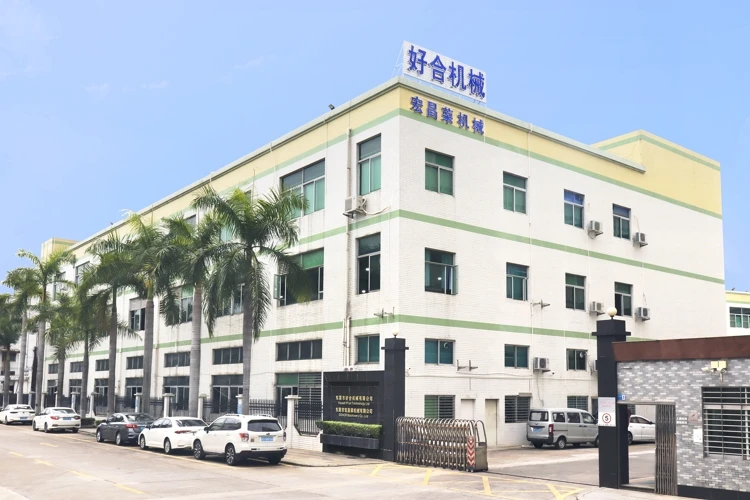

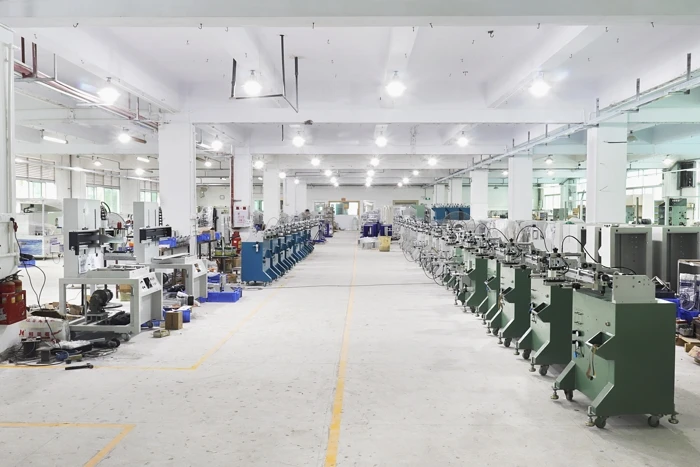

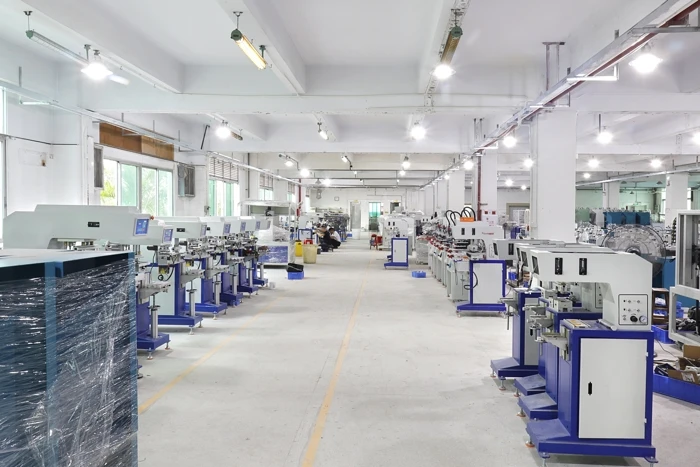

Howell Print Technology Ltd. is a professional manufacturer of pad printing and screen printing machine since 1996, located in
Dongguan China.
Howell provides premium and extremely stable both semi-automatic and fully automatic equipment with world famous pneumatic parts,
and complying with CE safety standards.
Howell offers full manufacturing services to OEM and ODM customers.
FAQ
Q: I want to buy your machine, can you print my product as sample first?
A: Yes,we can. After you confirmed the order, we can print your sample for free.
Q: Can I get wearing parts from you?
A: Yes, we provide all the wearing parts for our printers.
Q: What modes of payment do you accept?
A: We accept T/T, WesternUnion, Paypal, L/C at sight.
A: Yes,we can. After you confirmed the order, we can print your sample for free.
Q: Can I get wearing parts from you?
A: Yes, we provide all the wearing parts for our printers.
Q: What modes of payment do you accept?
A: We accept T/T, WesternUnion, Paypal, L/C at sight.
