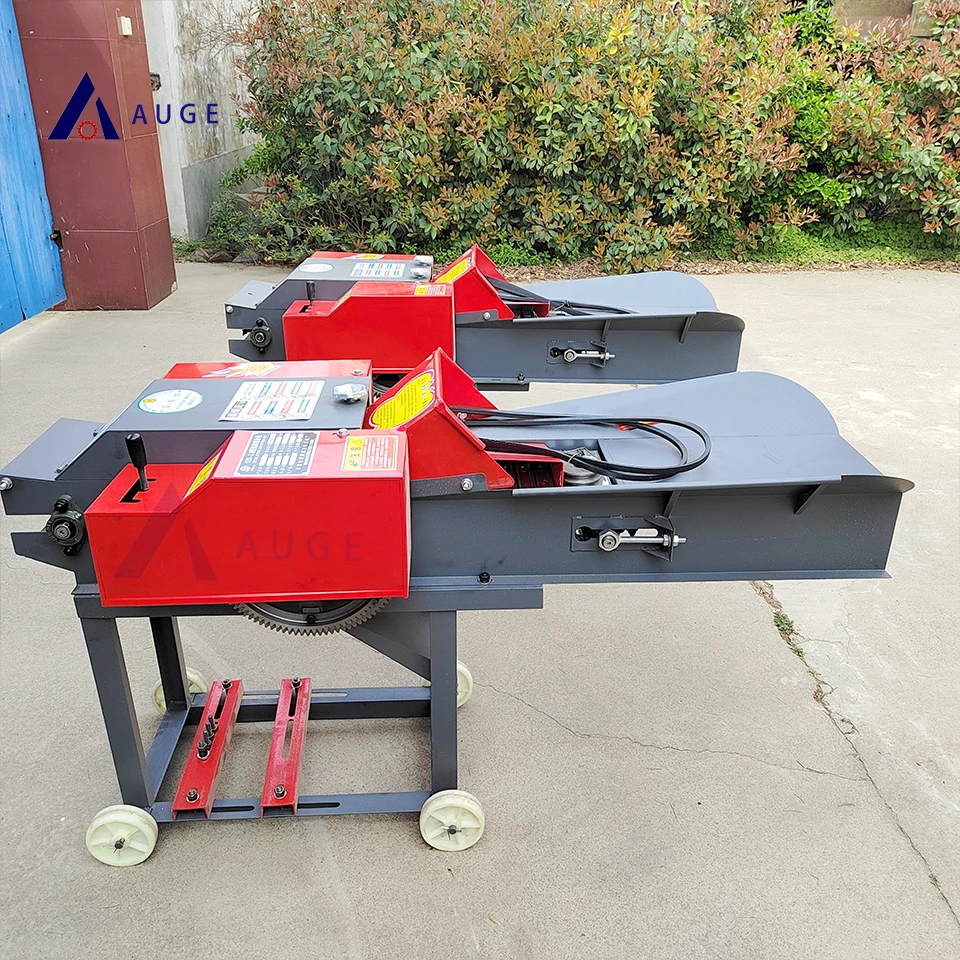

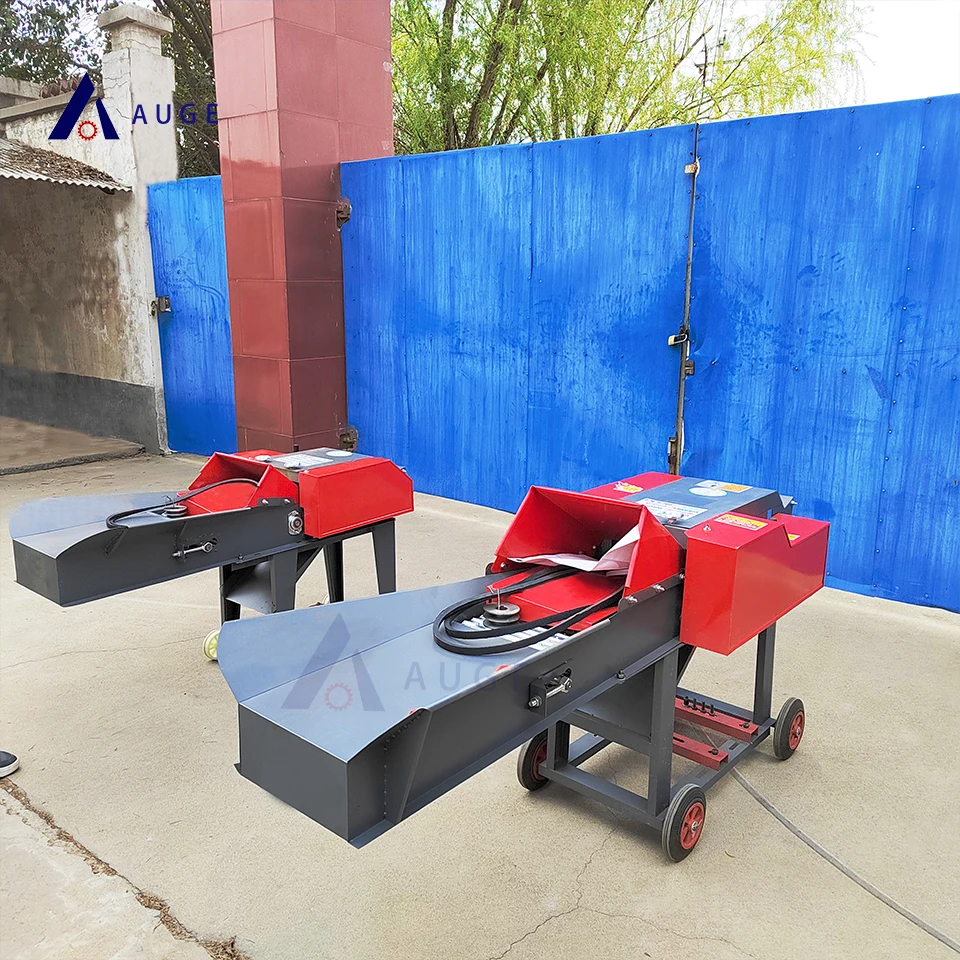

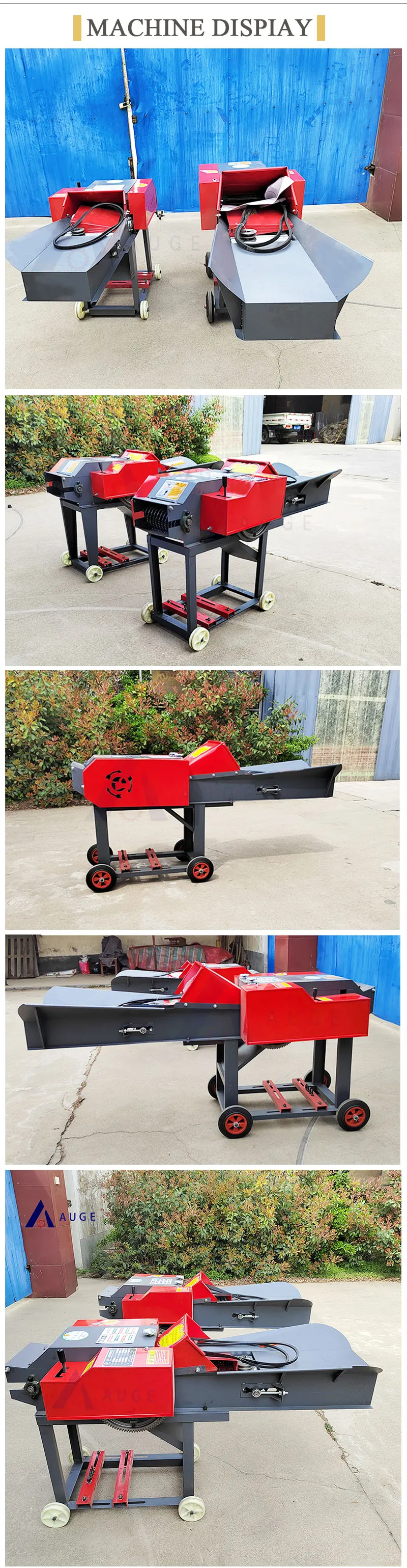

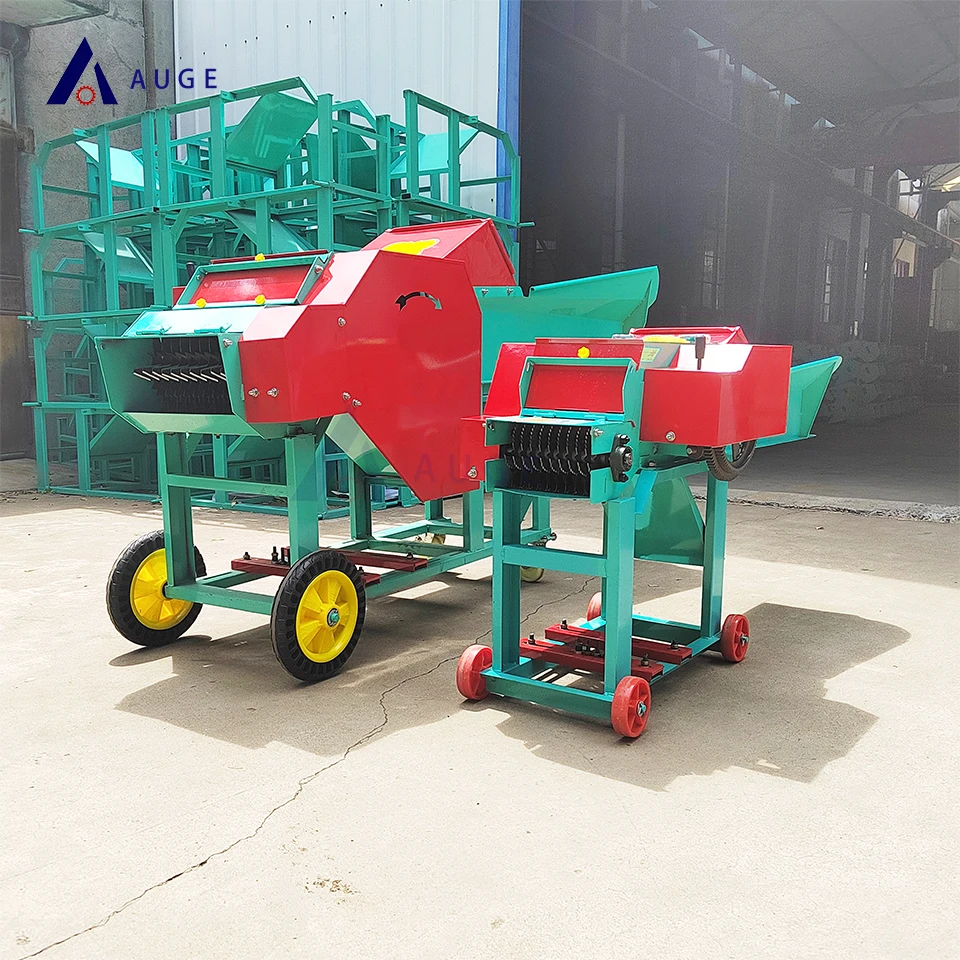

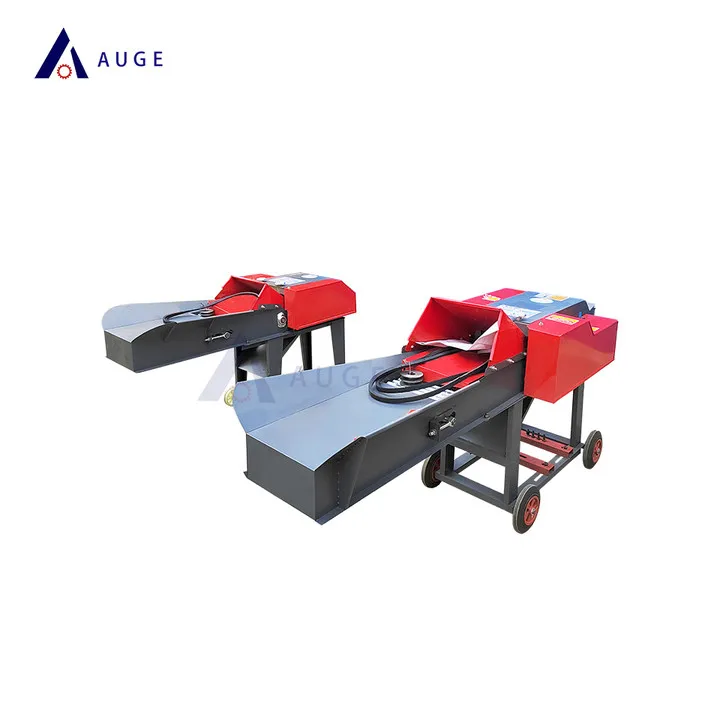

Auge Automatic Chopper Machine Chaff Cutter Machine Animal Feed Home Use Dry And Fresh Corn Straw Grass Chopper Machine

Application:

A chaff cutter is used for crushing and kneading different kinds of dry and fresh straws and grasses into short filiform shapes, such as cornstalks, wheat straws, rice straws, peanut straws, Peashooter, bean vines, potato straws, alfalfa and etc. After chopping, straw feed is suitable to be stored after bailing and packing. Thus both palatability and nutrient are better. So chaff cutter is a necessary piece of equipment in home breeding and small-medium feed mill factories. It also necessary equipment in the feed pellet factory and paper factory to process straws prior.

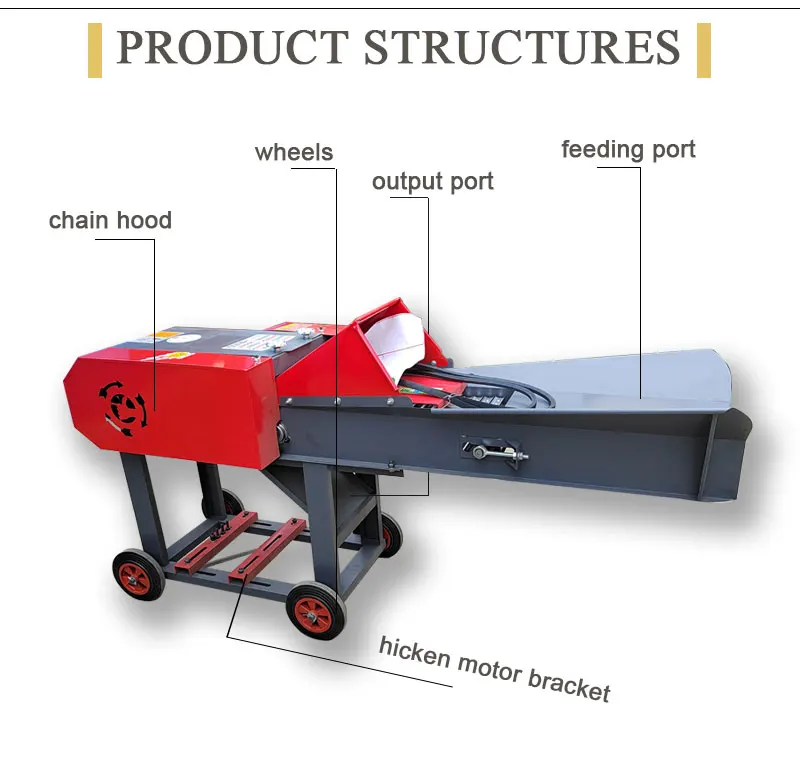

Structures:

Feeding port——chain hood——Kneading chamber——output port——wheels——thicken motor bracket

Working principle:

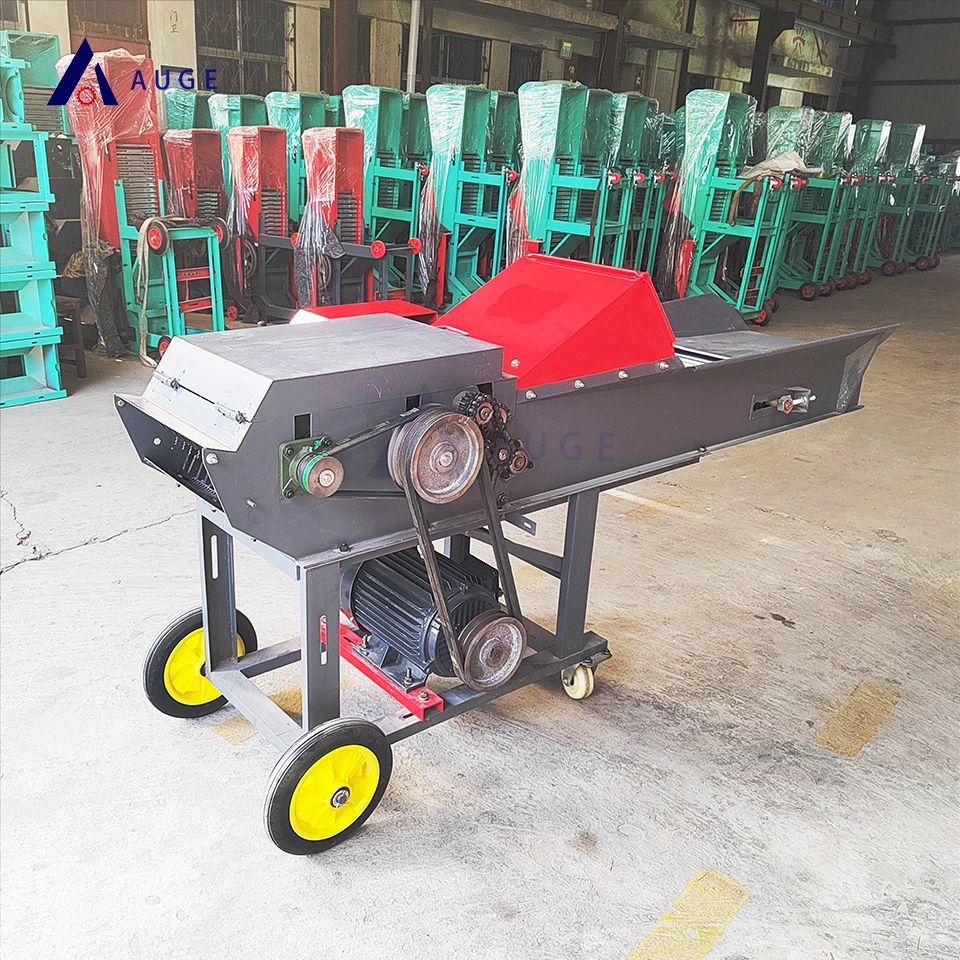

The chaff cutter could be driven by a diesel engine or electric motor as power. The motor drives the motor pulley by belt conveyor, then power is transmitted to the main shaft. Gear wheel at

the other end of the main shaft drives the connected gear. Speed-regulating power transmits to press-straws rollers. When straws enter between upper rollers and down rollers, straws are nipped and pushed into cutting blades. After the straws are crushed and chopped by high-speed rotation cutting blades, next enter into teeth kneading blades, straws will be kneaded into filiform. Finally, short filiform grass will be thrown out through the output port because of the high-speed rotor.

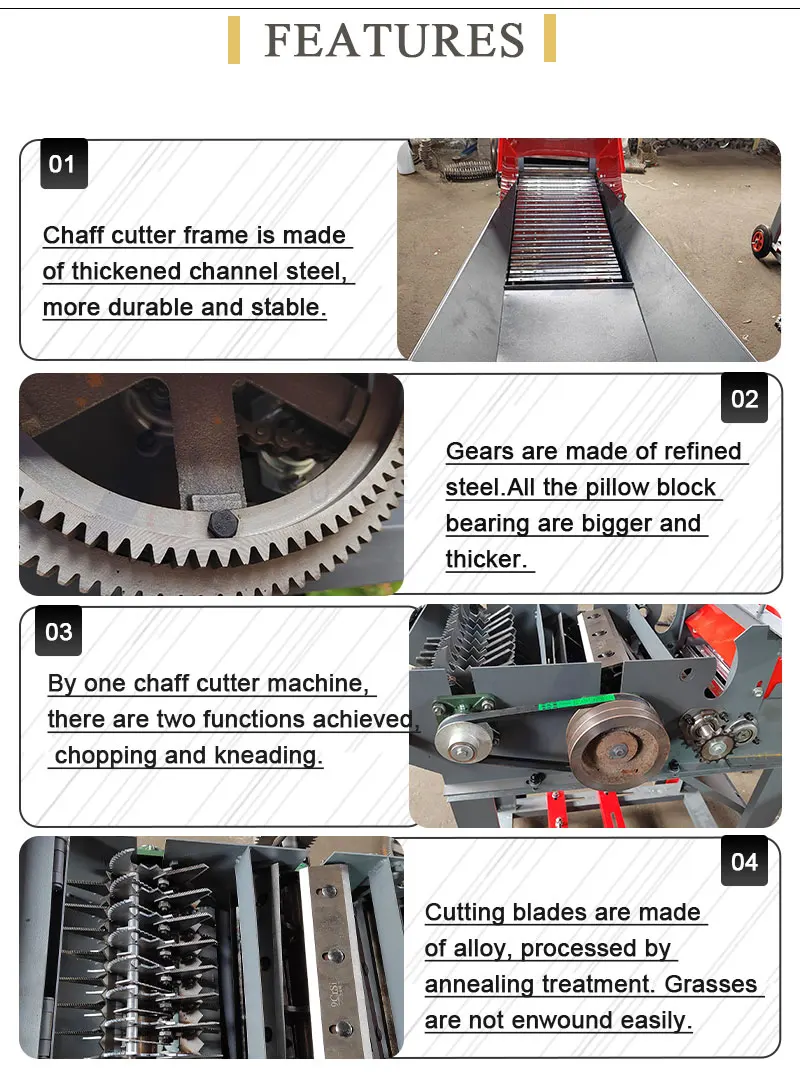

Features:

1. By one chaff cutter machine, there are two functions achieved, chopping and kneading.

2. Wide application: The Chaff cutter machine could process fresh materials and dry materials. Many grasses and straws could be chopped and shredded, such as corn niblets, corncob, vine, cornstalks, wheat straws, alfalfa, sweet aura herb, Pennisetum hydride, soybean straws, rice straws, pasture, and so on.

3. There are two separate output ports. Chopping function and kneading could be discharged by their separate output ports. The direction of the output port could be adjusted at random, thus it is convenient to store silage.

4. Gears are made of refined steel. All the pillow block bearings are bigger and thicker.

5. The chaff cutter frame is made of thickened channel steel, more durable and stable.

6. Cutting blades are made of alloy, processed by annealing treatment. Grasses are not enwound easily.
