Product Overview
Description
New Mining Sand Maker Quartz Production Line Vsi Crusher Machine With Spare Parts
Product Description

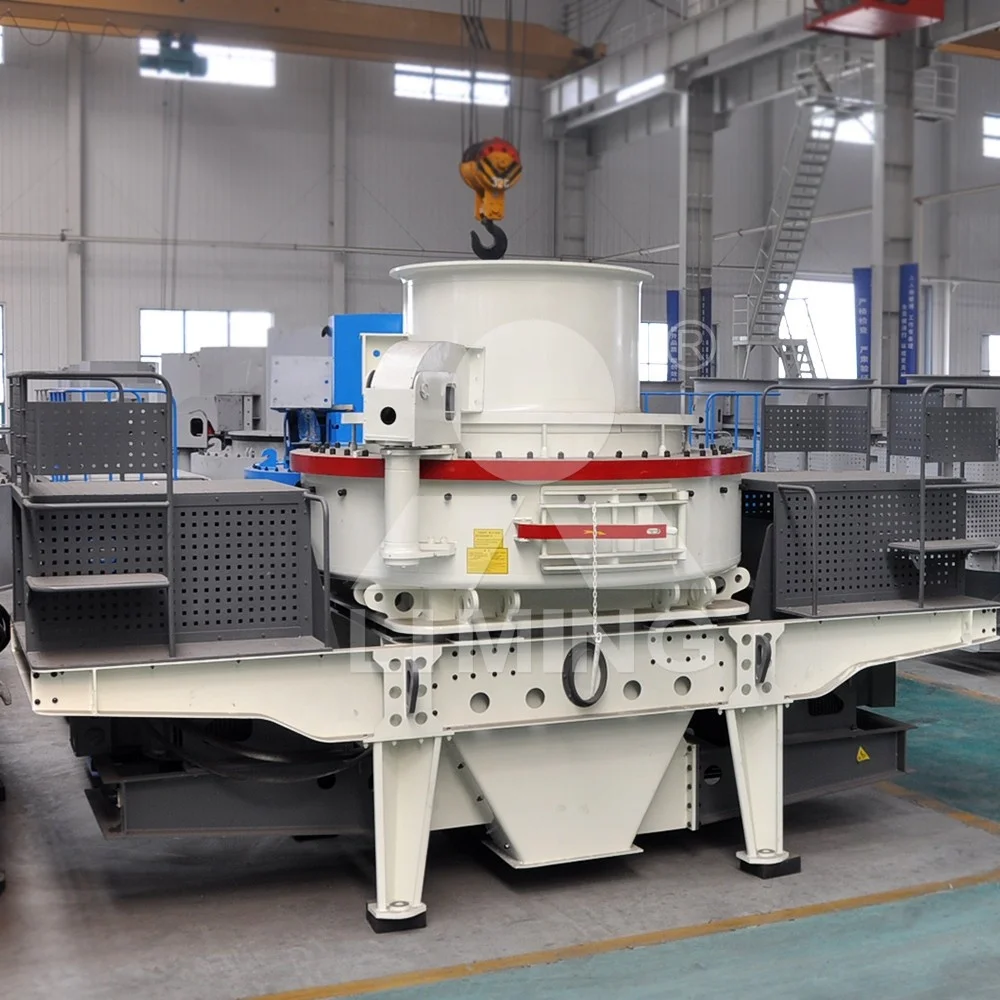

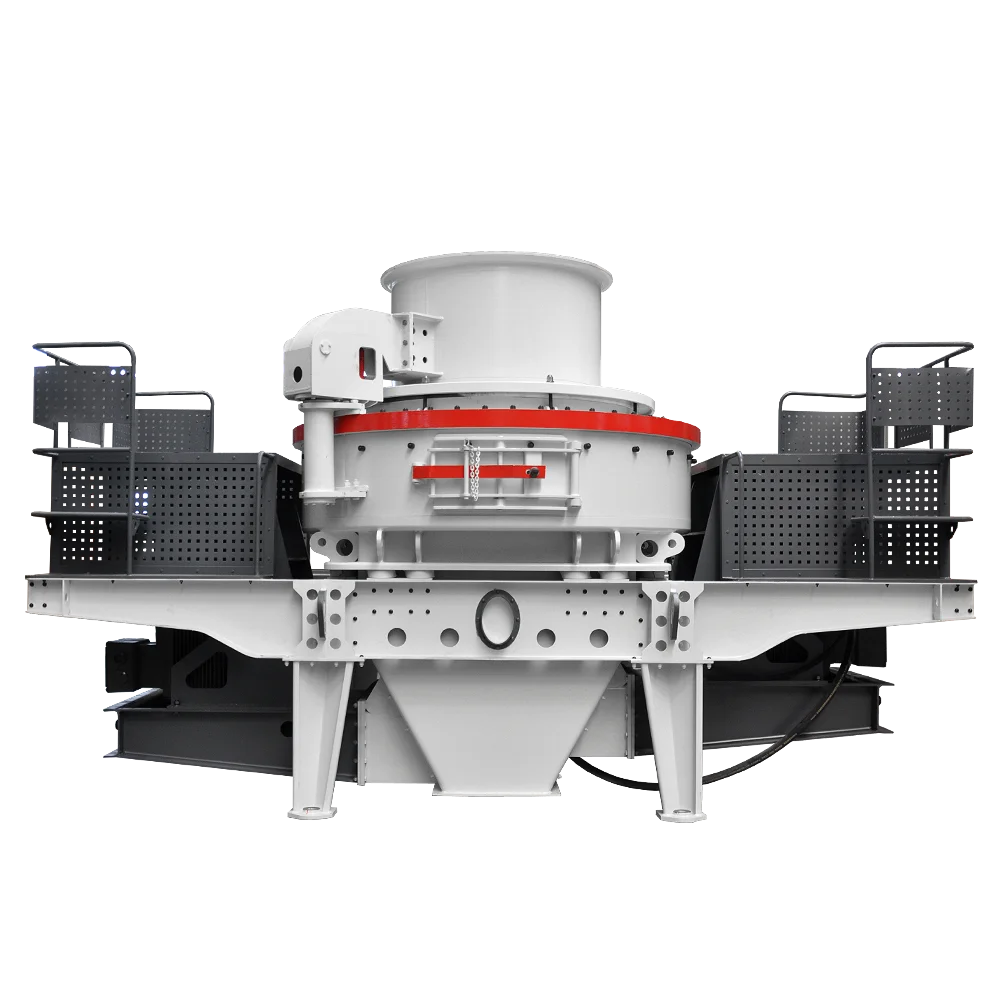

VSI5X Vertical Shaft Impact Crusher
VSI5X Vertical Shaft Impact Crusher is popular in the market. This machine can satisfy customers’ requirements about efficiency and capacity, because its service life is increased by 48%, the costs are reduced by 30%, and the throughput of materials is improved by 30%. |  |

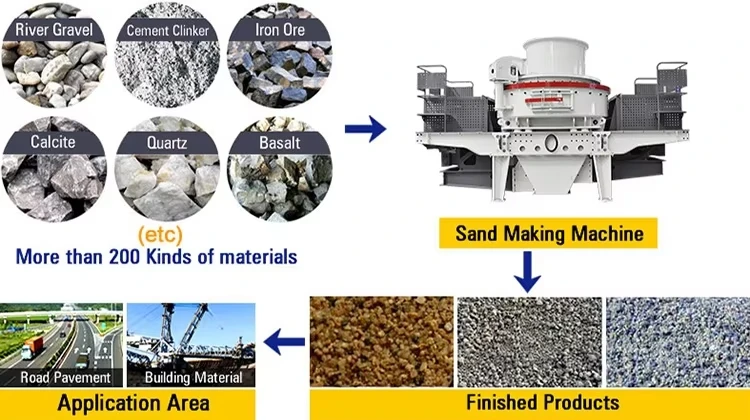

You can put all kinds of rocks, gravel, river gravel, etc. made of compliance with various granularity construction sand, sandy uniform particle size, pressure high strength, widely used mechanism for sand and gravel, cement, refractory, metallurgical and other industries.

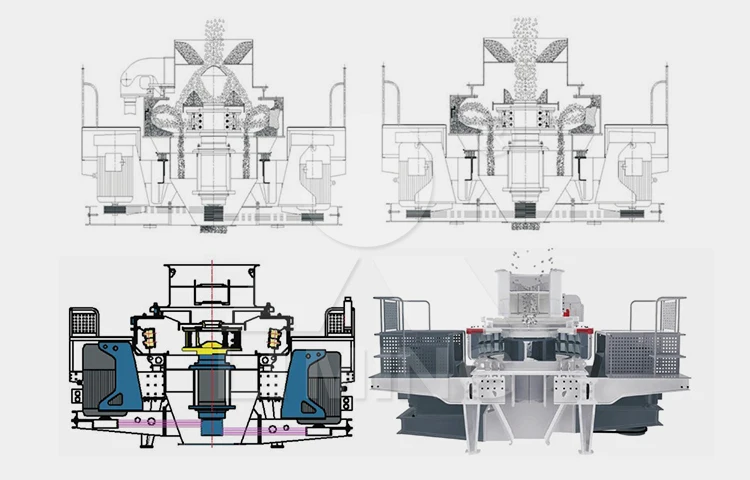

VSI5X VERTICAL SHAFT IMPACT CRUSHER STRUCTURE

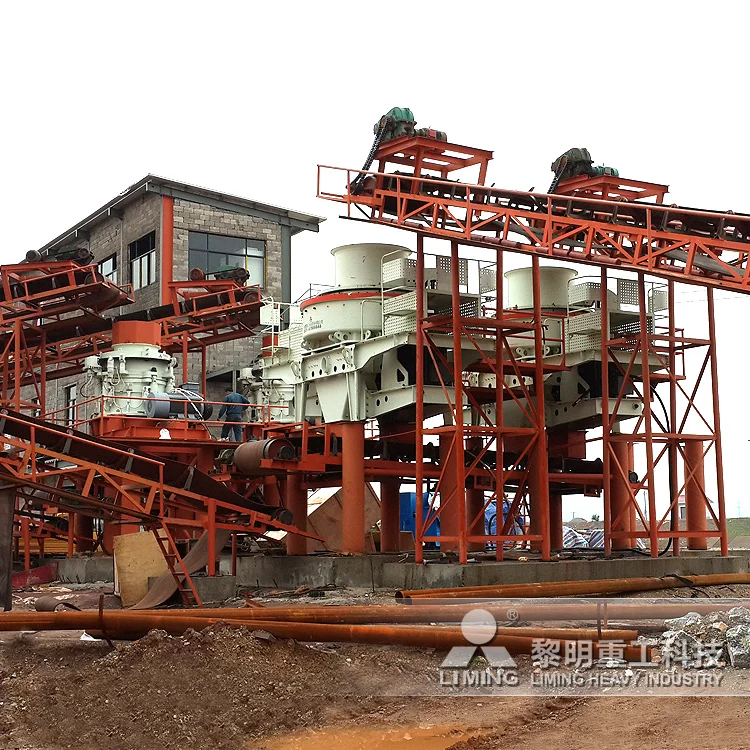

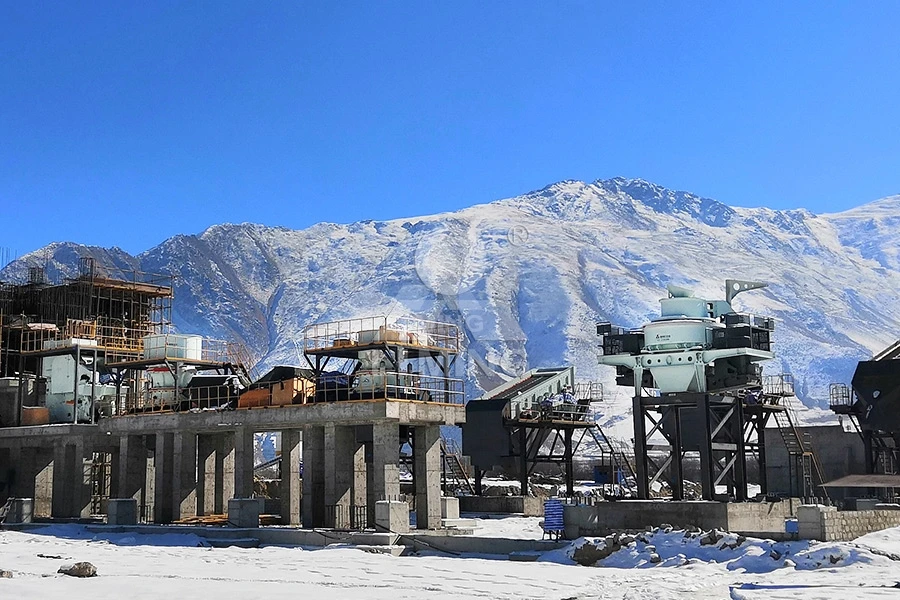

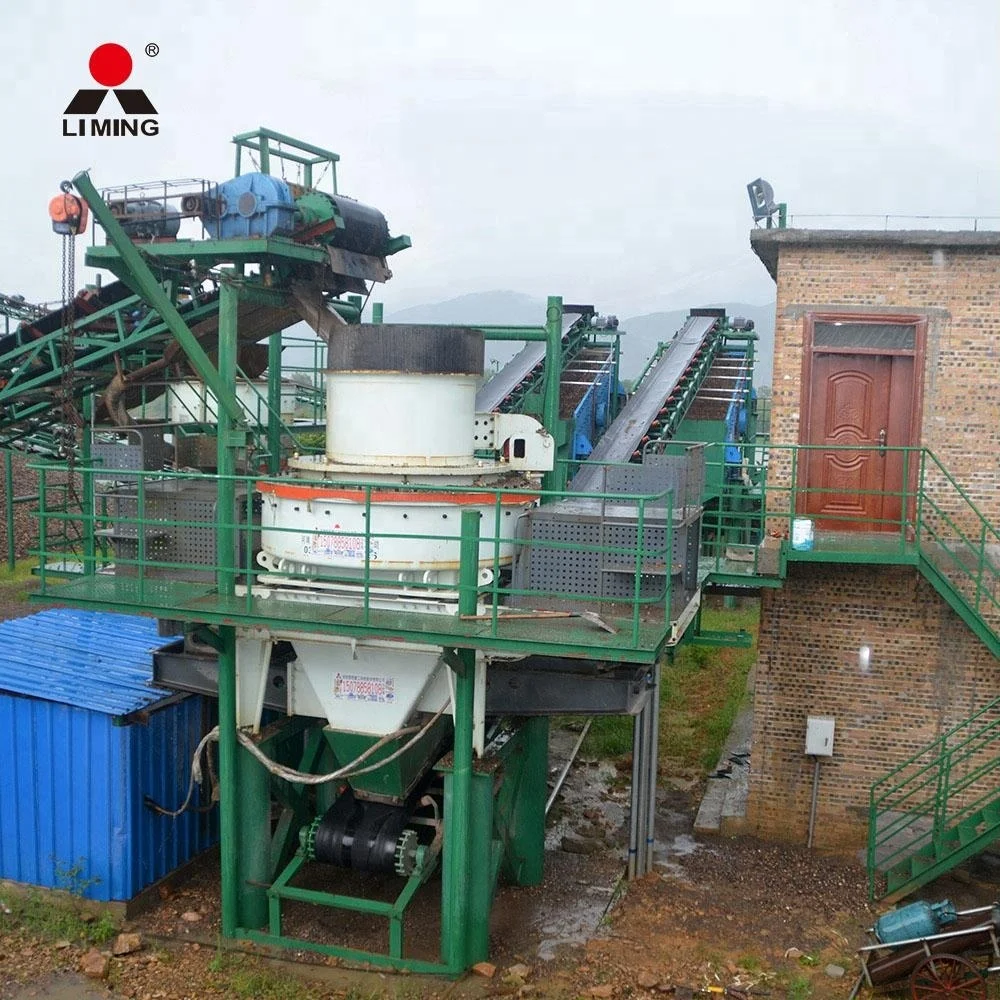

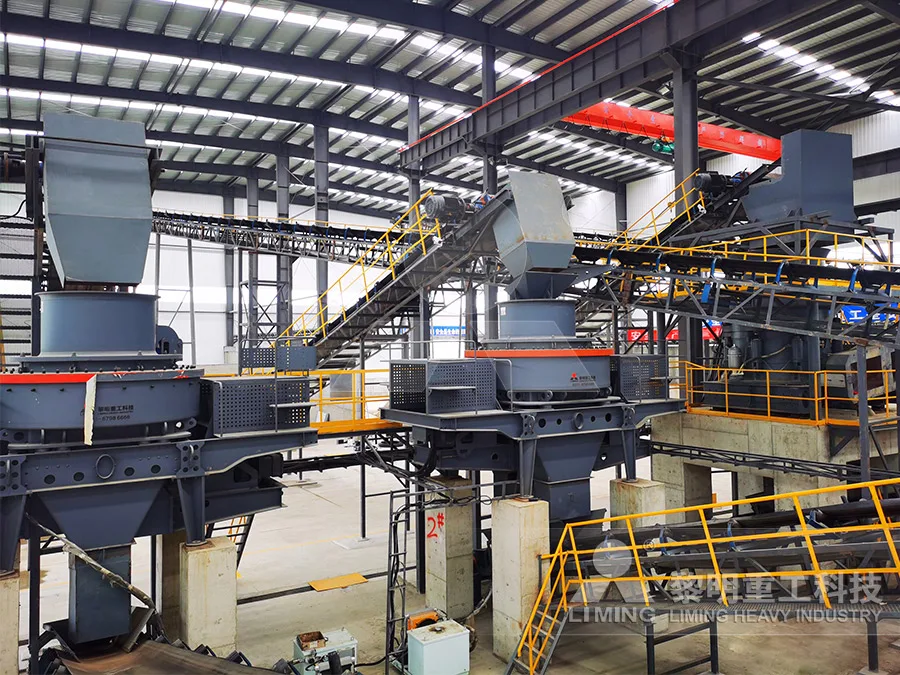

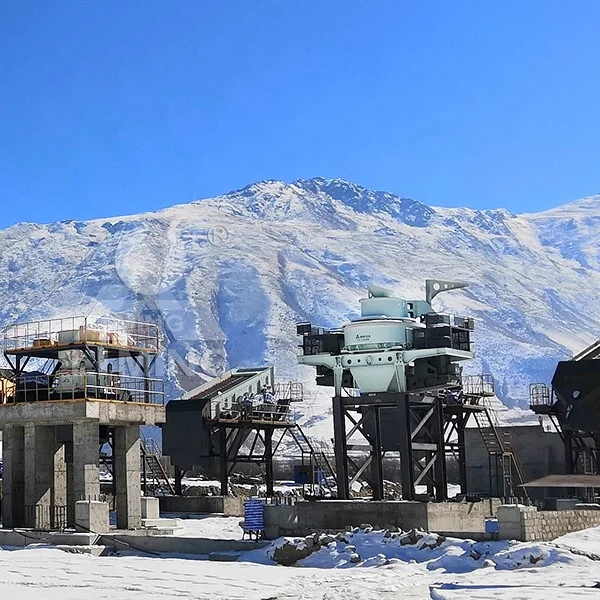

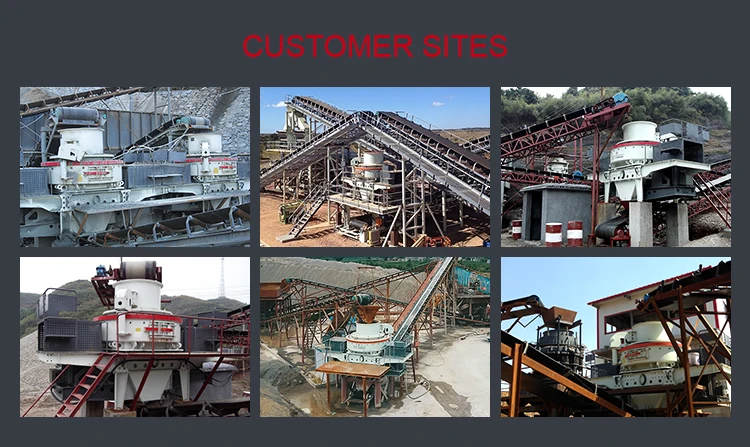

Customer Site of New Mining Sand Maker Quartz Production Line Vsi Crusher Machine With Spare Parts
 |  |
Technical Parameters
New Mining Sand Maker Quartz Production Line Vsi Crusher Machine With Spare Parts
1. Main technical parameters:
| Model | VSI5X7615 | VSI5X8522 | VSI5X9532 | VSI5X1145 | |
| Throughput capacity (t/h) | Center and Ring feeding | 150~280 | 240~380 | 350~540 | 500~640 |
| Center feeding | 70~140 | 120~190 | 180~280 | 250~360 | |
| Max. Feed Size (mm) | Soft material | <35 | <40 | <45 | <50 |
| Hard material | <30 | <35 | <40 | <45 | |
| Rotation speed (r/min) | 1700~1900 | 1500~1700 | 1300~1510 | 1100~1310 | |
| Power of double motor (KW) | 2×75 (100) | 2×110 (150) | 2×160 (220) | 2×220 (300) | |
| Overall dimension L×W×H (mm) | 4100×2330×2300 | 4140×2500×2700 | 4560×2600×2900 | 5000×2790×3320 | |
| Weight (t) | 8.6 | 11.8 | 17.5 | 27.5 | |
| Thin oil lubrication station | Power for double oil pump | 2×0.25(0.33) | |||
| Safety | TO make sure the supply of the oil with double oil pump; stop working without oil or hydraulic pressure; temperature falls when the water cool;start the motor by heating it in winter | ||||
| Power for oil box heater | 2 KW | ||||
| Overall dimension L×W×H (mm) | 820×520×1270 | ||||
Note: Capacity depends on crushing limestone, material size, moisture and features also affect capacity.
2. Lubricating system parameter:
| Oil box volume (L) | 240 |
| Rated pressure (MPa) | 0.63 |
| Flow capacity (L/min) | 8 |
| Power (KW) | 0.31 |
| Cooling water consumption (m3/h) | ≥1.2 |
| Electrical heating voltage (V) | 220 |
| Medium | Bearing oil 32—46# |
VSI Silica sand making machine/Vertical Shaft Granite Impact Crusher/ Sand Production Line
Successful Case
Related Products
FAQ
| Q: 1. To which country your products have been exported before? |
A: Our products have been sold to Ecuador, Brazil, Chile, Sudan, Zambia, Kenya,Turkey, Indonesia, Malaysia, Philipines, Australia, , India and so on.
|
| Q: 2. How will you help the customer install the equipment? |
A: Our senior engineer will guide the installation and commissioning as well as the initial production at site.
|
| Q: 3. How about the wear parts supply? |
A: We offer wear parts to our customer with our most favorable price. If there are problems you could not handle, we will send our technicians to your place. but you are responsible for all the cost involved.
|
| Q: 4. Can you send me a quotation? |
A: Yes. for providing you the suitable quotation we need to know the following information: 1. What is raw material are you going to crush? granite, limestone or something else? 3. May I know your email and Whatsapp number? VSI Silica sand making machine/Vertical Shaft Granite Impact Crusher/ Sand Production Line Click for More Information:
|
