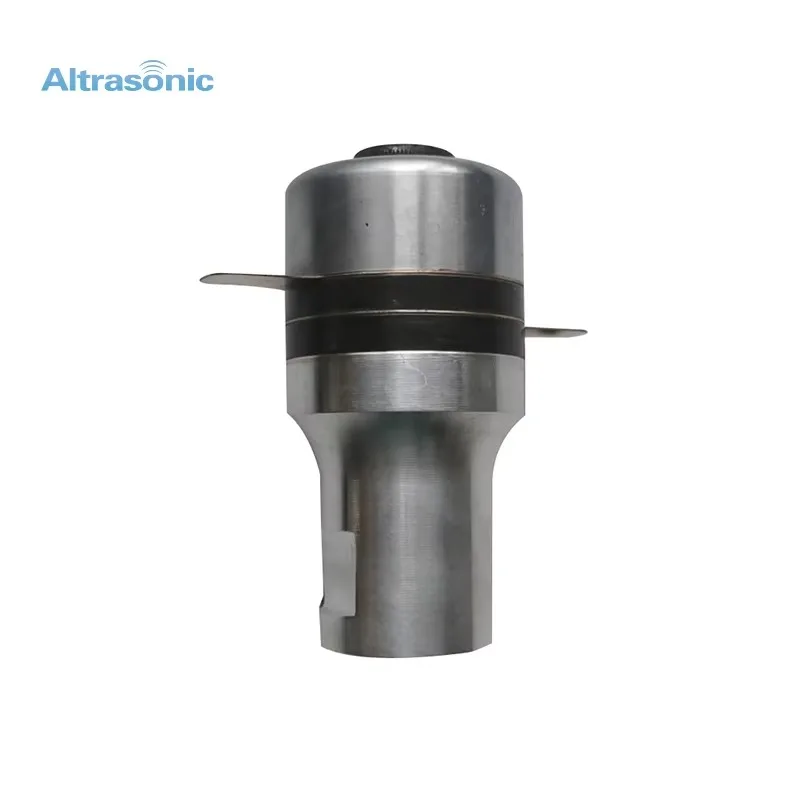

Long service life 35khz ultrasonic transducer M8 screw with Piezoelectric ceramic 2pcs for ultrasonic welding

Share on (1601234593545):


Price:$199.00 - $299.00

Quantity:


Product Overview

Description



HS-3535-2D


Specification


odel
HS-3535-2D
Frequency
35 khz
Output power
500 watt
Joint bolt
M8x1
Ceramic disc Diameter
35 mm
Quantity of Ceramic discs
2 pcs
Capacitance
4.5 - 5 nf
Amplitude
6 um
Application
welding machine


Application


Ultrasonic transducer,ultrasonic generator and ultrasonic horn constitute a whole ultrasonic system,
which can be widely used to do welding in various kinds of industries.
Applied Industries : automobile industry, electric industry, medical industry, household appliance industry, non woven fabric clothing, packing, office supplies, toys, etc.
Applied Machines : Ultrasonic cleaner,Beauty set,welding machines,cutting machines,Medical scalpel and tartar clear.


Advantages


1. Titanium, aluminum, steel materials of horn optional.
2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.
3. One by one testing to ensure that each transducer performance are excellent.
4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.


Product Description


The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.






Packing & Delivery




Company Profile












FAQ


Q: Do you have it in stock?
A: Most of product available, if you have special requirement, pls feel free contact us, all issue can be solved through communication.
Q: Could you advise to us the design based on our special requirements or based on our object samples?
A: Of course, Our mission is make your idea show in the products itself.
Q: How long do you make the order product?
A: Our main mark is fast shipment, usually 3-7days after all details confirmed.
Q: . Do you have operating manual?
A: Of course, we will put it with the goods together.
Also we will upload video in youtube and inform you the related link.
Q: How about the quality?
A: We have export to many other customers from all over the world,the feed back is good,quality is the first for our factory, our main markets is USA and European etc
Q: Could you do OEM?
A: Yes, of course.Everybody like OEM,We cherish the OEM VIP buyer like you,We can produce according customers’ requirement,just send us your requirements and design of drawing and sample
Q: Could we as your agent?
A: Of course.We are looking for sole agent in some Country who have the willing to cooperate with us for long business term.
Q: Terms of Payment
A: We have flexible and active payment if order huge.
Q: What custom requirements can you accept?
A: LOGO, product appearance, tool head size, packaging requirements, special customized requirements will be accepted, etc.
