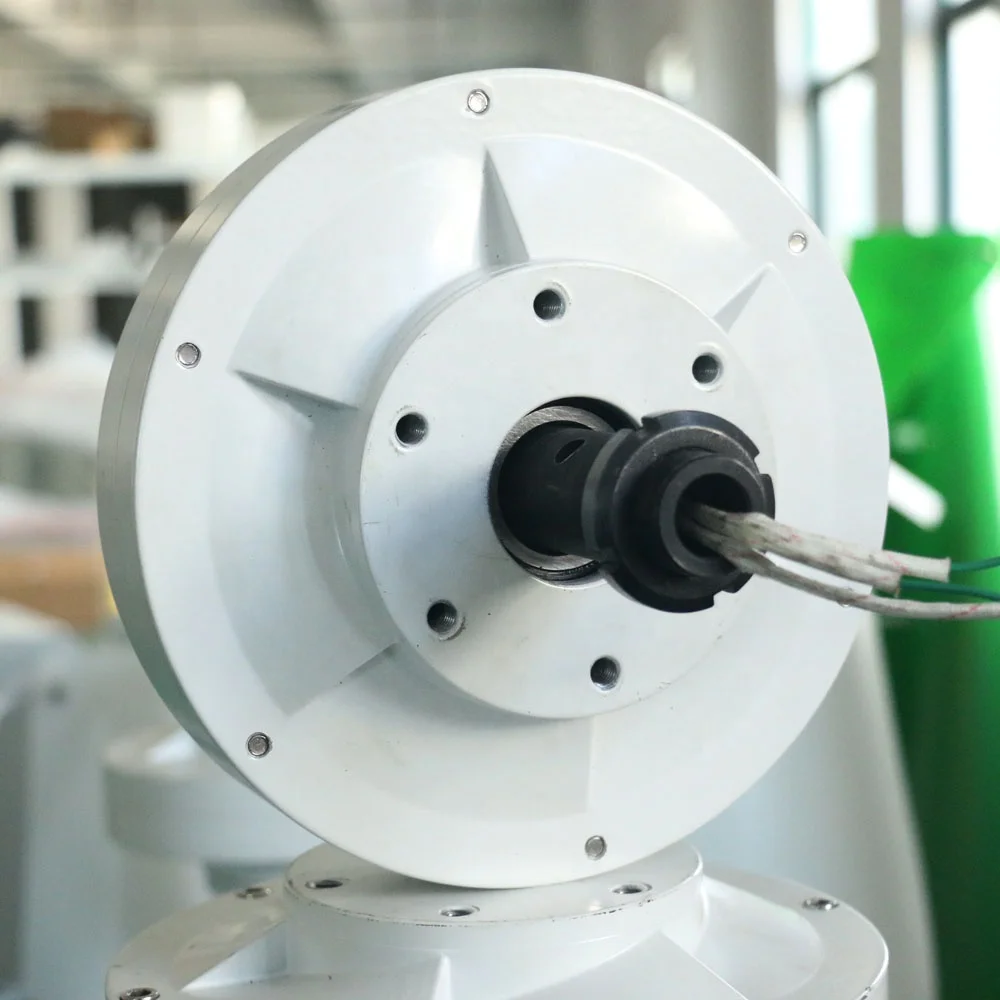

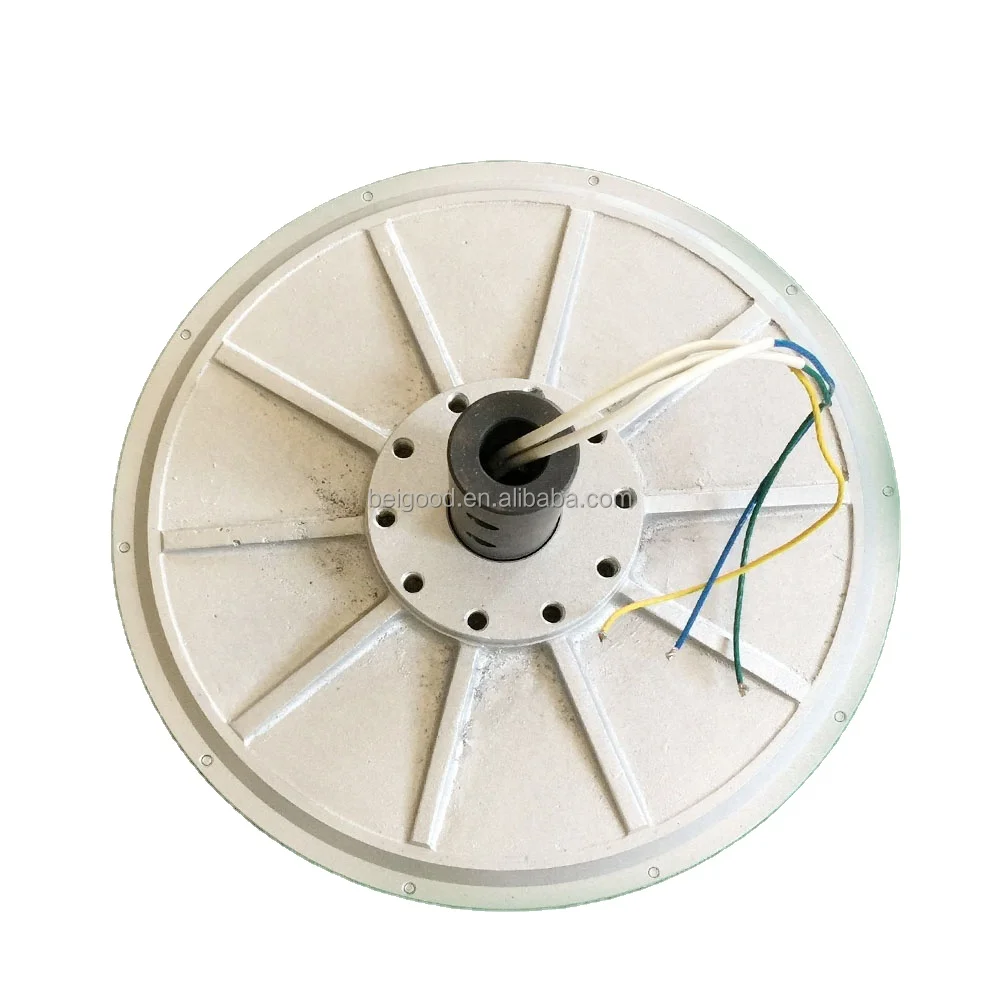

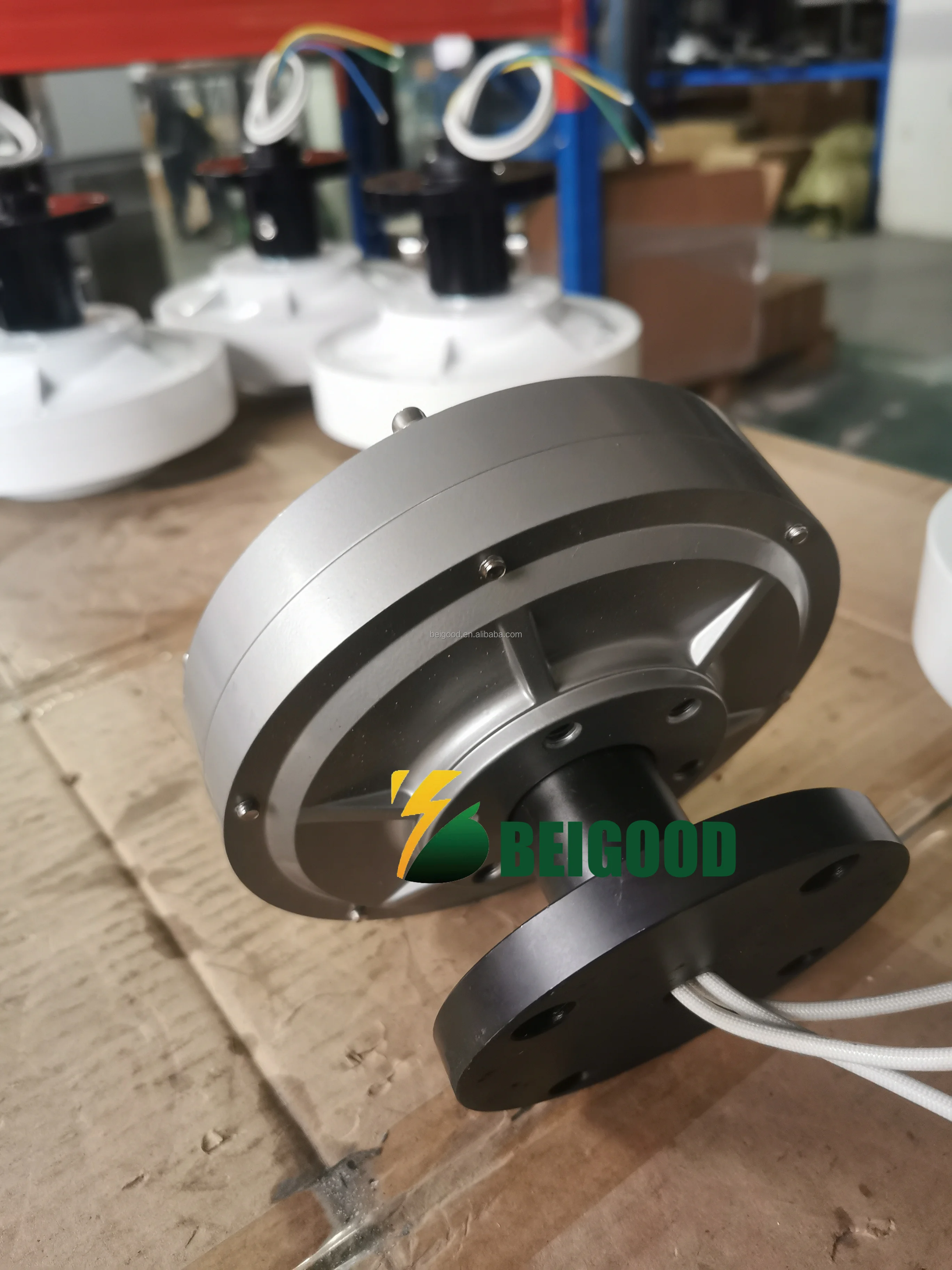

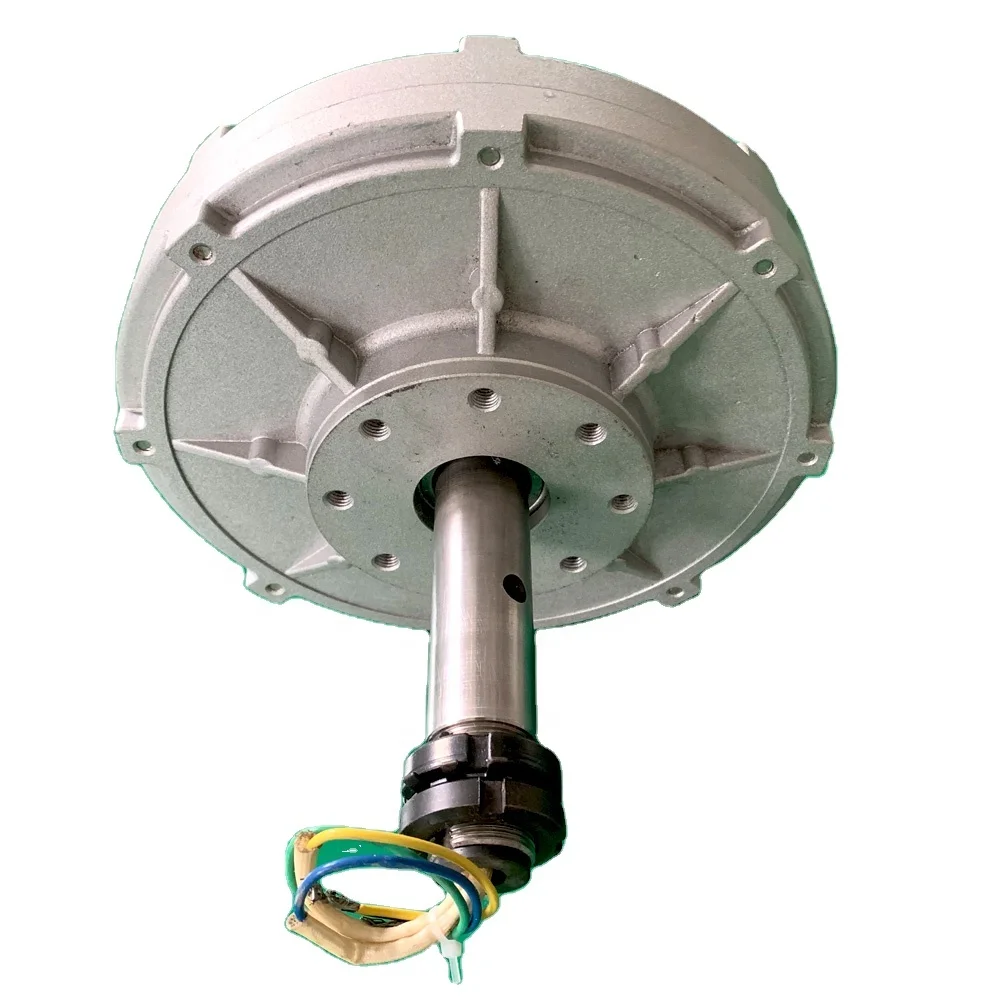

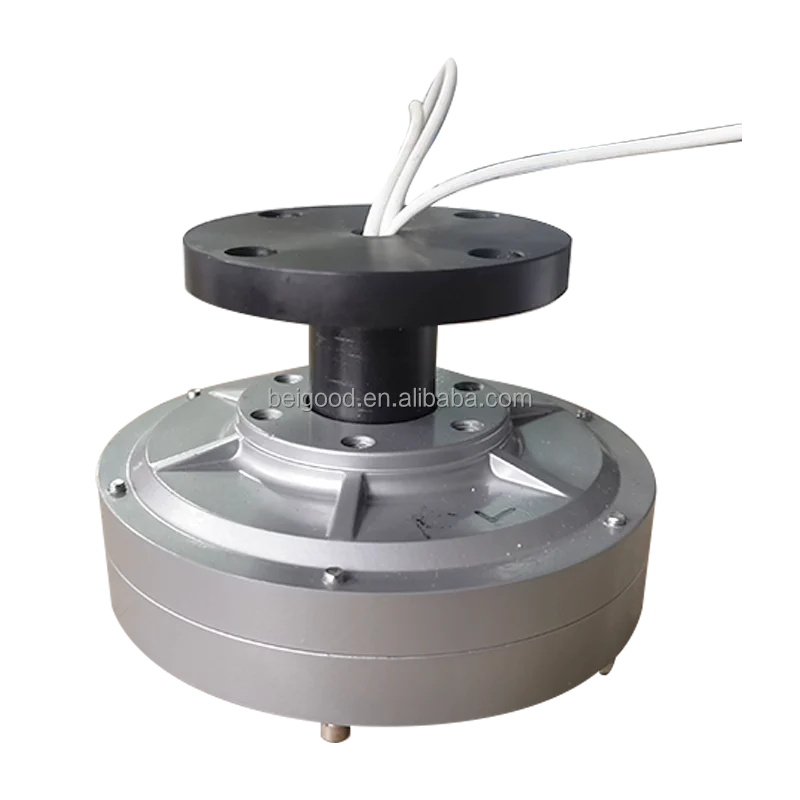

Brand New Low rpm 5kw 220v permanent magnet generator With Factory Price
- Category: >>>
- Supplier: Jiangsu Beigood Electronic Co. Ltd.Jiangsu Ltd.
Share on (1601234631234):
Product Overview
Description
Specification
Rated power | 500w | 500w | 600w | 1000w | 1000w | 1000w | 1000w | |||||
Rated speed | 350rpm | 200rpm | 150rpm | 110rpm | 150rpm | 180rpm | 350rpm | |||||
Rated voltage | 24v/48v | 24v/48v | 24v/48v/96v | 48v/96v DC | 48v/96v/220 DC | 48v/96v/220 DC | 48v/96v DC | |||||
Rated Current | 17.9/8.93A | 18A/9A | 18A/9A/4.6A | 12.9A | 17.9A | 12.9/2.7A | ||||||
Efficiency | >75% | >85% | >85% | >85% | >85% | >85% | >80% | |||||
Resistance (Line-Line) | - | <1.6OΩ | <1.6OΩ | - | - | <15.2Ω | - | |||||
Winding type | Y | Y | Y | Y | Y | Y | ||||||
Insulation Resistance | 100Mohm Min(500V DC) | 100Mohm Min(500V DC) | 100Mohm Min(500V DC) | 100Mohm Min(500V DC) | 100Mohm Min(500V DC) | 100Mohm Min(500V DC) | 100Mohm Min(1000V DC) | |||||
Leakage level | <5 ma | <5 ma | <5 ma | <5 ma | <5 ma | <5 ma | <5 ma | |||||
Start torque | <0.1 | <0.1 | <0.1 | <0.3 | <0.3 | <0.3 | <0.2 | |||||
Phase | 3 phase | 3 phase | 3 phase | 3 phase | 3 phase | 3 phase | 3 phase | |||||
Structure | Outer Rotor | Outer Rotor | Outer Rotor | Outer Rotor | Outer Rotor | Outer Rotor | Outer Rotor | |||||
Stator | Coreless | Coreless | Coreless | Coreless | Coreless | Coreless | Coreless | |||||
Rotor | Permenent Magnet Generator(Outer Rotor) | Permenent Magnet Generator(Outer Rotor) | ||||||||||
Gen. Diameter | 260mm | 320mm | 320mm | 450mm | 400mm | 380mm | 320mm | |||||
Gen. Length | 192mm | 232mm | 232mm | 258mm | 250mm | 241mm | 232mm | |||||
Gen. Weight | 11kg | 18kg | 19kh | 48kg | 40kg | 32kg | 20kg | |||||
Shaft. Diameter | 30mm | 45mm | 45mm | 59mm | 55mm | 50mm | 45mm | |||||
Housing Material | Aluminum(Alloy) | Aluminum(Alloy) | Aluminum(Alloy) | Aluminum(Alloy) | Aluminum(Alloy) | Aluminum(Alloy) | Aluminum(Alloy) | |||||
Shaft Material | Stainless Steel | Stainless Steel | Stainless Steel | Stainless Steel | Stainless Steel | Stainless Steel | Stainless Steel | |||||
Product Description
Success Applications
Company Profile
Jiangsu Beigood Electronic Co., ltd is specialized in energy supply for house, streetlights, factories,
emergency power station ,farm etc.There are more than 6 warehouses Russia,USA,Spain,Poland,Germany and UK, so we can dealing drop shipping orders .We are highly welcome distributors and brand agent from different countries in the world. OEM and ODM are also acceptable.Jiangsu Beigood Electronic Co., ltd is your reliable supplier and partner for ever.
Factory
Why Choose Us
1.we are the top 2 manufacturer of wind and diesel generator in China.
2.20 years experience of producing and 12 years experience of international business.
3.6 warehouses Russia, USA,Spain, Poland,
2.20 years experience of producing and 12 years experience of international business.
3.6 warehouses Russia, USA,Spain, Poland,
Germany and UK,3 special line to Lebanon,Syria and Israel, Free tax for most countries.
5-10 years warranty for all products, free return service for all order due to quality problems.
5-10 years warranty for all products, free return service for all order due to quality problems.
Exhibition
Packing & Delivery
FAQ
Q1. What is the advantage about your company?
A1. Our company has professional team and professional production line.
Q2. Why should I choose your products?
A2. Our products are high quality and low price.
Q3. Any other good service your company can provide?
A3. Yes,we can provide good after-sale and fast delivery.
A1. Our company has professional team and professional production line.
Q2. Why should I choose your products?
A2. Our products are high quality and low price.
Q3. Any other good service your company can provide?
A3. Yes,we can provide good after-sale and fast delivery.
