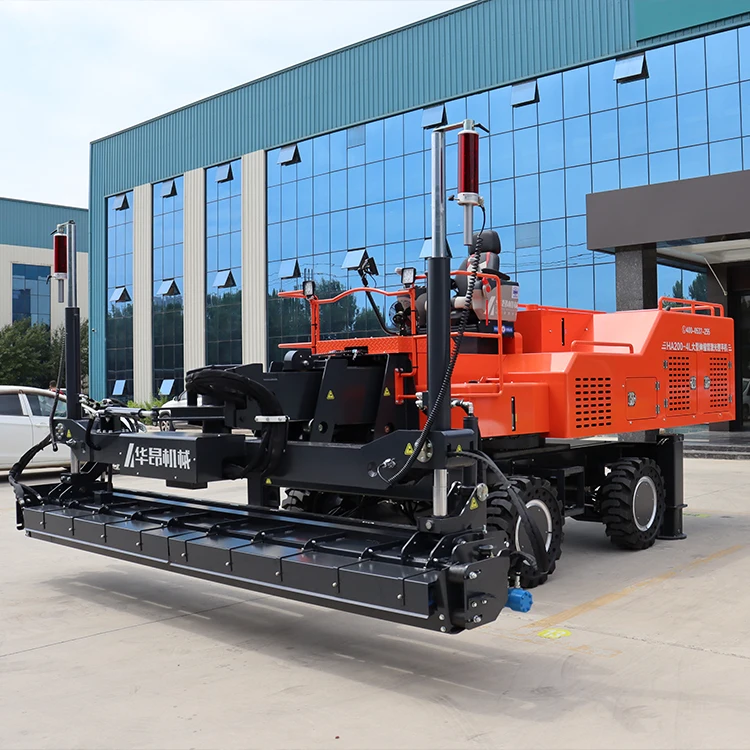

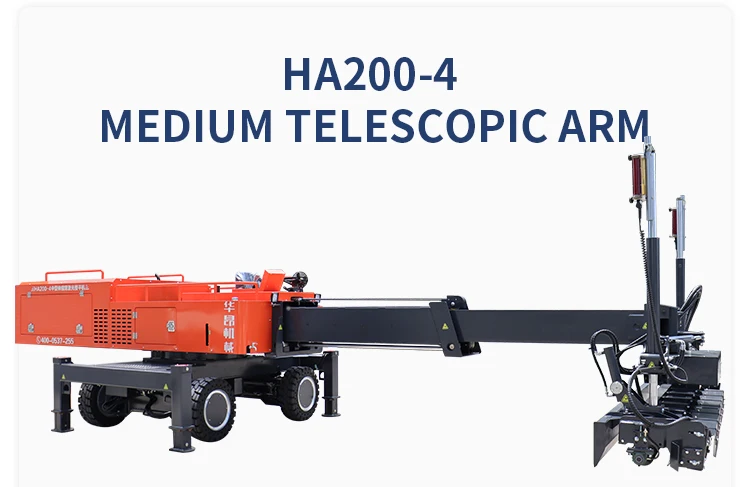

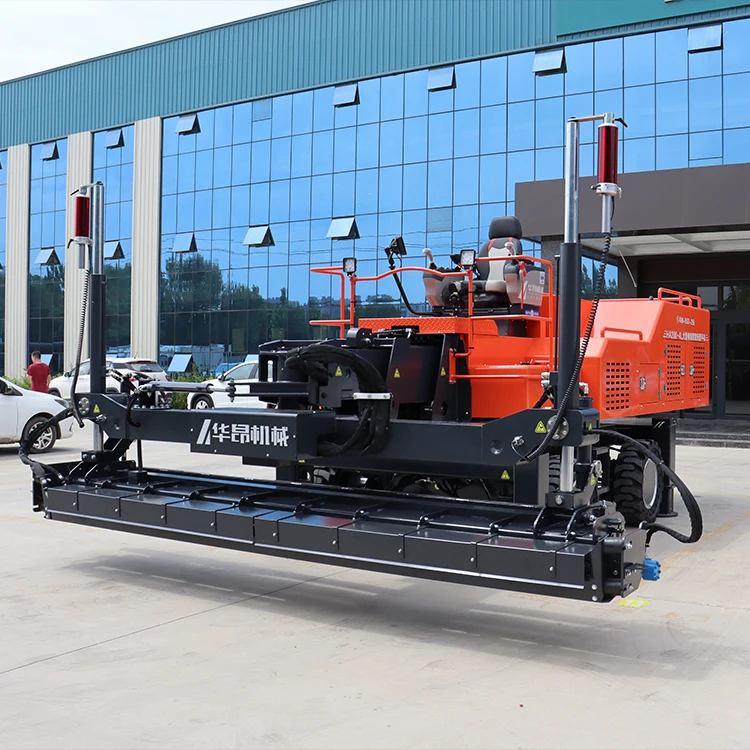

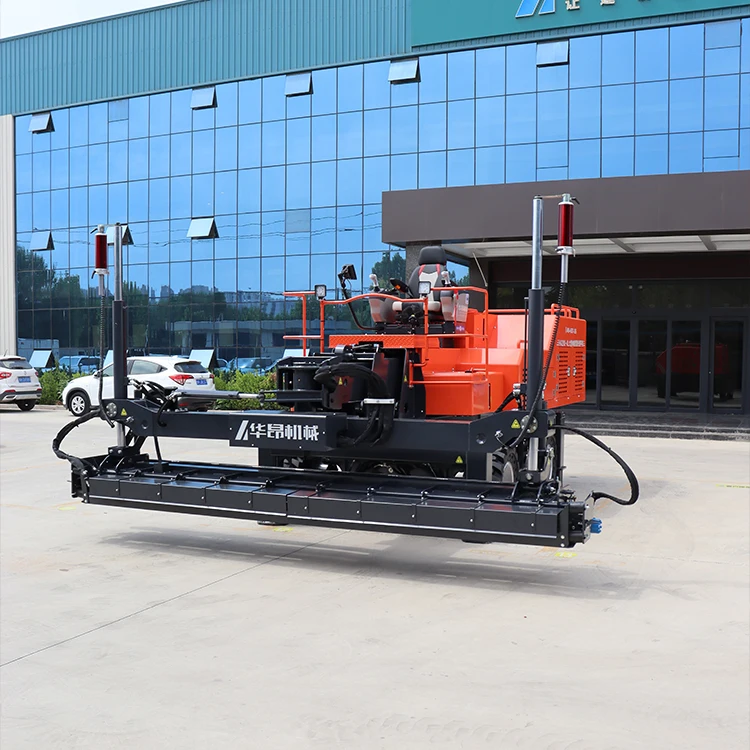

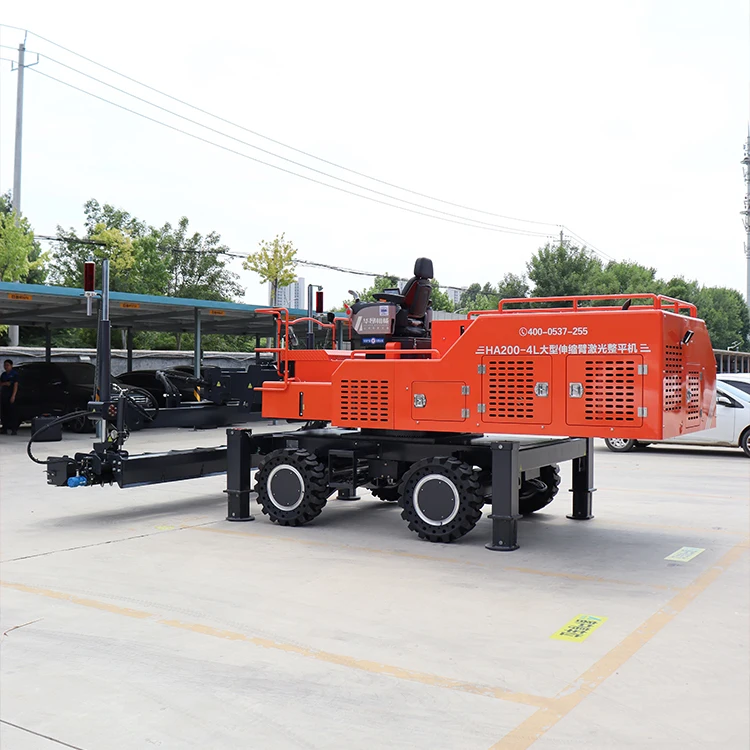

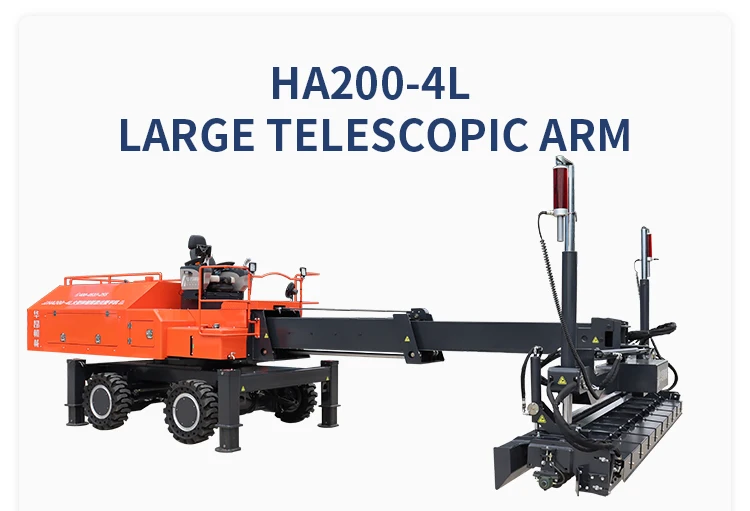

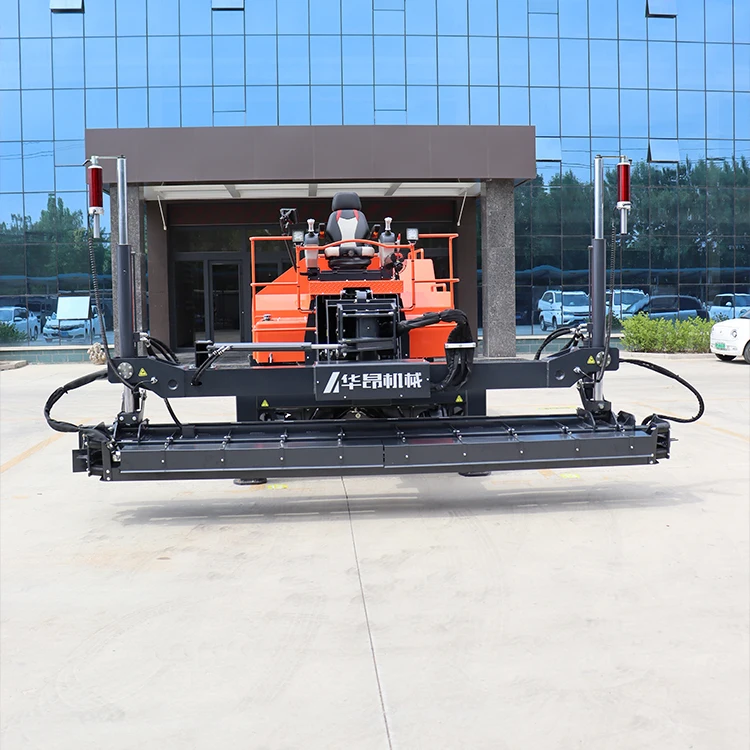

Factory direct High precision four wheel Large Automatic Concrete laser screed boom type leveling machine
- Category: >>>
- Supplier: Shandong Huaang Engineering Equipment Co. Ltd.Shandong Ltd.
Share on (1601234681477):
Product Overview
Description
Scope of application
With the development of laser technology and electronic technology and the requirements of modern industrial floors, the international engineering field has been using laser pavers in the construction of concrete floors since the 1980s, realizing the precise leveling automation of concrete floors.
Indoor floor
Underground garage, ordinary industrial plant, workshop, automatic three-dimensional warehouse;
Clean workshops for electronic appliances, food materials, medicine, etc;
Large warehouse supermarket, logistics center, exhibition center, etc.
Outdoor terrace
Wharf, container yard and freight yard yard;
Airport runway, apron and parking lot;
Square, residential ground, municipal pavement, etc.
Indoor floor
Underground garage, ordinary industrial plant, workshop, automatic three-dimensional warehouse;
Clean workshops for electronic appliances, food materials, medicine, etc;
Large warehouse supermarket, logistics center, exhibition center, etc.
Outdoor terrace
Wharf, container yard and freight yard yard;
Airport runway, apron and parking lot;
Square, residential ground, municipal pavement, etc.
Type parameter |
engine | Laser control system | ||||
Model | Changchai engine | Control mode | Microcomputer laser scanning | ||
Type | Diesel engine, 4-strokewater cooling, four-cylinder | ||||
Power | 36KW/50HP | Controll effect | Plane, slope or double slope | ||
Fuel capacity | 100L | Power | Hydraulic motor drive | ||
Fuel consumption | 4L/h | Laser system | Germany Comec/Japan Topcon | ||
walk | Leveling system | ||||
Drive | Hydraulic 4WD | Texture of material | magnesium alloy | ||
Steering mode | Front wheel, four-wheel, crab type | Leveling width | 2780mm | ||
Wheel | Anti-skid solid tire | Paving method | Dragon-twisting paving | ||
Outrigger | Self-leveling of four legs | Jilong power | Hydraulic motor | ||
Travel speed | 0-3km/h | Exciting force | 3000N | ||
Working speed | 20m/min | Vibration frequency | 60Hz | ||
Seat position | Left front | Swing angle | ±45° | ||
Forward and backward | Wye gear, stepless speed change | Leveling control of leveling head | Proportional control | ||
Flathead height | 300mm | ||||
To turn to | Steering wheel | control accuracy | ±1.5mm | ||
Telescopic boom | Size and weight | ||||
Length | 5500mm | Transport dimensions | 6750x2250x1950mm | ||
Control mode | Handle control, stepless speed change | Weight | 4500kg | ||
For more parameters please contact customer service.
engine | Laser control system | ||||
Model | Yanmar 4TNV94L | Control mode | Microcomputer laser scanning | ||
Type | Diesel engine, 4-stroke water cooling, four-cylinder | ||||
Power | 38.9KW/53HP | Controll effect | Plane, slope or double slope | ||
Fuel capacity | 110L | Power | Hydraulic motor drive | ||
Fuel consumption | 5L/h | Laser system | Japan Topokang/Germany Moba | ||
walk | Leveling system | ||||
Drive | Hydraulic 4WD | Texture of material | magnesium alloy | ||
Steering mode | Front wheel/four wheel /crab type | Leveling width | 2955mm | ||
Wheel | Anti-skid solid tire | Paving method | Dragon-twisting paving | ||
Outrigger | Self-leveling of four legs | Jilong power | Hydraulic motor | ||
Travel speed | 0-6km/h | Exciting force | 3000N | ||
Working speed | 20m/min | Vibration frequency | 60Hz | ||
Seat position | Left front | Swing angle | ±45° | ||
Forward and backward | Wye gear, stepless speed change | Leveling control of leveling head | Proportional control | ||
Flathead height | 500mm | ||||
To turn to | Steering wheel | control accuracy | ±1.5mm | ||
Telescopic boom | Size and weight | ||||
Length | 6000mm | Transport dimensions | 7300x2250x2300mm | ||
Control mode | Handle control, stepless speed change | Weight | 6500kg | ||
For more parameters please contact customer service.
engine | Laser control system | ||||
Engine model | Yanmar 4TNV98T | Control mode | Microcomputer laser scanning | ||
Type | Diesel engine, 4-stroke water cooling, four-cylinder | ||||
Power | 63.9kw/86hp | Controll effect | Plane, slope or double slope | ||
Fuel capacity | 110L | Auger power | Hydraulic motor | ||
Fuel consumption | 6L/h | Laser system | Topcon sv2s transmitter/Moba LL3000 receiver | ||
walk | Leveling system | ||||
Drive | Hydraulic 4WD | Texture of material | magnesium alloy | ||
Steering mode | Front wheel, four-wheel, crab type | Leveling width | 4070mm | ||
Wheel | Anti-skid solid tire | Paving method | Dragon-twisting paving | ||
Outrigger | Self-leveling of four legs | Jilong power | Hydraulic motor | ||
Travel speed | 0-6km/h | Exciting force | 3000N | ||
Working speed | 20m/min | Vibration frequency | 60Hz | ||
Seat position | Central type | Swing angle | ±45° | ||
Forward and backward | Handle control, stepless speed change | Leveling control of leveling head | Proportional control | ||
Flathead height | 500mm | ||||
To turn to | Handle control, stepless speed change | control accuracy | ±1.5mm | ||
Telescopic boom | Size and weight | ||||
Length | 6000mm | Transport dimensions | 9000x2250x2980mm | ||
Control mode | Handle control, stepless speed change | Weight | 8600kg | ||
For more parameters please contact customer service.
