China manufacturers enclosed dynamic focusing laser marking machine
- Category: >>>
- Supplier: Zhengzhou Iris Industrial Technology Co. Ltd.
Share on (1601234746591):
Product Overview
Description
Product Description
Product Introduction
In response to the pain points of traditional industrial laser cladding equipment in schools, research institutes, and powder manufacturers, high-throughput material preparation 3D printing equipment is particularly suitable for use in research laboratory environments.
In response to the pain points of traditional industrial laser cladding equipment in schools, research institutes, and powder manufacturers, high-throughput material preparation 3D printing equipment is particularly suitable for use in research laboratory environments.

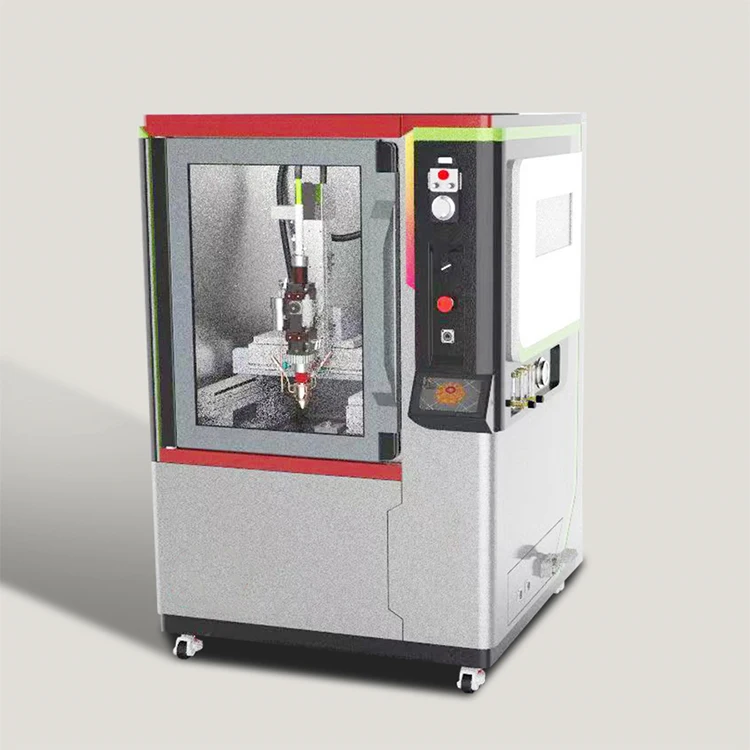

Equipment name | High throughput metal material 3D printing equipment | ||||
Scope of work | 300x300x200mm | Molten pool morphology detection | CCD coaxial camera | ||
Repetitive displacement accuracy | 土0.05mm | Powder feeder | Optional 4/5/6 cylinders | ||
Environmental box water oxygen index | ≤10ppm | working voltage | AC380V soil 10%/3P+N+PE | ||
Scope of printing materials | Steel materials, aluminum alloys, titanium alloys, nickel based high-temperature alloys, high entropy alloys, ceramic powder materials, etc | ||||
Equipment features:
1. The configured multi-channel powder feeder can achieve real-time mixing of various powders, with precise and controllable mixing ratios;
2. Develop a specialized high-throughput testing software system and interface to print material samples of different composition ratios in bulk at once;
3. We can provide customers with a high-throughput or gradient functional material testing and research equipment with high efficiency, high powder utilization rate, flexible composition ratio, and wide material selection range. It is suitable for component screening, performance research, and gradient material research of steel materials, aluminum alloys, titanium alloys, nickel based high-temperature alloys, high entropy alloys, ceramic powder materials.
working principle:
The device uses dedicated control software to generate printing trajectories and powder feeding rates for different sample blocks and powder buckets according to the preset proportions and printing quantities of different multi-component powders in the experiment. After the water oxygen index in the environmental chamber decreases to below 10ppm, printing begins. Powder with different feeding rates enters the powder mixer for real-time and thorough mixing, and then enters the coaxial nozzle under the conveying of inert protective gas and sprays out. High power laser melts the powder and moves it along a preset trajectory under the driving of a three-axis mechanism, printing test samples with different composition ratios.
1. The configured multi-channel powder feeder can achieve real-time mixing of various powders, with precise and controllable mixing ratios;
2. Develop a specialized high-throughput testing software system and interface to print material samples of different composition ratios in bulk at once;
3. We can provide customers with a high-throughput or gradient functional material testing and research equipment with high efficiency, high powder utilization rate, flexible composition ratio, and wide material selection range. It is suitable for component screening, performance research, and gradient material research of steel materials, aluminum alloys, titanium alloys, nickel based high-temperature alloys, high entropy alloys, ceramic powder materials.
working principle:
The device uses dedicated control software to generate printing trajectories and powder feeding rates for different sample blocks and powder buckets according to the preset proportions and printing quantities of different multi-component powders in the experiment. After the water oxygen index in the environmental chamber decreases to below 10ppm, printing begins. Powder with different feeding rates enters the powder mixer for real-time and thorough mixing, and then enters the coaxial nozzle under the conveying of inert protective gas and sprays out. High power laser melts the powder and moves it along a preset trajectory under the driving of a three-axis mechanism, printing test samples with different composition ratios.
Company Profile
FAQ
1.When can I receive my shipment?
*We will arrange delivery within 2-5 working days after receiving the payment, depending on the mode of transportation.
2.Which payment methods are supported
*Payment methods are wire transfer, PayPal, Western Union, credit card, etc .
3.If I have a technical problem, how can you help me solve it ?
*Please provide a detailed description, photos and videos, which will help our technicians analyze the problem and give the
appropriate solution.
4.Can I reduce shipping costs if I buy in bulk?
*If there are more than 10 units, they will be packed with pallets, which can save a lot of procurement costs.
*We will arrange delivery within 2-5 working days after receiving the payment, depending on the mode of transportation.
2.Which payment methods are supported
*Payment methods are wire transfer, PayPal, Western Union, credit card, etc .
3.If I have a technical problem, how can you help me solve it ?
*Please provide a detailed description, photos and videos, which will help our technicians analyze the problem and give the
appropriate solution.
4.Can I reduce shipping costs if I buy in bulk?
*If there are more than 10 units, they will be packed with pallets, which can save a lot of procurement costs.
