New Used Cylinder Hydraulic Cone Crusher Crushing Aggregates River Stone Pebble Iron Ore Jaw Crusher High Efficiency Motor
- Category: >>>
- Supplier: Zhengzhou Sinoma Engineering Technology Co. LtdZhengzhou Ltd
Share on (1601234755731):
Product Overview
Description
Product Description

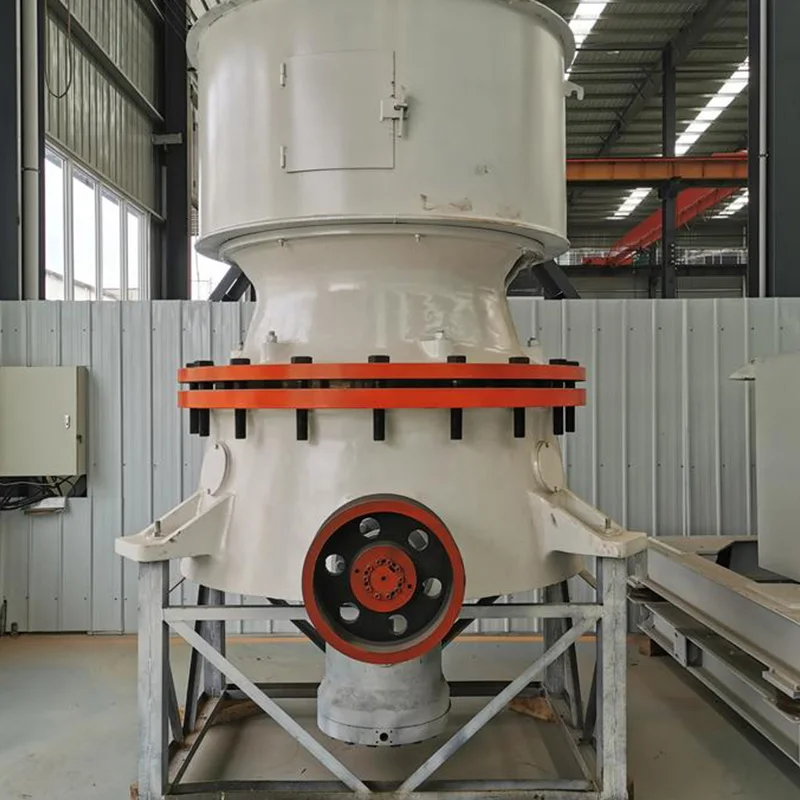

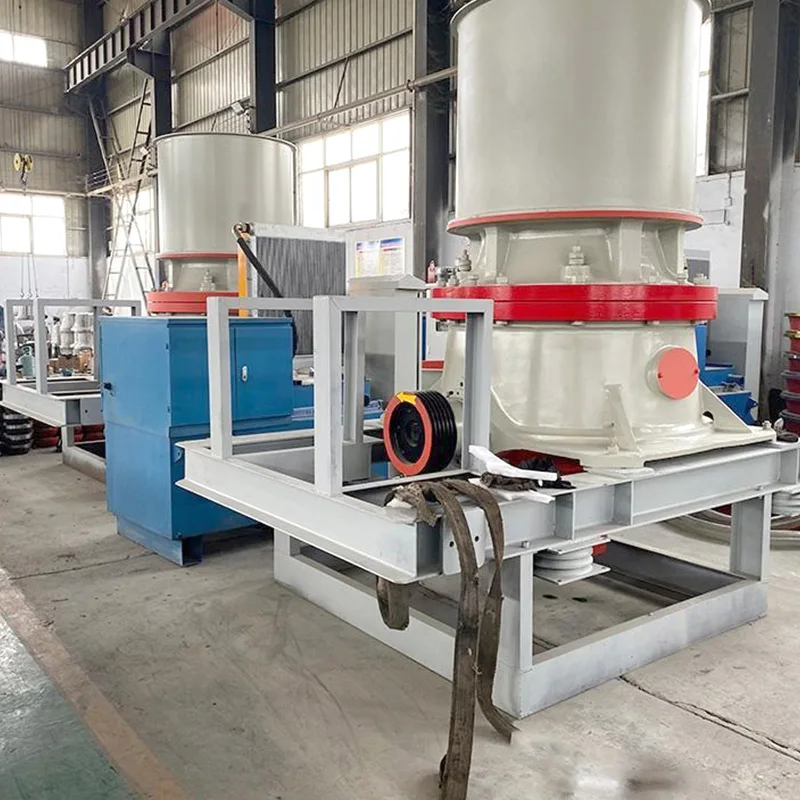

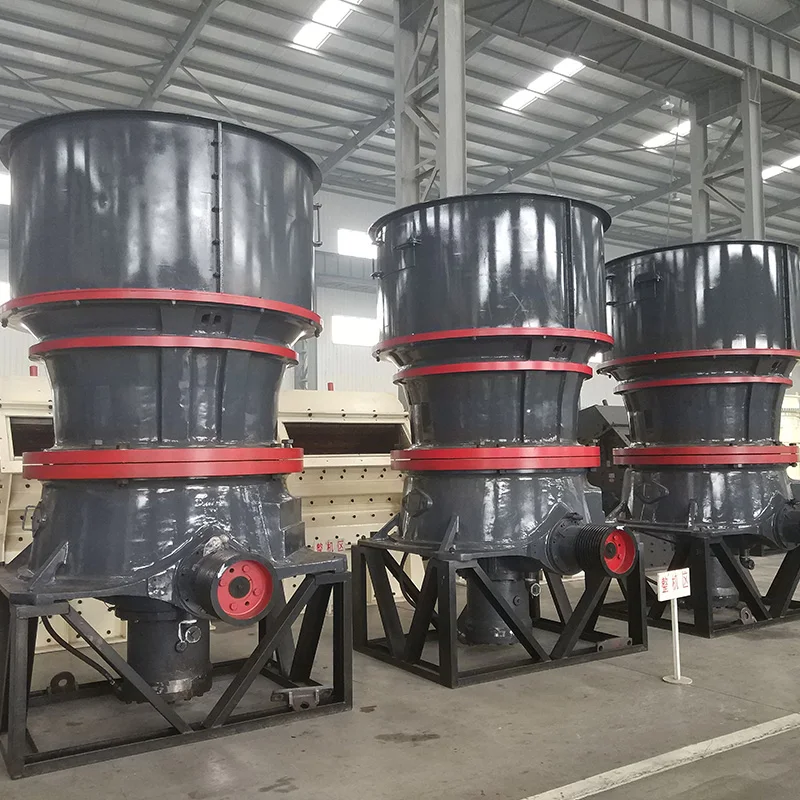

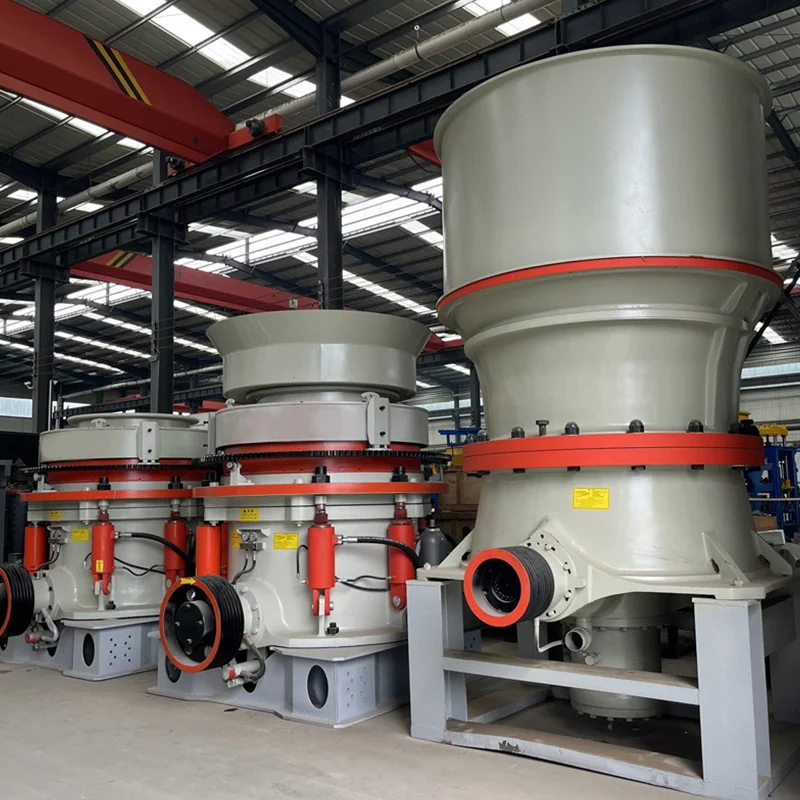

Single-cylinder hydraulic cone crusher is a high-performance hydraulic cone crusher that integrates mechanical, hydraulic, electrical, automation, intelligent control and other technologies. Mainly used in mining, building materials, cement plants, metallurgy and other industries. It's usually used in the secondary crushing, to get medium size, fine size, or ultra-fine size final materials. Applicable to: iron ore, copper ore, non-ferrous metal ore, granite, limestone, quartz stone, sandstone, pebbles, basalt, sandstone, marble, etc.

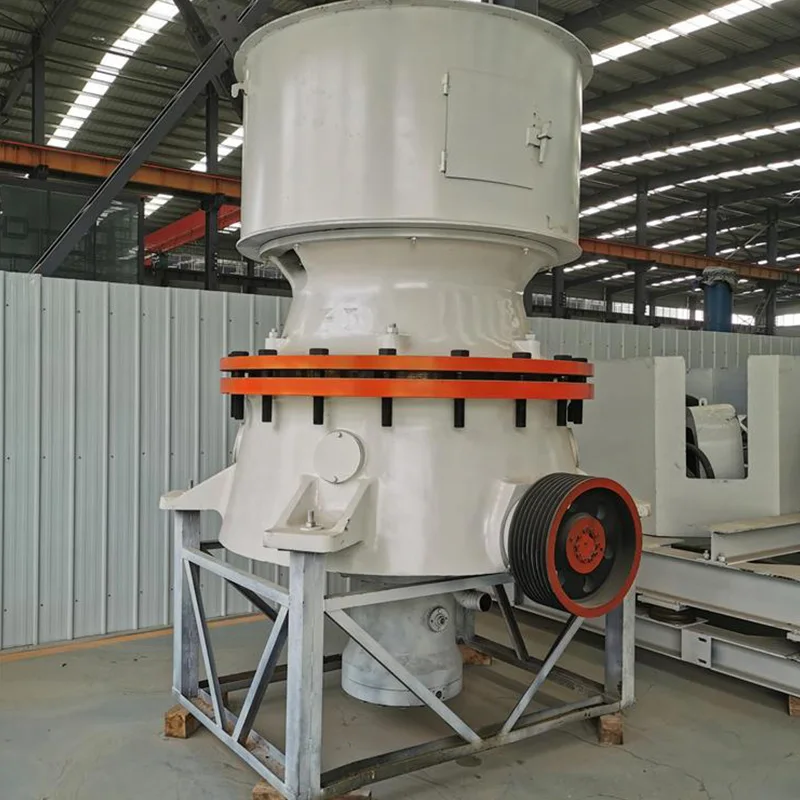

Details Images
Working principle: The motor drives the horizontal transmission shaft to rotate through the V-belt, the horizontal transmission shaft drives the eccentric sleeve to rotate through the bevel gear, and the moving cone makes a swing motion driven by the eccentric sleeve. When material enters the crushing cavity, it is continuously impacted, squeezed and crushed between the mantle and concave. The final material is discharged by the bottom of machine.
Features:
1. Simple structure and few parts, easy to maintain.
2. Large production capacity. From 40tph to 500tph, depending on your need.
3. Large crushing ratio and high efficiency. Max input size can be 500mm.
4. Thin oil lubrication, reliable and advanced, improves service life.
5. Save investment. The price is lower than multi-cylinder hydraulic cone crushers.6. Advanced hydraulic technology, overload protection and hydraulically adjusts the discharge port conveniently.
7. The intelligent control system monitors the operating status of the equipment in real time to keep the equipment in ideal operating condition.
Product Paramenters
Model | HPS100 | HPS100S | HPS440 | HPS440S | HPS660 | HPS660S |
Weight (t) | 5.7 | 7.4 | 14.3 | 19.3 | 26.8 | 35.7 |
Power (KW) | 90 | 90 | 220 | 220 | 315 | 315 |
Max Input size (mm) | 120 | 170 | 215 | 450 | 270 | 500 |
Capacity (t/h) | 35-110 | 35-120 | 90-390 | 195-600 | 177-660 | 300-1000 |
Application Areas&Materials
Application:

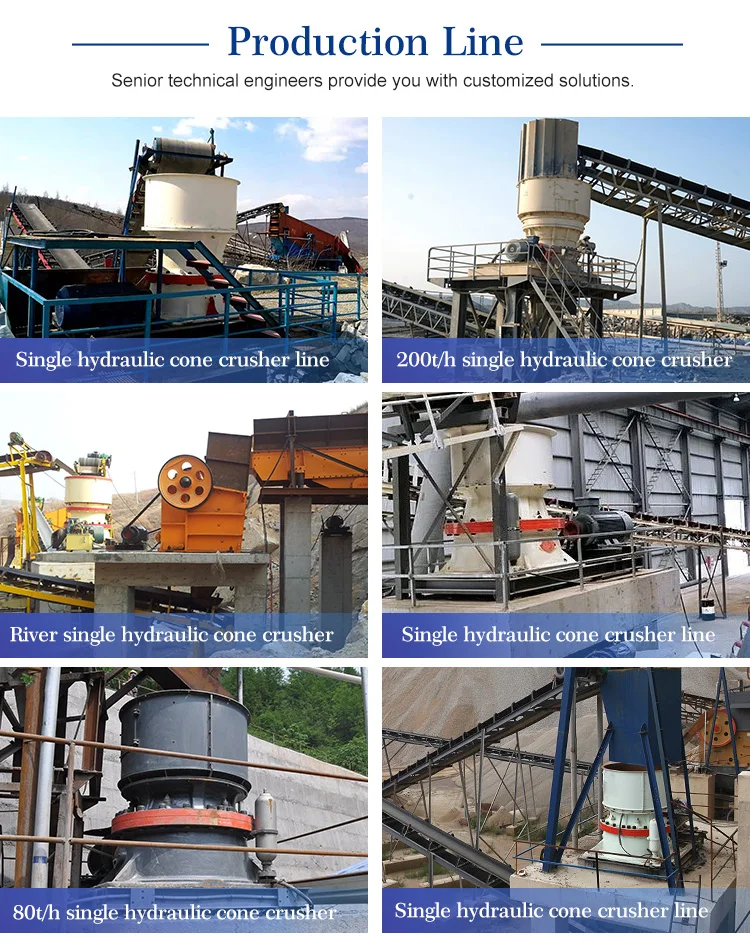

Sand and gravel yards, mining, concrete mixing stations, dry mortar and other fields, used for crushing over 200 kinds of material, including: granite, diabase, basalt, river pebbles, limestone, dolomite, metallic ores and non-metallic ores, etc.

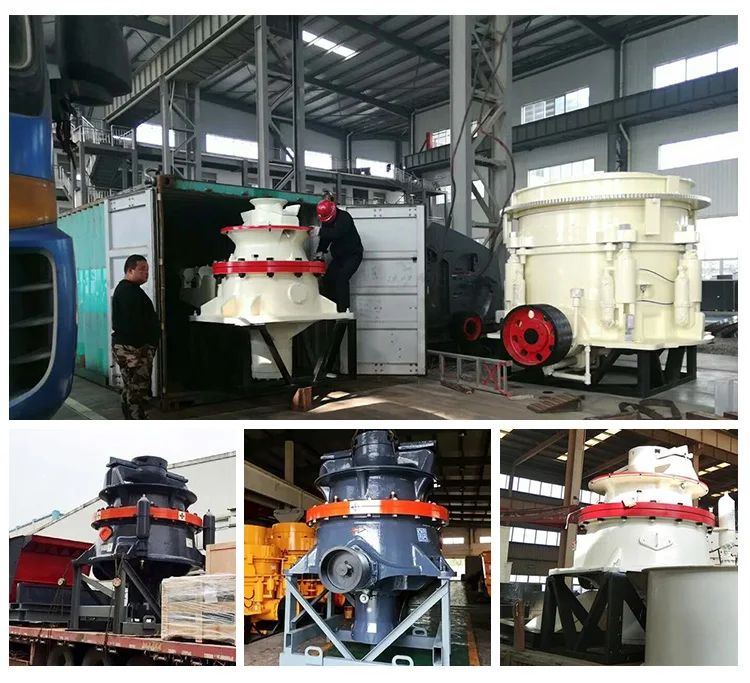

Packing & Delivery
Company Profile
Zhengzhou Sinoma Engineering Technology Co., Ltd. is a large-scale equipment manufacturer that integrates researching & development, production and sales together. Our equipment includes stone crusher, grinding mill machine, VSI sand maker, vibrating screen, ball-mill and cement mill and is widely used in building,mining, cement making, construction area, etc. We are the largest EPC supplier for new aggregate production-line in China.
FAQ
1. What is your payment method?
30% TT in advance, and the rest amount to be paid before goods leave factory by T/T. The other payment methods can also be discussed with our sales manager.
2. How is the device packaged and shipped?
The package is suitable for both land and sea. We can also choose a special package depending on your needs.
3. How long is the production time?
7-10 days for the stock, 15-30 days for immediately production.
4. How long is the warranty? Does your company supply the spare parts?
One year. We supply spare parts for you with lowest price.
5. If I need the complete crushing plant, can you help us to build it?
Yes, we can help you set up a complete production line and give you the best professional design. We had already build many big quarry projects in China & Overseas.
6. What can you buy from us?
Jaw Crusher/Cone Crusher/Vibrating Screen/Sand Making Machine/Mobile Stone Crusher Plant/Vibrating Feeder/Fine Sand Recovery Machine/ Sand Washer Machine/Impact Crusher/Vertical Shaft Impact Crusher/Hammer Crusher/Belt Conveyor/Stone Crushing Plant/Mobile Stone Crusher/Cement making machine/Rotary Kiln /Concrete Mixing Station
